Key Features

Power and Handling

Handling

Standard
  • Axle - Front, twin I-beam
  • Axle - Rear, full float
Optional
  • Front Axle GAWR - 2,268 kgs (5,000 lbs.) upgrade
  • Traction Control

Power

Standard
  • 6.8L Triton V10 with 6-speed Automatic Transmission
  • Transmission - Auxiliary oil cooler
  • Alternator -150-amp (6.2L engine only)
  • Alternator -155-amp (6.8L engine only)
  • Battery - Maintenance-free, 72-amp
  • Auxiliary Fuel Port
  • Engine Block Heater
  • Fuel Tank - 151-litre
  • Modified Vehicle Wiring System and Kit
Optional

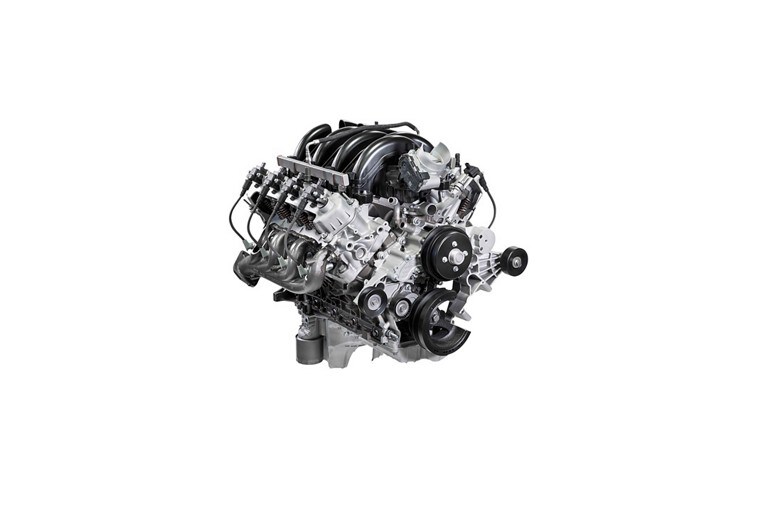

  • 6.2L SFI V8 FFV engine with 6-speed Automatic Transmission
  • Speed Limitation – 105 KM/Hr (65-mph) governed top speed (fleet only)
  • Speed Limitation – 121 KM/Hr (75-mph) governed top speed (fleet only)
  • Driveshaft Upgrade - from 3" to 3 1/2" diameter
  • Alternator -225-amp - Extra-Heavy-Duty (6.8L engine only)
  • Alternator - 240-amp - Extra-Heavy-Duty (6.2L engine only)
  • Heavy-Duty 78-Amp Battery
  • Battery - Dual, Heavy-Duty, 78-amp
  • Integrated Trailer Brake Controller

Wheels & Tires

Standard
  • Tires - LT245/75Rx16E All Season

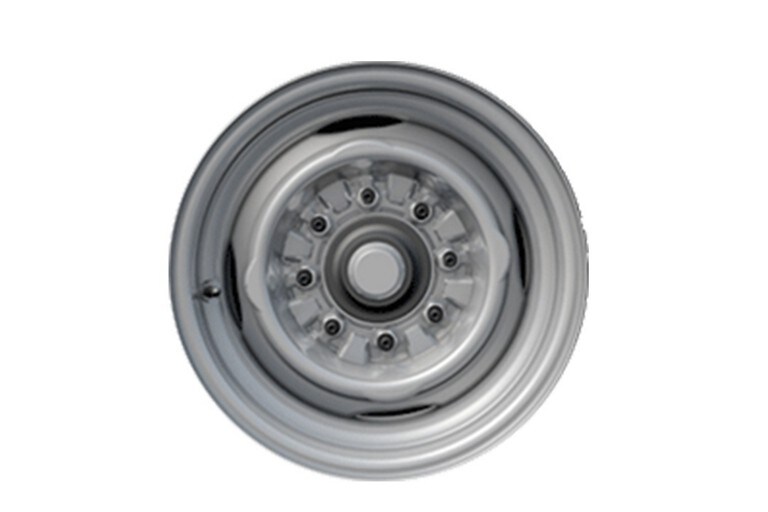

  • 16” x 7” Steel Wheels (Painted Grey)

  • Wheels - Delete spare tire and wheel
  • Wheels - Steel valve stems
Optional
  • 16" x 7" - White-Painted Steel Wheels

  • 16” x 7” Aluminum wheels

  • Tires - Spare tire & wheel

Interior Features

Comfort and Convenience

Standard
  • Front Air Conditioning
  • Front-Door Trim Panels with Integrated Map Compartment

  • Slimline Engine Cover Console
  • Instrument Panel - Colour-keyed with tachometer

  • Powerpoints - Dual 12-volt in instrument panel, single in glove box
  • Sun Visors

  • Vinyl flooring - Front row

  • Step Well Pads - Black plastic

  • Horn - Electric, dual note

  • Lighting - Front dome lamp

  • Windshield Wipers - Interval

Optional
  • Air Conditioning - Delete
  • B-Pillar Trim Kit

  • Engine Console Cover - Delete (Fleet only)

  • Ford Telematics powered by Telogis

  • Cruise Control

  • Electronic Message Centre

  • Power Windows and Locks Group
  • 110V A/C Outlet
  • Upfitter switches

  • Mirror - Inside Day/Night rearview mirror

Entertainment Systems

Standard
  • Electronic AM/FM with Clock and Audio Input Jack

Optional
  • Premium Electronic AM/FM/CD with Clock and Audio Input Jack

  • Ford SYNC®– Voice-Activated Communications and Entertainment System

  • Audio - Delete

  • Audio - 2-speaker prep package

  • Audio - 4-speaker prep package

  • Audio - 4-speaker upgrade

Seating

Standard
  • Seats - Front buckets

Optional
  • Dual Cloth Captain’s Chairs

  • Dual Captain's Chairs (without trim)

  • Driver's side Captain's Chair (without trim)
  • Captain's Chairs - Driver Side Only - Mid Series Cloth

  • 6-way Power Driver Seat adjuster

  • Delete - passenger

  • Manual Pedestal with 2-way Adjuster

  • Power Seat Prep Package (Motorhome / Shuttle Bus)

  • Seat Prep Package - Manual with 2-way Adjuster (Shuttle Bus)
  • Seat Prep Package - Power (Shuttle Bus)

Exterior Features

Appearance

Standard
  • Bumper - Painted black

  • Grille - Black painted

  • Headlights - Dual sealed beam with fixed lens

Optional
  • Bumper - Chrome - front

  • Bumper - Painted white

  • Grille - Chrome

  • Mirrors - Telescopic Trailer Tow - power
  • Mirrors - Telescopic Trailer Tow - manual

  • Door-length Running Boards

  • Front License Plate Bracket

Safety and Security

Safety

Standard
  • Front airbags
  • Airbag - Delete (passenger side)

  • Brakes - 4-Wheel Disc Anti-Lock Braking System (ABS)

  • Safety belts -3-point shoulder/lap belts - all positions

Optional
  • Airbag - Passenger-side Cutoff Switch

Security

Standard
  • Daytime running lights

  • Keys – SecuriLock® Passive Anti-Theft System (PATS)

Optional
  • Remote Keyless entry
  • Back-up Camera

Packages

Packages

Optional
  • CNG / Propane Gaseous Engine Prep Package

  • Enhanced Frontal Area Limitation

  • Interior Upgrade Package
  • Exterior Upgrade Package

  • Trailer Towing Package (Class I)

  • Insulation Package

  • Auxiliary Heater/AC Connector Package

  • Auxiliary Heater/AC Connector Package with Rear Controls

  • Auxiliary Heater Connector Prep Package with Rear Fan Controls

  • Ambulance Prep package

  • Motorhome Prep package

  • Multi Function School Activity Bus Prep package

  • School Bus Prep package

  • Shuttle Bus Prep package
  • Rear frame cross-member - Delete

  • Right hand door - Delete

  • Alternate Lateral Frame Spacers

  • Frame Pucks (Isolators)
  • Standard Pattern Frame

Specifications

Exterior

Exterior Dimensions
E-350 Super Duty® Cutaway (SRW) (mm)
E-350 Super Duty® Cutaway (SRW) (mm)
E-350 Super Duty® Cutaway (DRW) (mm)
E-350 Super Duty® Cutaway (DRW) (mm)
E-350 Super Duty® Cutaway (DRW) (mm)
E-450 Super Duty® Cutaway (DRW) (mm)
E-450 Super Duty® Cutaway (DRW) (mm)
Wheelbase
3505
4013
3505
4013
4470
4013
4470
Overall Length
6124
6632
6124
6632
6632
6632
6632
Overall Height (Loaded)
2042
2040
2040
2037
2035
2032
2032
Overall Width
2017
2017
2410
2410
2410
2410
2410
Front Track
1763
1763
1763
1763
1763
1763
1763
Rear Track
1831
1831
1915
1915
1915
1974
1974
Cab Length
2349
2349
2349
2349
2349
2349
2349
Cab Rear to Rear Axle
2032
2540
2032
2540
2997
2540
2997
Top of Frame to Top of Cab
1382
1382
1382
1382
1382
1483
1483
Rear Axle to End of Frame
1740
1740
1740
1740
1283
1740
1283
Load Height (loaded)
658
658
665
665
665
660
660
Front Overhang
879
879
879
879
879
879
879
Estimated Base Curb Weight
2183 kg (6.2L) / 2206 kg (6.8L)
2201 kg (6.2L) / 2235 kg (6.8L)
2304 kg (6.2L) / 2330 kg (6.8L)
5670 kg (5216 GVWR), 2342 kg (5670 GVWR) (6.2L) / 2365 kg (5216 GVWR), 2338 kg (5670 GVWR) (6.8L)
2351 kg (6.2L) / 2375 kg (6.8L)
2435 kg (6350 GVWR) (6.2L) / 2453 kg (6441 GVWR), 2470 kg (6578 GVWR) (6.8L)
2442 kg (6350 GVWR) (6.2L) / 2484 kg (6441 GVWR), 2467 kg (6578 GVWR) (6.8L)

Interior

Interior Dimensions
E-350 Super Duty® Cutaway (mm)
E-450 Super Duty® Cutaway (mm)
First row Head Room
1068 1068
First row Shoulder room
1729
1729
First row Hip Room
1666
1666
First row max. Leg Room
1069
1069

Capacities

E-350 Super Duty® Cutaway
E-350 Super Duty® Cutaway
E-450 Super Duty® Cutaway
E-450 Super Duty® Cutaway
Seating capacity (std./opt.)
2.1
2.1
2.1
2.1
Fuel capacity (std./opt.)
40 gallon / 55 gallon 151 litres / 208 litres
55 gallon / 40 gallon
208 litres / 151 litres

Engine

Engine type
6.8L Triton® 20-valve V10
6.8L Triton® 20-valve V10
6.2L V8 FFV
6.2L V8 FFV
Engine electronics
EEC-V computer
EEC-V computer
Displacement
415 CID
415 CID
Horsepower (SAE net@rpm)
305@4,250
305@4,250
331@5,500
331@5,500
Torque (lb.-ft. @rpm)
420@3,250
420@3,250
356@4,000
356@4,000
Compression ratio
9.06:1
9.06:1
9.8:1
9.8:1
Bore x stroke (in.)
3.55x4.16
3.55x4.16
4.02x3.74
4.02x3.74
Main bearings
6-bearing
6-bearing
Valvetrain
SOHC, 2 valves per cylinder
SOHC, 2 valves per cylinder SOHC, 2 valves per cylinder
SOHC, 2 valves per cylinder
Valve lifters
Hydraulic roller finger
Hydraulic roller finger
Roller-rocker shafts
Roller-rocker shafts
Fuel delivery
Sequential multiport electronic fuel injection (SEFI)
Sequential multiport electronic fuel injection (SEFI)
Sequential multiport electronic fuel injection (SEFI)
Sequential multiport electronic fuel injection (SEFI)
Electronic throttle control (ETC)
Std
Std
Std
Std
Engine oil cooler
Std
Std
Std
Std
Exhaust
LH-Cast Iron, RH-Stainless Steel
LH-Cast Iron, RH-Stainless Steel

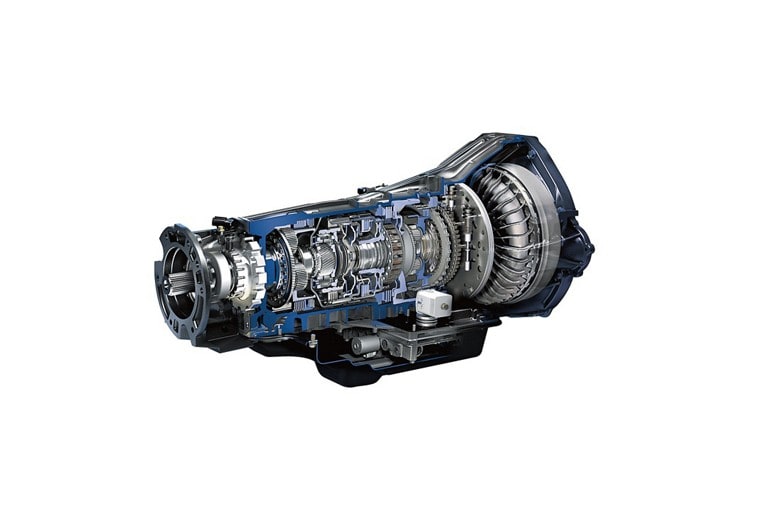

Transmission type
TorqShift® 6-speed automatic overdrive w/Tow Haul
TorqShift® 6-speed automatic overdrive w/Tow Haul
TorqShift® 6-speed automatic overdrive w/Tow Haul
TorqShift® 6-speed automatic overdrive w/Tow Haul
Engine block material
Cast iron
Cast iron
Cast iron
Cast iron
Cylinder head material
Aluminum
Aluminum
8 Aluminum heads
8 Aluminum heads

Chassis

Front suspension

Twin I-beam IFS with computer-selected coil springs and stabilizer bar
Twin I-beam IFS with computer-selected coil springs and stabilizer bar
Rear suspension
Multileaf 2-stage leaf springs/solid axle and rear stabilizer bar (DRW only)
Multileaf 2-stage leaf springs/solid axle and rear stabilizer bar (DRW only)
Front and rear shocks
Heavy-duty gas-pressurized
Heavy-duty gas-pressurized
Brakes
Power 4-wheel disc anti-lock
Power 4-wheel disc anti-lock
Steering
Recirculating ball, power assisted
Recirculating ball, power assisted

Payload Package Selector

CUTAWAY
Engine
Engine
GCWR (kg)
GVWR (kg)
Payload (kg)
E-350 (SRW) 138" Wheelbase
6.8L
6.8L
8391
4559
2350

E-350 (SRW) 138" Wheelbase

6.2L
6.2L
5897
4559
2372
E-350 (DRW) 138" Wheelbase
6.8L
6.8L
8391
5216
2885
E-350 (DRW) 138" Wheelbase
6.2L
6.2L
7711
5216
2912
E-350 (SRW) 158" Wheelbase
6.8L
6.8L
8391
4559
2322
E-350 (SRW) 158" Wheelbase
6.2L
6.2L
5897
4559
2354
E-350 (DRW) 158" Wheelbase
6.8L
6.8L
8391
5216
2849
E-350 (DRW) 158" Wheelbase
6.2L
6.2L
7711
5216
2889
E-350 (DRW) 158" Wheelbase
6.8L
6.8L
8391
5670
3329
E-350 (DRW) 158" Wheelbase
6.2L
6.2L
7711
5670
3325
E-350 (DRW) 176" Wheelbase
6.8L
6.8L
8391
5670
3293
E-350 (DRW) 176" Wheelbase
6.2L
6.2L
7711
5670
3316
E-450 (DRW) 158" Wheelbase
6.2L
6.2L
8164
6350
3915
E-450 (DRW) 176" Wheelbase
6.2L
6.2L
8164
6350
3905
E-450 (DRW) 158" Wheelbase
6.8L
6.8L
9979
*6441/6577
3969/4123
E-450 (DRW) 176" Wheelbase
6.8L
6.8L
9979
*6441/6577
3955/4110
*14200 lb GVWR optional (derated springs)

Highlights

Engine Type
6.8L Triton® 20-valve V10
6.8L Triton® 20-valve V10
6.2L V8 FFV
6.2L V8 FFV
Fuel Capacity
40 / 55 gallon
151/208 litres
40 / 55 gallon
151/208 litres
