Power and Handling

Power

Standard
  • Alternator – 150-amp/hour

  • Auxiliary Fuel Port
  • Battery, Single – 70-amp/hour (Gas Only)
  • 3.7L Ti-VCT V6
  • 6-Speed SelectShift®  automatic transmission
  • Engine Block Heater
  • Fuel Tank – Capless fuel fill, 94.6 litres (midship)
Optional
  • Alternator – Heavy-Duty
  • Battery – Dual Heavy-Duty Batteries.
  • Auxiliary Fuse Panel with High Spec Interface Connector
  • Battery - Single Absorbed Glass Mat
  • Programmable Battery Guard
  • 3.2L I-5 Power Stroke®  Turbo Diesel
  • 3.5L EcoBoost®  V6
  • Manual Regeneration – Requires Diesel Engine
  • Manual Regeneration with Active Regeneration Inhibitor – Requires Diesel Engine
  • Speed Limitation - 105 km/h (FLEET Only)
  • Speed Limitation - 113 km/h (FLEET Only)

  • Speed Limitation - 121 km/h (FLEET Only)

Handling

Standard
  • Wheelbase - RWB (130")
  • GVWR - 3878 kg (8,550 lb.)
  • Steering – Power Rack and Pinion
  • Steering Wheel, – Tilt & telescopic column polyurethane 4-spoke wheel
  • Suspension, Front – Independent MacPherson-strut, stabilizer bar
  • Suspension, Rear – Leaf springs, heavy-duty gas shock absorbers
  • AdvanceTrac® w/ RSC® (Roll Stability Control )
  • Side Wind Stabilization
Optional
  • Wheelbase - LWB (148")
  • Wheelbase - LWB Extended (148")
  • GVWR - 4082 kg (9,000 lb.)
  • GVWR - 4150 kg (9,150 lb.)
  • GVWR - 4196 kg (9,250 lb.)
  • GVWR - 4264 kg (9,400 lb.)
  • GVWR - 4699 kg (10,360 lb.) DRW
  • Trailer Brake Controller (TBC)

Wheels & Tires

Standard
  • Wheels, 16" SRW- Steel Wheel with Black Hubcaps
  • Wheels, 16" Silver Steel DRW – With Exposed Front Lug Nut

  • Wheels, Full-size Spare Tire and Wheel with 4 ton jack
  • Tires, 195/75R16C 107/105 R BSW all-season (DRW)
  • Tires, 235/65R16C 121/119 R BSW all-season (SRW)
Optional
  • Wheels, Steel with Full Black/Silver Wheel Cover (SRW)
  • Wheels, Easy To Clean Styled Aluminum (SRW)
  • Steel Wheel Painted (White) with Black Hubcaps (SRW) (FLEET Only)
  • White DRW Package (FLEET Only)
  • Wheels, DRW Alloy Forged Wheel

Interior Features

Climate

Standard
  • Air Conditioning, Front/Rear (Driver controlled)
Optional
  • Air Conditioning, Auxiliary Heater / AC Prep Package without Rear Controls

Comfort and Convenience

Standard
  • Complete Headliner
  • Console – Centre stack console with integrated shifter
  • Front Overhead Console (excludes Low roof models)
  • Floor Covering, Vinyl, front and rear
  • Glove Box (Locking)
  • Inside Rearview Mirror, Included (When Equipped with Rear Glass)
  • Instrumentation – Tachometre, fuel level and coolant temperature
  • Lighting, Accessory Delay – 30 minute
  • Lighting, Front Dome Light with Map Lights and Theatre Dimming (Standard on Low Roof Only)
  • Lighting, Rear Compartment
  • Daytime Running Lights
  • Passenger A-Pillar Grab Handle
  • Powerpoint, 12V, one in instrument panel, one in centre console, one in rear of vehicle
  • Step well pads – black plastic
  • Sun Visors - Vinyl Trimmed with Illuminated Vanity Mirror (Driver and Passenger)
  • Horn – Dual-note electric
Optional
  • Console – Centre stack console - Delete (FLEET Only)
  • Cruise Control with Message Centre (Full Trip Computer and Engine-Hour Meter).
  • Push Down Manual Parking Brake (Requires RV Prep Package or Builder's Prep Package)
  • Floor Covering, Carpet, full-length
  • Flooring, Front Throw-in Mat
  • Lane Keeping Alert with Driver Alert
  • Power Inverter – 12V to 110V
  • High Capacity Upfitter Switches
  • Reverse Sensing System
  • Windshield Wipers, Rain-Sensing Automatic
  • MyKey®

Entertainment Systems

Standard
  • Audio, AM/FM stereo with audio input jack
  • Audio, 8 Speakers (4 Front / 4 Rear)
Optional
  • Audio, AM/FM stereo, audio input jack, single-CD and 4” multi-function display
  • Audio, AM/FM stereo, audio input jack, 4” multi-function display, single-CD, HD and SIRIUS® SiriusXM capability
  • Audio, AM/FM stereo, 4” multi-function display, single-CD, Message Center, SYNC® with USB port
  • Audio, AM/FM stereo, 4” multi-function display, Message Center, SYNC® with USB port, single-CD, HD and SIRIUS®/SiriusXM capability

  • Audio, AM/FM stereo, SYNC® 3, with Navigation and 6.5" colour multi-function display media hub, HD and SiriusXM Radio capability and Lane Keeping Alert
  • Audio, AM/FM stereo with audio input jack, microphone and Bluetooth® interface

Seating

Standard
  • Seating Capacity, 12-passenger – Standard with Long Wheelbase Passenger Wagon
  • Seating Capacity, 15-passenger – Standard with extended-length Passenger Wagon
  • Seating Capacity, 8-passenger – Standard with Regular Wheelbase Passenger Wagon
  • Seating, Driver and front-passenger manual reclining bucket seats with adjustable headrest
  • Seats - front, Pewter (Grey) Vinyl, 2-way manual (fore/aft/recline) driver and passenger; with inboard driver armrest; driver-side and passenger-side airbags; and Safety Canopy side-curtain airbags
Optional
  • Seating, Manual driver-side lumbar support
  • Seats - front, Charcoal Cloth, 10-way power driver and 2-way manual passenger; with inboard armrests; driver-side and passenger-side airbags; Safety Canopy side-curtain airbags and a heated driver seat
  • Seats - front, Charcoal Cloth, 2-way manual (fore/aft/recline) driver and passenger; with inboard armrests; driver-side and passenger-side airbags; driver-side manual lumbar; and Safety Canopy side-curtain airbags
  • Seats - front, Pewter (Grey) Cloth, 10-way power driver and 2-way manual passenger; with inboard armrests; driver-side and passenger-side airbags; Safety Canopy side-curtain airbags and a heated driver seat
  • Seats - front, Pewter (Grey) Cloth, 2-way manual (fore/aft/recline) driver and passenger; with inboard armrests; driver-side and passenger-side airbags; driver-side manual lumbar; and Safety Canopy side-curtain airbags
  • Seats - front, Pewter (Grey) Vinyl, 2-way manual (fore/aft/recline) driver and passenger; with inboard armrests; driver-side and passenger-side airbags; and Safety Canopy side-curtain airbags
  • Seats (rear), 10-passenger – Optional with Regular Wheelbase
  • Seats (rear), 15-passenger – Standard on Long Wheelbase Extended-Length Passenger Wagon

Exterior Features

Appearance

Standard
  • Roof - Low
  • Audio, Antenna – fender mounted
  • Body Side Mouldings – black
  • Bumper, Front – Black, moulded-in-colour with lower valence
  • Bumper, Rear – Black, moulded-in-colour with integral step (Low Roof)
  • Bumper, Rear – Black, moulded-in-colour without integral step (Medium & High Roof)
  • Doors, 50/50 hinged rear, 180-degree opening (Regular Wheelbase)
  • Doors, 50/50 hinged rear, 237-degree opening (Long Wheelbase)
  • Doors, 60/40 hinged, passenger-side (on all low roof vehicles)
  • Doors, Sliding passenger-side (on all medium and high roof vehicles)

  • Grille, Black with black surround
  • Headlights, Halogen with Black Trim
  • Mirrors Short Arm - Power

  • Roof Marker Lights – Dual Rear Wheel Models Only
Optional
  • Roof - Medium
  • Roof - High
  • Wheel Well Liners (front)
  • Doors, 60/40 hinged passenger-side cargo door (on low-roof vehicles)
  • Front License Plate Bracket
  • Running Board – Sliding passenger side cargo-door only
  • Running Board, Power – Sliding passenger side cargo-door only
  • Running Boards - Extended length (Driver 1st row, Passenger 1st & 2nd row) (LATE AVAILABILITY with Diesel engine)
  • Mirrors Long Arm - Power
  • Mirrors Long Arm - Power Heated with Turn Signals
  • Mirrors Short Arm - Power Folding, Heated with Turn Signals
  • Mirrors Short Arm - Manual (FLEET Only)

Protection

Optional
  • Keyless-Entry Keypad
  • Keys: 2 additional (4 total) with fobs

Windows & Glass

Standard
  • Windows, Windows-All-Around, fixed
  • Windows, Windows-all-Around with 4th row flip-open glass
  • Windows, Tinted Glass
  • Windshield Wipers, Variable interval intermittent
Optional
  • Windows, Windows-all-Around with 2nd row driver-side flip-open glass and fixed 60/40 door glass
  • Windows, Windows-all-Around with 2nd row driver and passenger-side flip-open glass and 4th row flip-open glass
  • Windows, Windows-all-Around with 2nd row driver and passenger-side flip-open glass
  • Windows, Rear-Window Defroster
  • Windows, Privacy Glass

Safety and Security

Safety

Standard
  • Tire Pressure Monitoring System (TPMS) (SRW Only)
  • Driver and Passenger Airbags

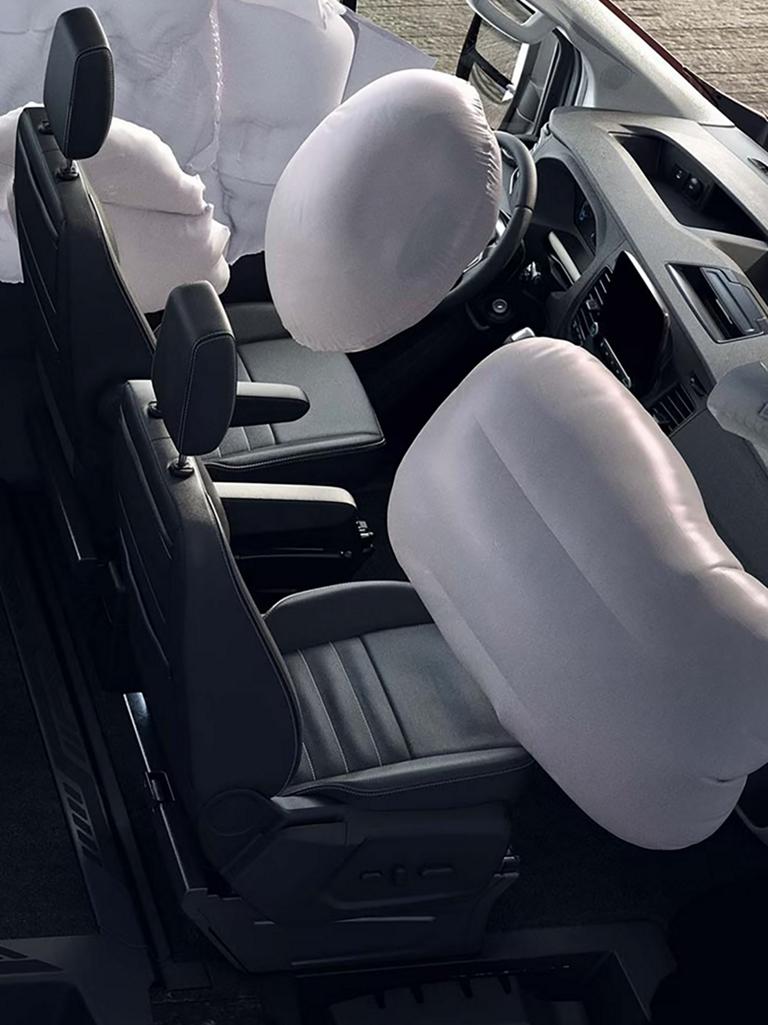

  • Safety Canopy®  Side Curtain Airbags
  • Airbags, Side Airbags
  • Brakes – 4-wheel anti-lock disc brakes
  • Centre High Mount Stop Light (CHMSL)
  • Safety belts – 3-point, all positions
  • Rear View Camera

Security

Standard
  • Door Locks, Auto-Locking Drive Away with Crash Unlocking
  • SOS Post-Crash Alert System (Distress call w/airbag deployment Requires optional SYNC)
  • SecuriLock® Passive Anti-Theft System (PATS) with engine immobilizer.
Optional
  • Back-Up Alarm
  • Perimeter Alarm

Packages

Packages

Standard
  • Power Equipment Group (Power Locks and Windows) with Remote Keyless-Entry
Optional
  • Remote Start
  • Auxiliary Heater Prep Package
  • Builder’s Prep Package
  • Ford Telematics™  powered by Telogis®
  • Engine - CNG/Propane Gaseous Engine Prep Package*.
  • Modified Vehicle Wiring System
  • Smoker’s Package – Cigarette lighter and ash cup
  • Trailer Tow Package, Heavy-Duty
  • Tow/Haul Mode with Trailer Wiring Provisions

Specifications

Exterior

Exterior Dimensions - Cargo Van
Wheelbase (Regular, Long, Long Extended)
Regular
Regular
Long
Long

Long

Long Extended
Cargo Van Transit Cargo Van
Transit Cargo Van
Transit Cargo Van
Transit Cargo Van
Transit Cargo Van
Transit Cargo Van
Roof (Low, Medium, High)
Low
Medium
Low
Medium
High
High
Passenger Capacity (2)
2 2 2 2 2 2
Rows of Seating
1 1 1 1 1 1
[mm]
[mm]
[mm]
[mm]
[mm]
[mm]
Wheelbase
3300 3300 3750 3750 3750 3750
Length
5585 5531 6035 5981 5981 6703
Height
2123 2561 2114 2558 2797 2780
Width - Excluding Mirrors (SRW/DRW)
2066 2066 2066 2066 2066 2066 / 2126
Width - Including Mirrors
2474 2474 2474 2474 2474 2474
Width - Mirrors Folded
2114 2114 2114 2114 2114 2114 / 2126
Front Track (SRW/DRW)
1732 1732 1732 1732 1732 1732 / 1740
Rear Track (SRW/DRW)
1760 1760 1760 1760 1760 1760
Front Overhang
1023 1023 1023 1023 1023 1023
Rear Overhang
1262 1209 1262 1209 1209 1930
Load Height (Curb)
733 733 730 730 730 712
Side Cargo Door Opening Height
1260 1601 1260 1601 1601 1601
Side Cargo Door Opening Width - Hinged
1300 - 1300

-

- -
Side Cargo Door Opening Width - Sliding
1300 1300 1300 1300 1300 1300
Rear Cargo Door Opening Height
1258 1648 1258 1648 1887 1887
Rear Cargo Door Opening Width
1568 1568 1568 1568 1568 1568
Exterior - Passenger Wagon
Wheelbase (Regular, Long, Long Extended)

Regular

Regular Regular Regular Long Long Long Long Long Long Long Extended
Passenger Wagon/ Van

Transit Passenger Wagon

Transit Passenger Wagon
Transit Passenger Wagon
Transit Passenger Wagon
Transit Passenger Wagon
Transit Passenger Wagon
Transit Passenger Wagon
Transit Passenger Wagon
Transit Passenger Wagon
Transit Passenger Wagon
Transit Passenger Wagon
Roof (Low, Medium, High)
Low Low Medium Medium Low Low Medium Medium High High High
Passenger Capacity (8, 10, 12, 15)
8 10 8 10 12 15 12 15 12 15 15
Rows of Seating
3 (2-3-3)
4 (2-2-3-3)
3 (2-3-3)
4 (2-2-3-3)
4 (2-3-3-4)
5 (2-3-3-3-4)
4 (2-3-3-4)
5 (2-3-3-3-4)
4 (2-3-3-4)
5 (2-3-3-3-4)
5 (2-3-3-3-4)
[mm]
[mm]
[mm]
[mm]
[mm]
[mm]
[mm]
[mm]
[mm]
[mm]
[mm]
Wheelbase
3300 3300 3300 3300 3750 3750 3750 3750 3750 3750 3750
Length
5585 5585 5531 5531 6035 6035 5981 5981 5981 5981 6703
Height 2089 2089 2506 2506 2092 2092 2520 2520 2759 2759 2736
Width - Excluding Mirrors (SRW/DRW)
2066 2066 2066 2066 2066 2066 2066 2066 2066 2066 2066
Width - Including Mirrors
2474 2474 2474 2474 2474 2474 2474 2474 2474 2474 2474
Width - Mirrors Folded
2114 2114 2114 2114 2114 2114 2114 2114 2114 2114 2114

Front Track (SRW/DRW)

1732 1732 1732 1732 1732 1732 1732 1732 1732 1732 1732

Rear Track (SRW/DRW)

1760 1760 1760 1760 1760 1760 1760 1760 1760 1760 1760
Front Overhang
1023 1023 1023 1023 1023 1023 1023 1023 1023 1023 1023
Rear Overhang
1262 1262 1208 1208 1262 1262 1262 1262 1208 1208 1930
Load Height (Curb)
717 717 717 717 731 731 731 731 731 731 707
Side Cargo Door Opening Height
1260 1260 1600 1600 1260 1260 1600 1600 1600 1600 1600
Side Cargo Door Opening Width - Hinged
1300 1300 - - 1300 1300 - - - - -
Side Cargo Door Opening Width - Sliding
1300 1300 1300 1300 1300 1300 1300 1300 1300 1300 1300
Rear Cargo Door Opening Height
1192 1192 1595 1595 1192 1192 1595 1595 1834 1834 1834
Rear Cargo Door Opening Width
1520 1520 1520 1520 1520 1520 1520 1520 1520 1520 1520

Interior

Interior Dimensions - Cargo Van
Wheelbase (Regular, Long, Long Extended)
Regular Regular Long Long Long Long Extended
Cargo Van Transit Cargo Van Transit Cargo
 Van

Transit  Cargo Van

Transit Cargo
 Van
Transit Cargo
 Van
Transit Cargo
 Van

Roof (Low, Medium, High)

Low

Medium Low Medium High High
Passenger Capacity (2)
2 2

2

2 2 2
Rows of Seating
1 1 1 1

1

1
[mm] [mm] [mm]
[mm]
[mm]
[mm]
Head Room - First Row
1037 1320 1037 1320 1437 1437
Leg Room - First Row
1049 1049 1049 1049 1049 1049
Hip Room - First Row
1714 1714 1714 1714 1714 1714
Shoulder Room - First Row
1724 1724 1724 1724 1724 1724
Cargo Length Front (at Floor)
3200 3200 3650 3650 3650 4373
Cargo Length Front (at Belt)
2943 2943 3393 3393 3393 4116
Cargo Width Between Wheelhouse (SRW/DRW)
1364 1364 1364 1364 1364 1364
Cargo Height Maximum
1446 1830 1446 1830 2069 2069
Interior Dimensions - Passenger Wagon
Wheelbase (Regular, Long, Long Extended)
Regular Regular Regular Regular Long Long Long Long Long Long Long Extended
Passenger Wagon
Transit Passenger Wagon
Transit Passenger Wagon
Transit Passenger Wagon
Transit Passenger Wagon
Transit Passenger Wagon
Transit Passenger Wagon
Transit Passenger Wagon
Transit Passenger Wagon
Transit Passenger Wagon
Transit Passenger Wagon
Transit Passenger Wagon
Roof (Low, Medium, High)
Low Low Medium Medium Low Low Medium Medium High High High
Passenger Capacity (8, 10, 12, 15)
8 10 8 10 12 15 12 15 12 15 15
Rows of Seating
3 (2-3-3)
4 (2-2-3-3)
3 (2-3-3)
4 (2-2-3-3)
4 (2-3-3-4)
5 (2-3-3-3-4)
4 (2-3-3-4)
5 (2-3-3-3-4)
4 (2-3-3-4)
5 (2-3-3-3-4)
5 (2-3-3-3-4)
[mm]
[mm]
[mm]
[mm]
[mm]
[mm]
[mm]
[mm]
[mm]
[mm]
[mm]
Head Room - First Row
1037 1037 1320 1320 1037 1037 1320 1320 1437 1437 1437
Head Room - Second Row
1045 1045 1417 1417 1045 1045 1417 1417 1656 1656 1656
Head Room - Third Row
1032 1032 1417 1417 1031 1031 1417 1417 1656 1656 1657
Head Room - Fourth Row
- 983 - 1417 983 983 1417 1417 1656 1656 1657
Head Room - Fifth Row
- - - - - 869 - 1199 - 1557 1557
Leg Room - First Row
1049 1049 1049 1049 1049 1049 1049 1049 1049 1049 1049
Leg Room - Second Row
855 855 855 855 855 855 855 855 855 855 855
Leg Room - Third Row
903 903 903 903 903 903 903 903 903 903 903
Leg Room - Fourth Row
- 903 - 903 903 903 903 903 903 903 903
Leg Room - Fifth Row
- - - - - 903 - 903 - 903 903
Hip Room - First Row
1714 1714 1714 1714 1714 1714 1714 1714 1714 1714 1714
Hip Room - Second Row
1767 1767 1767 1767 1767 1767 1767 1767 1767 1767 1767
Hip Room - Third Row
1709 1709 1709 1709 1709 1709 1709 1709 1709 1709 1709
Hip Room - Fourth Row
- 1728 - 1728 1728 1728 1728 1728 1728 1728 1728
Hip Room - Fifth Row
- - - - - 1728 - 1728 - 1728 1728
Shoulder Room - First Row
1724 1724 1724 1724 1724 1724 1724 1724 1724 1724 1724
Shoulder Room - Second Row
1813 1813 1813 1813 1813 1813 1813 1813 1813 1813 1813
Shoulder Room - Third Row
1703 1703 1703 1703 1703 1703 1703 1703 1703 1703 1703

Shoulder Room - Fourth Row

-

1722 - 1722 1722 1722 1722 1722 1722 1722 1722
Shoulder Room - Fifth Row
- - - -

-

1722

-

1722

-

1722 1722
Cargo Length Front (at Floor)
3150 3150 3150 3150 3600 3600 3600 3600 3600 3600 4323
Cargo Length Front (at Belt)
2924 2924 2924 2924 3374 3374 3374 3374 3374 3374 4097
Cargo Width Between Wheelhouse (SRW/DRW)
1364 1364 1364 1364 1364 1364 1364 1364 1364 1364 1364
Cargo Height Maximum
1340 1340 1718 1718 1340 1340 1718 1718 1956 1956 1956

Capacities

Capacities: Passengers, Fuel - Van
Wheelbase (Regular, Long, Long Extended)

Regular

Regular Long Long Long Long Extended
Van Transit Cargo Van
Transit Cargo Van
Transit Cargo Van
Transit Cargo Van
Transit Cargo Van
Transit Cargo Van
Roof (Low, Medium, High)
Low Medium Low Medium High High
Passenger Capacity (2)
2 2 2 2 2 2
Rows of Seating
1 1

1

1 1 1
[L]
[L]
[L]
[L]
[L]
[L]
Cargo Volume Behind First Row (Cargo Van)
6985
8926 7863 10111 11447 13797
Maximum Cargo Volume with Front Passenger Seat Removed (Cargo Van Only)
8072 10301 8949 11486 13002 15353
Capacities: Passengers, Fuel - Passenger Wagon
Wheelbase (Regular, Long, Long Extended)
Regular Regular Regular Regular Long Long Long Long Long Long Long Extended
Passenger Wagon/ Van
Transit Passenger Wagon
Transit Passenger Wagon
Transit Passenger Wagon
Transit Passenger Wagon
Transit Passenger Wagon
Transit Passenger Wagon
Transit Passenger Wagon
Transit Passenger Wagon
Transit Passenger Wagon
Transit Passenger Wagon
Transit Passenger Wagon
Roof (Low, Medium, High)
Low Low Medium Medium Low Low  Medium Medium High High High
Passenger Capacity (8, 10, 12, 15)
8 10 8 10 12 15 12 15 12 15 15
Rows of Seating
3 (2-3-3)
4 (2-2-3-3)
3 (2-3-3)
4 (2-2-3-3)
4 (2-3-3-4)
5 (2-3-3-3-4)
4 (2-3-3-4)
5 (2-3-3-3-4)
4 (2-3-3-4)
5 (2-3-3-3-4)
5 (2-3-3-3-4)
[L]
[L]
[L]
[L]
[L]
[L]
[L]
[L]
[L]
[L]
[L]
Cargo Volume Behind First Row (Passenger Wagon/Van)
6357.13
6034.3
8288.3
7968.3 6940.4 6006 9194.5 8262.8 10514 9579.6 11726
Cargo Volume Behind Second Row (Passenger Wagon)
4298.4 3978.5 5603.9 5283.9 4862 3927.5 6470.4 5535.9 7410.5 6476 8543.2
Cargo Volume Behind Third Row (Passenger Wagon)
2667.4 2667.4 3539.6 3539.6 3525.4

2591

4726.1 3791.6 5380.2 4445.7 6512.8
Cargo Volume Behind Fourth Row (Passenger Wagon)
- 1107.2 - 1466.8 1985 1384.7 2659 2061.4 3029.9 2429.6 5210.3
Cargo Volume Behind Fifth Row (Passenger Wagon)
-

-

- - - 433.2 - 580.5 - 662.6 2845.8

Engine

Engine Specifications

Engine type

3.7L Ti-VCT V6 FFV

3.5L EcoBoost® V6
3.2L I-5 Diesel
Displacement

227/3731

213/3497

195/3198
Horsepower (SAE net @ RPM)
275 @ 6000
310 @ 5500
185 @ 3000
Torque (lb.-ft. @ RPM)
260 @ 4000
400 @ 2500

350 @ 1500 - 2500*

*90% of peak torque available in the 1500 - 2750 RPM range

Compression ratio
10.5:1
10.0:1 15.8:1
Bore x stroke (in.)
3.76 x 3.41
3.64 x 3.41
3.54 x 3.96
Valvetrain
DOHC, 4 valve per cylinder
DOHC, 4 valve per cylinder
DOHC, 4 valve per cylinder
Fuel delivery
Sequential multiport electronic

Direct gasoline injection, dual turbochargers

High pressure common rail direct diesel injection
Transmission type
6-speed automatic Selectshift® with overdrive
6-speed automatic Selectshift® with overdrive
6-speed automatic Selectshift® with overdrive

Engine block material

Aluminum
Aluminum
Cast-iron
Cylinder head material

Aluminum

Aluminum
Aluminum

Chassis

Chassis Specifications
Front suspension
Independent MacPhereson-strut
Rear suspension
Leaf springs
Shocks absorbers
Heavy-duty gas
Brakes
4-wheel anti-lock disc
Steering
Hydraulic Power Rack and Pinion

Towing

Maximum Capabilities - GCWR, Conventional Towing, Payload

Wheelbase [mm]

GVWR [kg]

Engine

Ratio

GCWR [kg]

Max. Conv. Hitch Trailer Tow Cap. [kg]

Payload [kg]

Transit 150, RWB, Low Roof Cargo Van

3300 3901 3.2L 3.31 4808 2177

1488

Transit 150, RWB, Low Roof Cargo Van

3300 3901 3.2L 3.73 6123 3402 1488

Transit 150, RWB, Low Roof Cargo Van

3300 3901 3.5L 3.31 5080 2585 1633

Transit 150, RWB, Low Roof Cargo Van

3300 3901 3.5L 3.73 5715 3221 1633

Transit 150, RWB, Low Roof Cargo Van

3300 3901 3.7L 3.73 4899 2449 1669

Transit 150, RWB, Low Roof Cargo Van

3300 3901 3.7L 4.10 5443 2994 1669

Transit 150, RWB, Medium Roof Cargo Van

3300 3901 3.2L 3.31 4808 2087 1424

Transit 150, RWB, Medium Roof Cargo Van

3300 3901 3.2L 3.73 6123 3402 1424

Transit 150, RWB, Medium Roof Cargo Van

3300 3901 3.5L 3.31 5080 2495 1565

Transit 150, RWB, Medium Roof Cargo Van

3300 3901 3.5L 3.73 5715 3130 1565

Transit 150, RWB, Medium Roof Cargo Van

3300 3901 3.7L 3.73 4899 2359 1610

Transit 150, RWB, Medium Roof Cargo Van

3300 3901 3.7L 4.10 5443 2903 1610

Transit 250, RWB, Low Roof Cargo Van

3300 4082 3.2L 3.31 4808 2177 1669

Transit 250, RWB, Low Roof Cargo Van

3300 4082 3.5L 3.31 5080 2586 1814

Transit 250, RWB, Low Roof Cargo Van

3300 4082

3.5L

3.73 5715 3221 1814

Transit 250, RWB, Low Roof Cargo Van

3300 4082 3.7L 3.73 4899 2449 1851

Transit 250, RWB, Low Roof Cargo Van

3300

4082 3.7L

4.10

5443 2994 1851

Transit 250, RWB, Medium Roof Cargo Van

3300 4082 3.2L 3.31 4808 2087 1569

Transit 250, RWB, Medium Roof Cargo Van

3300 4082 3.2L 3.73 6123 3402 1569

Transit 250, RWB, Medium Roof Cargo Van

3300 4082 3.5L 3.31 5080

2495

1746

Transit 250, RWB, Medium Roof Cargo Van

3300 4082 3.5L 3.73 5715 3130 1746

Transit 250, RWB, Medium Roof Cargo Van

3300 4082 3.7L 3.73 4899 2359 1792

Transit 250, RWB, Medium Roof Cargo Van

3300 4082 3.7L 4.10 5443 2903 1792

Transit 350, RWB, Low Roof  Cargo Van

3300 4309 3.5L 3.31 5080

2585

2041
Transit 350, RWB, Low Roof Cargo Van
3300 4309 3.5L 3.73 5715 3221 2041

Transit 350, RWB, Low Roof Cargo Van

3300 4309 3.7L 3.31 4899 2449

2077

Transit 350, RWB, Low Roof Cargo Van

3300 4309 3.7L 4.10 5443 2994 2077

Transit 350, RWB, Medium Roof Cargo Van

3300 4309 3.5L 3.31 5080 2495 1973

Transit 350, RWB, Medium Roof Cargo Van

3300 4309 3.5L 3.73 5715 3130 1973

Transit 350, RWB, Medium Roof Cargo Van

3300 4309 3.7L 3.31 4899 2359 2018

Transit 350, RWB, Medium Roof Cargo Van

3300 4309 3.7L 4.10 5443 2903 2018

Transit 150, LWB, Low Roof Cargo Van

3750 3901 3.2L 3.31 4808 2087 1429

Transit 150, LWB, Low Roof Cargo Van

3750 3901 3.2L 3.73 6123 3402 1429

Transit 150, LWB, Low Roof Cargo Van

3750 3901 3.5L 3.31 5080 2540 1579

Transit 150, LWB, Low Roof Cargo Van

3750 3901 3.5L 3.73 5715 3175 1579

Transit 150, LWB, Low Roof Cargo Van

3750 3901 3.7L 3.73 4899

2359

1610

Transit 150, LWB, Low Roof Cargo Van

3750 3901 3.7L 4.10 5443 2903 1610

Transit 150, LWB, Medium Roof Cargo Van

3750 3901 3.2L 3.31 4808 2041 1370

Transit 150, LWB, Medium Roof Cargo Van

3750 3901 3.2L 3.73 6123 3356 1370

Transit 150, LWB, Medium Roof Cargo Van

3750 3901 3.5L 3.31 5080 2449 1510

Transit 150, LWB, Medium Roof Cargo Van

3750 3901 3.5L 3.73 5715 3084 1510

Transit 150, LWB, Medium Roof Cargo Van

3750 3901 3.7L 3.73 4899 2313 1542

Transit 150, LWB, Medium Roof Cargo Van

3750 3901 3.7L 4.10 5443 2858 1542

Transit 250, LWB, High Roof Cargo Van

3750

4082 3.2L 3.31 4808 1996 1510

Transit 250, LWB, High Roof Cargo Van

3750 4082 3.2L 3.73 6123 3311 1510

Transit 250, LWB, High Roof Cargo Van

3750 4082 3.5L 3.31 5080 2404 1642

Transit 250, LWB, High Roof Cargo Van

3750 4082 3.5L 3.73 5715 3039 1642

Transit 250, LWB, High Roof Cargo Van

3750 4082 3.7L 4.10 5443 2812 1687

Transit 250, LWB, Low Roof Cargo Van

3750 4082 3.2L 3.31 4808 2087 1610

Transit 250, LWB, Low Roof  Cargo Van

3750 4082 3.2L 3.73 6123 3402 1610

Transit 250, LWB, Low Roof Cargo  Van

3750 4082 3.5L 3.31 5080 2540 1737

Transit 250, LWB, Low Roof Cargo  Van

3750 4082 3.5L 3.73 5715 3175 1737

Transit 250, LWB, Low Roof  Cargo Van

3750 4082 3.7L 3.73 4899 2359 1792

Transit 250, LWB, Low Roof Cargo Van

3750 4082 3.7L 4.10 5443 2903 1792

Transit 250, LWB, Medium Roof Cargo Van

3750 4082 3.2L 3.31 4808 2041 1551

Transit 250, LWB, Medium Roof Cargo Van

3750 4082 3.2L 3.73 6123 3356 1551

Transit 250, LWB, Medium Roof Cargo Van

3750 4082 3.5L 3.31 5080 2449 1692

Transit 250, LWB, Medium Roof Cargo Van

3750 4082 3.5L 3.73 5715 3084 1692

Transit 250, LWB, Medium Roof Cargo Van

3750 4082 3.7L 3.73 4899 2313 1724

Transit 250, LWB, Medium Roof Cargo Van

3750 4082 3.7L 4.10 5443 2858 1724

Transit 250, LWB-E, High Roof Cargo Van

3750 4082 3.2L 3.31 4808 1905 1424

Transit 250, LWB-E, High Roof Cargo Van

3750 4082 3.2L 3.73 6123 3221 1424

Transit 250, LWB-E, High Roof Cargo Van

3750 4082 3.5L 3.31 5080 2313 1556

Transit 250, LWB-E, High Roof Cargo Van

3750 4082 3.5L 3.73 5715 2948 1556

Transit 250, LWB-E, High Roof Cargo Van

3750 4082 3.7L 4.10 5443 2722 1592

Transit 350, LWB, Low Roof Cargo Van

3750 4196 3.2L 3.31 4808 2087 1724

Transit 350, LWB, Low Roof Cargo Van

3750 4196 3.2L 3.73 6123 3402 1724

Transit 350, LWB, Low Roof Cargo Van

3750 4309 3.5L 3.31 5080 2540 1987

Transit 350, LWB, Low Roof Cargo Van

3750 4309 3.5L 3.73 5715 3175 1987

Transit 350, LWB, Low Roof Cargo Van

3750 4309 3.7L 3.73 4899 2359 2018

Transit 350, LWB, Low Roof Cargo Van

3750 4309 3.7L 4.10 5443 2903 2018

Transit 350, LWB, Medium Roof Cargo Van

3750 4196 3.2L 3.31 4808 2041 1665

Transit 350, LWB, Medium Roof Cargo Van

3750 4196 3.2L 3.73 6123 3356 1665

Transit 350, LWB, Medium Roof Cargo Van

3750 4309 3.5L 3.31 5080 2449 1919

Transit 350, LWB, Medium Roof Cargo Van

3750 4309 3.5L 3.73 5715 3084 1919

Transit 350, LWB, Medium Roof Cargo Van

3750 4309 3.7L 3.73 4899 2313

1950

Transit 350, LWB, Medium Roof Cargo Van

3750 4309 3.7L 4.10 5443 2858

1950

Transit 350, LWB, High Roof Cargo Van

3750 4309 3.5L 3.31 5080 2404 1869

Transit 350, LWB, High Roof Cargo Van

3750 4309 3.5L 3.73 5715 3039 1869

Transit 350, LWB, High Roof Cargo Van

3750 4309

3.7L

4.10 5443 2812 1914

Transit 350, LWB, High Roof Cargo Van

3750 4196

3.2L

3.31 4808 1996 1624

Transit 350, LWB, High Roof Cargo Van

3750 4196 3.2L 3.73 6123 3311 1624

Transit 350, LWB-E, High Roof Cargo Van

3750 4309 3.2L 3.31 4808 1905 1651

Transit 350, LWB-E, High Roof Cargo Van

3750 4309 3.2L 3.73 6123 3221 1651

Transit 350, LWB-E, High Roof Cargo Van

3750 4309 3.5L 3.31 5080 2313

1783

Transit 350, LWB-E, High Roof Cargo Van

3750 4309 3.5L 3.73 5715 2948 1783

Transit 350, LWB-E, High Roof Cargo Van

3750 4309 3.7L 4.10 5443 2722 1819

Transit 350HD, LWB-E, High Roof Cargo Van

3750 4491 3.5L 3.31 5080 2223 1873

Transit 350HD, LWB-E, High Roof Cargo Van

3750 4491 3.7L 4.10 5080 2268 1901

Transit 350HD, LWB-E, High Roof Cargo Van

3750 4491 3.2L 3.73 6123 3130 1742

Transit 350HD, LWB-E, High Roof Cargo Van

3750 4513 3.2L 3.31 4808 1814 1764
Transit 350HD, LWB-E, High Roof  Cargo Van
3750 4513 3.2L 3.73 6123 3130 1764
Transit 350HD, LWB-E, High Roof Cargo Van
3750 4513 3.5L 3.31 5080 2223 1896
Transit 350HD, LWB-E, High Roof Cargo Van
3750 4513 3.5L 3.73 5897 3039 1896
Transit 350HD, LWB-E, High Roof Cargo Van
3750 4513 3.7L 4.10 5080 2268 1923
Transit 350HD, LWB-E, High Roof Cargo Van
3750 4699 3.2L 3.31 4808 1814 1950
Transit 350HD, LWB-E, High Roof Cargo Van
3750 4699 3.2L 3.73 6123 3130 1950
Transit 350HD, LWB-E, High Roof Cargo Van
3750 4699 3.5L 3.31 5080 2223 2081
Transit 350HD, LWB-E, High Roof Cargo Van
3750 4699 3.5L 3.73 5897 3039 2081
Transit 350HD, LWB-E, High Roof Cargo Van
3750 4699 3.7L 4.10 5080 2268

2109

Passenger Wagon

Wheelbase [mm]
GVWR [kg]
Engine
Ratio
GCWR [kg]
Max. Conv. Hitch Trailer Tow Cap. [kg]
Payload [kg]
Transit 150, RWB, Low Roof Passenger Wagon (8 pass.)
3300
3878
3.5L
3.31 5080 2313 1329
Transit 150, RWB, Low Roof Passenger Wagon (8 pass.)
3300 3878 3.5L 3.73 5080 2313 1329
Transit 150, RWB, Low Roof Passenger Wagon (8 pass.)
3300 3878 3.7L 3.73 4899 2132 1361
Transit 150, RWB, Low Roof Passenger Wagon (10 pass.)
3300 3878 3.5L 3.31 5080 2268 1279
Transit 150, RWB, Low Roof Passenger Wagon (10 pass.)
3300 3878 3.5L 3.73 5080 2268 1279
Transit 150, RWB, Low Roof Passenger Wagon (10 pass.)
3300 3878 3.7L 3.73 4899 2087 1315
Transit 150, RWB, Medium Roof Passenger Wagon (8 pass.)
3300 3878 3.5L 3.31 5080 2223 1243
Transit 150, RWB, Medium Roof Passenger Wagon (8 pass.)
3300 3878 3.5L 3.73 5080 2223 1243
Transit 150, RWB, Medium Roof Passenger Wagon (8 pass.)
3300 3878 3.7L 3.73 4899 2041 1270
Transit 150, RWB, Medium Roof Passenger Wagon (10 pass.)
3300 3878 3.5L 3.31 5080 2177 1193
Transit 150, RWB, Medium Roof Passenger Wagon (10 pass.)

3300

3878 3.5L 3.73 5080 2177 1193
Transit 150, RWB, Medium Roof Passenger Wagon (10 pass.)
3300
3878 3.7L 3.73 4899 1996 1220
Transit 350, LWB, Low Roof Passenger Wagon (12 pass.)
3750 4196 3.2L 3.31 4808 1724 1320
Transit 350, LWB, Low Roof Passenger Wagon (12 pass.)
3750 4196 3.2L 3.73 5080 1996 1320
Transit 350, LWB, Low Roof Passenger Wagon (15 pass.)
3750 4196 3.2L 3.31 4808 1633 1238
Transit 350, LWB, Low Roof Passenger Wagon (15 pass.)
3750 4196 3.2L 3.73 5080 1905 1238
Transit 350, LWB, Low Roof Passenger Wagon (12 pass.)
3750 4082 3.5L 3.31 5080 2087 1333

Transit 350, LWB, Low Roof Passenger Wagon (12 pass.)

3750 4082 3.5L 3.73 5080 2087 1333
Transit 350, LWB, Low Roof Passenger Wagon (12 pass.)
3750 4082 3.7L 3.73 4899 1950 1351
Transit 350, LWB, Low Roof Passenger Wagon (12 pass.)
3750 4082 3.7L 4.10 5080 2132 1351
Transit 350, LWB, Low Roof Passenger Wagon (15 pass.)
3750 4082 3.5L 3.31 5080 2041 1252

Transit 350, LWB, Low Roof Passenger Wagon (15 pass.)

3750 4082 3.5L 3.73 5080 2041 1252
Transit 350, LWB, Low Roof Passenger Wagon (15 pass.)
3750 4082 3.7L 3.73 4899 1860 1270
Transit 350, LWB, Low Roof Passenger Wagon (15 pass.)
3750 4082 3.7L 4.10 5080 2041 1270
Transit 350, LWB, Medium Roof Passenger Wagon
3750 4082 3.5L 3.31 5080 2041 1265
Transit 350, LWB, Medium Roof Passenger Wagon
3750 4082 3.5L 3.73 5080 2041 1265
Transit 350, LWB, Medium Roof Passenger Wagon
3750 4082 3.7L 3.73 4899 1860 1292
Transit 350, LWB, Medium Roof Passenger Wagon
3750 4082 3.7L 4.10 5080 2041

1292

Transit 350, LWB, Medium Roof Passenger Wagon
3750 4150 3.5L 3.31 5080 1950 1261
Transit 350, LWB, Medium Roof Passenger Wagon
3750 4150 3.7L 3.73 4899 1814 1283
Transit 350, LWB, Medium Roof Passenger Wagon
3750 4150 3.7L 4.10 5080 1996 1283
Transit 350, LWB, Medium Roof Passenger Wagon
3750 4196 3.2L 3.31 4808 1633 1238
Transit 350, LWB, Medium Roof Passenger Wagon
3750 4196 3.2L 3.73 5080 1905 1238
Transit 350, LWB, Medium Roof Passenger Wagon
3750 4264 3.2L 3.31 4808 1542 1225
Transit 350, LWB, Medium Roof Passenger Wagon
3750 4264 3.2L 3.73 5080 1814 1225
Transit 350, LWB, High Roof Passenger Wagon
3750 4150 3.5L 3.31 5080 1905 1211
Transit 350, LWB, High Roof Passenger Wagon
3750 4150 3.7L 4.10 5080 1950 1247
Transit 350, LWB, High Roof Passenger Wagon
3750 4264 3.2L 3.31 4808 1497 1184
Transit 350, LWB, High Roof Passenger Wagon
3750 4264 3.2L 3.73 5080 1769 1184
Transit 350, LWB, High Roof Passenger Wagon
3750 4082 3.5L 3.31 5080 1996 1225

Transit 350, LWB, High Roof Passenger Wagon

3750 4082 3.5L 3.73 5080 1996 1225
Transit 350, LWB, High Roof Passenger Wagon
3750 4082 3.7L 4.10 5080 2041 1256
Transit 350, LWB, High Roof Passenger Wagon
3750 4196 3.2L 3.31 4808 1588 1197
Transit 350, LWB, High Roof Passenger Wagon
3750 4196 3.2L 3.73 5080 1860 1197
Transit 350HD, LWB-E, High Roof Passenger Wagon (15 pass.)
3750 4699 3.2L 3.73 5080 1588 1433
Transit 350HD, LWB-E, High Roof Passenger Wagon (15 pass.)
3750 4699 3.5L 3.73 5080 1724 1579

Transit 350HD, LWB-E, High Roof Passenger Wagon (15 pass.)

3750 4699 3.7L 4.10 4747 1406 1597

Highlights

Vehicle Highlights
Fuel Capacity
94.6 litres (midship)
Drive Type
4x2

Available Engines

Horsepower

Torque

3.7L Ti-VCT V6 FFV

275 hp @ 6000 RPM

260 lb.-ft. @ 4000 RPM

3.5L EcoBoost® V6

310 hp @ 5500 RPM

400 lb.-ft. @ 2500 RPM

3.2L Power Stroke® I5 Turbo Diesel

185 hp @ 3000 RPM

350 lb.-ft. @ 1500 - 2500 RPM

Transmission

6-Speed Automatic  SelectShift® with Overdrive

Wheelbase

3300 mm (150, 250 SRW)

3750 mm (150, 250, 350 SRW)

3750 mm extended (250, 350 SRW / 350HD DRW)

Maximum Payload
2,109 kg. (3750 mm ext. Cargo Van 350HD with 3.5L)
Maximum GVWR
4699 kg. (350HD DRW)
Warranty

Basic Coverage: 3 years / 60,000 km

Powertrain: 5 years / 100,000 km

Diesel powertrain: 5 years/160,000 km

Safety Restraint System: 5 years / 100,000 km

Corrosion (Perforation Only): 5 years / Unlimited km

Roadside Assistance Program: 5 years / 100,000 km

Postal Code



Update
Go Further

Your browser is not supported

Click one of the below icons to start the browser download.

Enter your mobile information below
@
Number invalid. Please try again.
Please select a carrier.
Thank you.

By entering your mobile phone number, you expressly consent to receive a text message on your mobile phone. Standard messaging and data plan rates may apply.
