KEY FEATURES

Individual Tire Pressure Monitoring System (TPMS)

The Individual Tire Pressure Monitoring System (TPMS) is available on the F-350^® series Chassis Cab. It allows the driver to see from inside the cab the tire pressure for all tires.

Close-up of the touchscreen showing the upfit system with a person making a selection on the screen

Ford Pro^™ Upfit Integration System

The 2024 Ford Super Duty^® Chassis Cab capability starts with a strong foundation. The Ford Pro Upfit Integration System helps simplify the upfitting process.

Worker using a tablet while a 2024 Ford Super Duty® Chassis Cab with flatbed upfit is parked in the background

5G Wi-Fi Capability

Stay connected, even as you roam. The 2024 Super Duty^® Chassis Cab offers embedded standard 5G Wi-Fi.¹²⁴ The Wi-Fi hotspot can connect up to 10 devices.¹²⁵

Power and Handling

Power

Standard

Engine - 6.7L Power Stroke^® V8 Turbo Diesel Engine
TorqShift^® 10-Speed Automatic Transmission with Selectable Drive Modes
Operator Commanded Regeneration (OCR) with Active Regeneration Inhibit (Diesel Engine)
Alternators - Dual, 410-amp Total (Standard with Diesel)

Optional

Engine Block Heater Standard on 6.7L Diesel, Optional on 7.3L
Fuel Tank - 100 Litre Mid Ship (NA w/193" WB Regular Cabs & 203" WB Crew Cabs equipped w/gas engines)
Fuel Tank - 151 Litre Aft-Axle Dual Diesel – combines 151 litre aft-of-axle & 100 litre mid-ship tank (DRW only; 6.7L Diesel Engine only) (Dual fuel fill on driver's side)
Pro Power Onboard – 2KW

Handling

Standard

Axle - Mono-Beam Front Axle with Coil Spring Suspension - (F-350 4X4, F-450, F-550 and F-600)
Brakes - 4-Wheel Power Disc Brakes with Anti-Lock Brake System (ABS); Vacuum-Boost (SRW)
Hill Start Assist
AdvanceTrac^® with Roll Stability Control^™ (RSC^®)
Trailer Sway Control
Stationary Elevated Idle Control (SEIC)
Shock Absorbers - Heavy-Duty Gas
Stabilizer Bar - Front and Rear
Steering - Power
Steering Damper
Integrated Trailer Brake Controller
Transfer Case - Electronic Shift-On-the-Fly (ESOF) 4-Wheel-Drive System (4x4 Models Only)
Live Drive Power Takeoff Provision with Mobile and Stationary PTO Modes

Optional

Programmable Engine Idle Shutdown

Tires

Standard

245/70Rx19.5G BSW A/P

Optional

245/70Rx19.5 BSW Traction (Includes 6 Traction Tires)
245/70Rx19.5 BSW Traction (Includes 4 Traction Tires on Rear and 2 A/P Tires on Front)
Spare Tire & Wheels (Excludes Carrier; Includes Hydraulic Jack)
Hydraulic Jack (3-ton – F-350 SRW / 4-ton – F-350 DRW / 6-ton F-450, F-550 & F-600)

Interior Features

Climate

Standard

Air Conditioning - Manual Temperature Control
Rapid-Heat Supplemental Cab Heater (Diesel Only)

Comfort and Convenience

Standard

Dash-Top Tray
Dome Lamp - Door-Activated Instrument Panel Switch Operated with Delay
Floor Covering - Colour Coordinated Carpet
Floor Mats - Colour Coordinated Carpet (Includes Rear Mats on SuperCab and Crew Cab)
Grab Handles - Driver and Front Passenger
Headliner - Colour Coordinated Cloth
Instrumentation with Tachometer and Message Centre
Instrument Cluster - 4.2" Productivity Screen
Centre Stack - 8" Screen
Map Lights - Dual (Front and Rear with Crew Cab)
Power Equipment - Accessory Delay
Power Equipment - Power Door Locks and Windows
Powerpoint - 12v, Auxiliary
Powerpoint - 110-volt/400-watt A/C Power Inverter - Dash Mounted
Audible Lane Departure Warning
Pre-Collision Assist with Automatic Emergency Braking (AEB), Forward Collision Warning and Automatic High-Beams
Cruise Control
Steering Wheel - Audio Controls
Steering Wheel - Black Moulded Polyurethane
Colour-Coordinated w/ glove box
Storage - Front Seat Centre Armrest Compartment (40/60/40 Seats Only)
Sun Visors - Colour-Coordinated Cloth, Single Driver with Mirror Insert, Single Passenger with Mirror Insert
Tilt/Telescoping Steering Wheel
Upfitter Switches (6)
Windshield Wipers - Interval Control

Optional

Power-Adjustable Pedals
Carpet Delete
Remote Start System
Ford Pro Upfit Integration System
Exterior Back-Up Alarm
Speed Limitation - 105 km/h Governed Top Speed (Fleet Only)
Speed Limitation - 121 km/h Governed Top Speed (Fleet Only)
Interior Work Surface

Entertainment Systems

Standard

Audio – FM Stereo, (4 Speakers regular cab, 7 speakers Super Cab and Crew Cab)
5G Wi-Fi Modem
SiriusXM^®
SYNC^® 4

Seating

Standard

Front, High Series Cloth 40/20/40 Split Bench, with Centre Armrest, Cupholders, and Driver Manual Lumbar
Medium Dark Slate Interior Environment

Exterior Features

Appearance

Standard

Wheels - 19.5 X 6.75" Argent-Painted Steel (DRW)
Bumpers, Front - Chrome Steel with Grained MIC Top Cover
Door Handles - Black
Quad Beam Jewel Effect Halogen Headlamps
Grille - Bright Chrome Two-Bar with Black Accent
Manual Telescoping, Folding Trailer Tow Mirrors with Power/Heated Glass, Heated Convex Spotter Mirror, Integrated Clearance Lamps/Turn Signals
LED Roof Clearance Lamps
Tow Hooks - (2) Front, Black
Splash Guards

Optional

Wheels - 19.5 X 6.75" Forged Polished Aluminum
Platform Running Boards
Automatic High-Beams
Fog Lamps Halogen
Utility Lighting System - LED Side-Mirror Spotlights
PowerScope^® Telescoping Trailer Tow Mirrors

Protection

Optional

360-Degree Dual Beacon LED Warning Strobes (Amber)
360-Degree Dual Beacon LED Warning Strobes (Amber/White)
Skid Plates, Transfer Case (4x4)

Windows & Glass

Standard

Glass - Rear, Privacy (Fleet Only on XL)
Window - Rear, Fixed

Optional

Window - Power Sliding Rear with Privacy Glass and Defrost (Fleet Only on XL)

Safety

Standard

Front-Seat and Passenger-Side Airbags
Front-Seat Side Airbags
Safety Canopy^® System with Roll-Fold Side-Curtain Airbags
Belt-Minder^®, Chime and Flashing Warning Light on Instrument Cluster if Belts not Buckled
Child Tethers
Seat Belts - Colour Coordinated with Height Adjustment (Front Outboard Seating Positions Only)
SOS Post Crash Alert System

Optional

Rear View Camera Prep Kit

Security

Standard

Tire Pressure Monitoring System (Excludes Spare)
Remote Keyless Entry (Fleet Only on XL)
SecuriLock^® Passive Anti-Theft System (PATS)
Autolamp (Auto On/Off Headlamps) with Rainlamp Wiper Activated Headlamps

Packages

Specifications

Highlights

Vehicle Highlights
	Available Engines	Horsepower	Torque	Transmission	Available Drive Types
F-350/F-450/F-550/F-600	7.3L 2V DEVCT NA PFI V8 Gas Engine	335 @ 3,750 rpm	468 @ 3,750 rpm	TorqShift^® 10-speed Automatic Transmission with selectable drive modes	4x2/4x4
F-350/F-450/F-550	6.7L 4-Valve Power Stroke^® Diesel V8 (B20) Engine	330 @ 2,200 rpm	950 @ 1,800 rpm	TorqShift^® 10-speed Automatic Transmission with selectable drive modes	4x2/4x4

Fuel Capacity
F-350 SRW w/68D Payload Downgrade Pkg.	100 Litre
F-350 SRW/F-350 DRW/F-450/F-550/F-600; N/A w/ 68D Payload Downgrade Pkg. on F-350 SRW	151 Litre
DRW - dual diesel tanks	252 Litre


Towing & Payload
	kg
Maximum Payload - F-600 DRW 4x2	6,899
Maximum GVWR - F-600 DRW 4x2/4x4	9,979
Maximum GCWR - F-550 DRW 4x2/4x4	18,144



Available Wheelbases
Cab Size	Regular Cab	Regular Cab	Regular Cab	Regular Cab	SuperCab	SuperCab	SuperCab	Crew Cab	Crew Cab	Crew Cab	Crew Cab
Wheelbase	145"	169"	193"	205"	168"	192"	192"	180"	180"	204"	204"
Cab to Axle (CA)	60" CA	84" CA	108" CA	120" CA	60" CA	84" CA	84" CA	60" CA	60" CA	84" CA	84" CA
Warranty
	Basic: 3 years/60,000 km
	Powertrain - Gas Engine: 5 years/100,000 km
	Powertrain - Diesel Engine: 5 years/160,000 km
	Corrosion (Perforation only): 5 years/Unlimited
	Roadside Assistance Program: 5 years/100,000 km
	Safety Restraint: 5 years/100,000 km

Vehicle Highlights
	Available Engines	Horsepower	Torque	Transmission	Available Drive Types
F-350/F-450/F-550/F-600	7.3L 2V DEVCT NA PFI V8 Gas Engine	335 @ 3,750 rpm	468 @ 3,750 rpm	TorqShift^® 10-speed Automatic Transmission with selectable drive modes	4x2/4x4
F-350/F-450/F-550	6.7L 4-Valve Power Stroke^® Diesel V8 (B20) Engine	330 @ 2,200 rpm	950 @ 1,800 rpm	TorqShift^® 10-speed Automatic Transmission with selectable drive modes	4x2/4x4

Fuel Capacity
F-350 SRW w/68D Payload Downgrade Pkg.	28 Gallon
F-350 SRW/F-350 DRW/F-450/F-550/F-600; N/A w/ 68D Payload Downgrade Pkg. on F-350 SRW	40 Gallon
DRW - dual diesel tanks	68 Gallon


Towing & Payload
	lbs.
Maximum Payload - F-600 DRW 4x2	15,210
Maximum GVWR - F-600 DRW 4x2/4x4	22,000
Maximum GCWR - F-550 DRW 4x2/4x4	43,500



Available Wheelbases
Cab Size	Regular Cab	Regular Cab	Regular Cab	Regular Cab	SuperCab	SuperCab	SuperCab	Crew Cab	Crew Cab	Crew Cab	Crew Cab
Wheelbase	145"	169"	193"	205"	168"	192"	192"	180"	180"	204"	204"
Cab to Axle (CA)	60" CA	84" CA	108" CA	120" CA	60" CA	84" CA	84" CA	60" CA	60" CA	84" CA	84" CA
Warranty
	Basic: 3 years/36,000 miles
	Powertrain - Gas Engine: 5 years/60,000 miles
	Powertrain - Diesel Engine: 5 years/100,000 miles
	Corrosion (Perforation only): 5 years/Unlimited
	Roadside Assistance Program: 5 years/60,000 miles
	Safety Restraint: 5 years/60,000 miles

Exterior

Exterior Dimensions	Regular Cab	Regular Cab	Regular Cab	Regular Cab	Regular Cab	Regular Cab	Regular Cab	Regular Cab	SuperCab	SuperCab	SuperCab	SuperCab	Crew Cab	Crew Cab	Crew Cab	Crew Cab
	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
Cab to Axle	1,524	1,524	2,133.6	2,133.6	2,743	2,743	3,048	3,048	1,524	1,524	2,133.6	2,133.6	1,524	1,524	2,133.6	2,133.6
Drivetrain	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4
Wheelbase	3,690.62	3,690.62	4,300	4,300.22	4,909.82	4,909.82	5,214.62	5,214.62	4,264.66	4,264.66	4,874.26	4,874.26	4,566.92	4,566.92	5,176.52	5,176.52
Length – overall	5,860/6,934*	5,860/6,934*	6,452/7,295**	6,452/7,295**	7,081.52	7,081.52	7,383.78	7,383.78	6,433.82	6,433.82	7,045.96	7,045.96	6,736.08	6,736.08	7,345.68	7,345.68
Height – F-350 SRW (Curb Weight)	2,001.52	2,080.26	-	-	-	-	-	-	2,009.14	2,082.8	-	-	2,011.68	2,085.34	-	-
Height – F-350 DRW (Curb Weight)	2,006.6	2,082.8	1,998.98	2,085.34	-	-	-	-	2,014.22	2,090.42	-	-	2,016.76	2,092.96	-	-
Height – F-450 DRW (Curb Weight)	2,092.96	2,095.5	2,095.5	2,090.42	2,092.96	2,087.88	2,087.88	2,090.42	2,098.04	2,100.58	2,098.04	2,092.96	2,103.12	2,100.58	2,098.04	2,095.5
Height – F-550 DRW (Curb Weight)	2,100.58	2,095.5	2,118.36	2,118.36	2,098.04	2,092.96	2,092.96	2,090.42	2,098.04	2,100.58	2,098.04	2,098.04	2,103.12	2,100.58	2,100.58	2,100.58
Height – F-600 DRW (Curb Weight)	2,120.9	2,118.36	2,115.82	2,110.74	2,110.74	2,108.2	2,110.74	2,103.12	-	-	-	-	-	-	-	-
Track - front – F-350 SRW	1,734.82	1,734.82	-	-	-	-	-	-	1,734.82	1,734.82	-	-	1,734.82	1,734.82	-	-
Track - front – F-350 DRW	1,755.14	1,755.14	1,755.14	1,755.14	-	-	-	-	1,755.14	1,755.14	-	-	1,755.14	1,755.14	-	-
Track - front – F-450 DRW	1,899.92	1,899.92	1,899.92	1,899.92	1,899.92	1,899.92	1,899.92	1,899.92	1,899.92	1,899.92	1,899.92	1,899.92	1,899.92	1,899.92	1,899.92	1,899.92
Track - front – F-550 DRW	1,899.92	1,899.92	1,899.92	1,899.92	1,899.92	1,899.92	1,899.92	1,899.92	1,899.92	1,899.92	1,899.92	1,899.92	1,899.92	1,899.92	1,899.92	1,899.92
Track - front – F-600 DRW	1,892.3	1,892.3	1,892.3	1,892.3	1,892.3	1,892.3	1,892.3	1,892.3	-	-	-	-	-	-	-	-
Track - rear – F-350 SRW	1,729.74	1,729.74	-	-	-	-	-	-	1,729.74	1,729.74-	-	-	1,729.74	1,729.74	-	-
Track Center Width - (Rear) – F-350 DRW	1,805.94	1,805.94	1,805.94	1,805.94	1,805.94	-	-	-	1,805.94	1,805.94	-	-	1,805.94	1,805.94	-	-
Track Center Width - (Rear) – F-450 DRW	1,879.6	1,879.6	1,879.6	1,879.6	1,879.6	1,879.6	1,879.6	1,879.6	1,879.6	1,879.6	1,879.6	1,879.6	1,879.6	1,879.6	1,879.6	1,879.6
Track Center Width - (Rear) – F-550 DRW	1,879.6	1,879.6	1,879.6	1,879.6	1,879.6	1,879.6	1,879.6	1,879.6	1,879.6	1,879.6	1,879.6	1,879.6	1,879.6	1,879.6	1,879.6	1,879.6
Track Center Width - (Rear) – F-600 DRW	1,879.6	1,879.6	1,879.6	1,879.6	1,879.6	1,879.6	1,879.6	1,879.6	-	-	-	-	-	-	-	-
Minimum Running Ground Clearance F-350 SRW	236.22	241.3	-	-	-	-	-	-	243.84	251.46	-	-	246.38	254	-	-
Minimum Running Ground Clearance F-350 DRW	236.22	243.84	246.38	256.54	-	-	-	-	243.84	215.9	-	-	243.84	248.92	-	-
Minimum Running Ground Clearance F-450 DRW	256.54	248.92	256.54	248.92	261.62	264.16	259.08	264.16	254	243.84	256.54	259.08	248.92	251.46	259.08	261.62
Minimum Running Ground Clearance F-550 DRW	256.54	256.54	256.54	259.08	269.24	264.16	269.24	264.16	254	254	266.7	259.08	248.92	251.46	259.08	259.08
Minimum Running Ground Clearance F-600 DRW	309.88	302.26	297.18	292.1	297.18	289.56	297.18	287.02	-	-	-	-	-	-	-	-
Front (Front Bumper to C/L Front Axle)	972.82	972.82	972.82	972.82	972.82	972.82	972.82	972.82	972.82	972.82	972.82	972.82	972.82	972.82	972.82	972.82
Frame Rail Width – F-350 SRW	866.14	866.14	-	-	-	-	-	-	866.14	866.14	-	-	866.14	866.14	-	-
Frame Rail Width – F-350 DRW	866.14	866.14	866.14	866.14	866.14	-	-	-	866.14	866.14	-	-	866.14	866.14	-	-
Frame Rail Width – F-450 DRW	868.68	868.68	868.68	868.68	868.68	868.68	868.68	868.68	868.68	868.68	868.68	868.68	868.68	868.68	868.68	868.68
Frame Rail Width – F-550 DRW	868.68	868.68	868.68	868.68	868.68	868.68	868.68	868.68	868.68	868.68	868.68	868.68	868.68	868.68	868.68	868.68
Frame Rail Width – F-600 DRW	868.68	868.68	868.68	868.68	868.68	868.68	868.68	868.68	-	-	-	-	-	-	-	-
Rear Axle to End of Frame	1,199/2,271*	1,199/2,271*	1,199/2,022**	1,199/2,022**	1,198.88	1,198.88	1,198.88	1,198.88	1,198.88	1,198.88	1,198.88	1,198.88	1,198.88	1,198.88	1,198.88	-

* 89.4" with optional Aft-Axle frame extension (F-450, F-550, F-600)
** 79.6" with optional Aft-Axle frame extension (F-550, F-600)

Exterior Dimensions	Regular Cab	Regular Cab	Regular Cab	Regular Cab	Regular Cab	Regular Cab	Regular Cab	Regular Cab	SuperCab	SuperCab	SuperCab	SuperCab	Crew Cab	Crew Cab	Crew Cab	Crew Cab
	in.	in.	in.	in.	in.	in.	in.	in.	in.	in.	in.	in.	in.	in.	in.	in.
Cab to Axle	60	60	84	84	108	108	120	120	60	60	84	84	60	60	84	84
Drivetrain	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4
Wheelbase	145.3	145.3	169.3	169.3	193.3	193.3	205.3	205.3	167.9	167.9	191.9	191.9	179.8	179.8	203.8	203.8
Length – overall	230.7/273.0*	230.7/273.0*	254.8/287.2**	254.8/287.2**	278.8	278.8	290.7	290.7	253.3	253.3	277.4	277.4	265.2	265.2	289.2	289.2
Height – F-350 SRW (Curb Weight)	78.8	81.9	-	-	-	-	-	-	79.1	82	-	-	79.2	82.1	-	-
Height – F-350 DRW (Curb Weight)	79	82	78.7	82.1	-	-	-	-	79.3	82.3	-	-	79.4	82.4	-	-
Height – F-450 DRW (Curb Weight)	82.4	82.5	82.5	82.3	82.4	82.2	82.2	82.3	82.6	82.7	82.6	82.4	82.8	82.7	82.6	82.5
Height – F-550 DRW (Curb Weight)	82.7	82.5	83.4	83.4	82.6	82.4	82.4	82.3	82.6	82.7	82.6	82.6	82.8	82.7	82.7	82.7
Height – F-600 DRW (Curb Weight)	83.5	83.4	83.3	83.1	83.1	83	83.1	82.8	-	-	-	-	-	-	-	-
Track - front – F-350 SRW	68.3	68.3	-	-	-	-	-	-	68.3	68.3	-	-	68.3	68.3	-	-
Track - front – F-350 DRW	69.1	69.1	69.1	69.1	-	-	-	-	69.1	69.1	-	-	69.1	69.1	-	-
Track - front – F-450 DRW	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8
Track - front – F-550 DRW	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8
Track - front – F-600 DRW	74.5	74.5	74.5	74.5	74.5	74.5	74.5	74.5	-	-	-	-	-	-	-	-
Track - rear – F-350 SRW	68.1	68.1	-	-	-	-	-	-	68.1	68.1	-	-	68.1	68.1	-	-
Track Center Width - (Rear) – F-350 DRW	71.1	71.1	71.1	71.1	71.1	-	-	-	71.1	71.1	-	-	71.1	71.1	-	-
Track Center Width - (Rear) – F-450 DRW	74	74	74	74	74	74	74	74	74	74	74	74	74	74	74	74
Track Center Width - (Rear) – F-550 DRW	74	74	74	74	74	74	74	74	74	74	74	74	74	74	74	74
Track Center Width - (Rear) – F-600 DRW	74	74	74	74	74	74	74	74	-	-	-	-	-	-	-	-
Minimum Running Ground Clearance F-350 SRW	9.3	9.5	-	-	-	-	-	-	9.6	9.9	-	-	9.7	10	-	-
Minimum Running Ground Clearance F-350 DRW	9.3	9.6	9.7	10.1	-	-	-	-	9.6	8.5	-	-	9.6	9.8	-	-
Minimum Running Ground Clearance F-450 DRW	10.1	9.8	10.1	9.8	10.3	10.4	10.2	10.4	10	9.6	10.1	10.2	9.8	9.9	10.2	10.3
Minimum Running Ground Clearance F-550 DRW	10.1	10.1	10.1	10.2	10.6	10.4	10.6	10.4	10	10	10.5	10.2	9.8	9.9	10.2	10.2
Minimum Running Ground Clearance F-600 DRW	12.2	11.9	11.7	11.5	11.7	11.4	11.7	11.3	-	-	-	-	-	-	-	-
Front (Front Bumper to C/L Front Axle)	38.3	38.3	38.3	38.3	38.3	38.3	38.3	38.3	38.3	38.3	38.3	38.3	38.3	38.3	38.3	38.3
Frame Rail Width – F-350 SRW	34.1	34.1	-	-	-	-	-	-	34.1	34.1	-	-	34.1	34.1	-	-
Frame Rail Width – F-350 DRW	34.1	34.1	34.1	34.1	34.1	-	-	-	34.1	34.1	-	-	34.1	34.1	-	-
Frame Rail Width – F-450 DRW	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2
Frame Rail Width – F-550 DRW	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2
Frame Rail Width – F-600 DRW	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2	-	-	-	-	-	-	-	-
Rear Axle to End of Frame	47.2/89.4*	47.2/89.4*	47.2/79.6**	47.2/79.6**	47.2	47.2	47.2	47.2	47.2	47.2	47.2	47.2	47.2	47.2	47.2	-

* 89.4" with optional Aft-Axle frame extension (F-450, F-550, F-600)
** 79.6" with optional Aft-Axle frame extension (F-550, F-600)

Base Curb Weight

		Regular Cab	Regular Cab	Regular Cab	Regular Cab	Regular Cab	Regular Cab	Regular Cab	Regular Cab	SuperCab	SuperCab	SuperCab	SuperCab	Crew Cab	Crew Cab	Crew Cab	Crew Cab
		mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
Cab to Axle		1,524	1,524	2,133.6	2,133.6	2,743	2,743	3,048	3,048	1,524	1,524	2,133.6	2,133.6	1,524	1,524	2,133.6	2,133.6
Drivetrain		4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4
		kg.	kg.	kg.	kg.	kg.	kg.	kg.	kg.	kg.	kg.	kg.	kg.	kg.	kg.	kg.	kg.
Base Curb Weight – F350 SRW 18" Wheels (lbs)	6.7L	2,767	3,003	-	-	-	-	-	-	3,017	3,229	-	-	3,114	3,259	-	-
Base Curb Weight – F350 SRW 18" Wheels (lbs)	7.3L	2,492	2,697	-	-	-	-	-	-	2,686	2,882	-	-	2,749	2,938	-	-
Base Curb Weight – F350 DRW (lbs)	6.7L	2,980	3,157	3,026	3,207	-	-	-	-	3,177	3,358	-	-	3,211	3,392	-	-
Base Curb Weight – F350 DRW (lbs)	7.3L	2,673	2,827	2,708	2,890	-	-	-	-	2,859	3,035	-	-	2,899	3,081	-	-
Base Curb Weight – F450 DRW (lbs)	7.3L	2,996	3,111	3,004	3,173	3,071	3,259	3,134	3,274	3,173	3,310	3,215	3,354	3,205	3,356	3,256	3,392
Base Curb Weight – F450 DRW (lbs)	6.7L	3,343	3,439	3,325	3,486	3,396	3,595	3,456	3,607	3,465	3,629	3,541	3,689	3,205	3,695	3,631	3,721
Base Curb Weight – F550 DRW (lbs)	7.3L	2,996	3,111	3,004	3,173	3,071	3,259	3,134	3,274	3,173	3,310	3,215	3,354	3,205	3,356	3,256	3,392
Base Curb Weight – F550 DRW (lbs)	6.7L	3,343	3,439	3,325	3,486	3,396	3,595	3,456	3,607	3,465	3,629	3,541	3,689	3,205	3,695	3,631	3,721
Base Curb Weight – F550+ DRW (lbs)	7.3L	-	-	3,051	3,213	3,129	3,280	3,145	3,325	3,169	3,338	3,240	3,389	3,242	3,383	3,279	3,441
Base Curb Weight – F550+ DRW (lbs)	6.7L	3,425	3,387	3,387	3,519	3,460	3,599	3,471	3,630	3,513	3,663	3,579	3,711	3,575	3,713	3,613	3,759
Base Curb Weight – F600 DRW (lbs)	7.3L	3,078	3,233	3,149	3,279	3,147	3,298	3,228	3,364	-	-	-	-	-	-	-	-
Base Curb Weight – F600 DRW (lbs)	6.7L	3,409	3,532	3,462	3,582	3,465	3,646	3,570	3,658	-	-	-	-	-	-	-	-

		Regular Cab	Regular Cab	Regular Cab	Regular Cab	Regular Cab	Regular Cab	Regular Cab	Regular Cab	SuperCab	SuperCab	SuperCab	SuperCab	Crew Cab	Crew Cab	Crew Cab	Crew Cab
		in.	in.	in.	in.	in.	in.	in.	in.	in.	in.	in.	in.	in.	in.	in.	in.
Cab to Axle		60	60	84	84	108	108	120	120	60	60	84	84	60	60	84	84
Drivetrain		4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4
		lbs.	lbs.	lbs.	lbs.	lbs.	lbs.	lbs.	lbs.	lbs.	lbs.	lbs.	lbs.	lbs.	lbs.	lbs.	lbs.
Base Curb Weight – F350 SRW 18" Wheels (lbs)	6.7L	6,100	6,620	-	-	-	-	-	-	6,652	7,119	-	-	6,865	7,185	-	-
Base Curb Weight – F350 SRW 18" Wheels (lbs)	7.3L	5,494	5,494	-	-	-	-	-	-	5,922	6,353	-	-	6,061	6,478	-	-
Base Curb Weight – F350 DRW (lbs)	6.7L	6,570	6,960	6,671	7,071	-	-	-	-	7,005	7,403	-	-	7,078	7,478	-	-
Base Curb Weight – F350 DRW (lbs)	7.3L	5,893	6,233	5,971	6,371	-	-	-	-	6,304	6,690	-	-	6,392	6,792	-	-
Base Curb Weight – F450 DRW (lbs)	7.3L	6,606	6,858	6,623	6,996	6,771	7,185	6,909	7,219	6,996	7,298	7,087	7,394	7,066	7,398	7,178	7,478
Base Curb Weight – F450 DRW (lbs)	6.7L	7,369	7,582	7,330	7,686	7,488	7,925	7,620	7,952	7,640	8,000	7,806	8,132	7,066	8,146	8,006	8,204
Base Curb Weight – F550 DRW (lbs)	7.3L	6,606	6,858	6,623	6,996	6,771	7,185	6,909	7,219	6,996	7,298	7,087	7,394	7,066	7,398	7,178	7,478
Base Curb Weight – F550 DRW (lbs)	6.7L	7,369	7,582	7,330	7,686	7,488	7,925	7,620	7,952	7,640	8,000	7,806	8,132	7,066	8,146	8,006	8,204
Base Curb Weight – F550+ DRW (lbs)	7.3L	-	-	6,726	7,083	6,899	7,231	6,934	7,330	6,987	7,359	7,144	7,471	7,147	7,459	7,230	7,586
Base Curb Weight – F550+ DRW (lbs)	6.7L	7,550	7,468	7,468	7,759	7,629	7,934	7,652	8,003	7,744	8,075	7,890	8,181	7,882	8,186	7,966	8,288
Base Curb Weight – F600 DRW (lbs)	7.3L	6,786	7,128	6,942	7,230	6,939	7,271	7,117	7,416	-	-	-	-	-	-	-	-
Base Curb Weight – F600 DRW (lbs)	6.7L	7,516	7,786	7,633	7,896	7,638	8,039	7,871	8,064	-	-	-	-	-	-	-	-

Interior

Interior Dimensions
	Regular Cab	SuperCab	Crew Cab
	mm	mm	mm
Front
Head room	1,036.3	1,036.3	1,036.3
Shoulder room	1,694.2	1,694.2	1,694.2
Hip room	1,587.5	1,587.5	1,587.5
Leg room	1,115.1	1,115.1	1,115.1

Rear
Head room	-	1,023.6	1,026.2
Shoulder room	-	1,679.0	1,673.9
Hip room	-	1,590.0	1,590.0
Leg room	-	850.9	1,107.4

Volumes	(L)	(L)	(L)
Passenger – total	1,829.3	3,284.8	3,732.2
Cargo – behind first row	328.5	894.8	1,475.3

Interior Dimensions
	Regular Cab	SuperCab	Crew Cab
	in.	in.	in.
Front
Head room	40.8	40.8	40.8
Shoulder room	66.7	66.7	66.7
Hip room	62.5	62.5	62.5
Leg room	43.9	43.9	43.9

Rear
Head room	-	40.3	40.4
Shoulder room	-	66.1	65.9
Hip room	-	62.6	62.6
Leg room	-	33.5	43.6

Volumes	(cu. ft.)	(cu. ft.)	(cu. ft.)
Passenger – total	64.6	116.0	131.8
Cargo – behind first row	11.6	31.6	52.1

Capacities

Seating and Fuel Capacities
	Regular Cab	SuperCab	Crew Cab
Maximum seating capacity	3	6	6

Mid Ship Fuel Tank Capacity (F-350 SRW w/ 9,800 or 10,000 GVWR packages)	100.3 Litre	100.3 Litre	100.3 Litre
Aft-of-Axle Fuel Tank Capacity (F-350 SRW w/ Standard GVWR, all DRW models)	151.4 Litre	151.4 Litre	151.4 Litre
Dual diesel tanks (optional on XL and XLT w/ Diesel engine)	251.7 Litre	251.7 Litre	251.7 Litre

Seating and Fuel Capacities
	Regular Cab	SuperCab	Crew Cab
Maximum seating capacity	3	6	6

Mid Ship Fuel Tank Capacity (F-350 SRW w/ 9,800 or 10,000 GVWR packages)	26.5 Gallons	26.5 Gallons	26.5 Gallons
Aft-of-Axle Fuel Tank Capacity (F-350 SRW w/ Standard GVWR, all DRW models)	40 Gallons	40 Gallons	40 Gallons
Dual diesel tanks (optional on XL and XLT w/ Diesel engine)	66.5 Gallons	66.5 Gallons	66.5 Gallons

Engine

Engine Specifications
	6.7L Power Stroke^® V8 Turbo Diesel	7.3L 2V DEVCT NA PFI V8 Gas
Configuration	OHV (32-valve)	OHV (16-valve)
Fuel injection	High-Pressure Common-Rail	Sequential Electronic
Engine control system	Electronic	Electronic
Induction system	Variable Geometry Turbocharger; with charge air cooler	Specially tuned
Battery	Dual 12-volt; 750-cca/68-amp-hr	12-volt; 750-cca/78-amp-hr
Alternator	-	250-amp (XL)
	410-amp dual (XL, XLT/LARIAT)	410-amp dual (XLT/LARIAT)
Cooling system	Pressurized series flow	Pressurized series flow
Oil life monitor	Intelligent Oil Life Monitor^®	Oil Life Monitor^®
Cylinders	8	8
Cylinder head	Aluminum	Aluminum
Block material	Compacted graphite iron	Cast Iron
Valve operation	Push rod/rocker arms	Push rod/rocker arms
Camshaft drive	Gear	Silent chain
Bore	99.1 mm	107.2 mm
Stroke	108 mm	101 mm
Compression ratio	15.2:1	10.5:1
Horsepower/rpm	330 @ 2,200	335 @ 3,750
Torque lb.-ft./rpm	950 @ 1,800	468 @ 3,750
(1) Certified to SAE J1349.

Engine Specifications
	6.7L Power Stroke^® V8 Turbo Diesel	7.3L 2V DEVCT NA PFI V8 Gas
Configuration	OHV (32-valve)	OHV (16-valve)
Fuel injection	High-Pressure Common-Rail	Sequential Electronic
Engine control system	Electronic	Electronic
Induction system	Variable Geometry Turbocharger; with charge air cooler	Specially tuned
Battery	Dual 12-volt; 750-cca/68-amp-hr	12-volt; 750-cca/78-amp-hr
Alternator	-	250-amp (XL)
	410-amp dual (XL, XLT/LARIAT)	410-amp dual (XLT/LARIAT)
Cooling system	Pressurized series flow	Pressurized series flow
Oil life monitor	Intelligent Oil Life Monitor^®	Oil Life Monitor^®
Cylinders	8	8
Cylinder head	Aluminum	Aluminum
Block material	Compacted graphite iron	Cast Iron
Valve operation	Push rod/rocker arms	Push rod/rocker arms
Camshaft drive	Gear	Silent chain
Bore	3.90"	4.22"
Stroke	4.25"	3.98"
Compression ratio	15.2:1	10.5:1
Horsepower/rpm	330 @ 2,200	335 @ 3,750
Torque lb.-ft./rpm	950 @ 1,800	468 @ 3,750
(1) Certified to SAE J1349.

Chassis

Suspension - Front
Chassis Specifications
FRONT SUSPENSION
Type	Twin-I-Beam (F-350 4x2)
	Solid Twin-Coil Monobeam axle (F-350 4x4, F-450/F-550/F-600)
Max. Front GAWR	3,402 kg.
Springs	Coil
Shock absorbers	Gas type
Stabilizer bar	Standard

REAR SUSPENSION
Type	Solid axle
Max. Rear GAWR	7,030 kg.
Springs	Leaf
Shock absorbers	Gas type
Stabilizer bar	Standard

STEERING
Assist	Power Hydraulic
BRAKES
Type	4-wheel vented-disc ABS (standard)
Front (rotor diameter)	363 mm F-250/ F-350
	391 mm F-450
Rear (rotor diameter)	363 mm F-250/ F-350
	400 mm F-450/F-550/F-600
WHEELS
Type	Steel or aluminum
Size	17" DRW
	18" SRW (F-350)
	19.5x6.00" (F-450/F-550)
	19.5x6.75" (F-600)
Number of studs	8 (F-350)
	10 (F-450/F-550/F-600)
Bolt-circle diameter	170 mm F-350 SRW
	200 mm F-350 DRW
	225 mm F-450/F-550/F-600

Suspension - Front
Chassis Specifications
FRONT SUSPENSION
Type	Twin-I-Beam (F-350 4x2)
	Solid Twin-Coil Monobeam axle (F-350 4x4, F-450/F-550/F-600)
Max. Front GAWR	7,500 lbs.
Springs	Coil
Shock absorbers	Gas type
Stabilizer bar	Standard

REAR SUSPENSION
Type	Solid axle
Max. Rear GAWR	15,500 lbs.
Springs	Leaf
Shock absorbers	Gas type
Stabilizer bar	Standard

STEERING
Assist	Power Hydraulic
BRAKES
Type	4-wheel vented-disc ABS (standard)
Front (rotor diameter)	14.29" F-250/ F-350
	15.39" F-450
Rear (rotor diameter)	14.29" F-250/ F-350
	15.75" F-450/F-550/F-600
WHEELS
Type	Steel or aluminum
Size	17" DRW
	18" SRW (F-350)
	19.5x6.00" (F-450/F-550)
	19.5x6.75" (F-600)
Number of studs	8 (F-350)
	10 (F-450/F-550/F-600)
Bolt-circle diameter	6.7" F-350 SRW
	7.87" F-350 DRW
	8.86" F-450/F-550/F-600

Transmission Specifications

Transmission Specifications
Transmission Type	TorqShift^® 10-speed Automatic Transmission with selectable drive modes
Case material	aluminum
Power Takeoff	Drivers Side
Gear ratios	10

Transmission Specifications
Transmission Type	TorqShift^® 10-speed Automatic Transmission with selectable drive modes
Case material	aluminum
Power Takeoff	Drivers Side
Gear ratios	10

Conventional Towing

Conventional Towing - Maximum Available Loaded Trailer Weight Ratings
	Regular Cab	Regular Cab	Regular Cab	Regular Cab
Engine with Automatic Transmission	F-350 4x2/4x4 (kg.)	F-450 4x2/4x4 (kg.)	F-550 4x2/4x4 (kg.)	F-600 4x2/4x4 (kg.)
7.3L Gas V8	7,574/7,394	7,938/7,938	8,391/8,391	8,391/8,391
6.7L Power Stroke^® Turbo Diesel	7,938/7,938	7,938/7,938	8,391/8,391	8,391/8,391
	SuperCab	SuperCab	SuperCab
	F-350 4x2/4x4 (kg.)	F-450 4x2/4x4 (kg.)	F-550 4x2/4x4 (kg.)
7.3L Gas V8	7,394/7,212	7,938/7,938	8,391/8,391
6.7L Power Stroke^® Turbo Diesel	7,938/7,938	7,938/7,938	8,391/8,391
	Crew Cab	Crew Cab	Crew Cab
	F-350 4x2/4x4 (kg.)	F-450 4x2/4x4 (kg.)	F-550 4x2/4x4 (kg)
7.3L Gas V8	7,348/7,167	7,938/7,938	8,391/8,391
6.7L Power Stroke^® Turbo Diesel	7,938/7,938	7,938/7,938	8,391/8,391

Conventional Towing - Maximum Available Loaded Trailer Weight Ratings
	Regular Cab	Regular Cab	Regular Cab	Regular Cab
Engine with Automatic Transmission	F-350 4x2/4x4 (lbs.)	F-450 4x2/4x4 (lbs.)	F-550 4x2/4x4 (lbs.)	F-600 4x2/4x4 (lbs.)
7.3L Gas V8	16,700/16,300	17,500/17,500	18,500/18,500	18,500/18,500
6.7L Power Stroke^® Turbo Diesel	17,500/17,500	17,500/17,500	18,500/18,500	18,500/18,500
	SuperCab	SuperCab	SuperCab
	F-350 4x2/4x4 (lbs.)	F-450 4x2/4x4 (lbs.)	F-550 4x2/4x4 (lbs.)
7.3L Gas V8	16,300/15,900	17,500/17,500	18,500/18,500
6.7L Power Stroke^® Turbo Diesel	17,500/17,500	17,500/17,500	18,500/18,500
	Crew Cab	Crew Cab	Crew Cab
	F-350 4x2/4x4 (lbs.)	F-450 4x2/4x4 (lbs.)	F-550 4x2/4x4 (lbs.)
7.3L Gas V8	16,200/15,800	17,500/17,500	18,500/18,500
6.7L Power Stroke^® Turbo Diesel	17,500/17,500	17,500/17,500	18,500/18,500

5th Wheel and Gooseneck Towing

5th Wheel / Gooseneck Towing - Maximum available Loaded Trailer Weight Ratings
	Regular Cab	Regular Cab	Regular Cab	Regular Cab
Engine with Automatic Transmission	F-350 4x2/4x4 (kg.)	F-450 4x2/4x4 (kg.)	F-550 4x2/4x4 (kg.)	F-600 4x2/4x4 (kg.)
7.3L Gas V8	7,530/7,394	10,160/10,070	10,160/10,024	10,750/10,614
6.7L Power Stroke^® Turbo Diesel	12,020/11,839	11,884/11,748	15,649/15,604	15,830/15,694
	SuperCab	SuperCab	SuperCab
	F-350 4x2/4x4 (kg.)	F-450 4x2/4x4 (kg.)	F-550 4x2/4x4 (kg.)
7.3L Gas V8	7,348/7,167	9,979/9,843	9,979/9,843
6.7L Power Stroke^® Turbo Diesel	11,793/11,612	11,748/11,567	15,513/15,331
	Crew Cab	Crew Cab	Crew Cab
	F-350 4x2/4x4 (kg.)	F-450 4x2/4x4 (kg.)	F-550 4x2/4x4 (kg.)
7.3L Gas V8	7,303/7,121	9,979/9,798	9,934/9,798
6.7L Power Stroke^® Turbo Diesel	11,793/11,612	11,703/11,521	15,422/15,286

5th Wheel / Gooseneck Towing - Maximum available Loaded Trailer Weight Ratings
	Regular Cab	Regular Cab	Regular Cab	Regular Cab
Engine with Automatic Transmission	F-350 4x2/4x4 (lbs.)	F-450 4x2/4x4 (lbs.)	F-550 4x2/4x4 (lbs.)	F-600 4x2/4x4 (lbs.)
7.3L Gas V8	16,600/16,300	22,400/22,200	22,400/22,100	23,700/23,400
6.7L Power Stroke^® Turbo Diesel	26,500/26,100	26,200/25,900	34,500/34,400	34,900/34,600
	SuperCab	SuperCab	SuperCab
	F-350 4x2/4x4 (lbs.)	F-450 4x2/4x4 (lbs.)	F-550 4x2/4x4 (lbs.)
7.3L Gas V8	16,200/15,800	22,000/21,700	22,000/21,700
6.7L Power Stroke^® Turbo Diesel	26,000/25,600	25,900/25,500	34,200/33,800
	Crew Cab	Crew Cab	Crew Cab
	F-350 4x2/4x4 (lbs.)	F-450 4x2/4x4 (lbs.)	F-550 4x2/4x4 (lbs.)
7.3L Gas V8	16,100/15,700	22,000/21,600	21,900/21,600
6.7L Power Stroke^® Turbo Diesel	26,000/25,600	25,800/25,400	34,000/33,700

Payload

Payload Package Selector
		Regular Cab	Regular Cab	Regular Cab	Regular Cab	SuperCab	SuperCab	Crew Cab	Crew Cab
	MAX GVWR	3576 WB/1524 CA mm	4293 WB/2134 CA mm	4902 WB/2743 CA mm	5207 WB/3048 CA mm	4255 WB/1524 CA mm	4864 WB/2134 CA mm	4557 WB/1524 CA mm	5166 WB/2137 CA mm
	(KG.)	(KG.)	(KG.)	(KG.)	(KG.)	(KG.)	(KG.)	(KG.)	(KG.)
F-350 SRW 4x2	4,763	2,268	-	-	-	-	-	-	-
	4,944	-	-	-	-	2,254	-	-	-
	4,990	-	-	-	-	-	-	2,236	-
	5,035	2,268	-	-	-	-	-	-	-
	5,216	-	-	-	-	2,195	-	2,100	-

F-350 SRW 4x4	4,944	2,245	-	-	-	-	-	-	-
	5,126	-	-	-	-	2,241	-	-	-
	5,171	-	-	-	-	-	-	2,232	-
	5,216	2,214	-	-	-	1,987	-	1,955	-

F-350 DRW 4x2	6,350	3,674	3,638	-	-	3,488	-	3,447	-

F-350 DRW 4x4	6,350	3,520	3,456	-	-	3,316	-	3,266	-

F-450 DRW 4x2	6,804	3,806	3,797	3,729	3,670	3,629	3,588	3,597	3,547
	7,257	4,259	4,250	4,182	4,123	4,082	4,042	4,051	4,001
	7,484	4,486	4,477	4,409	4,350	4,309	4,268	4,277	4,227

F-450 DRW 4x4	6,804	3,692	3,629	3,543	3,529	3,493	3,447	3,447	3,411
	7,257	4,146	4,082	3,996	3,983	3,946	3,901	3,901	3,865
	7,484	4,373	4,309	4,223	4,209	4,173	4,128	4,128	4,091

F-550 DRW 4x2	7,938	4,940	4,931	4,863	4,804	4,763	4,722	4,731	4,681
	8,165	5,166	5,157	5,089	5,030	4,990	4,949	4,958	4,908
	8,618	5,593	-	-	-	-	-	-	-
	8,845	5,502	5,792	5,715	5,697	5,674	5,602	5,602	5,566

F-550 DRW 4x4	7,938	4,826	4,763	4,677	4,663	4,627	4,581	4,581	4,545
	8,165	5,053	4,990	4,903	4,890	4,853	4,808	4,808	4,772
	8,618	5,479	-	-	-	-	-	-	-
	8,845	5,420	5,629	5,561	5,520	5,507	5,452	5,461	5,402

F-600 DRW 4x2	9,979	6,899	6,827	6,831	6,749	-	-	-	-
F-600 DRW 4x4	9,979	6,745	6,700	6,677	6,613	-	-	-	-

Payload Package Selector
		Regular Cab	Regular Cab	Regular Cab	Regular Cab	SuperCab	SuperCab	Crew Cab	Crew Cab
	MAX GVWR	145.0" WB 60" CA	169.0" WB 84" CA	193.0" WB 108" CA	205.0 WB 120" CA	167.5" WB 60" CA	191.5" WB 84" CA	179.4" WB 60" CA	203.4" WB 84" CA
	(LBS.)	(LBS.)	(LBS.)	(LBS.)	(LBS.)	(LBS.)	(LBS.)	(LBS.)	(LBS.)
F-350 SRW 4x2	10,500	5,000	-	-	-	-	-	-	-
	10,900	-	-	-	-	4,970	-	-	-
	11,000	-	-	-	-	-	-	4,930	-
	11,100	5,000	-	-	-	-	-	-	-
	11,500	-	-	-	-	4,840	-	4,630	-

F-350 SRW 4x4	10,900	4,950	-	-	-	-	-	-	-
	11,300	-	-	-	-	4,940	-	-	-
	11,400	-	-	-	-	-	-	4,920	-
	11,500	4,880	-	-	-	4,380	-	4,310	-

F-350 DRW 4x2	14,000	8,100	8,020	-	-	7,690	-	7,600	-

F-350 DRW 4x4	14,000	7,760	7,620	-	-	7,310	-	7,200	-

F-450 DRW 4x2	15,000	8,390	8,370	8,220	8,090	8,000	7,910	7,930	7,820
	16,000	9,390	9,370	9,220	9,090	9,000	8,910	8,930	8,820
	16,500	9,890	9,870	9,720	9,590	9,500	9,410	9,430	9,320

F-450 DRW 4x4	15,000	8,140	8,000	7,810	7,780	7,700	7,600	7,600	7,520
	16,000	9,140	9,000	8,810	8,780	8,700	8,600	8,600	8,520
	16,500	9,640	9,500	9,310	9,280	9,200	9,100	9,100	9,020

F-550 DRW 4x2	17,500	10,890	10,870	10,720	10,590	10,500	10,410	10,430	10,320
	18,000	11,390	11,370	11,220	11,090	11,000	10,910	10,930	10,820
	19,000	12,330	-	-	-	-	-	-	-
	19,500	12,130	12,770	12,600	12,560	12,510	12,350	12,350	12,270

F-550 DRW 4x4	17,500	10,640	10,500	10,310	10,280	10,200	10,100	10,100	10,020
	18,000	11,140	11,000	10,810	10,780	10,700	10,600	10,600	10,520
	19,000	12,080	-	-	-	-	-	-	-
	19,500	11,950	12,410	12,260	12,170	12,140	12,020	12,040	11,910

F-600 DRW 4x2	22,000	15,210	15,050	15,060	14,880	-	-	-	-
F-600 DRW 4x4	22,000	14,870	14,770	14,720	14,580	-	-	-	-

SUVs & Cars

Capable, convenient and versatile

Trucks & Vans

Hauling, towing, and off-roading

Electric & Hybrid

What does going electric mean?

Performance Vehicles

Commercial Vehicles

Ford Pro offers the tools, software and services to keep your business on track and crews on the road.

Future Vehicles

Catch up with all the latest news

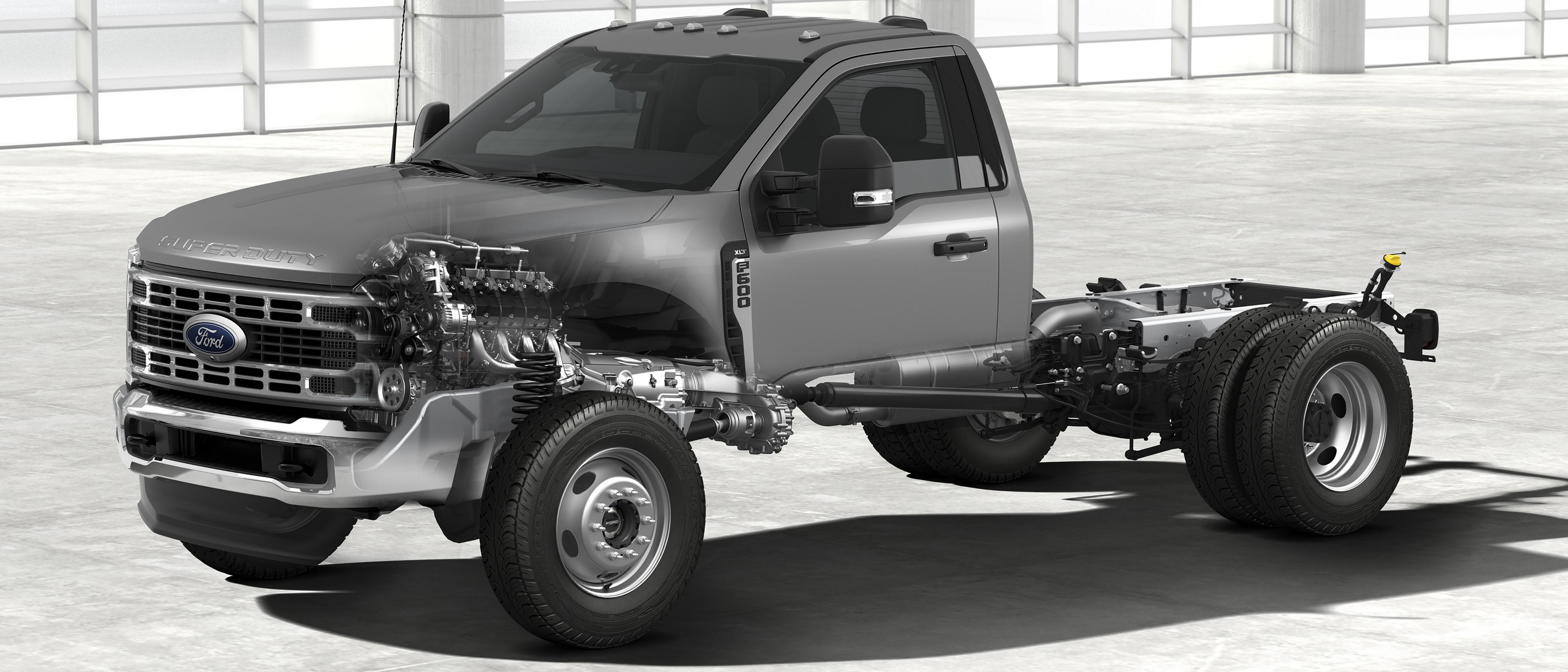

2024 CHASSIS CAB F-600 XLT

KEY FEATURES

Individual Tire Pressure Monitoring System (TPMS)

Ford Pro™ Upfit Integration System

5G Wi-Fi Capability

Power and Handling

Power

Standard

Optional

Handling

Standard

Optional

Tires

Standard

Optional

Interior Features

Climate

Standard

Comfort and Convenience

Standard

Optional

Entertainment Systems

Standard

Seating

Standard

Exterior Features

Appearance

Standard

Optional

Protection

Optional

Windows & Glass

Standard

Optional

Safety

Safety

Standard

Optional

Security

Standard

Packages

Packages

Standard

Optional

Specifications

Highlights

Exterior

Base Curb Weight

Interior

Capacities

Engine

Chassis

Transmission Specifications

Conventional Towing

5th Wheel and Gooseneck Towing

Payload

Build & Price

Locate a Dealer

Search Inventory

Ford Pro^™ Upfit Integration System
