XL Passenger Van

View Towing Guides

View all offers

Est. City/Hwy

16.7/12.8

L/100km²

Cargo Volume

8,071.7

Key Features

Tight shot of touchscreen in the 2020 Ford Transit demonstrating rearview camera

Rear View Camera with Trailer Hitch Assist

The standard Rear View Camera¹⁰ provides a video image of what’s directly behind your vehicle while the gear selector is in Reverse. The image is transmitted on the rearview mirror of vehicles with a basic AM/FM radio (shown) or to the centre screen monitor if the vehicle is ordered with any of the upgraded audio systems. Coloured guidelines provide a visual reference to help align your vehicle when you’re slowly backing up.

Lane-Keeping System

It happens to the best of drivers. A moment of distraction — and you start drifting. But standard Lane-Keeping System can assist you with a camera that scans the lane markings ahead.¹⁰ The system has three modes: Lane-Keeping Aid applies steering torque to direct you back to the centre of the lane. Lane-Keeping Alert warns you through steering wheel vibrations that simulate driving over a rumble strip. You can set the system to activate either the Alert or Aid mode, or both. And there’s Driver Alert that sends out warnings in the message centre when it detects repeated lane drifts — a reminder to pull over and take a break.

A 2020 Ford Transit interior showing driver and passenger front and side airbags

Safety Canopy^® Side-curtain Airbags

All Transit models come standard with driver and passenger front and side airbags.⁸ The Transit Cargo Van includes a Safety Canopy System^® with a front row, side-curtain airbag.*⁸

*Always wear your safety belt.

Power and Handling

Power

Standard

Alternator – 250 amp (3.5L PFDi & 3.5LEcoBoost V6 only)
Auxiliary Fuel Port
Battery, Single (70 amp-hr) 3.5L PFDi V6 engine only
Battery – Single AGM Battery (70 amp-hr) Standard on 3.5L EcoBoost^® V6 Engine Only
3.5L PFDi V6 Open image overlay for 3.5L PFDi V6
10-Speed Automatic Overdrive with SelectShift^® . Auxiliary Transmission Oil Cooler is standard Open image overlay for 10-Speed Automatic Overdrive with SelectShift^® . Auxiliary Transmission Oil Cooler is standard
Engine Block Heater (400W Rating)
Fuel Tank – Capless Fuel Fill, 25 Gallon/95L (midship)

Optional

Push Down Manual Parking Brake
Programmable Battery Guard/ Enhanced Cut-Off Relay
Dual Alternator (250 amps each). Includes Auxiliary Fuse Panel with High Spec Interface Connector
Auxiliary Fuse Panel with High Spec Interface Connector
Battery – Single AGM Battery (70 amp-hr) 3.5L PDFi V6 Engine Only
Dual AGM Batteries (70 amp-hr each) Optional on 3.5L EcoBoost^® V6 and 3.5L PFDi V6 Engine
3.5L EcoBoost^® V6 Open image overlay for 3.5L EcoBoost^® V6
Extended Range Fuel Tank – Capless Fuel Fill, 31 Gallon/117L (midship)
Speed Limitation - 105 kph Governed Top Speed - (Fleet only)
Speed Limitation - 113 kph Governed Top Speed - (Fleet only)
Speed Limitation - 121 kph Governed Top Speed - (Fleet only)

Handling

Standard

Steering - Power Rack and Pinion
Electric Power Assisted Steering (EPAS) Open image overlay for Electric Power Assisted Steering (EPAS)
Steering Wheel - Tilt & Telescopic Column Polyurethane 4-Spoke Wheel
Manual Parking Brake
Suspension, Front - Independent MacPherson-Strut, Stabilizer Bar
Suspension, Rear - Leaf Springs, Heavy-Duty Gas Shock Absorbers
AdvanceTrac^® w/Roll Stability Control^™ (RSC^® ) w/ Forward Collision Warning Open image overlay for AdvanceTrac^® w/Roll Stability Control^™ (RSC^® ) w/ Forward Collision Warning
Side Wind Stabilization Open image overlay for Side Wind Stabilization

Optional

Heavy-Duty Front Axle
Trailer Brake Controller (TBC). Requires Trailer Wiring Provisions Open image overlay for Trailer Brake Controller (TBC). Requires Trailer Wiring Provisions
Passenger Van 130" W/B LR, MR GVWR 8550 lbs. SRW
Passenger Van 148" W/B LR, MR, HR GVWR 9250 - 10360 lbs. SRW
GVWR Range Open image overlay for GVWR Range
Intelligent All-Wheel Drive intelligently integrated Open image overlay for Intelligent All-Wheel Drive intelligently integrated

Wheels & Tires

Standard

Tires, 195/75R16C 107/105 R BSW All-Season (RWD with Standard Front Axle Configurations Only) - (DRW)
Tires 205/75R16C 113/111 BSW All-Season (AWD, 11,000 GVWR or RWD with Heavy-Duty Front Axle Configurations Only) - (DRW)
Tires, 235/65R16 BSW All-Season - (SRW)
Full-size Spare Tire and Wheel with 4-Ton Jack

Optional

Smart Acceleration Truncation - (Fleet Only)
Wheels, 16" DRW - White Steel with Exposed Lug Nuts. (Standard Front Axle configurations only)
Spare Tire and Wheel Delete. Optional on Extended Length only

Interior Features

Climate

Standard

Air Conditioning - Front & Rear
Front / Rear Auxiliary A/C and Heater (Driver Control)

Comfort and Convenience

Standard

Horn - Single-Note
Rearview Mirror [When vehicle is equipped with glass]
Headliner - Cloth Full Length
Console - Medium Centre Console with Integrated Shifter Open image overlay for Console - Medium Centre Console with Integrated Shifter
Floor Covering, Vinyl, Front & Rear Open image overlay for Floor Covering, Vinyl, Front & Rear
Glove Box (Locking)
Instrumentation - Tachometer, Fuel Level and Coolant Temperature Open image overlay for Instrumentation - Tachometer, Fuel Level and Coolant Temperature
Lighting, Front Dome Lamp with Map Lights and Theater-Dimming
Daytime Running Lamps
A-Pillar Assist Handle (Driver and Passenger Side)
B-Pillar Assist Handle (Passenger Side)
Rear Compartment Lighting
Accessory Delay (30 Minutes)
PowerPoint, 12V. One in Instrument Panel, One in Centre Console
USB Ports – 5 amps
Sun Visors
Overhead Storage Shelf Open image overlay for Overhead Storage Shelf

Optional

Horn – Dual-Note
Console - Large Centre Console with Integrated Shifter Open image overlay for Console - Large Centre Console with Integrated Shifter
Front and Rear Split-View Camera (Includes Side Sensing System and reverse Sensing System) Open image overlay for Front and Rear Split-View Camera (Includes Side Sensing System and reverse Sensing System)
Floor Covering, Carpet, Front & Rear
Carpet Floor Mats Front Only
Instrumentation - Vehicle Maintenance Monitor. Includes engine hour metre
Power Outlet – 110V/150W Open image overlay for Power Outlet – 110V/150W
Upfitter Interface Module (UIM)
Sun Visors - with Illuminated Vanity Mirror (Driver and Passenger)
Reverse Sensing System. Included with Front and Rear Split-View Camera, Side Sensing System and Enhanced Active Park Assist Open image overlay for Reverse Sensing System. Included with Front and Rear Split-View Camera, Side Sensing System and Enhanced Active Park Assist
Back-Up Alarm
Crew Van (3-Person 2nd-Row Bench) Open image overlay for Crew Van (3-Person 2nd-Row Bench)
Cloth Seating Open image overlay for Cloth Seating

Entertainment Systems

Standard

Audio Pack #18 AM/FM Stereo, Bluetooth, Dual USB Ports and a 4.0” Multi-Function Display

Optional

Audio Pack #19 AM/FM Stereo, Bluetooth, Dual USB ports, SYNC 3 and a 4.0” Multi-Function Display
Audio Pack #20 AM/FM Stereo with HD/SiriusXM^® Capability, Bluetooth, Dual USB ports, SYNC 3 and a 4.0” Multi-Function Display
Audio Pack #21 AM/FM Stereo, Bluetooth, Audio Input Jack, Dual USB Ports, SYNC 3 and a 8.0” Coloured Multi-Function Touch Screen
Audio Pack #22 AM/FM Stereo with HD/SiriusXM^® Capability, Bluetooth, Audio Input Jack, Dual USB Ports, SYNC 3 and a 8.0” Coloured Multi-Function Touch Screen
Audio Pack #28 – AM/FM Stereo with HD/SiriusXM^® Capability, Bluetooth, Audio Input Jack, Dual USB Ports, SYNC 3 and a 8.0” Coloured Multi-Function Touch Screen with Navigation Open image overlay for Audio Pack #28 – AM/FM Stereo with HD/SiriusXM^® Capability, Bluetooth, Audio Input Jack, Dual USB Ports, SYNC 3 and a 8.0” Coloured Multi-Function Touch Screen with Navigation
8 speakers (4 front/4 rear). Included with Audio Pack #18, 19, 20, 21, 22 and 28 on Passenger Van XL and included with Audio Pack #19, 20, 21, 22 and 28 on Passenger Van XLT
High-Capacity Upfitter Switches Open image overlay for High-Capacity Upfitter Switches

Seating

Standard

Driver and Front-Passenger Manual Reclining Bucket Seats with Adjustable Headrest (Includes driver-side and passenger-side inboard armrest)
Manual Drivers Side Lumbar Support
5-Passenger Seating. 1st row: 2 seats, 2nd row: 3 seats
15 -Passenger Seating. 1st row: 2 seats, 2nd row: 3 seats, 3rd row: 3 seats, 4th row: 3 seats, 5th row: 4 seats Standard with Extended Length Passenger Van
12-Passenger Seating. 1st row: 2 seats, 2nd row: 3 seats, 3rd row: 3 seats, 4th row: 4 seats. Standard with Long Length Passenger Van
Ebony Cloth, 2-way manual Driver and 2-way manual Passenger seats

Optional

1-Passenger or 2-Passenger. 2-Passenger Seats are standard on Cargo Van, Cutaway and Chassis Cab, except when Passenger Seat Delete is ordered, then it's 1-Passenger Seat. 2-Passenger Seats (with additional rear seat attachment points) are optional on Passenger Van. Note: 13 rear seats are removed, but seat attachment points are still present with 2-Passenger Seats on Passenger Van
2-Passenger Seating. Optional with Long Length Passenger Van without Builders Prep Package
5-Passenger Seating. 1st row: 2 seats, 2nd row: 3 seats. Optional with Medium Roof, Regular Length Passenger Van only
8-Passenger Seating. 1st row: 2 seats, 2nd row: 3 seats, 3rd row: 3 seats. Optional with Low Roof Regular Length Passenger Van
8-Passenger Seating. 1st row: 2 seats, 2nd row: 3 seats, 3rd row: 3 seats. Optional with Medium Roof Regular Length Passenger Van
8-Passenger Seating. 1st row: 2 seats, 2nd row: 3 seats, 3rd row: 3 seats. Optional with Long Length Passenger Van. Not available with Low Roof Passenger Van
10-Passenger Seating. 1st row: 2 seats, 2nd row: 2 seats, 3rd row: 3 seats, 4th row: 3 seats. Optional with Extended Length Passenger Van
10-Passenger Seating. 1st row: 2 seats, 2nd row: 2 seats, 3rd row: 3 seats, 4th row: 3 seats. Standard with Regular Length Passenger Van
14-Passenger Seating. 1st row: 2 seats, 2nd row: 2 seats, 3rd row: 3 seats, 4th row: 3 seats, 5th row: 4 seats. Optional with Long Length Passenger Van. Optional with Passenger Van XL and XLT
14-Passenger Seating. 1st row: 2 seats, 2nd row: 2 seats, 3rd row: 3 seats, 4th row: 3 seats, 5th row: 4 seats. Optional with Extended Length Passenger Van
15-Passenger Seating. 1st row: 2 seats, 2nd row: 3 seats, 3rd row: 3 seats, 4th row: 3 seats, 5th row: 4 seats. Optional with Long Length Passenger Van
Dark Palazzo Grey Vinyl, 2-way manual Driver and 2-way manual Passenger seats Open image overlay for Dark Palazzo Grey Vinyl, 2-way manual Driver and 2-way manual Passenger seats
Ebony Cloth, 10-way power Driver and 10-way power Passenger seats. Cargo Van and Crew Van are not available with the combination of 9,400/9,500 GVWR and the 3.5L EcoBoost® V6 or 3.5L PDFi V6 engines

Exterior Features

Appearance

Standard

16" Steel Wheel with Black Hubcaps Hubcap (Standard Front Axle configurations only) SRW Open image overlay for 16" Steel Wheel with Black Hubcaps Hubcap (Standard Front Axle configurations only) SRW
16'' Heavy-Duty Silver Steel Wheel with Exposed Lug Nuts - DRW
Antenna – Fender Mounted
Three Bar Grille with Carbon Black Surround
Headlamps, Halogen
Mirrors Short Arm - Power, Manual-Folding. Not available with BLIS with Cross-traffic Alert and Trailer Coverage
Roof Marker Lamps (Included on DRW Cargo Van, Crew Van, Passenger Van XL and Passenger Van XLT)
Roof Marker Lamp Delete (Standard on single rear-wheel)
Automatic Rain-Sensing Windshield Wipers
Rear Tow Hook Open image overlay for Rear Tow Hook
Low Roof Open image overlay for Low Roof

Optional

16" Steel Wheel with Full Silver Wheel Cover (Standard Front Axle configurations only) SRW Open image overlay for 16" Steel Wheel with Full Silver Wheel Cover (Standard Front Axle configurations only) SRW
16" Styled Aluminum Wheel (Standard Front Axle configurations only). Available with Exterior Upgrade Package – SRW (Standard Front Axle configurations only) Open image overlay for 16" Styled Aluminum Wheel (Standard Front Axle configurations only). Available with Exterior Upgrade Package – SRW (Standard Front Axle configurations only)
16” Forged Aluminum Wheel (Heavy-Duty Front Axle configurations only). Available with Exterior Upgrade Package – SRW (Heavy-Duty Front Axle configurations only) Open image overlay for 16” Forged Aluminum Wheel (Heavy-Duty Front Axle configurations only). Available with Exterior Upgrade Package – SRW (Heavy-Duty Front Axle configurations only)
16” Heavy-Duty Forged Aluminum Wheel (Standard Front Axle configurations only). Available with Exterior Upgrade Package – DRW (Standard Front Axle configurations only) (18L)
16” Heavy-Duty Forged Aluminum Wheel (Heavy-Duty Front Axle configurations only). Available with Exterior Upgrade Package – DRW (Heavy-Duty Front Axle configurations only)
Rear Bumper – Carbon Black, with integral step. Optional on Low Roof
60/40 Hinged Passenger-side Door (Low Roof) Open image overlay for 60/40 Hinged Passenger-side Door (Low Roof)
Power Sliding Door. Only available on Medium and High Roof configurations Open image overlay for Power Sliding Door. Only available on Medium and High Roof configurations
Front License Plate Bracket. Standard in Provinces/Territories requiring, two license plates and optional in all others
High-Intensity Discharge (HID) Headlamps
Autolamp
Mirrors Short Arm - Power, Manual-Folding Heated with Turn Signals. Not available with BLIS with Cross-traffic Alert and Trailer Coverage Open image overlay for Mirrors Short Arm - Power, Manual-Folding Heated with Turn Signals. Not available with BLIS with Cross-traffic Alert and Trailer Coverage
Mirrors Long Arm - Power, Manual-Folding. Not available with BLIS with Cross-traffic Alert and Trailer Coverage Open image overlay for Mirrors Long Arm - Power, Manual-Folding. Not available with BLIS with Cross-traffic Alert and Trailer Coverage
Mirrors Long Arm - Power, Manual-Folding Heated with Turn Signals. Available with BLIS with Cross-traffic Alert and Trailer Coverage
Running Board. Not available with Dual Sliding Side Cargo Doors
Power Running Board. Not available with Dual Sliding Side Cargo Doors
Extended Length Running Board. Not available with 2.0L Diesel and Dual Sliding Side Cargo Doors Open image overlay for Extended Length Running Board. Not available with 2.0L Diesel and Dual Sliding Side Cargo Doors
Front Fog Lamps. Included in Reverse Sensing System and Front and Rear Split-View Camera
Medium Roof Open image overlay for Medium Roof
High Roof Open image overlay for High Roof

Protection

Standard

Remote Keyless-Entry

Optional

Keys: 2 Additional (4 total) with Key Fobs. Not available with Right Hand Door Delete
MyKey^® . Crew Van, Passenger Van XL, Passenger Van XLT requires Cruise Control or Adaptive Cruise Control
Windows-All-Around, Fixed. Standard on Regular Length and Long Length Passenger Van. Not available with Dual Sliding Side Cargo Doors
Egress Window. Only available with Windows-All-Around, Fixed. Requires Privacy Glass (Includes Rear-Window Defroster). Late Availability
Open image overlay for Egress Window. Only available with Windows-All-Around, Fixed. Requires Privacy Glass (Includes Rear-Window Defroster). Late Availability
Privacy Glass. Includes Rear-window Defroster

Windows & Glass

Standard

Tinted Glass
Rear Window

Safety

Standard

Airbags, Driver and Passenger Open image overlay for Airbags, Driver and Passenger
Brakes – 4-wheel Anti-lock Disc Brakes
Door Locks, Autolocking Drive Away with Crash Unlocking. Not available with Manual Locks
Safety Belts – 3-point, All Positions SecuriLock^® Passive Anti-Theft System (PATS) with engine immobilizer
Safety Canopy^® Side-curtain Airbags Open image overlay for Safety Canopy^® Side-curtain Airbags
Tire Pressure Monitoring System (TPMS) Open image overlay for Tire Pressure Monitoring System (TPMS)

Security

Standard

Forward Collision Warning
Hill Side Assist
Post-Collison Braking

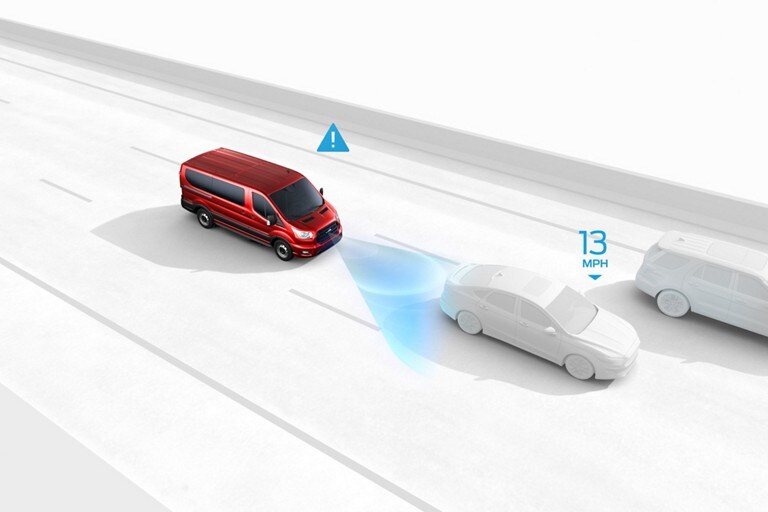

Pre-Collision Assist with Automatic Emergency Braking (AEB)
Lane-Keeping System Open image overlay for Lane-Keeping System
Auto High-Beam Headlamps Open image overlay for Auto High-Beam Headlamps
Rear View Camera with Trailer Hitch Assist Open image overlay for Rear View Camera with Trailer Hitch Assist
Automatic Rain-Sensing Windshield Wipers
SOS Post-Crash Alert System^™ (Automatically flashes the hazard lights and intermittently sounds the horn when the airbag deploys). Not available with Radio Prep Pack
SecuriLock® Passive Anti-Theft System (PATS) with engine immobilizer
FordPass Connect^™ (Wi-Fi Hotspot) Open image overlay for FordPass Connect^™ (Wi-Fi Hotspot)

Optional

Enhanced Active Park Assist Open image overlay for Enhanced Active Park Assist
Adaptive Cruise Control (Includes Adaptive Speed Limiting Device - ASLD) Open image overlay for Adaptive Cruise Control (Includes Adaptive Speed Limiting Device - ASLD)
Blind Spot Information System (BLIS^® ) with Cross-traffic Alert and Trailer Coverage. Includes Short-Arm Power, Power Folding Heated with Turn Signals Open image overlay for Blind Spot Information System (BLIS^® ) with Cross-traffic Alert and Trailer Coverage. Includes Short-Arm Power, Power Folding Heated with Turn Signals

Packages

Specifications

Highlights

Switch to Imperial Units Switch to Metric Units

Vehicle Highlights
Fuel Capacity (Standard)	94.6 litres (midship)
Fuel Capacity (Optional)	117 litres (midship)
Drive Type	RWD/ DRW (Available in AWD)
3.5L PDFi V6 Engine Horsepower Torque	275 HP @ 6,500 RPM 262 lb.-ft. @ 3,750 RPM
3.5L EcoBoost® V6 Engine Horsepower Torque	306 HP @ 5,500 RPM 400 lb.-ft. @ 2,500 RPM
Transmission	10-speed automatic Selectshift® with overdrive
Wheelbase	3,200 3,750
Roof Height	Low Medium High
Length	Regular Long Extended
Maximum Seating Capacity (depends on trim)	2-15 Passenger Van
Maximum GVWR	4,699 kg (350 HD DRW)
Warranty	Basic Coverage: 3 years / 60,000 km Gas Powertrain: 5 years / 100,000 km Diesel Powertrain: 5 years / 160,000 km Safety Restraint Systems: 5 years / 100,000 km Corrosion (Perforation Only): 5 years / Unlimited km Roadside Assistance Program: 5 years / 100,000 km

Vehicle Highlights
Fuel Capacity (Standard)	25 gallons (midship)
Fuel Capacity (Optional)	31 gallons (midship)
Drive Type	RWD/ DRW (Available in AWD)
3.5L PDFi V6 Engine Horsepower Torque	275 HP @ 6,500 RPM 262 lb.-ft. @ 3,750 RPM
3.5L EcoBoost^® V6 Engine Horsepower Torque	306 HP @ 5,500 RPM 400 lb.-ft. @ 2,500 RPM
Transmission	10-speed automatic Selectshift^® with overdrive
Wheelbase	129.9 147.6
Roof Height	Low Medium High
Length	Regular Long Extended
Maximum Seating Capacity (depends on trim)	2-15 Passenger Van
Maximum GVWR	10,360 lbs. (350 HD DRW)
Warranty	Basic Coverage: 3 years / 36,000 miles Gas Powertrain: 5 years / 60,000 miles Diesel Powertrain: 5 years / 100,000 miles Safety Restraint Systems: 5 years / 60,000 miles Corrosion (Perforation Only): 5 years / Unlimited miles Roadside Assistance Program: 5 years / 60,000 miles

Exterior

Switch to Imperial Units Switch to Metric Units

Exterior Dimensions
Transit Cargo Van
Length (Regular, Long, Long-EL)	Regular	Regular	Long	Long	Long	Long-EL
Roof (Low, Medium, High)	Low	Medium	Low	Medium	High	High
	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)
Wheelbase	3,300	3,300	3,750	3,750	3,750	3,750
Overall Length	5,585	5,532.1	6,035	5,981.7	5,981.7	6,703.1
Height	2,123	2,561	2,114	2,558	2,797	2,780
Width - Excluding Mirrors (SRW/DRW)	2,066	2,066	2,066	2,066	2,066	2,066
Width - Including Mirrors	2,474	2,474	2,474	2,474	2,474	2,474
Width - Mirrors Folded	2,114	2,114	2,114	2,114	2,114	2,1113.3/2,126
Front Track (SRW/DRW)	1,732	1,732	1,732	1,732	1,732	1,732.3/1,739.9
Rear Track (SRW/DRW)	1,743	1,743	1,743	1,743	1,743	1,742.4/1,668.8
Front Overhang	1,023	1,023	1,023	1,023	1,023	1,023
Rear Overhang	1,262	1,209	1,209	1,209	1,209	1,930.4
Load Height (Curb)	733	733	730	730	730	712
Side Cargo Door Opening Height	1,259	1,600.2	1,259.8	1,600.2	1,600.2	1,600.2
Side Cargo Door Opening Width - Hinged	1,300.5	-	1,300.5	-	-	-
Side Cargo Door Opening Width - Sliding	1,300.5	1,300.5	1,300.5	1,300.5	1,300.5	1,300.5
Rear Cargo Door Opening Height	1,258	1,648	1,258	1,648	1,887	1,887
Rear Cargo Door Opening Width	1,568	1,568	1,568	1,568	1,568	1,568
Transit Crew Van
Length (Regular, Long, Long-EL)	Medium	Medium	Long	Long	Long	Long-EL
Roof (Low, Medium, High)	Low	Medium	Low	Medium	High	High
	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)
Wheelbase	3,300	3,300	3,750	3,750	3,750	3,750
Overall Length	5,585	5,531	6,035	5,981	5,981	6,704
Height	2,080.5	2,500.5	2,528	2,524.9	2,774	2,768
Width - Excluding Mirrors (SRW/DRW)	2,066	2,066	2,066	2,066	2,066	-
Width - Including Mirrors	2,474	2,474	2,474	2,474	2,474	2,474
Width - Mirrors Folded	2,114	2,114	2,114	2,114	2,114	2,114
Front Track (SRW/DRW)	1,732	1,732	1,732	1,732	1,732	-
Rear Track (SRW/DRW)	1,743	1,743	1,743	1,743	1,743	-
Front Overhang	1,023	1,023	1,023	1,023	1,023	1,023
Rear Overhang	1,262	1,208	1,262	1,208	1,208	1,931
Load Height (Curb)	733	733	730	730	730	712
Side Cargo Door Opening Height	1,260	1,601	1,260	1,601	1,601	1,601
Side Cargo Door Opening Width - Hinged	1,300	1,300	1,300	1,300	1,300	1,300
Side Cargo Door Opening Width - Sliding	1,300	1,300	1,300	1,300	1,300	1,300
Rear Cargo Door Opening Height	1,258	1,648	1,258	1,648	1,887	1,887
Rear Cargo Door Opening Width	1,568	1,568	1,568	1,568	1,568	1,568
Transit Passenger Van
Length (Regular, Long, Long-EL)	Medium	Medium	Long	Long	Long	Long- EL
Roof (Low, Medium, High)	Low	Medium	Low	Medium	High	High
	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)
Wheelbase	3,299.5	3,299.5	3,749	3,749	3,749	3,749
Overall Length	5,585.5	5,532.1	6,035	5,981.7	5,981.7	6,703.1
Height	2,090.4	2,509.5	2,537.5	2,519.7	2,758.4	2,735.6
Width - Excluding Mirrors (SRW/DRW)	2,065	2,065	2,065	2,065	2,065	2,065
Width - Including Mirrors	2,474	2,474	2,474	2,474	2,474	2,474
Width - Mirrors Folded	2,113.3	2,113.3	2,113.3	2,113.3	2,113.3	2,113.3
Front Track (SRW/DRW)	1,770	1,770	1,770	1,770	1,770	1,770
Rear Track (SRW/DRW)	1,732.3	1,732.3	1,732.3	1,732.3	1,732.3	1,732.3
Front Overhang	1,742.4	1,742.4	1,742.4	1,742.4	1,742.4	1,742.4
Rear Overhang	1,023.6	1,023.6	1,023.6	1,023.6	1,023.6	1,023.6
Load Height (Curb)	716.3	716.3	731.5	731.5	731.5	706.1
Side Cargo Door Opening Height	1,259.8	1,600.2	1,259.8	1,600.2	1,600.2	1,600.2
Side Cargo Door Opening Width - Hinged	1,300.5	-	1,300.5	-	-	-
Side Cargo Door Opening Width - Sliding	1,300.5	1,300.5	1,300.5	1,300.5	1,300.5	1,300.5
Rear Cargo Door Opening Height	1,191.3	1,595.1	1,191.3	1,595.1	1,833.9	1,833.9
Rear Cargo Door Opening Width	1,518.9	1,518.9	1,518.9	1,518.9	1,518.9	1,518.9

Exterior Dimensions
Transit Cargo Van
Length (Regular, Long, Long-EL)	Regular	Regular	Long	Long	Long	Long-EL
Roof (Low, Medium, High)	Low	Medium	Low	Medium	High	High
	(in)	(in)	(in)	(in)	(in)	(in)
Wheelbase	129.9	129.9	147.6	147.6	147.6	147.6
Overall Length	219.9	217.8	237.6	235.5	235.5	263.9
Height	83.6	100.8	83.2	100.7	110.1	109.4
Width - Excluding Mirrors (SRW/DRW)	81.3	81.3	81.3	81.3	81.3	81.3
Width - Including Mirrors	97.4	97.4	97.4	97.4	97.4	97.4
Width - Mirrors Folded	83.2	83.2	83.2	83.2	83.2	83.2/83.7
Front Track (SRW/DRW)	68.2	68.2	68.2	68.2	68.2	68.2/68.5
Rear Track (SRW/DRW)	68.6	68.6	68.6	68.6	68.6	68.6/65.7
Front Overhang	40.3	40.3	40.3	40.3	40.3	40.3
Rear Overhang	49.7	47.6	47.6	47.6	47.6	76
Load Height (Curb)	28.9	28.9	28.7	28.7	28.7	28
Side Cargo Door Opening Height	49.6	63	49.6	63	63	63
Side Cargo Door Opening Width - Hinged	51.2	-	51.2	-	-	-
Side Cargo Door Opening Width - Sliding	51.2	51.2	51.2	51.2	51.2	51.2
Rear Cargo Door Opening Height	49.5	64.9	49.5	64.9	74.3	74.3
Rear Cargo Door Opening Width	61.7	61.7	61.7	61.7	61.7	61.7
Transit Crew Van
Length (Regular, Long, Long-EL)	Medium	Medium	Long	Long	Long	Long-EL
Roof (Low, Medium, High)	Low	Medium	Low	Medium	High	High
	(in)	(in)	(in)	(in)	(in)	(in)
Wheelbase	129.9	129.9	148	147.6	148	147.6
Overall Length	219.9	217.8	238	235.5	235	263.9
Height	81.9	98.4	100	99.4	109	109
Width - Excluding Mirrors (SRW/DRW)	81.3	81.3	81	81.3	81	-
Width - Including Mirrors	97.4	97.4	97	97.4	97	97.4
Width - Mirrors Folded	83.2	83.2	83	83.2	83	83.2
Front Track (SRW/DRW)	68.2	68.2	68	68.2	68	-
Rear Track (SRW/DRW)	68.6	68.6	69	68.6	69	-
Front Overhang	40.3	40.3	40	40.3	40	40.3
Rear Overhang	49.7	47.6	50	47.6	48	76
Load Height (Curb)	28.9	28.9	29	28.7	29	28
Side Cargo Door Opening Height	49.6	63	50	63	63	63
Side Cargo Door Opening Width - Hinged	51.2	51.2	51	51.2	51	51.2
Side Cargo Door Opening Width - Sliding	51.2	51.2	51	51.2	51	51.2
Rear Cargo Door Opening Height	49.5	64.9	50	64.9	74	74.3
Rear Cargo Door Opening Width	61.7	61.7	62	61.7	62	61.7
Transit Passenger Van
Length (Regular, Long, Long-EL)	Medium	Medium	Long	Long	Long	Long-EL
Roof (Low, Medium, High)	Low	Medium	Low	Medium	High	High
	(in)	(in)	(in)	(in)	(in)	(in)
Wheelbase	129.9	129.9	147.6	147.6	147.6	147.6
Overall Length	219.9	217.8	237.6	235.5	235.5	263.9
Height	82.3	98.8	99.9	99.2	108.6	107.7
Width - Excluding Mirrors (SRW/DRW)	81.3	81.3	81.3	81.3	81.3	81.3
Width - Including Mirrors	97.4	97.4	97.4	97.4	97.4	97.4
Width - Mirrors Folded	83.2	83.2	83.2	83.2	83.2	83.2
Front Track (SRW/DRW)	67.9	67.9	67.9	67.9	67.9	67.9
Rear Track (SRW/DRW)	68.2	68.2	68.2	68.2	68.2	68.2
Front Overhang	68.6	68.6	68.6	68.6	68.6	68.6
Rear Overhang	40.3	40.3	40.3	40.3	40.3	40.3
Load Height (Curb)	28.2	28.2	28.8	28.8	28.8	27.8
Side Cargo Door Opening Height	49.6	63	49.6	63	63	63
Side Cargo Door Opening Width - Hinged	51.2	-	51.2	-	-	-
Side Cargo Door Opening Width - Sliding	51.2	51.2	51.2	51.2	51.2	51.2
Rear Cargo Door Opening Height	46.9	62.8	46.9	62.8	72.2	72.2
Rear Cargo Door Opening Width	59.8	59.8	59.8	59.8	59.8	59.8

Interior

Switch to Imperial Units Switch to Metric Units

Interior Dimensions
Transit Cargo Van
Length (Regular, Long, Long-EL)	Regular	Regular	Long	Long	Long	Long-EL
Roof (Low, Medium, High)	Low	Medium	Low	Medium	High	High
	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)
Head Room - First Row	1,037	1,320	1,037	1,320	1,437	1,437
Maximum Leg Room - First Row	1,050	1,050	1,050	1,050	1,050	1,050
Leg Room - First Row (Max.)	1,009	1,009	1,009	1,009	1,009	1,009
Leg Room - First Row	1,541.8	1,541.8	1,541.8	1,541.8	1,541.8	1,541.8
Shoulder Room - First Row	1,724	1,724	1,724	1,724	1,724	1,724
Cargo Length Front (at Floor)	3,200	3,200	3,650	3,650	3,650	4,373
Cargo Length Front (at Belt)	2,943	2,943	3,393	3,393	3,393	4,116
Cargo Width Between Wheelhouse (SRW/DRW)	1,392	1,392	1,392	1,392	1,392	1,391.92/1,153.2
Cargo Height Maximum	1,446	1,830	1,446	1,830	2,069	2,069
Transit Crew Van
Length (Regular, Long, Long-EL)	Regular	Regular	Long	Long	Long	Long-EL
Roof (Low, Medium, High)	Low	Medium	Low	Medium	High	High
	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)
Head Room - First Row	1,037	1,320	1,037	1,320	1,437	1,437
Maximum Leg Room - First Row	1,050	1,050	1,050	1,050	1,050	1,050
Leg Room - First Row (Max.)	1,009	1,009	1,009	1,009	1,009	1,009
Leg Room - First Row	1,541.8	1,541.8	1,541.8	1,541.8	1,541.8	1,541.8
Shoulder Room - First Row	1,724	1,724	1,724	1,724	1,724	1,724
Cargo Length Front (at Floor)	2,201	2,201	2,649	2,649	2,649	3,373
Cargo Length Front (at Belt)	2,053	2,053	2,455	2,455	2,455	3,178
Cargo Width Between Wheelhouse (SRW/DRW)	1,392	1,392	1,392	1,392	1,392	1,392
Cargo Height Maximum	1,376	1,796	1,376	1,796	1,965	1,965
Transit Passenger Van
Length (Regular, Long, Long-EL)	Regular	Regular	Long	Long	Long	Long-EL
Roof (Low, Medium, High)	Low	Medium	Low	Medium	High	High
	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)
Head Room - First Row	1,036.3	1,320.8	1,036.3	1,320.8	1,437.6	1,437.6
Head Room - Second Row (where applicable)	1,043.9	1,417.3	1,043.9	1,417.3	1,656.1	1,656.1
Head Room - Third Row (where applicable)	1,031.2	1,417.3	1,031.2	1,417.3	1,656.1	1,656.1
Head Room - Fourth Row (where applicable)	983	1,417.3	983	1,417.3	1,656.1	1,656.1
Head Room - Fifth Row (where applicable)	-	-	967.7	1,336	1,557	1,557
Leg Room - First Row (Max.)	1,049	1,049	1,049	1,049	1,049	1,049
Leg Room - Second Row (where applicable)	856	856	856	856	856	856
Leg Room - Third Row (where applicable)	904.2	904.2	904.2	904.2	904.2	904.2
Leg Room - Fourth Row (where applicable)	904.2	904.2	904.2	904.2	904.2	904.2
Leg Room - Fifth Row (where applicable)	-	-	904.2	904.2	904.2	904.2
Hip Room - First Row	1,541.8	1,541.8	1,541.8	1,541.8	1,541.8	1,541.8
Hip Room - Second Row (where applicable)	1,767.8	1,767.8	1,767.8	1,767.8	1,767.8	1,767.8
Hip Room - Third Row (where applicable)	1,709.4	1,709.4	1,709.4	1,709.4	1,709.4	1,709.4
Hip Room - Fourth Row (where applicable)	1,727.2	1,727.2	1,727.2	1,727.2	1,727.2	1,727.2
Hip Room - Fifth Row (where applicable)	-	-	1,549.4	1,549.4	1,549.4	1,549.4
Shoulder Room - First Row	1,724.7	1,724.7	1,724.7	1,724.7	1,724.7	1,724.7
Shoulder Room - Second Row (where applicable)	1,813.6	1,813.6	1,813.6	1,813.6	1,813.6	1,813.6
Shoulder Room - Third Row (where applicable)	1,701.8	1,701.8	1,701.8	1,701.8	1,701.8	1,701.8
Shoulder Room - Fourth Row (where applicable)	1,722.1	1,722.1	1,722.1	1,722.1	1,722.1	1,722.1
Shoulder Room - Fifth Row (where applicable)	-	-	1,544.3	1,544.3	1,544.3	1,544.3
Cargo Length Front (at Floor)	3,149.6	3,149.6	3,599.2	3,599.2	3,599.2	4,323.1
Cargo Length Front (at Belt)	2,923.5	2,923.5	3,373.1	3,373.1	3,373.1	4097
Cargo Width Between Wheelhouse (SRW/DRW)	1,364	1,364	1,364	1,364	1,364	1,364
Cargo Height Maximum	1,341.1	1,717	1,341.1	1,717	1,955.8	1,955.8

Interior Dimensions
Transit Cargo Van
Length (Regular, Long, Long-EL)	Regular	Regular	Long	Long	Long	Long-EL
Roof (Low, Medium, High)	Low	Medium	Low	Medium	High	High
	(in)	(in)	(in)	(in)	(in)	(in)
Head Room - First Row	40.8	52	40.8	52	56.6	56.6
Maximum Leg Room - First Row	41.3	41.3	41.3	41.3	41.3	41.3
Leg Room - First Row (Max.)	39.7	39.7	39.7	39.7	39.7	39.7
Leg Room - First Row	60.7	60.7	60.7	60.7	60.7	60.7
Shoulder Room - First Row	67.9	67.9	67.9	67.9	67.9	67.9
Cargo Length Front (at Floor)	126	126	143.7	143.7	143.7	172.2
Cargo Length Front (at Belt)	115.9	115.9	133.6	133.6	133.6	162
Cargo Width Between Wheelhouse (SRW/DRW)	54.8	54.8	54.8	54.8	54.8	54.8/ 45.4
Cargo Height Maximum	56.9	72	56.9	72	81.5	81.5
Transit Crew Van
Length (Regular, Long, Long-EL)	Regular	Regular	Long	Long	Long	Long-EL
Roof (Low, Medium, High)	Low	Medium	Low	Medium	High	High
	(in)	(in)	(in)	(in)	(in)	(in)
Head Room - First Row	40.8	52	40.8	52	56.6	56.6
Maximum Leg Room - First Row	41.3	41.3	41.3	41.3	41.3	41.3
Leg Room - First Row (Max.)	39.7	39.7	39.7	39.7	39.7	39.7
Leg Room - First Row	60.7	60.7	60.7	60.7	60.7	60.7
Shoulder Room - First Row	67.9	67.9	67.9	67.9	67.9	67.9
Cargo Length Front (at Floor)	86.7	86.7	104.3	104.3	104.3	132.8
Cargo Length Front (at Belt)	80.8	80.8	96.7	96.7	96.7	125.1
Cargo Width Between Wheelhouse (SRW/DRW)	54.8	54.8	54.8	54.8	54.8	54.8
Cargo Height Maximum	54.2	70.7	54.2	70.7	77.4	77.4
Transit Passenger Van
Length (Regular, Long, Long-EL)	Regular	Regular	Long	Long	Long	Long-EL
Roof (Low, Medium, High)	Low	Medium	Low	Medium	High	High
	(in)	(in)	(in)	(in)	(in)	(in)
Head Room - First Row	40.8	52	40.8	52	56.6	56.6
Head Room - Second Row (where applicable)	41.1	55.8	41.1	55.8	65.2	65.2
Head Room - Third Row (where applicable)	40.6	55.8	40.6	55.8	65.2	65.2
Head Room - Fourth Row (where applicable)	38.7	55.8	38.7	55.8	65.2	65.2
Head Room - Fifth Row (where applicable)	-	-	38.1	52.6	61.3	61.3
Leg Room - First Row (Max.)	41.3	41.3	41.3	41.3	41.3	41.3
Leg Room - Second Row (where applicable)	33.7	33.7	33.7	33.7	33.7	33.7
Leg Room - Third Row (where applicable)	35.6	35.6	35.6	35.6	35.6	35.6
Leg Room - Fourth Row (where applicable)	35.6	35.6	35.6	35.6	35.6	35.6
Leg Room - Fifth Row (where applicable)	-	-	35.6	35.6	35.6	35.6
Hip Room - First Row	60.7	60.7	60.7	60.7	60.7	60.7
Hip Room - Second Row (where applicable)	69.6	69.6	69.6	69.6	69.6	69.6
Hip Room - Third Row (where applicable)	67.3	67.3	67.3	67.3	67.3	67.3
Hip Room - Fourth Row (where applicable)	68	68	68	68	68	68
Hip Room - Fifth Row (where applicable)	-	-	61	61	61	61
Shoulder Room - First Row	67.9	67.9	67.9	67.9	67.9	67.9
Shoulder Room - Second Row (where applicable)	71.4	71.4	71.4	71.4	71.4	71.4
Shoulder Room - Third Row (where applicable)	67	67	67	67	67	67
Shoulder Room - Fourth Row (where applicable)	67.8	67.8	67.8	67.8	67.8	67.8
Shoulder Room - Fifth Row (where applicable)	-	-	60.8	60.8	60.8	60.8
Cargo Length Front (at Floor)	124	124	141.7	141.7	141.7	170.2
Cargo Length Front (at Belt)	115.1	115.1	132.8	132.8	132.8	161.3
Cargo Width Between Wheelhouse (SRW/DRW)	53.7	53.7	53.7	53.7	53.7	53.7
Cargo Height Maximum	52.8	67.6	52.8	67.6	77	77

Capacities

Switch to Imperial Units Switch to Metric Units

Transit Cargo Van
Length (Regular, Long, Extended)	Regular	Regular	Long	Long	Long	Extended
Roof (Low, Medium, High)	Low	Medium	Low	Medium	High	High
Maximum Passenger Capacity	2	2	2	2	2	2
Rows of Seating	1	1	1	1	1	1
	(L)	(L)	(L)	(L)	(L)	(L)
Cargo Volume Behind First Row	6,984.7	8,926	7,862.7	10,110.7	11,448.6	13,796
Maximum Cargo Volume with Front Passenger Seat Removed	8,071.7	10,301.6	8,951	11,486.3	13,002.5	15,352.7
Transit Crew Van
Length (Regular, Long, Extended)	Medium	Regular	Long	Long	Long	Extended
Roof (Low, Medium, High)	Low	Medium	Low	Medium	High	High
Maximum Passenger Capacity	5	5	5	5	5	5
Rows of Seating	2 (2-3)	2 (2-3)	2 (2-3)	2 (2-3)	2 (2-3)	2 (2-3)
	(L)	(L)	(L)	(L)	(L)	(L)
Cargo Volume Behind First Row	8,717.6	11,166.2	9,696.5	12,486.9	14,090.6	16,710.7
Maximum Cargo Volume with Front Passenger Seat Removed	930.9	1,215.2	930.9	1,215.2	1,328.9	1,328.9
Transit Passenger Van
Length (Regular, Long, Extended)	Regular	Regular	Long	Long	Long	Extended
Roof (Low, Medium, High)	Low	Medium	Low	Medium	High	High
Maximum Passenger Capacity	8 and 10	8 and 10	12	12	12	15
Rows of Seating	3 (2-3-3)	3 (2-3-3)	4 (2-3-3-4)	4 (2-3-3-4)	4 (2-3-3-4)	5 (2-3-3-3-4)
	(L)	(L)	(L)	(L)	(L)	(L)
Cargo Volume Behind First Row (range)	6,034.4 - 6,357.2	7,968.4 - 8,288.4	6,006 - 6,940.5	8,262.9 - 9,194.5	9,579.6 - 10,514.1	11,726.1
Cargo Volume Behind Second Row (range)	3,978.5 - 4,298.5	5,284 - 5,603.9	3,927.6 - 4,862	5,536 - 6,470.4	6,476.1 - 7,410.6	8,543.2
Cargo Volume Behind Third Row (range)	2,667.5	3,539.6	2,591 - 3,525.5	3,791.6 - 4,726.1	4,445.8 - 5,380.2	6,512.9
Cargo Volume Behind Fourth Row (range)	1,107.2	1,466.8	1,384.7 - 1,985	2,061.5 - 2,659	2,429.6 - 3,029.9	5,210.3
Cargo Volume Behind Fifth Row	-	-	433.3	580.5	662.6	2,845.9

Transit Cargo Van
Length (Regular, Long, Extended)	Regular	Regular	Long	Long	Long	Extended
Roof (Low, Medium, High)	Low	Medium	Low	Medium	High	High
Maximum Passenger Capacity	2	2	2	2	2	2
Rows of Seating	1	1	1	1	1	1
	(cu. ft.)	(cu. ft.)	(cu. ft.)	(cu. ft.)	(cu. ft.)	(cu. ft.)
Cargo Volume Behind First Row	246.7	315.2	277.7	357.1	404.3	487.2
Maximum Cargo Volume with Front Passenger Seat Removed	285	363.8	316.1	405.6	459.2	542.2
Transit Crew Van
Length (Regular, Long, Extended)	Regular	Regular	Long	Long	Long	Extended
Roof (Low, Medium, High)	Low	Medium	Low	Medium	High	High
Maximum Passenger Capacity	5	5	5	5	5	5
Rows of Seating	2 (2-3)	2 (2-3)	2 (2-3)	2 (2-3)	2 (2-3)	2 (2-3)
	(cu. ft.)	(cu. ft.)	(cu. ft.)	(cu. ft.)	(cu. ft.)	(cu. ft.)
Cargo Volume Behind First Row	307.9	394.3	342.4	441	497.6	590.1
Maximum Cargo Volume with Front Passenger Seat Removed	32.9	42.9	32.9	42.9	46.9	46.9
Transit Passenger Van
Length (Regular, Long, Extended)	Regular	Regular	Long	Long	Long	Extended
Roof (Low, Medium, High)	Low	Medium	Low	Medium	High	High
Maximum Passenger Capacity	8 and 10	8 and 10	12	12	12	15
Rows of Seating	3 (2-3-3)	3 (2-3-3)	4 (2-3-3-4)	4 (2-3-3-4)	4 (2-3-3-4)	5 (2-3-3-3-4)
	(cu. ft.)	(cu. ft.)	(cu. ft.)	(cu. ft.)	(cu. ft.)	(cu. ft.)
Cargo Volume Behind First Row (range)	213.1 - 224.5	281.4 - 292.7	212.1 - 245.1	291.8 - 324.7	338.3 - 371.3	414.1
Cargo Volume Behind Second Row (range)	140.5 - 151.8	186.6 - 197.9	138.7 - 171.7	195.5 - 228.5	228.7 - 261.7	301.7
Cargo Volume Behind Third Row (range)	94.2	125	91.5 - 124.5	133.9 - 166.9	157 - 190	230
Cargo Volume Behind Fourth Row (range)	39.1	51.8	48.9 - 70.1	72.8 - 93.9	85.8 - 107	184
Cargo Volume Behind Fifth Row	-	-	15.3	20.5	23.4	100.5

Engine

Switch to Imperial Units Switch to Metric Units

Engine Specifications
Engine type	3.5L PDFi V6	3.5L EcoBoost^® V6
Displacement (cu. In../ ml)	213/3,497	213/3,497
Horsepower (SAE net @ RPM)	275 @ 6,500	310 @ 5,000
Torque (lb.-ft. @ RPM)	262 lb.-ft. @ 3,750	400 lb.-ft. @ 2,500
Compression ratio	11.8.1	10.0:1
Bore x stroke (in.)	3.64 x 3.41	3.64 x 3.41
Valvetrain	DOHC, 4 valve per cylinder	DOHC, 4 valve per cylinder
Fuel delivery	Sequential multiport electronic	Direct gasoline injection, dual turbochargers
Transmission type	10-speed automatic Selectshift^® with overdrive	10-speed automatic Selectshift^® with overdrive
Engine block material	Aluminum	Aluminum
Cylinder head material	Aluminum	Aluminum

Engine Specifications
Engine type	3.5L PDFi V6	3.5L EcoBoost^® V6
Displacement (cu. In../ ml)	213/3,497	213/3,497
Horsepower (SAE net @ RPM)	275 @ 6,500	310 @ 5,000
Torque (lb.-ft. @ RPM)	262 lb.-ft. @ 3,750	400 lb.-ft. @ 2,500
Compression ratio	11.8.1	10.0:1
Bore x stroke (in.)	3.64 x 3.41	3.64 x 3.41
Valvetrain	DOHC, 4 valve per cylinder	DOHC, 4 valve per cylinder
Fuel delivery	Sequential multiport electronic	Direct gasoline injection, dual turbochargers
Transmission type	10-speed automatic Selectshift^® with overdrive	10-speed automatic Selectshift^® with overdrive
Engine block material	Aluminum	Aluminum
Cylinder head material	Aluminum	Aluminum

Chassis

Switch to Imperial Units Switch to Metric Units

Front Suspension	Independent MacPherson-strut
Rear Suspension	Leaf springs
Shock Absorbers	Heavy-duty gas
Brakes	4-wheel anti-lock disc brakes
Steering	Electric Power Steering (EPS)

Front Suspension	Independent MacPherson-strut
Rear Suspension	Leaf springs
Shock Absorbers	Heavy-duty gas
Brakes	4-wheel anti-lock disc brakes
Steering	Electric Power Steering (EPS)

Towing

Switch to Imperial Units Switch to Metric Units

Maximum Capabilities - GCWR, Conventional Towing, Payload
Transit Cargo Van	Roof Style	Length	Wheelbase (mm)	SRW/DRW	RWD/ AWD	Engine	GVWR (kg)	Max Payload (kg)	GCWR (kg)	Axle Ratio	Max. Conv. Towing Cap. (kg)
Transit 150	High	Long	3,750	SRW	AWD	3.5L PDFi V6	3,933	1,343	5,715	3.73	2,858
Transit 150	High	Long	3,750	SRW	AWD	3.5L EcoBoost V6	3,933	1,379	5,443	4.1	2,631
Transit 150	High	Long	3,750	SRW	RWD	3.5L PDFi V6	3,933	1,451	5,715	3.73	2,948
Transit 150	High	Long	3,750	SRW	RWD	3.5L EcoBoost V6	3,933	1,488	5,443	4.1	2,722
Transit 150	Low	Long	3,750	SRW	AWD	3.5L PDFi V6	3,933	1,456	5,715	3.73	2,948
Transit 150	Low	Long	3,750	SRW	AWD	3.5L EcoBoost V6	3,933	1,492	5,443	4.1	2,722
Transit 150	Low	Long	3,750	SRW	RWD	3.5L PDFi V6	3,933	1,560	5,715	3.73	3,084
Transit 150	Low	Long	3,750	SRW	RWD	3.5L EcoBoost V6	3,933	1,601	5,443	4.1	2,812
Transit 150	Low	Regular	3,300	SRW	AWD	3.5L PDFi V6	3,933	1,506	5,715	3.73	2,994
Transit 150	Low	Regular	3,300	SRW	AWD	3.5L EcoBoost V6	3,933	1,542	5,443	4.1	2,767
Transit 150	Low	Regular	3,300	SRW	RWD	3.5L PDFi V6	3,933	1,610	5,715	3.73	3,130
Transit 150	Low	Regular	3,300	SRW	RWD	3.5L EcoBoost V6	3,933	1,647	5,443	4.1	2,903
Transit 150	Medium	Long	3,750	SRW	AWD	3.5L PDFi V6	3,933	1,388	5,715	3.73	2,903
Transit 150	Medium	Long	3,750	SRW	AWD	3.5L EcoBoost V6	3,933	1,424	5,443	4.1	2,676
Transit 150	Medium	Long	3,750	SRW	RWD	3.5L PDFi V6	3,933	1,492	5,715	3.73	2,994
Transit 150	Medium	Long	3,750	SRW	RWD	3.5L EcoBoost V6	3,933	1,533	5,443	4.1	2,767
Transit 150	Medium	Regular	3,300	SRW	AWD	3.5L PDFi V6	3,933	1,442	5,715	3.73	2,948
Transit 150	Medium	Regular	3,300	SRW	AWD	3.5L EcoBoost V6	3,933	1,483	5,443	4.1	2,722
Transit 150	Medium	Regular	3,300	SRW	RWD	3.5L PDFi V6	3,933	1,547	5,715	3.73	3,039
Transit 150	Medium	Regular	3,300	SRW	RWD	3.5L EcoBoost V6	3,933	1,588	5,443	4.1	2,812
Transit 250	High	Extended	3,750	SRW	AWD	3.5L PDFi V6	4,114	1,433	5,715	3.73	2,767
Transit 250	High	Extended	3,750	SRW	AWD	3.5L EcoBoost V6	4,114	1,470	5,443	4.1	2,540
Transit 250	High	Extended	3,750	SRW	RWD	3.5L PDFi V6	4,114	1,538	5,715	3.73	2,858
Transit 250	High	Extended	3,750	SRW	RWD	3.5L EcoBoost V6	4,114	1,579	5,443	4.1	2,631
Transit 250	High	Long	3,750	SRW	AWD	3.5L PDFi V6	4,114	1,524	5,715	3.73	2,858
Transit 250	High	Long	3,750	SRW	AWD	3.5L EcoBoost V6	4,114	1,560	5,443	4.1	2,631
Transit 250	High	Long	3,750	SRW	RWD	3.5L PDFi V6	4,114	1,633	5,715	3.73	2,948
Transit 250	High	Long	3,750	SRW	RWD	3.5L EcoBoost V6	4,114	1,669	5,443	4.1	2,722
Transit 250	Low	Long	3,750	SRW	AWD	3.5L PDFi V6	4,114	1,637	5,715	3.73	2,948
Transit 250	Low	Long	3,750	SRW	AWD	3.5L EcoBoost V6	4,114	1,674	5,443	4.1	2,722
Transit 250	Low	Long	3,750	SRW	RWD	3.5L PDFi V6	4,114	1,742	5,715	3.73	3,084
Transit 250	Low	Long	3,750	SRW	RWD	3.5L EcoBoost V6	4,114	1,783	5,443	4.1	2,812
Transit 250	Low	Regular	3,300	SRW	AWD	3.5L PDFi V6	4,114	1,687	5,715	3.73	2,994
Transit 250	Low	Regular	3,300	SRW	AWD	3.5L EcoBoost V6	4,114	1,724	5,443	4.1	2,767
Transit 250	Low	Regular	3,300	SRW	RWD	3.5L PDFi V6	4,114	1,792	5,715	3.73	3,130
Transit 250	Low	Regular	3,300	SRW	RWD	3.5L EcoBoost V6	4,114	1,828	5,443	4.1	2,903
Transit 250	Medium	Long	3,750	SRW	AWD	3.5L PDFi V6	4,114	1,569	5,715	3.73	2,903
Transit 250	Medium	Long	3,750	SRW	AWD	3.5L EcoBoost V6	4,114	1,606	5,443	4.1	2,676
Transit 250	Medium	Long	3,750	SRW	RWD	3.5L PDFi V6	4,114	1,674	5,715	3.73	2,994
Transit 250	Medium	Long	3,750	SRW	RWD	3.5L EcoBoost V6	4,114	1,715	5,443	4.1	2,767
Transit 250	Medium	Regular	3,300	SRW	AWD	3.5L PDFi V6	4,114	1,624	5,715	3.73	2,948
Transit 250	Medium	Regular	3,300	SRW	AWD	3.5L EcoBoost V6	4,114	1,665	5,443	4.1	2,722
Transit 250	Medium	Regular	3,300	SRW	RWD	3.5L PDFi V6	4,114	1,728	5,715	3.73	3,039
Transit 250	Medium	Regular	3,300	SRW	RWD	3.5L EcoBoost V6	4,114	1,769	5,443	4.1	2,812
Transit 350	High	Extended	3,750	SRW	AWD	3.5L PDFi V6	4,309	1,628	5,715	3.73	2,767
Transit 350	High	Extended	3,750	SRW	AWD	3.5L EcoBoost V6	4,309	1,665	5,443	4.1	2,540
Transit 350	High	Extended	3,750	SRW	RWD	3.5L PDFi V6	4,309	1,733	5,715	3.73	2,858
Transit 350	High	Extended	3,750	SRW	RWD	3.5L EcoBoost V6	4,309	1,774	5,443	4.1	2,631
Transit 350	High	Long	3,750	SRW	AWD	3.5L PDFi V6	4,309	1,724	5,715	3.73	2,858
Transit 350	High	Long	3,750	SRW	AWD	3.5L EcoBoost V6	4,309	1,755	5,443	4.1	2,631
Transit 350	High	Long	3,750	SRW	RWD	3.5L PDFi V6	4,309	1,828	5,715	3.73	2,948
Transit 350	High	Long	3,750	SRW	RWD	3.5L EcoBoost V6	4,309	1,864	5,443	4.1	2,722
Transit 350	Low	Long	3,750	SRW	AWD	3.5L PDFi V6	4,309	1,837	5,715	3.73	2,948
Transit 350	Low	Long	3,750	SRW	AWD	3.5L EcoBoost V6	4,309	1,869	5,443	4.1	2,722
Transit 350	Low	Long	3,750	SRW	RWD	3.5L PDFi V6	4,309	1,941	5,715	3.73	3,084
Transit 350	Low	Long	3,750	SRW	RWD	3.5L EcoBoost V6	4,309	1,978	5,443	4.1	2,812
Transit 350	Low	Regular	3,300	SRW	AWD	3.5L PDFi V6	4,309	1,882	5,715	3.73	2,994
Transit 350	Low	Regular	3,300	SRW	AWD	3.5L EcoBoost V6	4,309	1,919	5,443	4.1	2,767
Transit 350	Low	Regular	3,300	SRW	RWD	3.5L PDFi V6	4,309	1,987	5,715	3.73	3,130
Transit 350	Low	Regular	3,300	SRW	RWD	3.5L EcoBoost V6	4,309	2,023	5,443	4.1	2,903
Transit 350	Medium	Long	3,750	SRW	AWD	3.5L PDFi V6	4,309	1,764	5,715	3.73	2,903
Transit 350	Medium	Long	3,750	SRW	AWD	3.5L EcoBoost V6	4,309	1,801	5,443	4.1	2,676
Transit 350	Medium	Long	3,750	SRW	RWD	3.5L PDFi V6	4,309	1,869	5,715	3.73	2,994
Transit 350	Medium	Long	3,750	SRW	RWD	3.5L EcoBoost V6	4,309	1,910	5,443	4.1	2,767
Transit 350	Medium	Regular	3,300	SRW	AWD	3.5L PDFi V6	4,309	1,819	5,715	3.73	2,948
Transit 350	Medium	Regular	3,300	SRW	AWD	3.5L EcoBoost V6	4,309	1,860	5,443	4.1	2,722
Transit 350	Medium	Regular	3,300	SRW	RWD	3.5L PDFi V6	4,309	1,923	5,715	3.73	3,039
Transit 350	Medium	Regular	3,300	SRW	RWD	3.5L EcoBoost V6	4,309	1,964	5,443	4.1	2,812
Transit 350HD	High	Extended	3,750	DRW	AWD	3.5L PDFi V6	4,513	1,733	5,897	3.73	2,858
Transit 350HD	High	Extended	3,750	DRW	AWD	3.5L PDFi V6	4,699	1,919	5,897	3.73	2,858
Transit 350HD	High	Extended	3,750	DRW	AWD	3.5L EcoBoost V6	4,513	1,769	5,443	4.1	2,449
Transit 350HD	High	Extended	3,750	DRW	RWD	3.5L PDFi V6	4,513	1,842	5,897	3.73	2,948
Transit 350HD	High	Extended	3,750	DRW	RWD	3.5L PDFi V6	4,699	2,028	5,897	3.73	2,948
Transit 350HD	High	Extended	3,750	DRW	RWD	3.5L EcoBoost V6	4,513	1,869	5,443	4.1	2,540
Transit 350HD	High	Extended	3,750	DRW	RWD	3.5L EcoBoost V6	4,699	2,055	5,443	4.1	2,540

Transit Crew Van	Roof Style	Length	Wheelbase (mm)	SRW/DRW	RWD/ AWD	Engine	GVWR (kg)	Max Payload (kg)	GCWR (kg)	AxleRatio	Max. Conv. Towing Cap. (kg)
Transit 150	High	Long	3,750	SRW	AWD	3.5L PDFi V6	3,933	1,197	5,715	3.73	2,722
Transit 150	High	Long	3,750	SRW	AWD	3.5L EcoBoost V6	3,933	1,234	5,443	4.1	2,449
Transit 150	High	Long	3,750	SRW	RWD	3.5L PDFi V6	3,933	1,293	5,715	3.73	2,812
Transit 150	High	Long	3,750	SRW	RWD	3.5L EcoBoost V6	3,933	1,343	5,443	4.1	2,585
Transit 150	Low	Long	3,750	SRW	AWD	3.5L PDFi V6	3,933	1,306	5,715	3.73	2,812
Transit 150	Low	Long	3,750	SRW	AWD	3.5L EcoBoost V6	3,933	1,343	5,443	4.1	2,585
Transit 150	Low	Long	3,750	SRW	RWD	3.5L PDFi V6	3,933	1,406	5,715	3.73	2,903
Transit 150	Low	Long	3,750	SRW	RWD	3.5L EcoBoost V6	3,933	1,451	5,443	4.1	2,676
Transit 150	Low	Regular	3,300	SRW	AWD	3.5L PDFi V6	3,933	1,356	5,715	3.73	2,858
Transit 150	Low	Regular	3,300	SRW	AWD	3.5L EcoBoost V6	3,933	1,397	5,443	4.1	2,631
Transit 150	Low	Regular	3,300	SRW	RWD	3.5L PDFi V6	3,933	1,461	5,715	3.73	2,948
Transit 150	Low	Regular	3,300	SRW	RWD	3.5L EcoBoost V6	3,933	1,497	5,443	4.1	2,722
Transit 150	Medium	Long	3,750	SRW	AWD	3.5L PDFi V6	3,933	1,238	5,715	3.73	2,767
Transit 150	Medium	Long	3,750	SRW	AWD	3.5L EcoBoost V6	3,933	1,275	5,443	4.1	2,495
Transit 150	Medium	Long	3,750	SRW	RWD	3.5L PDFi V6	3,933	1,338	5,715	3.73	2,858
Transit 150	Medium	Long	3,750	SRW	RWD	3.5L EcoBoost V6	3,933	1,383	5,443	4.1	2,631
Transit 150	Medium	Regular	3,300	SRW	AWD	3.5L PDFi V6	3,933	1,297	5,715	3.73	2,812
Transit 150	Medium	Regular	3,300	SRW	AWD	3.5L EcoBoost V6	3,933	1,338	5,443	4.1	2,585
Transit 150	Medium	Regular	3,300	SRW	RWD	3.5L PDFi V6	3,933	1,402	5,715	3.73	2,903
Transit 150	Medium	Regular	3,300	SRW	RWD	3.5L EcoBoost V6	3,933	1,438	5,443	4.1	2,676
Transit 250	High	Long	3,750	SRW	AWD	3.5L PDFi V6	4,114	1,379	5,715	3.73	2,722
Transit 250	High	Long	3,750	SRW	AWD	3.5L EcoBoost V6	4,114	1,415	5,443	4.1	2,449
Transit 250	High	Long	3,750	SRW	RWD	3.5L PDFi V6	4,114	1,474	5,715	3.73	2,812
Transit 250	High	Long	3,750	SRW	RWD	3.5L EcoBoost V6	4,114	1,524	5,443	4.1	2,585
Transit 250	Low	Long	3,750	SRW	AWD	3.5L PDFi V6	4,114	1,488	5,715	3.73	2,812
Transit 250	Low	Long	3,750	SRW	AWD	3.5L EcoBoost V6	4,114	1,524	5,443	4.1	2,585
Transit 250	Low	Long	3,750	SRW	RWD	3.5L PDFi V6	4,114	1,588	5,715	3.73	2,903
Transit 250	Low	Long	3,750	SRW	RWD	3.5L EcoBoost V6	4,114	1,633	5,443	4.1	2,676
Transit 250	Low	Regular	3,300	SRW	AWD	3.5L PDFi V6	4,114	1,538	5,715	3.73	2,858
Transit 250	Low	Regular	3,300	SRW	AWD	3.5L EcoBoost V6	4,114	1,579	5,443	4.1	2,631
Transit 250	Low	Regular	3,300	SRW	RWD	3.5L PDFi V6	4,114	1,642	5,715	3.73	2,948
Transit 250	Low	Regular	3,300	SRW	RWD	3.5L EcoBoost V6	4,114	1,678	5,443	4.1	2,722
Transit 250	Medium	Long	3,750	SRW	AWD	3.5L PDFi V6	4,114	1,420	5,715	3.73	2,767
Transit 250	Medium	Long	3,750	SRW	AWD	3.5L EcoBoost V6	4,114	1,456	5,443	4.1	2,495
Transit 250	Medium	Long	3,750	SRW	RWD	3.5L PDFi V6	4,114	1,520	5,715	3.73	2,858
Transit 250	Medium	Long	3,750	SRW	RWD	3.5L EcoBoost V6	4,114	1,565	5,443	4.1	2,631
Transit 250	Medium	Regular	3,300	SRW	AWD	3.5L PDFi V6	4,114	1,479	5,715	3.73	2,812
Transit 250	Medium	Regular	3,300	SRW	AWD	3.5L EcoBoost V6	4,114	1,520	5,443	4.1	2,585
Transit 250	Medium	Regular	3,300	SRW	RWD	3.5L PDFi V6	4,114	1,583	5,715	3.73	2,903
Transit 250	Medium	Regular	3,300	SRW	RWD	3.5L EcoBoost V6	4,114	1,619	5,443	4.1	2,676
Transit 350	High	Long	3,750	SRW	AWD	3.5L PDFi V6	4,309	1,574	5,715	3.73	2,722
Transit 350	High	Long	3,750	SRW	AWD	3.5L EcoBoost V6	4,309	1,610	5,443	4.1	2,449
Transit 350	High	Long	3,750	SRW	RWD	3.5L PDFi V6	4,309	1,674	5,715	3.73	2,812
Transit 350	High	Long	3,750	SRW	RWD	3.5L EcoBoost V6	4,309	1,719	5,443	4.1	2,585
Transit 350	Low	Long	3,750	SRW	AWD	3.5L PDFi V6	4,309	1,687	5,715	3.73	2,812
Transit 350	Low	Long	3,750	SRW	AWD	3.5L EcoBoost V6	4,309	1,719	5,443	4.1	2,585
Transit 350	Low	Long	3,750	SRW	RWD	3.5L PDFi V6	4,309	1,783	5,715	3.73	2,903
Transit 350	Low	Long	3,750	SRW	RWD	3.5L EcoBoost V6	4,309	1,828	5,443	4.1	2,676
Transit 350	Low	Regular	3,300	SRW	AWD	3.5L PDFi V6	4,196	1,619	5,715	3.73	2,858
Transit 350	Low	Regular	3,300	SRW	AWD	3.5L EcoBoost V6	4,196	1,660	5,443	4.1	2,631
Transit 350	Low	Regular	3,300	SRW	RWD	3.5L PDFi V6	4,196	1,724	5,715	3.73	2,948
Transit 350	Low	Regular	3,300	SRW	RWD	3.5L EcoBoost V6	4,196	1,760	5,443	4.1	2,722
Transit 350	Medium	Long	3,750	SRW	AWD	3.5L PDFi V6	4,309	1,615	5,715	3.73	2,767
Transit 350	Medium	Long	3,750	SRW	AWD	3.5L EcoBoost V6	4,309	1,651	5,443	4.1	2,495
Transit 350	Medium	Long	3,750	SRW	RWD	3.5L PDFi V6	4,309	1,715	5,715	3.73	2,858
Transit 350	Medium	Long	3,750	SRW	RWD	3.5L EcoBoost V6	4,309	1,760	5,443	4.1	2,631
Transit 350	Medium	Regular	3,300	SRW	AWD	3.5L PDFi V6	4,196	1,560	5,715	3.73	2,812
Transit 350	Medium	Regular	3,300	SRW	AWD	3.5L EcoBoost V6	4,196	1,601	5,443	4.1	2,585
Transit 350	Medium	Regular	3,300	SRW	RWD	3.5L PDFi V6	4,196	1,665	5,715	3.73	2,903
Transit 350	Medium	Regular	3,300	SRW	RWD	3.5L EcoBoost V6	4,196	1,701	5,443	4.1	2,676
Transit 350HD	High	Extended	3,750	DRW	AWD	3.5L PDFi V6	4,513	1,583	5,897	3.73	2,676
Transit 350HD	High	Extended	3,750	DRW	AWD	3.5L PDFi V6	4,699	1,769	5,897	3.73	2,676
Transit 350HD	High	Extended	3,750	DRW	AWD	3.5L EcoBoost V6	4,513	1,619	5,443	4.1	2,268
Transit 350HD	High	Extended	3,750	DRW	RWD	3.5L PDFi V6	4,513	1,683	5,897	3.73	2,812
Transit 350HD	High	Extended	3,750	DRW	RWD	3.5L PDFi V6	4,699	1,869	5,897	3.73	2,812
Transit 350HD	High	Extended	3,750	DRW	RWD	3.5L EcoBoost V6	4,513	1,733	5,443	4.1	2,404
Transit 350HD	High	Extended	3,750	DRW	RWD	3.5L EcoBoost V6	4,699	1,919	5,443	4.1	2,404

Transit Passenger Van	Roof Style	Length	Wheelbase (mm)	SRW/DRW	RWD/ AWD	Engine	GVWR (kg)	Max Payload (kg)	GCWR (kg)	AxleRatio	Max. Conv. Towing Cap. (kg)
Transit 150	Low	Regular	3,300	SRW	AWD	3.5L EcoBoost V6	3,878	1,193	4,899	3.73	1,996
Transit 150	Low	Regular	3,300	SRW	RWD	3.5L EcoBoost V6	3,878	1,297	4,899	3.73	2,087
Transit 150	Medium	Regular	3,300	SRW	AWD	3.5L EcoBoost V6	3,878	1,107	4,899	3.73	1,905
Transit 150	Medium	Regular	3,300	SRW	RWD	3.5L EcoBoost V6	3,878	1,211	4,899	3.73	1,996
Transit 350	High	Long	3,750	SRW	AWD	3.5L PDFi V6	4,196	1,166	5,080	3.31	1,814
Transit 350	High	Long	3,750	SRW	AWD	3.5L PDFi V6	4,332	1,302	5,080	3.31	1,814
Transit 350	High	Long	3,750	SRW	AWD	3.5L EcoBoost V6	4,196	1,202	5,080	4.1	1,814
Transit 350	High	Long	3,750	SRW	AWD	3.5L EcoBoost V6	4,332	1,338	5,080	4.1	1,814
Transit 350	High	Long	3,750	SRW	RWD	3.5L PDFi V6	4,196	1,270	5,080	3.31	1,950
Transit 350	High	Long	3,750	SRW	RWD	3.5L PDFi V6	4,264	1,338	5,080	3.31	1,950
Transit 350	High	Long	3,750	SRW	RWD	3.5L EcoBoost V6	4,196	1,306	5,080	4.1	1,905
Transit 350	High	Long	3,750	SRW	RWD	3.5L EcoBoost V6	4,264	1,379	5,080	4.1	1,905
Transit 350	Low	Long	3,750	SRW	AWD	3.5L PDFi V6	4,196	1,288	5,080	3.31	1,950
Transit 350	Low	Long	3,750	SRW	AWD	3.5L PDFi V6	4,332	1,424	5,080	3.31	1,950
Transit 350	Low	Long	3,750	SRW	AWD	3.5L EcoBoost V6	4,196	1,324	5,080	4.1	1,950
Transit 350	Low	Long	3,750	SRW	AWD	3.5L EcoBoost V6	4,332	1,461	5,080	4.1	1,950
Transit 350	Low	Long	3,750	SRW	RWD	3.5L PDFi V6	4,196	1,397	5,080	3.31	2,041
Transit 350	Low	Long	3,750	SRW	RWD	3.5L PDFi V6	4,264	1,465	5,080	3.31	2,041
Transit 350	Low	Long	3,750	SRW	RWD	3.5L EcoBoost V6	4,196	1,433	5,080	4.1	2,041
Transit 350	Low	Long	3,750	SRW	RWD	3.5L EcoBoost V6	4,264	1,501	5,080	4.1	2,041
Transit 350	Medium	Long	3,750	SRW	AWD	3.5L PDFi V6	4,196	1,229	5,080	3.31	1,905
Transit 350	Medium	Long	3,750	SRW	AWD	3.5L PDFi V6	4,332	1,365	5,080	3.31	1,905
Transit 350	Medium	Long	3,750	SRW	AWD	3.5L EcoBoost V6	4,196	1,266	5,080	4.1	1,860
Transit 350	Medium	Long	3,750	SRW	AWD	3.5L EcoBoost V6	4,332	1,402	5,080	4.1	1,860
Transit 350	Medium	Long	3,750	SRW	RWD	3.5L PDFi V6	4,196	1,338	5,080	3.31	1,996
Transit 350	Medium	Long	3,750	SRW	RWD	3.5L PDFi V6	4,264	1,402	5,080	3.31	1,996
Transit 350	Medium	Long	3,750	SRW	RWD	3.5L EcoBoost V6	4,196	1,374	5,080	4.1	1,996
Transit 350	Medium	Long	3,750	SRW	RWD	3.5L EcoBoost V6	4,264	1,438	5,080	4.1	1,996
Transit 350HD	High	Extended	3,750	DRW	AWD	3.5L PDFi V6	4,699	1,406	5,080	3.73	1,497
Transit 350HD	High	Extended	3,750	DRW	RWD	3.5L PDFi V6	4,699	1,515	5,080	3.73	1,633
Transit 350HD	High	Extended	3,750	DRW	RWD	3.5L EcoBoost V6	4,699	1,551	5,080	4.1	1,678

Maximum Capabilities - GCWR, Conventional Towing, Payload
Transit Cargo Van	Roof Style	Length	Wheelbase (in)	SRW/DRW	RWD/AWD	Engine	GVWR (lbs)	Max Payload (lbs)	GCWR (lbs)	Axle Ratio	Max. Conv. Towing Cap. (lbs)
Transit 150	High	Long	147.6	SRW	AWD	3.5L PDFi V6	8,670	2,960	12,600	3.73	6,300
Transit 150	High	Long	147.6	SRW	AWD	3.5L EcoBoost V6	8,670	3,040	12,000	4.1	5,800
Transit 150	High	Long	147.6	SRW	RWD	3.5L PDFi V6	8,670	3,200	12,600	3.73	6,500
Transit 150	High	Long	147.6	SRW	RWD	3.5L EcoBoost V6	8,670	3,280	12,000	4.1	6,000
Transit 150	Low	Long	147.6	SRW	AWD	3.5L PDFi V6	8,670	3,210	12,600	3.73	6,500
Transit 150	Low	Long	147.6	SRW	AWD	3.5L EcoBoost V6	8,670	3,290	12,000	4.1	6,000
Transit 150	Low	Long	147.6	SRW	RWD	3.5L PDFi V6	8,670	3,440	12,600	3.73	6,800
Transit 150	Low	Long	147.6	SRW	RWD	3.5L EcoBoost V6	8,670	3,530	12,000	4.1	6,200
Transit 150	Low	Regular	129.9	SRW	AWD	3.5L PDFi V6	8,670	3,320	12,600	3.73	6,600
Transit 150	Low	Regular	129.9	SRW	AWD	3.5L EcoBoost V6	8,670	3,400	12,000	4.1	6,100
Transit 150	Low	Regular	129.9	SRW	RWD	3.5L PDFi V6	8,670	3,550	12,600	3.73	6,900
Transit 150	Low	Regular	129.9	SRW	RWD	3.5L EcoBoost V6	8,670	3,630	12,000	4.1	6,400
Transit 150	Medium	Long	147.6	SRW	AWD	3.5L PDFi V6	8,670	3,060	12,600	3.73	6,400
Transit 150	Medium	Long	147.6	SRW	AWD	3.5L EcoBoost V6	8,670	3,140	12,000	4.1	5,900
Transit 150	Medium	Long	147.6	SRW	RWD	3.5L PDFi V6	8,670	3,290	12,600	3.73	6,600
Transit 150	Medium	Long	147.6	SRW	RWD	3.5L EcoBoost V6	8,670	3,380	12,000	4.1	6,100
Transit 150	Medium	Regular	129.9	SRW	AWD	3.5L PDFi V6	8,670	3,180	12,600	3.73	6,500
Transit 150	Medium	Regular	129.9	SRW	AWD	3.5L EcoBoost V6	8,670	3,270	12,000	4.1	6,000
Transit 150	Medium	Regular	129.9	SRW	RWD	3.5L PDFi V6	8,670	3,410	12,600	3.73	6,700
Transit 150	Medium	Regular	129.9	SRW	RWD	3.5L EcoBoost V6	8,670	3,500	12,000	4.1	6,200
Transit 250	High	Extended	147.6	SRW	AWD	3.5L PDFi V6	9,070	3,160	12,600	3.73	6,100
Transit 250	High	Extended	147.6	SRW	AWD	3.5L EcoBoost V6	9,070	3,240	12,000	4.1	5,600
Transit 250	High	Extended	147.6	SRW	RWD	3.5L PDFi V6	9,070	3,390	12,600	3.73	6,300
Transit 250	High	Extended	147.6	SRW	RWD	3.5L EcoBoost V6	9,070	3,480	12,000	4.1	5,800
Transit 250	High	Long	147.6	SRW	AWD	3.5L PDFi V6	9,070	3,360	12,600	3.73	6,300
Transit 250	High	Long	147.6	SRW	AWD	3.5L EcoBoost V6	9,070	3,440	12,000	4.1	5,800
Transit 250	High	Long	147.6	SRW	RWD	3.5L PDFi V6	9,070	3,600	12,600	3.73	6,500
Transit 250	High	Long	147.6	SRW	RWD	3.5L EcoBoost V6	9,070	3,680	12,000	4.1	6,000
Transit 250	Low	Long	147.6	SRW	AWD	3.5L PDFi V6	9,070	3,610	12,600	3.73	6,500
Transit 250	Low	Long	147.6	SRW	AWD	3.5L EcoBoost V6	9,070	3,690	12,000	4.1	6,000
Transit 250	Low	Long	147.6	SRW	RWD	3.5L PDFi V6	9,070	3,840	12,600	3.73	6,800
Transit 250	Low	Long	147.6	SRW	RWD	3.5L EcoBoost V6	9,070	3,930	12,000	4.1	6,200
Transit 250	Low	Regular	129.9	SRW	AWD	3.5L PDFi V6	9,070	3,720	12,600	3.73	6,600
Transit 250	Low	Regular	129.9	SRW	AWD	3.5L EcoBoost V6	9,070	3,800	12,000	4.1	6,100
Transit 250	Low	Regular	129.9	SRW	RWD	3.5L PDFi V6	9,070	3,950	12,600	3.73	6,900
Transit 250	Low	Regular	129.9	SRW	RWD	3.5L EcoBoost V6	9,070	4,030	12,000	4.1	6,400
Transit 250	Medium	Long	147.6	SRW	AWD	3.5L PDFi V6	9,070	3,460	12,600	3.73	6,400
Transit 250	Medium	Long	147.6	SRW	AWD	3.5L EcoBoost V6	9,070	3,540	12,000	4.1	5,900
Transit 250	Medium	Long	147.6	SRW	RWD	3.5L PDFi V6	9,070	3,690	12,600	3.73	6,600
Transit 250	Medium	Long	147.6	SRW	RWD	3.5L EcoBoost V6	9,070	3,780	12,000	4.1	6,100
Transit 250	Medium	Regular	129.9	SRW	AWD	3.5L PDFi V6	9,070	3,580	12,600	3.73	6,500
Transit 250	Medium	Regular	129.9	SRW	AWD	3.5L EcoBoost V6	9,070	3,670	12,000	4.1	6,000
Transit 250	Medium	Regular	129.9	SRW	RWD	3.5L PDFi V6	9,070	3,810	12,600	3.73	6,700
Transit 250	Medium	Regular	129.9	SRW	RWD	3.5L EcoBoost V6	9,070	3,900	12,000	4.1	6,200
Transit 350	High	Extended	147.6	SRW	AWD	3.5L PDFi V6	9,500	3,590	12,600	3.73	6,100
Transit 350	High	Extended	147.6	SRW	AWD	3.5L EcoBoost V6	9,500	3,670	12,000	4.1	5,600
Transit 350	High	Extended	147.6	SRW	RWD	3.5L PDFi V6	9,500	3,820	12,600	3.73	6,300
Transit 350	High	Extended	147.6	SRW	RWD	3.5L EcoBoost V6	9,500	3,910	12,000	4.1	5,800
Transit 350	High	Long	147.6	SRW	AWD	3.5L PDFi V6	9,500	3,800	12,600	3.73	6,300
Transit 350	High	Long	147.6	SRW	AWD	3.5L EcoBoost V6	9,500	3,870	12,000	4.1	5,800
Transit 350	High	Long	147.6	SRW	RWD	3.5L PDFi V6	9,500	4,030	12,600	3.73	6,500
Transit 350	High	Long	147.6	SRW	RWD	3.5L EcoBoost V6	9,500	4,110	12,000	4.1	6,000
Transit 350	Low	Long	147.6	SRW	AWD	3.5L PDFi V6	9,500	4,050	12,600	3.73	6,500
Transit 350	Low	Long	147.6	SRW	AWD	3.5L EcoBoost V6	9,500	4,120	12,000	4.1	6,000
Transit 350	Low	Long	147.6	SRW	RWD	3.5L PDFi V6	9,500	4,280	12,600	3.73	6,800
Transit 350	Low	Long	147.6	SRW	RWD	3.5L EcoBoost V6	9,500	4,360	12,000	4.1	6,200
Transit 350	Low	Regular	129.9	SRW	AWD	3.5L PDFi V6	9,500	4,150	12,600	3.73	6,600
Transit 350	Low	Regular	129.9	SRW	AWD	3.5L EcoBoost V6	9,500	4,230	12,000	4.1	6,100
Transit 350	Low	Regular	129.9	SRW	RWD	3.5L PDFi V6	9,500	4,380	12,600	3.73	6,900
Transit 350	Low	Regular	129.9	SRW	RWD	3.5L EcoBoost V6	9,500	4,460	12,000	4.1	6,400
Transit 350	Medium	Long	147.6	SRW	AWD	3.5L PDFi V6	9,500	3,890	12,600	3.73	6,400
Transit 350	Medium	Long	147.6	SRW	AWD	3.5L EcoBoost V6	9,500	3,970	12,000	4.1	5,900
Transit 350	Medium	Long	147.6	SRW	RWD	3.5L PDFi V6	9,500	4,120	12,600	3.73	6,600
Transit 350	Medium	Long	147.6	SRW	RWD	3.5L EcoBoost V6	9,500	4,210	12,000	4.1	6,100
Transit 350	Medium	Regular	129.9	SRW	AWD	3.5L PDFi V6	9,500	4,010	12,600	3.73	6,500
Transit 350	Medium	Regular	129.9	SRW	AWD	3.5L EcoBoost V6	9,500	4,100	12,000	4.1	6,000
Transit 350	Medium	Regular	129.9	SRW	RWD	3.5L PDFi V6	9,500	4,240	12,600	3.73	6,700
Transit 350	Medium	Regular	129.9	SRW	RWD	3.5L EcoBoost V6	9,500	4,330	12,000	4.1	6,200
Transit 350HD	High	Extended	147.6	DRW	AWD	3.5L PDFi V6	9,950	3,820	13,000	3.73	6,300
Transit 350HD	High	Extended	147.6	DRW	AWD	3.5L PDFi V6	10,360	4,230	13,000	3.73	6,300
Transit 350HD	High	Extended	147.6	DRW	AWD	3.5L EcoBoost V6	9,950	3,900	12,000	4.1	5,400
Transit 350HD	High	Extended	147.6	DRW	RWD	3.5L PDFi V6	9,950	4,060	13,000	3.73	6,500
Transit 350HD	High	Extended	147.6	DRW	RWD	3.5L PDFi V6	10,360	4,470	13,000	3.73	6,500
Transit 350HD	High	Extended	147.6	DRW	RWD	3.5L EcoBoost V6	9,950	4,120	12,000	4.1	5,600
Transit 350HD	High	Extended	147.6	DRW	RWD	3.5L EcoBoost V6	10,360	4,530	12,000	4.1	5,600

Transit Crew Van	Roof Style	Length	Wheelbase (in)	SRW/DRW	RWD/ AWD	Engine	GVWR (lbs)	Max Payload (lbs)	GCWR (lbs)	Axle Ratio	Max. Conv. Towing Cap. (lbs)
Transit 150	High	Long	147.6	SRW	AWD	3.5L PDFi V6	8,670	2,640	12,600	3.73	6,000
Transit 150	High	Long	147.6	SRW	AWD	3.5L EcoBoost V6	8,670	2,720	12,000	4.1	5,400
Transit 150	High	Long	147.6	SRW	RWD	3.5L PDFi V6	8,670	2,850	12,600	3.73	6,200
Transit 150	High	Long	147.6	SRW	RWD	3.5L EcoBoost V6	8,670	2,960	12,000	4.1	5,700
Transit 150	Low	Long	147.6	SRW	AWD	3.5L PDFi V6	8,670	2,880	12,600	3.73	6,200
Transit 150	Low	Long	147.6	SRW	AWD	3.5L EcoBoost V6	8,670	2,960	12,000	4.1	5,700
Transit 150	Low	Long	147.6	SRW	RWD	3.5L PDFi V6	8,670	3,100	12,600	3.73	6,400
Transit 150	Low	Long	147.6	SRW	RWD	3.5L EcoBoost V6	8,670	3,200	12,000	4.1	5,900
Transit 150	Low	Regular	129.9	SRW	AWD	3.5L PDFi V6	8,670	2,990	12,600	3.73	6,300
Transit 150	Low	Regular	129.9	SRW	AWD	3.5L EcoBoost V6	8,670	3,080	12,000	4.1	5,800
Transit 150	Low	Regular	129.9	SRW	RWD	3.5L PDFi V6	8,670	3,220	12,600	3.73	6,500
Transit 150	Low	Regular	129.9	SRW	RWD	3.5L EcoBoost V6	8,670	3,300	12,000	4.1	6,000
Transit 150	Medium	Long	147.6	SRW	AWD	3.5L PDFi V6	8,670	2,730	12,600	3.73	6,100
Transit 150	Medium	Long	147.6	SRW	AWD	3.5L EcoBoost V6	8,670	2,810	12,000	4.1	5,500
Transit 150	Medium	Long	147.6	SRW	RWD	3.5L PDFi V6	8,670	2,950	12,600	3.73	6,300
Transit 150	Medium	Long	147.6	SRW	RWD	3.5L EcoBoost V6	8,670	3,050	12,000	4.1	5,800
Transit 150	Medium	Regular	129.9	SRW	AWD	3.5L PDFi V6	8,670	2,860	12,600	3.73	6,200
Transit 150	Medium	Regular	129.9	SRW	AWD	3.5L EcoBoost V6	8,670	2,950	12,000	4.1	5,700
Transit 150	Medium	Regular	129.9	SRW	RWD	3.5L PDFi V6	8,670	3,090	12,600	3.73	6,400
Transit 150	Medium	Regular	129.9	SRW	RWD	3.5L EcoBoost V6	8,670	3,170	12,000	4.1	5,900
Transit 250	High	Long	147.6	SRW	AWD	3.5L PDFi V6	9,070	3,040	12,600	3.73	6,000
Transit 250	High	Long	147.6	SRW	AWD	3.5L EcoBoost V6	9,070	3,120	12,000	4.1	5,400
Transit 250	High	Long	147.6	SRW	RWD	3.5L PDFi V6	9,070	3,250	12,600	3.73	6,200
Transit 250	High	Long	147.6	SRW	RWD	3.5L EcoBoost V6	9,070	3,360	12,000	4.1	5,700
Transit 250	Low	Long	147.6	SRW	AWD	3.5L PDFi V6	9,070	3,280	12,600	3.73	6,200
Transit 250	Low	Long	147.6	SRW	AWD	3.5L EcoBoost V6	9,070	3,360	12,000	4.1	5,700
Transit 250	Low	Long	147.6	SRW	RWD	3.5L PDFi V6	9,070	3,500	12,600	3.73	6,400
Transit 250	Low	Long	147.6	SRW	RWD	3.5L EcoBoost V6	9,070	3,600	12,000	4.1	5,900
Transit 250	Low	Regular	129.9	SRW	AWD	3.5L PDFi V6	9,070	3,390	12,600	3.73	6,300
Transit 250	Low	Regular	129.9	SRW	AWD	3.5L EcoBoost V6	9,070	3,480	12,000	4.1	5,800
Transit 250	Low	Regular	129.9	SRW	RWD	3.5L PDFi V6	9,070	3,620	12,600	3.73	6,500
Transit 250	Low	Regular	129.9	SRW	RWD	3.5L EcoBoost V6	9,070	3,700	12,000	4.1	6,000
Transit 250	Medium	Long	147.6	SRW	AWD	3.5L PDFi V6	9,070	3,130	12,600	3.73	6,100
Transit 250	Medium	Long	147.6	SRW	AWD	3.5L EcoBoost V6	9,070	3,210	12,000	4.1	5,500
Transit 250	Medium	Long	147.6	SRW	RWD	3.5L PDFi V6	9,070	3,350	12,600	3.73	6,300
Transit 250	Medium	Long	147.6	SRW	RWD	3.5L EcoBoost V6	9,070	3,450	12,000	4.1	5,800
Transit 250	Medium	Regular	129.9	SRW	AWD	3.5L PDFi V6	9,070	3,260	12,600	3.73	6,200
Transit 250	Medium	Regular	129.9	SRW	AWD	3.5L EcoBoost V6	9,070	3,350	12,000	4.1	5,700
Transit 250	Medium	Regular	129.9	SRW	RWD	3.5L PDFi V6	9,070	3,490	12,600	3.73	6,400
Transit 250	Medium	Regular	129.9	SRW	RWD	3.5L EcoBoost V6	9,070	3,570	12,000	4.1	5,900
Transit 350	High	Long	147.6	SRW	AWD	3.5L PDFi V6	9,500	3,470	12,600	3.73	6,000
Transit 350	High	Long	147.6	SRW	AWD	3.5L EcoBoost V6	9,500	3,550	12,000	4.1	5,400
Transit 350	High	Long	147.6	SRW	RWD	3.5L PDFi V6	9,500	3,690	12,600	3.73	6,200
Transit 350	High	Long	147.6	SRW	RWD	3.5L EcoBoost V6	9,500	3,790	12,000	4.1	5,700
Transit 350	Low	Long	147.6	SRW	AWD	3.5L PDFi V6	9,500	3,720	12,600	3.73	6,200
Transit 350	Low	Long	147.6	SRW	AWD	3.5L EcoBoost V6	9,500	3,790	12,000	4.1	5,700
Transit 350	Low	Long	147.6	SRW	RWD	3.5L PDFi V6	9,500	3,930	12,600	3.73	6,400
Transit 350	Low	Long	147.6	SRW	RWD	3.5L EcoBoost V6	9,500	4,030	12,000	4.1	5,900
Transit 350	Low	Regular	129.9	SRW	AWD	3.5L PDFi V6	9,250	3,570	12,600	3.73	6,300
Transit 350	Low	Regular	129.9	SRW	AWD	3.5L EcoBoost V6	9,250	3,660	12,000	4.1	5,800
Transit 350	Low	Regular	129.9	SRW	RWD	3.5L PDFi V6	9,250	3,800	12,600	3.73	6,500
Transit 350	Low	Regular	129.9	SRW	RWD	3.5L EcoBoost V6	9,250	3,880	12,000	4.1	6,000
Transit 350	Medium	Long	147.6	SRW	AWD	3.5L PDFi V6	9,500	3,560	12,600	3.73	6,100
Transit 350	Medium	Long	147.6	SRW	AWD	3.5L EcoBoost V6	9,500	3,640	12,000	4.1	5,500
Transit 350	Medium	Long	147.6	SRW	RWD	3.5L PDFi V6	9,500	3,780	12,600	3.73	6,300
Transit 350	Medium	Long	147.6	SRW	RWD	3.5L EcoBoost V6	9,500	3,880	12,000	4.1	5,800
Transit 350	Medium	Regular	129.9	SRW	AWD	3.5L PDFi V6	9,250	3,440	12,600	3.73	6,200
Transit 350	Medium	Regular	129.9	SRW	AWD	3.5L EcoBoost V6	9,250	3,530	12,000	4.1	5,700
Transit 350	Medium	Regular	129.9	SRW	RWD	3.5L PDFi V6	9,250	3,670	12,600	3.73	6,400
Transit 350	Medium	Regular	129.9	SRW	RWD	3.5L EcoBoost V6	9,250	3,750	12,000	4.1	5,900
Transit 350HD	High	Extended	147.6	DRW	AWD	3.5L PDFi V6	9,950	3,490	13,000	3.73	5,900
Transit 350HD	High	Extended	147.6	DRW	AWD	3.5L PDFi V6	10,360	3,900	13,000	3.73	5,900
Transit 350HD	High	Extended	147.6	DRW	AWD	3.5L EcoBoost V6	9,950	3,570	12,000	4.1	5,000
Transit 350HD	High	Extended	147.6	DRW	RWD	3.5L PDFi V6	9,950	3,710	13,000	3.73	6,200
Transit 350HD	High	Extended	147.6	DRW	RWD	3.5L PDFi V6	10,360	4,120	13,000	3.73	6,200
Transit 350HD	High	Extended	147.6	DRW	RWD	3.5L EcoBoost V6	9,950	3,820	12,000	4.1	5,300
Transit 350HD	High	Extended	147.6	DRW	RWD	3.5L EcoBoost V6	10,360	4,230	12,000	4.1	5,300

Transit Passenger Van	Roof Style	Length	Wheelbase (lbs)	SRW/DRW	RWD/AWD	Engine	GVWR (lbs)	Max Payload (lbs)	GCWR (lbs)	Axle Ratio	Max. Conv. Towing Cap. (lbs)
Transit 150	Low	Regular	129.9	SRW	AWD	3.5L EcoBoost V6	8,550	2,630	10,800	3.73	4,400
Transit 150	Low	Regular	129.9	SRW	RWD	3.5L EcoBoost V6	8,550	2,860	10,800	3.73	4,600
Transit 150	Medium	Regular	129.9	SRW	AWD	3.5L EcoBoost V6	8,550	2,440	10,800	3.73	4,200
Transit 150	Medium	Regular	129.9	SRW	RWD	3.5L EcoBoost V6	8,550	2,670	10,800	3.73	4,400
Transit 350	High	Long	147.6	SRW	AWD	3.5L PDFi V6	9,250	2,570	11,200	3.31	4,000
Transit 350	High	Long	147.6	SRW	AWD	3.5L PDFi V6	9,550	2,870	11,200	3.31	4,000
Transit 350	High	Long	147.6	SRW	AWD	3.5L EcoBoost V6	9,250	2,650	11,200	4.1	4,000
Transit 350	High	Long	147.6	SRW	AWD	3.5L EcoBoost V6	9,550	2,950	11,200	4.1	4,000
Transit 350	High	Long	147.6	SRW	RWD	3.5L PDFi V6	9,250	2,800	11,200	3.31	4,300
Transit 350	High	Long	147.6	SRW	RWD	3.5L PDFi V6	9,400	2,950	11,200	3.31	4,300
Transit 350	High	Long	147.6	SRW	RWD	3.5L EcoBoost V6	9,250	2,880	11,200	4.1	4,200
Transit 350	High	Long	147.6	SRW	RWD	3.5L EcoBoost V6	9,400	3,040	11,200	4.1	4,200
Transit 350	Low	Long	147.6	SRW	AWD	3.5L PDFi V6	9,250	2,840	11,200	3.31	4,300
Transit 350	Low	Long	147.6	SRW	AWD	3.5L PDFi V6	9,550	3,140	11,200	3.31	4,300
Transit 350	Low	Long	147.6	SRW	AWD	3.5L EcoBoost V6	9,250	2,920	11,200	4.1	4,300
Transit 350	Low	Long	147.6	SRW	AWD	3.5L EcoBoost V6	9,550	3,220	11,200	4.1	4,300
Transit 350	Low	Long	147.6	SRW	RWD	3.5L PDFi V6	9,250	3,080	11,200	3.31	4,500
Transit 350	Low	Long	147.6	SRW	RWD	3.5L PDFi V6	9,400	3,230	11,200	3.31	4,500
Transit 350	Low	Long	147.6	SRW	RWD	3.5L EcoBoost V6	9,250	3,160	11,200	4.1	4,500
Transit 350	Low	Long	147.6	SRW	RWD	3.5L EcoBoost V6	9,400	3,310	11,200	4.1	4,500
Transit 350	Medium	Long	147.6	SRW	AWD	3.5L PDFi V6	9,250	2,710	11,200	3.31	4,200
Transit 350	Medium	Long	147.6	SRW	AWD	3.5L PDFi V6	9,550	3,010	11,200	3.31	4,200
Transit 350	Medium	Long	147.6	SRW	AWD	3.5L EcoBoost V6	9,250	2,790	11,200	4.1	4,100
Transit 350	Medium	Long	147.6	SRW	AWD	3.5L EcoBoost V6	9,550	3,090	11,200	4.1	4,100
Transit 350	Medium	Long	147.6	SRW	RWD	3.5L PDFi V6	9,250	2,950	11,200	3.31	4,400
Transit 350	Medium	Long	147.6	SRW	RWD	3.5L PDFi V6	9,400	3,090	11,200	3.31	4,400
Transit 350	Medium	Long	147.6	SRW	RWD	3.5L EcoBoost V6	9,250	3,030	11,200	4.1	4,400
Transit 350	Medium	Long	147.6	SRW	RWD	3.5L EcoBoost V6	9,400	3,170	11,200	4.1	4,400
Transit 350HD	High	Extended	147.6	DRW	AWD	3.5L PDFi V6	10,360	3,100	11,200	3.73	3,300
Transit 350HD	High	Extended	147.6	DRW	RWD	3.5L PDFi V6	10,360	3,340	11,200	3.73	3,600
Transit 350HD	High	Extended	147.6	DRW	RWD	3.5L EcoBoost V6	10,360	3,420	11,200	4.1	3,700

View Towing Guides

Click Here

Build & Price
Search Inventory
Locate a Dealer

2020 Ford® Transit XL Passenger Van | Model Details & Specs

COMMERCIAL TRUCKS

PERFORMANCE VEHICLES

FUTURE VEHICLES

SUVS & CROSSOVERS

TRUCKS & VANS

ELECTRIFIED

CARS

XL Passenger Van

Key Features

Rear View Camera with Trailer Hitch Assist

Lane-Keeping System

Safety Canopy® Side-curtain Airbags

Power and Handling

Power

Standard

Optional

Handling

Standard

Optional

Wheels & Tires

Standard

Optional

Interior Features

Climate

Standard

Comfort and Convenience

Standard

Optional

Entertainment Systems

Standard

Optional

Seating

Standard

Optional

Exterior Features

Appearance

Standard

Optional

Protection

Standard

Optional

Windows & Glass

Standard

Safety

Safety

Standard

Security

Standard

Optional

Packages

Packages

Standard

Optional

Specifications

Highlights

Exterior

Interior

Capacities

Engine

Chassis

Towing

View Towing Guides

Safety Canopy^® Side-curtain Airbags
