2025 Transit^® Passenger Van XLT

View Local Inventory

Build & Price

2025 Transit® Commercial Passenger Van XLT

View Local Inventory

Build & Price

2025 Ford Transit® Commercial Passenger Van XLT Payment Estimator details
View all offers

¹

View all offers
Seating up to

15

Seating up to

Key Features

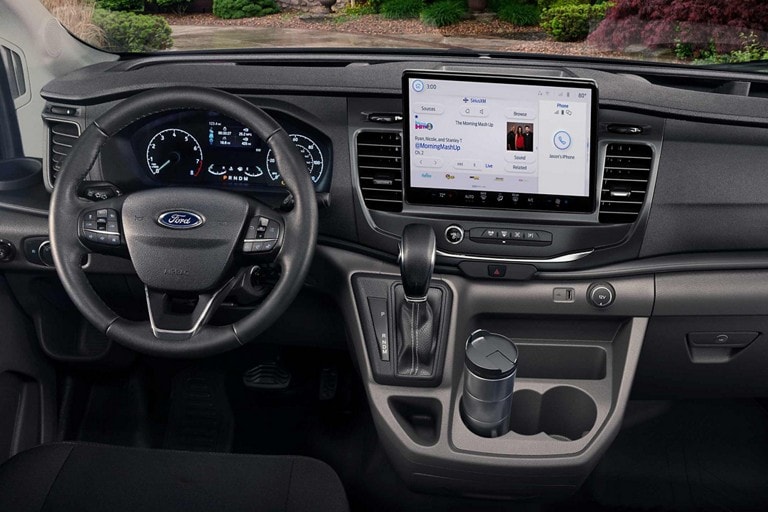

The 12-inch touchscreen inside of a 2025 Ford Transit® van

SYNC^® 4 with 12-inch Display

Available feature includes cloud-based connectivity with enhanced voice recognition, SiriusXM^® with 360L, HD Radio^™, Navigation and Built-In Navigation with Traffic Sign Recognition and Intelligent Speed Assist. Add optional features like Navigation, Intelligent Adaptive Cruise Control (iACC) and Intersection Assist.¹⁰

Intelligent All-Wheel Drive

The available Intelligent All-Wheel Drive System is not only designed to enhance handling and maximize traction. It was integrated into the vehicle's design to ensure it didn't raise the load floor or seat height, making it as easy to enter and exit as our standard model. Great news for drivers who are in and out of their vehicles a lot during the workday.

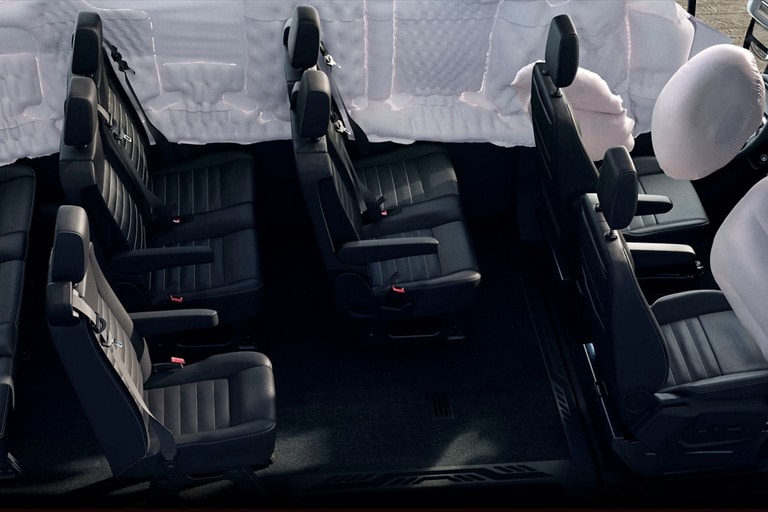

Cutaway view of interior showing inflated airbags

Safety Canopy^® System With Side-Curtain Airbags

Transit^® Cargo Van comes standard with driver and passenger front and side airbags, plus a Safety Canopy^® System with a front-row, side-curtain airbag. * The side-curtain airbags extend into the second row.

*Always wear your safety belt and secure children in the rear seat.

Exterior Features

Appearance

Standard

50/50 Hinged Rear Door, 180-Degree Opening (Std. Low and Medium Roof Cargo)
Audio, Antenna - Fender Mounted
Auto High-Beam Headlamps
Body Side Mouldings – Carbon Black
Front Bumper – Body Coloured. Includes Front Fog Lamps
Front Fog Lamps - Included in Side Sensing System and in Exterior Upgrade Package
Front License Plate Bracket
Halogen Headlamps with Autolamp
High Resolution Digital Camera
Honeycomb Mesh Grille with Chrome Surround
Mirrors Short-Arm, Power Adjustment, Power-Folding Heated with Turn Signals
Rear Tow Hook
Roof Marker Lamp Delete (SRW)
Roof Marker Lamps (DRW)
Sliding Passenger-Side Door
Wiper Activated Headlamps

Optional

50/50 Hinged Rear Door, 253-Degree Opening (Std High Roof Cargo Van)
Chrome High-Intensity Discharge (HID) Headlamps
Mirrors Long Arm - Power Adjusting, Manual-Folding Heated with Turn Signals
Running Board
Wheel Well Liners - Black (Front Only)

Protection

Standard

Windows-All-Around, Fixed

Optional

Key - 2 Additional (4 Total) with Key Fobs
Remote Keyless-Entry Keypad
Intelligent Access with Push-Button Start

Windows & Glass

Standard

Windows - Rear Window
Windows - Tinted Glass

Optional

Privacy Glass. Includes Rear-Window Defroster

Interior Features

Climate

Standard

Air Conditioning
Front/Rear Aux A/C and Heater (Driver Controlled)

Comfort and Convenience

Standard

A-Pillar Assist Handles (Driver and Passenger-Side)
Automatic Rain-Sensing Windshield Wipers
B-Pillar Assist Handle (Passenger-Side). Handle is Standard on Low Roof Cargo Van
Blind Spot Information System (BLIS^®) with Cross-Traffic Alert and Trailer Coverage
Floor Covering, Carpet – Front & Rear
Forward Collision Warning
Full Rear Compartment Lighting
Glove Box (Locking)
Headlamp Courtesy Delay
Headliner – Cloth, Full Length
Horn - Single-Note Electric
Inside Rearview Mirror
Instrumentation - Tachometer, Fuel Level, and Coolant Temperature
Interior Lighting
Lane-Keeping System
Large Centre Console
Lighting, Front Dome Lamp with Map Lights and Theater-Dimming
Lighting, Rear Dome Lamp with Map Lights and Theater Dimming
Post-Collision Braking
PowerPoint, 12V - One is Located in the Instrument Panel and One in Center Console
Pre-Collision Assist with Automatic Emergency Braking (AEB)
Rearview Mirror (When Equipped with Rear Glass)
Reverse Sensing System. Included with Blind Spot Assist 1.0, Side Sensing System, Enhanced Active Park Assist and Reverse Brake Assist
Side Sensing System. (Included with Front and Rear-View Camera and Enhanced Active Park Assist
Sun Visors - with Illuminated Vanity Mirror (Driver and Passenger)
Telematics Essentials
Two Auxiliary 12V PowerPoints
USB Ports – 5 Amps
Cruise Control. Includes Adjustable Speed Limiting Device (ASLD)

Optional

360-Degree Camera with Split View and Front Washer
Adaptive Cruise Control - Includes Adjustable Speed Limiting Device (ASLD)
Floor Covering, Carpet – Front
Floor Covering, Vinyl, Front & Rear
Front Overhead Shelf. Not Available on Low Roof Cargo Van, Crew Van, and Passenger Van
Heavy Duty Tray Style Floor Mats (Front)
High-Capacity Upfitter Switches
Instrumentation - Vehicle Maintenance Monitor - Includes Engine Hour Metre
Passenger Van 148" W/B (LR, MR, HR) GVWR 9,400-9,550 lbs. SRW
Reverse Brake Assist. Requires Lane Keeping System with Blind Spot Information System (BLIS^®). Includes Reverse Sensing System and 360-Degree Camera with Split View and Front Washer
Digital Rearview Mirror
All-Weather Floor Mats (Front). Available with Vinyl Floor Covering

Entertainment Systems

Standard

SYNC 4 with 12" Display and Connected Navigation

Optional

8-Speakers (4 Front/4 Rear)
SYNC 4 with SiriusXM^® with 360L, HD Radio^™ and 12" Display with Connected Navigation
SYNC 4 with SiriusXM^® with 360L, HD Radio^™, and 12" Display. Built-In Navigation with Traffic Sign Recognition, Intelligent Speed Assist, Intelligent Adaptive Cruise Control (iACC) and Intersection Assist
SYNC 4 with SiriusXM^® with 360L, HD Radio^™, Navigation, and 12" Display. Built-In Navigation with Traffic Sign Recognition and Intelligent Speed Assist

Seating

Standard

Dark Palazzo Grey Cloth, 2-Way Manual Driver and 2-Way Manual Passenger Seats
12-Passenger Seating. 1st Row: 2 Seats, 2nd Row: 3 Seats, 3rd Row: 3 Seats, 4th Row: 4 Seats. Standard with Long-Length Passenger Van
15-Passenger Seating. 1st Row: 2 Seats, 2nd Row: 3 Seats, 3rd Row: 3 Seats, 4th Row: 3 Seats, 5th Row: 4 Seats. Standard with Extended Length Passenger Van
Driver and Front-Passenger Manual Reclining Bucket Seats with Adjustable Headrest (Includes Driver-Side and Passenger-Side Inboard Armrest)
Rear-Seat(s) Recline and Inboard Armrest - Note: Last Row of Seats Do Not Recline

Optional

Dark Palazzo Grey Cloth, 10-Way Power Heated Driver and 10-Way Power Heated Passenger Seats
15-Passenger Seating. 1st Row: 2 Seats, 2nd Row: 3 Seats, 3rd Row: 3 Seats, 4th Row: 3 Seats, 5th Row: 4 Seats. Optional with Long Length Passenger Van

Packages

Power and Handling

Handling

Standard

AdvanceTrac^® With Roll Stability Control^™ (RSC^®)
Electric Power-Assisted Steering (EPAS)
Hill Start Assist
Mechanical Parking Brake (9,950lb/10,360lb GVWR Configurations Only)
Parking Brake – Electric (SRW Configurations Only)
Side-Wind Stabilization
Steering - Power Rack and Pinion
Steering Wheel - Tilt & Telescopic Column Polyurethane 4-Spoke Wheel
Suspension, Front - Independent MacPherson-Strut, Stabilizer Bar
Suspension, Rear - Leaf Springs, Heavy-Duty Gas Shock Absorbers

Optional

All-Wheel Drive (AWD)
Enhanced Active Park Assist
Heavy-Duty Front Axle
Trailer Brake Controller (TBC)

Power

Standard

10-Speed Automatic Transmission
3.5L PFDi V6 Engine
Alternator – 250 amp (3.5L PFDi & 3.5L EcoBoost^® V6 Engine Only)
Auxiliary Fuel Port
Engine Block Heater (400W Rating)
Fuel Tank – Capless Fuel Fill, 95L/25 Gal (Midship)
Single AGM Battery (70 amp-Hr)

Optional

3.5L EcoBoost^® V6 Engine
Auxiliary Fuse Panel with High Spec Interface Connector
Dual AGM Batteries (70 amp-Hr Each) Optional on 3.5L EcoBoost^® V6 and 3.5L PFDi V6 Engine
Fuel Tank Extended Range– Capless Fuel Fill, 117L/31 Gal (Midship)

Wheels & Tires

Standard

16" Silver Steel Wheel With Exposed Lug Nuts (SRW)
16" Steel Wheel With Full Silver Wheel Cover (SRW)
16" Heavy-Duty Silver Steel Wheel with Exposed Lug Nuts - DRW
Tires 205/75R16C 113/111 BSW All-Season (AWD, 11,000 GVWR or RWD with Heavy-Duty Front Axle Configurations Only) - (DRW)
Tires, 195/75R16C 107/105 R BSW All-Season (RWD with Standard Front Axle Configurations Only) - (DRW)
Tires, 235/65R16 BSW All-Season - (SRW)
Wheels, Full-Size Spare Tire and Wheel with 3-Ton Jack
Tire Repair Kit (SRW Configurations)

Optional

16" Silver Aluminum Alloy Wheel (SRW)
16" Heavy-Duty Forged Aluminum Wheel
Spare Tire and Wheel Delete. Optional on Extended Length Only
16" Sparkle Silver Alloy Wheel
16" Matte Black Alloy Wheel
16" Black Aluminum Alloy Wheel (SRW)

Safety

Specifications

Exterior Dimensions

Exterior Dimensions
2025 Transit Cargo Van
Length (Regular, Long, Long-EL)	Regular	Long	Long	Long	Long-EL
Roof (Low, Medium, High)	Low	Low	Medium	High	High
Passenger Capacity	2	2	2	2	2
Rows of Seating	1	1	1	1	1
	[mm.]	[mm.]	[mm.]	[mm.]	[mm.]
Wheelbase	3,300	3,750	3,750	3,750	3,750
Overall Length	5,585	6,035	5,982	5,982	6,703
Height	2,088	2,106	2,573	2,784	2,804
Width - Excluding Mirrors (SRW/DRW)	2,066	2,066	2,066	2,066	2,066 / 2,126
Width - Including Mirrors	2,474	2,474	2,474	2,474	2,474
Width - Mirrors Folded	2,114	2,114	2,114	2,114	2,114 / 2,126
Front Track (SRW/DRW)	1,732	1,732	1,732	1,732	1,732 / 1,740
Rear Track (SRW/DRW)	1,743	1,743	1,743	1,743	1,743 / 1,669
Front Overhang	1,023	1,023	1,023	1,023	1,023
Rear Overhang	1,262	1,262	1,209	1,209	1,930
Load Height (Curb)	733	730	730	730	712
Side Cargo Door Opening Height	1,260	1,260	1,600	1,600	1,600
Side Cargo Door Opening Width - Hinged	1,300	1,300	-	-	-
Side Cargo Door Opening Width - Sliding	1,300	1,300	1,300	1,300	1,300
Rear Cargo Door Opening Height	1,258	1,258	1,648	1,887	1,887
Rear Cargo Door Opening Width	1,568	1,568	1,568	1,568	1,568

2025 Transit Passenger Van
Length (Regular, Long, Long-EL)	Long	Long	Long	Long-EL
Roof (Low, Medium, High)	Low	Medium	High	High
	[mm.]	[mm.]	[mm.]	[mm.]
Wheelbase	3,750	3,750	3,750	3,750
Length	6,035	5,981	5,981	6,704
Height	2,098	2,548	2,774	2,799
Width - Excluding Mirrors (SRW/DRW)	2,066	2,066	2,066	2,065
Width - Including Mirrors	2,474	2,474	2,474	2,474
Width - Mirrors Folded	2,114	2,114	2,114	2,114
Front Track	1,732	1,732	1,732	1,732
Rear Track	1,743	1,743	1,743	1,742
Front Overhang	1,023	1,023	1,023	1,023
Rear Overhang	1,262	1,208	1,208	1,931
Load Height (Curb)	730	730	730	712
Side Cargo Door Opening Height	1,260	1,601	1,601	1,601
Side Cargo Door Opening Width - Hinged	1,300	-	-	-
Side Cargo Door Opening Width - Sliding	1,300	1,300	1,300	1,300
Rear Cargo Door Opening Height	1,191	1,595	1,834	1,834
Rear Cargo Door Opening Width	1,519	1,519	1,519	1,519

Exterior Dimensions
2025 Transit Cargo Van
Length (Regular, Long, Long-EL)	Regular	Long	Long	Long	Long-EL
Roof (Low, Medium, High)	Low	Low	Medium	High	High
Passenger Capacity	2	2	2	2	2
Rows of Seating	1	1	1	1	1
	[in.]	[in.]	[in.]	[in.]	[in.]
Wheelbase	129.9	147.6	147.6	147.6	147.6
Overall Length	219.9	237.6	235.5	235.5	263.9
Height	82.2	82.9	101.3	109.6	110.4
Width - Excluding Mirrors (SRW/DRW)	81.3	81.3	81.3	81.3	81.3/83.7
Width - Including Mirrors	97.4	97.4	97.4	97.4	97.4
Width - Mirrors Folded	83.2	83.2	83.2	83.2	83.2/83.7
Front Track (SRW/DRW)	68.2	68.2	68.2	68.2	68.2/68.5
Rear Track (SRW/DRW)	68.6	68.6	68.6	68.6	68.6/65.7
Front Overhang	40.3	40.3	40.3	40.3	40.3
Rear Overhang	49.7	49.7	47.6	47.6	76.0
Load Height (Curb)	28.9	28.7	28.7	28.7	28.0
Side Cargo Door Opening Height	49.6	49.6	63.0	63.0	63.0
Side Cargo Door Opening Width - Hinged	51.2	51.2	-	-	-
Side Cargo Door Opening Width - Sliding	51.2	51.2	51.2	51.2	51.2
Rear Cargo Door Opening Height	49.5	49.5	64.9	74.3	74.3
Rear Cargo Door Opening Width	61.7	61.7	61.7	61.7	61.7

2025 Transit Passenger Van
Length (Regular, Long, Long-EL)	Long	Long	Long	Long-EL
Roof (Low, Medium, High)	Low	Medium	High	High
	[in.]	[in.]	[in.]	[in.]
Wheelbase	148	148	148	148
Length	237.6	235.5	235.5	263.9
Height	82.4	99.2	108.6	107.7
Width - Excluding Mirrors (SRW/DRW)	81.3	81.3	81.3	81.3
Width - Including Mirrors	97.4	97.4	97.4	97.4
Width - Mirrors Folded	83.2	83.2	83.2	83.2
Front Track	68.2	68.2	68.2	68.2
Rear Track	68.6	68.6	68.6	68.6
Front Overhang	40.3	40.3	40.3	40.3
Rear Overhang	49.7	47.6	47.6	76.0
Load Height (Curb)	28.8	28.8	28.8	27.8
Side Cargo Door Opening Height	49.6	63.0	63.0	63.0
Side Cargo Door Opening Width - Hinged	1,300	-	-	-
Side Cargo Door Opening Width - Sliding	51.2	51.2	51.2	51.2
Rear Cargo Door Opening Height	46.9	62.8	72.2	72.2
Rear Cargo Door Opening Width	59.8	59.8	59.8	59.8

Interior Dimensions

Interior Dimensions
2025 Transit Cargo Van
Length (Regular, Long, Long-EL)	Regular	Long	Long	Long	Long-EL
Roof (Low, Medium, High)	Low	Low	Medium	High	High
Passenger Capacity	2	2	2	2	2
Rows of Seating	1	1	1	1	1
	[mm.]	[mm.]	[mm.]	[mm.]	[mm.]
Head Room - 1^st Row	1,037	1,037	1,320	1,437	1,437
Maximum Leg Room - 1^st Row	1,050	1,050	1,050	1,050	1,050
Leg Room - 1^st Row	1,009	1,009	1,009	1,009	1,009
Hip Room - 1^st Row	1,542	1,542	1,542	1,542	1,542
Shoulder Room - 1^st Row	1,724	1,724	1,724	1,724	1,724
Cargo Length Front (at Floor)	3,200	3,650	3,650	3,650	4,373
Cargo Length Front (at Belt)	2,943	3,393	3,393	3,393	4,116
Cargo Width Between Wheelhouse (SRW/DRW)	1,392	1,392	1,392	1,392	1,392 / 1,153
Cargo Height Maximum	1,446	1,446	1,830	2,069	2,069

2025 Transit Passenger Van
Length (Regular, Long, Long-EL)	Long	Long	Long	Long-EL
Roof (Low, Medium, High)	Low	Medium	High	High
	[mm.]	[mm.]	[mm.]	[mm.]
Head Room - 1^st Row	1,036	1,321	1,438	1,438
Head Room - 2^nd Row (where applicable)	1,044	1,417	1,656	1,656
Head Room - 3^rd Row (where applicable)	1,031	1,417	1,656	1,656
Head Room - 4^th Row (where applicable)	983	1,417	1,656	1,656
Head Room - 5^th Row (where applicable)	968	1,336	1,557	1,557
Leg Room - 1^st Row (Max.)	1,049	1,049	1,049	1,049
Leg Room - 2^nd Row (where applicable)	856	856	856	856
Leg Room - 3^rd Row (where applicable)	904	904	904	904
Leg Room - 4^th Row (where applicable)	904	904	904	904
Leg Room - 5^th Row (where applicable)	904	904	904	904
Hip Room - 1^st Row	1,542	1,542	1,542	1,542
Hip Room - 2^nd Row (where applicable)	1,768	1,768	1,768	1,768
Hip Room - 3^rd Row (where applicable)	1,709	1,709	1,709	1,709
Hip Room - 4^th Row (where applicable)	1,727	1,727	1,727	1,727
Hip Room - 5^th Row (where applicable)	1,727	1,727	1,727	1,727
Shoulder Room - 1^st Row	1,725	1,725	1,725	1,725
Shoulder Room - 2^nd Row (where applicable)	1,814	1,814	1,814	1,814
Shoulder Room - 3^rd Row (where applicable)	1,702	1,702	1,702	1,702
Shoulder Room - 4^th Row (where applicable)	1,722	1,722	1,722	1,722
Shoulder Room - 5^th Row (where applicable)	1,722	1,722	1,722	1,722
Cargo Length Front (at Floor)	3,599	3,599	3,599	4,323
Cargo Length Front (at Belt)	3,373	3,373	3,373	4,097
Cargo Width Between Wheelhouse (SRW/DRW)	1,364	1,364	1,364	1,364
Cargo Height Maximum	1,341	1,717	1,956	1,956

Interior Dimensions
2025 Transit Cargo Van
Length (Regular, Long, Long-EL)	Regular	Long	Long	Long	Long-EL
Roof (Low, Medium, High)	Low	Low	Medium	High	High
Passenger Capacity	2	2	2	2	2
Rows of Seating	1	1	1	1	1
	[in.]	[in.]	[in.]	[in.]	[in.]
Head Room - 1^st Row	40.8	40.8	52.0	56.6	56.6
Maximum Leg Room - 1^st Row	41.3	41.3	41.3	41.3	41.3
Leg Room - 1^st Row	39.7	39.7	39.7	39.7	39.7
Hip Room - 1^st Row	60.7	60.7	60.7	60.7	60.7
Shoulder Room - 1^st Row	67.9	67.9	67.9	67.9	67.9
Cargo Length Front (at Floor)	126.0	143.7	143.7	143.7	172.2
Cargo Length Front (at Belt)	115.9	133.6	133.6	133.6	162.0
Cargo Width Between Wheelhouse (SRW/DRW)	54.8	54.8	54.8	54.8	54.8 / 45.4
Cargo Height Maximum	56.9	56.9	72.0	81.5	81.5

2025 Transit Passenger Van
Length (Regular, Long, Long-EL)	Long	Long	Long	Long-EL
Roof (Low, Medium, High)	Low	Medium	High	High
	[in.]	[in.]	[in.]	[in.]
Head Room - 1^st Row	40.8	52.0	56.6	56.6
Head Room - 2^nd Row (where applicable)	41.1	55.8	65.2	65.2
Head Room - 3^rd (where applicable)	40.6	55.8	65.2	65.2
Head Room - 4^th Row (where applicable)	38.7	55.8	65.2	65.2
Head Room - 5^th Row (where applicable)	38.1	52.6	61.3	61.3
Leg Room - 1^st Row (Max.)	41.3	41.3	41.3	41.3
Leg Room - 2^nd Row (where applicable)	33.7	33.7	33.7	33.7
Leg Room - 3^rd Row (where applicable)	35.6	35.6	35.6	35.6
Leg Room - 4^th Row (where applicable)	35.6	35.6	35.6	35.6
Leg Room - 5^th Row (where applicable)	35.6	35.6	35.6	35.6
Hip Room - 1^st Row	60.7	60.7	60.7	60.7
Hip Room - 2^nd Row (where applicable)	69.6	69.6	69.6	69.6
Hip Room - 3^rd Row (where applicable)	67.3	67.3	67.3	67.3
Hip Room - 4^th Row (where applicable)	68.0	68.0	68.0	68.0
Hip Room - 5^th Row (where applicable)	68.0	68.0	68.0	68.0
Shoulder Room - 1^st Row	67.9	67.9	67.9	67.9
Shoulder Room - 2^nd Row (where applicable)	71.4	71.4	71.4	71.4
Shoulder Room - 3^rd Row (where applicable)	67.0	67.0	67.0	67.0
Shoulder Room - 4^th Row (where applicable)	67.8	67.8	67.8	67.8
Shoulder Room - 5^th Row (where applicable)	67.8	67.8	67.8	67.8
Cargo Length Front (at Floor)	141.7	141.7	141.7	170.2
Cargo Length Front (at Belt)	132.8	132.8	132.8	161.3
Cargo Width Between Wheelhouse (SRW/DRW)	53.7	53.7	53.7	53.7
Cargo Height Maximum	52.8	67.6	77.0	77.0

Capacities: Seating / Cargo Volumes

Capacities: Seating / Cargo Volumes
2025 Transit Cargo Van
Length (Regular, Long, Long-EL)	Regular	Long	Long	Long	Long-EL
Roof (Low, Medium, High)	Low	Low	Medium	High	High
Seating	2	2	2	2	2
	[L]	[L]	[L]	[L]	[L]
Cargo Volume Behind 1^st Row	6,984.7	7,862.6	10,110.7	11,448.5	13,798.8
Maximum Cargo Volume	7,952.9	8,830.8	11,341.1	12,838.3	15,188.6

2025 Transit Passenger Van
Length (Regular, Long, Long-EL)	Long	Long	Long	Long-EL
Roof (Low, Medium, High)	Low	Medium	High	High
Seating	2, 12, 15	2, 12, 15	2, 12, 15	2, 15
	[L]	[L]	[L]	[L]
Cargo Volume Behind 1^stRow	6,328.8	8,582.8	9,899.6	12,046.0
Cargo Volume Behind 2^nd Row	4,247.5	5,855.9	6,798.9	8,866.0
Cargo Volume Behind 3^rd Row	2,591.0	3,791.6	4,445.7	6,512.9
Cargo Volume Behind 4^th Row	1,384.7	2,061.5	2,429.6	5,210.3
Cargo Volume Behind 5^th Row	-	-	-	2,845.8

Capacities: Seating / Cargo Volumes
2025 Transit Cargo Van
Length (Regular, Long, Long-EL)	Regular	Long	Long	Long	Long-EL
Roof (Low, Medium, High)	Low	Low	Medium	High	High
Seating	2	2	2	2	2
	[cu. ft.]	[cu. ft.]	[cu. ft.]	[cu. ft.]	[cu. ft.]
Cargo Volume Behind 1^st Row	246.7	277.7	357.1	404.3	487.3
Maximum Cargo Volume	280.9	311.9	400.5	453.4	536.4

2025 Transit Passenger Van
Length (Regular, Long, Long-EL)	Long	Long	Long	Long-EL
Roof (Low, Medium, High)	Low	Medium	High	High
Seating	2, 12, 15	2, 12, 15	2, 12, 15	2, 15
	Cu. ft.	Cu. ft.	Cu. ft.	Cu. ft.
Cargo Volume Behind 1^st Row	223.5	303.1	349.6	425.4
Cargo Volume Behind 2^nd Row	150.0	206.8	240.1	313.1
Cargo Volume Behind 3^rd Row	91.5	133.9	157.0	230.0
Cargo Volume Behind 4^th Row	48.9	72.8	85.8	184.0
Cargo Volume Behind 5^th Row	-	-	-	100.5

Engine Specifications

Engine Specifications
Engine type	3.5L PFDI V6	3.5L EcoBoost^® V6
Displacement (cu. In./ ml)	213/3,497	213/3,497
Horsepower (SAE net @ RPM)	275 @ 6,250	310 @ 5,000
Torque (lb.-ft. @ RPM)	260 @ 4,000	400 @ 2,500
Compression Ratio	11.8:1	10.0:1
Bore x Stroke (In.)	3.64 x 3.41	3.64 x 3.41
Valvetrain	DOHC, 4 Valve per Cylinder	DOHC, 4 Valve per Cylinder
Fuel Delivery	Port Fuel Direct Injection (PFDI) Dual System	Direct Gasoline Injection, Dual Turbochargers
Transmission Type	10-Speed Automatic Selectshift^® with Overdrive	10-Speed Automatic Selectshift^® with Overdrive
Engine Block Material	Aluminum	Aluminum
Cylinder Head Material	Aluminum	Aluminum

Engine Specifications
Engine type	3.5L PFDI V6	3.5L EcoBoost^® V6
Displacement (cu. In./ ml)	213/3,497	213/3,497
Horsepower (SAE net @ RPM)	275 @ 6,250	310 @ 5,000
Torque (lb.-ft. @ RPM)	260 @ 4,000	400 @ 2,500
Compression Ratio	11.8:1	10.0:1
Bore x Stroke (In.)	3.64 x 3.41	3.64 x 3.41
Valvetrain	DOHC, 4 Valve per Cylinder	DOHC, 4 Valve per Cylinder
Fuel Delivery	Port Fuel Direct Injection (PFDI) Dual System	Direct Gasoline Injection, Dual Turbochargers
Transmission Type	10-Speed Automatic Selectshift^® with Overdrive	10-Speed Automatic Selectshift^® with Overdrive
Engine Block Material	Aluminum	Aluminum
Cylinder Head Material	Aluminum	Aluminum

Chassis Specifications

Chassis Specifications
Front Suspension	Independent MacPherson-Strut
Rear Suspension	Leaf Springs
Shock Absorbers	Heavy-Duty Gas
Brakes	4-Wheel Anti-Lock Disc Brakes
Steering	Electric Power Steering (EPS)

Chassis Specifications
Front Suspension	Independent MacPherson-Strut
Rear Suspension	Leaf Springs
Shock Absorbers	Heavy-Duty Gas
Brakes	4-Wheel Anti-Lock Disc Brakes
Steering	Electric Power Steering (EPS)

Maximum Payload Capabilities

Maximum Payload Capabilities
Cargo Van
Transit Level	Roof	Length	Wheelbase (mm.)	Engine	RWD/AWD	GVWR (Kg.)	Max Payload (Kg.)
T-150	Low	Regular	3,300	3.5L PFDI V6	RWD	3,933	1,663
				3.5L EcoBoost V6	RWD	3,933	1,634
				3.5L PFDI V6	AWD	3,933	1,575
				3.5L EcoBoost V6	AWD	3,933	1,544
		Long	3,750	3.5L PFDI V6	RWD	3,933	1,617
				3.5L EcoBoost V6	RWD	3,933	1,587
				3.5L PFDI V6	AWD	3,933	1,523
				3.5L EcoBoost V6	AWD	3,933	1,494
	Medium	Long	3,750	3.5L PFDI V6	RWD	3,933	1,550
				3.5L EcoBoost V6	RWD	3,933	1,520
				3.5L PFDI V6	AWD	3,933	1,456
				3.5L EcoBoost V6	AWD	3,933	1,428
T-250	Low	Regular	3,300	3.5L PFDI V6	RWD	4,114	1,845
				3.5L EcoBoost V6	RWD	4,114	1,815
				3.5L PFDI V6	AWD	4,114	1,756
				3.5L EcoBoost V6	AWD	4,114	1,726
		Long	3,750	3.5L PFDI V6	RWD	4,114	1,799
				3.5L EcoBoost V6	RWD	4,114	1,768
				3.5L PFDI V6	AWD	4,114	1,705
				3.5L EcoBoost V6	AWD	4,114	1,675
	Medium	Long	3,750	3.5L PFDI V6	RWD	4,114	1,732
				3.5L EcoBoost V6	RWD	4,114	1,702
				3.5L PFDI V6	AWD	4,114	1,638
				3.5L EcoBoost V6	AWD	4,114	1,609
	High	Long	3,750	3.5L PFDI V6	RWD	4,114	1,688
				3.5L EcoBoost V6	RWD	4,114	1,659
				3.5L PFDI V6	AWD	4,114	1,595
				3.5L EcoBoost V6	AWD	4,114	1,566
		Long-EL	3,750	3.5L PFDI V6	RWD	4,114	1,596
				3.5L EcoBoost V6	RWD	4,114	1,567
				3.5L PFDI V6	AWD	4,114	1,502
				3.5L EcoBoost V6	AWD	4,114	1,474
T-350	Low	Regular	3,300	3.5L PFDI V6	RWD	4,309	2,040
				3.5L EcoBoost V6	RWD	4,309	2,010
				3.5L PFDI V6	AWD	4,309	1,951
				3.5L EcoBoost V6	AWD	4,309	1,921
		Long	3,750	3.5L PFDI V6	RWD	4,309	1,994
				3.5L EcoBoost V6	RWD	4,309	1,971
				3.5L PFDI V6	AWD	4,309	1,900
				3.5L EcoBoost V6	AWD	4,309	1,874
	Medium	Long	3,750	3.5L PFDI V6	RWD	4,309	1,927
				3.5L EcoBoost V6	RWD	4,309	1,901
				3.5L PFDI V6	AWD	4,309	1,833
				3.5L EcoBoost V6	AWD	4,309	1,804
	High	Long	3,750	3.5L PFDI V6	RWD	4,309	1,883
				3.5L EcoBoost V6	RWD	4,309	1,860
				3.5L PFDI V6	AWD	4,309	1,790
				3.5L EcoBoost V6	AWD	4,309	1,764
		Long-EL	3,750	3.5L PFDI V6	RWD	4,309	1,791
				3.5L EcoBoost V6	RWD	4,309	1,762
				3.5L PFDI V6	AWD	4,309	1,698
				3.5L EcoBoost V6	AWD	4,309	1,669
T-350HD SRW	Low	Long	3,300	3.5L PFDI V6	RWD	4,491	2,175
				3.5L EcoBoost V6	RWD	4,491	2,152
				3.5L PFDI V6	AWD	4,491	2,081
				3.5L EcoBoost V6	AWD	4,491	2,056
	Medium	Long	3,300	3.5L PFDI V6	RWD	4,491	2,108
				3.5L EcoBoost V6	RWD	4,491	2,082
				3.5L PFDI V6	AWD	4,491	2,014
				3.5L EcoBoost V6	AWD	4,491	1,985
	High	Long	3,300	3.5L PFDI V6	RWD	4,491	2,065
				3.5L EcoBoost V6	RWD	4,491	2,042
				3.5L PFDI V6	AWD	4,491	1,971
				3.5L EcoBoost V6	AWD	4,491	1,945
	High	Long-EL	3,300	3.5L PFDI V6	RWD	4,491	1,954
				3.5L EcoBoost V6	RWD	4,491	1,943
				3.5L PFDI V6	AWD	4,491	1,850
				3.5L EcoBoost V6	AWD	4,491	1,851
T-350HD DRW	High	Long-EL	3,300	3.5L PFDI V6	RWD	4,513	1,901
				3.5L EcoBoost V6	RWD	4,513	1,870
				3.5L PFDI V6	AWD	4,513	1,796
				3.5L EcoBoost V6	AWD	4,513	1,767
				3.5L EcoBoost V6	RWD	4,990	2,319
				3.5L EcoBoost V6	AWD	4,990	2,216

Passenger Van
Transit Level	Roof	Length	Wheelbase (mm.)	Engine	Seating	RWD/AWD	GVWR (Kg.)
T-350	Low	Long	3,300	3.5L PFDI V6	12	RWD	4,196
				3.5L EcoBoost V6	12	RWD	4,196
				3.5L PFDI V6	12	AWD	4,196
				3.5L EcoBoost V6	12	AWD	4,196
				3.5L PFDI V6	15	AWD	4,332
				3.5L EcoBoost V6	15	AWD	4,332
				3.5L PFDI V6	15	RWD	4,264
				3.5L EcoBoost V6	15	RWD	4,264
	Medium	Long	3,300	3.5L PFDI V6	12	RWD	4,196
				3.5L EcoBoost V6	12	RWD	4,196
				3.5L PFDI V6	12	AWD	4,196
				3.5L EcoBoost V6	12	AWD	4,196
				3.5L PFDI V6	15	AWD	4,332
				3.5L EcoBoost V6	15	AWD	4,332
				3.5L PFDI V6	15	RWD	4,264
				3.5L EcoBoost V6	15	RWD	4,264
	High	Long	3,300	3.5L PFDI V6	12	RWD	4,196
				3.5L EcoBoost V6	12	RWD	4,196
				3.5L PFDI V6	12	AWD	4,196
				3.5L EcoBoost V6	12	AWD	4,196
				3.5L PFDI V6	15	AWD	4,332
				3.5L EcoBoost V6	15	AWD	4,332
				3.5L PFDI V6	15	RWD	4,264
				3.5L EcoBoost V6	15	RWD	4,264
T-350HD DRW	High	Long-EL	3,300	3.5L PFDI V6	15	RWD	4,699
				3.5L EcoBoost V6	15	RWD	4,699
				3.5L EcoBoost V6	15	AWD	4,699

Maximum Payload Capabilities
Cargo Van
Transit Level	Roof	Length	Wheelbase (in.)	Engine	RWD/AWD	GVWR (lbs.)	Max Payload (lbs.)
T-150	Low	Regular	129.9	3.5L PFDI V6	RWD	8,670	3,668
				3.5L EcoBoost V6	RWD	8,670	3,603
				3.5L PFDI V6	AWD	8,670	3,472
				3.5L EcoBoost V6	AWD	8,670	3,405
		Long	147.6	3.5L PFDI V6	RWD	8,670	3,566
				3.5L EcoBoost V6	RWD	8,670	3,499
				3.5L PFDI V6	AWD	8,670	3,359
				3.5L EcoBoost V6	AWD	8,670	3,295
	Medium	Long	147.6	3.5L PFDI V6	RWD	8,670	3,418
				3.5L EcoBoost V6	RWD	8,670	3,352
				3.5L PFDI V6	AWD	8,670	3,211
				3.5L EcoBoost V6	AWD	8,670	3,148
T-250	Low	Regular	129.9	3.5L PFDI V6	RWD	9,070	4,068
				3.5L EcoBoost V6	RWD	9,070	4,003
				3.5L PFDI V6	AWD	9,070	3,872
				3.5L EcoBoost V6	AWD	9,070	3,805
		Long	147.6	3.5L PFDI V6	RWD	9,070	3,966
				3.5L EcoBoost V6	RWD	9,070	3,898
				3.5L PFDI V6	AWD	9,070	3,759
				3.5L EcoBoost V6	AWD	9,070	3,694
	Medium	Long	147.6	3.5L PFDI V6	RWD	9,070	3,818
				3.5L EcoBoost V6	RWD	9,070	3,752
				3.5L PFDI V6	AWD	9,070	3,611
				3.5L EcoBoost V6	AWD	9,070	3,548
	High	Long	147.6	3.5L PFDI V6	RWD	9,070	3,723
				3.5L EcoBoost V6	RWD	9,070	3,657
				3.5L PFDI V6	AWD	9,070	3,516
				3.5L EcoBoost V6	AWD	9,070	3,453
		Long-EL	147.6	3.5L PFDI V6	RWD	9,070	3,520
				3.5L EcoBoost V6	RWD	9,070	3,455
				3.5L PFDI V6	AWD	9,070	3,313
				3.5L EcoBoost V6	AWD	9,070	3,251
T-350	Low	Regular	129.9	3.5L PFDI V6	RWD	9,500	4,498
				3.5L EcoBoost V6	RWD	9,500	4,433
				3.5L PFDI V6	AWD	9,500	4,302
				3.5L EcoBoost V6	AWD	9,500	4,235
		Long	147.6	3.5L PFDI V6	RWD	9,500	4,396
				3.5L EcoBoost V6	RWD	9,500	4,346
				3.5L PFDI V6	AWD	9,500	4,189
				3.5L EcoBoost V6	AWD	9,500	4,133
	Medium	Long	147.6	3.5L PFDI V6	RWD	9,500	4,248
				3.5L EcoBoost V6	RWD	9,500	4,191
				3.5L PFDI V6	AWD	9,500	4,041
				3.5L EcoBoost V6	AWD	9,500	3,978
	High	Long	147.6	3.5L PFDI V6	RWD	9.500	4,153
				3.5L EcoBoost V6	RWD	9.500	4,102
				3.5L PFDI V6	AWD	9.500	3,946
				3.5L EcoBoost V6	AWD	9,500	3,889
		Long-EL	147.6	3.5L PFDI V6	RWD	9,500	3,950
				3.5L EcoBoost V6	RWD	9,500	3,885
				3.5L PFDI V6	AWD	9,500	3,743
				3.5L EcoBoost V6	AWD	9,500	3,681
T-350HD SRW	Low	Long	147.6	3.5L PFDI V6	RWD	9,900	4,796
				3.5L EcoBoost V6	RWD	9,900	4,746
				3.5L PFDI V6	AWD	9,900	4,589
				3.5L EcoBoost V6	AWD	9,900	4,533
	Medium	Long	147.6	3.5L PFDI V6	RWD	9,900	4,648
				3.5L EcoBoost V6	RWD	9,900	4,591
				3.5L PFDI V6	AWD	9,900	4,441
				3.5L EcoBoost V6	AWD	9,900	4,378
	High	Long	147.6	3.5L PFDI V6	RWD	9,900	4,553
				3.5L EcoBoost V6	RWD	9,900	4,502
				3.5L PFDI V6	AWD	9,900	4,346
				3.5L EcoBoost V6	AWD	9,900	4,289
	High	Long-EL	147.6	3.5L PFDI V6	RWD	9,900	4,309
				3.5L EcoBoost V6	RWD	9,900	4,285
				3.5L PFDI V6	AWD	9,900	4,079
				3.5L EcoBoost V6	AWD	9,900	4,081
T-350HD DRW	High	Long-EL	147.6	3.5L PFDI V6	RWD	9,950	4,191
				3.5L EcoBoost V6	RWD	9,950	4,124
				3.5L PFDI V6	AWD	9,950	3,960
				3.5L EcoBoost V6	AWD	9,950	3,897
				3.5L EcoBoost V6	RWD	11,000	5,114
				3.5L EcoBoost V6	AWD	11,000	4,887

Passenger Van
Transit Level	Roof	Length	Wheelbase (in.)	Engine	Seating	RWD/AWD	GVWR (lbs.)
T-350	Low	Long	147.6	3.5L PFDI V6	12	RWD	9,250
				3.5L EcoBoost V6	12	RWD	9,250
				3.5L PFDI V6	12	AWD	9,250
				3.5L EcoBoost V6	12	AWD	9,250
				3.5L PFDI V6	15	AWD	9,550
				3.5L EcoBoost V6	15	AWD	9,550
				3.5L PFDI V6	15	RWD	9,400
				3.5L EcoBoost V6	15	RWD	9,400
	Medium	Long	147.6	3.5L PFDI V6	12	RWD	9,250
				3.5L EcoBoost V6	12	RWD	9,250
				3.5L PFDI V6	12	AWD	9,250
				3.5L EcoBoost V6	12	AWD	9,250
				3.5L PFDI V6	15	AWD	9,550
				3.5L EcoBoost V6	15	AWD	9,550
				3.5L PFDI V6	15	RWD	9,400
				3.5L EcoBoost V6	15	RWD	9,400
	High	Long	147.6	3.5L PFDI V6	12	RWD	9,250
				3.5L EcoBoost V6	12	RWD	9,250
				3.5L PFDI V6	12	AWD	9,250
				3.5L EcoBoost V6	12	AWD	9,250
				3.5L PFDI V6	15	AWD	9,550
				3.5L EcoBoost V6	15	AWD	9,550
				3.5L PFDI V6	15	RWD	9,400
				3.5L EcoBoost V6	15	RWD	9,400
T-350HD DRW	High	Long-EL	147.6	3.5L PFDI V6	15	RWD	10,360
				3.5L EcoBoost V6	15	RWD	10,360
				3.5L EcoBoost V6	15	AWD	10,360

Maximum Towing Capabilities – Conventional Towing

Maximum Towing Capabilities – Conventional Towing
Engine	Model	Wheelbase (in.)	Rear Axle Ratio	GCWR (kg.)	Max Towing RWD (kg.)	Max Towing AWD (kg.)
3.5L PFDI V6	Cargo Van	3,300	3.73 / 4.10	4,899 / 5,443	2,404 / 2,903	2,313/ 2,812
		3,750			2,313 / 2,812	2,222 / 2,721
	Passenger Van	3,750	3.73 / 4.10	4,899 / 5,080	1,905 / 2,041	1,814 / 1,950
3.5L EcoBoost V6	Cargo Van	3,300	3.73	5,714	3,130	3,084
		3,750			3,084	2,993
	Passenger Van	3,750	3.73	5,080	1,996	1,905
Maximum towing capacities for for properly equipped base vehicles with required equipment. Do not exceed trailer weight of 5,000 lbs. when towing with bumper only.

Maximum Towing Capabilities – Conventional Towing
Engine	Model	Wheelbase (in.)	Rear Axle Ratio	GCWR (lbs.)	Max Towing RWD (lbs.)	Max Towing AWD (lbs.)
3.5L PFDI V6	Cargo Van	129.9	3.73 / 4.10	10,800 / 12,000	5,300 / 6,400	5,100 / 6,200
		147.6			5,100 / 6,200	4,900 / 6,000
	Passenger Van	147.6	3.73 / 4.10	10,800 / 11,200	4,200 / 4,500	4,000 / 4,300
3.5L EcoBoost V6	Cargo Van	129.9	3.73	12,600	6,900	6,800
		147.6			6,800	6,600
	Passenger Van	147.6	3.73	11,200	4,400	4,200
Maximum towing capacities for for properly equipped base vehicles with required equipment. Do not exceed trailer weight of 5,000 lbs. when towing with bumper only.

Vehicle Highlights

Vehicle Highlights
Fuel Capacity (Standard)	94.6 litres L (midship)
Fuel Capacity (Optional)	117 litres L (midship)
Drive Type (Standard)	RWD
Drive Type (Optional)	AWD
Standard Engine	3.5L PFDI V6
Horsepower	275 hp @ 6,250 rpm.
Torque	260 lb.-ft. @ 4,000 rpm.
Available Engine	3.5L EcoBoost^® V6
Horsepower	310 hp @ 5,000 rpm.
Torque	400 lb.-ft. @ 2,500 rpm.
Transmission	10-Speed Automatic Selectshift^® with Overdrive
Wheelbase	130"
	148"
Roof Height	Low
	Medium
	High
Length	Regular
	Long
	Long-EL
Maximum Seating Capacity	2 Cargo Van, 15 Passenger Van
Maximum GVWR	4,990 kg (350 HD DRW)
Warranty	Bumper to Bumper: 3 years / 60,000 km
Gas Engine	Powertrain: 5 years / 100,000 km
	Safety Restraint System: 5 years / 100,000 km
	Corrosion (Perforation Only): 5 years / Unlimited km
	Roadside Assistance Program: 5 years / 100,000 km

Vehicle Highlights
Fuel Capacity (Standard)	25 gallons (midship)
Fuel Capacity (Optional)	31 gallons (midship)
Drive Type (Standard)	RWD
Drive Type (Optional)	AWD
Standard Engine	3.5L PFDI V6
Horsepower	275 hp @ 6,250 rpm.
Torque	260 lb.-ft. @ 4,000 rpm.
Available Engine	3.5L EcoBoost^® V6
Horsepower	310 hp @ 5,000 rpm.
Torque	400 lb.-ft. @ 2,500 rpm.
Transmission	10-Speed Automatic Selectshift^® with Overdrive
Wheelbase	130"
	148"
Roof Height	Low
	Medium
	High
Length	Regular
	Long
	Long-EL
Maximum Seating Capacity	2 Cargo Van, 15 Passenger Van
Maximum GVWR	11,000 lbs.
Warranty	Bumper to Bumper: 3 years / 36,000 miles
Gas Engine	Powertrain: 5 years / 60,000 miles
	Safety Restraint System: 5 years / 60,000 miles
	Corrosion (Perforation Only): 5 years / Unlimited miles
	Roadside Assistance Program: 5 years / 60,000 miles

Ford Iconic Vehicles

SUVs & Cars

Capable, convenient and versatile

Trucks & Vans

Hauling, towing, and off-roading

Electric & Hybrid

What does going electric mean?

Performance Vehicles

Commercial Vehicles

Ford Pro offers the tools, software and services to keep your business on track and crews on the road.

Recent Searches

Clear

Suggested Searches

Search History

Recent Searches

Suggested Searches

Search History

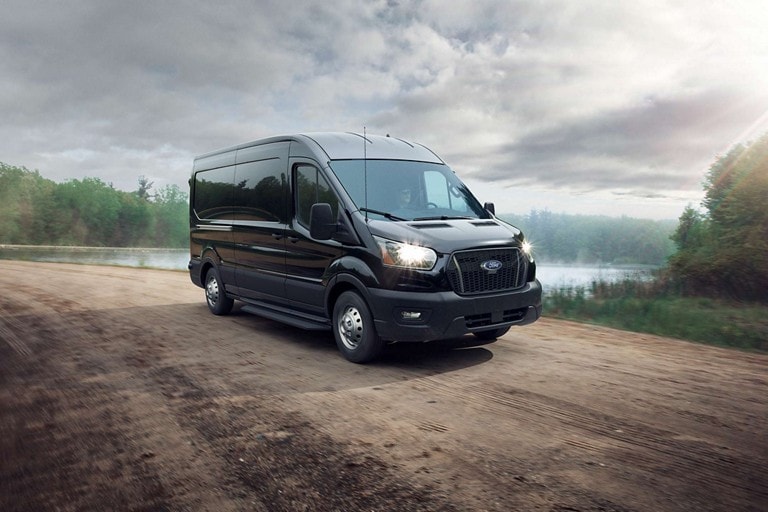

2025 Transit® Passenger Van XLT

Key Features

SYNC® 4 with 12-inch Display

Intelligent All-Wheel Drive

Safety Canopy® System With Side-Curtain Airbags

Exterior Features

Appearance

Standard

Optional

Protection

Standard

Optional

Windows & Glass

Standard

Optional

Interior Features

Climate

Standard

Comfort and Convenience

Standard

Optional

Entertainment Systems

Standard

Optional

Seating

Standard

Optional

Packages

Packages

Standard

Optional

Power and Handling

Handling

Standard

Optional

Power

Standard

Optional

Wheels & Tires

Standard

Optional

Safety

Safety

Standard

Security

Standard

Optional

Specifications

Exterior Dimensions

Interior Dimensions

Capacities: Seating / Cargo Volumes

Engine Specifications

Chassis Specifications

Maximum Payload Capabilities

Maximum Towing Capabilities – Conventional Towing

Vehicle Highlights

Build & Price

Search Inventory

Locate a Dealer

2025 Transit^® Passenger Van XLT

SYNC^® 4 with 12-inch Display

Safety Canopy^® System With Side-Curtain Airbags
