Key features

Power and Handling

Power

Standard
  • Alternator – 150-amp/hour
  • Auxiliary Fuel Port
  • Battery, Single – 70-amp/hour (Gas Only)
  • Engine - 3.7L Ti-VCT V6
  • Fuel Tank – Capless fuel fill, 94.6 litres (midship)
  • Engine Block Heater
  • 6-Speed Automatic Overdrive Transmission with SelectShift®
Optional
  • Alternator – Heavy-Duty (210 amp with diesel, 250 amp with gas)
  • Battery – Dual Heavy-Duty Batteries
  • Battery – Single Absorbed Glass Mat (Gas only)
  • Programmable Battery Guard
  • Engine - 3.2L I5 Diesel

  • Manual Regeneration – Requires Diesel Engine
  • Manual Regeneration with Active Regen Inhibitor – Requires Diesel Engine

Handling

Standard
  • AdvanceTrac® w/Roll Stability Control™ (RSC®)
  • GVWR - 4,082 kg (9,000 lb.)
  • Steering – Power Rack and Pinion
  • Steering Wheel, – Tilt & telescopic column polyurethane 4-spoke wheel
  • Suspension, Front – Independent MacPherson-strut, stabilizer bar
  • Suspension, Rear – Leaf springs, heavy-duty gas shock absorbers

  • Wheelbase - 3504 mm (138")
Optional
  • GVWR - 4,390 kg  (9,500 lb.)
  • GVWR - 4,490 kg  (9,900 lb.)
  • GVWR - 4,513 kg (9,950 lb.) DRW
  • GVWR - 4,699 kg (10,360 lb.) DRW
  • Trailer Brake Controller (TBC). Requires Trailer Wiring Provisions
  • Wheelbase - 3954 mm (156")
  • Wheelbase - 4522 mm (178")

Wheels & Tires

Standard
  • Tires, 195/75R16C 107/105 R BSW all-season (DRW)
  • Tires, 235/65R16C 121/119 R BSW all-season (SRW)
  • Wheels - Delete full-size spare tire & wheel
  • Wheels, 16" White Wheel (DRW only) with exposed lug nut hubcaps
  • Wheels, 16" SRW- Steel Wheel with Black Hubcaps
Optional
  • Wheels, Alloy Forged Wheel (DRW only)
  • Wheels, Full-size Spare Tire and Wheel
  • Wheels, Steel with Full Silver Wheel Cover
  • Wheels, Easy To Clean Styled Aluminum

Interior Features

Seating

Standard
  • Seats - Pewter (Grey) Vinyl, 2-way manual (fore/aft/recline) driver and passenger; with inboard driver armrest; driver-side and passenger-side airbags; and Safety Canopy side-curtain airbags

Optional
  • Seats, Pewter (Grey) Vinyl, 2-way manual (fore/aft/recline) driver and passenger; with driver inboard armrest. Does NOT include side airbags or Safety Canopy side-curtain airbags

  • Seats - Pewter (Grey) Vinyl, 2-way manual (fore/aft/recline) driver and passenger; with inboard armrests; driver-side and passenger-side airbags; and Safety Canopy side-curtain airbags

  • Seats, Pewter (Grey) Vinyl, 2-way manual (fore/aft/recline) driver and passenger; with inboard armrests. Does NOT include side airbags or Safety Canopy side-curtain airbags
  • Seats - Pewter (Grey) Cloth, 2-way manual (fore/aft/recline) driver and passenger; with inboard armrests; driver-side and passenger-side airbags; driver-side manual lumbar; and Safety Canopy side-curtain airbags

  • Seats, Pewter (Grey) Cloth, 2-way manual (fore/aft/recline) driver and passenger; with inboard armrests; and driver-side manual lumbar. Does NOT include side airbags or Safety Canopy side-curtain airbags

  • Seats, Charcoal Cloth, 2-way manual (fore/aft/recline) driver and passenger; with inboard armrests; and driver-side manual lumbar. Does NOT include side airbags or Safety Canopy side-curtain airbags

  • Seats - Charcoal Cloth, 2-way manual (fore/aft/recline) driver and passenger; with inboard armrests; driver-side and passenger-side airbags; driver-side manual lumbar; and Safety Canopy side-curtain airbags

  • Seats - Pewter (Grey) Cloth, 10-way power driver and passenger; with inboard armrests; driver-side and passenger-side airbags; Safety Canopy side-curtain airbags and heated seats
  • Seats - Pewter (Grey) Cloth, 10-way power driver and 2-way manual passenger; with inboard armrests; driver-side and passenger-side airbags; Safety Canopy side-curtain airbags and a heated driver seat

  • Seats - Charcoal Cloth, 10-way power driver and passenger; with inboard armrests; driver-side and passenger-side airbags; Safety Canopy side-curtain airbags and heated seats
  • Seats - Charcoal Cloth, 10-way power driver and 2-way manual passenger; with inboard armrests; driver-side and passenger-side airbags; Safety Canopy side-curtain airbags and a heated driver seat

  • Seats - Pewter (Grey) Leather-trimmed, 10-way power driver and passenger; with inboard armrests; driver-side and passenger-side airbags; Safety Canopy side-curtain airbags and heated seats

  • Seats - Charcoal Leather-trimmed, 10-way power driver and passenger; with inboard armrests; driver-side and passenger-side airbags; Safety Canopy side-curtain airbags and heated seats

Climate Control

Standard
  • Air Conditioning

Entertainment Systems

Standard
  • Audio, AM/FM stereo with audio input jack - 4 front speakers

Optional
  • Audio, AM/FM stereo, 4” multi-function display, Message Centre, SYNC® with USB Port, single-CD, HD and SIRIUS® /SiriusXM capability, 4 front speakers
  • Audio, AM/FM stereo, audio input jack, 4” multi-function display, single-CD, and SIRIUS® /SiriusXM capability – 4 front speakers
  • Audio, AM/FM stereo, 4” multi-function display, single-CD, Message Centre, SYNC® with USB port, 4 front speakers
  • Audio, AM/FM stereo, SYNC® 3, with Navigation and 6.5” colour multi-function display media hub, HD and SiriusXM Radio capability and Lane Keeping Alert with 4 front speakers
  • Audio, AM/FM stereo, audio input jack, single-CD and 4” multi-function display, – 4 front speakers

  • Audio, AM/FM stereo with audio input jack, microphone and Bluetooth® interface - 4 front speakers
  • Audio, Radio Prep Package.
  • Audio, 4 front speakers only - (Requires Radio Prep Package)

Comfort and Convenience

Standard
  • Airbag cut-off switch - Passenger-side (Not available with seats delete or right hand door delete)

  • Console - Centre stack console with integrated shifter
  • Daytime running Lights
  • Floor Covering, Vinyl, Front
  • Glove Box - Locking
  • Headliner – Cloth
  • Horn – Dual-note electric
  • Inside Rearview Mirror
  • Instrumentation - Tachometer, fuel level and coolant temperature
  • Lighting, Accessory Delay – 30 minute
  • Lighting, Front Dome Light with Map Lights and Theater-Dimming

  • Passenger A-Pillar Grab Handle
  • Powerpoint, 12V, one in instrument panel, one in centre console
  • Sun visors – Vinyl Trimmed.
  • Windshield Wipers, Variable interval intermittent
Optional
  • Centre Console - Delete (Fleet only)
  • Cruise Control with Message Centre (Full Trip Computer and Engine-Hour Meter)
  • Floor Covering, Carpet, Front
  • All-Weather Floor Mats
  • Flooring, All-Weather Floor Mats (Front) Only available with carpet floor covering

  • Lane Keeping Alert with Driver Alert
  • MyKey®
  • Power Inverter - 12V to 110V
  • High Capacity Upfitter Switches
  • Auxiliary Fuse Box with High Spec Interface Connector Box
  • Vinyl Sun Visors with Illuminated Vanity Mirror (Driver and Passenger)
  • AutoLight with Rain-Sensing Wipers

Exterior Features

Appearance

Standard
  • Audio, Antenna – fender mounted
  • Body Side Mouldings – black
  • Bumper, Front – Black, moulded-in-colour with lower valance

  • Frame Rail Extension Adapters
  • Grille, Black with black surround
  • Headlights, Halogen with Black Trim
  • Mirrors - Exterior Delete
  • Roof Marker Lights
Optional
  • Front License Plate Bracket
  • Mirrors Long Arm - Power
  • Mirrors Long Arm - Power Heated with Turn Signals
  • Mirrors Short Arm - Power-Folding, Power Heated with Turn Signals
  • Mirrors Short Arm - Power.
  • Mirrors Short Arm - Manual (Fleet Only)

Protection

Optional
  • Remote Keyless-Entry Keypad
  • Wheel Well Liners (front only)
  • Keys: 2 additional (4 total)
  • Separate Stop Turn Taillight - LED Enabled

Windows and Glass

Standard
  • Windows, Rear Window
  • Windows, Tinted Glass

Safety

Safety

Standard
  • Tire Pressure Monitoring System (TPMS), (SRW)
  • Airbags, Driver and Passenger
  • Brakes – 4-wheel anti-lock disc brakes
  • Door Locks, Auto-Locking Drive Away with Crash Unlocking
  • Safety belts – 3-point, all positions
  • Safety Canopy® Curtain Airbags
  • SecuriLock® Passive Anti-Theft System (PATS) with engine immobilizer
  • SOS Post-Crash Alert System (Distress call w/airbag deployment Requires optional SYNC® )
Optional
  • Back Up Alarm
  • Rear View Camera with Mirror Display (Located in Dunnage kit - requires installation)

Packages

Packages

Standard
  • Modified Vehicle Wiring System
  • Power Equipment Group (Power Locks and Windows) with Remote Keyless-Entry

  • Rear Tail Light Wiring-LED Capable
Optional

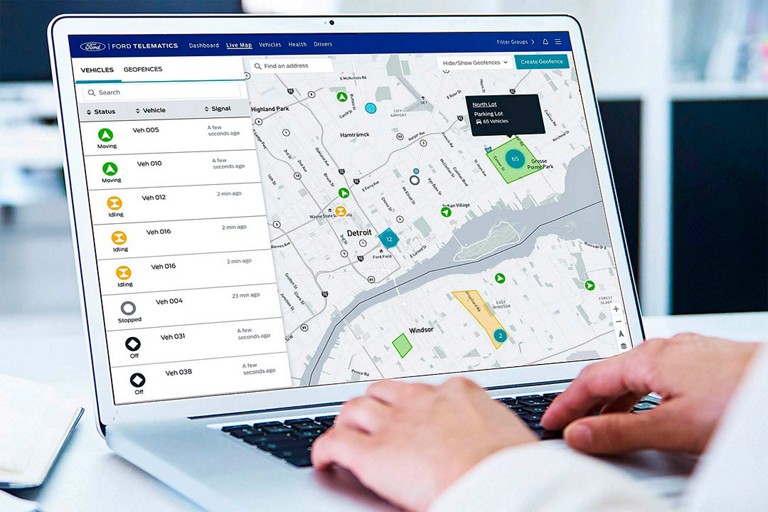

  • Ford Telematics™  - powered by Telogis®*
  • Engine - CNG/Propane Gaseous Engine Prep Package*
  • Exterior Upgrade Package*
  • Interior Upgrade package.
  • Premium Package
  • Remote Start
  • Smokers Package – Cigarette lighter and ash cup
  • Tow/Haul Mode with Trailer Wiring Provisions

Specifications

Exterior Dimensions

Exterior Dimensions - Cut-Away

T250

T250 T350 T350 T350 HD T350 HD T350 HD

2017 TRANSIT CUT-AWAY CABS

Cut-Away Cut-Away Cut-Away Cut-Away Cut-Away Cut-Away Cut-Away
TRANSIT: CUT-AWAY SRW SRW SRW SRW DRW DRW DRW
[mm] [mm] [mm] [mm] [mm] [mm] [mm]

Wheelbase

3504 3954 3504 3954 3504 3954 4522
Overall Length 5673 6123 5673 6123 5673 6123 6691
Overall Cab Height (Curb)
2217 2210 2217 2209 2205 2196 2197
Overall Width 2052 2052 2052 2052 2112 2112 2112
Front Track 1732 1732 1732 1732 1740 1740 1740
Rear Track - Dual 1743 1743 1743 1743 1670 1670 1670
Cab Length

2430

2430 2430 2430 2430 2430 2430
Cab Rear to Rear Axle
2097

2547

2097 2547 2097 2547 3115
Top of Frame to Top of Cab
1554 1554 1554 1554 1554 1554 1554

Rear Axle to End of Frame - or Rear Overhang

1146 1146 1146 1146 1146 1146 1146
Load Height (Loaded)
636 658 636 648 628 652 634
Front Overhang
1023 1023 1023 1023 1023 1023 1023
Exterior Dimensions - Chassis Cab
T250 T250 T350 T350 T350 HD T350 HD T350 HD
2017 TRANSIT CHASSIS CAB CABS
Chassis Cab Chassis Cab Cut-Away Chassis Cab Chassis Cab Chassis Cab Chassis Cab
TRANSIT: CHASSIS CAB
SRW SRW SRW SRW DRW DRW DRW
[mm] [mm] [mm] [mm]

[mm]

[mm] [mm]

Wheelbase

3504 3954 3504 3954 3504 3954 4522

Overall Length

5673 6123 5673 6123 5673 6123 6691
Front Track 1732 1732 1732 1732 1740 1740 1740

Rear Track

1743

1743 1743 1743 1670 1670 1670
Rear Axle to End of Frame - or Rear Overhang
1146 1146 1146 1146 1146 1146 1146
Load Height (Loaded)
630 651 630 642 627 649 632

Height at Top of Steering Wheel (Loaded)

1537 1529 1537 1526 1513 1503 1523

Rear Axle Clearance (Loaded)

141

155 141 151 140 154 150

Interior

Interior Dimensions CC/CA

Wheelbase
3,505 mm 3,962 mm 4,521 mm
Cutaway / Chassis Cab

Cutaway/Chassis Cab

Cutaway/Chassis Cab

Cutaway/Chassis Cab
Passenger Capacity
2 2 2
[mm] [mm] [mm]

Head Room - First Row

1140 1140 1140
Maximum Leg Room - First Row
1049 1049 1049
Hip Room - First Row
1714 1714 1714
Shoulder Room - First Row
1724 1724 1724

Capacities

2017 Transit CC/CA
Wheelbase 3,505 mm 3,962 mm 4,521 mm
Cutaway / Chassis Cab
Cutaway/Chassis Cab
Cutaway/Chassis Cab
Cutaway/Chassis Cab
Seating capacity (maximum)
2 2 2
Fuel Capacity

94.6 liters (midship)

94.6 liters (midship)

94.6 liters (midship)

Engine

Engine Specifications

Engine Type

3.7L Ti-VCT V6 3.2L l5 Diesel

Displacement

227/3731

195/3198
Horsepower (SAE net@RPM)

275 @ 6000

185 @ 3000

Torque (lb. -ft. @RPM)

260 @ 4000

350 @ 1500 - 2500
Compression Ratio 10.5:1 15.8:1
Bore x stroke (in.) 3.76 x 3.41 3.54 x 3.96
Valvetrain

DOHC, 4 valve per cylinder

DOHC , 4 valve per cylinder
Fuel delivery Sequential multiport electronic
High pressure common rail direct diesel injection
Transmission type

6-speed automatic Selectshift® with overdrive

6-speed automatic Selectshift® with overdrive
Engine block material Aluminum Cast-iron
Cylinder head material

Aluminum

Aluminum

Chassis Specifications

Chassis Specifications

Front suspension

Independent MacPherson-strut
Independent MacPherson-strut
Rear suspension Leaf springs Leaf springs
Shock absorbers Heavy-duty gas Heavy-duty gas
Brakes 4-wheel anti-lock disc brakes
4-wheel anti-lock disc brakes
Steering

Hydraulic Power Rack and Pinion

Hydraulic Power Rack and Pinion

Towing

Maximum Capabilities - GCWR, Conventional Towing, Payload

Cutaway Wheelbase [mm] GVWR [kg] Engine Ratio GCWR [kg] Max. Conv. Hitch Trailer Tow Cap. [kg]
Payload [kg]
Transit 250, 138" WB, Cutaway (SRW)

3504

4082 3.7L 4,10 5443 3084 2200
Transit 250, 138" WB, Cutaway (SRW)

3504

4082 3.2L 3.73 6123 3402 2041

Transit 350, 138" WB, Cutaway (SRW)

3504

4309 3.7L 4,10 5443 3084 2427

Transit 350, 138" WB, Cutaway (SRW)

3504

4309

3.2L

3,73

6123

3402

2468

Transit 350HD, 138" WB, Cutaway (DRW)
3504 4513

3.7L

4,10

5443

2994

2545
Transit 350HD, 138" WB, Cutaway (DRW)

3504

4513 3.2L 3,73 6123 3402 2390
Transit 350HD, 138" WB, Cutaway (DRW)
3504 4699 3.7L 4,10 5443 2994 2731
Transit 350HD, 138" WB, Cutaway (DRW)
3504 4699 3.2L 3,73 6123 3402 2576
Transit 250, 156" WB, Cutaway (SRW)
3954 4082 3.7L 4,10 5443 2294 2172
Transit 250, 156" WB, Cutaway (SRW)
3954 4082 3.2L 3,73 6123 3402 2018
Transit 350, 156" WB, Cutaway (SRW)
3954 4309 3.7L 4,10 5443 2994 2400
Transit 350, 156" WB, Cutaway (SRW)
3954 4309 3.2L 3,73 6123 3402 2245
Transit 350HD, 156" WB, Cutaway (DRW)
3954 4513 3.7L 4,10 5443 2948 2535
Transit 350HD, 156" WB, Cutaway (DRW)
3954 4513 3.2L 3,73 6123 3402 2363
Transit 350HD, 156" WB, Cutaway (DRW)
3954 4699 3.7L 4,10 5443 2948 2721
Transit 350HD, 156" WB, Cutaway (DRW)
3954 4699 3.2L 3,73 6123 3402 2549
Transit 350HD, 178" WB, Cutaway (DRW)
4522 4513 3.7L 4,10 5443 2812 2495
Transit 350HD, 178" WB, Cutaway (DRW)
4522 4513 3.2L 3,73 6123 3221 2318

Transit 350HD, 178" WB, Cutaway (DRW)

4522

4699

3.7L

4,10

5443

2812

2680

Transit 350HD, 178" WB, Cutaway (DRW)

4522 4699 3.2L 3,73 6123 3221 2504

Transit 250, 138" WB, Chassis Cab (SRW)

3504 4082 3.7L 4,10 5443 3084 2186
Transit 250, 138" WB, Chassis Cab (SRW)
3504 4082 3.2L 3,73 6123 3402 2023
Transit 350, 138" WB, Chassis Cab (SRW)
3504 4309 3.7L 4,10 5443 3084 2413
Transit 350, 138" WB, Chassis Cab (SRW)
3504 4309 3.2L 3,73 6123 3402 2250
Transit 350HD, 138" WB, Chassis Cab (DRW)
3504 4513 3.7L 4,10 5443 2994 2531
Transit 350HD, 138" WB, Chassis Cab (DRW)
3504 4513 3.2L 3,73 6123 3402 2377
Transit 350HD, 138" WB, Chassis Cab (DRW)
3504 4699 3.7L 4,10 5443 2994 2717
Transit 350HD, 138" WB, Chassis Cab (DRW)
3504 4699 3.2L

3,73

6123 3402 2563

Transit 250, 156" WB, Chassis Cab (SRW)

3954

4082

3.7L 4,10 5443 2994

2159

Transit 250, 156" WB, Chassis Cab (SRW)
3954 4082 3.2L 3,73 6123 3402 2005
Transit 350, 156" WB, Chassis Cab (SRW)

3954

4309 3.7L 4,10 5443 2994 2386
Transit 350, 156" WB, Chassis Cab (SRW)
3954 4309 3.2L 3,73 6123 3402 2232
Transit 350HD, 156" WB, Chassis Cab (DRW)
3954 4513 3.7L 4,10 5443 2903 2508
Transit 350HD, 156" WB, Chassis Cab (DRW)
3954 4513 3.2L 3,73 6123 3402 2350
Transit 350HD, 156" WB, Chassis Cab (DRW)
3954 4699 3.7L 4,10 5443 2903 2494
Transit 350HD, 156" WB, Chassis Cab (DRW)
3954 4699 3.2L 3,73 6123 3402 2536
Transit 350HD, 178" WB, Chassis Cab (DRW)
4522 4513 3.7L 4,10 5443 2812 2495
Transit 350HD, 178" WB, Chassis Cab (DRW)
4522 4513 3.2L 3,73 6123 3221 2304
Transit 350HD, 178" WB, Chassis Cab (DRW)
4522 4699 3.7 4,10 5443 2812 2680
Transit 350HD, 178" WB, Chassis Cab (DRW)
4522 4699 3.2L 3,73 6123 2540 2490

Highlights

Vehicle Highlights

Fuel Capacity

94.6 liters (midship)
Drive Type

4x2

Available Engines

3.7L Ti-VCT V6 FFV
3.2L I5 Diesel

Horsepower

275 hp @ 6000 RPM
185 hp @ 3000 RPM

Torque

260 lb.-ft. @ 4000 RPM
350 lb.-ft. @ 1500 - 2500 RPM
Transmission 6-Speed Automatic Overdrive with SelectShift®
Wheelbase

3504 mm (250 SRW / 350 SRW / 350HD DRW)
3954 mm (250, 350 SRW / 350HD DRW)
4522 mm (350HD DRW)

Maximum Payload



2731 kg. (3504 mm Cutaway 350HD with 3.7L)
Maximum GVWR
4699 kg. (350HD DRW)
Warranty Basic Coverage: 3 years / 60,000 km
Powertrain: 5 years / 100,000 km
Diesel Powertrain: 5 years / 160,000 km
Safety Restraint System: 5 years / 100,000 km
Corrosion (Perforation Only): 5 years / Unlimited km
Roadside Assistance Program: 5 years / 100,000 km

Postal Code



Update
Go Further

Your browser is not supported

Click one of the below icons to start the browser download.

Enter your mobile information below
@
Number invalid. Please try again.
Please select a carrier.
Thank you.

By entering your mobile phone number, you expressly consent to receive a text message on your mobile phone. Standard messaging and data plan rates may apply.
