2019 Chassis Cab F-350 XLT

View Towing Guides

¹

View all offers

Key Features

Integrated Trailer Brake Controller

Super Duty^® offers an available factory-installed, fully integrated trailer brake controller (TBC) with no installation hassles or aftermarket worries. Integrated with the anti-lock brakes and trailer sway control¹⁹, TBC synchronizes vehicle and trailer brakes for seamless braking, even with the heaviest loads. The Ford TBC offers the advantage of verified compatibility with trailers (one to four axles) utilizing electrically actuated drum brakes and certain electric-over-hydraulic (EOH) drum or disc brakes.

Steering Wheel - Audio Controls

Audio controls on the steering wheel let you keep your hands on the wheel while driving and adjusting your audio settings.

U.S. Model Shown

18 inch Cast Aluminum Wheels with Bright Hub Cover Centre Ornament S R W

Wheels - 18" Painted cast aluminum with bright hub covers/centre ornaments (SRW)

18-inch Painted Cast-Aluminum Wheels with Bright Hub Cover/Centre Ornament are standard on Super Duty^® XLT SRW.

Power and Handling

Power

Standard

Engine - 6.2L SOHC 2-valve flex fuel V8 engine
TorqShift^® 6-speed SelectShift^® Automatic Transmission
Upgraded Diesel Engine-Exhaust Braking (Diesel Engine)
DEF Tank Level Gauge (Diesel Engine)
Alternator - Single, Extra Heavy-Duty, 200-amp (6.2L)
Alternators - Dual, Extra Heavy Duty 377-amp total (diesel engine only)
Engine block heater
Fuel Tank - 151 Litre aft-axle (F-350 SRW, F-350 DRW/F-450/F-550)

Optional

Engine - 6.7L Power Stroke^® V8 Turbo Diesel engine
Operator Commanded Regeneration with Active Regeneration Inhibit (Diesel Engine)
Alternator - Single, Extra Extra-Heavy-Duty, 240-amp (6.2L)
Fuel Tank - 100 Litre mid-ship (F-350 SRW with 9,800 or 10,000 lb. GVWR Package)
Dual Diesel fuel tanks

Handling

Standard

Axle - Twin I-beam front axle with coil spring suspension - (F-350 4x2)
Axle - Mono-beam front axle with coil spring suspension - (F-350 4X4, F-450 and F-550)
Brakes - 4-wheel power disc brakes with Anti-lock Brake System (ABS); vacuum-boost (SRW)
Hill Start Assist
AdvanceTrac® with Roll Stability Control^™ (RSC^®)
Trailer Sway Control (SRW)
Stationary Elevated Idle Control (SEIC)
Shock absorbers - heavy duty gas
Stabilizer bar - front and rear
Steering - power
Steering damper
Integrated Trailer Brake Controller
Transfer Case - Manual 4-Wheel-Drive System with manual locking hubs (4x4 models only)
Live Drive Power Takeoff Provision with Mobile and Stationary PTO Modes

Optional

Brakes - 4-wheel power disc brakes with Anti-lock Brake System (ABS); Hydro-boost (DRW)
Programmable Engine Idle Shutdown (diesel engine only)
Transfer Case - Electronic Shift-On-the-Fly (ESOF) 4-Wheel-Drive System (4x4 models only) (N/A on 6.8L)

Wheels & Tires

Standard

Wheels - 17-inch Argent-Painted Steel (DRW)
Wheels - 18-inch Painted Cast-Aluminum with Bright Hub Covers/Centre Ornaments (SRW)
LT245/75Rx17E BSW PLUS A/S, DRW
LT275/65Rx18E BSW A/S, SRW

Optional

Wheels - 17-inch Argent-Painted Steel (SRW)
Wheels - 17-inch Forged Polished Aluminum with Bright Hub Covers/Centre Ornaments (DRW)
Stainless Steel Wheel Cover (DRW)
LT245/75Rx17E BSW PLUS A/S, SRW
LT245/75Rx17E BSW A/T
LT245/75Rx17E OWL A/T (inner & optional spare BSW A/T), DRW
LT265/70Rx17E OWL A/T, SRW only
LT275/70Rx18E BSW PLUS A/T, 4x4 SRW only
LT275/70Rx18E OWL PLUS A/T (4x4, SRW, Spare tire –BSW A/T)
Spare Tire & Wheels (Excludes carrier; Includes Hydraulic Jack)
Hydraulic Jack (2-ton – F-350 SRW / 4-ton – F-350 DRW / 6-ton F-450 & F550)

Interior Features

Climate

Standard

Air Conditioning - Manual Temperature Control
Rapid-Heat Supplemental Cab Heater (Diesel Only)

Comfort and Convenience

Standard

Dash-top tray
Dome Lamp - door-activated instrument panel switch operated with delay
Floor Covering - colour coordinated carpet
Floor Mats - colour coordinated carpet (includes rear mats on SuperCab and Crew Cab)
Grab handles - driver and front passenger
Headliner - colour coordinated cloth
Instrumentation with Tachometer and Message Centre
Instrument Cluster - 4.2-inch LCD Productivity Screen
Map lights - dual (front and rear with Crew Cab)
Power Equipment - accessory delay
Power Equipment - Power door locks and windows
Powerpoint - 12v, two instrument panel mounted
Powerpoint, 12v - Rear (SuperCab and Crew Cab)
Powerpoint - auxiliary, 1 in media bin
Cruise control
Steering Wheel - Audio Controls
Steering Wheel - Black Molded Polyurethane
Storage - secondary glove box
Lockable-Rear Under-Seat Storage Box (Crew Cab)
Visors with driver- and passenger-side covered mirrors
Tilt/telescoping steering wheel
Upfitter Switches (6)
Windshield wipers - interval control

Optional

Available Power-Adjustable Pedals
Floor Covering - black vinyl
Floor Mats - All-weather (SuperCab and Crew Cab only)

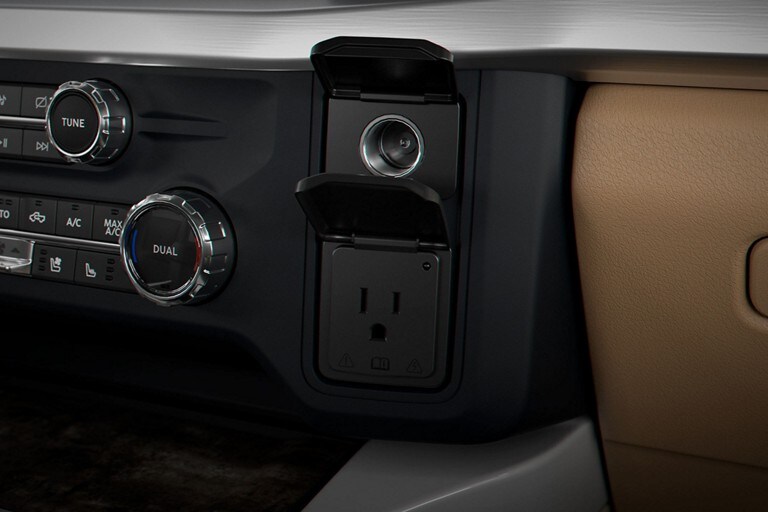

Powerpoint -110-volt/400-watt A/C Power Inverter
Rearview Mirror - Electrochromic self dimming
Remote Start System
Storage - Vehicle Safe by Console Vault
Upfitter Interface Module
Exterior Backup Alarm
Controller Area Network (CAN) Interface Module
Speed Limitation - 105 km/h governed top speed (fleet only)
Speed Limitation - 121 km/h governed top speed (fleet only)

Entertainment Systems

Standard

Premium AM/FM Stereo, (five speakers Regular Cab, seven speakers SuperCab and Crew Cab)
SiriusXM^® ¹³
SYNC^®

Optional

Voice-Activated Touchscreen Navigation System With SiriusXM Traffic and Travel Link^® *
SYNC^® 3

Seating

Standard

Front, High Series Cloth 40/20/40 split bench, w/ centre armrest, cupholders, under-seat storage and driver manual lumbar
Rear, 60/40 Fold-Up Bench Seat (SuperCab)
Rear, 60/40 Flip-Up/Fold-Down Bench Seat, Fold-Flat Lockable Storage (Crew Cab)

Optional

Front, Luxury cloth 40/Console/40 Captain Chairs w/ centre console, 110 Volt PowerPoint outlet, storage and driverside power lumbar (SuperCab, Crew Cab)

Exterior Features

Appearance

Standard

Bumpers, front - chrome steel with black lower air dam
Door Handles - black
Quad Dual-Beam Halogen Headlights
Chrome Bar-Style Grille
Manual Telescoping Trailer Tow with Power Heated Glass and Heated Spotter Mirror
LED Roof Clearance Lights
Tow hooks - (2) front, black

Optional

Platform Running Boards
Utility Lighting System - LED Side-mirror Spotlights
PowerScope^® Telescoping Trailer Tow Mirrors
Splash Guards

Protection

Optional

LED Warning Strobes
Skid Plates, transfer case (4x4)

Windows & Glass

Standard

Glass - rear, privacy
Glass - solar tinted
Window - rear, fixed

Optional

Window - rear, fixed Privacy with defrost
Power Sliding Rear Window with privacy glass and defrost

Safety

Standard

Front-Seat and Passenger-Side Airbags
Front-Seat Side Airbags
Child tethers
Seat Belts - colour coordinated with height adjustment (front outboard seating positions only)
SOS Post Crash Alert System
Belt-Minder^® , chime and flashing warning light on instrument cluster if belts not buckled
Safety Canopy^® System with Roll-Fold Side-Curtain Airbags

Optional

Inflatable Outboard Rear Seat Belts (Crew Cab Only)
Rear View Camera Prep Kit

Security

Standard

Tire Pressure Monitoring System (excludes spare)
Remote keyless entry
Advanced Security Pack
SecuriLock^® Anti-Theft Ignition
MyKey^®
Autolamp (Auto On/Off Headlights) with Rainlamp Wiper Activated Headlights

Packages

Specifications

Exterior

Switch to Imperial Units Switch to Metric Units

Exterior Dimensions
	Regular Cab	Regular Cab	Regular Cab	Regular Cab	Regular Cab	Regular Cab	Regular Cab	Regular Cab	SuperCab	SuperCab	SuperCab	SuperCab	Crew Cab	Crew Cab	Crew Cab	Crew Cab
	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
Drive type	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4
Cab to Axle (CA)	1524	1524	2134	2134	2743	2743	3048	3048	1524	1524	2134	2134	1524	1524	2134	2134
Drive type	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4
Wheelbase	3691	3691	4300	4300	4910	4910	5215	5215	4265	4265	4874	4874	4567	4567	5177	5177
Length – overall	5860	5860	6472	6472	7082	7082	7384	7384	6434	6434	7046	7046	6736	6736	7346	7346
Height – F-350 SRW (w/o options)	1979	2057	-	-	-	-	-	-	1989	2057	-	-	1991	2062	-	-
Height – F-350 DRW (w/o options)	1984	2057	1981	2054	-	-	-	-	1994	2062	-	-	1996	2062	-	-
Height – F-450 DRW (w/o options)	2075	2070	2070	2065	2070	2068	2065	2065	2978	2073	2078	2078	2080	2078	2075	2078
Height – F-550 DRW (w/o options)	2075	2070	2075	2070	2075	2073	2070	2070	2083	2078	2078	2078	2080	2078	2080	2075
Track - front – F-350 SRW	1735	1735	-	-	-	-	-	-	1735	1735	-	-	1735	1735	-	-
Track - front – F-350 DRW	1729	1729	1729	1729	-	-	-	-	1729	1729	-	-	1729	1729	-	-
Track - front – F-450 DRW	1900	1900	1900	1900	1900	1900	1900	1900	1900	1900	1900	1900	1900	1900	1900	1900
Track - front – F-550 DRW	1900	1900	1900	1900	1900	1900	1900	1900	1900	1900	1900	1900	1900	1900	1900	1900
Track - rear – F-350 SRW	1730	1730	1806	1806	-	-	-	-	1730	1730	-	-	1730	1730	-	-
Track - rear – F-350 DRW	1806	1806	1806	1806	-	-	-	-	1806	1806	-	-	1806	1806	-	-
Track - rear – F-450 DRW	1880	1880	1880	1880	1880	1880	1880	1880	1880	1880	1880	1880	1880	1880	1880	1880
Track - rear – F-550 DRW	1880	1880	1880	1880	1880	1880	1880	1880	1880	1880	1880	1880	1880	1880	1880	1880
Rear axle clearance – F-350 SRW	218	216	-	-	-	-	-	-	218	218	-	-	218	218	-	-
Rear axle clearance – F-350 DRW	201	198	201	201	-	-	-	-	201	198	-	-	198	198	-	-
Rear axle clearance – F-450 DRW	208	208	211	211	211	211	211	211	211	211	208	208	208	208	208	208
Rear axle clearance – F-550 DRW	208	208	211	211	211	211	211	211	211	211	208	208	208	208	208	208
Overhang – front	973	973	973	973	973	973	973	973	973	973	973	973	973	973	973	973
Frame Rail Width – F-350 SRW	866	866	-	-	-	-	-	-	866	866	-	-	866	866	-	-
Frame Rail Width – F-350 DRW	866	866	866	866	-	-	-	-	866	866	-	-	866	866	-	-
Frame Rail Width – F-450 DRW	869	869	869	869	869	869	869	869	869	869	869	869	869	869	869	869
Frame Rail Width – F-550 DRW	869	869	869	869	869	869	869	869	869	869	869	869	869	869	869	869
Rear Axle to End of Frame	1199	1199	1199	1199	1199	1199	1199	1199	1199	1199	1199	1199	1199	1199	1199	1199
Cab to Axle (CA)	1524	1524	2134	2134	2743	2743	3048	3048	1524	1524	2134	2134	1524	1524	2134	2134

Exterior Dimensions
	Regular Cab	Regular Cab	Regular Cab	Regular Cab	Regular Cab	Regular Cab	Regular Cab	Regular Cab	SuperCab	SuperCab	SuperCab	SuperCab	Crew Cab	Crew Cab	Crew Cab	Crew Cab
	in.	in.	in.	in.	in.	in.	in.	in.	in.	in.	in.	in.	in.	in.	in.	in.
Drive type	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4
Cab to Axle (CA)	60	60	84	84	108	108	120	120	60	60	84	84	60	60	84	84
Drive type	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4
Wheelbase	145.3	145.3	169.3	169.3	193.3	193.3	205.3	205.3	167.9	167.9	191.9	191.9	179.8	179.8	203.8	203.8
Length – overall	230.7	230.7	254.8	254.8	278.8	278.8	290.7	290.7	253.3	253.3	277.4	277.4	265.2	265.2	289.2	289.2
Height – F-350 SRW (w/o options)	77.9	81.0	-	-	-	-	-	-	78.3	81.0	-	-	78.4	81.2	-	-
Height – F-350 DRW (w/o options)	78.1	81.0	78.0	80.9	-	-	-	-	78.5	81.2	-	-	78.6	81.2	-	-
Height – F-450 DRW (w/o options)	81.7	81.5	81.5	81.3	81.5	81.4	81.3	81.3	81.8	81.6	81.8	81.8	81.9	81.8	81.7	81.8
Height – F-550 DRW (w/o options)	81.7	81.5	81.7	81.5	81.7	81.6	81.5	81.5	82.0	81.8	81.8	81.8	81.9	81.8	81.9	81.7
Track - front – F-350 SRW	68.3	68.3	-	-	-	-	-	-	68.3	68.3	-	-	68.3	68.3	-	-
Track - front – F-350 DRW	69.1	69.1	69.1	69.1	-	-	-	-	69.1	69.1	-	-	69.1	69.1	-	-
Track - front – F-450 DRW	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8
Track - front – F-550 DRW	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8
Track - rear – F-350 SRW	68.1	68.1	-	-	-	-	-	-	68.1	68.1	-	-	68.1	68.1	-	-
Track - rear – F-350 DRW	71.1	71.1	71.1	71.1	-	-	-	-	71.1	71.1	-	-	71.1	71.1	-	-
Track - rear – F-450 DRW	74.0	74.0	74.0	74.0	74.0	74.0	74.0	74.0	74.0	74.0	74.0	74.0	74.0	74.0	74.0	74.0
Track - rear – F-550 DRW	74.0	74.0	74.0	74.0	74.0	74.0	74.0	74.0	74.0	74.0	74.0	74.0	74.0	74.0	74.0	74.0
Rear axle clearance – F-350 SRW	8.6	8.5	-	-	-	-	-	-	8.6	8.6	-	-	8.6	8.6	-	-
Rear axle clearance – F-350 DRW	7.9	7.8	7.9	7.9	-	-	-	-	7.9	7.8	-	-	7.8	7.8	-	-
Rear axle clearance – F-450 DRW	8.2	8.2	8.3	8.3	8.3	8.3	8.3	8.3	8.3	8.3	8.2	8.2	8.2	8.2	8.2	8.2
Rear axle clearance – F-550 DRW	8.2	8.2	8.3	8.3	8.3	8.3	8.3	8.3	8.3	8.3	8.2	8.2	8.2	8.2	8.2	8.2
Overhang – front	38.3	38.3	38.3	38.3	38.3	38.3	38.3	38.3	38.3	38.3	38.3	38.3	38.3	38.3	38.3	38.3
Frame Rail Width – F-350 SRW	34.1	34.1	-	-	-	-	-	-	34.1	34.1	-	-	34.1	34.1	-	-
Frame Rail Width – F-350 DRW	34.1	34.1	34.1	34.1	-	-	-	-	34.1	34.1	-	-	34.1	34.1	-	-
Frame Rail Width – F-450 DRW	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2
Frame Rail Width – F-550 DRW	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2
Rear Axle to End of Frame	47.2	47.2	47.2	47.2	47.2	47.2	47.2	47.2	47.2	47.2	47.2	47.2	47.2	47.2	47.2	47.2
Cab to Axle (CA)	60	60	84	84	108	108	120	120	60	60	84	84	60	60	84	84

Base Curb Weight

Switch to Imperial Units Switch to Metric Units

	Regular Cab	Regular Cab	Regular Cab	Regular Cab	SuperCab	SuperCab	Crew Cab	Crew Cab
	kg	kg	kg	kg	kg	kg	kg	kg
Drive type	4x2	4x2	4x2	4x2	4x2	4x2	4x2	4x2
Cab to Axle (CA)	1524	2134	2743	3048	1524	2134	1524	2134
Drive type	4x2	4x2	4x2	4x2	4x2	4x2	4x2	4x2
Base Curb Weight - F350 SRW 17" Wheels 6.2L (Mid-ship fuel tank)	2461	-	-	-	2595	-	2705	-
Base Curb Weight - F350 SRW 17" Wheels 6.7L (Mid-ship fuel tank)	2797	-	-	-	2955	-	3065	-
Base Curb Weight - F350 SRW 18" Wheels 6.2L (Mid-ship fuel tank)	2485	-	-	-	2619	-	2728	-
Base Curb Weight - F350 SRW 18" Wheels 6.7L (Mid-ship fuel tank)	2821	-	-	-	2979	-	3089	-
Base Curb Weight - F350 DRW 6.2L	2711	-	-	-	2901	-	2762	-
Base Curb Weight - F350 DRW 6.7L	3063	-	-	-	3203	-	3106	-
Base Curb Weight - F450 DRW 6.8L	2979	3028	3097	3140	3106	3204	3199	3238
Base Curb Weight - F450 DRW 6.7L	3324	3393	3477	3523	3469	3564	3571	3613
Base Curb Weight - F550 DRW 6.8L	2979	3028	3097	3140	3106	3204	3199	3238
Base Curb Weight - F550 DRW 6.7L	3324	3393	3477	3523	3469	3564	3571	3613
Base Curb Weight - F550+ DRW 6.8L	3036	3070	3144	3174	3155	3224	3233	3301
Base Curb Weight - F550+ DRW 6.7L	3399	3444	3514	3534	3544	3590	3642	3674
Metric = kg, Imperial = lbs.
Cab to Axle (CA)	1524 mm	2134 mm	2743 mm	3048 mm	1524 mm	2134 mm	1524 mm	2134 mm

	Regular Cab	Regular Cab	Regular Cab	Regular Cab	SuperCab	SuperCab	Crew Cab	Crew Cab
	lbs.	lbs.	lbs.	lbs.	lbs.	lbs.	lbs.	lbs.
Drive type	4x2	4x2	4x2	4x2	4x2	4x2	4x2	4x2
Cab to Axle (CA)	60	84	108	120	60	84	60	84
Drive type	4x2	4x2	4x2	4x2	4x2	4x2	4x2	4x2
Base Curb Weight - F350 SRW 17" Wheels 6.2L (Mid-ship fuel tank)	5426	-	-	-	5722	-	5963	-
Base Curb Weight - F350 SRW 17" Wheels 6.7L (Mid-ship fuel tank)	6167	-	-	-	6515	-	6758	-
Base Curb Weight - F350 SRW 18" Wheels 6.2L (Mid-ship fuel tank)	5478	-	-	-	5774	-	6015	-
Base Curb Weight - F350 SRW 18" Wheels 6.7L (Mid-ship fuel tank)	6219	-	-	-	6567	-	6810	-
Base Curb Weight - F350 DRW 6.2L	5977	-	-	-	6395	-	6090	-
Base Curb Weight - F350 DRW 6.7L	6752	-	-	-	7062	-	6848	-
Base Curb Weight - F450 DRW 6.8L	6568	6676	6828	6922	6847	7063	7052	7138
Base Curb Weight - F450 DRW 6.7L	7328	7480	7665	7766	7647	7857	7872	7965
Base Curb Weight - F550 DRW 6.8L	6568	6676	6828	6922	6847	7063	7052	7138
Base Curb Weight - F550 DRW 6.7L	7328	7480	7665	7766	7647	7857	7872	7965
Base Curb Weight - F550+ DRW 6.8L	6693	6769	6932	6998	6956	7108	7127	7277
Base Curb Weight - F550+ DRW 6.7L	7493	7593	7748	7791	7813	7914	8030	8099
Metric = kg, Imperial = lbs.
Cab to Axle (CA)	60 in.	84 in.	108 in.	120 in.	60 in.	84 in.	60 in.	84 in.

Interior

Switch to Imperial Units Switch to Metric Units

Interior Dimensions
	Regular Cab	SuperCab	Crew Cab
	mm	mm	mm
Front
Head room	1036.3	1036.3	1036.3
Shoulder room	1694.2	1694.2	1694.2
Hip room	1587.5	1587.5	1587.5
Leg room	1115.1	1115.1	1115.1

Rear
Head room	-	1023.6	1026.2
Shoulder room	-	1671.3	1673.9
Hip room	-	1643.4	1643.4
Leg room	-	850.9	1107.4

Volumes	(L)	(L)	(L)
Passenger – total	1829.3	3284.8	3732.2
Cargo – behind first row	328.5	894.8	1475.3

Interior Dimensions
	Regular Cab	SuperCab	Crew Cab
	in.	in.	in.
Front
Head room	40.8	40.8	40.8
Shoulder room	66.7	66.7	66.7
Hip room	62.5	62.5	62.5
Leg room	43.9	43.9	43.9

Rear
Head room	-	40.3	40.4
Shoulder room	-	65.8	65.9
Hip room	-	64.7	64.7
Leg room	-	33.5	43.6

Volumes	(cu. ft.)	(cu. ft.)	(cu. ft.)
Passenger – total	64.6	116	131.8
Cargo – behind first row	11.6	31.6	52.1

Capacities

Switch to Imperial Units Switch to Metric Units

Seating and Fuel Capacities
	Regular Cab	SuperCab	Crew Cab
Maximum seating capacity	3	6	6

Mid Ship Fuel Tank Capacity (F-350 SRW w/ 9,800 or 10,000 GVWR packages)	100.3 Litre	100.3 Litre	100.3 Litre
Aft-of-Axle Fuel Tank Capacity (F-350 SRW w/ Standard GVWR, all DRW models)	151.4 Litre	151.4 Litre	151.4 Litre
Dual diesel tanks (optional on XL and XLT w/ Diesel engine)	251.7 Litre	251.7 Litre	251.7 Litre

Seating and Fuel Capacities
	Regular Cab	SuperCab	Crew Cab
Maximum seating capacity	3	6	6

Mid Ship Fuel Tank Capacity (F-350 SRW w/ 9,800 or 10,000 GVWR packages)	26.5 gallons	26.5 gallons	26.5 gallons
Aft-of-Axle Fuel Tank Capacity (F-350 SRW w/ Standard GVWR, all DRW models)	40 gallons	40 gallons	40 gallons
Dual diesel tanks (optional on XL and XLT w/ Diesel engine)	66.5 gallons	66.5 gallons	66.5 gallons

Engine

Switch to Imperial Units Switch to Metric Units

Engine Specifications
	6.2L 2-Valve V8 Gas(1) FFV	6.8L 3-Valve V10 Gas	6.7L Power Stroke^®V8 Turbo Diesel
Configuration	SOHC	SOHC	OHV (32-valve)
Fuel injection	Sequential Electronic	Sequential Electronic	High-Pressure Common-Rail
Engine control system	Electronic	Electronic	Electronic
Induction system	Specially tuned	Specially tuned	Single-sequential Turbocharger; charged air cooler
Battery	12-volt; 650-CCA/72-amp-hr	12-volt; 750-CCA/78-amp-hr	Dual 12-volt; 750-cca/78-amp-hr
Alternator	200-amp (XL & XLT F-350) 240-amp (Optional on XL, XLT, Standard on LARIAT)	240-amp (XL & XLT - F-450/F-550)	377-amp (Standard on diesel engines only)
Cooling system	Pressurized series flow	Pressurized series flow	Pressurized series flow
Oil life monitor	Oil-minder system	Oil-minder system	Intelligent Oil Life Monitor^®
Cylinders	8	10	8
Cylinder head	Aluminum	Aluminum	Aluminum
Block material	Cast iron	Cast iron	Compacted graphite iron
Valve operation	Roller rocker shaft	Hydraulic roller	Push rod/rocker arms
Camshaft drive	Silent chain	Silent chain	Gear
Bore	4.02"	3.55"	3.90"
Stroke	3.74"	4.17"	4.25"
Compression ratio	9.8:1	9.2:1	16.2:1
Horsepower/rpm	385 @ 5750	288 @ 4000	330 @ 2600
Torque lb.-ft./rpm	430 @ 3800	424 @ 3000	750 @ 2000
(1) Certified to SAE J1349.

Engine Specifications
	6.2L 2-Valve V8 Gas(1) FFV	6.8L 3-Valve V10 Gas	6.7L Power Stroke^®V8 Turbo Diesel
Configuration	SOHC	SOHC	OHV(32-valve)
Fuel injection	Sequential Electronic	Sequential Electronic	High-Pressure Common-Rail
Engine control system	Electronic	Electronic	Electronic
Induction system	Specially tuned	Specially tuned	Single-sequential Turbocharger; charged air cooler
Battery	12-volt; 650-CCA/72-amp-hr	12-volt; 750-CCA/78-amp-hr	Dual 12-volt; 750-cca/78-amp-hr
Alternator	200-amp (XL & XLT F-350) 240-amp (Optional on XL, XLT, Standard on LARIAT)	240-amp (XL & XLT - F-450/F-550)	377-amp (Standard on diesel engines only)
Cooling system	Pressurized series flow	Pressurized series flow	Pressurized series flow
Oil life monitor	Oil-minder system	Oil-minder system	Intelligent Oil Life Monitor^®
Cylinders	8	10	8
Cylinder head	Aluminum	Aluminum	Aluminum
Block material	Cast iron	Cast iron	Compacted graphite iron
Valve operation	Roller rocker shaft	Hydraulic roller	Push rod/rocker arms
Camshaft drive	Silent chain	Silent chain	Gear
Bore	4.02"	3.55"	3.90"
Stroke	3.74"	4.17"	4.25"
Compression ratio	9.8:1	9.2:1	16.2:1
Horsepower/rpm	385 @ 5750	288 @ 4000	330 @ 2600
Torque lb.-ft./rpm	430 @ 3800	424 @ 3000	750 @ 2000
(1) Certified to SAE J1349.

Transmission Specifications

Switch to Imperial Units Switch to Metric Units


Transmission Type	TorqShift® 6-speed SelectShift® Automatic (F-350/F-450)
Case material	Aluminum
Power Takeoff	Live-drive access on driver side
Gear ratios	1st 3.97:1 2nd 2.31:1 3rd 1.51:1 4th 1.14:1 5th 0.85:1 6th 0.67:1 Reserve 3.12:1


Transmission Type	TorqShift® 6-speed SelectShift® Automatic (F-350/F-450)
Case material	Aluminum
Power Takeoff	Live-drive access on driver side
Gear ratios	1st 3.97:1 2nd 2.31:1 3rd 1.51:1 4th 1.14:1 5th 0.85:1 6th 0.67:1 Reserve 3.12:1

Chassis

Switch to Imperial Units Switch to Metric Units

Suspension - Front
Chassis Specifications
FRONT SUSPENSION
Type	Twin-I-Beam (F-350 4x2)
	Solid Twin-Coil Monobeam axle (F-350 4x4, F-450/F-550)
Max. Front GAWR	2381 kg (F-350 SRW 4x2) 2717 kg (F-350 SRW 4x4) 2381 kg (F-350 DRW 4x2 ) 2721 kg (F-350 DRW 4x4) 3402 kg (F-450 4x2 & 4x4) 3402 kg (F-550 4x2 & 4x4)
Springs	Coil
Shock absorbers	Gas type
Stabilizer bar	Standard

REAR SUSPENSION
Type	Solid axle
Max. Rear GAWR	3075 kg (F-350 SRW,4x2) 3279 kg (F-350 SRW,4x4) 4554 kg (F-350 DRW 4x2 ) 4554 kg (F-350 DRW 4x4) 5842 kg (F-450 4x2 & 4x4) 6671 kg (F-550 4x2 & 4x4)
Springs	Leaf
Shock absorbers	Gas type
Stabilizer bar	Standard

STEERING
Assist	Power Hydraulic
BRAKES
Type	4-wheel vented-disc ABS (standard)
Front (rotor diameter)	363 mm (F-350) 391 mm (F-450/F-550)
Rear (rotor diameter)	363 mm (F-350) 391 mm (F-450/F-550)

WHEELS
Type	Steel or aluminum
Size	17" SRW/DRW 18" SRW (F-350) 19.5" (F-450/F-550)
Number of studs	8 (F-350) 10 (F-450/F-550)
Bolt-circle diameter	170 mm SRW 200 mm F-350 DRW 225 mm F-450 DRW

Suspension - Front
Chassis Specifications
FRONT SUSPENSION
Type	Twin-I-Beam (F-350 4x2)
	Solid Twin-Coil Monobeam axle (F-350 4x4, F-450/F-550)
Max. Front GAWR	5250 lbs. (F-350 SRW 4x2) 5990 lbs. (F-350 SRW 4x4) 5250 lbs. (F-350 DRW 4x2) 6000 lbs. (F-350 DRW 4x4) 7500 lbs. (F-450 4x2 & 4x4) 7500 lbs. (F-550 4x2 & 4x4)
Springs	Coil
Shock absorbers	Gas type
Stabilizer bar	Standard

REAR SUSPENSION
Type	Solid axle
Max. Rear GAWR	6780 lbs. (F-350 SRW 4x2) 7230 lbs. (F-350 SRW 4x4) 10040 lbs. (F-350 DRW 4x2) 10040 lbs. (F-350 DRW 4x4) 12880 lbs. (F-450 4x2 & 4x4) 14706 lbs. (F-550 4x2 & 4x4)
Springs	Leaf
Shock absorbers	Gas type
Stabilizer bar	Standard

STEERING
Assist	Power Hydraulic
BRAKES
Type	4-wheel vented-disc ABS (standard)
Front (rotor diameter)	14.29" (F-350) 15.39" (F-450/F-550)
Rear (rotor diameter)	14.29" (F-350) 15.39" (F-450/F-550)

WHEELS
Type	Steel or aluminum
Size	17" SRW/DRW 18" SRW (F-350) 19.5" (F-450/F-550)
Number of studs	8 (F-350) 10 (F-450/F-550)
Bolt-circle diameter	6.7” SRW 7.87” F-350 DRW 8.86” F-450 DRW

Conventional Towing(1) (2) - F-350/ F-450/ F-550 - Regular Chassis Cab

Switch to Imperial Units Switch to Metric Units

Trailer weights shown assume 875-lb.–1,000-lb. second-unit body weight. Be sure combined weight of vehicle and trailer does not exceed listed GCWR.
Maximum Loaded Trailer Weight			Reg. Cab	Reg. Cab	Reg. Cab	Reg. Cab	Reg. Cab	Reg. Cab	Reg. Cab	Reg. Cab
			F-350	F-350	F-350	F-350	F-450	F-450	F-550	F-550
			4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4
Engine with Automatic Transmission	Axle Ratio	GCWR	SRW	SRW	DRW	DRW	DRW	DRW	DRW	DRW
		kg	kg	kg	kg	kg	kg	kg	kg	kg
6.2L 2 Valve Gas SOHC EFI NA V8 (Flex-Fuel) Engine	3.73	8,845	5,987	5,761	-	-	-	-	-	-
		9,072	-	-	6,078	5,851	-	-	-	-
	4.30	10,433	6,123	6,123	-	-	-	-	-	-
		10,659	-	-	7,666	7,666	-	-	-	-
6.8L Triton^® Gas SOHC V10	4.88	12,701	-	-	-	-	7,938	7,938	8,391	8,391
6.7L 4-Valve Power Stroke® Diesel V8 (B20) Engine	3.73	12,020	6,123	6,123	-	-	-	-	-	-
		13,608	-	-	7,938	7,938	-	-	-	-
	4.10	13,608	-	-	7,938	7,938	-	-	-	-
		14,061	-	-	-	-	7,938	7,938	8,391	8,391
	4.30	14,969	-	-	-	-	7,938	7,938	-	-
		15,876	-	-	-	-	-	-	8,391	8,391
	4.88	14,061	-	-	-	-	-	-	8,391	8,391
		18,144 (3)	-	-	-	-	-	-	8,391	8,391
(1) Maximum loaded trailer weight requires weight-distributing hitch. (2) Super Duty Chassis Cab does not offer a conventional hitch receiver as a factory-installed option. (3) Available with High- Capacity Trailer Tow Package only.

Trailer weights shown assume 875-lb.–1,000-lb. second-unit body weight. Be sure combined weight of vehicle and trailer does not exceed listed GCWR.
Maximum Loaded Trailer Weight			Reg. Cab	Reg. Cab	Reg. Cab	Reg. Cab	Reg. Cab	Reg. Cab	Reg. Cab	Reg. Cab
			F-350	F-350	F-350	F-350	F-450	F-450	F-550	F-550
			4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4
Engine with Automatic Transmission	Axle Ratio	GCWR	SRW	SRW	DRW	DRW	DRW	DRW	DRW	DRW
		lbs.	lbs.	lbs.	lbs.	lbs.	lbs.	lbs.	lbs.	lbs.
6.2L 2 Valve Gas SOHC EFI NA V8 (Flex-Fuel) Engine	3.73	19,500	13,200	12,700	-	-	-	-	-	-
		20,000	-	-	13,400	12,900	-	-	-	-
	4.30	23,000	13,500	13,500	-	-	-	-	-	-
		23,500	-	-	16,900	16,400	-	-	-	-
6.8L Triton® Gas SOHC V10	4.88	28,000	-	-	-	-	17,500	17,500	18,500	18,500
6.7L 4-Valve Power Stroke® Diesel V8 (B20) Engine	3.73	26,500	13,500	13,500	-	-	-	-	-	-
		30,000	-	-	17,500	17,500	-	-	-	-
	4.10	30,000	-	-	17,500	17,500	-	-	-	-
		31,000	-	-	-	-	17,500	17,500	18,500	18,500
	4.30	33,000	-	-	-	-	17,500	17,500	-	-
		35,000	-	-	-	-	-	-	18,500	18,500
	4.88	31,00	-	-	-	-	-	-	18,500	18,500
		40,000 (3)	-	-	-	-	-	-	18,500	18,500
(1) Maximum loaded trailer weight requires weight-distributing hitch. (2) Super Duty Chassis Cab does not offer a conventional hitch receiver as a factory-installed option. (3) Available with High-Capacity Trailer Tow Package only.

Conventional Towing(1) (2) - F-350/ F-450/ F-550 - Super Duty Chassis Cab

Switch to Imperial Units Switch to Metric Units

Trailer weights shown assume 875-lb.–1,000-lb. second-unit body weight. Be sure combined weight of vehicle and trailer does not exceed listed GCWR.
Maximum Loaded Trailer Weight			SuperCab	SuperCab	SuperCab	SuperCab	SuperCab	SuperCab	SuperCab	SuperCab
			F-350	F-350	F-350	F-350	F-450	F-450	F-550	F-550
			4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4
Engine with Automatic Transmission	Axle Ratio	GCWR	SRW	SRW	DRW	DRW	DRW	DRW	DRW	DRW
		kg	kg	kg	kg	kg	kg	kg	kg	kg
6.2L 2 Valve Gas SOHC EFI NA V8 (Flex-Fuel) Engine	3.73	8,845	5,851	5,625	-	-	-	-	-	-
		9,072	-	-	5,897	5,715	-	-	-	-
	4.30	10,433	6,123	6,123	-	-	-	-	-	-
		10,659	-	-	7,484	7,303	-	-	-	-
6.8L Triton^® Gas SOHC V10	4.88	12,701	-	-	-	-	7,938	7,938	8,391	8,391
6.7L 4-Valve Power Stroke® Diesel V8 (B20) Engine	3.73	12,020	6,123	6,123	-	-	-	-	-	-
		13,608	-	-	7,938	7,938	-	-	-	-
	4.10	13,608	-	-	7,938	7,938	-	-	-	-
		14,061	-	-	-	-	7,938	7,938	8,391	8,391
	4.30	14,969	-	-	-	-	7,938	7,938	-	-
		15,876	-	-	-	-	-	-	8,391	8,391
	4.88	14,061	-	-	-	-	-	-	8,391	8,391
		18,144 (3)	-	-	-	-	-	-	8,391	8,391
(1) Maximum loaded trailer weight requires weight-distributing hitch. (2) Super Duty Chassis Cab does not offer a conventional hitch receiver as a factory-installed option. (3) Available with High- Capacity Trailer Tow Package only.

Trailer weights shown assume 875-lb.–1,000-lb. second-unit body weight. Be sure combined weight of vehicle and trailer does not exceed listed GCWR.
Maximum Loaded Trailer Weight			SuperCab	SuperCab	SuperCab	SuperCab	SuperCab	SuperCab	SuperCab	SuperCab
			F-350	F-350	F-350	F-350	F-450	F-450	F-550	F-550
			4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4
Engine with Automatic Transmission	Axle Ratio	GCWR	SRW	SRW	DRW	DRW	DRW	DRW	DRW	DRW
		lbs.	lbs.	lbs.	lbs.	lbs.	lbs.	lbs.	lbs.	lbs.
6.2L 2 Valve Gas SOHC EFI NA V8 (Flex-Fuel) Engine	3.73	19,500	12,900	12,400	-	-	-	-	-	-
		20,000	-	-	13,000	12,600	-	-	-	-
	4.30	23,000	13,500	13,500	-	-	-	-	-	-
		23,500	-	-	16,500	16,100	-	-	-	-
6.8L Triton^® Gas SOHC V10	4.88	28,000	-	-	-	-	17,500	17,500	18,500	18,500
6.7L 4-Valve Power Stroke® Diesel V8 (B20) Engine	3.73	26,500	13,500	13,500	-	-	-	-	-	-
		30,000	-	-	17,500	17,500	-	-	-	-
	4.10	30,000	-	-	17,500	17,500	-	-	-	-
		31,000	-	-	-	-	17,500	17,500	18,500	18,500
	4.30	33,000	-	-	-	-	17,500	17,500	-	-
		35,000	-	-	-	-	-	-	18,500	18,500
	4.88	31,000	-	-	-	-	-	-	18,500	18,500
		40,000 (3)	-	-	-	-	-	-	18,500	18,500
(1) Maximum loaded trailer weight requires weight-distributing hitch. (2) Super Duty Chassis Cab does not offer a conventional hitch receiver as a factory-installed option. (3) Available with High- Capacity Trailer Tow Package only.

Conventional Towing(1) (2) - F-350/ F-450/ F-550 - Crew Chassis Cab

Switch to Imperial Units Switch to Metric Units

Trailer weights shown assume 875-lb.–1,000-lb. second-unit body weight. Be sure combined weight of vehicle and trailer does not exceed listed GCWR.
Maximum Loaded Trailer Weight			Crew Cab	Crew Cab	Crew Cab	Crew Cab	Crew Cab	Crew Cab	Crew Cab	Crew Cab
			F-350	F-350	F-350	F-350	F-450	F-450	F-550	F-550
			4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4
Engine with Automatic Transmission	Axle Ratio	GCWR	SRW	SRW	DRW	DRW	DRW	DRW	DRW	DRW
		kg	kg	kg	kg	kg	kg	kg	kg	kg
6.2L 2 Valve Gas SOHC EFI NA V8 (Flex-Fuel) Engine	3.73	8,845	5,715	5,534	-	-	-	-	-	-
		9,072	-	-	5,806	5,625	-	-	-	-
	4.30	10,433	6,123	6,123	-	-	-	-	-	-
		10,659	-	-	7,394	7,212	-	-	-	-
6.8L Triton^® Gas SOHC V10	4.88	12.701	-	-	-	-	7,938	7,938	8,391	8,391
6.7L 4-Valve Power Stroke^® Diesel V8 (B20) Engine	3.73	12,020	6,123	6,123	-	-	-	-	-	-
		13,608	-	-	7,938	7,938	-	-	-	-
	4.10	13,608	-	-	7,938	7,938	-	-	-	-
		14,061	-	-	-	-	7,938	7,938	8,391	8,391
	4.30	14,969	-	-	-	-	7,938	7,938	-	-
		15,876	-	-	-	-	-	-	8,391	8,391
	4.88	14,061	-	-	-	-	-	-	8,391	8,391
		18,144 (3)	-	-	-	-	-	-	8,391	8,391
(1) Maximum loaded trailer weight requires weight-distributing hitch. (2) Super Duty Chassis Cab does not offer a conventional hitch receiver as a factory-installed option. (3) Available with High- Capacity Trailer Tow Package only.

Trailer weights shown assume 875-lb.–1,000-lb. second-unit body weight. Be sure combined weight of vehicle and trailer does not exceed listed GCWR.
Maximum Loaded Trailer Weight			Crew Cab	Crew Cab	Crew Cab	Crew Cab	Crew Cab	Crew Cab	Crew Cab	Crew Cab
			F-350	F-350	F-350	F-350	F-450	F-450	F-550	F-550
			4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4
Engine with Automatic Transmission	Axle Ratio	GCWR	SRW	SRW	DRW	DRW	DRW	DRW	DRW	DRW
		lbs.	lbs.	lbs.	lbs.	lbs.	lbs.	lbs.	lbs.	lbs.
6.2L 2 Valve Gas SOHC EFI NA V8 (Flex-Fuel) Engine	3.73	19,500	12,600	12,200	-	-	-	-	-	-
		20,000	-	-	12,800	12,400	-	-	-	-
	4.30	23,000	13,500	13,500	-	-	-	-	-	-
		23,500	-	-	16,300	15,900	-	-	-	-
6.8L Triton^® Gas SOHC V10	4.88	28,000	-	-	-	-	17,500	17,500	18,500	18,500
6.7L 4-Valve Power Stroke^® Diesel V8 (B20) Engine	3.73	26,500	13,500	13,500	-	-	-	-	-	-
		30,000	-	-	17,500	17,500	-	-	-	-
	4.10	30,000	-	-	17,500	17,500	-	-	-	-
		31,000	-	-	-	-	17,500	17,500	18,500	18,500
	4.30	33,000	-	-	-	-	17,500	17,500	-	-
		35,000	-	-	-	-	-	-	18,500	18,500
	4.88	31,000	-	-	-	-	-	-	18,500	18,500
		40,000 (3)	-	-	-	-	-	-	18,500	18,500
(1) Maximum loaded trailer weight requires weight-distributing hitch. (2) Super Duty Chassis Cab does not offer a conventional hitch receiver as a factory-installed option. (3) Available with High- Capacity Trailer Tow Package only.

5th-Wheel Towing - F-350/ F-450/ F-550 - Regular Chassis Cab

Switch to Imperial Units Switch to Metric Units

Trailer weights shown assume 875-lb.–1,000-lb. second-unit body weight. Be sure combined weight of vehicle and trailer does not exceed listed GCWR.
Maximum Loaded Trailer Weight			Reg. Cab	Reg. Cab	Reg. Cab	Reg. Cab	Reg. Cab	Reg. Cab	Reg. Cab	Reg. Cab
			F-350	F-350	F-350	F-350	F-450	F-450	F-550	F-550
			4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4
Engine with Automatic Transmission	Axle Ratio	GCWR	SRW	SRW	DRW	DRW	DRW	DRW	DRW	DRW
		kg	kg	kg	kg	kg	kg	kg	kg	kg
6.2L 2 Valve Gas SOHC EFI NA V8 (Flex-Fuel) Engine	3.73	8,845	5,942	5,761	-	-	-	-	-	-
		9,072	-	-	6,003	5,806	-	-	-	-
	4.30	10,433	7,530	7,348	-	-	-	-	-	-
		10,659	-	-	7,620	7,394	-	-	-	-
6.8L Triton^® Gas SOHC V10	4.88	12,701	-	-	-	-	9,389	9,253	9,389	9,253
6.7L 4-Valve Power Stroke^® Diesel V8 (B20) Engine	3.73	12,020	8,709	8,482	-	-	-	-	-	-
		13,608	-	-	10,206	10,024	-	-	-	-
	4.10	13,608	-	-	10,206	10,204	-	-	-	-
		14,061	-	-	-	-	10,433	10,251	10,433	10,251
	4.30	14,969	-	-	-	-	11,340	11,158	-	-
		15,876	-	-	-	-	-	-	12,247	12,066
	4.88	14,061	-	-	-	-	-	-	10,342	10,206
		18,144 (3)	-	-	-	-	-	-	14,424	14,288
(1) Available with High-Capacity Trailer Tow Package only.

Trailer weights shown assume 875-lb.–1,000-lb. second-unit body weight. Be sure combined weight of vehicle and trailer does not exceed listed GCWR.
Maximum Loaded Trailer Weight			Reg. Cab	Reg. Cab	Reg. Cab	Reg. Cab	Reg. Cab	Reg. Cab	Reg. Cab	Reg. Cab
			F-350	F-350	F-350	F-350	F-450	F-450	F-550	F-550
			4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4
Engine with Automatic Transmission	Axle Ratio	GCWR	SRW	SRW	DRW	DRW	DRW	DRW	DRW	DRW
			lbs.	lbs.	lbs.	lbs.	lbs.	lbs.	lbs.	lbs.
6.2L 2 Valve Gas SOHC EFI NA V8 (Flex-Fuel) Engine	3.73	19,500	13,100	12,700	-	-	-	-	-	-
		20,000	-	-	13,300	12,800	-	-	-	-
	4.30	23,000	16,600	16,200	-	-	-	-	-	-
		23,500	-	-	16,800	16,300	-	-	-	-
6.8L Triton^® Gas SOHC V10	4.88	28,000	-	-	-	-	20,700	20,400	20,700	20,400
6.7L 4-Valve Power Stroke^® Diesel V8 (B20) Engine	3.73	26,500	19,200	18,700	-	-	-	-	-	-
		30,000	-	-	22,500	22,100	-	-	-	-
	4.10	30,000	-	-	22,500	22,100	-	-	-	-
		31,000	-	-	-	-	23,000	22,600	23,000	22,600
	4.30	33,000	-	-	-	-	25,000	24,600	-	-
		35,000	-	-	-	-	-	-	27,000	26,600
	4.88	31,000	-	-	-	-	-	-	22,800	22,500
		40,000 (3)	-	-	-	-	-	-	31,800	31,500
(1) Available with High-Capacity Trailer Tow Package only.

5th-Wheel Towing - F-350/ F-450/ F-550 - Super Chassis Cab

Switch to Imperial Units Switch to Metric Units

Trailer weights shown assume 875-lb.–1,000-lb. second-unit body weight. Be sure combined weight of vehicle and trailer does not exceed listed GCWR.
Maximum Loaded Trailer Weight			SuperCab	SuperCab	SuperCab	SuperCab	SuperCab	SuperCab	SuperCab	SuperCab
			F-350	F-350	F-350	F-350	F-450	F-450	F-550	F-550
			4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4
Engine with Automatic Transmission	Axle Ratio	GCWR	SRW	SRW	DRW	DRW	DRW	DRW	DRW	DRW
		kg	kg	kg	kg	kg	kg	kg	kg	kg
6.2L 2 Valve Gas SOHC EFI NA V8 (Flex-Fuel) Engine	3.73	8,845	5,806	5,625	-	-	-	-	-	-
		9,072	-	-	5,897	5,670	-	-	-	-
	4.30	10,433	7,394	7,212	-	-	-	-	-	-
		10,659	-	-	7,484	7,257	-	-	-	-
6.8L Triton^® Gas SOHC V10	4.88	12,701	-	-	-	-	9,253	9,117	9,253	9,117
6.7L 4-Valve Power Stroke^® Diesel V8 (B20) Engine	3.73	12,020	8,528	8,346	-	-	-	-	-	-
		13,608	-	-	10,700	9,888	-	-	-	-
	4.10	13,608	-	-	10,700	9,888	-	-	-	-
		14,061	-	-	-	-	10,251	10,070	10,251	9,979
	4.30	14,969	-	-	-	-	11,158	10,980	-	-
		15,876	-	-	-	-	-	-	10,251	11,884
	4.88	14,061	-	-	-	-	-	-	10,206	10,700
		18,144 (3)	-	-	-	-	-	-	14,288	14,152
(1) Available with High-Capacity Trailer Tow Package only.

Trailer weights shown assume 875-lb.–1,000-lb. second-unit body weight. Be sure combined weight of vehicle and trailer does not exceed listed GCWR.
Maximum Loaded Trailer Weight			SuperCab	SuperCab	SuperCab	SuperCab	SuperCab	SuperCab	SuperCab	SuperCab
			F-350	F-350	F-350	F-350	F-450	F-450	F-550	F-550
			4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4
Engine with Automatic Transmission	Axle Ratio	GCWR	SRW	SRW	DRW	DRW	DRW	DRW	DRW	DRW
		lbs.	lbs.	lbs.	lbs.	lbs.	lbs.	lbs.	lbs.	lbs.
6.2L 2 Valve Gas SOHC EFI NA V8 (Flex-Fuel) Engine	3.73	19,500	12,800	12,400	-	-	-	-	-	-
		20,000	-	-	13,000	12,500	-	-	-	-
	4.30	23,000	16,300	15,900	-	-	-	-	-	-
		23,500	-	-	16,500	16,000	-	-	-	-
6.8L Triton^® Gas SOHC V10	4.88	28,000	-	-	-	-	20,400	20,100	20,400	20,100
6.7L 4-Valve Power Stroke^® Diesel V8 (B20) Engine	3.73	26,500	18,800	18,400	-	-	-	-	-	-
		30,000	-	-	22,200	21,800	-	-	-	-
	4.10	30,000	-	-	22,200	21,800	-	-	-	-
		31,000	-	-	-	-	22,600	22,200	22,600	22,200
	4.30	33,000	-	-	-	-	24,600	24,200	-	-
		35,000	-	-	-	-	-	-	26,600	26,200
	4.88	31,000	-	-	-	-	-	-	22,500	22,200
		40,000 (3)	-	-	-	-	-	-	31,500	31,200
(1) Available with High-Capacity Trailer Tow Package only.

5th-Wheel Towing - F-350/ F-450/ F-550 - Crew Chassis Cab

Switch to Imperial Units Switch to Metric Units

Trailer weights shown assume 875-lb.–1,000-lb. second-unit body weight. Be sure combined weight of vehicle and trailer does not exceed listed GCWR.
Maximum Loaded Trailer Weight			Crew Cab	Crew Cab	Crew Cab	Crew Cab	Crew Cab	Crew Cab	Crew Cab	Crew Cab
			F-350	F-350	F-350	F-350	F-450	F-450	F-550	F-550
			4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4
Engine with Automatic Transmission	Axle Ratio	GCWR	SRW	SRW	DRW	DRW	DRW	DRW	DRW	DRW
		kg	kg	kg	kg	kg	kg	kg	kg	kg
6.2L 2 Valve Gas SOHC EFI NA V8 (Flex-Fuel) Engine	3.73	8,845	5,715	5,534	-	-	-	-	-	-
		9,072	-	-	5,806	5,579	-	-	-	-
	4.30	10,433	7,303	7,121	-	-	-	-	-	-
		10,659	-	-	7,394	7,167	-	-	-	-
6.8L Triton^® Gas SOHC V10	4.88	12,701	-	-	-	-	9,163	9,026	9,163	9,026
6.7L 4-Valve Power Stroke^® Diesel V8 (B20) Engine	3.73	12,020	8,437	8,255	-	-	-	-	-	-
		13,608	-	-	9,979	9,798	-	-	-	-
	4.10	13,608	-	-	9,979	9,798	-	-	-	-
		14,061	-	-	-	-	10,160	9,979	10,160	9,979
	4.30	14,969	-	-	-	-	11,068	10,886	-	-
		15,876	-	-	-	-	-	-	11,974	11,973
	4.88	14,061	-	-	-	-	-	-	10,070	9,934
		18,144 (3)	-	-	-	-	-	-	14,152	14,016
(1) Available with High-Capacity Trailer Tow Package only.
Note: Trailer tongue (trailer king pin for 5th-wheel towing) load weight should be 10% (15% for 5th-wheel towing) of total loaded trailer weight. Make sure vehicle payload (reduce by option weight) will accommodate trailer tongue (trailer king pin for 5th-wheel towing) load weight and weight of passengers and cargo added to towing vehicle. Addition of trailer tongue (trailer king pin for 5th-wheel towing) load weight and weight of passengers and cargo must not cause vehicle weights to exceed rear GAWR or GVWR. These ratings can be found on the vehicle Safety Compliance Certification Label.

Trailer weights shown assume 875-lb.–1,000-lb. second-unit body weight. Be sure combined weight of vehicle and trailer does not exceed listed GCWR.
Maximum Loaded Trailer Weight			Crew Cab	Crew Cab	Crew Cab	Crew Cab	Crew Cab	Crew Cab	Crew Cab	Crew Cab
			F-350	F-350	F-350	F-350	F-450	F-450	F-550	F-550
			4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4
Engine with Automatic Transmission	Axle Ratio	GCWR	SRW	SRW	DRW	DRW	DRW	DRW	DRW	DRW
		lbs.	lbs.	lbs.	lbs.	lbs.	lbs.	lbs.	lbs.	lbs.
6.2L 2 Valve Gas SOHC EFI NA V8 (Flex-Fuel) Engine	3.73	19,500	12,600	12,200	-	-	-	-	-	-
		20,000	-	-	12,800	12,300	-	-	-	-
	4.30	23,000	16,100	15,700	-	-	-	-	-	-
		23,500	-	-	16,300	15,800	-	-	-	-
6.8L Triton^® Gas SOHC V10	4.88	28,000	-	-	-	-	20,200	19,900	20,200	19,900
6.7L 4-Valve Power Stroke^® Diesel V8 (B20) Engine	3.73	26,500	18,600	18,200	-	-	-	-	-	-
		30,000	-	-	22,000	21,600	-	-	-	-
	4.10	30,000	-	-	22,000	21,600	-	-	-	-
		31,000	-	-	-	-	22,400	22,000	22,400	22,000
	4.30	33,000	-	-	-	-	24,400	24,000	-	-
		35,000	-	-	-	-	-	-	26,400	26,000
	4.88	31,000	-	-	-	-	-	-	22,200	21,900
		40,000 (3)	-	-	-	-	-	-	31,200	30,900
(1) Available with High-Capacity Trailer Tow Package only.
Note: Trailer tongue (trailer king pin for 5th-wheel towing) load weight should be 10% (15% for 5th-wheel towing) of total loaded trailer weight. Make sure vehicle payload (reduce by option weight) will accommodate trailer tongue (trailer king pin for 5th-wheel towing) load weight and weight of passengers and cargo added to towing vehicle. Addition of trailer tongue (trailer king pin for 5th-wheel towing) load weight and weight of passengers and cargo must not cause vehicle weights to exceed rear GAWR or GVWR. These ratings can be found on the vehicle Safety Compliance Certification Label.

Payload Package Selector

Switch to Imperial Units Switch to Metric Units

Maximum Payload Package Selector
		Regular Cab	Regular Cab	Regular Cab	Regular Cab	SuperCab	SuperCab	Crew Cab	Crew Cab
		3576 mm WB	14186 mm WB	4796 mm WB	5100 mm WB	4110 mm WB	4719 mm WB	4475 mm	5085 mm WB
	GVWR	1524 mm CA	2134 mm CA	2743 mm CA	3048 mm CA	1524 mm CA	2134 mm CA	WB 1524 mm CA	2134 mm CA
	kg	kg	kg	kg	kg	kg	kg	kg	kg
F-350 SRW 4x2	4445	1982	-	-	-	1846	-	1737	-
	4536	2050	-	-	-	1914	-	1805	-
	4763	2209	-	-	-	-	-	-	-
	4944	-	-	-	-	2245	-	-	-
	4990	-	-	-	-	-	-	-	-
	5035	2145	-	-	-	-	-	2191	-
	5261	-	-	-	-	2168	-	-	-
F-350 SRW 4x4	4445	1796	-	-	-	1651	-	1551	-
	4536	1864	-	-	-	1719	-	1615	-
	4944	2204	-	-	-	-	-	-	-
	5126	-	-	-	-	2241	-	-	-
	5171	-	-	-	-	-	-	2186	-
	5216	2127	-	-	-	1973	-	1869	-
F-350 DRW 4x2	6350	3638	3179	-	-	3493	-	3393	-
F-350 DRW 4x4	6350	3429	3121	-	-	3245	-	3193	-
F-450 DRW 4x2	6804	8324	3774	3706	3660	3697	3597	3602	3565
	7257	4277	4227	4159	4114	4150	4051	4055	4019
	7484	4504	4454	4386	4341	4377	4277	4282	4246
F-450 DRW 4x4	6804	3679	3620	3543	3515	3538	3461	3438	3406
	7257	4132	4073	3996	3969	3992	3915	3892	3860
	7484	4359	4300	4223	4196	4218	4141	4119	4087
F-550 DRW 4x2	7938	4958	4908	4840	4794	4831	4731	4736	4699
	8165	5185	5235	5067	5021	5058	4958	4962	4926
	8618	5579	-	-	-	-	-	-	-
	8845	5443	5774	5697	5670	5688	5620	5611	5543
F-550 DRW 4x4	7938	4813	4754	4677	4649	4672	4595	4572	4540
	8165	5039	4980	4903	4876	4899	4849	4799	4767
	8618	5425	-	-	-	-	-	-	-
	8845	5293	5611	5552	5498	5516	5475	5411	5398
Max	8845	5579	5774	5697	5670	5688	5620	5611	5534

Maximum Payload Package Selector
		Regular Cab	Regular Cab	Regular Cab	Regular Cab	SuperCab	SuperCab	Crew Cab	Crew Cab
		145.0" WB	169.0" WB	193.0" WB	205" WB	167.5" WB	191.5" WB	179.4" WB	203.4" WB
	GVWR	60" CA	84" CA	108" CA	120" CA	60" CA	84" CA	60" CA	84" CA
	lbs.	lbs.	lbs.	lbs.	lbs.	lbs.	lbs.	lbs.	lbs.
F-350 SRW 4x2	9800	4370	-	-	-	4070	-	3830	-
	10000	4520	-	-	-	4220	-	3980	-
	10500	4870	-	-	-	-	-	-	-
	10900	-	-	-	-	4970	-	-	-
	11000	-	-	-	-	-	-	-	-
	11100	4730	-	-	-	-	-	4830	-
	11500	-	-	-	-	4780	-	-	-
F-350 SRW 4x4	9800	3960	-	-	-	3640	-	3420	-
	10000	4110	-	-	-	3790	-	3560	-
	10900	4860	-	-	-	-	-	-	-
	11300	-	-	-	-	4940	-	-	-
	11400	-	-	-	-	-	-	4820	-
	11500	4690	-	-	-	4350	-	4120	-
F-350 DRW 4x2	14000	8020	7910	-	-	7700	-	7480	-
F-350 DRW 4x4	14000	7560	6880	-	-	7220	-	7040	-
F-450 DRW 4x2	15000	8430	8320	8170	8070	8150	7930	7940	7860
	16000	9430	9320	9170	9070	9150	8930	8940	8860
	16500	9930	9820	9670	9570	9650	9430	9440	9360
F-450 DRW 4x4	15000	8110	7980	7810	7750	7800	7630	7580	7510
	16000	9110	8980	8810	8750	8800	8630	8580	8510
	16500	9610	9480	9310	9250	9300	9130	9080	9010
F-550 DRW 4x2	17500	10930	10820	10670	10570	10650	10430	10440	10360
	18000	11430	11320	11170	11070	11150	10930	10940	10860
	19000	12300	-	-	-	-	-	-	-
	19500	12000	12730	12560	12500	12540	12390	12370	12220
F-550 DRW 4x4	17500	10610	10480	10310	10250	10300	10130	10080	10010
	18000	11110	10980	10810	10750	10800	10690	10580	10510
	19000	11960	-	-	-	-	-	-	-
	19500	11670	12370	12240	12120	12160	12070	11930	11900
Max	19500	12300	12730	12560	12500	12540	12390	12370	12200

Highlights

Switch to Imperial Units Switch to Metric Units

Vehicle Highlights
	Available Engines	Horsepower	Torque	Transmission	Available Drive Types
F-350	6.2L 2 Valve Gas SOHC EFI NA V8 (Flex-Fuel) Engine	385 @ 5750 rpm	430 @ 3800 rpm	TorqShift^® 6-speed SelectShift^® Automatic	4x2/4x4
F-450/F-550	6.8L Triton^® Gas SOHC V10	288 @ 4000 rpm	424 @ 3000 rpm	TorqShift^® 6-speed SelectShift^® Automatic	4x2/4x4
F-350/F-450/F-550	6.7L 4-Valve Power Stroke^® Diesel V8 (B20) Engine	330 @ 2600 rpm	750 @ 2000 rpm	TorqShift^® 6-speed SelectShift^® Automatic	4x2/4x4

Vehicle Highlights
	Available Engines	Horsepower	Torque	Transmission	Available Drive Types
F-350	6.2L 2 Valve Gas SOHC EFI NA V8 (Flex-Fuel) Engine	385 @ 5750 rpm	430 @ 3800 rpm	TorqShift^® 6-speed SelectShift^® Automatic	4x2/4x4
F-450/F-550	6.8L Triton^® Gas SOHC V10	288 @ 4000 rpm	424 @ 3000 rpm	TorqShift^® 6-speed SelectShift^® Automatic	4x2/4x4
F-350/F-450/F-550	6.7L 4-Valve Power Stroke® Diesel V8 (B20) Engine	330 @ 2600 rpm	750 @ 2000 rpm	TorqShift® 6-speed SelectShift® Automatic	4x2/4x4

Fuel Capacity

Switch to Imperial Units Switch to Metric Units


F-350 SRW w/68D Payload Downgrade Pkg.	100 Litre
F-350 SRW/F-350 DRW/F-450/F-550; N/A w/ 68D Payload Downgrade Pkg. on F-350 SRW	151 Litre
DRW - dual diesel tanks	252 Litre


F-350 SRW w/68D Payload Downgrade Pkg.	28 gallon
F-350 SRW/F-350 DRW/F-450/F-550; N/A w/ 68D Payload Downgrade Pkg. on F-350 SRW	40 gallon
DRW - dual diesel tanks	68 gallon

Towing & Payload

Switch to Imperial Units Switch to Metric Units

	kg
Maximum Payload - F-550 DRW 4x2	5774
Maximum GVWR - F-550 DRW 4x2/4x4	8845
Maximum GCWR - F-550 DRW 4x2/4x4	18144

	lbs.
Maximum Payload - F-550 DRW 4x2	12730
Maximum GVWR - F-550 DRW 4x2/4x4	19500
Maximum GCWR - F-550 DRW 4x2/4x4	40000

Available Wheelbases

Switch to Imperial Units Switch to Metric Units


Cab Size	Regular Cab	Regular Cab	Regular Cab	Regular Cab	SuperCab	SuperCab	Crew Cab	Crew Cab
Wheelbase	145"	169"	193"	205"	168"	192"	180"	204"
Cab to Axle (CA)	60" CA	84" CA	108" CA	120" CA	60" CA	84" CA	60" CA	84" CA


Cab Size	Regular Cab	Regular Cab	Regular Cab	Regular Cab	SuperCab	SuperCab	Crew Cab	Crew Cab
Wheelbase	145"	169"	193"	205"	168"	192"	180"	204"
Cab to Axle (CA)	60" CA	84" CA	108" CA	120" CA	60" CA	84" CA	60" CA	84" CA

Warranty

Switch to Imperial Units Switch to Metric Units

	Time	Distance
Basic Coverage	3 years	60,000 km
Powertrain - Gas Engine	5 years	100,000 km
Powertrain - Diesel Engine	5 years	160,000 km
Corrosion (Perforation only)	5 years	Unlimited
Roadside Assistance Program	5 years	100,000 km
Safety Restraint	5 years	100,000 km

	Time	Distance
Basic Coverage	3 years	36,000 miles
Powertrain - Gas Engine	5 years	60,000 miles
Powertrain - Diesel Engine	5 years	100,000 miles
Corrosion (Perforation only)	5 years	Unlimited
Roadside Assistance Program	5 years	60,000 miles
Safety Restraint	5 years	60,000 miles

View Towing Guides

Click Here

Build & Price
