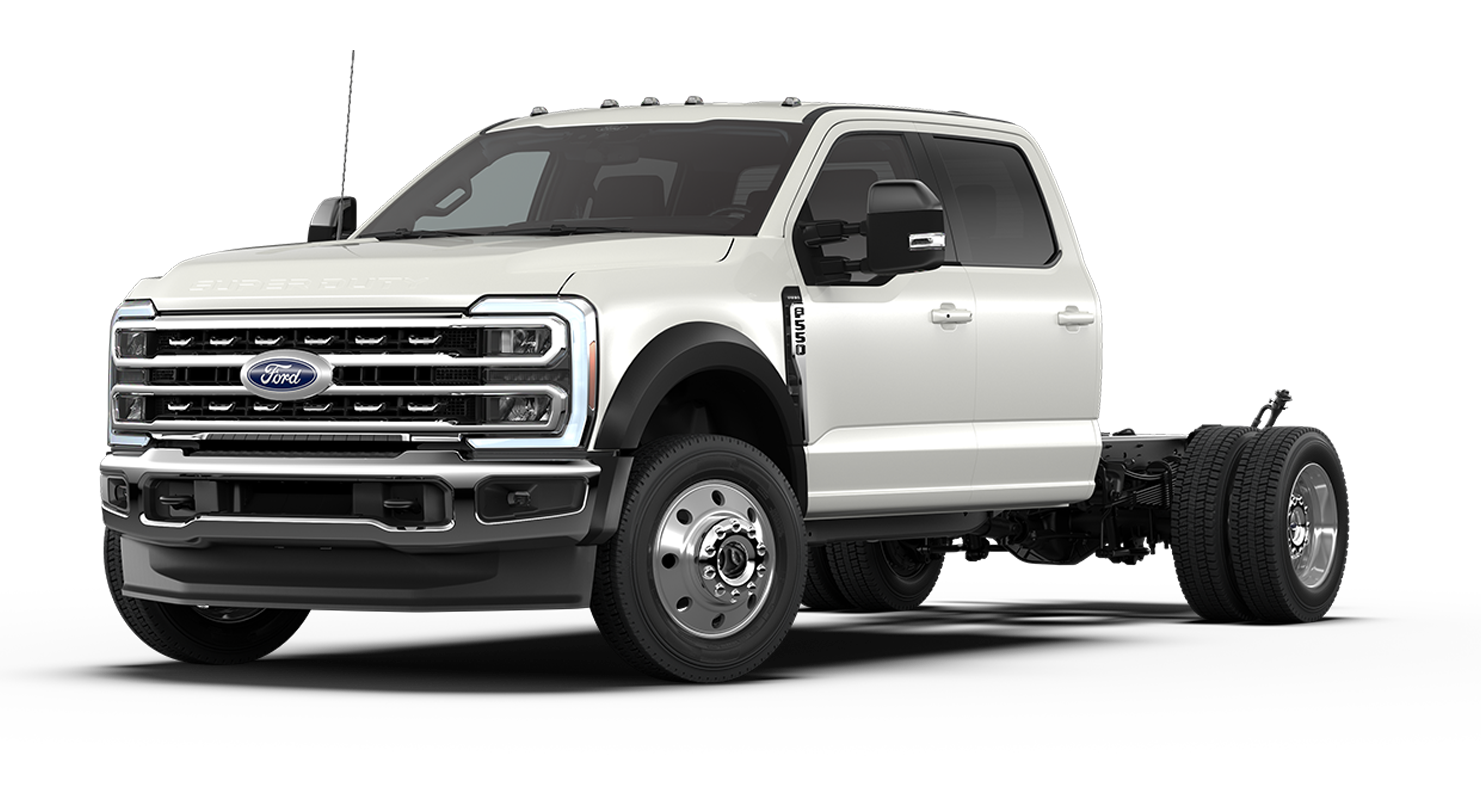

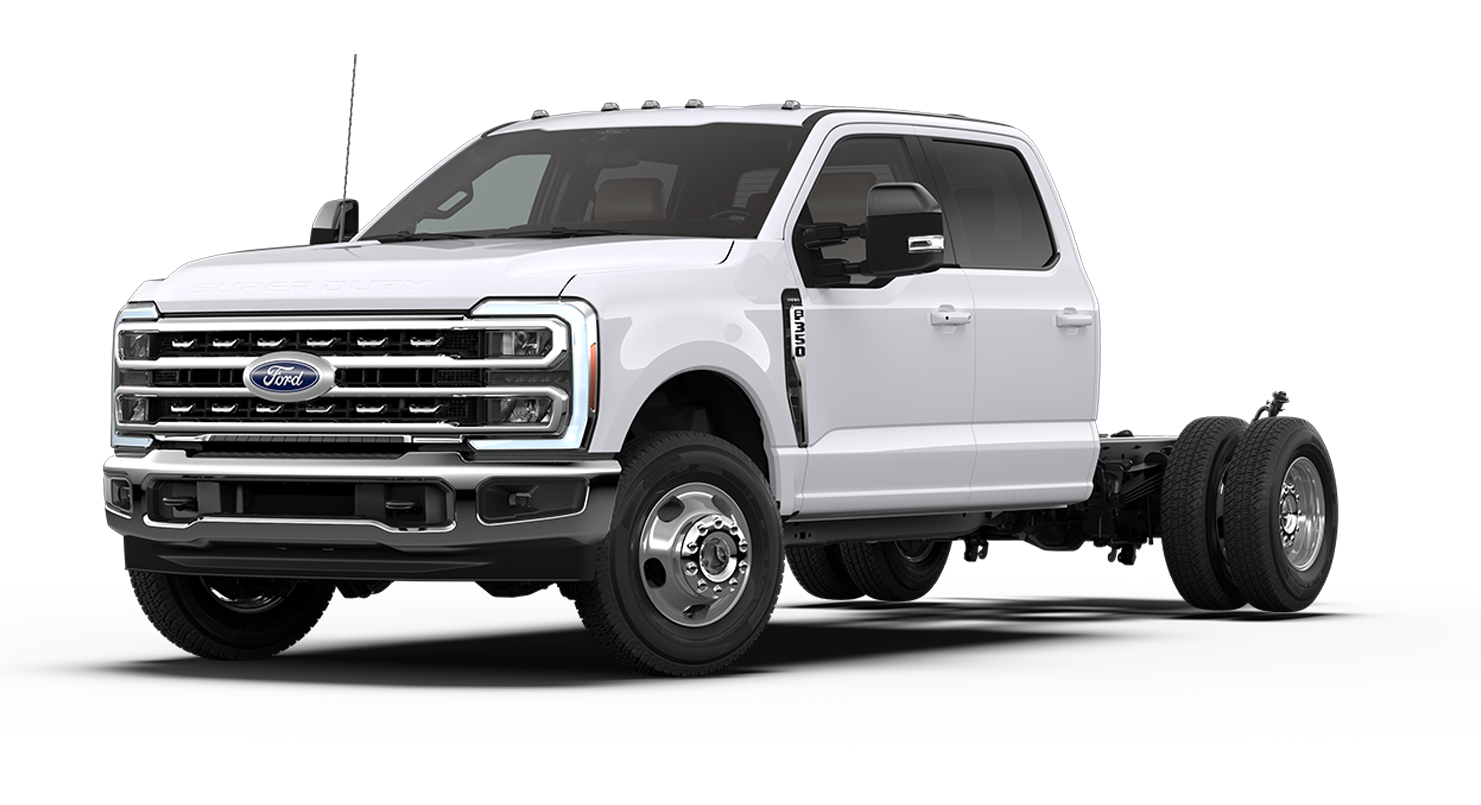

2021 CHASSIS CAB F-550 LARIAT

View Towing Guides

Key Features

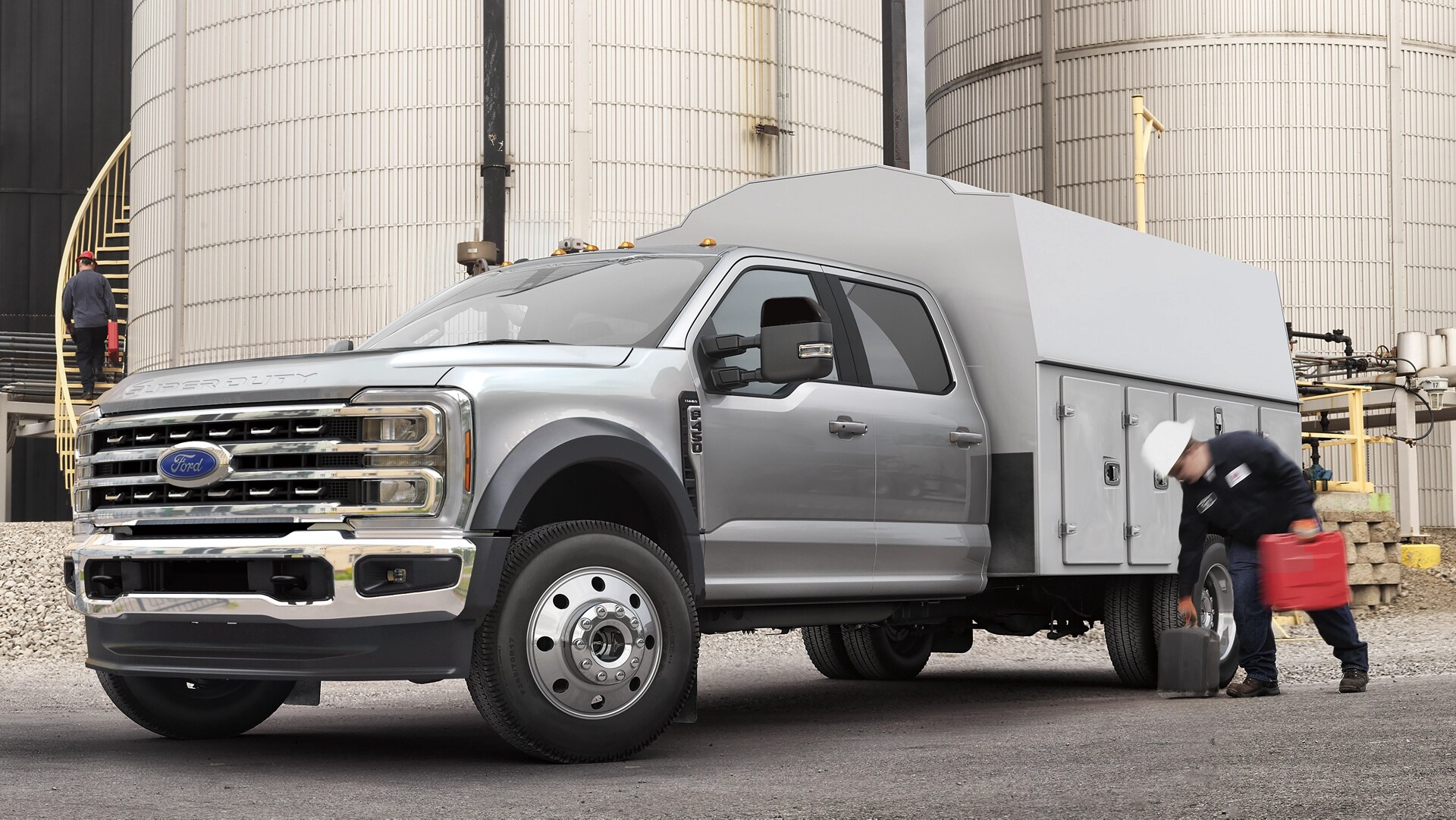

PowerScope trailer tow mirrors on the 2021 Ford Super Duty Chassis Cab

PowerScope^® Telescoping Trailer Tow Mirrors

Available PowerScope^® trailer tow mirrors are fuller with more features than ever: power-folding, heated glass, auto-dimming driver sideview mirror and LED Security Lighting System. Standard on LARIAT.

Power adjustable brake and accelerator pedals with memory feature in the 2021 Ford Super Duty Chassis Cab

Power-Adjustable Pedals with Memory

At the touch of a button, the brake and accelerator pedals can be adjusted to suit the driver’s leg reach. The memory feature remembers three storable settings.

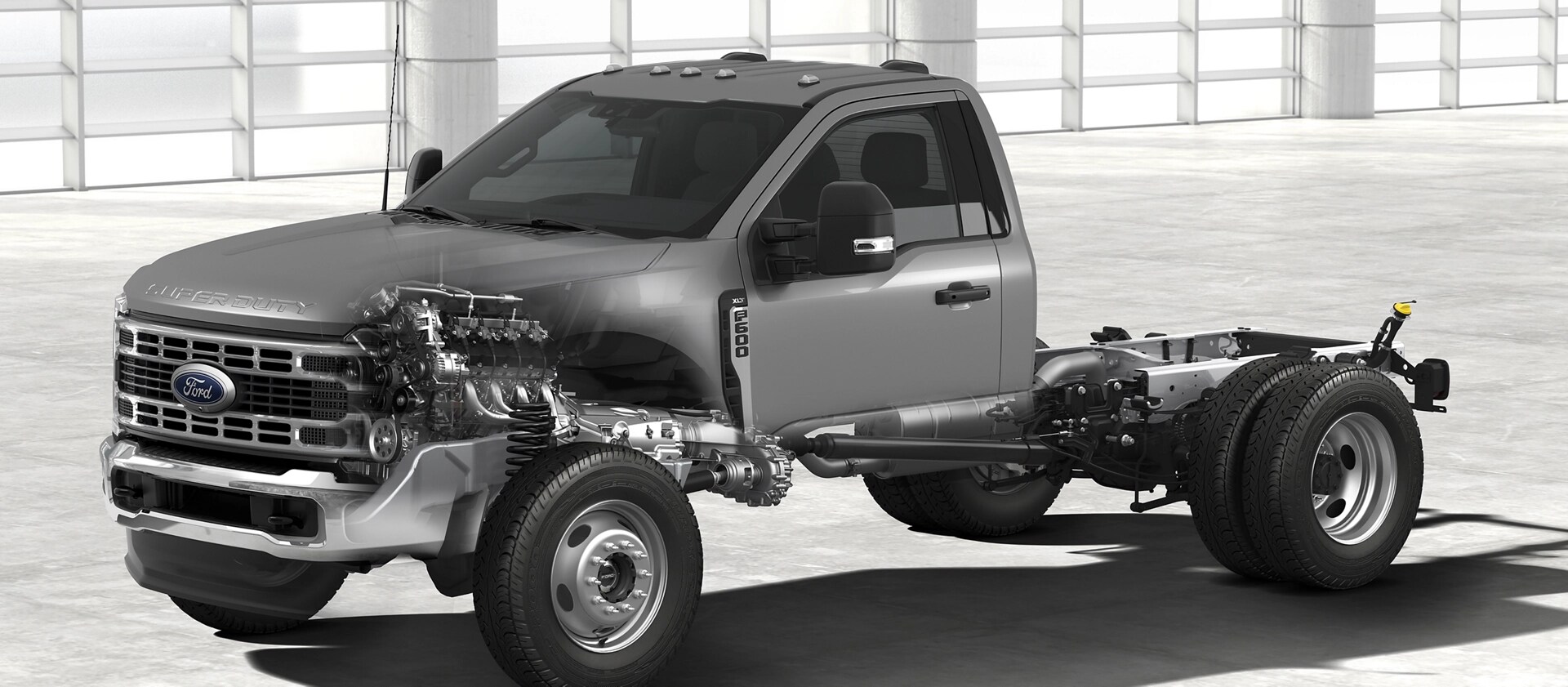

V 8 Turbo Diesel engine on the 2021 Ford Super Duty Chassis Cab

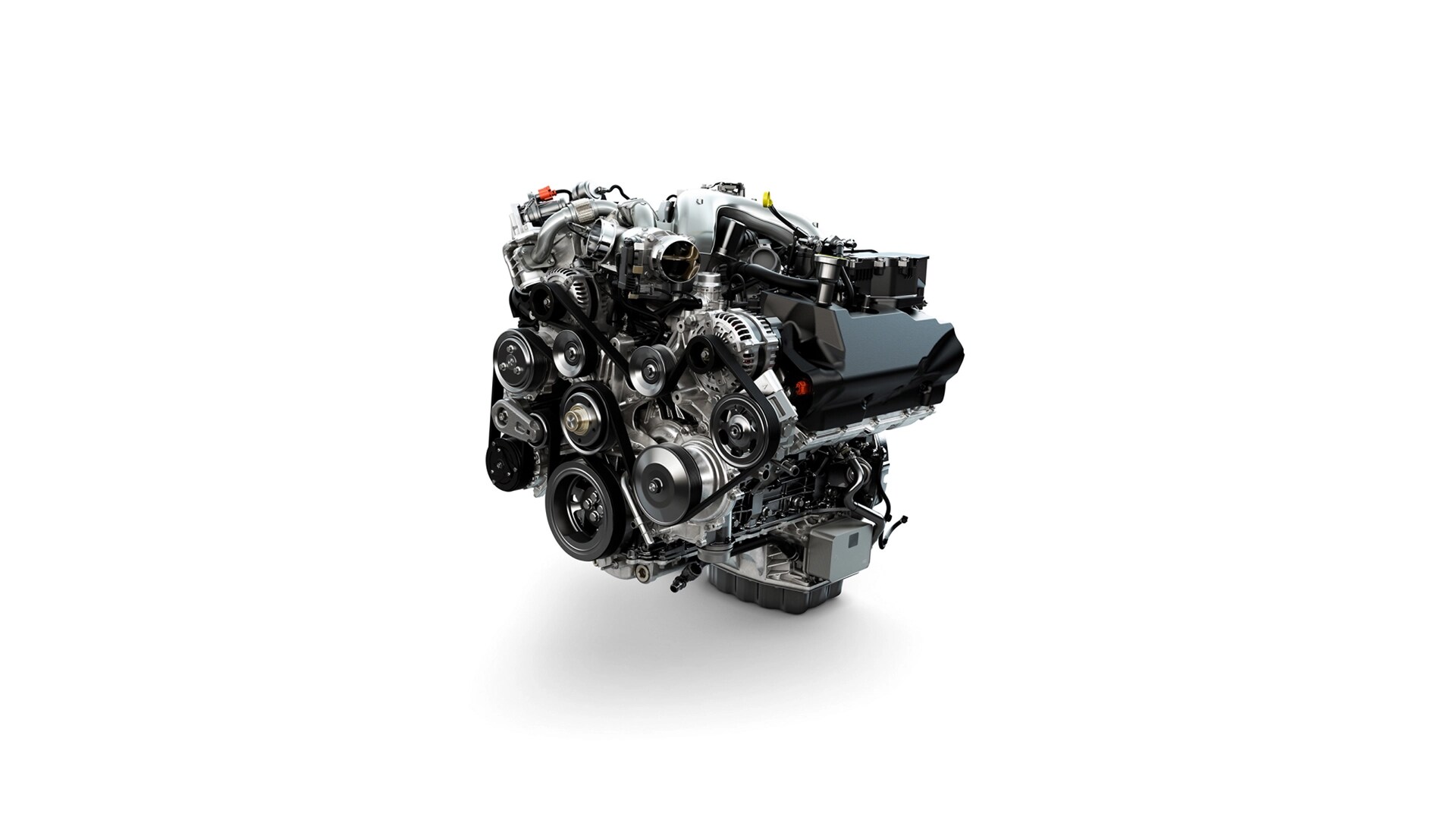

Engine - 6.7L Power Stroke^® V8 Turbo Diesel engine

The available 6.7L Power Stroke^® V8 Turbo Diesel with unique inverse-flow configuration (inboard-mounted exhaust manifolds and turbocharger) is redesigned for 2021 to surpass the previous power ratings the competition couldn’t match. This third generation Power Stroke^® has a new 36,000-psi fuel-injection system featuring injectors that can measure and spray fuel up to eight times per stroke to optimize combustion. To handle the increased pressure and power, the Power Stroke^® features a stronger block, cylinder heads, connector rods and bearings, plus new steel pistons. The results?

Power and Handling

Power

Standard

Engine - 6.7L Power Stroke® V8 Turbo Diesel engine Open image overlay for Engine - 6.7L Power Stroke® V8 Turbo Diesel engine

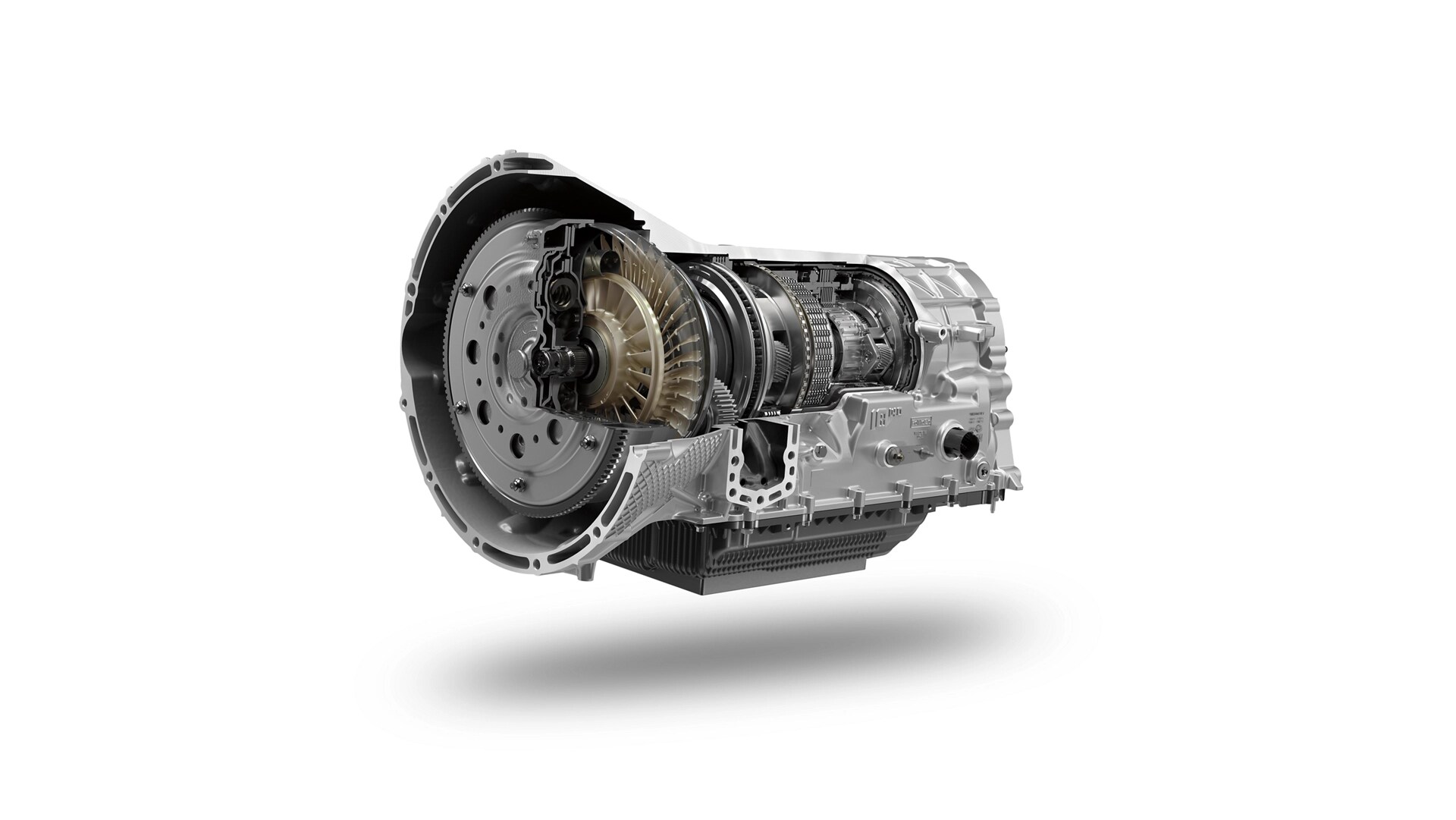

TorqShift^® 10-speed Automatic Transmission with Selectable Drive Modes Open image overlay for TorqShift^® 10-speed Automatic Transmission with Selectable Drive Modes
Upgraded Diesel Engine-Exhaust Braking (Diesel Engine) Open image overlay for Upgraded Diesel Engine-Exhaust Braking (Diesel Engine)
DEF Tank Level Gauge (Diesel Engine)
Alternators - Dual, 397-amp total (standard with diesel)
Engine block heater
Fuel Tank - 151 Litre aft-axle (F-350 SRW with base GVWR, F-350 DRW/F-450/F-550/F-600)

Optional

Operator Commanded Regeneration (OCR) with Active Regeneration Inhibit (Diesel Engine) Open image overlay for Operator Commanded Regeneration (OCR) with Active Regeneration Inhibit (Diesel Engine)

Handling

Standard

Axle - Mono-beam front axle with coil spring suspension - (F-350 4X4, F-450, F-550 and F-600)
Brakes - 4-wheel power disc brakes with Anti-lock Brake System (ABS); Hydro-boost (DRW)
Hill Start Assist
AdvanceTrac^® with Roll Stability Control^™ (RSC^® ) Open image overlay for AdvanceTrac^® with Roll Stability Control^™ (RSC^® )
Trailer Sway Control
Stationary Elevated Idle Control (SEIC)
Shock absorbers - heavy duty gas
Stabilizer bar - front and rear
Steering - power
Steering damper
Integrated Trailer Brake Controller Open image overlay for Integrated Trailer Brake Controller
Transfer Case - Electronic Shift-On-the-Fly (ESOF) 4-Wheel-Drive System (4x4 models only)
Live Drive Power Takeoff Provision with Mobile and Stationary PTO Modes Open image overlay for Live Drive Power Takeoff Provision with Mobile and Stationary PTO Modes

Tires

Standard

225/70Rx19.5G BSW A/S (6)

Optional

225/70Rx19.5G BSW Traction (4 traction tires on rear, 2 A/S tires on front. Optional spare is BSW A/S. N/A w/ XLT Regular Cab 4x2.)
225/70Rx19.5G BSW Max Traction (4 traction tires on rear, 2 traction tires on front. Optional spare is traction.) (4x4)
Spare Tire & Wheels (Excludes carrier; Includes Hydraulic Jack)
Hydraulic Jack (2-ton – F-350 SRW / 4-ton – F-350 DRW / 6-ton F-450, F-550 & F-600)

Interior Features

Climate

Standard

Air Conditioning - Dual-Zone Electronic Automatic Temperature Control Open image overlay for Air Conditioning - Dual-Zone Electronic Automatic Temperature Control
Rapid-Heat Supplemental Cab Heater (Diesel Only) Open image overlay for Rapid-Heat Supplemental Cab Heater (Diesel Only)

Comfort and Convenience

Standard

Power-Adjustable Pedals with Memory Open image overlay for Power-Adjustable Pedals with Memory
Dash-Top Tray
Dome Lamp - door-activated instrument panel switch operated with delay
Floor Covering - colour coordinated carpet
Floor Mats - colour coordinated carpet (includes rear mats on SuperCab and Crew Cab)
Grab Handles - driver and front passenger
Headliner - colour coordinated cloth

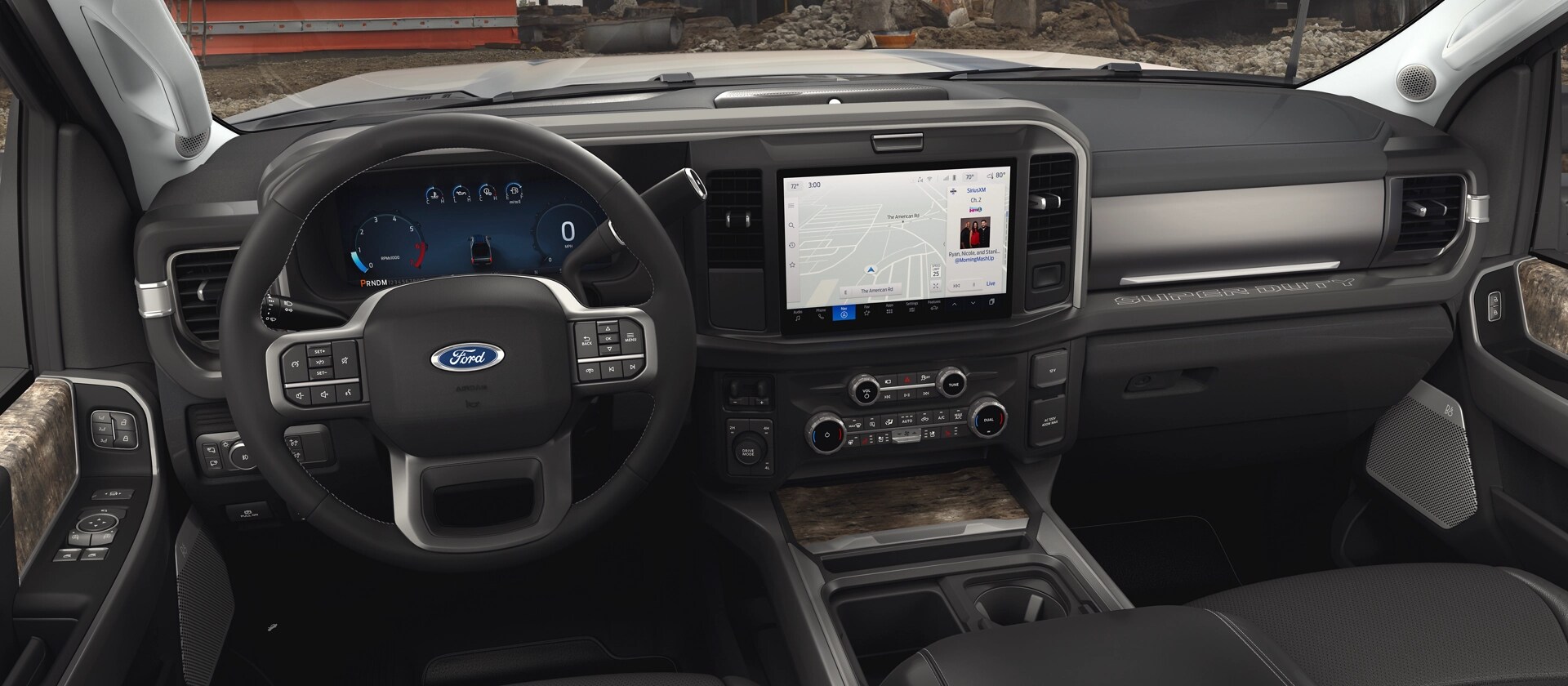

Instrumentation with Tachometer and Message Centre

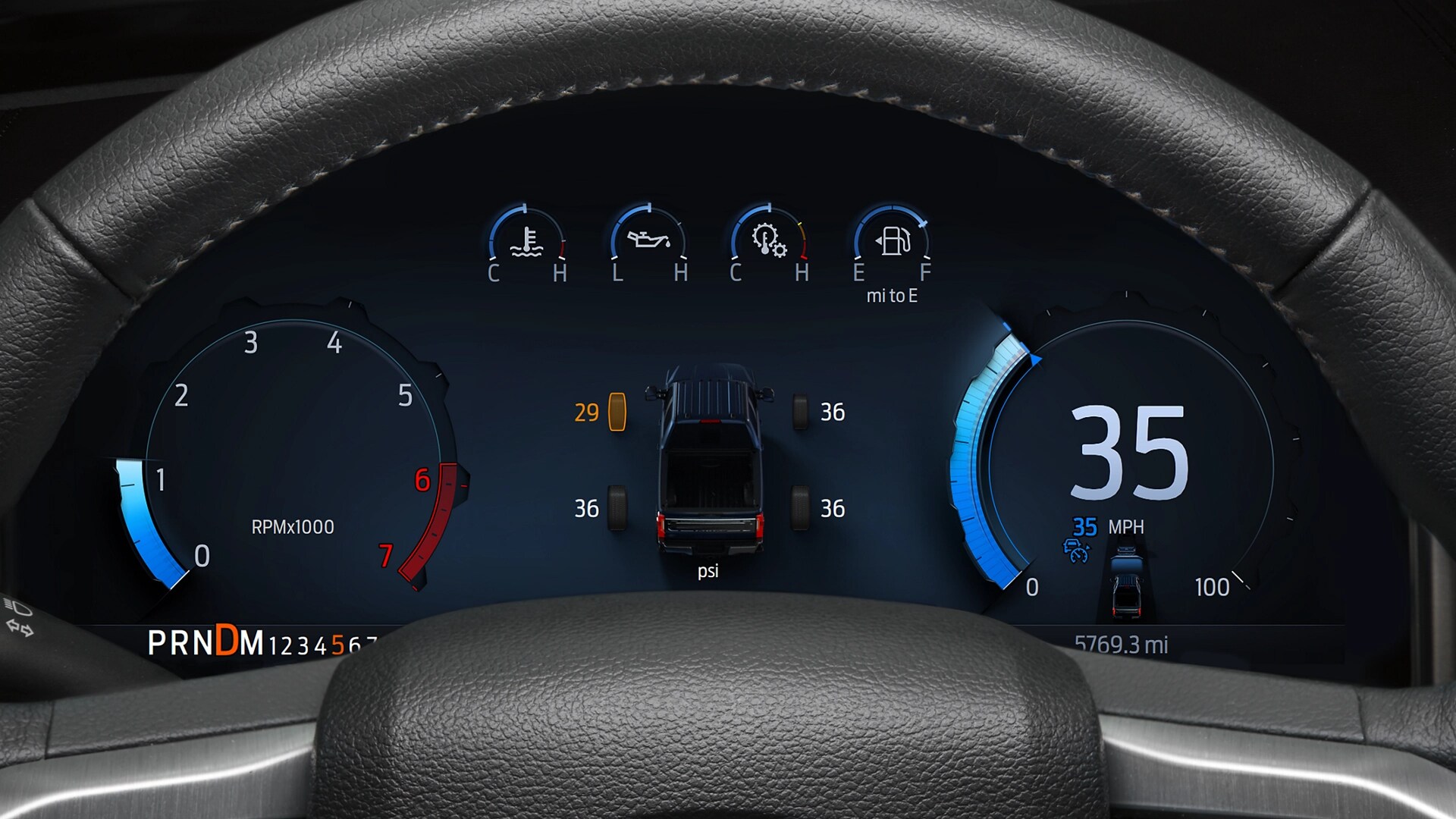

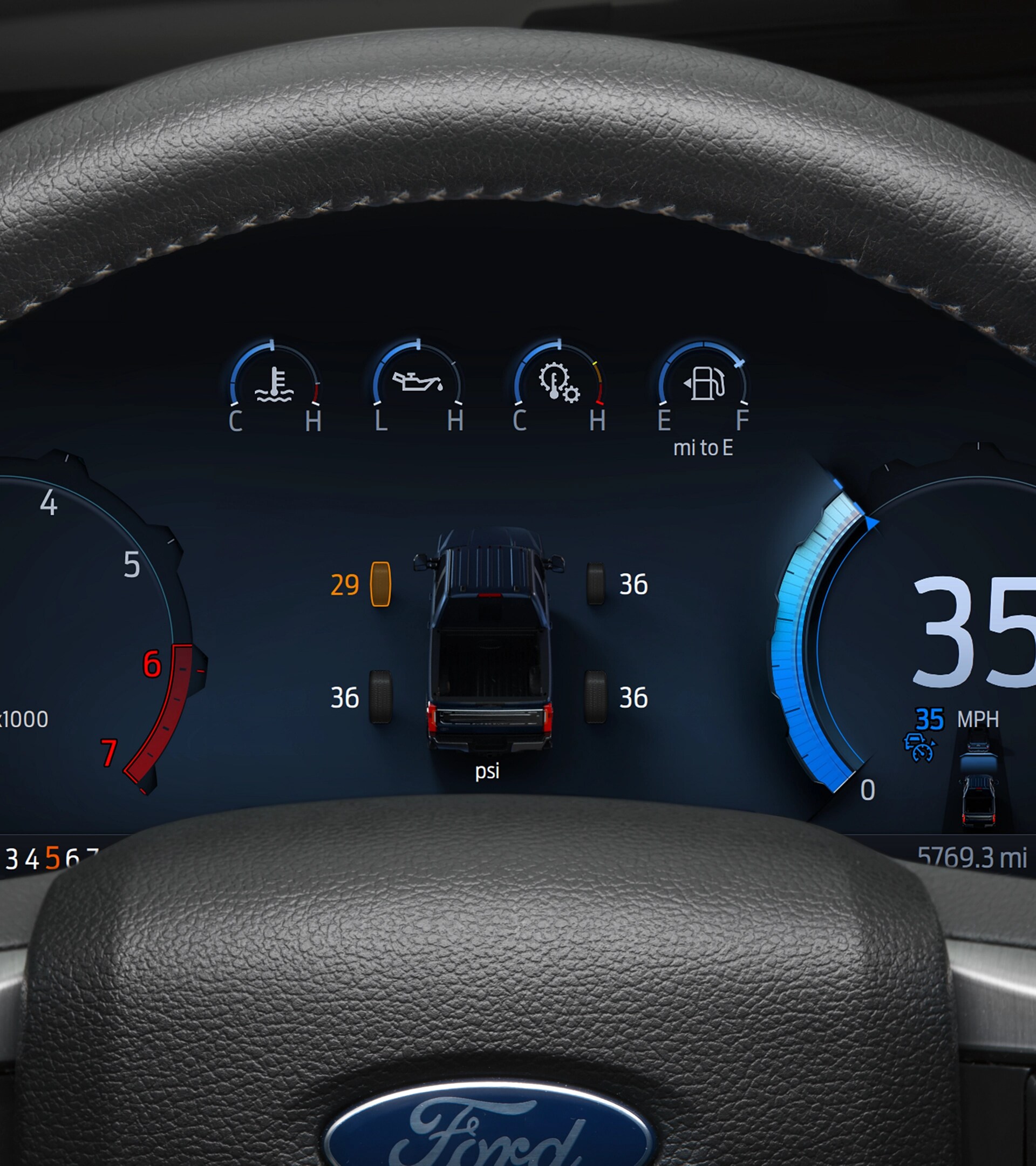

Instrument Cluster- 8" Productivity Screen

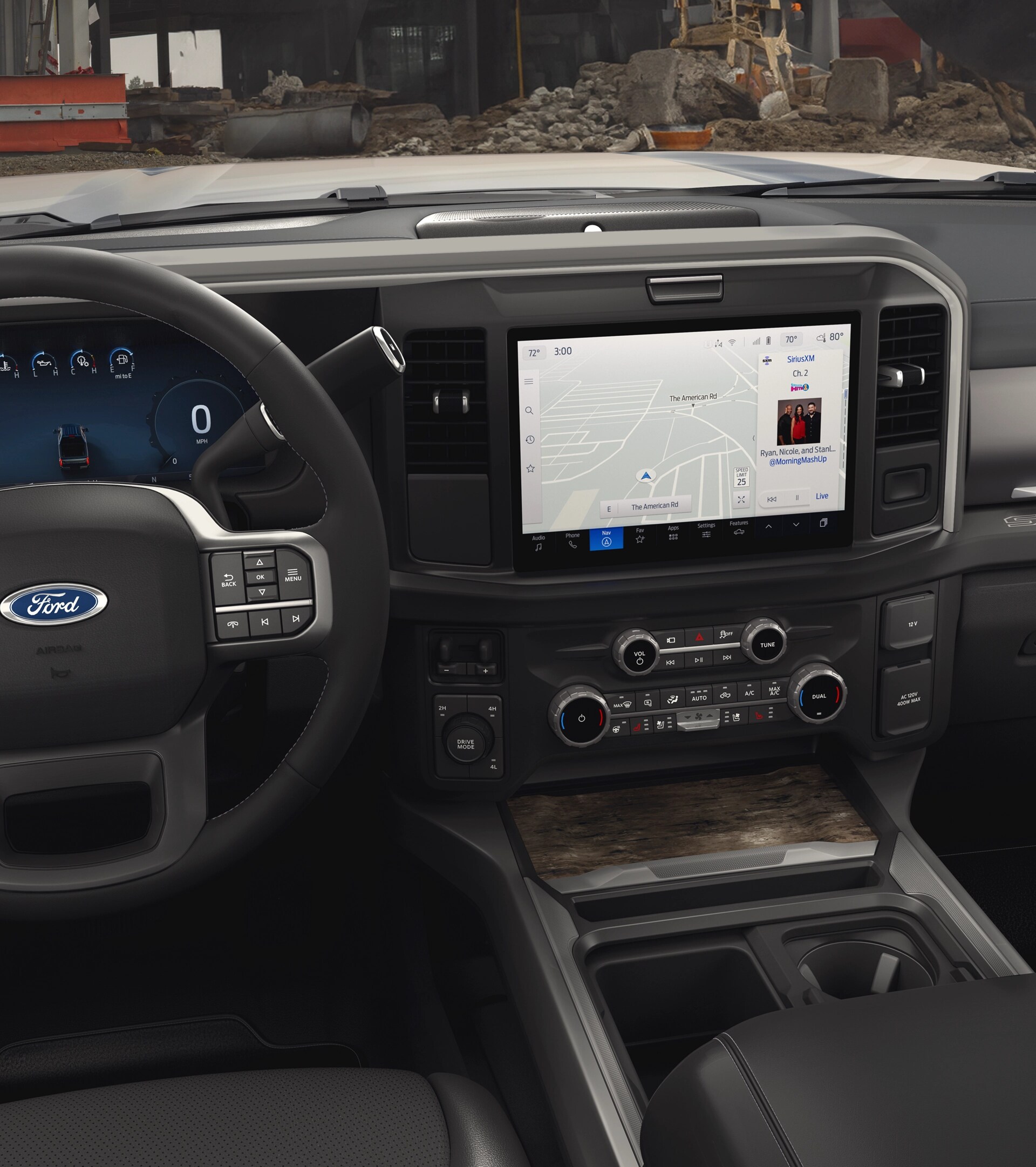

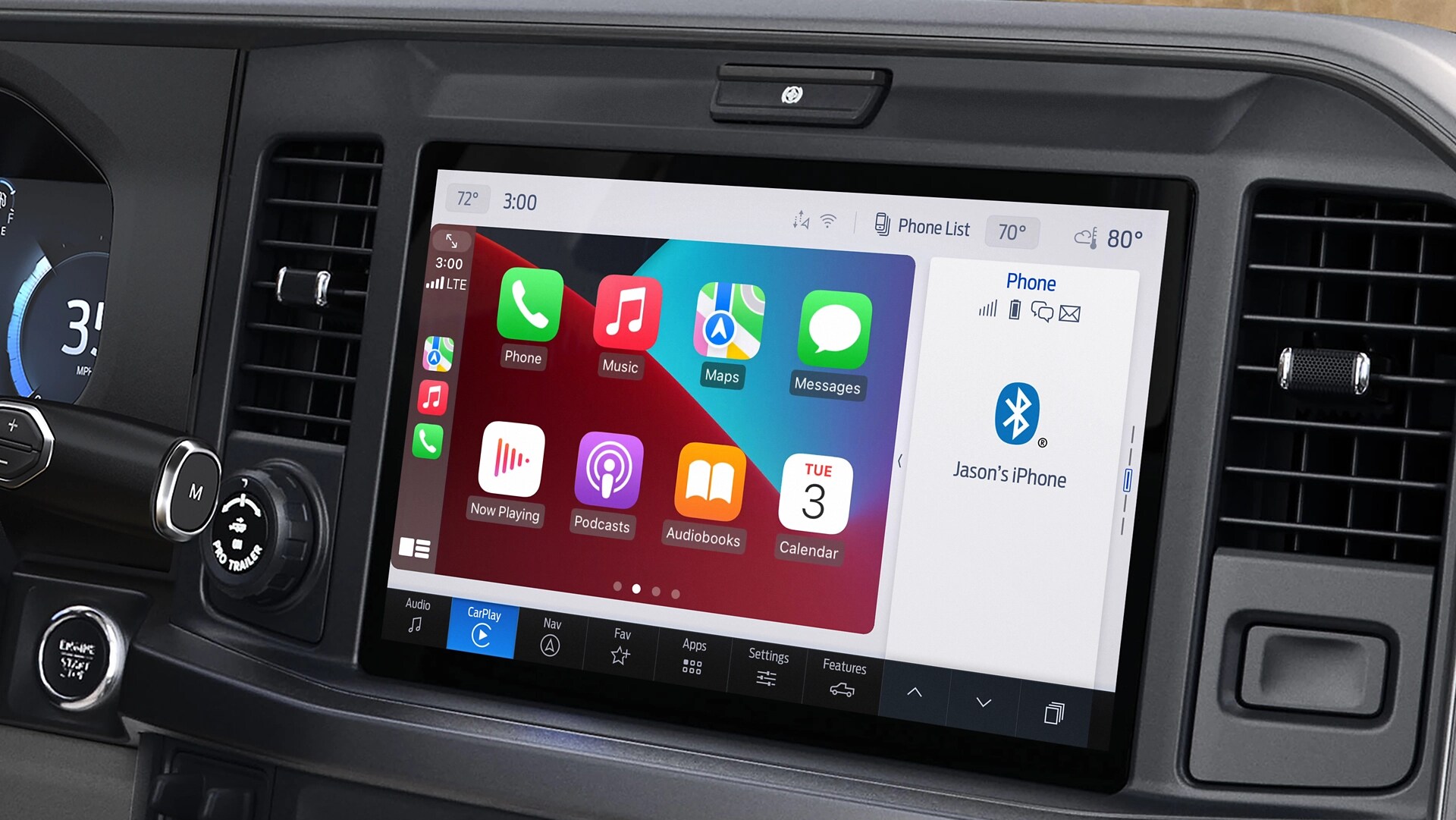

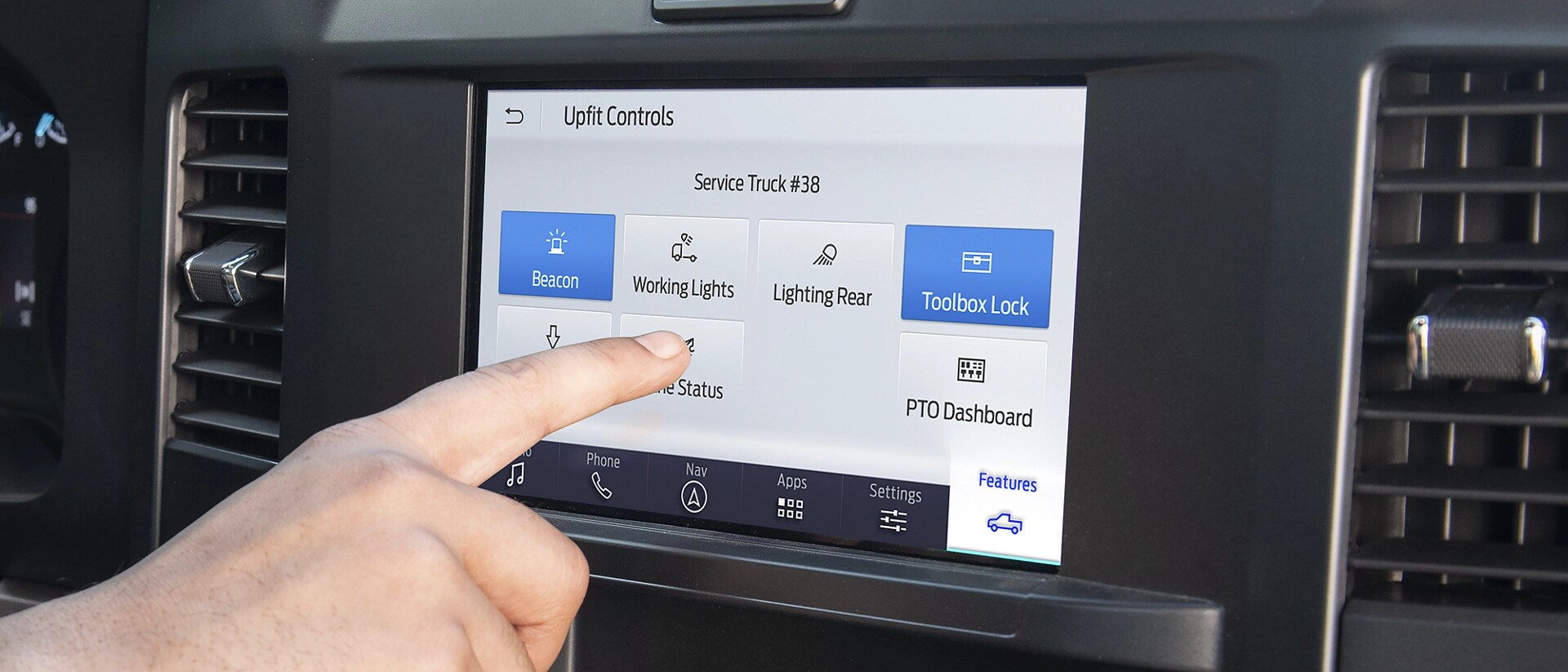

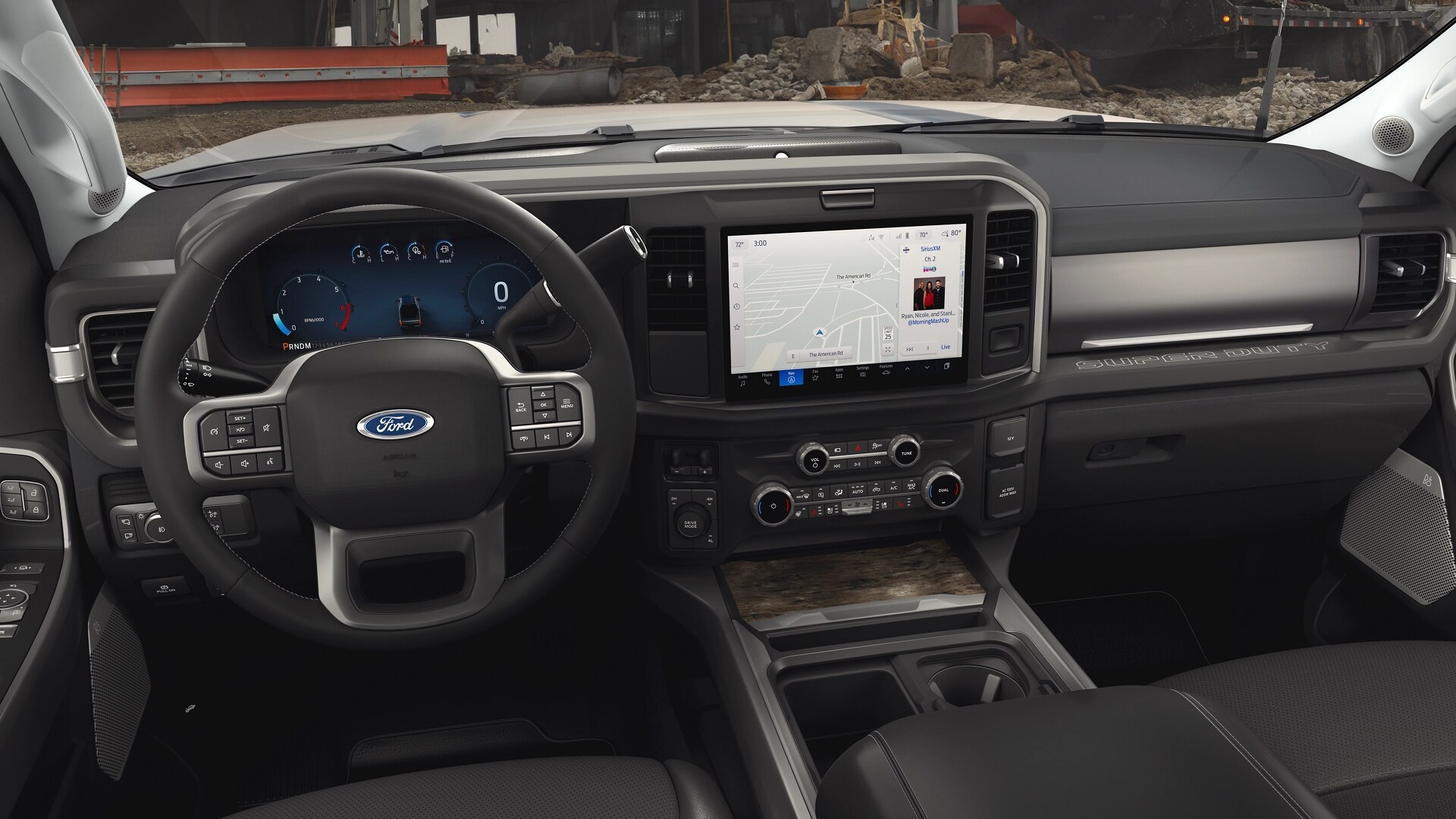

Centre Stack- 8" Screen
Map lights - dual (front and rear with Crew Cab)
Power Equipment - accessory delay
Power Equipment - Power door locks and windows
Powerpoint - 12v, Auxiliary
Powerpoint, 12v - Rear (SuperCab and Crew Cab)
Powerpoint -110-volt/400-watt A/C Power Inverter - Dash mounted Open image overlay for Powerpoint -110-volt/400-watt A/C Power Inverter - Dash mounted
Powerpoint -110-volt/400-watt A/C Power Inverter - Mounted in rear side of flow through console
Powerpoint - auxiliary, 1 in media bin
Rearview Mirror - Electrochromic self dimming
Cruise control
Steering Wheel - Audio Controls Open image overlay for Steering Wheel - Audio Controls
Steering Wheel - Leather-wrapped, colour coordinated
Storage - dual glove box

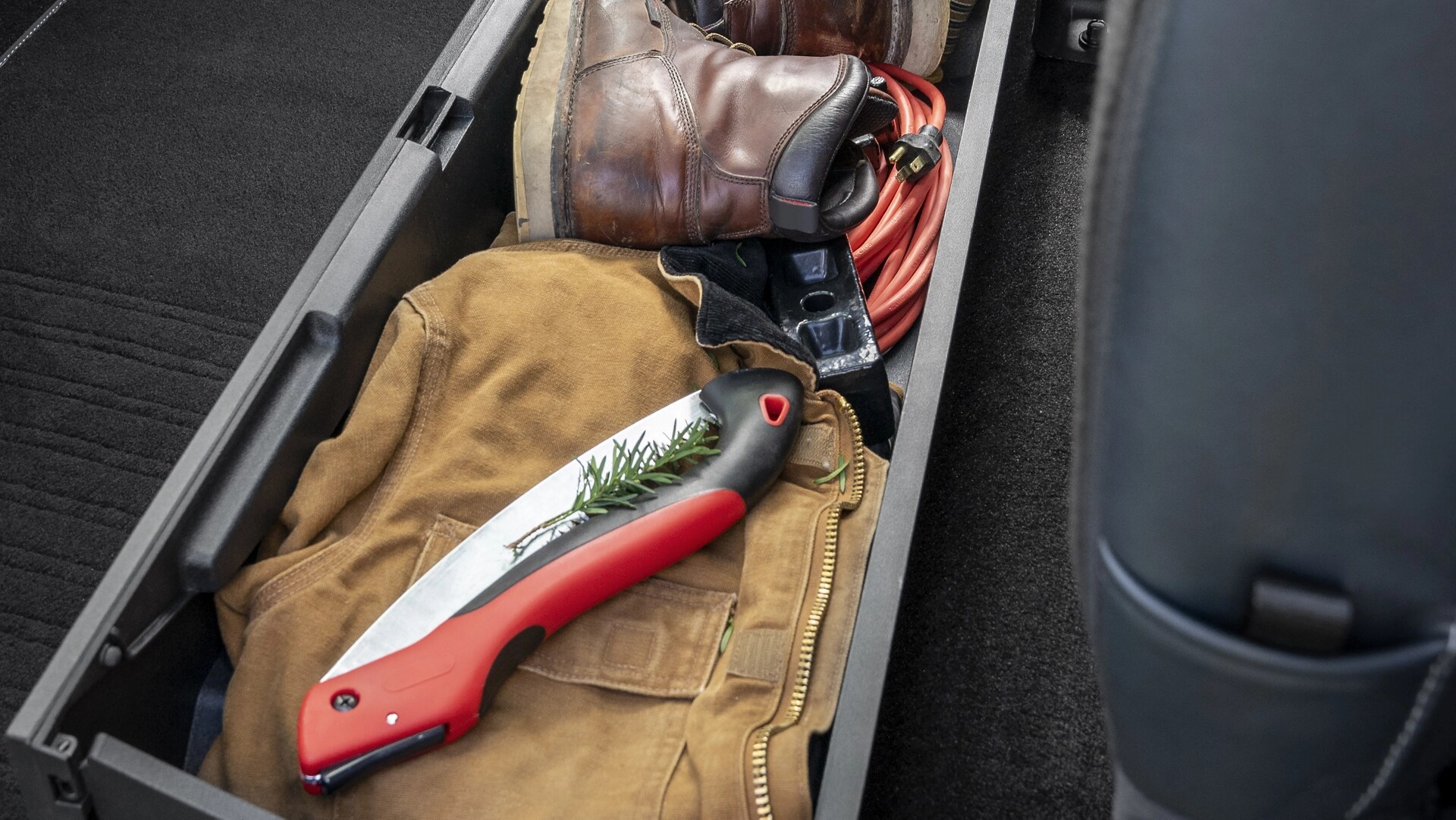

Lockable -Rear Under-Seat Storage Box Open image overlay for Lockable -Rear Under-Seat Storage Box
Sun Visors - Colour-coordinated cloth, single driver w/map strap & covered lighted mirror, single passenger w/covered lighted mirror
Tilt/telescoping steering wheel

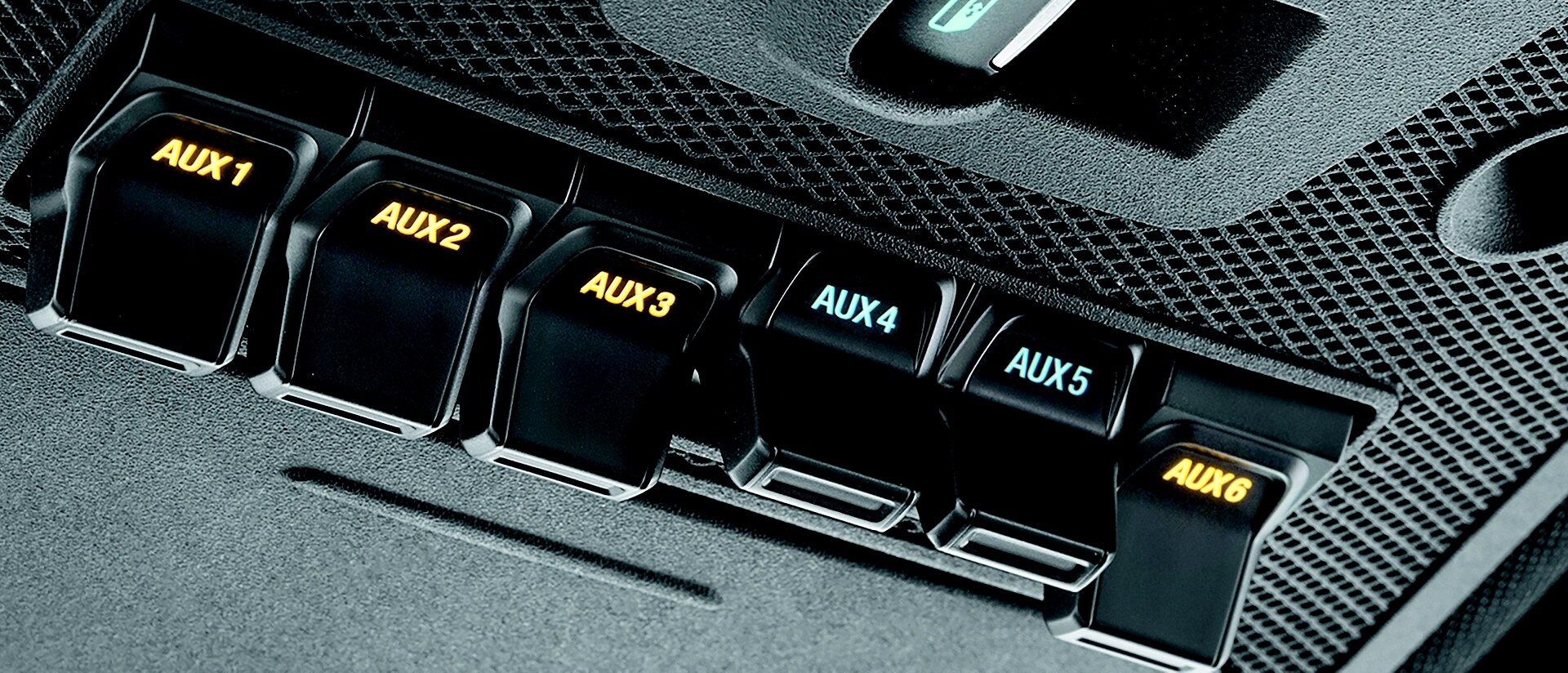

Upfitter Switches (6) Open image overlay for Upfitter Switches (6)
Windshield wipers - interval control

Optional

Carpet Delete Open image overlay for Carpet Delete
Floor Mats - All-weather without carpet mats (SuperCab and Crew Cab only) Open image overlay for Floor Mats - All-weather without carpet mats (SuperCab and Crew Cab only)
Floor Mats - All-weather and carpet mats (SuperCab and Crew Cab only) Open image overlay for Floor Mats - All-weather and carpet mats (SuperCab and Crew Cab only)
Audible Lane Departure Warning Open image overlay for Audible Lane Departure Warning
Pre-Collision Assist with Automatic Emergency Braking (AEB), Forward Collision Warning and Automatic High-Beams Open image overlay for Pre-Collision Assist with Automatic Emergency Braking (AEB), Forward Collision Warning and Automatic High-Beams
Remote Start System (fleet only on XL)
Safe Deposit - Console Lock Box (Requires 40/console/40 seating)
Upfitter Interface Module Open image overlay for Upfitter Interface Module
Rain-Sensing Windshield Wipers
Exterior Back-up Alarm

Entertainment Systems

Standard

B&O™ Premium Sound System by Bang & Olufsen (10 speakers) Open image overlay for B&O™ Premium Sound System by Bang & Olufsen (10 speakers)
FordPass™ Connect (Wi-Fi Hotspot) Open image overlay for FordPass™ Connect (Wi-Fi Hotspot)
SiriusXM^® All Access trial subscription Open image overlay for SiriusXM^® All Access trial subscription

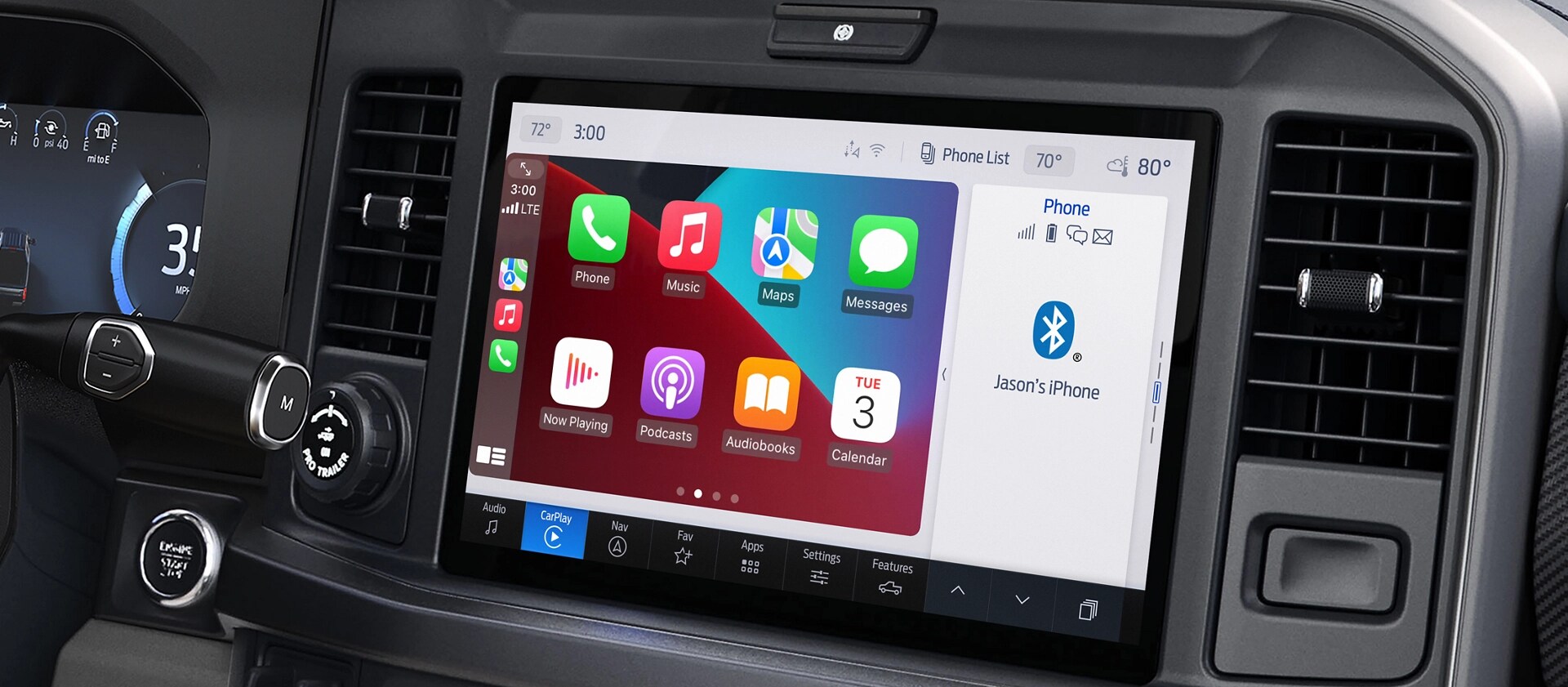

SYNC^® 3 with Apple CarPlay^® and Android Auto^™ Compatibility Open image overlay for SYNC^® 3 with Apple CarPlay^® and Android Auto^™ Compatibility

Optional

Voice-Activated Touchscreen Navigation System Open image overlay for Voice-Activated Touchscreen Navigation System

Seating

Standard

Front, Premium Leather-Trimmed 40/20/40 split bench w/ centre armrest, cupholders and under-seat storage
Front, 10-Way Driver and 8-way Passenger Power with Memory Seats
Front, Memory, easy entry/exit feature
Front, Heated/Ventilated, driver and passenger seats
Rear, Premium Vinyl, 60/40 Fold-Up Bench Seat (SuperCab)
Rear, 60/40 Flip-Up/Fold-Down Bench Seat, Fold-Flat Lockable Storage (Crew Cab)

Optional

Leather Captain's Chairs, heated/ventilated 40/console/40
Rear, Heated Seats (Crew Cab) requires front Captain's seats (N/A 40/20/40)

Exterior Features

Appearance

Standard

Wheels - 19.5'' Forged Polished Aluminum Open image overlay for Wheels - 19.5'' Forged Polished Aluminum
Bumpers, front - chrome steel w/grained MIC top cover
Platform Running Boards Open image overlay for Platform Running Boards
Door Handles - body colour

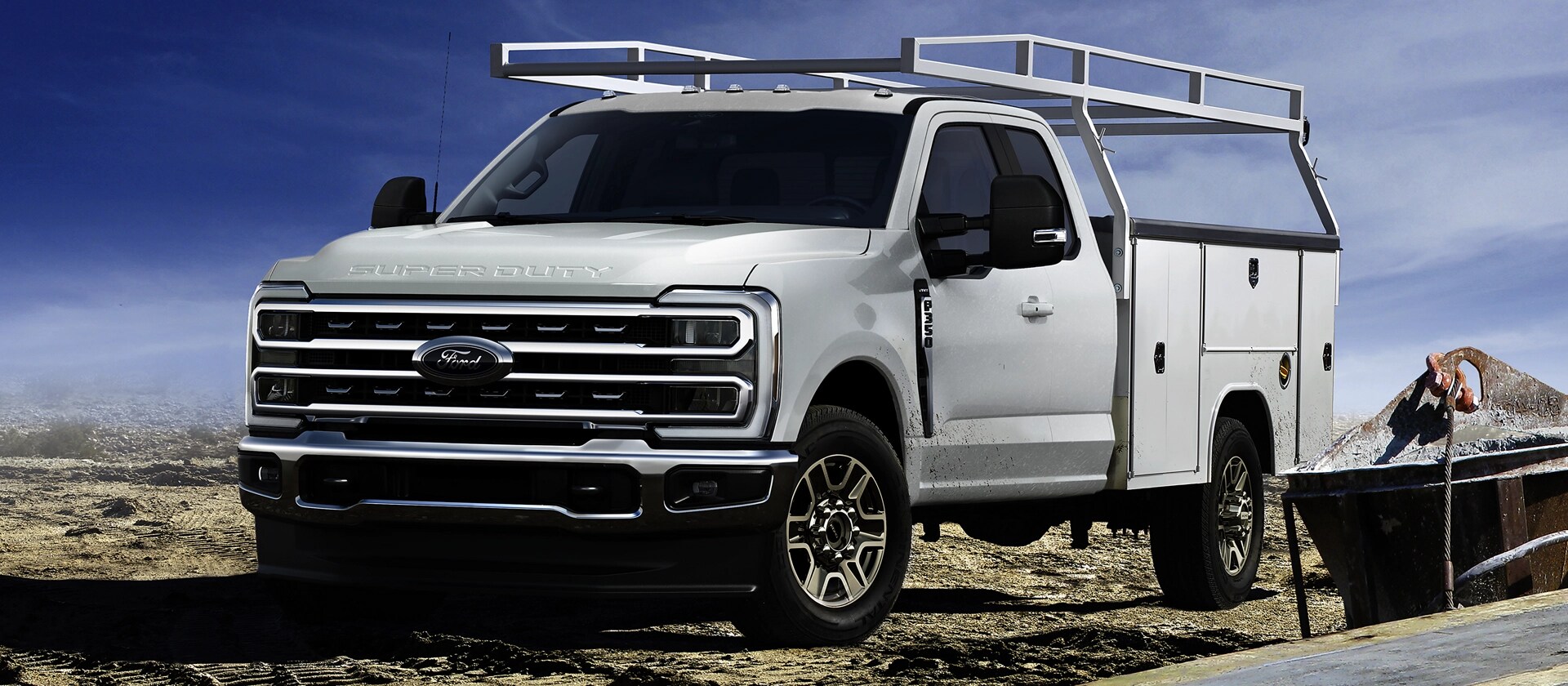

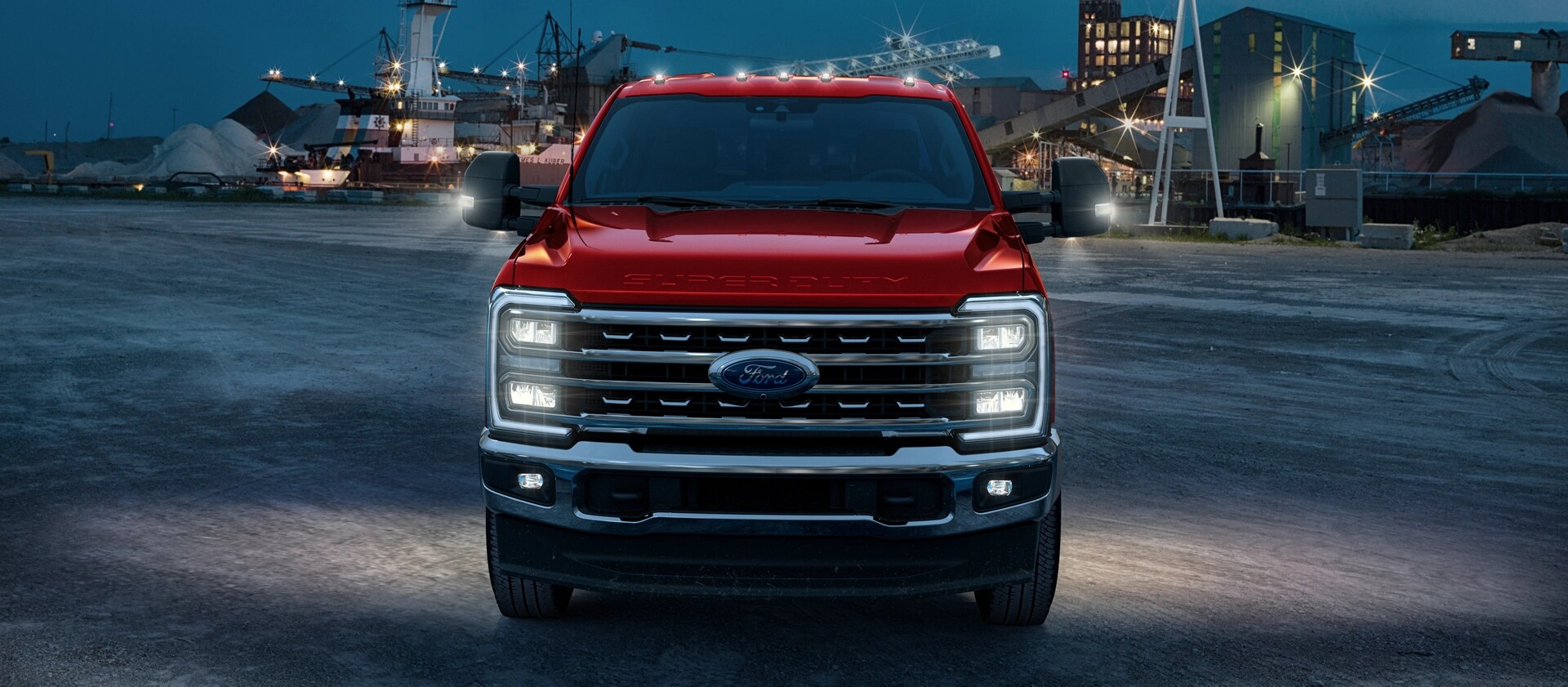

Quad Beam Jewel Effect Halogen Headlamps Open image overlay for Quad Beam Jewel Effect Halogen Headlamps
Fog Lamps Open image overlay for Fog Lamps
Grille - Bright Chrome Two-Bar with chrome inserts
Utility Lighting System - LED Side-mirror Spotlights
PowerScope^® Telescoping Trailer Tow Mirrors Open image overlay for PowerScope^® Telescoping Trailer Tow Mirrors
LED Roof Clearance Lamps Open image overlay for LED Roof Clearance Lamps
Tow hooks - (2) front, black
Splash Guards Open image overlay for Splash Guards

Optional

Automatic High-Beams

Protection

Optional

LED Warning Strobes
Skid Plates, transfer case (4x4)

Windows & Glass

Standard

Glass - rear, privacy (Fleet only on XL)
Window- Power Sliding rear with privacy glass and defrost (Fleet only on XL) Open image overlay for Window- Power Sliding rear with privacy glass and defrost (Fleet only on XL)

Safety

Standard

Front-Seat and Passenger-Side Airbags Open image overlay for Front-Seat and Passenger-Side Airbags
Front-Seat Side Airbags Open image overlay for Front-Seat Side Airbags
Safety Canopy^® System with Roll-Fold Side-Curtain Airbags Open image overlay for Safety Canopy^® System with Roll-Fold Side-Curtain Airbags
Belt-Minder^® , chime and flashing warning light on instrument cluster if belts not buckled
Child tethers
Seat Belts - colour coordinated with height adjustment (front outboard seating positions only)
SOS Post Crash Alert System

Optional

Rear View Camera Prep Kit Open image overlay for Rear View Camera Prep Kit

Security

Standard

Remote keyless entry - Fleet only XL
Advanced Security Pack
SecuriLock^® Passive Anti-Theft System (PATS)
MyKey^®
Autolamp (Auto On/Off Headlamps) with Rainlamp Wiper Activated Headlamps

Packages

Standard

Power Equipment Group Open image overlay for Power Equipment Group

Optional

Heavy-Service Front Suspension Package Open image overlay for Heavy-Service Front Suspension Package
Extra Heavy-Service Front Suspension Package Open image overlay for Extra Heavy-Service Front Suspension Package
Extra Heavy-Duty Front End Suspension Open image overlay for Extra Heavy-Duty Front End Suspension

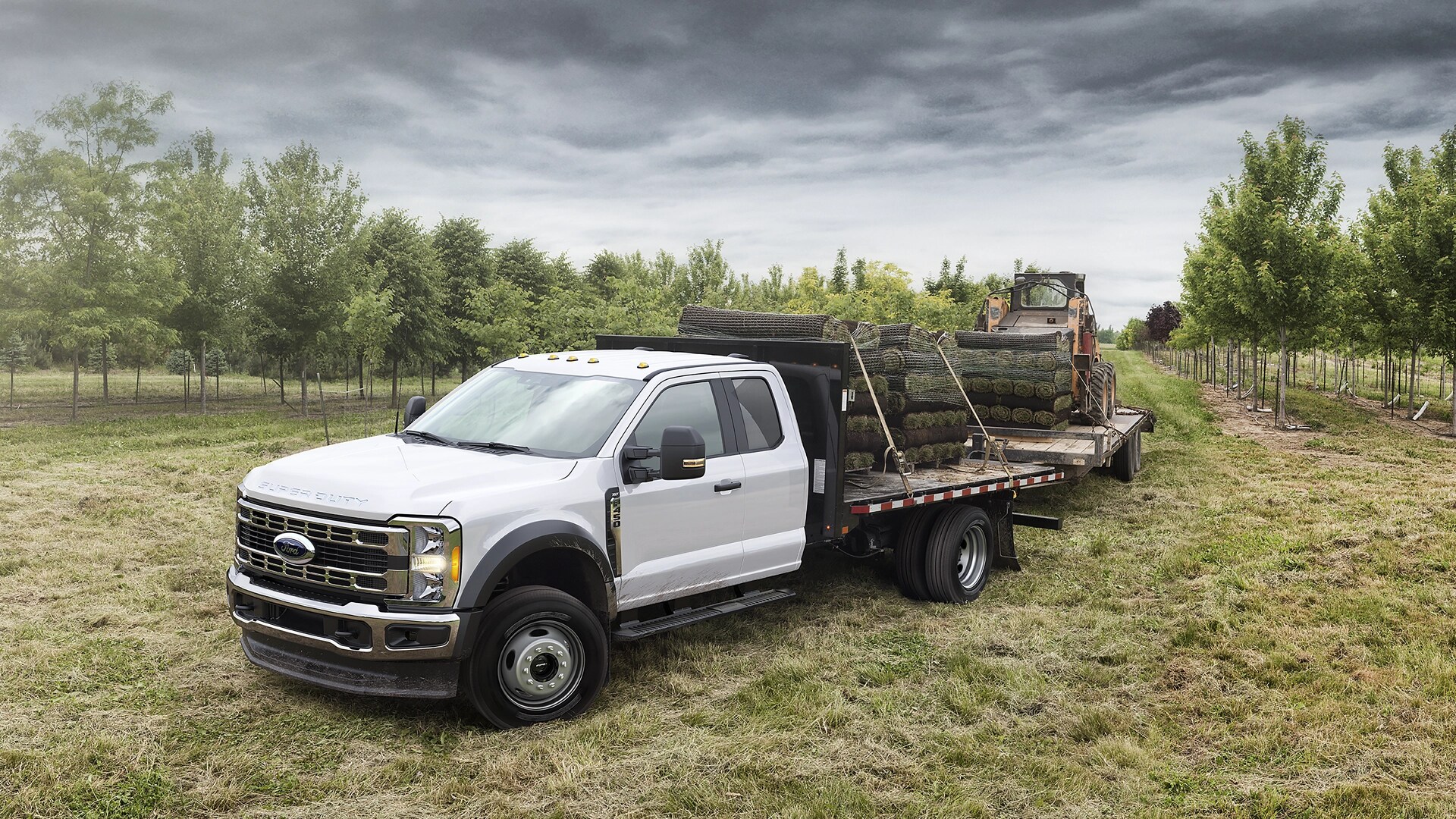

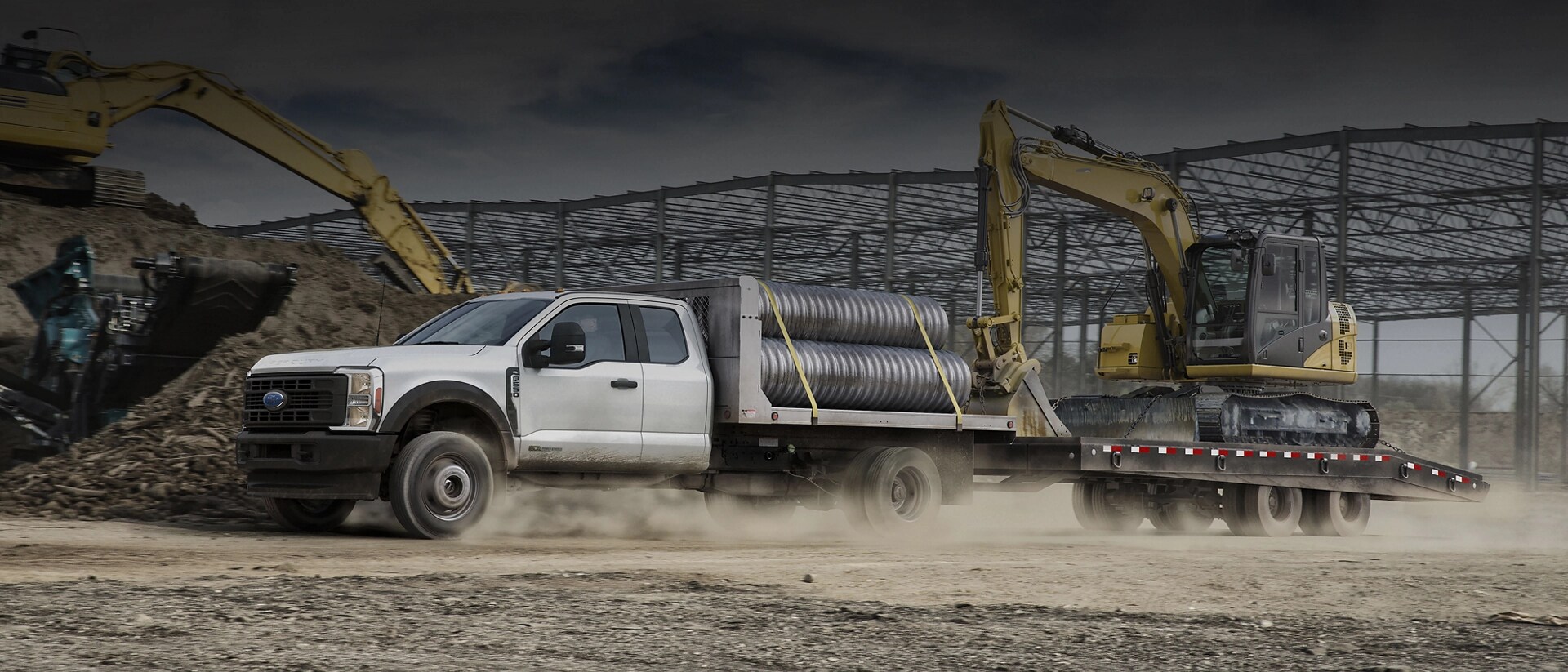

Trailer Tow Package - High Capacity Open image overlay for Trailer Tow Package - High Capacity
Snow Plow Prep Package Open image overlay for Snow Plow Prep Package
Payload Plus Upgrade Package Open image overlay for Payload Plus Upgrade Package
17,500 GVWR Package Open image overlay for 17,500 GVWR Package
Low Deflection Package Open image overlay for Low Deflection Package

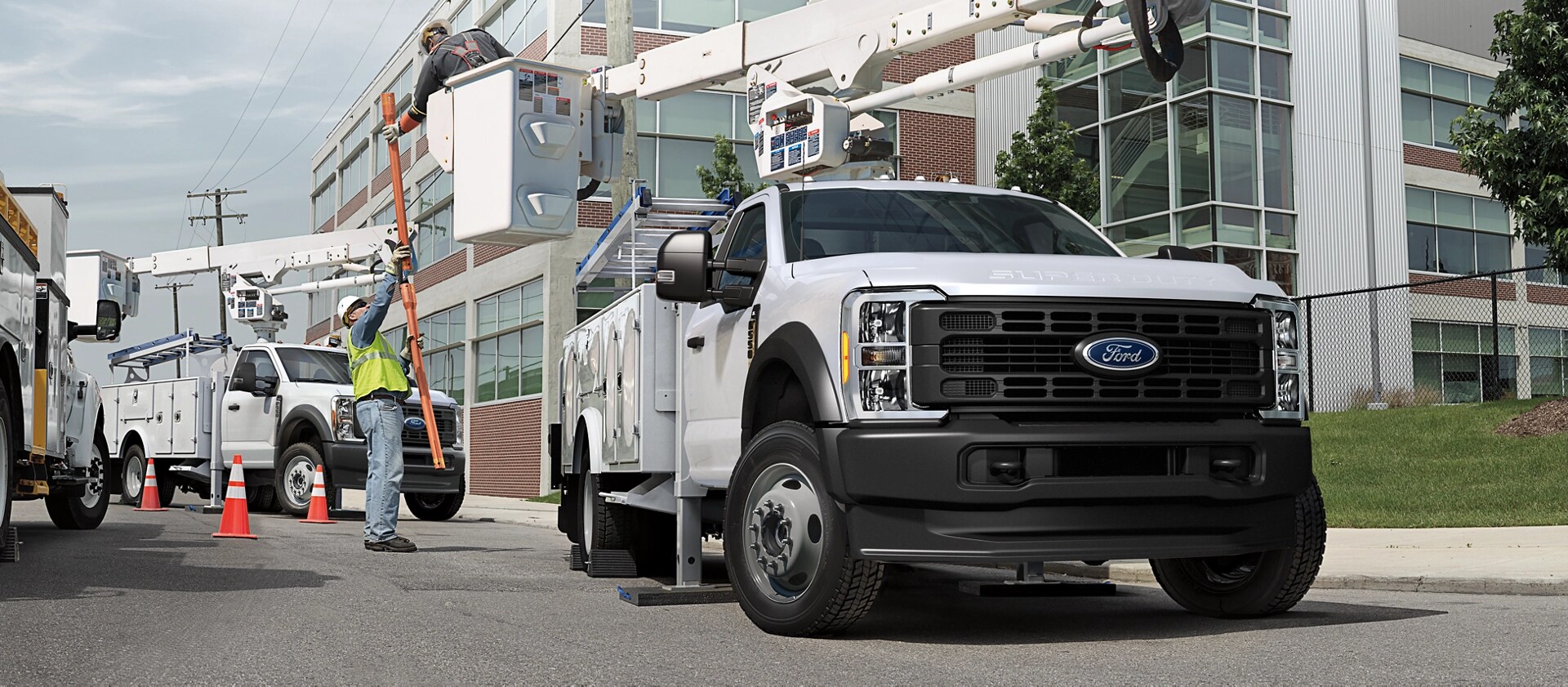

Aerial Lift / Severe Prep Package (Late Availability)

Specifications

Exterior

Switch to Imperial Units Switch to Metric Units

Exterior Dimensions
	Regular Cab	Regular Cab	Regular Cab	Regular Cab	Regular Cab	Regular Cab	Regular Cab	Regular Cab	SuperCab	SuperCab	SuperCab	SuperCab	Crew Cab	Crew Cab	Crew Cab	Crew Cab
	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
Drive type	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4
Cab to Axle (CA)	1,524	1,524	2,134	2,134	2,743	2,743	3,048	3,048	1,524	1,524	2,134	2,134	1,524	1,524	2,134	2,134
Drive type	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4
Wheelbase	3,691	3,691	4,300	4,300	4,910	4,910	5,215	5,215	4,265	4,265	4,874	4,874	4,567	4,567	5,177	5,177
Length – overall	5,861	5,861	6,471	6,471	7,081	7,081	7,385	7,385	6,435	6,435	7,045	7,045	6,735	6,735	7,345	289.2
Height – F-350 SRW (w/o options)	2,009	2,080	-	-	-	-	-	-	2,014	2,082	-	-	79.4	82.1	-	-
Height – F-350 DRW (w/o options)	2,013	2,088	2,012	2,084	-	-	-	-	2,021	2,089	-	-	2,024	2,091	-	-
Height – F-450 DRW (w/o options)	2,098	2,098	2,094	2,089	2,090	2,092	2,089	2,089	2,096	2,096	2,096	2,092	2,102	2,099	2,098	2,077
Height – F-550 DRW (w/o options)	2,098	2,099	2,094	2,094	2,096	2,092	2,094	2,094	2,101	2,096	2,096	2,096	2,102	2,102	2,098	2,075
Height – F-600 DRW (w/o options)	2,121	2,118	2,116	2,111	2,111	2,108	2,111	2,106	-	-	-	-	-	-	-	-
Track - front – F-350 SRW	1,735	1,736	-	-	-	-	-	-	1,735	1,736	-	-	1,735	1,736	-	-
Track - front – F-350 DRW	1,755	1,756	1,755	1,756	-	-	-	-	1,755	1,756	-	-	1,755	1,756	-	-
Track - front – F-450 DRW	1,901	1,901	1,901	1,901	1,901	1,901	1,901	1,901	1,901	1,901	1,901	1,901	1,901	1,901	1,901	1,901
Track - front – F-550 DRW	1,901	1,901	1,901	1,901	1,901	1,901	1,901	1,901	1,901	1,901	1,901	1,901	1,901	1,901	1,901	1,901
Track - front – F-600 DRW	1,901	1,901	1,901	1,901	1,901	1,901	1,901	1,901	-	-	-	-	-	-	-	-
Track - rear – F-350 SRW	1,729	1,729	-	-	-	-	-	-	1,729	1,729	-	-	1,729	1,729	-	-
Track - rear – F-350 DRW	1,805	1,805	1,805	1,805	-	-	-	-	1,805	1,805	-	-	1,805	1,805	-	-
Track - rear – F-450 DRW	1,880	1,880	1,880	1,880	1,880	1,880	1,880	1,880	1,880	1,880	1,880	1,880	1,880	1,880	1,880	1,880
Track - rear – F-550 DRW	1,880	1,880	1,880	1,880	1,880	1,880	1,880	1,880	1,880	1,880	1,880	1,880	1,880	1,880	1,880	1,880
Track - rear – F-600 DRW	1,880	1,880	1,880	1,880	1,880	1,880	1,880	1,880	-	-	-	-	-	-	-	-
Rear axle clearance – F-350 SRW	229	226	-	-	-	-	-	-	228	228	-	-	228	227	-	-
Rear axle clearance – F-350 DRW	214	211	214	213	-	-	-	-	213	213	-	-	213	213	-	-
Rear axle clearance – F-450 DRW	216	216	218	218	218	218	218	218	218	218	218	218	218	218	218	208
Rear axle clearance – F-550 DRW	216	216	218	218	218	218	218	218	218	218	218	218	218	218	218	208
Rear axle clearance – F-600 DRW	231	231	231	231	231	231	231	231	-	-	-	-	-	-	-	-
Overhang – front	972	972	972	972	972	972	972	972	972	972	972	972	972	972	972	972
Frame Rail Width – F-350 SRW	866	866	-	-	-	-	-	-	866	866	-	-	866	866	-	-
Frame Rail Width – F-350 DRW	866	866	866	866	-	-	-	-	866	866	-	-	866	866	-	-
Frame Rail Width – F-450 DRW	868	868	868	868	868	868	868	868	868	868	868	868	868	868	868	868
Frame Rail Width – F-550 DRW	868	868	868	868	868	868	868	868	868	868	868	868	868	868	868	868
Frame Rail Width – F-600 DRW	868	868	868	868	868	868	868	868	-	-	-	-	-	-	-	-
Rear Axle to End of Frame	1,199/2,271*	1,199/2,271*	1,199/2,022*	1,199/2,022*	1,199	1,199	1,199	1,199	1,199	1,199	1,199	1,199	1,199	1,199	1,199	1,199
* 89.4" with optional Aft-Axle frame extension (F-450, F-550, F-600)
** 79.6" with optional Aft-Axle frame extension (F-550/F-600)

Exterior Dimensions
	Regular Cab	Regular Cab	Regular Cab	Regular Cab	Regular Cab	Regular Cab	Regular Cab	Regular Cab	SuperCab	SuperCab	SuperCab	SuperCab	Crew Cab	Crew Cab	Crew Cab	Crew Cab
	in.	in.	in.	in.	in.	in.	in.	in.	in.	in.	in.	in.	in.	in.	in.	in.
Drive type	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4
Cab to Axle (CA)	60	60	84	84	108	108	120	120	60	60	84	84	60	60	84	84
Drive type	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4
Wheelbase	145.3	145.3	169.3	169.3	193.3	193.3	205.3	205.3	167.9	167.9	191.9	191.9	179.8	179.8	203.8	203.8
Length – overall	230.7	230.7	254.8	254.8	278.8	278.8	290.7	290.7	253.3	253.3	277.4	277.4	265.2	265.2	289.2	289.2
Height – F-350 SRW (w/o options)	79.1	81.9	-	-	-	-	-	-	79.3	82	-	-	79.4	82.1	-	-
Height – F-350 DRW (w/o options)	79.3	82.2	79.2	82	-	-	-	-	79.6	82.2	-	-	79.7	82.3	-	-
Height – F-450 DRW (w/o options)	82.6	82.6	82.4	82.2	82.3	82.3	82.3	82.3	82.7	82.5	82.5	81.8	82.8	82.6	82.6	81.8
Height – F-550 DRW (w/o options)	82.6	82.6	82.4	82.4	82.5	82.4	82.4	82.4	82.7	82.5	82.5	82.5	82.8	82.8	82.6	82.6
Height – F-600 DRW (w/o options)	83.5	83.4	83.3	83.1	83.1	83	83.1	82.9	-	-	-	-	-	-	-	-
Track - front – F-350 SRW	68.3	68.3	-	-	-	-	-	-	68.3	68.3	-	-	68.3	68.3	-	-
Track - front – F-350 DRW	69.1	69.1	69.1	69.1	-	-	-	-	69.1	69.1	-	-	69.1	69.1	-	-
Track - front – F-450 DRW	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8
Track - front – F-550 DRW	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8
Track - front – F-600 DRW	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8	-	-	-	-	-	-	-	-
Track - rear – F-350 SRW	68.1	68.1	-	-	-	-	-	-	68.1	68.1	-	-	68.1	68.1	-	-
Track - rear – F-350 DRW	71.1	71.1	71.1	71.1	-	-	-	-	71.1	71.1	-	-	71.1	71.1	-	-
Track - rear – F-450 DRW	74	74	74	74	74	74	74	74	74	74	74	74	74	74	74	74
Track - rear – F-550 DRW	74	74	74	74	74	74	74	74	74	74	74	74	74	74	74	74
Track - rear – F-600 DRW	74	74	74	74	74	74	74	74	-	-	-	-	-	-	-	-
Rear axle clearance – F-350 SRW	9	8.9	-	-	-	-	-	-	9	9	-	-	9	8.9	-	-
Rear axle clearance – F-350 DRW	8.4	8.3	8.4	8.4	-	-	-	-	8.4	8.4	-	-	8.4	8.9	-	-
Rear axle clearance – F-450 DRW	8.5	8.5	8.6	8.6	8.6	8.6	8.6	8.6	8.6	8.6	8.6	8.6	8.6	8.6	8.6	8.2
Rear axle clearance – F-550 DRW	8.5	8.5	8.6	8.6	8.6	8.6	8.6	8.6	8.6	8.6	8.6	8.6	8.6	8.6	8.6	8.2
Rear axle clearance – F-600 DRW	9.1	9.1	9.1	9.1	9.1	9.1	9.1	9.1	-	-	-	-	-	-	-	-
Overhang – front	38.3	38.3	38.3	38.3	38.3	38.3	38.3	38.3	38.3	38.3	38.3	38.3	38.3	38.3	38.3	38.3
Frame Rail Width – F-350 SRW	34.1	34.1	-	-		-	-	-	34.1	34.1	-	-	34.1	34.1	-	-
Frame Rail Width – F-350 DRW	34.1	34.1	34.1	34.1	-	-	-	-	34.1	34.1	-	-	34.1	34.1	-	-
Frame Rail Width – F-450 DRW	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2
Frame Rail Width – F-550 DRW	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2
Frame Rail Width – F-600 DRW	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2	-	-	-	-	-	-	-	-
Rear Axle to End of Frame	47.2/89.4*	47.2/89.4*	47.2/79.6**	47.2/79.6**	47.2	47.2	47.2	47.2	47.2	47.2	47.2	47.2	47.2	47.2	47.2	47.2
* 89.4" with optional Aft-Axle frame extension (F-450, F-550, F-600)
** 79.6" with optional Aft-Axle frame extension (F-550/F-600)

Base Curb Weight

Switch to Imperial Units Switch to Metric Units

	Regular Cab	Regular Cab	Regular Cab	Regular Cab	SuperCab	SuperCab	Crew Cab	Crew Cab
	kg	kg	kg	kg	kg	kg	kg	kg
Drive type	4x2	4x2	4x2	4x2	4x2	4x2	4x2	4x2
Cab to Axle (CA)	1,524 mm	2,134 mm	2,743 mm	3,048 mm	1,524 mm	2,134 mm	1,524 mm	2,134 mm
Drive type	4x2	4x2	4x2	4x2	4x2	4x2	4x2	4x2
Base Curb Weight - F350 SRW 17" Wheels 6.2L	2,461	-	-	-	2,596	-	2,705	-
Base Curb Weight - F350 SRW 17" Wheels 6.7L	2,797	-	-	-	2,955	-	3,065	-
Base Curb Weight - F350 SRW 17" Wheels 7.3L	2,461	-	-	-	2,596	-	2,705	-
Base Curb Weight - F350 SRW 18" Wheels 6.2L	2,485	-	-	-	2,619	-	2,728	-
Base Curb Weight - F350 SRW 18" Wheels 6.7L	2,821	-	-	-	2,979	-	3,089	-
Base Curb Weight - F350 SRW 18" Wheels 7.3L	2,485	-	-	-	2,619	-	2,728	-
Base Curb Weight - F350 DRW 6.2L	2,746	2,767	-	-	2,900	-	2.967	-
Base Curb Weight - F350 DRW 6.7L	3,081	3,112	-	-	3,243	-	3,312	-
Base Curb Weight - F350 DRW 7.3L	2,746	2,767	-	-	2,900	-	2,967	-
Base Curb Weight - F450 DRW 7.3L	3,012	3,043	3,125	3,149	3,151	3,236	3,226	3,296
Base Curb Weight - F450 DRW 6.7L	3,352	3,382	3,463	3,491	3,491	3,588	3,557	3,636
Base Curb Weight - F550 DRW 7.3L	3,012	3,043	3,125	3,149	3,151	3,236	3,226	3,296
Base Curb Weight - F550 DRW 6.7L	3,352	3,382	3,463	3,491	3,491	3,588	3,557	3,636
Base Curb Weight - F550+ DRW 7.3L	3,031	3,061	3,143	3,167	3,169	3,254	3,244	3,314
Base Curb Weight - F550+ DRW 6.7L	3,370	3,400	3,481	3,509	3,509	3,606	3,575	3,654
Base Curb Weight - F600 DRW 7.3L	3,133	3,162	3,246	3,270	-	-	-	-

	Regular Cab	Regular Cab	Regular Cab	Regular Cab	SuperCab	SuperCab	Crew Cab	Crew Cab
	lbs.	lbs.	lbs.	lbs.	lbs.	lbs.	lbs.	lbs.
Drive type	4x2	4x2	4x2	4x2	4x2	4x2	4x2	4x2
Cab to Axle (CA)	60 in.	84 in.	108 in.	120 in.	60 in.	84 in.	60 in.	84 in.
Drive type	4x2	4x2	4x2	4x2	4x2	4x2	4x2	4x2
Base Curb Weight - F350 SRW 17" Wheels 6.2L	5,426	-	-	-	5,722	-	5,963	-
Base Curb Weight - F350 SRW 17" Wheels 6.7L	6,167	-	-	-	6,515	-	6,758	-
Base Curb Weight - F350 SRW 17" Wheels 7.3L	5,426	-	-	-	5,722	-	5,963	-
Base Curb Weight - F350 SRW 18" Wheels 6.2L	5,478	-	-	-	5,774	-	6,015	-
Base Curb Weight - F350 SRW 18" Wheels 6.7L	6,219	-	-	-	6,567	-	6,810	-
Base Curb Weight - F350 SRW 18" Wheels 7.3L	5,478	-	-	-	5,774	-	6,015	-
Base Curb Weight - F350 DRW 6.2L	6,053	6,100	-	-	6,394	-	6,540	-
Base Curb Weight - F350 DRW 6.7L	6,792	6,861	-	-	7,149	-	7,301	-
Base Curb Weight - F350 DRW 7.3L	6,053	6,100	-	-	6,394	-	6,540	-
Base Curb Weight - F450 DRW 7.3L	6,641	6,709	6,890	6,942	6,947	7,133	7,112	7,267
Base Curb Weight - F450 DRW 6.7L	7,390	7,455	7,635	7,696	7,697	7,909	7,842	8,015
Base Curb Weight - F550 DRW 7.3L	6,641	6,709	6,890	6,942	6,947	7,133	7,112	7,267
Base Curb Weight - F550 DRW 6.7L	7,390	7,455	7,635	7,696	7,697	7,909	7,842	8,015
Base Curb Weight - F550+ DRW 7.3L	6,681	6,749	6,930	6,982	6,987	7,173	7,152	7,307
Base Curb Weight - F550+ DRW 6.7L	7,430	7,495	7,675	7,736	7,737	7,949	7,882	8,055
Base Curb Weight - F600 DRW 7.3L	6,906	6,971	7,157	7,209	-	-	-	-

Interior

Switch to Imperial Units Switch to Metric Units

Interior Dimensions
	Regular Cab	SuperCab	Crew Cab
	mm	mm	mm
Front
Head room	1,036.3	1,036.3	1,036.3
Shoulder room	1,694.2	1,694.2	1,694.2
Hip room	1,587.5	1,587.5	1,587.5
Leg room	1,115.1	1,115.1	1,115.1

Rear
Head room	-	1,023.6	1,026.2
Shoulder room	-	1,671.3	1,673.9
Hip room	-	1,643.4	1,643.4
Leg room	-	850.9	1,107.4

Volumes	(L)	(L)	(L)
Passenger – total	1,829.3	3,284.8	3,732.2
Cargo – behind first row	328.5	894.8	1,475.3

Interior Dimensions
	Regular Cab	SuperCab	Chassis Cab
	in.	in.	in.
Front
Head room	40.8	40.8	40.8
Shoulder room	66.7	66.7	66.7
Hip room	62.5	62.5	62.5
Leg room	43.9	43.9	43.9

Rear
Head room	-	40.3	40.4
Shoulder room	-	65.8	65.9
Hip room	-	64.7	64.7
Leg room	-	33.5	43.6

Volumes	(cu. ft.)	(cu. ft.)	(cu. ft.)
Passenger – total	64.6	116	131.8
Cargo – behind first row	11.6	31.6	52.1

Capacities

Switch to Imperial Units Switch to Metric Units

Seating and Fuel Capacities
	Regular Cab	SuperCab	Crew Cab
Maximum seating capacity	3	6	6

Mid Ship Fuel Tank Capacity (F-350 SRW w/ 9,800 or 10,000 GVWR packages)	100.3 Litre	100.3 Litre	100.3 Litre
Aft-of-Axle Fuel Tank Capacity (F-350 SRW w/ Standard GVWR, all DRW models)	151.4 Litre	151.4 Litre	151.4 Litre
Dual diesel tanks (optional on XL and XLT w/ Diesel engine)	251.7 Litre	251.7 Litre	251.7 Litre

Seating and Fuel Capacities
	Regular Cab	SuperCab	Crew Cab
Maximum seating capacity	3	6	6

Mid Ship Fuel Tank Capacity (F-350 SRW w/ 9,800 or 10,000 GVWR packages)	26.5 gallons	26.5 gallons	26.5 gallons
Aft-of-Axle Fuel Tank Capacity (F-350 SRW w/ Standard GVWR, all DRW models)	40 gallons	40 gallons	40 gallons
Dual diesel tanks (optional on XL and XLT w/ Diesel engine)	66.5 gallons	66.5 gallons	66.5 gallons

Engine

Switch to Imperial Units Switch to Metric Units

Engine Specifications
	6.2L SOHC 2-valve Flex Fuel V8 Gas	6.7L Power Stroke^® V8 Turbo Diesel	7.3L 2V DEVCT NA PFI V8 Gas
Configuration	SOHC	OHV (32-valve)	OHV (16-valve)
Fuel injection	Sequential Electronic	High-Pressure Common-Rail	Sequential Electronic
Engine control system	Electronic	Electronic	Electronic
Induction system	Specially tuned	Variable Geometry Turbocharger; with charge air cooler	Specially tuned
Battery	12-volt; 650-cca/72-amp-hr	Dual 12-volt; 750-cca/78-amp-hr	12-volt; 750-cca/78-amp-hr
Alternator	200-amp (XL, XLT)	240-amp (XL, XLT)	240-amp (XL, XLT)
	240-amp (LARIAT)	332-amp (LARIAT)	397-amp (LARIAT)
Cooling system	Pressurized series flow	Pressurized series flow	Pressurized series flow
Oil life monitor	Intelligent Oil Life Monitor^®	Intelligent Oil Life Monitor^®	Intelligent Oil Life Monitor^®
Cylinders	8	8	8
Cylinder head	Aluminum	Aluminum	Aluminum
Block material	Cast iron	Compacted graphite iron	Cast iron
Valve operation	Roller rocker shaft	Push rod/rocker arms	Push rod/rocker arms
Camshaft drive	Silent chain	Gear	Silent chain
Bore	4.02"	3.90"	4.22"
Stroke	3.74"	4.25"	3.98"
Compression ratio	9.8:1	15.8:1	10.5:1
Horsepower/rpm	385 @ 5750	330 @ 2600	350 @ 3900
Torque lb.-ft./rpm	430 @ 3800	825 @ 2000	468 @ 3900
(1) Certified to SAE J1349.

Engine Specifications
	6.2L SOHC 2-valve Flex Fuel V8 Gas	6.7L Power Stroke® V8 Turbo Diesel	7.3L 2V DEVCT NA PFI V8 Gas
Configuration	SOHC	OHV (32-valve)	OHV (16-valve)
Fuel injection	Sequential Electronic	High-Pressure Common-Rail	Sequential Electronic
Engine control system	Electronic	Electronic	Electronic
Induction system	Specially tuned	Variable Geometry Turbocharger; with charge air cooler	Specially tuned
Battery	12-volt; 650-cca/72-amp-hr	Dual 12-volt; 750-cca/78-amp-hr	12-volt; 750-cca/78-amp-hr
Alternator	200-amp (XL, XLT)	240-amp (XL, XLT)	240-amp (XL, XLT)
	240-amp (LARIAT)	332-amp (LARIAT)	397-amp (LARIAT)
Cooling system	Pressurized series flow	Pressurized series flow	Pressurized series flow
Oil life monitor	Oil Life Monitor^®	Intelligent Oil Life Monitor^®	Oil Life Monitor^®
Cylinders	8	8	8
Cylinder head	Aluminum	Aluminum	Aluminum
Block material	Cast iron	Compacted graphite iron	Cast iron
Valve operation	Roller rocker shaft	Push rod/rocker arms	Push rod/rocker arms
Camshaft drive	Silent chain	Gear	Silent chain
Bore	4.02"	3.90"	4.22"
Stroke	3.74"	4.25"	3.98"
Compression ratio	9.8:1	15.8:1	10.5:1
Horsepower/rpm	385 @ 5750	330 @ 2600	350 @ 3900
Torque lb.-ft./rpm	430 @ 3800	825 @ 2000	468 @ 3900
(1) Certified to SAE J1349.

Transmission Specifications

Switch to Imperial Units Switch to Metric Units

Transmission Type	TorqShift^® 10-speed Automatic Transmission with selectable drive modes
Case material	Aluminum
Power Takeoff	Drivers Side
Gear ratios	10

Transmission Type	TorqShift^® 10-speed Automatic Transmission with selectable drive modes
Case material	Aluminum
Power Takeoff	Drivers Side
Gear ratios	10

Chassis

Switch to Imperial Units Switch to Metric Units

Suspension - Front
Chassis Specifications
FRONT SUSPENSION
Type	Twin-I-Beam (F-350 4x2)
	Solid Twin-Coil Monobeam axle (F-350 4x4, F-450/F-550/F-600)
Max. Front GAWR	3,402 kg.
Springs	Coil
Shock absorbers	Gas type
Stabilizer bar	Standard

REAR SUSPENSION
Type	Solid axle
Max. Rear GAWR	7,030 kg.
Springs	Leaf
Shock absorbers	Gas type
Stabilizer bar	Standard

STEERING
Assist	Power Hydraulic
BRAKES
Type	4-wheel vented-disc ABS (standard)
Front (rotor diameter)	363 mm F-250/ F-350
	391 mm F-450
Rear (rotor diameter)	363 mm F-250/ F-350
	400 mm F-450/F-550/F-600
WHEELS
Type	Steel or aluminum
Size	17" SRW/DRW 18" SRW (F-350) 19.5x6.00" (F-450/F-550) 19.5x6.75" (F-600)
Number of studs	8 (F-350) 10 (F-450/F-550/F-600)
Bolt-circle diameter	170 mm F-350 SRW
	200 mm f-350 DRW
	225 mm F-450/F-550/F-600

Suspension - Front
Chassis Specifications
FRONT SUSPENSION
Type	Twin-I-Beam (F-350 4x2)
	Solid Twin-Coil Monobeam axle (F-350 4x4, F-450/F-550/F-600)
Max. Front GAWR	7,500 lbs.
Springs	Coil
Shock absorbers	Gas type
Stabilizer bar	Standard

REAR SUSPENSION
Type	Solid axle
Max. Rear GAWR	15,500 lbs.
Springs	Leaf
Shock absorbers	Gas Type
Stabilizer bar	Standard

STEERING
Assist	Power Hydraulic
BRAKES
Type	4-wheel vented-disc ABS (standard)
Front (rotor diameter)	14.29" F-250/ F-350
	15.39" F-450
Rear (rotor diameter)	14.29" F-250/ F-350
	15.75" F-450/F-550/F-600
WHEELS
Type	Steel or aluminum
Size	17" SRW/DRW 18" SRW (F-350) 19.5x6.00" (F-450/F-550) 19.5x6.75" (F-600)
Number of studs	8 (F-350) 10 (F-450/F-550/F-600)
Bolt-circle diameter	6.7" F-350 SRW
	7.87" F-350 DRW
	8.86" F-450/F-550/F-600

Conventional Towing(1) (2) - F-350/ F-450/ F-550/F-600 - Regular Chassis Cab

Switch to Imperial Units Switch to Metric Units

Trailer weights shown assume 875-lb.–1,000-lb. second-unit body weight. Be sure combined weight of vehicle and trailer does not exceed listed GCWR.
Maximum Loaded Trailer Weight			Reg. Cab	Reg. Cab	Reg. Cab	Reg. Cab	Reg. Cab	Reg. Cab	Reg. Cab	Reg. Cab	Reg. Cab	Reg. Cab
			F-350	F-350	F-350	F-350	F-450	F-450	F-550	F-550	F-600	F-600
			4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4
Engine with Automatic Transmission	Axle Ratio	GCWR	SRW	SRW	DRW	DRW	DRW	DRW	DRW	DRW	DRW	DRW
		kg	kg	kg	kg	kg	kg	kg	kg	kg	kg	kg
6.2L 2 Valve Gas SOHC EFI NA V8 (Flex-Fuel) Engine	3.73 SRW	8,845	5,987	5,761	-	-	-	-	-	-	-	-
	4.30 SRW	10,433	6,123	6,123	-	-	-	-	-	-	-	-
	3.73 DRW	9,072	-	-	5,897	5,715	-	-	-	-	-	-
	4.30 DRW	10,659	-	-	7,484	7,303	-	-	-	-	-	-
6.7L 4-Valve Power Stroke^® Diesel V8 (B20) Engine	4.10 DRW	9,072	-	-	-	-	-	-	-	-	-	-
	3.73 SRW	13,608	6,123	6,123	-	-	-	-	-	-	-	-
	3.73 DRW	14,288	-	-	7,938	7,938	7,938	7,938	8,391	8,391	-	-
	4.10 DRW	14,742	-	-	7,938	7,938	-	-	8,391	8,391	-	-
	4.88 DRW	14,742	-	-	-	-	7,938	7,938	-	-	-	-
	4.30 DRW	15,876	-	-	-	-	-	-	8,391	8,391	-	-
	4.30 DRW	16,783	-	-	-	-	-	-	8,391	8,391	-	-
	4.88 DRW	18,144	-	-	-	-	-	-	-	-	-	-
	4.88 DRW	19,504	-	-	-	-	-	-	-	-	-	-
7.3L 2V DEVCT NA PFI V8 Gas Engine	3.73 DRW	10,206	-	-	7,031	6,849	-	-	-	-	-	-
	4.30 SRW	11,793	6,123	6,123	-	-	-	-	-	-	-	-
	4.30 DRW	11,793	-	-	7,938	7,938	-	-	-	-	-	-
	4.88 DRW	12,701	-	-	-	-	7,938	7,938	8,391	8,391	-	-
	4.88 DRW	13,608	-	-	-	-	-	-	-	-	8,391	8,391
Super Duty Chassis Cab does not offer a conventional hitch receiver as a factory-installed option.

Trailer weights shown assume 875-lb.–1,000-lb. second-unit body weight. Be sure combined weight of vehicle and trailer does not exceed listed GCWR.
Maximum Loaded Trailer Weight			Reg. Cab	Reg. Cab	Reg. Cab	Reg. Cab	Reg. Cab	Reg. Cab	Reg. Cab	Reg. Cab	Reg. Cab	Reg. Cab
			F-350	F-350	F-350	F-350	F-450	F-450	F-550	F-550	F-650	F-650
			4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4
Engine with Automatic Transmission	Axle Ratio	GCWR	SRW	SRW	DRW	DRW	DRW	DRW	DRW	DRW	DRW	DRW
		lbs.	lbs.	lbs.	lbs.	lbs.	lbs.	lbs.	lbs.	lbs.	lbs.	lbs.
6.2L 2 Valve Gas SOHC EFI NA V8 (Flex-Fuel) Engine	3.73 SRW	19,500	13,200	12,700	-	-	-	-	-	-	-	-
	4.30 SRW	23,000	13,500	13,500	-	-	-	-	-	-	-	-
	3.73 DRW	20,000	-	-	13,000	12,600	-	-	-	-	-	-
	4.30 DRW	23,500	-	-	16,500	16,100	-	-	-	-	-	-
6.7L 4-Valve Power Stroke^® Diesel V8 (B20) Engine	4.10 DRW	20,000	-	-	-	-	-	-	-	-	-	-
	3.73 SRW	30,000	13,500	13,500	-	-	-	-	-	-	-	-
	3.73 DRW	31,500	-	-	17,500	17,500	-	-	-	-	-	-
	4.10 DRW	32,500	-	-	17,500	17,500	17,500	17,500	18,500	18,500	-	-
	4.88 DRW	32,500	-	-	-	-	-	-	18,500	18,500	-	-
	4.30 DRW	35,000	-	-	-	-	17,500	17,500	-	-	-	-
	4.30 DRW	37,000	-	-	-	-	-	-	18,500	18,500	-	-
	4.88 DRW	40,000	-	-	-	-	-	-	18,500	18,500	-	-
	4.88 DRW	43,000	-	-	-	-	-	-	-	-	18,500	18,500
7.3L 2V DEVCT NA PFI V8 Gas Engine	3.73 DRW	22,500	-	-	15,500	15,100	-	-	-	-	-	-
	4.30 SRW	26,000	13,500	13,500	-	-	-	-	-	-	-	-
	4.30 DRW	26,000	-	-	17,500	17,500	-	-	-	-	-	-
	4.88 DRW	28,000	-	-	-	-	17,500	17,500	18,500	18,500	-	-
	4.88 DRW	30,000	-	-	-	-	-	-	-	-	18,500	18,500
Super Duty Chassis Cab does not offer a conventional hitch receiver as a factory-installed option.

Conventional Towing(1) (2) - F-350/ F-450/ F-550 - SuperCab Chassis Cab

Switch to Imperial Units Switch to Metric Units

Trailer weights shown assume 875-lb.–1,000-lb. second-unit body weight. Be sure combined weight of vehicle and trailer does not exceed listed GCWR.
Maximum Loaded Trailer Weight			SuperCab	SuperCab	SuperCab	SuperCab	SuperCab	SuperCab	SuperCab	SuperCab
			F-350	F-350	F-350	F-350	F-450	F-450	F-550	F-550
			4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4
Engine with Automatic Transmission	Axle Ratio	GCWR	SRW	SRW	DRW	DRW	DRW	DRW	DRW	DRW
		kg	kg	kg	kg	kg	kg	kg	kg	kg
6.2L 2 Valve Gas SOHC EFI NA V8 (Flex-Fuel) Engine	3.73 SRW	8,845	5,851	5,625	-	-	-	-	-
	4.30 SRW	10,433	6,123	6,123	-	-	-	-	-	-
	3.73 DRW	9,072	-	-	5,761	5,579	-	-	-	-
	4.30 DRW	10,659	-	-	7,348	7,167	-	-	-	-
6.7L 4-Valve Power Stroke^® Diesel V8 (B20) Engine	4.10 DRW	9,072	-	-	-	-	-	-	-	-
	3.73 SRW	13,608	6,123	6,123	-	-	-	-	-	-
	3.73 DRW	14,288	-	-	7,938	7,938	-	-	-	-
	4.10 DRW	14,742	-	-	7,938	7,938	7,938	7,938	8,391	8,391
	4.88 DRW	14,742	-	-	-	-	-	-	8,391	8,391
	4.30 DRW	15,876	-	-	-	-	7,938	7,938	-	-
	4.30 DRW	16,783	-	-	-	-	-	-	8,391	8,391
	4.88 DRW	18,144	-	-	-	-	-	-	8,391	8,391
7.3L 2V DEVCT NA PFI V8 Gas Engine	3.73 DRW	10,206	-	-	6,895	6,713	-	-	-	-
	4.30 SRW	11,793	6,123	6,123	-	-	-	-	-	-
	4.30 DRW	11,793	-	-	7,938	7,938	-		-	-
	4.88 DRW	12,701	-	-	-	-	7,938	7,938	8,391	8,391
Super Duty Chassis Cab does not offer a conventional hitch receiver as a factory-installed option.

Trailer weights shown assume 875-lb.–1,000-lb. second-unit body weight. Be sure combined weight of vehicle and trailer does not exceed listed GCWR.
Maximum Loaded Trailer Weight			SuperCab	SuperCab	SuperCab	SuperCab	SuperCab	SuperCab	SuperCab	SuperCab
			F-350	F-350	F-350	F-350	F-450	F-450	F-550	F-550
			4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4
Engine with Automatic Transmission	Axle Ratio	GCWR	SRW	SRW	DRW	DRW	DRW	DRW	DRW	DRW
		lbs.	lbs.	lbs.	lbs.	lbs.	lbs.	lbs.	lbs.	lbs.
6.2L 2 Valve Gas SOHC EFI NA V8 (Flex-Fuel) Engine	3.73 SRW	19,500	12,900	12,400	-	-	-	-	-	-
	4.30 SRW	23,000	13,500	13,500	-	-	-	-	-	-
	3.73 DRW	20,000	-	-	12,700	12,300	-	-	-	-
	4.30 DRW	23,500	-	-	16,200	15,800	-	-	-	-
6.7L 4-Valve Power Stroke^® Diesel V8 (B20) Engine	4.10 DRW	20,000	-	-	-	-	-	-	-	-
	3.73 SRW	30,000	13,500	13,500	-	-	-	-	-	-
	3.73 DRW	31,500	-	-	17,500	17,500	-	-	-	-
	4.10 DRW	32,500	-	-	17,500	17,500	17,500	17,500	18,500	18,500
	4.88 DRW	32,500	-	-	-	-	-	-	18,500	18,500
	4.30 DRW	35,000	-	-	-	-	17,500	17,500	-	-
	4.30 DRW	37,000	-	-	-	-	-	-	18,500	18,500
	4.88 DRW	40,000	-	-	-	-	-	-	18,500	18,500
7.3L 2V DEVCT NA PFI V8 Gas Engine	3.73 DRW	22,500	-	-	15,200	14,800	-	-	-	-
	4.30 SRW	26,000	13,500	13,500	-	-	-	-	-	-
	4.30 DRW	26,000	-	-	17,500	17,500	-	-	-	-
	4.88 DRW	28,000	-	-	-	-	17,500	17,500	18,500	18,500
Super Duty Chassis Cab does not offer a conventional hitch receiver as a factory-installed option.

Conventional Towing(1) (2) - F-350/ F-450/ F-550 - Crew Cab Chassis Cab

Switch to Imperial Units Switch to Metric Units

Trailer weights shown assume 875-lb.–1,000-lb. second-unit body weight. Be sure combined weight of vehicle and trailer does not exceed listed GCWR.
Maximum Loaded Trailer Weight			Crew Cab	Crew Cab	Crew Cab	Crew Cab	Crew Cab	Crew Cab	Crew Cab	Crew Cab
			F-350	F-350	F-350	F-350	F-450	F-450	F-550	F-550
			4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4
Engine with Automatic Transmission	Axle Ratio	GCWR	SRW	SRW	DRW	DRW	DRW	DRW	DRW	DRW
		kg	kg	kg	kg	kg	kg	kg	kg	kg
6.2L 2 Valve Gas SOHC EFI NA V8 (Flex-Fuel) Engine	3.73 SRW	8,845	5,715	5,534	-	-	-	-	-	-
	4.30 SRW	10,433	6,123	6,123	-	-	-	-	-	-
	3.73 DRW	9,072	-	-	5,670	5,488	-	-	-	-
	4.30 DRW	10,659	-	-	7,257	7,076	-	-	-	-
6.7L 4-Valve Power Stroke^® Diesel V8 (B20) Engine	4.10 DRW	9,072	-	-	-	-	-	-	-	-
	3.73 SRW	13,608	6,123	6,123	-	-	-	-	-	-
	3.73 DRW	14,288	-	-	7,938	7,938	-	-	-	-
	4.10 DRW	14,742	-	-	7,938	7,938	7,938	7,938	8,391	8,391
	4.88 DRW	14,742	-	-	-	-	-	-	8,391	8,391
	4.30 DRW	15,876	-	-	-	-	7,938	7,938	-	-
	4.30 DRW	16,783	-	-	-	-	-	-	8,391	8,391
	4.88 DRW	18,144	-	-	-	-	-	-	8,391	8,391
7.3L 2V DEVCT NA PFI V8 Gas Engine	3.73 DRW	10,206	-	-	6,804	6,622	-	-	-	-
	4.30 SRW	11,793	6,123	6,123	-	-	-	-	-	-
	4.30 DRW	11,793	-	-	7,938	7,938	-	-	-	-
	4.88 DRW	12,701	-	-	-	-	7,938	7,938	8,391	8,391
Super Duty Chassis Cab does not offer a conventional hitch receiver as a factory-installed option.

Trailer weights shown assume 875-lb.–1,000-lb. second-unit body weight. Be sure combined weight of vehicle and trailer does not exceed listed GCWR.
Maximum Loaded Trailer Weight			Crew Cab	Crew Cab	Crew Cab	Crew Cab	Crew Cab	Crew Cab	Crew Cab	Crew Cab
			F-350	F-350	F-350	F-350	F-450	F-450	F-550	F-550
			4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4
Engine with Automatic Transmission	Axle Ratio	GCWR	SRW	SRW	DRW	DRW	DRW	DRW	DRW	DRW
		lbs.	lbs.	lbs.	lbs.	lbs.	lbs.	lbs.	lbs.	lbs.
6.2L 2 Valve Gas SOHC EFI NA V8 (Flex-Fuel) Engine	3.73 SRW	19,500	12,600	12,200	-	-	-	-	-	-
	4.30 SRW	23,000	13,500	13,500	-	-	-	-	-	-
	3.73 DRW	20,000	-	-	12,500	12,100	-	-	-	-
	4.30 DRW	23,500	-	-	16,000	15,600	-	-	-	-
6.7L 4-Valve Power Stroke^® Diesel V8 (B20) Engine	4.10 DRW	20,000	-	-	-	-	-	-	-	-
	3.73 SRW	30,000	13,500	13,500	-	-	-	-	-	-
	3.73 DRW	31,500	-	-	17,500	17,500	-	-	-	-
	4.10 DRW	32,500	-	-	17,500	17,500	17,500	17,500	18,500	18,500
	4.88 DRW	32,500	-	-	-	-	-	-	18,500	18,500
	4.30 DRW	35,000	-	-	-	-	17,500	17,500	-	-
	4.30 DRW	37,000	-	-	-	-	-	-	18,500	18,500
	4.88 DRW	40,000	-	-	-	-	-	-	18,500	18,500
7.3L 2V DEVCT NA PFI V8 Gas Engine	3.73 DRW	22,500	-	-	15,000	14,600	-	-	-	-
	4.30 SRW	26,000	13,500	13,500	-	-	-	-	-	-
	4.30 DRW	26,000	-	-	17,500	17,500	-	-	-	-
	4.88 DRW	28,000	-	-	-	-	17,500	17,500	18,500	18,500
Super Duty Chassis Cab does not offer a conventional hitch receiver as a factory-installed option.

5th-Wheel Towing - F-350/ F-450/ F-550 /F-600 - Regular Chassis Cab

Switch to Imperial Units Switch to Metric Units

Trailer weights shown assume 875-lb.–1,000-lb. second-unit body weight. Be sure combined weight of vehicle and trailer does not exceed listed GCWR.
Maximum Loaded Trailer Weight			Reg. Cab	Reg. Cab	Reg. Cab	Reg. Cab	Reg. Cab	Reg. Cab	Reg. Cab	Reg. Cab	Reg. Cab	Reg. Cab
			F-350	F-350	F-350	F-350	F-450	F-450	F-550	F-550	F-600	F-600
			4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4
Engine with Automatic Transmission	Axle Ratio	GCWR	SRW	SRW	DRW	DRW	DRW	DRW	DRW	DRW	DRW	DRW
		kg	kg	kg	kg	kg	kg	kg	kg	kg	kg	kg
6.2L 2 Valve Gas SOHC EFI NA V8 (Flex-Fuel) Engine	3.73 SRW	8,845	5,942	5,761	-	-	-	-	-	-	-	-
	4.30 SRW	10,433	7,530	7,348	-	-	-	-	-	-	-	-
	3.73 DRW	9,072	-	-	5,897	5,715	-	-	-	-	-	-
	4.30 DRW	10,659	7,484	7,303	-	-	-	-	-	-	-	-
6.7L 4-Valve Power Stroke^®Diesel V8 (B20) Engine	4.10 DRW	9,072	-	-	-	-	-	-	-	-	-	-
	3.73 SRW	13,608	10,297	10,070	-	-	-	-	-	-	-	-
	3.73 DRW	14,288	-	-	10,750	10,569	-	-	-	-	-	-
	4.10 DRW	14,742	-	-	11,204	11,022	10,932	10,795	10,932	10,795	-	-
	4.88 DRW	14,742	-	-	-	-	-	-	10,932	10,795	-	-
	4.30 DRW	15,876	-	-	-	-	12,066	11,929	-	-	-	-
	4.30 DRW	16,783	-	-	-	-	-	-	12,973	12,837	-	-
	4.88 DRW	18,144	-	-	-	-	-	-	14,334	14,197	-	-
	4.88 DRW	19,504	-	-	-	-	-	-	-	-	15,649	15,513
7.3L 2V DEVCT NA PFI V8 Gas Engine	3.73 DRW	10,206	-	-	7,031	6,849	-	-	-	-	-	-
	4.30 DRW	11,793	-	-	8,618	8,437	-	-	-	-	-	-
	4.30 SRW	11,793	8,890	8,709	-	-	-	-	-	-	-	-
	4.88 DRW	12,701	-	-	-	-	9,253	9,117	9,253	9,117	-	-
	4.88 DRW	13,608	-	-	-	-	-	-	-	-	10,070	9,934
Super Duty Chassis Cab does not offer a conventional hitch receiver as a factory-installed option.

Trailer weights shown assume 875-lb.–1,000-lb. second-unit body weight. Be sure combined weight of vehicle and trailer does not exceed listed GCWR.
Maximum Loaded Trailer Weight			Reg. Cab	Reg. Cab	Reg. Cab	Reg. Cab	Reg. Cab	Reg. Cab	Reg. Cab	Reg. Cab	Reg. Cab	Reg. Cab
			F-350	F-350	F-350	F-350	F-450	F-450	F-550	F-550	F-600	F-600
			4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4
Engine with Automatic Transmission	Axle Ratio	GCWR	SRW	SRW	DRW	DRW	DRW	DRW	DRW	DRW	DRW	DRW
		lbs.	lbs.	lbs.	lbs.	lbs.	lbs.	lbs.	lbs.	lbs.	lbs.	lbs.
6.2L 2 Valve Gas SOHC EFI NA V8 (Flex-Fuel) Engine	3.73 SRW	19,500	13,100	12,700	-	-	-	-	-	-	-	-
	4.30 SRW	23,000	16,600	16,200	-	-	-	-	-	-	-	-
	3.73 DRW	20,000	-	-	13,000	12,600	-	-	-	-	-	-
	4.30 DRW	23,500	16,500	16,100	-	-	-	-	-	-	-	-
6.7L 4-Valve Power Stroke^®Diesel V8 (B20) Engine	4.10 DRW	20,000	-	-	-	-	-	-	-	-	-	-
	3.73 SRW	30,000	22,700	22,200	-	-	-	-	-	-	-	-
	3.73 DRW	31,500	-	-	23,700	23,300	-	-	-	-	-	-
	4.10 DRW	32,500	-	-	24,700	24,300	24,100	23,800	24,100	23,800	-	-
	4.88 DRW	32,500	-	-	-	-	-	-	24,100	23,800	-	-
	4.30 DRW	35,000	-	-	-	-	26,600	26,300	-	-	-	-
	4.30 DRW	37,000	-	-	-	-	-	-	28,600	28,300	-	-
	4.88 DRW	40,000	-	-	-	-	-	-	31,600	31,300	-	-
	4.88 DRW	43,000	-	-	-	-	-	-	-	-	34,500	34,200
7.3L 2V DEVCT NA PFI V8 Gas Engine	3.73 DRW	22,500	-	-	15,500	15,100	-	-	-	-	-	-
	4.30 DRW	26,000	-	-	19,000	18,600	-	-	-	-	-	-
	4.30 SRW	26,000	19,600	19,200	-	-	-	-	-	-	-	-
	4.88 DRW	28,000	-	-	-	-	20,400	20,100	20,400	20,100	-	-
	4.88 DRW	30,000	-	-	-	-	-	-	-	-	22,200	21,900
Super Duty Chassis Cab does not offer a conventional hitch receiver as a factory-installed option.

5th-Wheel Towing - F-350/ F-450/ F-550 - SuperCab Chassis Cab

Switch to Imperial Units Switch to Metric Units

Trailer weights shown assume 875-lb.–1,000-lb. second-unit body weight. Be sure combined weight of vehicle and trailer does not exceed listed GCWR.
Maximum Loaded Trailer Weight			SuperCab	SuperCab	SuperCab	SuperCab	SuperCab	SuperCab	SuperCab	SuperCab
			F-350	F-350	F-350	F-350	F-450	F-450	F-550	F-550
			4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4
Engine with Automatic Transmission	Axle Ratio	GCWR	SRW	SRW	DRW	DRW	DRW	DRW	DRW	DRW
		kg	kg	kg	kg	kg	kg	kg	kg	kg
6.2L 2 Valve Gas SOHC EFI NA V8 (Flex-Fuel) Engine	3.73 SRW	8,845	5,806	5,625	-	-	-	-	-	-
	4.30 SRW	10,433	7,394	7,212	-	-	-	-	-	-
	3.73 DRW	9,072	5,715	5,534	-	-	-	-	-	-
	4.30 DRW	10,659	-	-	7,303	7,121	-	-	-	-
6.7L 4-Valve Power Stroke^® Diesel V8 (B20) Engine	4.10 DRW	9,072	-	-	-	-	-	-	-	-
	3.73 SRW	13,608	10,115	9,934	-	-	-	-	-	-
	3.73 DRW	14,288	-	-	10,614	10,433	-	-	-	-
	4.10 DRW	14,742	-	-	11,068	10,886	10,795	10,659	10,795	10,659
	4.88 DRW	14,742	-	-	-	-	-	-	10,795	10,614
	4.30 DRW	15,876	-	-	-	-	11,929	11,793	-	-
	4.30 DRW	16,783	-	-	-	-	-	-	12,837	12,701
	4.88 DRW	18,144	-	-	-	-	-	-	14,179	14,016
7.3L 2V DEVCT NA PFI V8 Gas Engine	3.73 DRW	10,206	-	-	6,849	6,668	-	-	-	-
	4.30 DRW	11,793	-	-	8,437	8,255	-	-	-	-
	4.30 SRW	11,793	8,754	8,528	-	-	-	-	-	-
	4.88 DRW	12,701	-	-	-	-	9,117	8,936	9,117	8,936
Super Duty Chassis Cab does not offer a conventional hitch receiver as a factory-installed option.

Trailer weights shown assume 875-lb.–1,000-lb. second-unit body weight. Be sure combined weight of vehicle and trailer does not exceed listed GCWR.
Maximum Loaded Trailer Weight			SuperCab	SuperCab	SuperCab	SuperCab	SuperCab	SuperCab	SuperCab	SuperCab
			F-350	F-350	F-350	F-350	F-450	F-450	F-550	F-550
			4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4
Engine with Automatic Transmission	Axle Ratio	GCWR	SRW	SRW	DRW	DRW	DRW	DRW	DRW	DRW
		lbs.	lbs.	lbs.	lbs.	lbs.	lbs.	lbs.	lbs.	lbs.
6.2L 2 Valve Gas SOHC EFI NA V8 (Flex-Fuel) Engine	3.73 SRW	19,500	12,800	12,400	-	-	-	-	-	-
	4.30 SRW	23,000	16,300	15,900	-	-	-	-	-	-
	3.73 DRW	20,000	12,600	12,200	-	-	-	-	-	-
	4.30 DRW	23,500	-	-	16,100	15,700	-	-	-	-
6.7L 4-Valve Power Stroke^® Diesel V8 (B20) Engine	4.10 DRW	20,000	-	-	-	-	-	-	-	-
	3.73 SRW	30,000	22,300	21,900	-	-	-	-	-	-
	3.73 DRW	31,500	-	-	23,400	23,000	-	-	-	-
	4.10 DRW	32,500	-	-	24,400	24,000	23,800	23,500	23,800	23,500
	4.88 DRW	32,500	-	-	-	-	-	-	23,800	23,400
	4.30 DRW	35,000	-	-	-	-	26,300	26,000	-	-
	4.30 DRW	37,000	-	-	-	-	-	-	28,300	28,000
	4.88 DRW	40,000	-	-	-	-	-	-	31,300	30,900

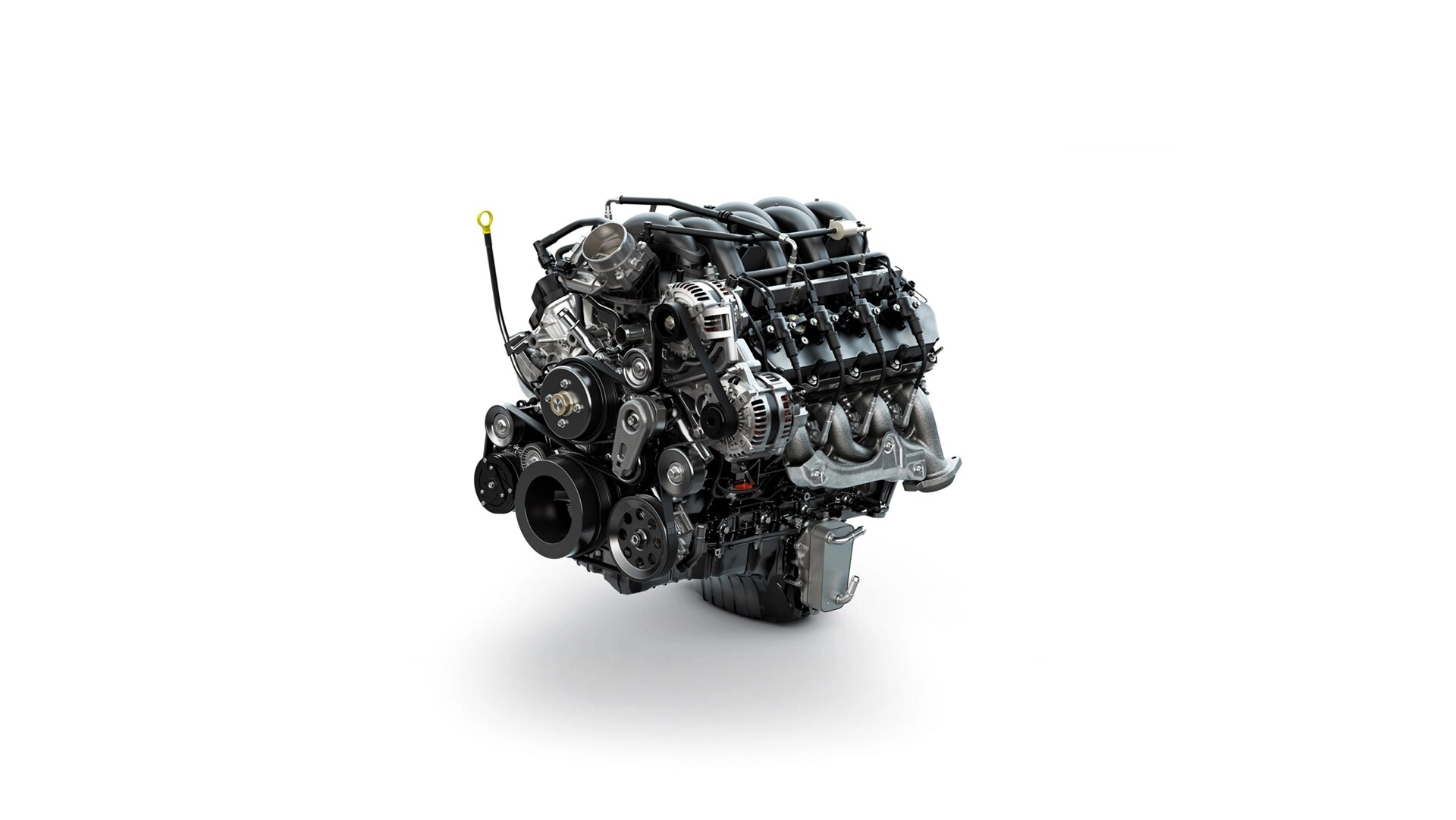

7.3L 2V DEVCT NA PFI V8 Gas Engine	3.73 DRW	22,500	-	-	15,100	14,700	-	-	-	-
	4.30 DRW	26,000	-	-	18,600	18,200	-	-	-	-
	4.30 SRW	26,000	19,300	18,800	-	-	-	-	-	-
	4.88 DRW	28,000	-	-	-	-	20,100	19,700	20,100	19,700
Super Duty Chassis Cab does not offer a conventional hitch receiver as a factory-installed option.

5th-Wheel Towing - F-350/ F-450/ F-550 - Crew Cab Chassis Cab

Switch to Imperial Units Switch to Metric Units

Trailer weights shown assume 875-lb.–1,000-lb. second-unit body weight. Be sure combined weight of vehicle and trailer does not exceed listed GCWR.
Maximum Loaded Trailer Weight			Crew Cab	Crew Cab	Crew Cab	Crew Cab	Crew Cab	Crew Cab	Crew Cab	Crew Cab
			F-350	F-350	F-350	F-350	F-450	F-450	F-550	F-550
			4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4
Engine with Automatic Transmission	Axle Ratio	GCWR	SRW	SRW	DRW	DRW	DRW	DRW	DRW	DRW
		kg	kg	kg	kg	kg	kg	kg	kg	kg
6.2L 2 Valve Gas SOHC EFI NA V8 (Flex-Fuel) Engine	3.73 SRW	8,845	5,715	5,534	-	-	-	-	-	-
	4.30 SRW	10,433	7,303	7,121	-	-	-	-	-	-
	3.73 DRW	9,072	-	-	5,670	5,488	-	-	-	-
	4.30 DRW	10,659	-	-	7,257	7,076	-	-	-	-
6.7L 4-Valve Power Stroke^® Diesel V8 (B20) Engine	4.10 DRW	9,072	-	-	-	-	-	-	-	-
	3.73 SRW	13,608	10,024	9,662	-	-	-	-	-	-
	3.73 DRW	14,288	-	-	10,523	10,342	-	-	-	-
	4.10 DRW	14,742	-	-	10,977	10,795	10,750	10,614	10,750	10,614
	4.88 DRW	14,742	-	-	-	-	-	-	10,705	10,569
	4.30 DRW	15,876	-	-	-	-	11,884	11,748	-	-
	4.30 DRW	16,783	-	-	-	-	-	-	12,791	12,655
	4.88 DRW	18,144	-	-	-	-	-	-	14,107	13,971
7.3L 2V DEVCT NA PFI V8 Gas Engine	3.73 DRW	10,206	-	-	6,804	6,622	-	-	-	-
	4.30 DRW	11,793	-	-	8,391	8,210	-	-	-	-
	4.30 SRW	11,793	8,664	8,391	-	-	-	-	-	-
	4.88 DRW	12,701	-	-	-	-	9,026	8,890	9,026	8,890
Super Duty Chassis Cab does not offer a conventional hitch receiver as a factory-installed option.

Trailer weights shown assume 875-lb.–1,000-lb. second-unit body weight. Be sure combined weight of vehicle and trailer does not exceed listed GCWR.
Maximum Loaded Trailer Weight			Crew Cab	Crew Cab	Crew Cab	Crew Cab	Crew Cab	Crew Cab	Crew Cab	Crew Cab
			F-350	F-350	F-350	F-350	F-450	F-450	F-550	F-550
			4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4
Engine with Automatic Transmission	Axle Ratio	GCWR	SRW	SRW	DRW	DRW	DRW	DRW	DRW	DRW
		lbs.	lbs.	lbs.	lbs.	lbs.	lbs.	lbs.	lbs.	lbs.
6.2L 2 Valve Gas SOHC EFI NA V8 (Flex-Fuel) Engine	3.73 SRW	19,500	12,600	12,200	-	-	-	-	-	-
	4.30 SRW	23,000	16,100	15,700	-	-	-	-	-	-
	3.73 DRW	20,000	-	-	12,500	12,100	-	-	-	-
	4.30 DRW	23,500	-	-	16,000	15,600	-	-	-	-
6.7L 4-Valve Power Stroke^®Diesel V8 (B20) Engine	4.10 DRW	20,000	-	-	-	-	-	-	-	-
	3.73 SRW	30,000	22,100	21,300	-	-	-	-	-	-
	3.73 DRW	31,500	-	-	23,200	22,800	-	-	-	-
	4.10 DRW	32,500	-	-	24,200	23,800	23,700	23,400	23,700	23,400
	4.88 DRW	32,500	-	-	-	-	-	-	23,600	23,300
	4.30 DRW	35,000	-	-	-	-	26,200	25,900	-	-
	4.30 DRW	37,000	-	-	-	-	-	-	28,200	27,900
	4.88 DRW	40,000	-	-	-	-	-	-	31,100	30,800
7.3L 2V DEVCT NA PFI V8 Gas Engine	3.73 DRW	22,500	-	-	15,000	14,600	-	-	-	-
	4.30 DRW	26,000	-	-	18,500	18,100	-	-	-	-
	4.30 SRW	26,000	19,100	18,500	-	-	-	-	-	-
	4.88 DRW	28,000	-	-	-	-	19,900	19,600	19,900	19,600
Super Duty Chassis Cab does not offer a conventional hitch receiver as a factory-installed option.

Payload Package Selector

Switch to Imperial Units Switch to Metric Units

Maximum Payload Package Selector
		Regular Cab	Regular Cab	Regular Cab	Regular Cab	SuperCab	SuperCab	Crew Cab	Crew Cab
		3,576 mm WB	14,186 mm WB	4,796 mm WB	5,100 mm WB	4,110 mm WB	4,719 mm WB	4,475 mm WB	5,085 mm WB
	GVWR	1,524 mm CA	2,134 mm CA	2,743 mm CA	3,048 mm CA	1,524 mm CA	2,134 mm CA	WB 1,524 mm CA	2,134 mm CA
	kg	kg	kg	kg	kg	kg	kg	kg	kg
F-350 SRW 4x2	4,445	1,982	-	-	-	1,846	-	1,737	-
	4,536	2,050	-	-	-	1,914	-	1,805	-
	4,763	2,209	-	-	-	-	-	-	-
	4,944	-	-	-	-	2,245	-	-	-
	4,990	-	-	-	-	-	-	-	-
	5,035	2,145	-	-	-	-	-	2,191	-
	5,216	-	-	-	-	2,168	-	-	-
F-350 SRW 4x4	4,445	1,796	-	-	-	1,651	-	1,551	-
	4,536	1,864	-	-	-	1,719	-	1,615	-
	4,944	2,204	-	-	-	-	-	-	-
	5,126	-	-	-	-	2,241	-	-	-
	5,171	-	-	-	-	-	-	2,186	-
	5,216	2,127	-	-	-	1,973	-	1,869	-
F-350 DRW 4x2	6,350	3,602	3,583	-	-	3,447	-	3,384	-
F-350 DRW 4x4	6,350	3,429	3,402	-	-	3,266	-	-	-
F-450 DRW 4x2	6,804	8,324	3,760	3,679	3,651	3,651	3,565	3,574	3,506
	7,257	4,277	4,214	4,132	4,105	4,105	4,019	4,028	3,960
	7,484	4,504	4,441	4,359	4,332	4,332	4,246	4,255	4,187
F-450 DRW 4x4	6,804	3,679	3,606	3,538	3,506	3,488	3,416	3,434	3,375
	7,257	4,132	4,060	3,992	3,960	3,942	3,869	3,887	3,828
	7,484	4,359	4,286	4,218	4,187	4,169	4,096	4,114	4,055
F-550 DRW 4x2	7,938	4,958	4,894	4,813	4,785	4,785	4,699	4,708	4,640
	8,165	5,185	5,121	5,039	5,012	5,012	4,926	4,935	4,867
	8,618	5,579	-	-	-	-	-	-	-
	8,845	5,443	5,783	5,702	5,674	5,674	5,588	5,597	5,529
F-550 DRW 4x4	7,938	4,781	4,740	4,672	4,640	4,622	4,550	4,568	4,509
	8,165	5,008	4,967	4,899	4,867	4,849	4,776	4,794	4,736
	8,618	5,443	-	-	-	-	-	-	-
	8,845	5,330	5,629	5,561	5,529	5,511	5,439	5,457	5,398
F-600 DRW 4x2	9,979	6,845	6,813	6,731	6,709	-	-	-	-
F-600 DRW 4x4	9,979	6,704	6,663	6,595	6,563	-	-	-	-

Maximum Payload Package Selector
		Regular Cab	Regular Cab	Regular Cab	Regular Cab	SuperCab	SuperCab	Crew Cab	Crew Cab
		145.0" WB	169.0" WB	193.0" WB	205" WB	167.5" WB	191.5" WB	179.4" WB	203.4" WB
	GVWR	60" CA	84" CA	108" CA	120" CA	60" CA	84" CA	60" CA	84" CA
	lbs.	lbs.	lbs	lbs.	lbs.	lbs.	lbs.	lbs.	lbs.
F-350 SRW 4x2	9,800	4,370	-	-	-	4,070	-	3,830	-
	10,000	4,520	-	-	-	4,220	-	3,980	-
	10,500	4,870	-	-	-	-	-	-	-
	10,900	-	-	-	-	4,970	-	-

2021 Ford® Super Duty® Chassis Cab Truck F-550 LARIAT | Models & Specs

COMMERCIAL TRUCKS

PERFORMANCE VEHICLES

FUTURE VEHICLES

SUVS & CROSSOVERS

TRUCKS & VANS

ELECTRIFIED

CARS

2021 CHASSIS CAB F-550 LARIAT

Key Features

PowerScope® Telescoping Trailer Tow Mirrors

Power-Adjustable Pedals with Memory

Engine - 6.7L Power Stroke® V8 Turbo Diesel engine

Power and Handling

Power

Standard

Optional

Handling

Standard

Tires

Standard

Optional

Interior Features

Climate

Standard

Comfort and Convenience

Standard

Optional

Entertainment Systems

Standard

Optional

Seating

Standard

Optional

Exterior Features

Appearance

Standard

Optional

Protection

Optional

Windows & Glass

Standard

Safety

Safety

Standard

Optional

Security

Standard

Packages

Packages

Standard

Optional

Specifications

Exterior

Base Curb Weight

Interior

Capacities

Engine

Transmission Specifications

Chassis

Conventional Towing(1) (2) - F-350/ F-450/ F-550/F-600 - Regular Chassis Cab

Conventional Towing(1) (2) - F-350/ F-450/ F-550 - SuperCab Chassis Cab

Conventional Towing(1) (2) - F-350/ F-450/ F-550 - Crew Cab Chassis Cab

5th-Wheel Towing - F-350/ F-450/ F-550 /F-600 - Regular Chassis Cab

5th-Wheel Towing - F-350/ F-450/ F-550 - SuperCab Chassis Cab

5th-Wheel Towing - F-350/ F-450/ F-550 - Crew Cab Chassis Cab

Payload Package Selector

PowerScope^® Telescoping Trailer Tow Mirrors

Engine - 6.7L Power Stroke^® V8 Turbo Diesel engine
