2023 E-Series Cutaway

POWER

MAKE LIGHT WORK OF YOUR WORKLOAD

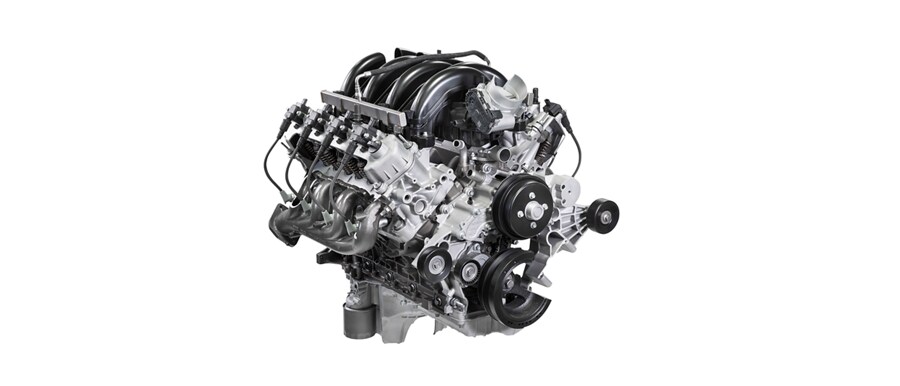

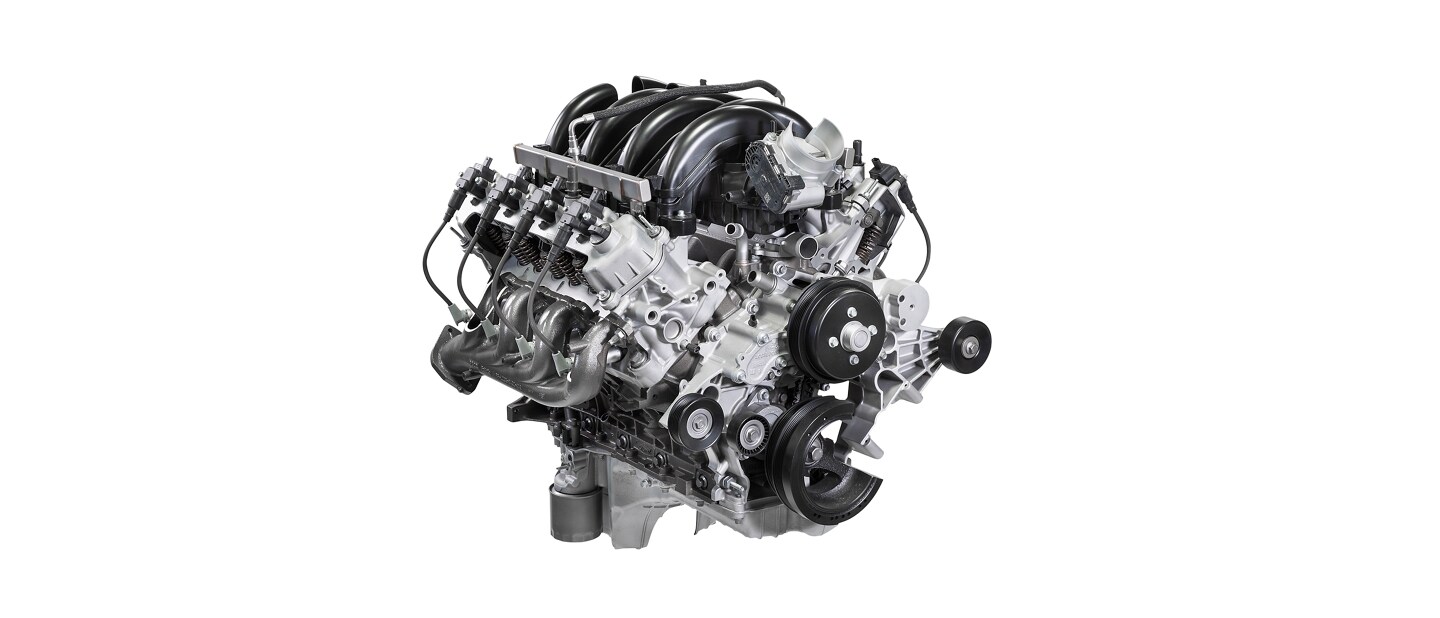

Some applications need low-end muscle for heavy hauling. Others call for balanced overall performance on the highway. Because your vocation has specific power requirements, we offer a standard 7.3L V8 Premium-Rated Engine and an available 7.3L V8 Economy-Rated Engine. Additionally, Ford adds available flex-fuel capability for both premium and economy engines. E-Series with flex-fuel capability can run on gasoline or blends of up to 85 percent ethanol, or E85.

Aftermarket equipment shown.

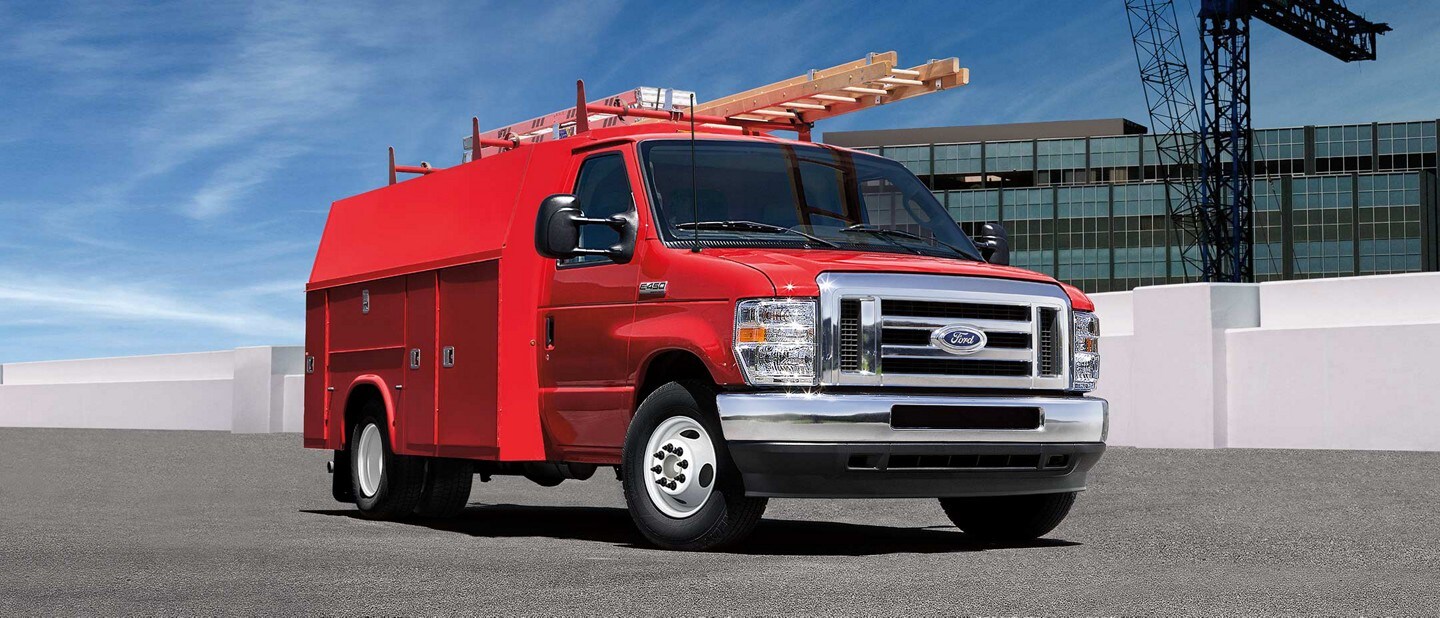

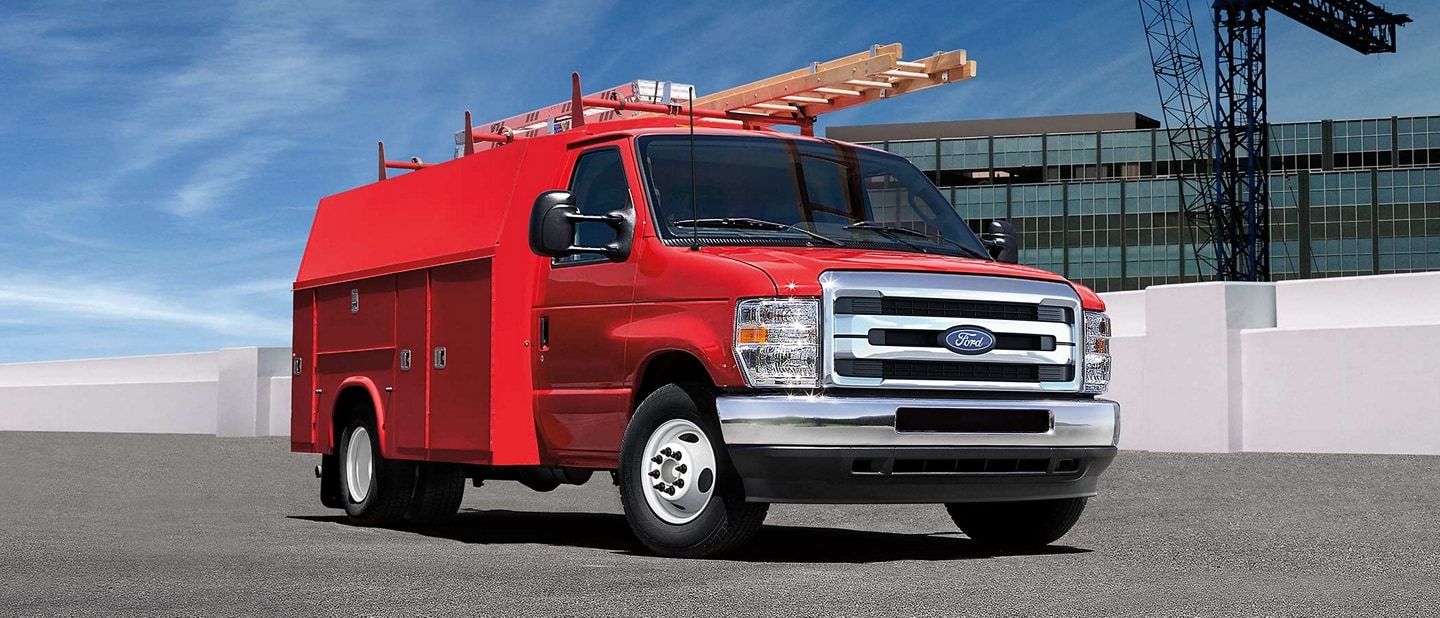

2023 Ford E-Series Cutaway with upfit contractors body hauling a ladder

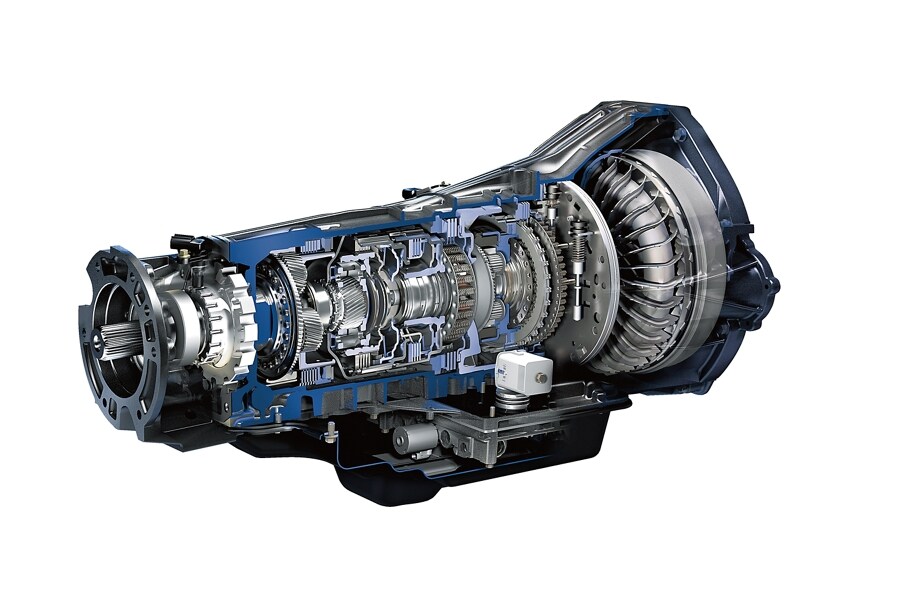

The 6-Speed Ford TorqShift® Automatic Transmission for the 2023 Ford E-Series Cutaway

TORQSHIFT® SELECTSHIFT® AUTOMATIC WITH TOW/HAUL MODE

The Ford TorqShift® 6-Speed Automatic Transmission is designed and built by Ford to handle the high-performance demands of the standard 7.3L V8 Premium-Rated Engine (325 horsepower and 450 lb.-ft. of torque*) and the available 7.3L V8 with an Economy-Rated Engine (300 horsepower and 425 lb.-ft. of torque*). With automatic overdrive, the engine is able to run at lower rpm while maintaining its current speed. The Tow/Haul Mode automatically compensates for altitude, grade and load conditions, and delays transmission upshifts to help reduce the frequency of gear hunting.
*Horsepower and torque ratings are independent attributes and may not be achieved simultaneously.

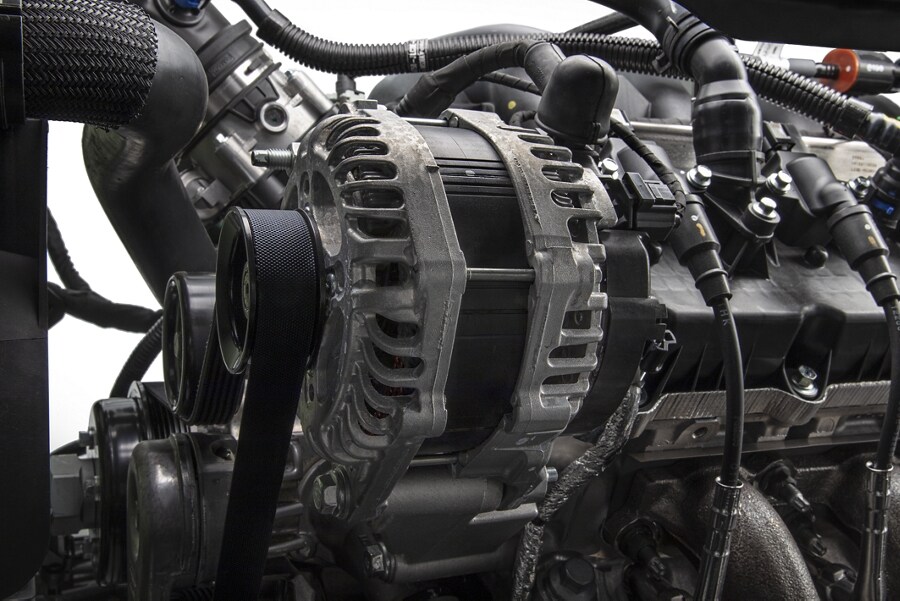

Close-up of the heavy-duty alternators for the 2023 Ford E-Series Cutaway

HEAVY-DUTY ALTERNATORS

The 2023 E-Series Cutaway features an electrical system architecture to help provide efficient operation during your workday. A heavy-duty 210 Amp Alternator is standard with the 7.3L V8 Engine. Optional alternators include a 240 Amp Alternator or a Dual 240/157 Amp Alternator configuration.

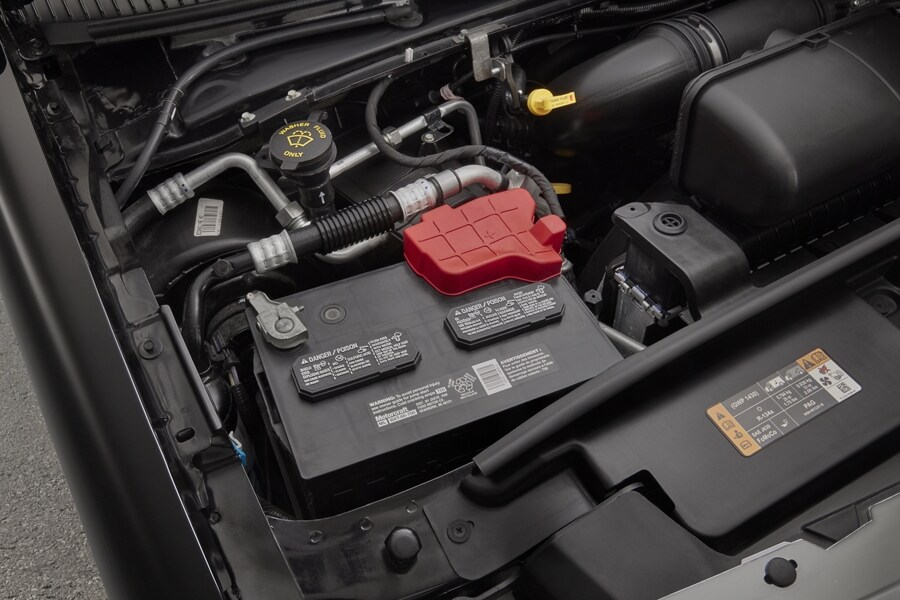

Close-up of the 78 Amp-Hr Battery for the 2023 Ford E-Series Cutaway

78 AMP-HR BATTERY

Included to ensure that you have sufficient power, a 78 Amp-Hr Battery comes standard on all E-Series vehicles. This battery brings energy to your tasks and works at the heart of your mobile business. If one’s not enough, the Ambulance Prep Package comes standard with dual batteries.
