2019 F-650-750

Productivity

2019 Ford F 750 utility truck is being shown in Oxford White on the road

Built to Work Hard. Designed to Help Make Your Job Easy.

In addition to working hard, Ford F-650 and F-750 trucks work smart. The work-ready frame is designed to easily accommodate vocational bodies. The Power Stroke® V8 Turbo Diesel engine monitors the diesel particulate filter (DPF) and initiates DPF regeneration when needed. And then there’s the Intelligent Oil-Life Monitor on the diesel that alerts you when the engine needs an oil change based on actual vehicle usage. Brawn meets brains in Ford Medium Duty trucks.
U.S. Model Shown.
2019 Ford F 750 is being shown in the Race Red exterior color on the road

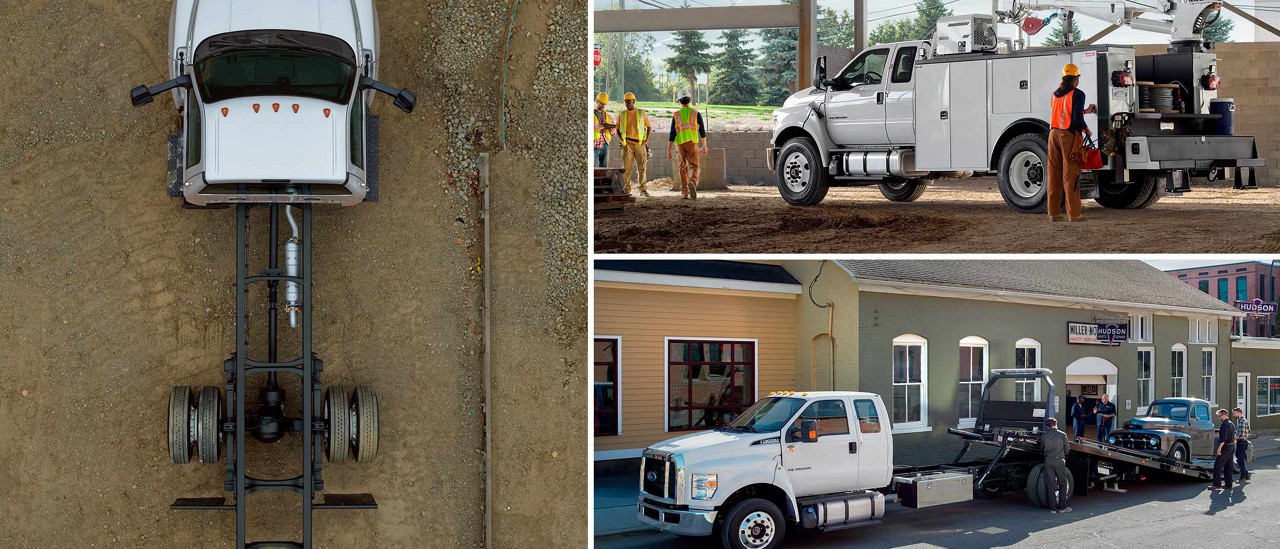

Clean, Easy Upfitting

F-650/F-750 trucks feature a work-ready frame developed with leading upfitters to accommodate most vocational bodies. This collaboration resulted in components such as fuel tanks, wiring harnesses and diesel exhaust fluid reservoirs which are located under the cab instead of behind it on the frame. Choose from 36 standard clean CA offerings (13 Regular Cab, 12 SuperCab, 11 Crew Cab combinations) ranging from 72 to 207 inches (1,829 to 5,258 mm). Ford F-650/F-750 chassis have a standard 34-inch (864 mm) frame width for easy upfitting with any combination.
U.S. Model Shown.
2019 Ford F 650 is being shown in Oxford White at work

Active Regen Control

The Ford Power Stroke® Turbo Diesel offers features to monitor and initiate diesel particulate filter regeneration.


When exhaust soot builds up in the diesel particulate filter (DPF), the engine will need to clear the filter of soot through a process called active regeneration. The Power Stroke® diesel offers an Active Regen Control that delays this auto regeneration if the truck is idling over combustible material such as dry grass. When idling, especially for extended periods of time, the engine doesn’t generate enough heat to automatically clear the DPF. That’s when the standard Manual Regen initiation feature comes in. A light on the instrument panel alerts the driver of the need for regeneration, and pushing a button starts the process of raising the exhaust temperature to burn off the soot in the DPF.10
U.S. Model Shown.

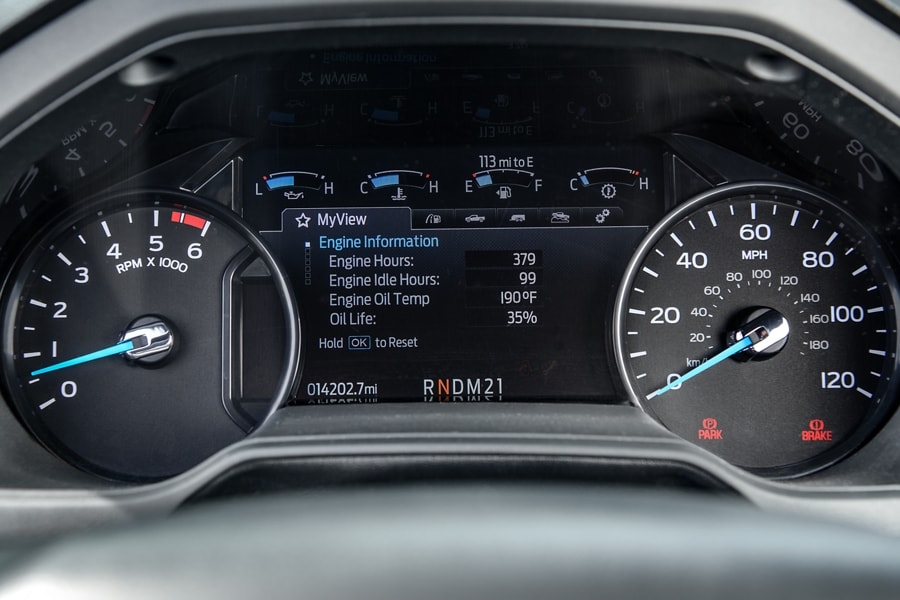

Intelligent Oil Life Monitor tracks oil temperature and filter regen cycles and more

Intelligent Oil-Life Monitor® (Diesel)

The Intelligent Oil-Life Monitor on the 6.7L Power Stroke® Turbo Diesel helps make engine maintenance easy. It tracks oil temperature, filter regeneration cycles, engine idle hours and distance, then alerts you when it’s time to change the oil based on actual vehicle usage.
U.S. Model Shown.

Range of battery capacities

Battery options

Diesel models come with standard dual 750 CCA batteries, with options for dual 900 CCA batteries or triple 900 CCA batteries. Gas models provide single 900 CCA with the option for dual 900 CCA batteries.


2019 Ford F 650 on display in Oxford White with available 3 inch bumper extension

Available Three-Inch Bumper Extension

The three-inch bumper extension helps protect your hood, radiator, grille and headlight turn- signal buckets. That means more time spent on the job – not in the shop.



U.S. Model Shown.
Fuel tank sizes and configurations to suit your application

Fuel Tank Options

Driver-side aluminum* fuel tank options include: 189 litres, 208 litres and 246 litres. Also, an available aluminum dual tank combination: includes 246 litres left-hand side and 189 litres passenger side.



*Aluminum fuel tanks represent a diesel fuel tank while a black fuel tank represents a gas fuel tank.
