Power
Standard
- Twin-Scroll 2.0L EcoBoost® Engine
- 6-Speed Selectshift® Automatic Transmission with Paddle Shifters
Active Grille Shutters (2.0L/2.7L Only)
- Front Aero Ducts (FWD 2.0L EcoBoost®
Models Only)
Key Features
Twin-Scroll 2.0L EcoBoost®
Engine with Auto Start/Stop
In addition to a unique twin-scroll turbocharger, the 2.0L EcoBoost engine2 also features an integrated exhaust manifold optimized for the twin-scroll setup and an active oil control system. A high-pressure direct-injection fuel system delivers the precise amount fuel, and the active wastegate accurately manages boost and torque levels. This technology helps to produce 245 horsepower11 and 275 lb.-ft. of torque11.
...less
*Auto Start/Stop only available on FWD SE
6-Speed Selectshift® Automatic Transmission with Paddle Shifters
You don’t have to know how to drive a manual transmission or learn how to master a clutch to enjoy the sporty feel of shifting gears. Using race-inspired technology, the steering wheel-mounted shifters provide an engaged driving experience by letting you easily and quickly go from gear to gear without taking your hands off the wheel.
...less
18-Inch Aluminum Painted Sparkle Silver Wheels
The 18-inch aluminum painted sparkle silver wheels are standard on the Ford Edge SE.
...lessPower and Handling
Handling
Standard
- 4-wheel Disc Brakes with ABS
- Advancetrac® with Roll Stability Control™ (RSC®)
- Curve Control
- Electronic Power-Assisted Steering (EPAS)
- Front-Wheel Drive (FWD)
- Hill Start Assist
- Independent Front and Rear Suspension
- Auto Start-Stop Technology
- Torque Vectoring Control
- Traction Control
Optional
- Intelligent All-Wheel Drive (AWD)
Wheels & Tires
Standard
- 18-Inch Aluminum Painted Sparkle Silver Wheels
Interior Features
Climate
Standard
- Cabin Air Filter
- Single-Zone Manual Air-Conditioning
Comfort and Convenience
Standard
- Four 12-Volt Powerpoints
- Assist Grab Handles (4)
- Dual-Illuminated Vanity Mirrors with Sliding Feature
- Day/Night Interior Rearview Mirror
- Battery Saver
- Cargo Net
- Compass
- Cup Holders/Bottle Holders (8)
Easy Fuel® Capless Fuel-Filler
- Front and Rear Carpeted Floor Mats
- Front and Rear Dome and Cargo Lights
- Front and Rear Map Lights
- Front Console with Armrest, Storage Tray and (2) Cupholders
- Intelligent Access with Push-Button Start
- Leather-Wrapped Gear Shift Knob
- Locking Glove Box
- Manual Tilt/Telescoping Steering Column
- Map Pockets on Front Seat Backs and All Door Panels
- Overhead Console with Holder for Sunglasses
- Power Door Locks
- Power Windows with One-Touch-Up/Down Driver/Passenger Window Feature
- Smart Charging USB port (1)
- Urethane Steering Wheel with Cruise, Secondary Audio and 5-way Controls

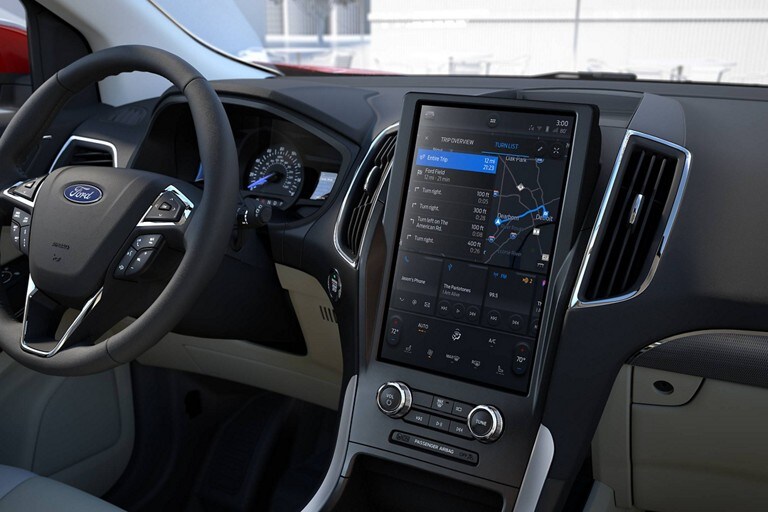

- SYNC®
6
Entertainment Systems
Standard
- AM/FM Single CD Player
Interior Accessories
Optional
- Deep Tray-Style All-Weather Floor Mats
- Dual Head Rest DVD System By INVISION™
Seating
Standard
- 6-Way Manual Driver Seat
- 4-Way Manual Front Passenger Seat
- Cloth-Trimmed Seats
- Reclining Front Bucket Seats
- Second Row Reclining 60/40 Fold-Down Seats with Center Fold-Down Armrest
Exterior Features
Appearance
Standard
- Automatic Headlights with Wiper Activation
- Bi-Functional Projector-Beam Halogen Headlights
- Black Exterior Mirror Caps
- Body-Colour Door Handles
- Body-Colour Rear Spoiler
- Black Beltline Moulding
- Bright Grille
- Daytime Running Lights
- Dual Bright Exhaust Tips
- Engine Block Heater (2.0L Only)
- Powered Glass Manual Folding with Integrated Blind Spot Mirrors
- Intermittent Speed-Sensitive Front Windshield Wipers
- LED Taillights
- Privacy Glass on Rear Doors, Quarter and Liftgate Windows
- Rear Window Defroster with Washer and Dual Speed Wiper
- Solar-Tinted Front Door and Windshield Glass
Optional
- Black Roof Rack Side Rails
Safety and Security
Safety
Standard
- Belt-Minder®
System
- Child Safety Rear Door Locks
- Driver and Passenger Dual-Stage Frontal Airbags
- Driver Knee Airbag
- First- and Second-Row Curtain Airbags
- First Row Side-Seat Airbags
- Front-Passenger Sensing System
- Glove-Box-Door-Integrated Knee Airbag
- Individual Tire Pressure Monitoring System (TPMS)
- Lower Anchor and Tether Anchors For Children (LATCH) System
- Personal Safety System™
- Rear View Camera
- Safety Canopy® System
- SOS-Post Crash Alert System™
Optional
- Rear Outboard Inflatable Safety belts
Security
Standard
- MyKey®
Safety System
- Remote Keyless Entry System
- Securilock®
Passive Anti-Theft System
Packages
Packages
Optional
- Cargo Accessory Package.
Standard Features
Standard
- Equipment Group 100A
Specifications
| Exterior Dimensions |
|
|---|---|
Wheelbase |
2.849 mm |
| Length |
4.779 mm |
Height |
1.742 mm |
Width - Excluding Mirrors |
1.928 mm |
Width - Including Mirrors |
2.179 mm |
| Width - Mirrors Folded |
1.992 mm |
| Front Track |
1.645 mm |
| Rear Track |
1.643 mm |
| Exterior Dimensions |
|
|---|---|
| Wheelbase |
112.2 in |
| Length |
188.1 in |
Height |
68.6 in |
| Width - Excluding Mirrors |
75.9 in |
Width - Including Mirrors |
85.8 in |
| Width - Mirrors Folded |
78.4 in |
| Front Track |
64.8 in |
| Rear Track |
64.7 in |
Interior Dimensions |
|
|---|---|
Head Room - First Row |
1.020 mm |
| Head Room - Second Row |
1.023 mm |
| Leg Room - First Row |
1.081 mm |
| Leg Room - Second Row |
1.030 mm |
| Hip Room - First Row |
1.420 mm |
| Hip Room - Second Row |
1.461 mm |
| Shoulder Room - First Row |
1.531 mm |
| Shoulder Room - Second Row |
1.536 mm |
| Interior Dimensions |
|
|---|---|
Head Room - First Row |
40.2 in |
| Head Room - Second Row |
40.3 in |
| Leg Room - First Row |
42.6 in |
| Leg Room - Second Row |
40.6 in |
| Hip Room - First Row |
55.9 in |
| Hip Room - Second Row |
57.5 in |
| Shoulder Room - First Row |
60.3 in |
| Shoulder Room - Second Row |
60.5 in |
Capacities: Interior Volume |
|
|---|---|
| Passenger Volume |
3.225 L |
| Cargo Volume Behind First Row |
2.078 L |
| Cargo Volume Behind Second Row |
1.111 L |
Capacities: Interior Volume |
|
|---|---|
| Passenger Volume |
113.9 cu. ft. |
| Cargo Volume Behind First Row |
73.4 cu. ft. |
| Cargo Volume Behind Second Row |
39.2 cu. ft. |
Powertrain SE/SEL/Titanium |
|
|---|---|
Drive type |
Front-Wheel Drive (Std.) / Intelligent All-Wheel Drive (Opt.) |
| Engine type |
Twin-scroll 2.0L EcoBoost® I-4 turbocharged, direct-injection engine |
Transmission |
6-speed SelectShift® automatic with paddle shifters |
| Final drive ratio |
FWD (SE) w/Start Stop: 3.21 FWD/AWD: 3.36 |
Fuel Consumption *Fuel consumption ratings based on Government of Canada approved test methods. Actual fuel consumption will vary. |
FWD (SE) w/Start Stop: 11.3 L/100km city/ 8.0 L/100km hwy/ 9.9 L/100km combined FWD: 11.5 L/100km city/ 8.0 L/100km hwy/ 9.9 L/100km combined AWD: 11.9 L/100km city/ 8.7 L/100km hwy/ 10.5 L/100km combined |
| Horsepower (hp @ rpm) |
245 @ 5,500 (tested with 93-octane fuel) |
| Torque (lb.-ft. @ rpm) |
275 @ 3,000 (tested with 93-octane fuel) |
| Compression ratio |
9.7:1 |
| Valve lifters |
Direct acting mechanical bucket |
| Fuel delivery |
Direct injection |
| Exhaust |
Single exhaust with dual rolled polished tips |
| Engine block type |
Cast aluminum |
Cylinder head material |
Cast aluminum |
Available Powertrain SEL/Titanium |
|
Drive type |
Front-Wheel Drive (Std.) / Intelligent All-Wheel Drive (Opt.) |
Engine type |
3.5L Twin independent Variable Cam Timing (Ti-VCT) V6 Engine |
| Transmission |
6-speed SelectShift® automatic with paddle shifters |
| Final drive ratio |
FWD: 3.16 AWD: 3.39 |
Fuel Consumption *Fuel consumption ratings based on Government of Canada approved test methods. Actual fuel consumption will vary. |
FWD: 13.5 L/100km city/ 9.1 L/100km hwy/ 11.5 L/100km combined AWD: 14.2 L/100km city/ 10.2 L/100km hwy/ 12.4 L/100km combined |
| Horsepower |
280 @ 6,500 |
Torque |
250 @ 4,000 |
| Compression ratio |
10.3:1 |
| Valve lifters |
Direct acting mechanical bucket |
Fuel delivery |
Sequential multi-port electronic fuel injection |
| Exhaust |
Single exhaust with dual rolled polished tips |
| Engine block type |
Cast aluminum |
| Cylinder head material |
Cast aluminum |
Powertrain Sport |
|
| Drive type |
Intelligent All-Wheel Drive (Std.) |
| Engine type |
2.7L EcoBoost®
V6 twin-turbocharged, direct-injection engine |
| Transmission |
6-speed SelectShift® automatic with paddle shifters |
| Final drive ratio |
AWD: 3.16 |
| Fuel Consumption |
AWD: 13.8 L/100km city/ 9.8 L/100km hwy/ 12.0 L/100km combined |
Horsepower (hp @ rpm) |
315 @ 4,750 (tested with 93-octane fuel) |
| Torque (lb.-ft. @ rpm) |
350 @ 2,750 (tested with 93-octane fuel) |
| Compression ratio |
10.0:1 |
| Valve lifters |
Hydraulic compensating lash adjuster |
| Fuel delivery |
Direct multi-shot injection |
| Exhaust |
Dual exhaust system with chrome integrated tips |
| Engine block type |
Compacted graphite iron |
| Cylinder head material |
Cast aluminum: A319 |
Powertrain SE/SEL/Titanium |
|
|---|---|
| Drive type |
Front-Wheel Drive (Std.) / Intelligent All-Wheel Drive (Opt.) |
| Engine type |
Twin-scroll 2.0L EcoBoost® I-4 turbocharged, direct-injection engine |
Transmission |
6-speed SelectShift®
automatic with paddle activation |
| Final drive ratio |
FWD w/Start Stop: 3.21 FWD/AWD: 3.36 |
Fuel Consumption *Fuel consumption ratings based on Government of Canada approved test methods. Actual fuel consumption will vary. |
FWD w/Start Stop: 25 city/ 35 hwy / 30 combined (mpg-lmp)* FWD: 25 city/ 35 hwy /29 combined (mpg-lmp)* AWD: 24 city/ 32 hwy / 28 combined (mpg-lmp)* |
| Horsepower (hp @ rpm) |
245 @ 5,500 (tested with 93-octane fuel) |
| Torque (lb.-ft. @ rpm) |
275 @ 3,000 (tested with 93-octane fuel) |
| Compression ratio |
9.7:1 |
| Valve lifters |
Direct acting mechanical bucket |
| Fuel delivery |
Direct injection |
| Exhaust |
Single exhaust with dual rolled polished tips |
| Engine block type |
Cast aluminum |
Cylinder head material |
Cast aluminum |
| Available Powertrain SEL/Titanium
|
|
| Drive type |
Front-Wheel Drive (Std.) / Intelligent All-Wheel Drive (Opt.) |
| Engine type |
3.5L Twin independent Variable Cam Timing (Ti-VCT) V6 Engine |
| Transmission |
6-speed SelectShift® automatic with paddle activation |
| Final drive ratio |
FWD: 3.16 AWD: 3.39 |
Fuel Consumption *Fuel consumption ratings based on Government of Canada approved test methods. Actual fuel consumption will vary. |
FWD: 17 city/ 26 hwy / 20 combined (mpg-lmp)* AWD: 17 city/ 24 hwy / 19 combined (mpg-lmp)* |
| Horsepower |
280 @ 6,500 |
| Torque |
250 @ 4,000 |
| Compression ratio |
10.3:1 |
| Valve lifters |
Direct acting mechanical bucket |
| Fuel delivery |
Sequential multi-port electronic fuel injection |
| Exhaust |
Single exhaust with dual rolled polished tips |
| Engine block type |
Cast aluminum |
| Cylinder head material |
Cast aluminum |
| Powertrain Sport
|
|
| Drive type |
Intelligent All-Wheel Drive (Std.) |
| Engine type |
2.7L EcoBoost®
V6 twin-turbocharged, direct-injection engine |
| Transmission |
6-speed SelectShift®
automatic with paddle activation |
| Final drive ratio |
AWD: 3.16 |
Fuel Consumption *Fuel consumption ratings based on Government of Canada approved test methods. Actual fuel consumption will vary. |
AWD: 20 city/ 29 hwy / 24 combined (mpg-lmp)* |
Horsepower (hp @ rpm) |
315 @ 4,750 (tested with 93-octane fuel) |
| Torque (lb.-ft. @ rpm) |
350 @ 2,750 (tested with 93-octane fuel) |
| Compression ratio |
10.0:1 |
| Valve lifters |
Hydraulic compensating lash adjuster |
| Fuel delivery |
Direct multi-shot injection |
| Exhaust |
Dual exhaust system with chrome integrated tips |
| Engine block type |
Compacted graphite iron |
Cylinder head material |
Cast aluminum: A319 |
Powertrain SE/SEL/Titanium |
|
|---|---|
Front suspension |
Independent, MacPherson struts and L-shaped lower control arm with isolated subframe and stabilizer bar |
| Front shocks |
Gas-pressurized, hydraulic, twin-tube |
| Rear suspension |
Independent integral link, isolated subframe and stabilizer bar |
| Rear shocks |
Gas-pressurized, hydraulic, twin-tube or monotube |
| Brakes |
Power 4-wheel disc with Anti-lock Braking System (ABS) and AdvanceTrac® with Roll Stability Control™ (RSC®) |
| Steering |
Electric Power Steering Rack-and-Pinion |
Chassis Sport |
|
| Front suspension |
Independent, MacPherson struts and L-shaped lower control arm with isolated subframe and stabilizer bar |
| Front shocks |
Gas-pressurized, hydraulic, twin-tube |
| Rear suspension |
Independent multi-link suspension with trailing blade control arms, isolated subframe and stabilizer bar |
| Rear shocks |
Gas-pressurized, hydraulic, monotube |
Brakes |
Power 4-wheel disc with Anti-lock Braking System (ABS) and AdvanceTrac®
with Roll Stability Control™ (RSC®
) |
| Steering |
Electric Power Steering Rack-and-Pinion |
Powertrain SE/SEL/Titanium |
|
|---|---|
Front suspension |
Independent, MacPherson struts and L-shaped lower control arm with isolated subframe and stabilizer bar |
| Front shocks |
Gas-pressurized, hydraulic, twin-tube |
| Rear suspension |
Independent integral link, isolated subframe and stabilizer bar |
| Rear shocks |
Gas-pressurized, hydraulic, twin-tube or monotube |
| Brakes |
Power 4-wheel disc with Anti-lock Braking System (ABS) and AdvanceTrac®
with Roll Stability Control™ (RSC®
) |
| Steering |
Electric Power Steering Rack-and-Pinion |
| Chassis Sport
|
|
| Front suspension |
Independent, MacPherson struts and L-shaped lower control arm with isolated subframe and stabilizer bar |
| Front shocks |
Gas-pressurized, hydraulic, twin-tube |
| Rear suspension |
Independent multi-link suspension with trailing blade control arms, isolated subframe and stabilizer bar |
| Rear shocks |
Gas-pressurized, hydraulic, monotube |
Brakes |
Power 4-wheel disc with Anti-lock Braking System (ABS) and AdvanceTrac®
with Roll Stability Control™ (RSC®
) |
| Steering |
Electric Power Steering Rack-and-Pinion |
Fuel Consumption and Engine Highlights |
|||
|---|---|---|---|
Powertrain |
SE / SEL / Titanium |
SEL / Titanium |
Sport |
Engine Type |
Twin-scroll 2.0L EcoBoost® I-4 turbocharged, direct-injection engine |
3.5L Twin independent Variable Cam Timing (Ti-VCT) V6 Engine |
2.7L EcoBoost®
V6 twin-turbocharged, direct-injection engine |
Fuel Consumption Fuel consumption ratings based on Government of Canada approved test methods. Actual fuel consumption will vary. |
FWD w/Start Stop: 11.3 L/100km city/ 8.0 L/100km hwy/ 9.9 L/100km combined* FWD: 11.5 L/100km city/ 8.0 L/100km hwy/ 9.9 L/100km combined* AWD: 11.9 L/100km city/ 8.7 L/100km hwy/ 10.5 L/100km combined* |
FWD: 13.5 L/100km city/ 9.1 L/100km hwy/ 11.5 L/100km combined* AWD: 14.2 L/100km city/ 10.2 L/100km hwy/ 12.4 L/100km combined* |
AWD: 13.8 L/100km city/ 9.8 L/100km hwy/ 12.0 L/100km combined* |
Fuel Consumption and Engine Highlights |
||||||
|---|---|---|---|---|---|---|
Powertrain |
SE / SEL / Titanium |
Powertrain SE/SEL/Titanium |
SEL / Titanium |
SEL / Titanium |
Sport |
Sport |
Engine Type |
Twin-scroll 2.0L EcoBoost® I-4 turbocharged, direct-injection engine |
Twin-scroll 2.0L EcoBoost® I-4 turbocharged, direct-injection engine |
3.5L Twin independent Variable Cam Timing (Ti-VCT) V6 Engine |
3.5L Twin independent Variable Cam Timing (Ti-VCT) V6 Engine |
2.7L EcoBoost® V6 twin-turbocharged, direct-injection engine |
2.7L EcoBoost® V6 twin-turbocharged, direct-injection engine |
Fuel Consumption Fuel consumption ratings based on Government of Canada approved test methods. Actual fuel consumption will vary. |
FWD w/Start Stop: 25 city/ 35 hwy / 30 combined (mpg-lmp)* FWD: 25 city/ 35 hwy /29 combined (mpg-lmp)* AWD: 24 city/ 32 hwy / 28 combined (mpg-lmp)* |
FWD w/Start Stop: 11.3 L/100km city/ 8.0 L/100km hwy/ 9.9 L/100km combined* FWD: 11.5 L/100km city/ 8.0 L/100km hwy/ 9.9 L/100km combined* AWD: 11.9 L/100km city/ 8.7 L/100km hwy/ 10.5 L/100km combined* |
FWD: 17 city/ 26 hwy / 20 combined (mpg-lmp)* AWD: 17 city/ 24 hwy / 19 combined (mpg-lmp)* |
FWD: 13.5 L/100km city/ 9.1 L/100km hwy/ 11.5 L/100km combined* AWD: 14.2 L/100km city/ 10.2 L/100km hwy/ 12.4 L/100km combined* |
AWD: 20 city/ 29 hwy / 24 combined (mpg-lmp)* |
AWD: 13.8 L/100km city/ 9.8 L/100km hwy/ 12.0 L/100km combined* |
Max Seating Capacity |
5 |
Drive |
Front Wheel Drive (Std.) |
| Intelligent All-Wheel Drive (Opt.) |
|
| Transmission |
6-speed SelectShift® automatic with paddle activation |
| Wheelbase |
2849 mm |
| Wheels Available |
18-inch painted sparkle silver aluminum (Std. on SE) |
| 18-inch painted sparkle silver split-spoke aluminum (Std. on SEL) |
|
| 18-inch polished aluminum (Opt. on SEL) |
|
| 19-inch Premium Magnetic Metallic Painted Aluminum Included in SEL Appearance Package |
|
| 19-inch premium painted luster nickel aluminum (Std. on Titanium) |
|
| 20-inch premium painted dark stainless aluminum (Opt. on Titanium) |
|
| 20-inch polished with Magnetic painted pocket aluminum (Std. on Sport) |
|
| 21-inch premium painted tarnished dark low gloss aluminum (Opt. on Sport) |
|
| Warranty |
Basic: 36 months / 60,000 km Powertrain: 5 years / 100,000 km Corrosion: 5 years / unlimited distance Safety Restraint: 5 years / 100,000 km Roadside Assistance: 5 years / 100,000 km |
| Max Seating Capacity |
5 |
Drive |
Front Wheel Drive (Std.) |
| Intelligent All-Wheel Drive (Opt.) |
|
| Transmission |
6-speed SelectShift®
automatic with paddle activation |
| Wheelbase |
112.2 in |
| Wheels Available |
18-inch painted sparkle silver aluminum (Std. on SE) |
| 18-inch painted sparkle silver split-spoke aluminum (Std. on SEL) |
|
| 18-inch polished aluminum (Opt. on SEL) |
|
19-inch Premium Magnetic Metallic Painted Aluminum Included in SEL Appearance Package |
|
| 19-inch premium painted luster nickel aluminum (Std. on Titanium) |
|
| 20-inch premium painted dark stainless aluminum (Opt. on Titanium) |
|
| 20-inch polished with Magnetic painted pocket aluminum (Std. on Sport) |
|
| 21-inch premium painted tarnished dark low gloss aluminum (Opt. on Sport) |
|
| Warranty |
Basic: 3 years / 36,000 miles Powertrain: 5 years / 60,000 miles Safety Restraint System: 5 years / 60,000 miles Corrosion (Perforation Only): 5 years / Unlimited miles Roadside Assistance Program: 5 years / 60,000 miles |
