2024 Bronco® Outer Banks™

Build & Price

View all offers

Seating for

Key Features

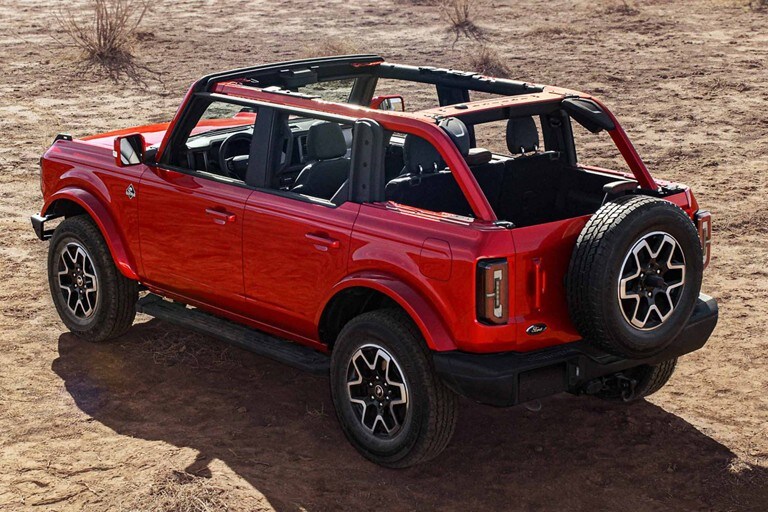

2024 Ford Bronco® Outer Banks™ in Race Red

Body-Colour-Painted Fender Flares

Combined with body-colour door handles and sideview mirrors, they give Bronco^® a touch of refinement. Standard on the Outer Banks^™ model.

Not available with the Sasquatch^® Package.

U.S. Model Shown.

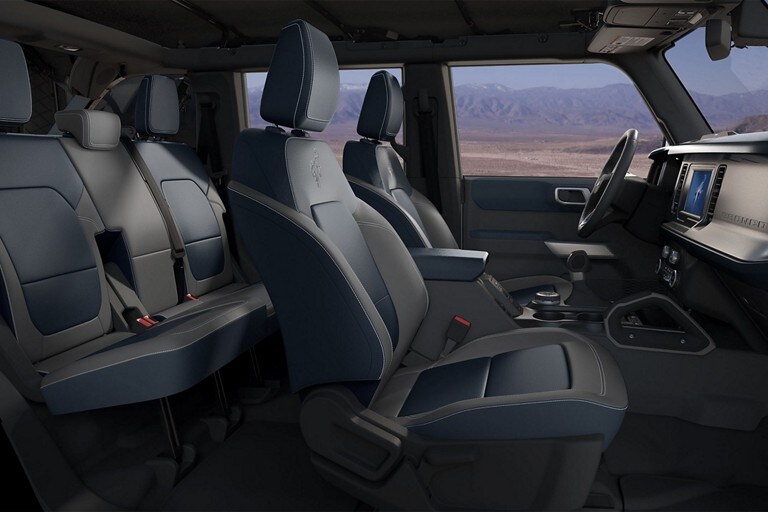

Leather-Trimmed Seating

Available Leather-Trimmed seating surfaces offer great looks as well as comfort and durability. Available on Badlands^™, Outer Banks^™, Wildtrak^™, Heritage Limited and Raptor^® models.

U.S. Model Shown.

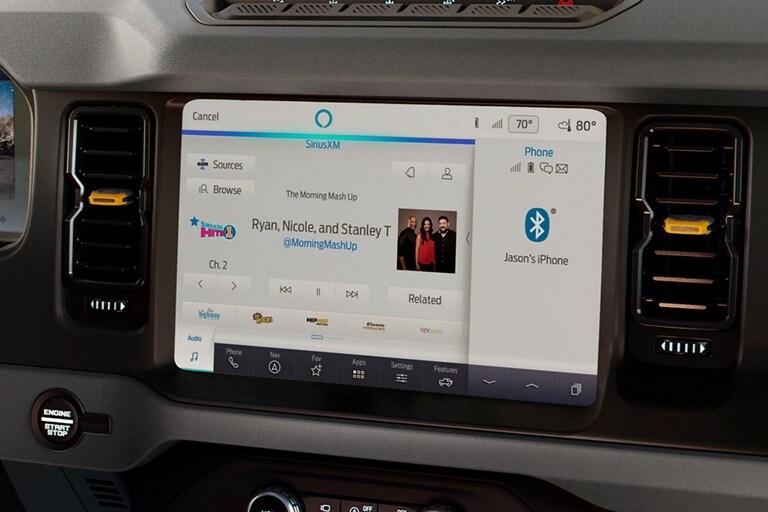

Interior view of 2024 Ford Bronco® with available 12" LCD capacitive Touchscreen

SYNC^® 4⁷⁶- 12" LCD Capacitive Touchscreen With Swipe Capability And Enhanced Voice Recognition

Stay connected with this available feature. Includes an available class-exclusive 12” Touchscreen. * Also available is a premium B&O^® Sound System by Bang & Olufsen^®.

*Class is Medium Traditional Utility. Computer-generated image shown with optional equipment.

U.S. Model Shown.

Exterior Features

Appearance

Standard

Manual Swing-Gate with up to 150-degree Swing
Flip-Up Rear Glass (2-Door)
Soft Top (4-Door)
Hard Top (2-Door) Carbonized Grey Moulded-in-Colour (MIC)
Removable Doors and Top
Door Handles - Body Colour
Body-Colour-Painted Fender Flares
Grille - Black Painted with White "BRONCO" Lettering
Daytime Running Lamps (DRL) (non-Configurable)
LED Signature Lighting
LED Fog Lamps
Mirrors, Sideview - Heated, Power Glass, Manual-Fold, Body Colour Finish
Tube Step - Powder Coated
Tow Hooks - 2 Front, 1 Rear

Optional

Flip-Up Rear Glass (4-Door)
Hard Top (4-Door) Carbonized Grey Moulded-in-Colour (MIC)
Dual Tops - Carbonized Grey Moulded-in-Colour Hard Top + Black Soft Top (4-Door)
Bash Plates - Front Section
Removable Hoop Step
Heavy-Duty Modular Front Bumper
Brush Guard (Requires Heavy-Duty Modular Front Bumper)
Black Roof Rails With Crossbars

Windows & Glass

Standard

Privacy Glass - 2nd Row Side and Flip-up Glass (Hard Top)
Front - Variable Intermittent/Continuous Wiper/Washer
Rear - Single-Speed Intermittent/Continuous Wiper/Washer (Hard Top)

Interior Features

Climate

Standard

Dual-Zone Electronic Automatic Temperature Control

Comfort and Convenience

Standard

Intelligent Access with Push-Button Start
Remote Keyless Access with Push-Button Start
Remote Start System (Requires 10-Speed Auto transmission)
Unique 12" LCD Digital Instrument Cluster (In gauge cluster)
Carpeted Flooring Front/Rear
Carpeted Floor Mats, 1st Row
Carpeted Floor Mats, 2nd Row (4-Door Only)
Pre-Collision Assist with Automatic Emergency Braking
Lane-Keeping System
BLIS^® with Cross-Traffic Alert
Beverage Holders
Illuminated Sliding Visor Vanity Mirrors (Driver and Front Passenger)
Terrain Management System (TMS) with 6 G.O.A.T. Modes
Overhead Console with Front Map Lights
Ambient Footwell Lighting
Auto-Dimming Rearview Mirror
Powerpoints (12V) – Two – Front Centre Floor Console (1) and Cargo Area (1)
Dual Smart Charging USB Ports - Type C + Std A, 1st Row
Dual Smart Charging USB Ports - Type C + Std A, 2nd Row (Back of Centre Floor Console)
AC Power Outlet Back Side Of Centre Floor Console
Leather-Wrapped Steering Wheel with Bronco^® Badge, Cruise and Audio Controls
Manual Tilt and Telescoping Steering Column
2nd Row Window Controls (4-door): Located in the back side of the Centre Floor Console
Hard Top Sound Deadening Headliner (requires Hard Top)

Optional

Upgraded Carpet Floor Mats
Cargo Area Protector
Slide-Out Tailgate (requires 4-Door)
Floor Liners Front and Rear (Without Carpet Floor Mats)
Floor Liners Front and Rear (With Carpet Floor Mats)
Dual Smart Charging USB Ports - Type C + Std A, Dashboard
Wireless Charging Pad
Heated Leather-Wrapped Steering Wheel

Entertainment Systems

Standard

AM/FM stereo with 7 speakers including subwoofer
SYNC^® 4 — 12" LCD Capacitive Touchscreen With Swipe Capability And Enhanced Voice Recognition
AppLink^® with App Catalog
911 Assist^®
Wireless Apple Carplay^™ and Android Auto^™ Compatibility
Connected Voice-Activated Touchscreen Navigation System with Pinch-to-Zoom Capability - 90-day trial subscription
SiriusXM^® With 360L
SYNC^® 4
FordPass Connect^™

Optional

B&O^® Sound System by Bang & Olufsen^®, 10-Speakers including Subwoofer

Seating

Standard

Leather-Trimmed Seating
Heated Front Seats
6-way Manual Driver Seat
6-way Manual Passenger
2nd Row, 60/40 Split-Fold (4-Door)
2nd Row, 50/50 Split-Fold (2-Door)

Optional

10-way Power Driver Seat (4-Door Only with Leather)
8-way Power Passenger (4-Door Only with Leather)

Packages

Safety

Security

Standard

Trailer Sway Control
Perimeter Alarm
Auto High-Beam Headlamps
Rear View Camera with Backup Assist Grid Lines
AdvanceTrac^® with RSC^® (Roll Stability Control^™)

Optional

360-Degree Camera

Safety

Standard

Matching Spare Wheel and Tire (with TPMS)
Personal Safety System^™
1st Row: Driver and Passenger Dual-Stage Front
1st Row: Driver and Passenger Seat Side
All Rows: Safety Canopy^® Side-Curtain with Rollover Sensor
Lower Anchors and Tether Anchors for Children (LATCH) - Each 2nd Row Seating Position
Individual Tire Pressure Monitoring System (ITPMS)
Belt-Minder^® (1st Row)

Power and Handling

Handling

Standard

4-Wheel Disc Brakes with Anti-Lock Brake System (ABS) and Electronic Stability Control
HOSS 1.0 System
4x4 with Part-Time Selectable Engagement
Electronic Traction control
Reverse Sensing System
Trail Control^™ for Off-Road (requires 10-speed transmission)
Trail Turn Assist (requires 10-speed transmission)

Optional

HOSS 2.0 System with Bilstein PSDs, and high clearance ride height
Advanced 4x4 with Automatic On-Demand Engagement
Adaptive Cruise Control
Front Parking Sensors
Trail One-Pedal Driving (Requires 2.7L or 3.0L Engine and 10-speed auto)
Electronic-locking Rear Axle
Electronic-Locking Front and Rear Axle

Power

Standard

Post-Collision Braking
Electric Parking Brake
2.3L EcoBoost^® I-4 Engine
Electric Power-Assisted Steering (EPAS)
10-Speed Automatic Transmission (2-Door)
10-Speed Automatic Transmission (4-Door)

Optional

Engine Block Heater
2.7L EcoBoost^® V6 Engine

Wheels & Tires

Standard

18" Bright Machined Black High Gloss-Painted Aluminum
255/70R18 All-Terrain A/T (32")

Optional

17" Black High Gloss-Painted Aluminum with Warm Alloy Beauty Ring, Beadlock Capable Wheels
315/70R17 BSW Mud-Terrain (M/T) (35")

Specifications

Highlights

Vehicle Highlights	2-Door	4-Door
Max Seating Capacity	4	5
Drive Type	4 X 4	4 X 4
Transmission	10-Speed Automatic/7-Speed Manual Transmission	10-Speed Automatic/7-Speed Manual Transmission
Wheelbase imp/Metric (base)	255.0 cm	295.0 cm
Maximum Towing Capacity	3,500	3,500
Wheels Available	17" Carbonized Gray-Painted Aluminum - Standard on Big Bend^™	17" Carbonized Gray-Painted Aluminum - Standard on Big Bend^™
	17" Black Gloss-Painted Steel - Standard on Black Diamond^™	17" Black Gloss-Painted Steel - Standard on Black Diamond^™
	18" Bright Machined Black High Gloss-Painted Aluminum - Standard on Outer Banks^™	18" Bright Machined Black High Gloss-Painted Aluminum - Standard on Outer Banks^™
	17" Black High Gloss-Painted Forged Aluminum with Black Beauty Ring, Beadlock Capable - Standard on Wildtrak^™	17" Black High Gloss-Painted Forged Aluminum with Black Beauty Ring, Beadlock Capable - Standard on Wildtrak^™
	17" Machined Carbonized Gray-Painted Aluminum - Standard on Badlands^™	17" Machined Carbonized Gray-Painted Aluminum - Standard on Badlands^™
	17" Black High Gloss-Painted Aluminum, with Warm Alloy Beauty Ring, Beadlock Capable (Included in Sasquatch^® Package for all series except Wildtrak^™) Package is optional on Big Bend^™, Black Diamond^™, Outer Banks^™, Badlands^™	17" Black High Gloss-Painted Aluminum, with Warm Alloy Beauty Ring, Beadlock Capable (Included in Sasquatch^® Package for all series except Wildtrak^™) Package is optional on Big Bend^™, Black Diamond^™, Outer Banks^™, Badlands^™
	17" Unique White Wheels - Standard on Heritage Edition	17" Carbonized Gray-Painted Alloy Wheels - Standard on Everglades™
	17" Dog-Dish style Black High Gloss-Painted Aluminum with White Wall - Standard on Heritage Limited Edition	17" Black High Gloss Painted Alloy - Standard on Raptor®
		17" Dark Carbonized Gray Alloy Painted, Beadlock Capable Forged Wheels - Optional on Raptor®
		17" Unique White Wheels - Standard on Heritage Edition
		17" Dog-Dish style Black High Gloss-Painted Aluminum with White Wall - Standard on Heritage Limited Edition
Warranty	Basic: 3 years/60,000 km	Basic: 3 years/60,000 km
	Powertrain: 5 years/100,000 km	Powertrain: 5 years/100,000 km
	Safety Restraint System: 5 years/100,000 km	Safety Restraint System: 5 years/100,000 km
	Corrosion (Perforation Only): 5 years/unlimited distance	Corrosion (Perforation Only): 5 years/unlimited distance
	Roadside Assistance: 5 years/100,000 km	Roadside Assistance: 5 years/100,000 km

Vehicle Highlights	2-Door	4-Door
Max Seating Capacity	4	5
Drive Type	4 X 4	4 X 4
Transmission	10-Speed Automatic/7-Speed Manual Transmission	10-Speed Automatic/7-Speed Manual Transmission
Wheelbase imp/Metric (base)	100.4 in.	116.1 in.
Maximum Towing Capacity	3,500	3,500
Wheels Available	17" Carbonized Gray-Painted Aluminum - Standard on Big Bend^™	17" Carbonized Gray-Painted Aluminum - Standard on Big Bend^™
	17" Black Gloss-Painted Steel - Standard on Black Diamond^™	17" Black Gloss-Painted Steel - Standard on Black Diamond^™
	18" Bright Machined Black High Gloss-Painted Aluminum - Standard on Outer Banks^™	18" Bright Machined Black High Gloss-Painted Aluminum - Standard on Outer Banks^™
	17" Black High Gloss-Painted Forged Aluminum with Black Beauty Ring, Beadlock Capable - Standard on Wildtrak^™	17" Black High Gloss-Painted Forged Aluminum with Black Beauty Ring, Beadlock Capable - Standard on Wildtrak^™
	17" Machined Carbonized Gray-Painted Aluminum - Standard on Badlands^™	17" Machined Carbonized Gray-Painted Aluminum - Standard on Badlands^™
	17" Black High Gloss-Painted Aluminum, with Warm Alloy Beauty Ring, Beadlock Capable (Included in Sasquatch^® Package for all series except Wildtrak^™) Package is optional on Big Bend^™, Black Diamond^™, Outer Banks^™, Badlands^™	17" Black High Gloss-Painted Aluminum, with Warm Alloy Beauty Ring, Beadlock Capable (Included in Sasquatch^® Package for all series except Wildtrak^™) Package is optional on Big Bend^™, Black Diamond^™, Outer Banks^™, Badlands^™
	17" Unique White Wheels - Standard on Heritage Edition	17" Carbonized Gray-Painted Alloy Wheels - Standard on Everglades™
	17" Dog-Dish style Black High Gloss-Painted Aluminum with White Wall - Standard on Heritage Limited Edition	17" Black High Gloss Painted Alloy - Standard on Raptor®
		17" Dark Carbonized Gray Alloy Painted, Beadlock Capable Forged Wheels - Optional on Raptor®
		17" Unique White Wheels - Standard on Heritage Edition
		17" Dog-Dish style Black High Gloss-Painted Aluminum with White Wall - Standard on Heritage Limited Edition
Warranty	Basic: 3 years/36,000 miles	Basic: 3 years/36,000 miles
	Powertrain: 5 years/60,000 miles	Powertrain: 5 years/60,000 miles
	Safety Restraint System: 5 years/60,000 miles	Safety Restraint System: 5 years/60,000 miles
	Corrosion (Perforation Only): 5 years/unlimited miles	Corrosion (Perforation Only): 5 years/unlimited miles
	Roadside Assistance: 5 years/60,000 miles	Roadside Assistance: 5 years/60,000 miles

Interior

Interior Dimensions (projected)	2-Door	4-Door	Everglades™ (4-door)	Raptor® (4-door)
Head room
First row (Hard Top)	1,042	1,037	1,037	1,037
First row (Soft Top)	N/A	1,099	N/A	N/A
Second row (Hard Top)	1,011	1,018	1,018	1,018
Second row (Soft Top)	N/A	1,044	N/A	N/A
Leg room
First row	1,096	1,096	1,096	1,096
Second row	907	921	921	921
Hip room
First row	1,431	1,420	1,420	1,420
Second row	1,099	1,393	1,393	1,393
Shoulder room
First row	1,450	1,450	1,450	1,450
Second row	1,315	1,434	1,434	1,434

Interior Dimensions (projected)	2-Door	4-Door	Everglades™ (4-door)	Raptor® (4-door)
Head room
First row (Hard Top)	41.0	40.8	40.8	40.8
First row (Soft Top)	N/A	43.3	N/A	N/A
Second row (Hard Top)	39.8	40.1	40.1	40.1
Second row (Soft Top)	N/A	41.1	N/A	N/A
Leg room
First row	43.1	43.1	43.1	43.1
Second row	35.7	36.3	36.3	36.3
Hip room
First row	56.3	55.9	55.9	55.9
Second row	43.3	54.8	54.8	54.8
Shoulder room
First row	57.1	57.1	57.1	57.1
Second row	51.8	56.5	56.5	56.5

Capacities

Capacities: Passengers, Luggage, Fuel (Projected)	2-Door	4-Door
Seating capacity	4	5
Passenger volume Hardtop	2,803.8 L	2,935.9 L
Passenger volume Soft Top	N/A	3,064.1 L
Behind 1st row (Hardtop)	1,480. L	2,196.2 L
Behind 1st row (Soft top)	N/A	2,349.5 L
Behind 2nd row (Hardtop)	635.0 L	1,008.0 L
Behind 2nd row (Soft top)	N/A	1,085.0 L
Fuel capacity 2.3L EcoBoost^®	64 L	79 L
Fuel capacity 2.7L EcoBoost^®	64 L	79 L
Fuel capacity 3.0L EcoBoost^®	N/A	80 L

Estimated base curb weights (projected)*
2.3L EcoBoost^® (Manual)	1,959.1 - 2,248.5 (kgs.)	2,040.7 - 2,266.6 (kgs.)
2.3L EcoBoost^® (Automatic)	1,968.1 - 2,257.5 (kgs.)	2,045.2 - 2,370.5 (kgs.)
2.7L EcoBoost^®	2,037.1 - 2,326.5 (kgs.)	2,114.2 - 2,413.1 (kgs.)
3.0L EcoBoost^®	N/A	2,600 (kgs.)
*Weights are projected and given as a range from base - full content

Capacities: Passengers, Luggage, Fuel (Projected)	2-Door	4-Door
Seating capacity	4	5
Passenger volume Hardtop	99 (cu.ft.)	103.7 (cu. ft.)
Passenger volume Soft Top	N/A	108.2 (cu. ft.)
Behind 1st row (Hardtop)	52.3 (cu.ft.)	77.6 (cu. ft.)
Behind 1st row (Soft top)	N/A	83 (cu. ft.)
Behind 2nd row (Hardtop)	22.4 (cu.ft.)	35.6 (cu. ft.)
Behind 2nd row (Soft top)	N/A	38.3 (cu. ft.)
Fuel capacity 2.3L EcoBoost^®	16.9 (gal)	20.8 (gal)
Fuel capacity 2.7L EcoBoost^®	16.9 (gal)	20.8 (gal)
Fuel capacity 3.0L EcoBoost^®	N/A	21.2 (gal)

Estimated base curb weights (projected)*
2.3L EcoBoost^® (Manual)	4,319 - 4,957 (lbs.)	4,499 - 4,997 (lbs.)
2.3L EcoBoost^® (Automatic)	4,339 - 4,977 (lbs.)	4,509 - 5,226 (lbs.)
2.7L EcoBoost^®	4,491 - 5,129 (lbs.)	4,661 - 5,320 (lbs.)
3.0L EcoBoost^®	N/A	5,733 (lbs.)
*Weights are projected and given as a range from base - full content

Exterior

Exterior Dimensions (Projected)	2-Door	4-Door	Everglades™ (4-door)	Raptor® (4-door)
Drive system	4x4	4x4	4x4	4x4
Wheelbase	2,550.0	2,950.0	2,950.0	2,960.0
Length	4,412.0	4,810.8	5,053.0	4,852.0
Vehicle height	1,826.3	1,854.2	1,998 (Hard top w/ roof rack)	1,975 (Hard top - no roof rack)
Vehicle width with mirrors	2,189.5	2,189.5	2,189.0	2,206.0
Vehicle width without mirrors	1,927.9	1,927.9	2,016.0	2,178.0
Vehicle width with mirrors folded	1,927.9	1,927.9	2,016.0	2,178.0
Track, front	1,651.0	1,651.0	1,698.0	1,863.0
Track, rear	1,651.0	1,651.0	1,700.0	1,870.0

Exterior Dimensions (Projected)	2-Door	4-Door	Everglades™ (4-door)	Raptor® (4-door)
Drive system	4x4	4x4	4x4	4x4
Wheelbase	100.4	116.1	116.1	116.5
Length	173.7	189.4	198.9	191
Vehicle height	71.9 (hard top)	73.0 (soft top)	78.7 (Hard top w/ roof rack)	77.8 (Hard top - no roof rack)
Vehicle width with mirrors	86.2	86.2	86.2	86.9
Vehicle width without mirrors	75.9	75.9	79.4	85.7
Vehicle width with mirrors folded	75.9	75.9	79.4	85.7
Track, front	65.0	65.0	66.9	73.2
Track, rear	65.0	65.0	66.9	73.6

Engine

Engine Specifications	2.3L EcoBoost^®	2.7L EcoBoost^®	3.0L EcoBoost^®
Engine type	2.3L Ti-VCT GTDI I-4	2.7L Ti-VCT GTDI V-6	3.0L Ti-VCT GTDI V-6
Drive type	4x4	4x4	4x4
Exhaust	Single	Single	Single with active valve technology
Transmission type	7-Speed Manual/10-Speed Automatic	10-Speed Automatic	10-Speed Automatic
Horsepower (regular fuel)	275	315	406
Torque (regular fuel)	315	410	440
Horsepower (premium fuel)	300^,*	330^,*	418^,*
Torque (premium fuel)	325^,*	415^,*	440^,*
Compression ratio	10.0:1	10.0:1	10.5:1
Valve lifters	Direct Acting Mechanical Buckets	Roller Finger Follower	Roller Finger Follower
Engine block material	Aluminum	Compacted Graphite Iron (CGI)	Compacted Graphite Iron (CGI)
Cylinder head material	Aluminum	Aluminum	Aluminum
Induction system	Turbocharged	Turbocharged	Turbocharged
Fuel delivery	Direct injection	Ported Fuel/Direct injection (PFDI)	Direct injection
Fuel (minimum)	Regular unleaded	Regular unleaded	Regular unleaded
EPA-Estimated Ratings Four Wheel Drive (Actual mileage will vary)	See chart below	See chart below	See chart below
*Horsepower and torque ratings based on premium fuel per SAE J1349 standard.
**Horsepower and torque are independent attributes and may not be achieved simultaneously.
Model	Engine	Transmission	City L/100km	Hwy L/100km	Combined L/100
Big Bend^™, Outer Banks^™	2.3L EcoBoost	10-Speed Automatic	12.1	11.2	11.7
Black Diamond^™	2.3L EcoBoost	10-Speed Automatic	13.1	13.1	13.1
Badlands^™	2.3L EcoBoost	10-Speed Automatic	13.5	14	13.7
Big Bend^™, Black Diamond^™, Outer Banks^™, Badlands^™ with Sasquatch^® Package and Everglades^™	2.3L EcoBoost	10-Speed Automatic	13.1	13.8	13.4

Big Bend^™	2.3L EcoBoost	7-Speed Manual	12.1	11.4	11.8
Black Diamond^™	2.3L EcoBoost	7-Speed Manual	13.8	12.4	13.2
Badlands^™	2.3L EcoBoost	7-Speed Manual	14.9	13.5	14.3
Big Bend^™, Black Diamond^™, Outer Banks^™, Badlands^™ with Sasquatch^® Package	2.3L EcoBoost	7-Speed Manual	13.8	13.1	13.5

Big Bend^™, Black Diamond^™, Outer Banks^™	2.7L EcoBoost	10-Speed Automatic	12.8	11.9	12.4
Badlands^™	2.7L EcoBoost	10-Speed Automatic	14.1	14.1	14.1
Wildtrak^™ plus Big Bend^™, Black Diamond^™, Outer Banks^™, Badlands^™ with Sasquatch^® Package	2.7L EcoBoost	10-Speed Automatic	14.1	14.1	14.1
Raptor®	3.0L EcoBoost	10-Speed Automatic	15.7	14.8	14.8

Engine Specifications	2.3L EcoBoost^®	2.7L EcoBoost^®	3.0L EcoBoost^®
Engine type	2.3L Ti-VCT GTDI I-4	2.7L Ti-VCT GTDI V-6	3.0L Ti-VCT GTDI V-6
Drive type	4x4	4x4	4x4
Exhaust	Single	Single	Single with active valve technology
Transmission type	7-Speed Manual/10-Speed Automatic	10-Speed Automatic	10-Speed Automatic
Horsepower (regular fuel)	275	315	406
Torque (regular fuel)	315	410	440
Horsepower (premium fuel)	300^,*	330^,*	418^,*
Torque (premium fuel)	325^,*	415^,*	440^,*
Compression ratio	10.0:1	10.0:1	10.5:1
Valve lifters	Direct Acting Mechanical Buckets	Roller Finger Follower	Roller Finger Follower
Engine block material	Aluminum	Compacted Graphite Iron (CGI)	Compacted Graphite Iron (CGI)
Cylinder head material	Aluminum	Aluminum	Aluminum
Induction system	Turbocharged	Turbocharged	Turbocharged
Fuel delivery	Direct injection	Ported Fuel/Direct injection (PFDI)	Direct injection
Fuel (minimum)	Regular unleaded	Regular unleaded	Regular unleaded
EPA-Estimated Ratings Four Wheel Drive (Actual mileage will vary)	See chart below	See chart below	See chart below
*Horsepower and torque ratings based on premium fuel per SAE J1349 standard.
**Horsepower and torque are independent attributes and may not be achieved simultaneously.
Model	Engine	Transmission	City L/100km	Hwy L/100km	Combined L/100
Big Bend^™, Outer Banks^™	2.3L EcoBoost	10-Speed Automatic	12.1	11.2	11.7
Black Diamond^™	2.3L EcoBoost	10-Speed Automatic	13.1	13.1	13.1
Badlands^™	2.3L EcoBoost	10-Speed Automatic	13.5	14	13.7
Big Bend^™, Black Diamond^™, Outer Banks^™, Badlands^™ with Sasquatch^® Package and Everglades^™	2.3L EcoBoost	10-Speed Automatic	13.1	13.8	13.4

Big Bend^™	2.3L EcoBoost	7-Speed Manual	12.1	11.4	11.8
Black Diamond^™	2.3L EcoBoost	7-Speed Manual	13.8	12.4	13.2
Badlands^™	2.3L EcoBoost	7-Speed Manual	14.9	13.5	14.3
Big Bend^™, Black Diamond^™, Outer Banks^™, Badlands^™ with Sasquatch^® Package	2.3L EcoBoost	7-Speed Manual	13.8	13.1	13.5

Big Bend^™, Black Diamond^™, Outer Banks^™	2.7L EcoBoost	10-Speed Automatic	12.8	11.9	12.4
Badlands^™	2.7L EcoBoost	10-Speed Automatic	14.1	14.1	14.1
Wildtrak^™ plus Big Bend^™, Black Diamond^™, Outer Banks^™, Badlands^™ with Sasquatch^® Package	2.7L EcoBoost	10-Speed Automatic	14.1	14.1	14.1
Raptor®	3.0L EcoBoost	10-Speed Automatic	15.7	14.8	15.3

Chassis

Chassis Specifications
Front suspension	Front: Independent HOSS 1.0 (High-Performance, Off-Road, Stability, Suspension) System with twin alloy A-arms and coil-over springs for optimum off-road stability and control with available HOSS 2.0 System with Bilstein^® Position-Sensitive Dampers, HOSS 3.0 with FOX^™ Internal Bypass Dampers, and HOSS 4.0 with FOX^™ Live Valve 3.1 internal bypass semi-active shocks
Rear suspension	Rear: Solid five-link rear axle HOSS (High-Performance, Off-Road, Stability, Suspension) System with coil-over springs for optimum off-road capability and durability with available HOSS System with Bilstein^® Position Sensitive Dampers, HOSS 3.0 with FOX^™ Internal Bypass Dampers, and HOSS 4.0 with FOX^™ Live Valve 3.1 internal bypass semi-active shocks
Traction assist	AdvanceTrac^® with RSC^® (Roll Stability Control^™)
Brakes	Power 4-wheel disc with Anti-Lock Brake System (ABS)
Steering	Electric power-assisted steering (EPAS)

Chassis Specifications
Front suspension	Front: Independent HOSS 1.0 (High-Performance, Off-Road, Stability, Suspension) System with twin alloy A-arms and coil-over springs for optimum off-road stability and control with available HOSS 2.0 System with Bilstein^® Position-Sensitive Dampers, HOSS 3.0 with FOX^™ Internal Bypass Dampers, and HOSS 4.0 with FOX^™ Live Valve 3.1 internal bypass semi-active shocks
Rear suspension	Rear: Solid five-link rear axle HOSS (High-Performance, Off-Road, Stability, Suspension) System with coil-over springs for optimum off-road capability and durability with available HOSS System with Bilstein^® Position Sensitive Dampers, HOSS 3.0 with FOX^™ Internal Bypass Dampers, and HOSS 4.0 with FOX^™ Live Valve 3.1 internal bypass semi-active shocks
Traction assist	AdvanceTrac^® with RSC^® (Roll Stability Control^™)
Brakes	Power 4-wheel disc with Anti-Lock Brake System (ABS)
Steering	Electric power-assisted steering (EPAS)

Towing

Towing
Body Style	Engine	Transmission	Available Features	Max. Trailer Weight Up-to (kgs)
2-Door	2.3L EcoBoost^®	Manual	Class II Trailer Tow Package	1,587.5
2-Door	2.3L EcoBoost^®	Automatic	Class II Trailer Tow Package	1,587.5
2-Door	2.7L EcoBoost^®	Automatic	Class II Trailer Tow Package	1,587.5
4-Door	2.3L EcoBoost^®	Manual	Class II Trailer Tow Package	1,587.5
4-Door	2.3L EcoBoost^®	Automatic	Class II Trailer Tow Package	1,587.5
4-Door	2.7L EcoBoost^®	Automatic	Class II Trailer Tow Package	1,587.5
4-Door	3.0L EcoBoost^®	Automatic	Class II Trailer Tow Package	2,041

Towing
Body Style	Engine	Transmission	Available Features	Max. Trailer Weight Up-to (Lbs.)
2-Door	2.3L EcoBoost^®	Manual	Class II Trailer Tow Package	3,500
2-Door	2.3L EcoBoost^®	Automatic	Class II Trailer Tow Package	3,500
2-Door	2.7L EcoBoost^®	Automatic	Class II Trailer Tow Package	3,500
4-Door	2.3L EcoBoost^®	Manual	Class II Trailer Tow Package	3,500
4-Door	2.3L EcoBoost^®	Automatic	Class II Trailer Tow Package	3,500
4-Door	2.7L EcoBoost^®	Automatic	Class II Trailer Tow Package	3,500
4-Door	3.0L EcoBoost^®	Automatic	Class II Trailer Tow Package	4,500

Capability

Capability (projected)	2-Door	4-Door	Everglades™ (4-dr.)	Raptor® (4-dr.)
Approach Angle (Deg.)	35.5 - 43.2 (with 35" tire)	35.5 - 43.2 (with 35" tire)	37.8 (with winch)	47.2
Breakover Angle (Deg.)	21.1 - 29.0 (with 35" tire)	20.0 - 26.3 (with 35" tire)	26.3	30.8
Departure Angle (Deg.)	29.8 - 37.2 (with 35" tire)	29.7 - 37.0 (with 35" tire)	37.1	40.5
Ramp Travel Index (Badlands™ only) Stabilizer bar connected/disconnected	560/700	500/620
Ground Clearance	213.4 mm - 294.6 mm (with 35" tire)	213.4 mm - 292.1 mm (with 35" tire)	296 mm	333 mm
Water Fording (max.)	850 mm (with 33 & 35" tire)	850 mm (with 33 & 35" tire)	925 mm	940 mm

Capability (projected)	2-Door	4-Door	Everglades™ (4-dr.)	Raptor® (4-dr.)
Approach Angle (Deg.)	35.5 - 43.2 (with 35" tire)	35.5 - 43.2 (with 35" tire)	37.8 (with winch)	47.2
Breakover Angle (Deg.)	21.1 - 29.0 (with 35" tire)	20.0 - 26.3 (with 35" tire)	26.3	30.8
Departure Angle (Deg.)	29.8 - 37.2 (with 35" tire)	29.7 - 37.0 (with 35" tire)	37.1	40.5
Ramp Travel Index (Badlands™ only) Stabilizer bar connected/disconnected	560/700	500/620
Ground Clearance	8.4 - 11.6 (with 35" tire)	8.3 - 11.5 (with 35" tire)	11.7	13.1
Water Fording (max.)	33.5" (with 33 & 35" tire)	33.5" (with 33 & 35" tire)	36.4	37

Ford Iconic Vehicles

SUVs & Cars

Capable, convenient and versatile

Trucks & Vans

Hauling, towing, and off-roading

Electrified

What does going electric mean?

Performance Vehicles

Commercial Vehicles

Future Vehicles

Catch up with all the latest news

2024 Bronco® Outer Banks™

Key Features

Body-Colour-Painted Fender Flares

Leather-Trimmed Seating

SYNC® 476- 12" LCD Capacitive Touchscreen With Swipe Capability And Enhanced Voice Recognition

Exterior Features

Appearance

Standard

Optional

Windows & Glass

Standard

Interior Features

Climate

Standard

Comfort and Convenience

Standard

Optional

Entertainment Systems

Standard

Optional

Seating

Standard

Optional

Packages

Packages

Standard

Optional

Safety

Security

Standard

Optional

Safety

Standard

Power and Handling

Handling

Standard

Optional

Power

Standard

Optional

Wheels & Tires

Standard

Optional

Specifications

Highlights

Interior

Capacities

Exterior

Engine

Chassis

Towing

Capability

SYNC^® 4⁷⁶- 12" LCD Capacitive Touchscreen With Swipe Capability And Enhanced Voice Recognition
