Seating for (4-door)

5

Seating for (4-door)

Key Features

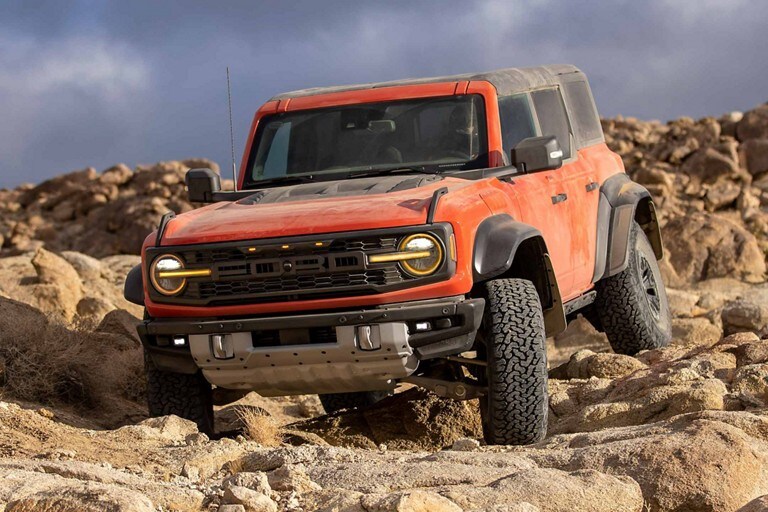

2025 Ford Bronco® being driven over a rock formation

Raptor^® Shadow Black Apperance Package

Black is back. Matte Black Painted Steel Bash Plates. Low Gloss Black High Coverage Fender Flares. Shadow Black Painted Sport Tube, Windshield Trim, Matte Black Hood Graphics with black removable hard top complete the look.

U.S. 2025 Ford Bronco^® Raptor^® model with optional equipment shown. Always consult the Owner’s Manual before off-roading, know your terrain and trail difficulty, and use appropriate safety gear.

Raptor^® HOSS 4.0 System with FOX^™ Live Valve 3.1 Internal Bypass Semi-Active Dampers

Uniquely tuned at the front and rear, with integrated reservoirs up front and remote reservoirs in rear. Multiple sensors continually monitor changing terrain conditions hundreds of times a second and adjust accordingly. Ford Performance-designed control arms at the front and rear help deliver maximum wheel travel of 13.0 inches in front and 14.0 inches in rear.

2025 Ford Bronco® being driven up a mountain

37" All-Terrain Tires

Massive 37" x 12.5R17 BSW all-terrain tires on 17" alloy wheels come standard with the 2025 Bronco^® Raptor^® model. These rugged tires provide all the traction and capability needed to cover challenging ground quickly and confidently, mile after mile.

Exterior Features

Appearance

Standard

Manual Swing-gate with additional Exoskeleton Reinforcement - with up to 150-degree swing
Hard Top: Carbonized Gray Molded-in-Colour (4-Door)
Removeable Doors and Top
Door Handles - Molded-in-Colour, Black
Fender Flares: Body-Colour High Coverage
Fenders - Unique - Bolt-On Front and Rear
Unique Raptor Hood
Grille - Magnetic Painted with Maker Lamps and Black "FORD" Lettering
Daytime Running Lamps (DRL)
LED Signature Lighting
LED Fog Lamps
Mirrors, Sideview - Heated, Power Glass, Manual-Fold, Body Colour Finish
Unique Heavy Duty Full-Vehicle Steel Bash Plates
Rock Rails with Removeable Running Board
Tow Hooks - 2 Front, 2 Rear
Heavy-Duty Modular Front Bumper with Uniquely Styled Front Bumperette and Removable End Caps with Rigid^® LED Fog & Off-Road Lamps

Optional

Hard Top: Body Colour-Painted (4-Door)
Hard Top: Shadow Black-Painted (4-Door)
Low Gloss Black High Coverage Fender Flares
Raptor Side & Hood Graphics
Black Appearance Raptor Side Graphic
Tube Doors - 4-Door
Wheel Lock Kit

Windows & Glass

Standard

Privacy Glass - 2nd Row Side and Flip-up Glass (Hard Top)

Interior Features

Climate

Standard

Dual-Zone Electronic Automatic Temperature Control

Comfort and Convenience

Standard

Intelligent Access with Push-Button Start
Remote Keyless Access with Push-Button Start
Remote Start System (Automatic Transmission)
12" LCD Digital Instrument Cluster (In Gauge Cluster)
Unique Raptor branded Floor Liners - front and rear
Cargo Area Protector
Rubberized Flooring - Washout Capable with Drain Plugs
Pre-Collision Assist with Automatic Emergency Braking
Lane-Keeping System
BLIS^® with Cross-Traffic Alert
Illuminated Sliding Visor Vanity Mirrors (Driver and Front Passenger)
Terrain Management System (TMS) with 7 G.O.A.T. Modes
Auto-Dimming Rearview Mirror
Powerpoints (12V) – Two – Front Centre Floor Console (1) and Cargo Area (1)
Dual Smart Charging USB Ports - Type C + Std A, Front Row
Dual Smart Charging USB Ports - Type C + Std A, Second Row (Back of Centre Floor Console)
Dual Smart Charging USB Ports - Type C + Std A, Dash Board
AC Power Outlet - Back Side Of Centre Floor Console
Sport Leather Steering Wheel with Paddle Shifters, Raptor-Unique Bezel and Badge
Manual Tilt and Telescoping Steering Column
Power Front Row with One-Touch Up/Down Feature
Second Row Window Controls (4-Door): Located in the Back Side of the Centre Floor Console
MOLLE Panel (Driver and Front Passenger Seatback)
Storage - Roof Bag, 2-Door Modular Roof Porthole Panel (requires 2-Door)
Hard Top Sound Deadening Headliner (requires Hard Top)

Optional

Console Cup Holder
Assistance Kit, On-Road
Assistance Kit, Off-Road
Interior Carbon Fiber Back
Cargo Area Rug
Cargo Box (Rear Cargo Storage Safe)
Cargo Net Kit
Cockpit Cover
First Aid Kit
Safe Deposit - Console Lock Box
Tailgate Table
Storage Bags: Front Row, Top Panels and Front Doors
Windshield Sunscreen
Code Orange Access Seat Belts

Entertainment Systems

Standard

B&O Sound System by Bang & Olufsen, 12-Speakers Including Subwoofer
SYNC^® 4 - 12" LCD Capacitive Touchscreen with Swipe Capability and Enhanced Voice Recognition
AppLink^® with App Catalog
911 Assist^®
Wireless Apple Carplay^™ and Android Auto^™ Compatibility
Connected Voice-Activated Touchscreen Navigation System with Pinch-to-zoom Capability-1-Year Trial Subscription
SiriusXM^® With 360L
SYNC^® 4
FordPass Connect^™

Seating

Standard

Marine Grade Vinyl
Heated Front Seats
6-Way Manual Driver Seat
6-Way Manual Passenger
Second-Row, 60/40 Split-Fold (4-Door)

Optional

Leather-Trimmed Seating
8-Way Power Passenger (4-Door Only with Leather)
10-Way Power Driver Seat (4-Door Only with Leather)

Power and Handling

Handling

Standard

Four-Wheel Disc Brakes with Anti-Lock Brake System (ABS) and Electronic Stability Control
HOSS 4.0 with FOX^™ Live Valve 3.1 Internal Bypass Semi-Active Dampers
Advanced 4x4 with Automatic On-Demand Engagement
Adaptive Cruise Control
Forward Parking Sensors
Reverse Parking Sensors
Trail Control^™ (requires 10-Speed Transmission)
Trail Turn Assist (requires 10-Speed Transmission)
Hill Start Assist
Trail One-Pedal Drive (Requires 2.7L or 3.0L Engine and 10-Speed Auto)
Electronic-Locking Rear Axle
Electronic-Locking Front and Rear Axle
Front Stabilizer Bar Disconnect

Power

Standard

Post-Collision Braking
Electric Parking Brake
3.0L EcoBoost^® V6 Engine
Electric Power-Assisted Steering (EPAS)
10-Speed Automatic Transmission (4-Door)

Optional

Engine Block Heater

Wheels & Tires

Standard

17" Black High Gloss Painted Alloy
37" X 12.5R17 BSW A/T - All-Terrain

Optional

17" Dark Carbonized Gray Alloy Painted, Beadlock Capable Forged Wheels

Safety

Standard

Individual Tire Pressure Monitoring System (ITPMS)
Personal Safety System^™
First Row: Driver and Passenger Dual-Stage Front
First Row: Driver and Passenger Seat Side
All Rows: Safety Canopy^® Side-Curtain with Rollover Sensor
Lower Anchors and Tether Anchors for Children (LATCH) - Each Second Row Seating Position
Belt-Minder^® (Front Row)

Security

Standard

Perimeter Alarm
Unique LED Headlamps with LED Signature Lighting
Auto High-Beam Headlamps
Rear View Camera with Backup Assist Grid Lines
360-Degree Camera
AdvanceTrac^® with RSC^® (Roll Stability Control^™)
Trailer Sway Control

Packages

Specifications

Highlights

Vehicle Highlights	2-Door	4-Door
Max Seating Capacity	4	5
Drive Type	4 X 4	4 X 4
Transmission	10-Speed Automatic/7-Speed Manual Transmission	10-Speed Automatic/7-Speed Manual Transmission
Wheelbase (base)	255.0 cm	295.0 cm
Maximum Towing Capacity	1,587 kg	1,587 kg / 2,041 kg (Raptor^®)
Wheels Available	16" Bright Polished Silver Painted Steel - Base - Standard	16" Bright Polished Silver Painted Steel - Base - Standard
	17" Machined Carbonized Gray-Painted Aluminum - Badlands - Standard	17" Black High Gloss-Painted Aluminum - Big Bend, Outer Banks - Optional
	17" Black High Gloss-Painted Aluminum with Black Beauty Ring, Beadlock Capable Wheels - Badlands - Big Bend,Outer Banks, Badlands - Optional	17" Carbonized Gray-Painted Aluminum - Big Bend - Standard
	17" Black High Gloss-Painted Aluminum with Warm Alloy Beauty Ring, Beadlock Capable Wheels - Base, Big Bend, Outer Banks, Badlands - Optional	17" Machined Carbonized Gray-Painted Aluminum - Badlands - Standard
	17" Unique White Wheels - Heritage Edition - Standard	17" Black High Gloss-Painted Aluminum with Black Beauty Ring, Beadlock Capable Wheels - Badlands - Big Bend,Outer Banks, Badlands - Optional
	18" Bright Machined Black High Gloss-Painted Aluminum - Outer Banks - Standard	17" Black High Gloss-Painted Aluminum with Warm Alloy Beauty Ring, Beadlock Capable Wheels - Base, Big Bend, Outer Banks, Badlands - Optional
	17" Dog-Dish style Black High Gloss-Painted Aluminum with White Wall - Standard on Heritage Limited Edition (Late Availability)	17" Black High Gloss Painted Alloy - Raptor - Standard
		17" Dark Carbonized Gray Alloy Painted, Beadlock Capable Forged Wheels - Raptor - Optional
		17" Unique Matte Black Painted Alloy with Gloss Black Trim Ring - Stroppe Edition - Standard
		18" Bright Machined Black High Gloss-Painted Aluminum - Outer Banks - Standard
Warranty	Bumper to Bumper: 3 years / 36,000 miles Powertrain: 5 years / 60,000 miles Safety Restraint System: 5 years / 60,000 miles Corrosion (Perforation only): 5 years / Unlimited miles Roadside Assistance Program: 5 years / 60,000 miles	Bumper to Bumper: 3 years / 36,000 miles Powertrain: 5 years / 60,000 miles Safety Restraint System: 5 years / 60,000 miles Corrosion (Perforation only): 5 years / Unlimited miles Roadside Assistance Program: 5 years / 60,000 miles

Vehicle Highlights	2-Door	4-Door
Max Seating Capacity	4	5
Drive Type	4 X 4	4 X 4
Transmission	10-Speed Automatic/7-Speed Manual Transmission	10-Speed Automatic/7-Speed Manual Transmission
Wheelbase (base)	100.4 in.	116.1 in.
Maximum Towing Capacity	3,500 lbs	3,500 lbs. / 4,500 lbs. (Raptor^®)
Wheels Available	16" Bright Polished Silver Painted Steel - Base - Standard	16" Bright Polished Silver Painted Steel - Base - Standard
	17" Machined Carbonized Gray-Painted Aluminum - Badlands - Standard	17" Black High Gloss-Painted Aluminum - Big Bend, Outer Banks - Optional
	17" Black High Gloss-Painted Aluminum with Black Beauty Ring, Beadlock Capable Wheels - Badlands - Big Bend,Outer Banks, Badlands - Optional	17" Carbonized Gray-Painted Aluminum - Big Bend - Standard
	17" Black High Gloss-Painted Aluminum with Warm Alloy Beauty Ring, Beadlock Capable Wheels - Base, Big Bend, Outer Banks, Badlands - Optional	17" Machined Carbonized Gray-Painted Aluminum - Badlands - Standard
	17" Unique White Wheels - Heritage Edition - Standard	17" Black High Gloss-Painted Aluminum with Black Beauty Ring, Beadlock Capable Wheels - Badlands - Big Bend,Outer Banks, Badlands - Optional
	18" Bright Machined Black High Gloss-Painted Aluminum - Outer Banks - Standard	17" Black High Gloss-Painted Aluminum with Warm Alloy Beauty Ring, Beadlock Capable Wheels - Base, Big Bend, Outer Banks, Badlands - Optional
	17" Dog-Dish style Black High Gloss-Painted Aluminum with White Wall - Standard on Heritage Limited Edition (Late Availability)	17" Black High Gloss Painted Alloy - Raptor - Standard
		17" Dark Carbonized Gray Alloy Painted, Beadlock Capable Forged Wheels - Raptor - Optional
		17" Unique Matte Black Painted Alloy with Gloss Black Trim Ring - Stroppe Edition - Standard
		18" Bright Machined Black High Gloss-Painted Aluminum - Outer Banks - Standard
Warranty	Bumper to Bumper: 3 years / 36,000 miles Powertrain: 5 years / 60,000 miles Safety Restraint System: 5 years / 60,000 miles Corrosion (Perforation only): 5 years / Unlimited miles Roadside Assistance Program: 5 years / 60,000 miles	Bumper to Bumper: 3 years / 36,000 miles Powertrain: 5 years / 60,000 miles Safety Restraint System: 5 years / 60,000 miles Corrosion (Perforation only): 5 years / Unlimited miles Roadside Assistance Program: 5 years / 60,000 miles

Interior

Interior Dimensions (projected)	2-Door	4-Door
Head room
First row (Hard Top)	1,042 mm	1,037 mm
First row (Soft Top)	N/A	1,099 mm
Second row (Hard Top)	1,011 mm	1,018 mm
Second row (Soft Top)	N/A	1,044 mm
Leg room
First row	1,096 mm	1,096 mm
Second row	907 mm	921 mm
Hip room
First row	1,431 mm	1,420 mm
Second row	1,099 mm	1,393 mm
Shoulder room
First row	1,450 mm	1,450 mm
Second row	1,315 mm	1,434 mm

Interior Dimensions (projected)	2-Door	4-Door
Head room
First row (Hard Top)	41 (in.)	40.8 (in.)
First row (Soft Top)	N/A	43.3 (in.)
Second row (Hard Top)	39.8 (in.)	40.1 (in.)
Second row (Soft Top)	N/A	41.1 (in.)
Leg room
First row	43.1 (in.)	43.1 (in.)
Second row	35.7 (in.)	36.3 (in.)
Hip room
First row	56.3 (in.)	55.9 (in.)
Second row	43.3 (in.)	54.8 (in.)
Shoulder room
First row	57.1 (in.)	57.1 (in.)
Second row	51.8 (in.)	56.5 (in.)

Capacities

Capacities: Passengers, Luggage, Fuel (Projected)	Base (2-Dr/4-Dr)	Big Bend® (4-Door)	Badlands® (2-Dr/4-Dr)	Raptor® (4-door)	Heritage Edition (4-Door)
Seating capacity	4/5	5	4/5	5	5
Passenger volume Hardtop	2,803.8/2,935.9 L	2,935.9 L	2,803.8/2,935.9 L	2,935.9 L	2,935.9 L
Passenger volume Soft Top	NA/3,064.1 L	3,064.1 L	NA/3,064.1 L	3,064.1 L	3,064.1 L
Behind 1st row (Hardtop)	1,480/2,196.2 L	2,196.2 L	1,480/2,196.2 L	2,196.2 L	2,196.2 L
Behind 1st row (Soft top)	NA/2,349.5 L	2,349.5 L	NA/2,349.5 L	2,349.5 L	2,349.5 L
Behind 2nd row (Hardtop)	635/1,008 L	1,008 L	635/1,008 L	1,008 L	1,008 L
Behind 2nd row (Soft top)	NA/1,085 L	1,085 L	NA/1,085 L	1,085 L	1,085 L
Fuel capacity 2.3L EcoBoost^®	Not available at time of publication	Not available at time of publication	Not available at time of publication	Not available at time of publication	Not available at time of publication
Fuel capacity 2.7L EcoBoost^®	Not available at time of publication	Not available at time of publication	Not available at time of publication	Not available at time of publication	Not available at time of publication
Fuel capacity 3.0 L EcoBoost^®	Not available at time of publication	Not available at time of publication	Not available at time of publication	Not available at time of publication	Not available at time of publication
Estimated base curb weights (projected)
2.3L EcoBoost^® (Manual)	1,959.1 - 2,248.5 (kgs.)	2,040.7 - 2,266.6 (kgs.)	N/A	N/A	TBD
2.3L EcoBoost^® (Automatic)	1,968.1 - 2,257.5 (kgs.)	2,045.2 - 2,370.5 (kgs.)	2,206.2 - 2,338 (kgs.)	N/A	TBD
2.7L EcoBoost^®	2,037.1 - 2,326.5 (kgs.)	2,114.2 - 2,413.1 (kgs.)	N/A	N/A	TBD
3.0L EcoBoost^®	NA	NA	N/A	TBD	N/A
*Weights are projected and given as a range from base - full content

Capacities: Passengers, Luggage, Fuel (Projected)	Base (2-Dr/4-Dr)	Big Bend^® (4-Door)	Badlands^® (2-Dr/4-Dr)	Raptor^® (4-door)	Heritage Edition (4-Door)
Seating capacity	4/5	5	4/5	5	5
Passenger volume Hardtop	99.0/103.7 (cu. ft.)	103.7 (cu. ft.)	99.0/103.7 (cu. ft.)	103.7 (cu. ft.)	103.7 (cu. ft.)
Passenger volume Soft Top	NA/108.2 (cu. ft.)	108.2 (cu. ft.)	NA/108.2 (cu. ft.)	108.2 (cu. ft.)	108.2 (cu. ft.)
Behind 1st row (Hardtop)	52.3/77.6 (cu. ft.)	77.6 (cu. ft.)	52.3/77.6 (cu. ft.)	77.6 (cu. ft.)	77.6 (cu. ft.)
Behind 1st row (Soft top)	NA/83.0 (cu. ft.)	83 (cu. ft.)	NA/83.0 (cu. ft.)	83 (cu. ft.)	83 (cu. ft.)
Behind 2nd row (Hardtop)	22.4/35.6 (cu. ft.)	35.6 (cu. ft.)	22.4/35.6 (cu. ft.)	35.6 (cu. ft.)	35.6 (cu. ft.)
Behind 2nd row (Soft top)	NA/38.3 (cu. ft.)	38.3 (cu. ft.)	NA/38.3 (cu. ft.)	38.3 (cu. ft.)	38.3 (cu. ft.)
Fuel capacity 2.3L EcoBoost^®	Not available at time of publication	Not available at time of publication	Not available at time of publication	Not available at time of publication	Not available at time of publication
Fuel capacity 2.7L EcoBoost^®	Not available at time of publication	Not available at time of publication	Not available at time of publication	Not available at time of publication	Not available at time of publication
Fuel capacity 3.0 L EcoBoost^®	Not available at time of publication	Not available at time of publication	Not available at time of publication	Not available at time of publication	Not available at time of publication
Estimated base curb weights (projected)
2.3L EcoBoost^® (Manual)	4,319 - 4,957 (lbs.)	4,499 - 4,997 (lbs.)	NA	N/A	TBD
2.3L EcoBoost^® (Automatic)	4,339 - 4,977 (lbs.)	4,499 - 4,997 (lbs.)	4,864 - 4,934 (lbs.)	N/A	TBD
2.7L EcoBoost^®	4,491 - 5,129 (lbs.)	4,661 - 5,320 (lbs.)	N/A	N/A	TBD
3.0L EcoBoost^®	N/A	NA	N/A	TBD	N/A
Weights are projected and given as a range from base - full content

Exterior

Exterior Dimensions (Projected)	Base (2-Dr/4-Dr)	Big Bend^® (4-Door)	Badlands^® (2-Dr/4-Dr)	Raptor^® (4-door)	Heritage Edition (4-Door)
Drive system	4x4	4x4	4x4	4x4	4x4
Wheelbase	2,550 mm / 2,950 mm	2,950 mm	2,550 mm / 2,950 mm	2,950 mm	2,959.1 mm
Length (base)	4,412 mm / 4,810.8 mm	4,810.8 mm	4,412 mm / 4,810.8 mm	4,851.4 mm	4,810.8 mm
Vehicle height	1,826.3 mm / 1,854.2 mm (soft top)	1,851 mm	1,874.5 mm / 1,877 mm	1,976.1 mm - w/o roof rack	1,998.9 mm
Vehicle width with mirrors	2,189.5 mm	2,189.5 mm	2,189.5 mm	2,176.7 mm	2,199.6 mm
Vehicle width with mirrors folded	1,927.9 mm	1,927.9 mm	1,938 mm	2,207.2 mm	2,016 mm
Track, front	1,651 mm	1,651 mm	1,651 mm	1,859.2 mm	1,698 mm
Track, rear	1,651 mm	1,651 mm	1,651 mm	1,869.4 mm	1,700 mm

Exterior Dimensions (Projected)	Base (2-Dr/4-Dr)	Big Bend^® (4-Door)	Badlands^® (2-Dr/4-Dr)	Raptor^® (4-door)	Heritage Edition (4-Door)
Drive system	4x4	4x4	4x4	4x4	4x4
Wheelbase	100.4 (in.)/116.1 (in.)	116.1 (in.)	100.4 (in.)/116.1 (in.)	116.1 (in.)	116.5 (in.)
Length (base)	173.7 (in.)/189.4 (in.)	189.4 (in.)	173.7 (in.)/189.4 (in.)	191 (in.)	189.4 (in.)
Vehicle height	71.9 (in.)/73.0 (in.) (soft top)	72.9 (in.)	73.8 (in.)/73.9 (in.)	77.8 (in.) - w/o roof rack	78.7 (in.)
Vehicle width with mirrors	86.2 (in.)	86.2 (in.)	86.2 (in.)	85.7 (in.)	86.6 (in.)
Vehicle width with mirrors folded	75.9 (in.)	75.9 (in.)	76.3	86.9 (in.)	79.4 (in.)
Track, front	65 (in.)	65 (in.)	65 (in.)	73.2 (in.)	66.9 (in.)
Track, rear	65 (in.)	65 (in.)	65 (in.)	73.6 (in.)	66.9 (in.)

Engine

	2.3L EcoBoost^®	2.7L EcoBoost^®	3.0L EcoBoost^®
Engine type	2.3L Ti-VCT GTDI I-4	2.7L Ti-VCT GTDI V-6	3.0L Ti-VCT GTDI V-6
Drive type	4x4	4x4	4x4
Exhaust	Single	Single	Single with active valve technology
Transmission type	7-Speed Manual/10-Speed Automatic	10-Speed Automatic	10-Speed Automatic
Horsepower (regular fuel)	275	315	406
Torque (regular fuel)	315	410	440
Horsepower (premium fuel)	300,*	330,*	418,*
Torque (premium fuel)	325,*	415,*	440,*
Compression ratio	10.0:1	10.0:1	10.5:1
Valve lifters	Direct Acting Mechanical Buckets	Roller Finger Follower	Roller Finger Follower
Engine block material	Aluminum	Compacted Graphite Iron (CGI)	Compacted Graphite Iron (CGI)
Cylinder head material	Aluminum	Aluminum	Aluminum
Induction system	Turbocharged	Turbocharged	Turbocharged
Fuel delivery	Direct injection	Ported Fuel/Direct injection (PFDI)	Direct injection
Fuel (minimum)	Regular unleaded	Regular unleaded	Regular unleaded

	2.3L EcoBoost^®	2.7L EcoBoost^®	3.0L EcoBoost^®
Engine type	2.3L Ti-VCT GTDI I-4	2.7L Ti-VCT GTDI V-6	3.0L Ti-VCT GTDI V-6
Drive type	4x4	4x4	4x4
Exhaust	Single	Single	Single with active valve technology
Transmission type	7-Speed Manual/10-Speed Automatic	10-Speed Automatic	10-Speed Automatic
Horsepower (regular fuel)	275	315	406
Torque (regular fuel)	315	410	440
Horsepower (premium fuel)	300,*	330,*	418,*
Torque (premium fuel)	325,*	415,*	440,*
Compression ratio	10.0:1	10.0:1	10.5:1
Valve lifters	Direct Acting Mechanical Buckets	Roller Finger Follower	Roller Finger Follower
Engine block material	Aluminum	Compacted Graphite Iron (CGI)	Compacted Graphite Iron (CGI)
Cylinder head material	Aluminum	Aluminum	Aluminum
Induction system	Turbocharged	Turbocharged	Turbocharged
Fuel delivery	Direct injection	Ported Fuel/Direct injection (PFDI)	Direct injection
Fuel (minimum)	Regular unleaded	Regular unleaded	Regular unleaded

Chassis

Chassis Specifications
Front suspension	Front: Independent HOSS 1.0 (High-Performance, Off-Road, Stability, Suspension) System with twin alloy A-arms and coil-over springs for optimum off-road stability and control with available HOSS 2.0 System with Bilstein^® Position-Sensitive Dampers, HOSS 3.0 with FOX^™ Internal Bypass Dampers, and HOSS 4.0 with FOX^™ Live Valve 3.1 internal bypass semi- active shocks
Rear suspension	Rear: Solid five-link rear axle HOSS (High-Performance, Off-Road, Stability, Suspension) System with coil-over springs for optimum off-road capability and durability with available HOSS System with Bilstein Position Sensitive Dampers, HOSS 3.0 with FOX^™ Internal Bypass Dampers, and HOSS 4.0 with FOX^™ Live Valve 3.1 internal bypass semi- active shocks
Traction assist	AdvanceTrac^® with RSC^® (Roll Stability Control^™)
Brakes	Power 4-wheel disc with Anti-Lock Brake System (ABS)
Steering	Electric power-assisted steering (EPAS)

Chassis Specifications
Front suspension	Front: Independent HOSS 1.0 (High-Performance, Off-Road, Stability, Suspension) System with twin alloy A-arms and coil-over springs for optimum off-road stability and control with available HOSS 2.0 System with Bilstein^® Position-Sensitive Dampers, HOSS 3.0 with FOX^™ Internal Bypass Dampers, and HOSS 4.0 with FOX^™ Live Valve 3.1 internal bypass semi- active shocks
Rear suspension	Rear: Solid five-link rear axle HOSS (High-Performance, Off-Road, Stability, Suspension) System with coil-over springs for optimum off-road capability and durability with available HOSS System with Bilstein Position Sensitive Dampers, HOSS 3.0 with FOX^™ Internal Bypass Dampers, and HOSS 4.0 with FOX^™ Live Valve 3.1 internal bypass semi- active shocks
Traction assist	AdvanceTrac^® with RSC^® (Roll Stability Control^™)
Brakes	Power 4-wheel disc with Anti-Lock Brake System (ABS)
Steering	Electric power-assisted steering (EPAS)

Towing

Body Style	Engine	Transmission	Available Features	Max. Trailer Weight Up-to (kgs)
2-Door	2.3L EcoBoost^®	Manual	Class II Trailer Tow Package	1,587.5
2- Door	2.3L EcoBoost^®	Automatic	Class II Trailer Tow Package	1,587.5
2-Door	2.7L EcoBoost^®	Automatic	Class II Trailer Tow Package	1,587.5
4-Door	2.3L EcoBoost^®	Manual	Class II Trailer Tow Package	1,587.5
4-Door	2.3L EcoBoost^®	Automatic	Class II Trailer Tow Package	1,587.5
4-Door	2.7L EcoBoost^®	Automatic	Class II Trailer Tow Package	1,587.5
4-Door	3.0L EcoBoost^®	Automatic	Class II Trailer Tow Package	2,041

Body Style	Engine	Transmission	Available Features	Max. Trailer Weight Up-to (Lbs.)
2-Door	2.3L EcoBoost^®	Manual	Class II Trailer Tow Package	3,500
2- Door	2.3L EcoBoost^®	Automatic	Class II Trailer Tow Package	3,500
2-Door	2.7L EcoBoost^®	Automatic	Class II Trailer Tow Package	3,500
4-Door	2.3L EcoBoost^®	Manual	Class II Trailer Tow Package	3,500
4-Door	2.3L EcoBoost^®	Automatic	Class II Trailer Tow Package	3,500
4-Door	2.7L EcoBoost^®	Automatic	Class II Trailer Tow Package	3,500
4-Door	3.0L EcoBoost^®	Automatic	Class II Trailer Tow Package	4,500

Capability

Capability (projected)	Base (2-Dr/4-Dr)	Big Bend® (4-Door)	Badlands® (2-Dr/4-Dr)	Raptor® (4-door)	Heritage Edition (4-Door)
Approach Angle (Deg.)	35.7/35.7	38.2	40.4/40.3	47.2	43.2
Approach Angle (Deg.) Sasquatch Pkg.	43.3/43.3	43.2	43.2/43.2	N/A	43.2
Breakover Angle (Deg.)	21.3/19.6	23.6	-	30.8	37
Breakover Angle (Deg.) Sasquatch Pkg.	28.9/26.3	26.3	29.0/26.3	N/A	26.3
Departure Angle (Deg.)	29.9/29.8	32	-	40.5	37
Departure Angle (Deg.) Sasquatch Pkg	37.0/36.9	37	37.2/37.0	N/A	37
Ramp Travel Index	N/A	N/A	14,224 mm/12,700 mm	N/A	N/A
Stabilizer bar connected / disconnected	N/A	N/A	17,780 mm/15,748 mm	N/A	N/A
Ground Clearance	210.8 mm/213.3 mm	238.7 mm	266.7 mm/266.7 mm	332.7 mm	292.1 mm
Ground Clearance (w/35" tires)	294.6 mm/292.1 mm	292.1 mm	294.6 mm/292.1 mm	N/A	292.1 mm
Water Fording (max.)	-	-	-	939.8 mm	850.9 mm
Water Fording (Sasquatch Pkg.)	-	850.9 mm	850.9 mm/850.9 mm	N/A	850.9 mm

Capability (projected)
	Base (2-Dr/4-Dr)	Big Bend^® (4-Door)	Badlands^® (2-Dr/4-Dr)	Raptor^® (4-door)	Heritage Edition (4-Door)
Approach Angle (Deg.)	35.7/35.7	38.2	40.4/40.3	47.2	43.2
Approach Angle (Deg.) Sasquatch Pkg.	43.3/43.3	43.2	43.2/43.2	N/A	43.2
Breakover Angle (Deg.)	21.3/19.6	23.6	-	30.8	37
Breakover Angle (Deg.) Sasquatch Pkg.	28.9/26.3	26.3	29.0/26.3	N/A	26.3
Departure Angle (Deg.)	29.9/29.8	32	-	40.5	37
Departure Angle (Deg.) Sasquatch Pkg	37.0/36.9	37	37.2/37.0	N/A	37
Ramp Travel Index	N/A	N/A	560 (in.)/500 (in.)	N/A	N/A
Stabilizer bar connected / disconnected	N/A	N/A	700 (in)/620 (in)	N/A	N/A
Ground Clearance	8.3 (in.)/8.4 (in.)	9.4 (in.)	10.5 (in)/10.5 (in)	13.1 (in.)	11.5 (in.)
Ground Clearance (w/35" tires)	11.6/11.5	9.4 (in.)	10.5 (in)/10.5 (in)	N/A	11.5 (in.)
Water Fording (max.)	-	-	-	37 (in.)	33.5 (in.)
Water Fording (Sasquatch Pkg.)	-	33.5 (in.)	33.5 (in)/33.5 (in)	N/A	33.5 (in.)

Ford Iconic Vehicles

SUVs & Cars

Capable, convenient and versatile

Trucks & Vans

Hauling, towing, and off-roading

Electric & Hybrid

What does going electric mean?

Performance Vehicles

Commercial Vehicles

Ford Pro offers the tools, software and services to keep your business on track and crews on the road.

Recent Searches

Clear

Suggested Searches

Search History

Recent Searches

Suggested Searches

Search History

2025 Bronco® Raptor®

Key Features

Raptor® Shadow Black Apperance Package

Raptor® HOSS 4.0 System with FOX™ Live Valve 3.1 Internal Bypass Semi-Active Dampers

37" All-Terrain Tires

Exterior Features

Appearance

Standard

Optional

Windows & Glass

Standard

Interior Features

Climate

Standard

Comfort and Convenience

Standard

Optional

Entertainment Systems

Standard

Seating

Standard

Optional

Power and Handling

Handling

Standard

Power

Standard

Optional

Wheels & Tires

Standard

Optional

Safety

Safety

Standard

Security

Standard

Packages

Packages

Standard

Optional

Specifications

Highlights

Interior

Capacities

Exterior

Engine

Chassis

Towing

Capability

Build & Price

Search Inventory

Locate a Dealer

Raptor^® Shadow Black Apperance Package

Raptor^® HOSS 4.0 System with FOX^™ Live Valve 3.1 Internal Bypass Semi-Active Dampers
