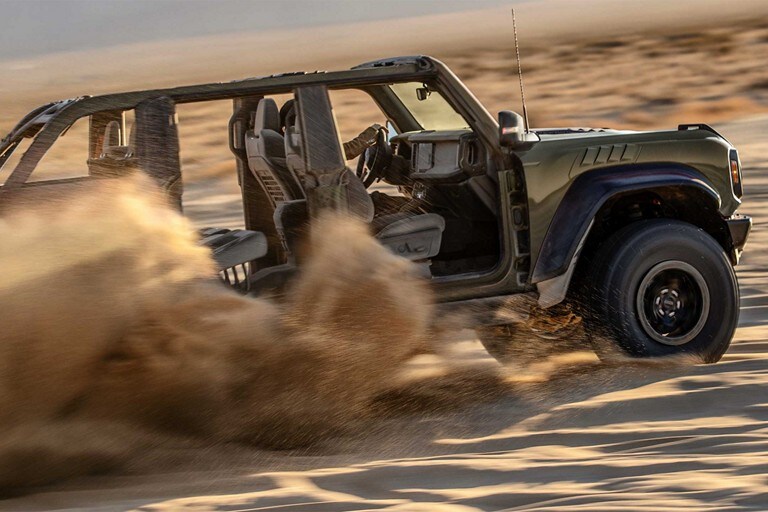

2024 Ford Bronco® Raptor® in Shelter Green driving through desert

3.0L EcoBoost^® V6 Engine

Delivers a ferocious 418 horsepower* and 440 lb.-ft. of torque.⁶⁸ With its rugged 10-speed automatic transmission, the roughest terrain is yours to tame. Standard on Bronco^® Raptor^®.

*Horsepower and torque ratings based on premium fuel per SAE J1349^® standard. Your results may vary.

U.S. Model Shown.

2024 Ford Bronco® Raptor® in Shelter Green driving down rocky terrain

HOSS 4.0 With FOX^™ Live Valve 3.1 Internal Bypass Semi-Active Dampers

The Ford Performance team collaborated with FOX to upgrade the Bronco^® Raptor^® suspension. Maximum wheel travel of 13" in front and 14" in the rear equals 60% and 40% more, respectively.

U.S. Model Shown.

Extra-cost paint option.

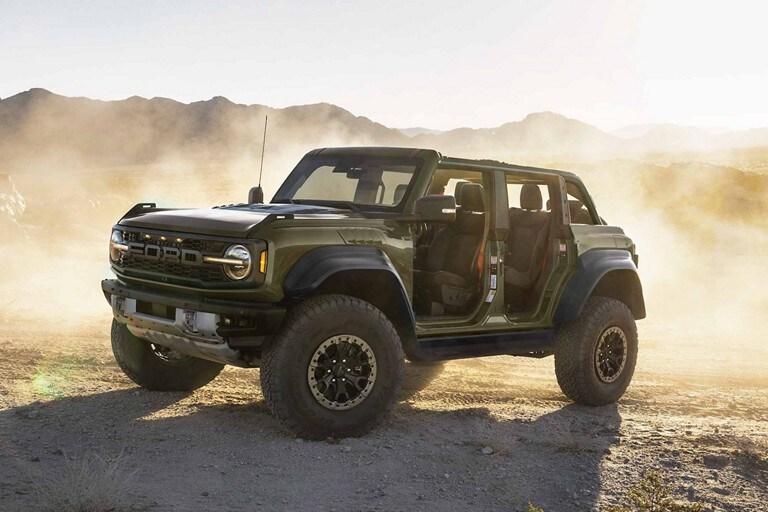

2024 Ford Bronco® Raptor® in Shelter Green parked in a desert

37" x 12.5R17 BSW A/T - All-Terrain

Massive 37" all-terrain tires on 17" Alloy Wheels with the 2024 Bronco^® Raptor^®. They provide the traction and capability needed to cover challenging ground quickly and confidently.

U.S. Model Shown.

Exterior Features

Appearance

Standard

Manual Swing-gate with additional Exoskeleton Reinforcement-with up to 150-degree swing
Flip-Up Rear Glass (4-Door)
Hard Top (4-Door) Carbonized Grey Moulded-in-Colour (MIC)
Removable Doors and Top
Door Handles - Moulded-in-Colour, Black
Body-Colour High Coverage Fender Flairs
Fenders - Unique - Bolt-On Front and Rear
Unique Raptor Hood
Grille - Carbonized Grey Painted with Maker Lamps and Black "FORD" Lettering
Daytime Running Lamps (DRL) (non-Configurable)
LED Signature Lighting
LED Fog Lamps
Mirrors, Sideview - Heated, Power Glass, Manual-Fold, Black Moulded-In-Colour Finish
Unique Heavy Duty Full-Vehicle Steel Bash Plates
Rock Rails with Removeable Running Board
Unique Splash Guards - Front and Rear
Tow Hooks - 2 Front, 2 Rear
Unique Modular Front Bumper with uniquely styled Front Bumperette and Removable End Caps with Rigid LED Fog & Off-Road Lamps

Optional

Low Gloss Black High Coverage Fender Flairs
Raptor Graphic

Windows & Glass

Standard

Privacy Glass - 2nd Row Side and Flip-up Glass (Hard Top)
Front - Variable Intermittent/Continuous Wiper/Washer
Rear - Single-Speed Intermittent/Continuous Wiper/Washer (Hard Top)

Interior Features

Climate

Standard

Dual-Zone Electronic Automatic Temperature Control

Comfort and Convenience

Standard

Intelligent Access with Push-Button Start
Remote Keyless Access with Push-Button Start
Remote Start System (Requires 10-Speed Auto transmission)
Unique 12" LCD Digital Instrument Cluster (In gauge cluster)
Cargo Area Protector
Rubberized Flooring - Washout Capable with Drain Plugs
Unique Raptor branded Floor Liners - front and rear
Pre-Collision Assist with Automatic Emergency Braking
Lane-Keeping System
BLIS^® with Cross-Traffic Alert
Beverage Holders
Illuminated Sliding Visor Vanity Mirrors (Driver and Front Passenger)
Terrain Management System (TMS) with 7 G.O.A.T. Modes
Overhead Console with Front Map Lights
Ambient Footwell Lighting
Auto-Dimming Rearview Mirror
Powerpoints (12V) – Two – Front Centre Floor Console (1) and Cargo Area (1)
Dual Smart Charging USB Ports - Type C + Std A, 1st Row
Dual Smart Charging USB Ports - Type C + Std A, 2nd Row (Back of Centre Floor Console)
Dual Smart Charging USB Ports - Type C + Std A, Dashboard
AC Power Outlet Back Side Of Centre Floor Console
Wireless Charging Pad
Heated Leather-Wrapped Steering Wheel
Sport Leather Steering Wheel with Paddle Shifters, Raptor-Unique Bezel and Badge
Manual Tilt and Telescoping Steering Column
2nd Row Window Controls (4-door): Located in the back side of the Centre Floor Console
MOLLE Panel (Driver and Front Passenger Seatback)
Hard Top Sound Deadening Headliner (requires Hard Top)

Entertainment Systems

Standard

B&O^® Sound System by Bang & Olufsen^®, 10-Speakers including Subwoofer
SYNC^® 4 — 12" LCD Capacitive Touchscreen With Swipe Capability And Enhanced Voice Recognition
AppLink^® with App Catalog
911 Assist^®
Wireless Apple Carplay^™ and Android Auto^™ Compatibility
Connected Voice-Activated Touchscreen Navigation System with Pinch-to-Zoom Capability - 90-day trial subscription
SiriusXM^® With 360L
SYNC^® 4
FordPass Connect^™

Seating

Standard

Marine Grade Vinyl - Front Bucket
Heated Front Seats
6-way Manual Driver Seat
6-way Manual Passenger
2nd Row, 60/40 Split-Fold (4-Door)

Optional

Leather-Trimmed Seating
10-way Power Driver Seat (4-Door Only with Leather)
8-way Power Passenger (4-Door Only with Leather)

Packages

Safety

Security

Standard

Trailer Sway Control
Perimeter Alarm
Auto High-Beam Headlamps
Rear View Camera with Backup Assist Grid Lines
360-Degree Camera
AdvanceTrac^® with RSC^® (Roll Stability Control^™)

Safety

Standard

Matching Spare Wheel and Tire (with TPMS)
Personal Safety System^™
1st Row: Driver and Passenger Dual-Stage Front
1st Row: Driver and Passenger Seat Side
All Rows: Safety Canopy^® Side-Curtain with Rollover Sensor
Lower Anchors and Tether Anchors for Children (LATCH) - Each 2nd Row Seating Position
Individual Tire Pressure Monitoring System (ITPMS)
Belt-Minder^® (1st Row)

Power and Handling

Handling

Standard

4-Wheel Disc Brakes with Anti-Lock Brake System (ABS) and Electronic Stability Control
HOSS 4.0 with FOX^™ Live Valve 3.1 Internal Bypass Semi-Active Dampers
Advanced 4x4 with Automatic On-Demand Engagement
Adaptive Cruise Control
Electronic Traction control
Front Parking Sensors
Reverse Sensing System
Trail Control^™ for Off-Road (requires 10-speed transmission)
Trail Turn Assist (requires 10-speed transmission)
Trail One-Pedal Driving (Requires 2.7L or 3.0L Engine and 10-speed auto)
Electronic-locking Rear Axle
Electronic-Locking Front and Rear Axle
Front Stabilizer Bar Disconnect

Power

Standard

Post-Collision Braking
Electric Parking Brake
3.0L EcoBoost^® V6 Engine (requires automatic transmission)
Electric Power-Assisted Steering (EPAS)
10-Speed Automatic Transmission (4-Door)

Optional

Engine Block Heater

Wheels & Tires

Standard

17" Black High Gloss Painted Alloy
37" x 12.5R17 BSW - All-Terrain (A/T)

Optional

17" Dark Carbonized Grey Alloy Painted, Beadlock Capable Forged Wheels

Specifications

Highlights

Vehicle Highlights	2-Door	4-Door
Max Seating Capacity	4	5
Drive Type	4 X 4	4 X 4
Transmission	10-Speed Automatic/7-Speed Manual Transmission	10-Speed Automatic/7-Speed Manual Transmission
Wheelbase imp/Metric (base)	255.0 cm	295.0 cm
Maximum Towing Capacity	3,500	3,500
Wheels Available	17" Carbonized Gray-Painted Aluminum - Standard on Big Bend^™	17" Carbonized Gray-Painted Aluminum - Standard on Big Bend^™
	17" Black Gloss-Painted Steel - Standard on Black Diamond^™	17" Black Gloss-Painted Steel - Standard on Black Diamond^™
	18" Bright Machined Black High Gloss-Painted Aluminum - Standard on Outer Banks^™	18" Bright Machined Black High Gloss-Painted Aluminum - Standard on Outer Banks^™
	17" Black High Gloss-Painted Forged Aluminum with Black Beauty Ring, Beadlock Capable - Standard on Wildtrak^™	17" Black High Gloss-Painted Forged Aluminum with Black Beauty Ring, Beadlock Capable - Standard on Wildtrak^™
	17" Machined Carbonized Gray-Painted Aluminum - Standard on Badlands^™	17" Machined Carbonized Gray-Painted Aluminum - Standard on Badlands^™
	17" Black High Gloss-Painted Aluminum, with Warm Alloy Beauty Ring, Beadlock Capable (Included in Sasquatch^® Package for all series except Wildtrak^™) Package is optional on Big Bend^™, Black Diamond^™, Outer Banks^™, Badlands^™	17" Black High Gloss-Painted Aluminum, with Warm Alloy Beauty Ring, Beadlock Capable (Included in Sasquatch^® Package for all series except Wildtrak^™) Package is optional on Big Bend^™, Black Diamond^™, Outer Banks^™, Badlands^™
	17" Unique White Wheels - Standard on Heritage Edition	17" Carbonized Gray-Painted Alloy Wheels - Standard on Everglades™
	17" Dog-Dish style Black High Gloss-Painted Aluminum with White Wall - Standard on Heritage Limited Edition	17" Black High Gloss Painted Alloy - Standard on Raptor®
		17" Dark Carbonized Gray Alloy Painted, Beadlock Capable Forged Wheels - Optional on Raptor®
		17" Unique White Wheels - Standard on Heritage Edition
		17" Dog-Dish style Black High Gloss-Painted Aluminum with White Wall - Standard on Heritage Limited Edition
Warranty	Basic: 3 years/60,000 km	Basic: 3 years/60,000 km
	Powertrain: 5 years/100,000 km	Powertrain: 5 years/100,000 km
	Safety Restraint System: 5 years/100,000 km	Safety Restraint System: 5 years/100,000 km
	Corrosion (Perforation Only): 5 years/unlimited distance	Corrosion (Perforation Only): 5 years/unlimited distance
	Roadside Assistance: 5 years/100,000 km	Roadside Assistance: 5 years/100,000 km

Vehicle Highlights	2-Door	4-Door
Max Seating Capacity	4	5
Drive Type	4 X 4	4 X 4
Transmission	10-Speed Automatic/7-Speed Manual Transmission	10-Speed Automatic/7-Speed Manual Transmission
Wheelbase imp/Metric (base)	100.4 in.	116.1 in.
Maximum Towing Capacity	3,500	3,500
Wheels Available	17" Carbonized Gray-Painted Aluminum - Standard on Big Bend^™	17" Carbonized Gray-Painted Aluminum - Standard on Big Bend^™
	17" Black Gloss-Painted Steel - Standard on Black Diamond^™	17" Black Gloss-Painted Steel - Standard on Black Diamond^™
	18" Bright Machined Black High Gloss-Painted Aluminum - Standard on Outer Banks^™	18" Bright Machined Black High Gloss-Painted Aluminum - Standard on Outer Banks^™
	17" Black High Gloss-Painted Forged Aluminum with Black Beauty Ring, Beadlock Capable - Standard on Wildtrak^™	17" Black High Gloss-Painted Forged Aluminum with Black Beauty Ring, Beadlock Capable - Standard on Wildtrak^™
	17" Machined Carbonized Gray-Painted Aluminum - Standard on Badlands^™	17" Machined Carbonized Gray-Painted Aluminum - Standard on Badlands^™
	17" Black High Gloss-Painted Aluminum, with Warm Alloy Beauty Ring, Beadlock Capable (Included in Sasquatch^® Package for all series except Wildtrak^™) Package is optional on Big Bend^™, Black Diamond^™, Outer Banks^™, Badlands^™	17" Black High Gloss-Painted Aluminum, with Warm Alloy Beauty Ring, Beadlock Capable (Included in Sasquatch^® Package for all series except Wildtrak^™) Package is optional on Big Bend^™, Black Diamond^™, Outer Banks^™, Badlands^™
	17" Unique White Wheels - Standard on Heritage Edition	17" Carbonized Gray-Painted Alloy Wheels - Standard on Everglades™
	17" Dog-Dish style Black High Gloss-Painted Aluminum with White Wall - Standard on Heritage Limited Edition	17" Black High Gloss Painted Alloy - Standard on Raptor®
		17" Dark Carbonized Gray Alloy Painted, Beadlock Capable Forged Wheels - Optional on Raptor®
		17" Unique White Wheels - Standard on Heritage Edition
		17" Dog-Dish style Black High Gloss-Painted Aluminum with White Wall - Standard on Heritage Limited Edition
Warranty	Basic: 3 years/36,000 miles	Basic: 3 years/36,000 miles
	Powertrain: 5 years/60,000 miles	Powertrain: 5 years/60,000 miles
	Safety Restraint System: 5 years/60,000 miles	Safety Restraint System: 5 years/60,000 miles
	Corrosion (Perforation Only): 5 years/unlimited miles	Corrosion (Perforation Only): 5 years/unlimited miles
	Roadside Assistance: 5 years/60,000 miles	Roadside Assistance: 5 years/60,000 miles

Interior

Interior Dimensions (projected)	2-Door	4-Door	Everglades™ (4-door)	Raptor® (4-door)
Head room
First row (Hard Top)	1,042	1,037	1,037	1,037
First row (Soft Top)	N/A	1,099	N/A	N/A
Second row (Hard Top)	1,011	1,018	1,018	1,018
Second row (Soft Top)	N/A	1,044	N/A	N/A
Leg room
First row	1,096	1,096	1,096	1,096
Second row	907	921	921	921
Hip room
First row	1,431	1,420	1,420	1,420
Second row	1,099	1,393	1,393	1,393
Shoulder room
First row	1,450	1,450	1,450	1,450
Second row	1,315	1,434	1,434	1,434

Interior Dimensions (projected)	2-Door	4-Door	Everglades™ (4-door)	Raptor® (4-door)
Head room
First row (Hard Top)	41.0	40.8	40.8	40.8
First row (Soft Top)	N/A	43.3	N/A	N/A
Second row (Hard Top)	39.8	40.1	40.1	40.1
Second row (Soft Top)	N/A	41.1	N/A	N/A
Leg room
First row	43.1	43.1	43.1	43.1
Second row	35.7	36.3	36.3	36.3
Hip room
First row	56.3	55.9	55.9	55.9
Second row	43.3	54.8	54.8	54.8
Shoulder room
First row	57.1	57.1	57.1	57.1
Second row	51.8	56.5	56.5	56.5

Capacities

Capacities: Passengers, Luggage, Fuel (Projected)	2-Door	4-Door
Seating capacity	4	5
Passenger volume Hardtop	2,803.8 L	2,935.9 L
Passenger volume Soft Top	N/A	3,064.1 L
Behind 1st row (Hardtop)	1,480. L	2,196.2 L
Behind 1st row (Soft top)	N/A	2,349.5 L
Behind 2nd row (Hardtop)	635.0 L	1,008.0 L
Behind 2nd row (Soft top)	N/A	1,085.0 L
Fuel capacity 2.3L EcoBoost^®	64 L	79 L
Fuel capacity 2.7L EcoBoost^®	64 L	79 L
Fuel capacity 3.0L EcoBoost^®	N/A	80 L

Estimated base curb weights (projected)*
2.3L EcoBoost^® (Manual)	1,959.1 - 2,248.5 (kgs.)	2,040.7 - 2,266.6 (kgs.)
2.3L EcoBoost^® (Automatic)	1,968.1 - 2,257.5 (kgs.)	2,045.2 - 2,370.5 (kgs.)
2.7L EcoBoost^®	2,037.1 - 2,326.5 (kgs.)	2,114.2 - 2,413.1 (kgs.)
3.0L EcoBoost^®	N/A	2,600 (kgs.)
*Weights are projected and given as a range from base - full content

Capacities: Passengers, Luggage, Fuel (Projected)	2-Door	4-Door
Seating capacity	4	5
Passenger volume Hardtop	99 (cu.ft.)	103.7 (cu. ft.)
Passenger volume Soft Top	N/A	108.2 (cu. ft.)
Behind 1st row (Hardtop)	52.3 (cu.ft.)	77.6 (cu. ft.)
Behind 1st row (Soft top)	N/A	83 (cu. ft.)
Behind 2nd row (Hardtop)	22.4 (cu.ft.)	35.6 (cu. ft.)
Behind 2nd row (Soft top)	N/A	38.3 (cu. ft.)
Fuel capacity 2.3L EcoBoost^®	16.9 (gal)	20.8 (gal)
Fuel capacity 2.7L EcoBoost^®	16.9 (gal)	20.8 (gal)
Fuel capacity 3.0L EcoBoost^®	N/A	21.2 (gal)

Estimated base curb weights (projected)*
2.3L EcoBoost^® (Manual)	4,319 - 4,957 (lbs.)	4,499 - 4,997 (lbs.)
2.3L EcoBoost^® (Automatic)	4,339 - 4,977 (lbs.)	4,509 - 5,226 (lbs.)
2.7L EcoBoost^®	4,491 - 5,129 (lbs.)	4,661 - 5,320 (lbs.)
3.0L EcoBoost^®	N/A	5,733 (lbs.)
*Weights are projected and given as a range from base - full content

Exterior

Exterior Dimensions (Projected)	2-Door	4-Door	Everglades™ (4-door)	Raptor® (4-door)
Drive system	4x4	4x4	4x4	4x4
Wheelbase	2,550.0	2,950.0	2,950.0	2,960.0
Length	4,412.0	4,810.8	5,053.0	4,852.0
Vehicle height	1,826.3	1,854.2	1,998 (Hard top w/ roof rack)	1,975 (Hard top - no roof rack)
Vehicle width with mirrors	2,189.5	2,189.5	2,189.0	2,206.0
Vehicle width without mirrors	1,927.9	1,927.9	2,016.0	2,178.0
Vehicle width with mirrors folded	1,927.9	1,927.9	2,016.0	2,178.0
Track, front	1,651.0	1,651.0	1,698.0	1,863.0
Track, rear	1,651.0	1,651.0	1,700.0	1,870.0

Exterior Dimensions (Projected)	2-Door	4-Door	Everglades™ (4-door)	Raptor® (4-door)
Drive system	4x4	4x4	4x4	4x4
Wheelbase	100.4	116.1	116.1	116.5
Length	173.7	189.4	198.9	191
Vehicle height	71.9 (hard top)	73.0 (soft top)	78.7 (Hard top w/ roof rack)	77.8 (Hard top - no roof rack)
Vehicle width with mirrors	86.2	86.2	86.2	86.9
Vehicle width without mirrors	75.9	75.9	79.4	85.7
Vehicle width with mirrors folded	75.9	75.9	79.4	85.7
Track, front	65.0	65.0	66.9	73.2
Track, rear	65.0	65.0	66.9	73.6

Engine

Engine Specifications	2.3L EcoBoost^®	2.7L EcoBoost^®	3.0L EcoBoost^®
Engine type	2.3L Ti-VCT GTDI I-4	2.7L Ti-VCT GTDI V-6	3.0L Ti-VCT GTDI V-6
Drive type	4x4	4x4	4x4
Exhaust	Single	Single	Single with active valve technology
Transmission type	7-Speed Manual/10-Speed Automatic	10-Speed Automatic	10-Speed Automatic
Horsepower (regular fuel)	275	315	406
Torque (regular fuel)	315	410	440
Horsepower (premium fuel)	300^,*	330^,*	418^,*
Torque (premium fuel)	325^,*	415^,*	440^,*
Compression ratio	10.0:1	10.0:1	10.5:1
Valve lifters	Direct Acting Mechanical Buckets	Roller Finger Follower	Roller Finger Follower
Engine block material	Aluminum	Compacted Graphite Iron (CGI)	Compacted Graphite Iron (CGI)
Cylinder head material	Aluminum	Aluminum	Aluminum
Induction system	Turbocharged	Turbocharged	Turbocharged
Fuel delivery	Direct injection	Ported Fuel/Direct injection (PFDI)	Direct injection
Fuel (minimum)	Regular unleaded	Regular unleaded	Regular unleaded
EPA-Estimated Ratings Four Wheel Drive (Actual mileage will vary)	See chart below	See chart below	See chart below
*Horsepower and torque ratings based on premium fuel per SAE J1349 standard.
**Horsepower and torque are independent attributes and may not be achieved simultaneously.
Model	Engine	Transmission	City L/100km	Hwy L/100km	Combined L/100
Big Bend^™, Outer Banks^™	2.3L EcoBoost	10-Speed Automatic	12.1	11.2	11.7
Black Diamond^™	2.3L EcoBoost	10-Speed Automatic	13.1	13.1	13.1
Badlands^™	2.3L EcoBoost	10-Speed Automatic	13.5	14	13.7
Big Bend^™, Black Diamond^™, Outer Banks^™, Badlands^™ with Sasquatch^® Package and Everglades^™	2.3L EcoBoost	10-Speed Automatic	13.1	13.8	13.4

Big Bend^™	2.3L EcoBoost	7-Speed Manual	12.1	11.4	11.8
Black Diamond^™	2.3L EcoBoost	7-Speed Manual	13.8	12.4	13.2
Badlands^™	2.3L EcoBoost	7-Speed Manual	14.9	13.5	14.3
Big Bend^™, Black Diamond^™, Outer Banks^™, Badlands^™ with Sasquatch^® Package	2.3L EcoBoost	7-Speed Manual	13.8	13.1	13.5

Big Bend^™, Black Diamond^™, Outer Banks^™	2.7L EcoBoost	10-Speed Automatic	12.8	11.9	12.4
Badlands^™	2.7L EcoBoost	10-Speed Automatic	14.1	14.1	14.1
Wildtrak^™ plus Big Bend^™, Black Diamond^™, Outer Banks^™, Badlands^™ with Sasquatch^® Package	2.7L EcoBoost	10-Speed Automatic	14.1	14.1	14.1
Raptor®	3.0L EcoBoost	10-Speed Automatic	15.7	14.8	14.8

Engine Specifications	2.3L EcoBoost^®	2.7L EcoBoost^®	3.0L EcoBoost^®
Engine type	2.3L Ti-VCT GTDI I-4	2.7L Ti-VCT GTDI V-6	3.0L Ti-VCT GTDI V-6
Drive type	4x4	4x4	4x4
Exhaust	Single	Single	Single with active valve technology
Transmission type	7-Speed Manual/10-Speed Automatic	10-Speed Automatic	10-Speed Automatic
Horsepower (regular fuel)	275	315	406
Torque (regular fuel)	315	410	440
Horsepower (premium fuel)	300^,*	330^,*	418^,*
Torque (premium fuel)	325^,*	415^,*	440^,*
Compression ratio	10.0:1	10.0:1	10.5:1
Valve lifters	Direct Acting Mechanical Buckets	Roller Finger Follower	Roller Finger Follower
Engine block material	Aluminum	Compacted Graphite Iron (CGI)	Compacted Graphite Iron (CGI)
Cylinder head material	Aluminum	Aluminum	Aluminum
Induction system	Turbocharged	Turbocharged	Turbocharged
Fuel delivery	Direct injection	Ported Fuel/Direct injection (PFDI)	Direct injection
Fuel (minimum)	Regular unleaded	Regular unleaded	Regular unleaded
EPA-Estimated Ratings Four Wheel Drive (Actual mileage will vary)	See chart below	See chart below	See chart below
*Horsepower and torque ratings based on premium fuel per SAE J1349 standard.
**Horsepower and torque are independent attributes and may not be achieved simultaneously.
Model	Engine	Transmission	City L/100km	Hwy L/100km	Combined L/100
Big Bend^™, Outer Banks^™	2.3L EcoBoost	10-Speed Automatic	12.1	11.2	11.7
Black Diamond^™	2.3L EcoBoost	10-Speed Automatic	13.1	13.1	13.1
Badlands^™	2.3L EcoBoost	10-Speed Automatic	13.5	14	13.7
Big Bend^™, Black Diamond^™, Outer Banks^™, Badlands^™ with Sasquatch^® Package and Everglades^™	2.3L EcoBoost	10-Speed Automatic	13.1	13.8	13.4

Big Bend^™	2.3L EcoBoost	7-Speed Manual	12.1	11.4	11.8
Black Diamond^™	2.3L EcoBoost	7-Speed Manual	13.8	12.4	13.2
Badlands^™	2.3L EcoBoost	7-Speed Manual	14.9	13.5	14.3
Big Bend^™, Black Diamond^™, Outer Banks^™, Badlands^™ with Sasquatch^® Package	2.3L EcoBoost	7-Speed Manual	13.8	13.1	13.5

Big Bend^™, Black Diamond^™, Outer Banks^™	2.7L EcoBoost	10-Speed Automatic	12.8	11.9	12.4
Badlands^™	2.7L EcoBoost	10-Speed Automatic	14.1	14.1	14.1
Wildtrak^™ plus Big Bend^™, Black Diamond^™, Outer Banks^™, Badlands^™ with Sasquatch^® Package	2.7L EcoBoost	10-Speed Automatic	14.1	14.1	14.1
Raptor®	3.0L EcoBoost	10-Speed Automatic	15.7	14.8	15.3

Chassis

Chassis Specifications
Front suspension	Front: Independent HOSS 1.0 (High-Performance, Off-Road, Stability, Suspension) System with twin alloy A-arms and coil-over springs for optimum off-road stability and control with available HOSS 2.0 System with Bilstein^® Position-Sensitive Dampers, HOSS 3.0 with FOX^™ Internal Bypass Dampers, and HOSS 4.0 with FOX^™ Live Valve 3.1 internal bypass semi-active shocks
Rear suspension	Rear: Solid five-link rear axle HOSS (High-Performance, Off-Road, Stability, Suspension) System with coil-over springs for optimum off-road capability and durability with available HOSS System with Bilstein^® Position Sensitive Dampers, HOSS 3.0 with FOX^™ Internal Bypass Dampers, and HOSS 4.0 with FOX^™ Live Valve 3.1 internal bypass semi-active shocks
Traction assist	AdvanceTrac^® with RSC^® (Roll Stability Control^™)
Brakes	Power 4-wheel disc with Anti-Lock Brake System (ABS)
Steering	Electric power-assisted steering (EPAS)

Chassis Specifications
Front suspension	Front: Independent HOSS 1.0 (High-Performance, Off-Road, Stability, Suspension) System with twin alloy A-arms and coil-over springs for optimum off-road stability and control with available HOSS 2.0 System with Bilstein^® Position-Sensitive Dampers, HOSS 3.0 with FOX^™ Internal Bypass Dampers, and HOSS 4.0 with FOX^™ Live Valve 3.1 internal bypass semi-active shocks
Rear suspension	Rear: Solid five-link rear axle HOSS (High-Performance, Off-Road, Stability, Suspension) System with coil-over springs for optimum off-road capability and durability with available HOSS System with Bilstein^® Position Sensitive Dampers, HOSS 3.0 with FOX^™ Internal Bypass Dampers, and HOSS 4.0 with FOX^™ Live Valve 3.1 internal bypass semi-active shocks
Traction assist	AdvanceTrac^® with RSC^® (Roll Stability Control^™)
Brakes	Power 4-wheel disc with Anti-Lock Brake System (ABS)
Steering	Electric power-assisted steering (EPAS)

Towing

Towing
Body Style	Engine	Transmission	Available Features	Max. Trailer Weight Up-to (kgs)
2-Door	2.3L EcoBoost^®	Manual	Class II Trailer Tow Package	1,587.5
2-Door	2.3L EcoBoost^®	Automatic	Class II Trailer Tow Package	1,587.5
2-Door	2.7L EcoBoost^®	Automatic	Class II Trailer Tow Package	1,587.5
4-Door	2.3L EcoBoost^®	Manual	Class II Trailer Tow Package	1,587.5
4-Door	2.3L EcoBoost^®	Automatic	Class II Trailer Tow Package	1,587.5
4-Door	2.7L EcoBoost^®	Automatic	Class II Trailer Tow Package	1,587.5
4-Door	3.0L EcoBoost^®	Automatic	Class II Trailer Tow Package	2,041

Towing
Body Style	Engine	Transmission	Available Features	Max. Trailer Weight Up-to (Lbs.)
2-Door	2.3L EcoBoost^®	Manual	Class II Trailer Tow Package	3,500
2-Door	2.3L EcoBoost^®	Automatic	Class II Trailer Tow Package	3,500
2-Door	2.7L EcoBoost^®	Automatic	Class II Trailer Tow Package	3,500
4-Door	2.3L EcoBoost^®	Manual	Class II Trailer Tow Package	3,500
4-Door	2.3L EcoBoost^®	Automatic	Class II Trailer Tow Package	3,500
4-Door	2.7L EcoBoost^®	Automatic	Class II Trailer Tow Package	3,500
4-Door	3.0L EcoBoost^®	Automatic	Class II Trailer Tow Package	4,500

Capability

Capability (projected)	2-Door	4-Door	Everglades™ (4-dr.)	Raptor® (4-dr.)
Approach Angle (Deg.)	35.5 - 43.2 (with 35" tire)	35.5 - 43.2 (with 35" tire)	37.8 (with winch)	47.2
Breakover Angle (Deg.)	21.1 - 29.0 (with 35" tire)	20.0 - 26.3 (with 35" tire)	26.3	30.8
Departure Angle (Deg.)	29.8 - 37.2 (with 35" tire)	29.7 - 37.0 (with 35" tire)	37.1	40.5
Ramp Travel Index (Badlands™ only) Stabilizer bar connected/disconnected	560/700	500/620
Ground Clearance	213.4 mm - 294.6 mm (with 35" tire)	213.4 mm - 292.1 mm (with 35" tire)	296 mm	333 mm
Water Fording (max.)	850 mm (with 33 & 35" tire)	850 mm (with 33 & 35" tire)	925 mm	940 mm

Capability (projected)	2-Door	4-Door	Everglades™ (4-dr.)	Raptor® (4-dr.)
Approach Angle (Deg.)	35.5 - 43.2 (with 35" tire)	35.5 - 43.2 (with 35" tire)	37.8 (with winch)	47.2
Breakover Angle (Deg.)	21.1 - 29.0 (with 35" tire)	20.0 - 26.3 (with 35" tire)	26.3	30.8
Departure Angle (Deg.)	29.8 - 37.2 (with 35" tire)	29.7 - 37.0 (with 35" tire)	37.1	40.5
Ramp Travel Index (Badlands™ only) Stabilizer bar connected/disconnected	560/700	500/620
Ground Clearance	8.4 - 11.6 (with 35" tire)	8.3 - 11.5 (with 35" tire)	11.7	13.1
Water Fording (max.)	33.5" (with 33 & 35" tire)	33.5" (with 33 & 35" tire)	36.4	37

Ford Iconic Vehicles

SUVs & Cars

Capable, convenient and versatile

Trucks & Vans

Hauling, towing, and off-roading

Electrified

What does going electric mean?

Performance Vehicles

Commercial Vehicles

Future Vehicles

Catch up with all the latest news

2024 Bronco® Raptor®

Key Features

3.0L EcoBoost® V6 Engine

HOSS 4.0 With FOX™ Live Valve 3.1 Internal Bypass Semi-Active Dampers

37" x 12.5R17 BSW A/T - All-Terrain

Exterior Features

Appearance

Standard

Optional

Windows & Glass

Standard

Interior Features

Climate

Standard

Comfort and Convenience

Standard

Entertainment Systems

Standard

Seating

Standard

Optional

Packages

Packages

Standard

Optional

Safety

Security

Standard

Safety

Standard

Power and Handling

Handling

Standard

Power

Standard

Optional

Wheels & Tires

Standard

Optional

Specifications

Highlights

Interior

Capacities

Exterior

Engine

Chassis

Towing

Capability

3.0L EcoBoost^® V6 Engine

HOSS 4.0 With FOX^™ Live Valve 3.1 Internal Bypass Semi-Active Dampers
