2019 F-150 LARIAT

Download Towing Guide

¹

View all offers

Est. City/HwyL/100km

Standard

12.0/9.0 L/100km²

L/100km²

Seating for

Key Features

SYNC^® 3

In addition to the voice-activated benefits of SYNC^®⁶, [available] SYNC 3⁹⁰ adds convenience to your driving experience with an LCD capacitive touchscreen and easy-to-use interface. Discover the system’s quick reactions to your conversational commands and experience the smartphone-like touchscreen with impressive responsiveness. You’ll also find a sleek user-friendly interface to help you connect to and control your compatible smartphone via Apple CarPlay¹¹¹ or Android Auto¹¹⁰. Locate your favourite places with simple destination entry via optional navigation. SYNC AppLink™⁹³ lets you use your voice to control some of your favourite compatible mobile apps while driving.

U.S. Model Shown.

Electronic 10-speed Transmission with Tow/Haul, Snow/Wet, EcoSelect and Sport Modes

F-150 EcoBoost,^® V8 and diesel engines deliver their power through an advanced 10-speed automatic transmission. Compared with the 6-speed, the 10-speed delivers improved overall performance, with enhanced acceleration at the low and mid ranges of the power band. Features include optimized wide-span gear spacing coupled with drag-reduction actions plus three overdrive gears. What’s more, you can choose from selectable modes: Normal, Tow-Haul, Snow-Wet, EcoSelect, and Sport.

Available Ambient Lighting with cool Ice Blue colour

Ambient Lighting (Ice Blue^® )

Ambient lighting illuminates the front and rear footwells, front centre console bin and front cupholders in cool Ice Blue^®.

Power and Handling

Handling

Standard

Axle, Front - Independent Front Suspension
Two-speed automatic four-wheel drive system with Neutral Towing Capability (4x4 only)
Steering - Power rack-and-pinion steering
Fully boxed steel frame
AdvanceTrac^® with Roll Stability Control™ (RSC^® )¹⁹
Springs - Front, Coil
Springs - Rear, leaf, two-stage variable rate
Trailer Sway Control¹⁹

Optional

Axle upgrade
Electronic Locking Rear Differential¹⁰
Trailer Brake Controller (TBC)
Hill Descent Control™¹⁰

Power

Standard

4x2
Electronic 10-speed Transmission with Tow/Haul, Snow/Wet,
EcoSelect and Sport Modes
Auto Start/Stop Engine Technology

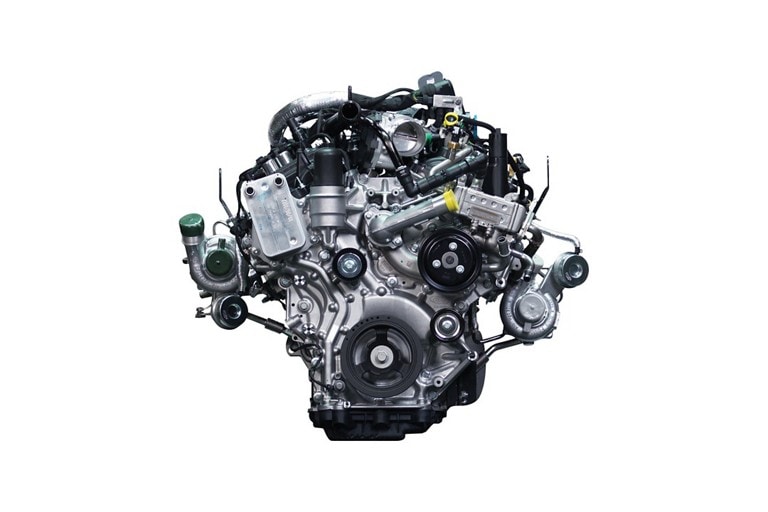

2.7L EcoBoost^® engine
Fuel Tank -136 Litre (36-gallon)
Fuel Tank - 87 Litre (23-gallon)
Fuel Tank - 98 Litre (26-gallon)

Optional

4x4
5.0L TI-VCT V8
3.5L EcoBoost^® engine
3.0L Power Stroke^® Turbo Diesel V6 engine
Fuel Tank - 98 Litre (26-gallon)
Fuel Tank - 87 Litre (23-gallon)

Wheels & Tires

Standard

Jack
18” Machined-Aluminum Wheels with Flash Grey Pockets
265/60R 18 BSW all-season tires (4x2 only)
275/65R 18 OWL all-terrain tires (4x4 only)

Optional

18” Silver-Painted Aluminum Heavy-Duty Payload Package Wheels
18” Chrome-Like PVD Wheels
18” Six-Spoke Machined-Aluminum Wheels with Magnetic-Painted Pockets
20” Machined Aluminum Wheels with Magnetic-Painted Pockets
20” Six-Spoke Premium Painted Aluminum Wheels
20” Low-Gloss Black Premium Painted Wheels
20” Chrome-Like PVD Wheels
275/55R 20 BSW all-season tires (4x2 only)
LT275/65R 18C OWL all-terrain tires
275/55R 20 BSW all-terrain tires (4x4 only)

Interior Features

Climate

Standard

Dual-Zone Electronic Climate Control

Comfort and Convenience

Standard

8” Productivity Screen
Cruise Control
Pre-Collision Assist with Automatic Emergency Braking¹¹⁸
Reverse Sensing System
Pro Trailer Backup Assist
Colour-Coordinated Carpet with Carpeted Floor Mats
Dome Light
Fade-to-Off Interior Lighting
Ambient Lighting (Ice Blue^® )
Flow-Through Centre Console with Floor Shifter
110-Volt/400-Watt Power Inverter - Instrument Panel (SuperCab and SuperCrew^® )
Powerpoint, 12v - Front
Powerpoint, 12v - Rear (SuperCab and SuperCrew^®)
Delayed Accessory Power
Fully Flat Load Floor (SuperCab and SuperCrew^® models)
Gauges and Metres – Fuel, Oil Pressure, Engine Coolant Temperature; Speedometer, Odometer
Grab Handles (A-Pillar) - Front, Driver - and Passenger-Side
Grab handles (B-Pillar) - Rear, Driver- and passenger-side (SuperCrew^® only)
Horn, Dual-Note
Intermittent Windshield Wipers
Power door locks with flip key and integrated key transmitter keyless entry including auto-lock
Intelligent Access with Push-Button Start
MyKey^®
Outside Temperature Display
Overhead Console (SuperCab and SuperCrew^® )
Power-Adjustable Pedals with Memory
Rearview Mirror, Auto-Dimming
Steering Wheel, Manual Tilt/Telescoping
Steering Wheel - Black Leather-Wrapped
Visors with Driver- and Passenger-Side Illuminated, Covered Mirrors
Woodgrain-Style Interior Trim Accents

Optional

360 Camera with Split-View Display
Adaptive Cruise Control with Stop-and-Go
Lane-Keeping System¹⁰
BLIS^® (Blind Spot Information System) with Cross-Traffic Alert and Trailer Coverage
All-Weather Rubber Floor Mats
Cupholder - Deployable under 20% seat (40/20/40 front bench seat)
Rain-Sensing Wipers
Steering Wheel, Power Tilt/Telescoping with Memory
Steering Wheel, Heated
Universal Garage Door Opener

Entertainment Systems

Standard

AM/FM stereo
SiriusXM™¹³
SYNC^® 3⁹⁰
FordPass Connect™ (Wi-Fi Hotspot)

Optional

B&O Sound System by Bang & Olufsen⁹⁴
Voice-Activated Navigation with SiriusXM Traffic and Travel Link^® *

Seating

Standard

Seats - Front - Bucket Seats with Centre Flow-Through Console and Floor Shifter, Leather-Trimmed
Seats - Front, 10-way Power Driver and Front Passenger
Seats - Front, Driver Memory
Seats - Front, Heated and Ventilated
Seats - Rear - 60/40 Flip-Up Split Bench with Elongated Cushion (SuperCrew^® )
Seats - Rear - 60/40 Flip-Up Split Bench (SuperCab)

Optional

Inflatable Second-Row Safety Belts (SuperCrew^® )
Seats - Front - 40/20/40, Leather-Trimmed
Seats - Rear, Heated
Seats - Unique Special Edition Seats with Red Stitching

Exterior Features

Appearance

Standard

Rear Doors - Swing Open 170° (SuperCab only)
BoxLink™
Bumper, Front - Chrome
Bumper, Rear - Chrome
Easy Fuel^® Capless Fuel Filler
Fascia, Front - Body-colour
Cargo Light, Integrated with Centre High-Mounted Stop Light (CHMSL)
Daytime Running Lights
Autolight - Automatic On/Off Headlights with Rainlight Windshield Wipers
Fog lamps - Halogen
Grille - Chrome Two-Bar Style with Four Minor Bars, Black Surround and Background Mesh
Handles, Door and Tailgate - Body-Colour Bezel with Body-Colour Strap
Hooks - Front Tow, two (4x4 only)
Hooks, Cargo Box Tie-Down (4)
LED Box Lighting
Halogen Headlights
Side Mirrors - Heated
Side Mirrors - Integrated Turn Signal
Side Mirrors - LED Security Approach Lights
Side Mirrors - Auto Dimming Feature (Driver's Side)
Side Mirrors - Memory Feature
Side Mirrors - Power Folding
Side Mirrors, Dual Glass - Power Adjust
Side Mirrors, Skull Caps - Body-colour
Spare Tire Carrier - Rear underframe
Tailgate, power lock
Remote Release Tailgate
Wheel-lip mouldings - Body colour

Optional

Bed Divider
Bedliner - Plastic, Drop-In
Bedliner - Spray-In
Aluminum Crossbed Storage Toolbox by Weather Guard^®
Box Side Steps
Bumper, Front - Body-Colour
Bumper, Front - Accent-Colour
Bumper, Rear - Body-Colour
Bumper, Rear - Accent-Colour
LED Fog Lamps
Foldable Pickup Box Extender
Grille - Body-colour Surround with Dark-Foundry Mesh Insert
Grille - Body-Colour Two-Bar Style with Four Minor Bars, Black Surround and Background Mesh
Grille - Chrome Two-Bar Style with Four Minor Bars, Silver-Painted Surround and Background Mesh
Handles, Door and Tailgate - Body-Colour Bezel with Chrome Strap
Quad-Beam LED Headlights and LED Taillights
Side Mirrors - LED Mirror-Mounted Spotlights
Side Mirrors, Skull Caps - Black
Side Mirrors, Skull Caps - Chrome
Side Mirrors, Trailer Tow - Power Adjust
Side Mirrors, Trailer Tow - Power Telescoping
Skid plates (4x4)
Power Deployable Running Boards
Step Bars, Angular - Black
Tubular Chrome Step Bars
Stowable Loading Ramps
Tailgate Step with Tailgate Lift Assist
Two-tone paint treatment
Special Edition bodyside and hood graphics
Wheel well liners
Wheel-lip mouldings - Accent colour

Windows & Glass

Standard

Windows - First-row - Power
Windows - First-row - Power, one-touch up/down driver and passenger
Windows - Second-row - Power (SuperCab and SuperCrew^® )
Window - Rear - Power sliding Glass with Privacy Tint and Defroster

Optional

Moonroof - Power, Twin Panel Moonroof (SuperCrew^® )
Windshield Wiper De-Icer

Safety

Standard

Automatic High Beams
Tire Pressure Monitoring System (TPMS)
Airbags - Front, Driver and Passenger
Airbags - Front, Driver and Passenger Seat-Mounted Side
Airbags - Safety Canopy^® Side Curtains
Brakes - Four-Wheel Disc Anti-Lock Braking System (ABS)
Curve Control¹⁹
Rear view camera with Dynamic Hitch Assist¹⁰
Safety belts - Active Restraint System (ARS), three-point manual lap/shoulder belts with height adjusters, pretensioners and energy management retractors on outside front positions.

Security

Standard

Spare tire and wheel lock
SecuriLock^® passive anti-theft system
Perimeter anti-theft alarm
SOS Post-Crash Alert System™
Remote Keyless Entry System
SecuriCode™ keyless entry keypad, driver's side
Remote Start System
Advanced Security Pack

Packages

Specifications

Exterior

Switch to Imperial Units Switch to Metric Units

Exterior Dimensions - Cab
Cab style	Regular Cab
Pickup box style	5.5-ft. Styleside	5.5-ft. Styleside	6.5-ft. Styleside	6.5-ft. Styleside	8.0-ft. Styleside	8.0-ft. Styleside	5.5-ft. Raptor
Drive system	4x2	4x4	4x2	4x4	4x2	4x4	4x4
Wheelbase	-	-	3,109 mm.	3,109 mm.	3,584 mm.	3,584 mm.	-
Overall length	-	-	5,316 mm.	5,316 mm.	5,789 mm.	5,789 mm.	-
Cab height	-	-	1,918 mm.	1,953 mm.	1,908 mm.	1,953 mm.	-
Width - Excluding mirrors	-	-	2,029 mm.	2,029 mm.	2,029 mm.	2,029 mm.	-
Width - Including standard mirrors	-	-	2,459 mm.	2,459 mm.	2,459 mm.	2,459 mm.	-
Width - Standard Mirrors folded	-	-	2,121 mm.	2,121 mm.	2,121 mm.	2,121 mm.	-
Width - Including trailer tow mirrors	-	-	2,690 mm.	2,690 mm.	2,690 mm.	2,690 mm.	-
Width - Trailer tow mirrors folded	-	-	2,172 mm.	2,172 mm.	2,172 mm.	2,172 mm.	-
Track width - Front	-	-	1,717 mm.	1,717 mm.	1,717 mm.	1,717 mm.	-
Track width - Rear	-	-	1,717 mm.	1,717 mm.	1,717 mm.	1,717 mm.	-
Overhang - Front	-	-	960 mm.	960 mm.	960 mm.	960 mm.	-
Overhang - Rear	-	-	1,247 mm.	1,247 mm.	1,247 mm.	1,247 mm.	-
Angle of approach	-	-	24.8 degrees	24.8 degrees	24.1 degrees	25.7 degrees	-
Angle of departure	-	-	24.6 degrees	27.1 degrees	24.7 degrees	26.8 degrees	-
Ramp breakover angle	-	-	22.1 degrees	24.7 degrees	19.3 degrees	22.1 degrees	-
Ground clearance	-	-	224 mm.	239 mm.	218 mm.	239 mm.	-
Open tailgate to ground	-	-	882 mm.	938 mm.	885 mm.	928 mm.	-
Front bumper to back of cab	-	-	3,086 mm.	3,086 mm.	3,086 mm.	3,086 mm.	-

Cab style	SuperCab
Pickup box style	5.5-ft. Styleside	5.5-ft. Styleside	6.5-ft. Styleside	6.5-ft. Styleside	8.0-ft. Styleside	8.0-ft. Styleside	5.5-ft. Raptor
Drive system	4x2	4x4	4x2	4x4	4x2	4x4	4x4
Wheelbase	-	-	3,683 mm.	3,683 mm.	4,158 mm.	4,158 mm.	3,409 mm.
Overall length	-	-	5,890 mm.	5,890 mm.	6,363 mm.	6,363 mm.	5,589 mm.
Cab height	-	-	1,918 mm.	1,961 mm.	1,918 mm.	1,956 mm.	1,994 mm.
Width - Excluding mirrors	-	-	2,029 mm.	2,029 mm.	2,029 mm.	2,029 mm.	2,192 mm.
Width - Including standard mirrors	-	-	2,459 mm.	2,459 mm.	2,459 mm.	2,459 mm.	2,459 mm.
Width - Standard Mirrors folded	-	-	2,121 mm.	2,121 mm.	2,121 mm.	2,121 mm.	2,192 mm.
Width - Including trailer tow mirrors	-	-	2,690 mm.	2,690 mm.	2,690 mm.	2,690 mm.	-
Width - Trailer tow mirrors folded	-	-	2,172 mm.	2,172 mm.	2,172 mm.	2,172 mm.	-
Track width - Front	-	-	1,717 mm.	1,717 mm.	1,717 mm.	1,717 mm.	1,878 mm.
Track width - Rear	-	-	1,717 mm.	1,717 mm.	1,717 mm.	1,717 mm.	1,870 mm.
Overhang - Front	-	-	960 mm.	960 mm.	960 mm.	960 mm.	942 mm.
Overhang - Rear	-	-	1,247 mm.	1,247 mm.	1,247 mm.	1,247 mm.	1,238 mm.
Angle of approach	-	-	24.4 degrees	25.8 degrees	24.5 degrees	26.1 degrees	30.2 degrees
Angle of departure	-	-	24.0 degrees	26.1 degrees	24.4 degrees	26.0 degrees	23.1 degrees
Ramp breakover angle	-	-	18.5 degrees	21.1 degrees	16.8 degrees	19.0 degrees	22.9 degrees
Ground clearance	-	-	221 mm.	239 mm.	221 mm.	236 mm.	292 mm.
Open tailgate to ground	-	-	867 mm.	913 mm.	877 mm.	908 mm.	925 mm.
Front bumper to back of cab	-	-	3,660 mm.	3,660 mm.	3,660 mm.	3,660 mm.	3,661 mm.

Cab style	SuperCrew^®
Pickup box style	5.5-ft. Styleside	5.5-ft. Styleside	6.5-ft. Styleside	6.5-ft. Styleside	8.0-ft. Styleside	8.0-ft. Styleside	5.5-ft. Raptor
Drive system	4x2	4x4	4x2	4x4	4x2	4x4	4x4
Wheelbase	3,683 mm.	3,683 mm.	3,983 mm.	3,983 mm.	-	-	3,708 mm.
Overall length	5,890 mm.	5,890 mm.	6,190 mm.	6,190 mm.	-	-	5,889 mm.
Cab height	1,920 mm.	1,961 mm.	1,923 mm.	1,963 mm.	-	-	1,995 mm.
Width - Excluding mirrors	2,029 mm.	2,029 mm.	2,029 mm.	2,029 mm.	-	-	2,192 mm.
Width - Including standard mirrors	2,459 mm.	2,459 mm.	2,459 mm.	2,459 mm.	-	-	2,459 mm.
Width - Standard Mirrors folded	2,121 mm.	2,121 mm.	2,121 mm.	2,121 mm.	-	-	2,192 mm.
Width - Including trailer tow mirrors	2,690 mm.	2,690 mm.	2,690 mm.	2,690 mm.	-	-	-
Width - Trailer tow mirrors folded	2,172 mm.	2,172 mm.	2,172 mm.	2,172 mm.	-	-	-
Track width - Front	1,717 mm.	1,717 mm.	1,717 mm.	1,717 mm.	-	-	1,878 mm.
Track width - Rear	1,717 mm.	1,717 mm.	1,717 mm.	1,717 mm.	-	-	1,870 mm.
Overhang - Front	960 mm.	960 mm.	960 mm.	960 mm.	-	-	942 mm.
Overhang - Rear	1,247 mm.	1,247 mm.	1,247 mm.	1,247 mm.	-	-	1,239 mm.
Angle of approach	24.1 degrees	25.5 degrees	23.8 degrees	25.5 degrees	-	-	30.2 degrees
Angle of departure	23.8 degrees	26.0 degrees	24.5 degrees	26.4 degrees	-	-	23.0 degrees
Ramp breakover angle	18.3 degrees	21.0 degrees	17.2 degrees	19.7 degrees	-	-	21.8 degrees
Ground clearance	216 mm.	239 mm.	213 mm.	236 mm.	-	-	291 mm.
Open tailgate to ground	865 mm.	908 mm.	880 mm.	918 mm.	-	-	922 mm.
Front bumper to back of cab	3,960 mm.	3,960 mm.	3,960 mm.	3,960 mm.	-	-	3,961 mm.

Exterior Dimensions - Cab
Cab style	Regular Cab
Pickup box style	5.5-ft. Styleside	5.5-ft. Styleside	6.5-ft. Styleside	6.5-ft. Styleside	8.0-ft. Styleside	8.0-ft. Styleside	5.5-ft. Raptor
Drive system	4x2	4x4	4x2	4x4	4x2	4x4	4x4
Wheelbase	-	-	122.4 in.	122.4 in.	141.1 in.	141.1 in.	-
Overall length	-	-	209.3 in.	209.3 in.	227.9 in.	227.9 in.	-
Cab height	-	-	75.5 in.	76.9 in.	75.1 in.	76.9 in.	-
Width - Excluding mirrors	-	-	79.9 in.	79.9 in.	79.9 in.	79.9 in.	-
Width - Including standard mirrors	-	-	96.8 in.	96.8 in.	96.8 in.	96.8 in.	-
Width - Standard Mirrors folded	-	-	83.5 in.	83.5 in.	83.5 in.	83.5 in.	-
Width - Including trailer tow mirrors	-	-	105.9 in.	105.9 in.	105.9 in.	105.9 in.	-
Width - Trailer tow mirrors folded	-	-	85.5 in.	85.5 in.	85.5 in.	85.5 in.	-
Track width - Front	-	-	67.6 in.	67.6 in.	67.6 in.	67.6 in.	-
Track width - Rear	-	-	67.6 in.	67.6 in.	67.6 in.	67.6 in.	-
Overhang - Front	-	-	37.8 in.	37.8 in.	37.8 in.	37.8 in.	-
Overhang - Rear	-	-	49.1 in.	49.1 in.	49.1 in.	49.1 in.	-
Angle of approach	-	-	24.8 degrees	24.8 degrees	24.1 degrees	25.7 degrees	-
Angle of departure	-	-	24.6 degrees	27.1 degrees	24.7 degrees	26.8 degrees	-
Ramp breakover angle	-	-	22.1 degrees	24.7 degrees	19.3 degrees	22.1 degrees	-
Ground clearance	-	-	8.8 in.	9.4 in.	8.6 in.	9.4 in.	-
Open tailgate to ground	-	-	34.7 in.	36.9 in.	34.8 in.	36.5 in.	-
Front bumper to back of cab	-	-	121.5 in.	121.5 in.	121.5 in.	121.5 in.	-

Cab style	SuperCab
Pickup box style	5.5-ft. Styleside	5.5-ft. Styleside	6.5-ft. Styleside	6.5-ft. Styleside	8.0-ft. Styleside	8.0-ft. Styleside	5.5-ft. Raptor
Drive system	4x2	4x4	4x2	4x4	4x2	4x4	4x4
Wheelbase	-	-	145.0 in.	145.0 in.	163.7 in.	163.7 in.	133.0 in.
Overall length	-	-	231.9 in.	231.9 in.	250.5 in.	250.5 in.	220.0 in.
Cab height	-	-	75.5 in.	77.2 in.	75.5 in.	77.0 in.	78.5 in.
Width - Excluding mirrors	-	-	79.9 in.	79.9 in.	79.9 in.	79.9 in.	86.3 in.
Width - Including standard mirrors	-	-	96.8 in.	96.8 in.	96.8 in.	96.8 in.	96.8 in.
Width - Standard Mirrors folded	-	-	83.5 in.	83.5 in.	83.5 in.	83.5 in.	86.3 in.
Width - Including trailer tow mirrors	-	-	105.9 in.	105.9 in.	105.9 in.	105.9 in.	-
Width - Trailer tow mirrors folded	-	-	85.5 in.	85.5 in.	85.5 in.	85.5 in.	-
Track width - Front	-	-	67.6 in.	67.6 in.	67.6 in.	67.6 in.	73.9 in.
Track width - Rear	-	-	67.6 in.	67.6 in.	67.6 in.	67.6 in.	73.6 in.
Overhang - Front	-	-	37.8 in.	37.8 in.	37.8 in.	37.8 in.	37.1 in.
Overhang - Rear	-	-	49.1 in.	49.1 in.	49.1 in.	49.1 in.	48.7 in.
Angle of approach	-	-	24.4 degrees	25.8 degrees	24.5 degrees	26.1 degrees	30.2 degrees
Angle of departure	-	-	24.0 degrees	26.1 degrees	24.4 degrees	26.0 degrees	23.1 degrees
Ramp breakover angle	-	-	18.5 degrees	21.1 degrees	16.8 degrees	19.0 degrees	22.9 degrees
Ground clearance	-	-	8.7 in.	9.4 in.	8.7 in.	9.3 in.	11.5 in.
Open tailgate to ground	-	-	34.1 in.	35.9 in.	34.5 in.	35.7 in.	36.4 in.
Front bumper to back of cab	-	-	144.1 in.	144.1 in.	144.1 in.	144.1 in.	144.1 in.

Cab style	SuperCrew^®
Pickup box style	5.5-ft. Styleside	5.5-ft. Styleside	6.5-ft. Styleside	6.5-ft. Styleside	8.0-ft. Styleside	8.0-ft. Styleside	5.5-ft. Raptor
Drive system	4x2	4x4	4x2	4x4	4x2	4x4	4x4
Wheelbase	145 in.	145 in.	156.8 in.	156.8 in.	-	-	145 in.
Overall length	231.9 in.	231.9 in.	243.7 in.	243.7 in.	-	-	231.9 in.
Cab height	75.6 in.	77.2 in.	75.7 in.	77.3 in.	-	-	78.5 in.
Width - Excluding mirrors	79.9 in.	79.9 in.	79.9 in.	79.9 in.	-	-	86.3 in.
Width - Including standard mirrors	96.8 in.	96.8 in.	96.8 in.	96.8 in.	-	-	96.8 in.
Width - Standard Mirrors folded	83.5 in.	83.5 in.	83.5 in.	83.5 in.	-	-	86.3 in.
Width - Including trailer tow mirrors	105.9 in.	105.9 in.	105.9 in.	105.9 in.	-	-	-
Width - Trailer tow mirrors folded	85.5 in.	85.5 in.	85.5 in.	85.5 in.	-	-	-
Track width - Front	67.6 in.	67.6 in.	67.6 in.	67.6 in.	-	-	73.9 in.
Track width - Rear	67.6 in.	67.6 in.	67.6 in.	67.6 in.	-	-	73.6 in.
Overhang - Front	37.8 in.	37.8 in.	37.8 in.	37.8 in.	-	-	37.1 in.
Overhang - Rear	49.1 in.	49.1 in.	49.1 in.	49.1 in.	-	-	48.7 in.
Angle of approach	24.1 degrees	25.5 degrees	23.8 degrees	25.5 degrees	-	-	30.2 degrees
Angle of departure	23.8 degrees	26.0 degrees	24.5 degrees	26.4 degrees	-	-	23.0 degrees
Ramp breakover angle	18.3 degrees	21.0 degrees	17.2 degrees	19.7 degrees	-	-	21.8 degrees
Ground clearance	8.5 in.	9.4 in.	8.4 in.	9.3 in.	-	-	11.5 in.
Open tailgate to ground	34 in.	35.7 in.	34.6 in.	36.1 in.	-	-	36.3 in.
Front bumper to back of cab	155.9 in.	155.9 in.	155.9 in.	155.9 in.	-	-	155.9 in.

Exterior Dimensions - Cargo Box

Switch to Imperial Units Switch to Metric Units

Cargo box style	5.5-ft. Styleside	6.5-ft. Styleside	8.0-ft. Styleside	5.5-ft. Raptor
Inside Length (at floor)	1,704 mm.	2,004 mm.	2,479 mm.	1,704 mm.
Width between wheelhouses	1,285 mm.	1,285 mm.	1,285 mm.	1,285 mm.
Inside Height	544 mm.	544 mm.	544 mm.	544 mm.
Cargo box volume	1495 L	1764 L	2192 L	1495 L

Cargo box style	5.5-ft. Styleside	6.5-ft. Styleside	8.0-ft. Styleside	5.5-ft. Raptor
Inside Length (at floor)	67.1 in.	78.9 in.	97.6 in.	67.1 in.
Width between wheelhouses	50.6 in.	50.6 in.	50.6 in.	50.6 in.
Inside Height	21.4 in.	21.4 in.	21.4 in.	21.4 in.
Cargo box volume	52.8 cu. ft.	62.3 cu. ft.	77.4 cu. ft.	52.8 cu. ft.

Interior

Switch to Imperial Units Switch to Metric Units

Interior Dimensions
Cab style	Regular Cab	SuperCab	SuperCrew^®
Head room - Front	1,036 mm.	1,036 mm.	1,036 mm.
Head room - Rear	-	1,024 mm.	1,026 mm.
Shoulder room - Front	1,694 mm.	1,694 mm.	1,694 mm.
Shoulder room - Rear	-	1,671 mm.	1,674 mm.
Hip room - Front	1,588 mm.	1,588 mm.	1,588 mm.
Hip room - Rear	-	1,643 mm.	1,643 mm.
Max Leg room - Front	1,115 mm.	1,115 mm.	1,115 mm.
Leg room - Rear	-	851 mm.	1,107 mm.

Interior Dimensions
Cab style	Regular Cab	SuperCab	SuperCrew^®
Head room - Front	40.8 in.	40.8 in.	40.8 in.
Head room - Rear	-	40.3 in.	40.4 in.
Shoulder room - Front	66.7 in.	66.7 in.	66.7 in.
Shoulder room - Rear	-	65.8 in.	65.9 in.
Hip room - Front	62.5 in.	62.5 in.	62.5 in.
Hip room - Rear	-	64.7 in.	64.7 in.
Max Leg room - Front	43.9 in.	43.9 in.	43.9 in.
Leg room - Rear	-	33.5 in.	43.6 in.

Capacities

Switch to Imperial Units Switch to Metric Units

Passengers and Fuel
Cab style	Regular Cab
Pickup box style	6.5-ft. Styleside	6.5-ft. Styleside	8.0-ft. Styleside	8.0-ft. Styleside
Wheelbase	3109	3109	3584	3584
Drive system	4x2	4x4	4x2	4x4
Seating capacity	3	3	3	3
Fuel Capacity	87 L	87 L	87 L	136 L

Cab style	SuperCab
Pickup box style	6.5-ft. Styleside	6.5-ft. Styleside	8.0-ft. Styleside	8.0-ft. Styleside	5.5-ft. Raptor
Wheelbase	3683	3683	4158	4158	3408
Drive system	4x2	4x4	4x2	4x4	4x4
Seating capacity	5/6	5/6	5/6	5/6	5
Fuel Capacity	87 L	136 L	87 L	136 L	98 L

Cab style	SuperCrew^®
Pickup box style	5.5-ft. Styleside	5.5-ft. Styleside	6.5-ft. Styleside	6.5-ft. Styleside	5.5-ft. Raptor
Wheelbase	3683	3683	3983	3983	3708
Drive system	4x2	4x4	4x2	4x4	4x4
Seating capacity	5/6	5/6	5/6	5/6	5
Fuel Capacity	98 L	136 L	98 L	136 L	136 L

Passengers and Fuel
Cab style	Regular Cab
Pickup box style	6.5-ft. Styleside	6.5-ft. Styleside	8.0-ft. Styleside	8.0-ft. Styleside
Wheelbase	122.4 in.	122.4 in.	141.1 in.	141.1 in.
Drive system	4x2	4x4	4x2	4x4
Seating capacity	3	3	3	3
Fuel Capacity	23 gallons	23 gallons	23 gallons	36 gallons

Cab style	SuperCab
Pickup box style	6.5-ft. Styleside	6.5-ft. Styleside	8.0-ft. Styleside	8.0-ft. Styleside	5.5-ft. Raptor
Wheelbase	145.0 in.	145.0 in.	163.7 in.	163.7 in.	134.2 in.
Drive system	4x2	4x4	4x2	4x4	4x4
Seating capacity	5/6	5/6	5/6	5/6	5
Fuel Capacity	23 gallons	36 gallons	23 gallons	36 gallons	26 gallons

Cab style	SuperCrew^®
Pickup box style	5.5-ft. Styleside	5.5-ft. Styleside	6.5-ft. Styleside	6.5-ft. Styleside	5.5-ft. Raptor
Wheelbase	145.0 in.	145.0 in.	156.8 in.	156.8 in.	146
Drive system	4x2	4x4	4x2	4x4	4x4
Seating capacity	5/6	5/6	5/6	5/6	5
Fuel Capacity	26 gallons	36 gallons	26 gallons	36 gallons	36 gallons

Base Curb Weight

Switch to Imperial Units Switch to Metric Units

Cab style	Regular Cab
Pickup box style	5.5-ft. Styleside	5.5-ft. Styleside	6.5-ft. Styleside	6.5-ft. Styleside	8.0-ft. Styleside	8.0-ft. Styleside
Drive system	4x2	4x4	4x2	4x4	4x2	4x4
Base Curb Weight - 3.3L Ti-VCT V6	-	-	1,846 kg.	1,964 kg.	1,895 kg.	2,004 kg.
Base Curb Weight - 2.7L EcoBoost^® V6	-	-	1,890 kg.	2,012 kg.	1,931 kg.	2,060 kg.
Base Curb Weight - 5.0L Ti-VCT V8	-	-	1,929 kg.	2,049 kg.	1,979 kg.	2,092 kg.
Base Curb Weight - 3.5L EcoBoost^® V6	-	-	-	-	1,992 kg.	2,111 kg.

Cab style	SuperCab
Pickup box style	5.5-ft. Styleside	5.5-ft. Styleside	6.5-ft. Styleside	6.5-ft. Styleside	8.0-ft. Styleside	8.0-ft. Styleside	5.5-ft. Raptor
Drive system	4x2	4x4	4x2	4x4	4x2	4x4	4x4
Base Curb Weight - 3.3L Ti-VCT V6	-	-	2,003 kg.	2,117 kg.	-	-	-
Base Curb Weight - 2.7L EcoBoost^® V6	-	-	2,039 kg.	2,180 kg.	2,106 kg.	-	-
Base Curb Weight - 5.0L Ti-VCT V8	-	-	2,056 kg.	2,176 kg.	2,111 kg.	2,236 kg.	-
Base Curb Weight - 3.0L Power Stroke^® V6	-	-	2,293 kg.	2,375 kg.	-	-	-
Base Curb Weight - 3.5L EcoBoost^® V6	-	-	2,082 kg.	2,200 kg.	2,153 kg.	2,275 kg.	-
Base Curb Weight - H.O. 3.5L EcoBoost^® V6	-	-	-	-	-	-	2,506 kg.

Cab style	SuperCrew^®
Pickup box style	5.5-ft. Styleside	5.5-ft. Styleside	6.5-ft. Styleside	6.5-ft. Styleside	8.0-ft. Styleside	8.0-ft. Styleside	5.5-ft. Raptor
Drive system	4x2	4x4	4x2	4x4	4x2	4x4	4x4
Base Curb Weight - 3.3L Ti-VCT V6	2,054 kg.	2,163 kg.	-	-	-	-	-
Base Curb Weight - 2.7L EcoBoost^® V6	2,087 kg.	2,204 kg.	2,099 kg.	-	-	-	-
Base Curb Weight - 5.0L Ti-VCT V8	2,089 kg.	2,208 kg.	2,104 kg.	2,228 kg.	-	-	-
Base Curb Weight - 3.0L Power Stroke^® V6	2,309 kg.	2,391 kg.	2,339 kg.	2,413 kg.	-	-	-
Base Curb Weight - 3.5L EcoBoost^® V6	2,111 kg.	2,230 kg.	2,137 kg.	2,252 kg.	-	-	-
Base Curb Weight - H.O. 3.5L EcoBoost^® V6 (Limited)	-	2,460 kg.	-	-	-	-	-
Base Curb Weight - H.O. 3.5L EcoBoost^® V6 (Raptor)	-	-	-	-	-	-	2,584 kg.

Cab style	Regular Cab
Pickup box style	5.5-ft. Styleside	5.5-ft. Styleside	6.5-ft. Styleside	6.5-ft. Styleside	8.0-ft. Styleside	8.0-ft. Styleside
Drive system	4x2	4x4	4x2	4x4	4x2	4x4
Base Curb Weight - 3.3L Ti-VCT V6	-	-	4,069 lbs.	4,330 lbs.	4,177 lbs.	4,418 lbs.
Base Curb Weight - 2.7L EcoBoost^® V6	-	-	4,166 lbs.	4,436 lbs.	4,258 lbs.	4,541 lbs.
Base Curb Weight - 5.0L Ti-VCT V8	-	-	4,253 lbs.	4,517 lbs.	4,362 lbs.	4,613 lbs.
Base Curb Weight - 3.5L EcoBoost^® V6	-	-	-	-	4,391 lbs.	4,653 lbs.

Cab style	SuperCab
Pickup box style	5.5-ft. Styleside	5.5-ft. Styleside	6.5-ft. Styleside	6.5-ft. Styleside	8.0-ft. Styleside	8.0-ft. Styleside	5.5-ft. Raptor
Drive system	4x2	4x4	4x2	4x4	4x2	4x4	4x4
Base Curb Weight - 3.3L Ti-VCT V6	-	-	4,415 lbs.	4,668 lbs.	-	-	-
Base Curb Weight - 2.7L EcoBoost^® V6	-	-	4,495 lbs.	4,805 lbs.	4,644 lbs.	-	-
Base Curb Weight - 5.0L Ti-VCT V8	-	-	4,533 lbs.	4,798 lbs.	4,654 lbs.	4,929 lbs.	-
Base Curb Weight - 3.0L Power Stroke^® V6	-	-	5,055 lbs.	5,236 lbs.	-	-	-
Base Curb Weight - 3.5L EcoBoost^® V6	-	-	4,589 lbs.	4,851 lbs.	4,746 lbs.	5,016 lbs.	-
Base Curb Weight - H.O. 3.5L EcoBoost^®V6	-	-	-	-	-	-	5,525 lbs.

Cab style	SuperCrew^®
Pickup box style	5.5-ft. Styleside	5.5-ft. Styleside	6.5-ft. Styleside	6.5-ft. Styleside	8.0-ft. Styleside	8.0-ft. Styleside	5.5-ft. Raptor
Drive system	4x2	4x4	4x2	4x4	4x2	4x4	4x4
Base Curb Weight - 3.3L Ti-VCT V6	4,529 lbs.	4,769 lbs.	-	-	-	-	-
Base Curb Weight - 2.7L EcoBoost^® V6	4,602 lbs.	4,858 lbs.	4,627 lbs.	-	-	-	-
Base Curb Weight - 5.0L Ti-VCT V8	4,606 lbs.	4,867 lbs.	4,639 lbs.	4,912 lbs.	-	-	-
Base Curb Weight - 3.0L Power Stroke^® V6	5,091 lbs.	5,271 lbs.	5,157 lbs.	5,320 lbs.	-	-	-
Base Curb Weight - 3.5L EcoBoost^® V6	4,655 lbs.	4,917 lbs.	4,711 lbs.	4,964 lbs.	-	-	-
Base Curb Weight - H.O. 3.5L EcoBoost^® V6 (Limited)	-	5,424 lbs.	-	-	-	-	-
Base Curb Weight - H.O. 3.5L EcoBoost^® V6 (Raptor)	-	-	-	-	-	-	5,697 lbs.

Engine

Switch to Imperial Units Switch to Metric Units

Engine Specifications
Engine type	3.3L Ti-VCT V6	2.7L EcoBoost^®	5.0L Ti-VCT V8	3.0L Power Stroke^® V6	3.5L EcoBoost^®	High-Output 3.5L EcoBoost^® (Limited)	High-Output 3.5L EcoBoost^® (Raptor)
Auto Start/Stop Technology	Standard	Standard	Standard	Standard	Standard	Standard	Standard
Engine Control System	Multicore PCM	Electronic	Electronic	Electronic	Electronic	Electronic	Electronic
Horsepower (SAE net @ rpm)	290 @ 6500 rpm	325 @ 5000 rpm	395 @ 5750	250 @ 3250	375 @ 5000	450 @ 5000 rpm	450 @ 5000 rpm
Torque (lb.-ft. @ rpm)	265 @ 4000 rpm	400 @ 2750 rpm	400 @ 4500	440 @ 1750	470 @ 3500	510 @ 3500 rpm	510 @ 3500 rpm
Compression ratio	12:1	10.3:1	12:1	16.0:1	10.5:1	10.0:1	10.0:1
Bore (in.)	4	3.267	3.66	3.64	3.64	3.64	3.64
Stroke (in.)	3	3.267	3.65	3.45	3.41	3.41	3.41
Displacement (cu. in.)	204	164	307	183	213	213	213
Main bearings	4	4	5	4	4	4	4
Valve operation	Direct Acting Mechanical Bucket	Roller Finger Follower	Roller Finger Follower	Roller Finger Follower	Roller Finger Follower	Roller Finger Follower	Roller Finger Follower
Fuel delivery	PFI + DI	PFI + DI	PFI + DI	Common Rail	PFI + DI	PFI + DI	PFI + DI
Recommended Fuel	Regular Unleaded or E85	Regular Unleaded	Regular Unleaded or E85	ULSD Diesel/B20 biodiesel	Regular Unleaded	Premium	Premium
Oil Capacity (qt.)	6	6	8.85	6.5	6	6	6
Coolant Capacity (L)	12.86	14.3	13.2	13	14.35	14.35	14.35
Fuel Consumption - 4x2	12.2 city/9.3 hwy/10.9 combined (L/100km)*	12.0 city/9.0 hwy/10.6 combined (L/100km)*	13.9 city/10.2 hwy/12.2 combined (L/100km)	10.8 city/8.0 hwy/9.5 combined (L/100km)	13.5 city/10.1 hwy/12.0 combined (L/100km)	-	-
Fuel Consumption - 4x2 with LT Tire	12.4 city/9.8 hwy/11.2 combined (L/100km)*	12.4 city/9.4 hwy/11.1 combined (L/100km)*	14.7 city/11.2 hwy/13.1 combined (L/100km)	10.8 city/8.4 hwy/9.7 combined (L/100km)	13.8 city/10.7 hwy/12.4 combined (L/100km)	-	-
Fuel Consumption - 4x2 Payload Package	-	12.4 city/9.4 hwy/11.1 combined (L/100km)*	15.6 city/11.8 hwy/13.9 combined (L/100km)	-	13.9 city/11.2 hwy/12.7 combined (L/100km)	-	-
Fuel Consumption - 4x4	12.8 city/ 10.2 hwy/ 11.6 combined (L/100km)*	12.7 city/9.8 hwy/11.4 combined (L/100km)*	15.1 city/11.0 hwy/13.3 combined (L/100km)	11.8 city/9.3 hwy/10.7 combined (L/100km)	14.3 city/10.5 hwy/12.5 combined (L/100km)	13.8 city/11.2 hwy/12.6 combined (L/100km)	15.3 city/13.1 hwy/14.3 combined (L/100km)
Fuel Consumption - 4x4 with LT Tire	13.8 city/ 10.7 hwy/ 12.4 combined (L/100km)*	13.1 city/10.2 hwy/11.8 combined (L/100km)*	15.7 city/11.8 hwy/13.9 combined (L/100km)	11.8 city/9.3 hwy/10.7 combined (L/100km)	14.7 city/10.7 hwy/12.9 combined (L/100km)	-	-
Fuel Consumption - 4x4 XL XLT	-	-	-	11.2 city/8.3 hwy/9.9 combined (L/100km)	-	-	-
Fuel Consumption - 4x4 Payload Package	-	13.1 city/10.2 hwy/11.8 combined (L/100km)*	16.8 city/12.4 hwy/14.8 combined (L/100km)	-	14.7 city/11.2 hwy/13.1 combined (L/100km)	-	-
Transmission type	Electronic 6-speed automatic	Electronic 10-speed automatic	Electronic 10-speed automatic	Electronic 10-speed automatic	Electronic 10-speed automatic	Electronic 10-speed automatic	Electronic 10-speed automatic
Engine block material	Aluminum	Compacted Graphite Iron	Aluminum	Compacted Graphite Iron	Aluminum	Aluminum	Aluminum
Cylinder head material	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum

Engine Specifications
Engine type	3.3L Ti-VCT V6	2.7L EcoBoost^®	5.0L Ti-VCT V8	3.0L Power Stroke^® V6	3.5L EcoBoost^®	High-Output 3.5L EcoBoost^® (Limited)	High-Output 3.5L EcoBoost^® (Raptor)
Auto Start/Stop Technology	Standard	Standard	Standard	Standard	Standard	Standard	Standard
Engine Control System	Multicore PCM	Electronic	Electronic	Electronic	Electronic	Electronic	Electronic
Horsepower (SAE net @ rpm)	290 @ 6500 rpm	325 @ 5000 rpm	395 @ 5750	250 @ 3250	375 @ 5000	450 @ 5000 rpm	450 @ 5000 rpm
Torque (lb.-ft. @ rpm)	265 @ 4000 rpm	400 @ 2750 rpm	400 @ 4500	440 @ 1750	470 @ 3500	510 @ 3500 rpm	510 @ 3500 rpm
Compression ratio	12:1	10.3:1	12:1	16.0:1	10.5:1	10.0:1	10.0:1
Bore (in.)	3.56	3	3.66	3.64	3.64	3.64	3.64
Stroke (in.)	3.41	3	3.65	3.45	3.41	3.41	3.41
Displacement (cu. in.)	204	164	307	183	213	213	213
Main bearings	4	4	5	4	4	4	4
Valve operation	Direct Acting Mechanical Bucket	Roller Finger Follower	Roller Finger Follower	Roller Finger Follower	Roller Finger Follower	Roller Finger Follower	Roller Finger Follower
Fuel delivery	PFI + DI	PFI + DI	PFI + DI	Common Rail	PFI + DI	PFI + DI	PFI + DI
Recommended Fuel	Regular Unleaded or E85	Regular Unleaded	Regular Unleaded or E85	ULSD Diesel/B20 biodiesel	Regular Unleaded	Premium	Premium
Oil Capacity (qt.)	6	6	8.85	6.5	6	6	6
Coolant Capacity (L)	12.86	14.3	13.2	13	14.35	14.35	14.35
Fuel Consumption - 4x2	23 city/30 hwy/26 combined (mpg-lmp)*	24 city/31 hwy/27 combined (mpg-lmp)*	20 city/28 hwy/24 combined mpg-lmp	26 city/35 hwy/30 combined mpg-lmp	21 city/28 hwy/24 combined mpg-lmp	-	-
Fuel Consumption - 4x2 with LT Tire	23 city/29 hwy/26 combined (mpg-lmp)*	23 city/30 hwy/26 combined (mpg-lmp)*	19 city/25 hwy/22 combined mpg-lmp	26 city/34 hwy/30 combined mpg-lmp	20 city/26 hwy/23 combined mpg-lmp	-	-
Fuel Consumption - 4x2 Payload Package	-	23 city/30 hwy/26 combined (mpg-lmp)*	18 city/24 hwy/21 combined mpg-lmp	-	20 city/25 hwy/23 combined mpg-lmp	-	-
Fuel Consumption - 4x4	22 city/28 hwy/25 combined (mpg-lmp)*	22 city/29 hwy/25 combined (mpg-lmp)*	19 city/26 hwy/22 combined mpg-lmp	24 city/30 hwy/27 combined mpg-lmp	20 city/27 hwy/23 combined mpg-lmp	20 city/25 hwy/23 combined mpg-lmp	18 city/22 hwy/20 combined mpg-lmp
Fuel Consumption - 4x4 with LT Tire	20 city/26 hwy/23 combined (mpg-lmp)*	22 city/28 hwy/24 combined (mpg-lmp)*	18 city/24 hwy/21 combined mpg-lmp	24 city/30 hwy/27 combined mpg-lmp	19 city/26 hwy/22 combined mpg-lmp	-	-
Fuel Consumption - 4x4 XL XLT	-	-	-	25 city/34 hwy/29 combined mpg-lmp	-	-	-
Fuel Consumption - 4x4 Payload Package	-	22 city/28 hwy/24 combined (mpg-lmp)*	17 city/23 hwy/19 combined mpg-lmp	-	19 city/25 hwy/22 combined mpg-lmp	-	-
Transmission type	Electronic 6-speed automatic	Electronic 10-speed automatic	Electronic 10-speed automatic	Electronic 10-speed automatic	Electronic 10-speed automatic	Electronic 10-speed automatic	Electronic 10-speed automatic
Engine block material	Aluminum	Compacted Graphite Iron	Aluminum	Compacted Graphite Iron	Aluminum	Aluminum	Aluminum
Cylinder head material	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum

Chassis

Switch to Imperial Units Switch to Metric Units

Chassis Specifications
Chassis Type	F-150	Raptor
Front suspension	Independent double-wishbone with coil-over shock and stamped lower control arm	Independent double-wishbone with coil-over shock and cast aluminum lower control arm
Rear suspension	Leaf spring/solid axle	Leaf spring/solid axle
Front and rear shocks	Heavy-duty gas-pressurized	High-output, on/off-road position-sensitive gas-pressured FOX Racing Shox^™
Brakes	Power 4-wheel anti-lock vented disc	Power 4-wheel anti-lock vented disc
Steering	Electric Power-Assisted	Electric Power-Assisted

Chassis Specifications
Chassis Type	F-150	Raptor
Front suspension	Independent double-wishbone with coil-over shock and stamped lower control arm	Independent double-wishbone with coil-over shock and cast aluminum lower control arm
Rear suspension	Leaf spring/solid axle	Leaf spring/solid axle
Front and rear shocks	Heavy-duty gas-pressurized	High-output, on/off-road position-sensitive gas-pressured FOX Racing Shox^™
Brakes	Power 4-wheel anti-lock vented disc	Power 4-wheel anti-lock vented disc
Steering	Electric Power-Assisted	Electric Power-Assisted

Towing

Switch to Imperial Units Switch to Metric Units

Maximum Conventional Towing Capabilities
Regular Cab
Wheelbase			3109 mm.	3109 mm.	3584 mm.	3584 mm.
Drive Type			4x2	4x4	4x2	4x4
Engine	Axle Ratio	GCWR
2.7L EcoBoost^® V6	3.55	5,534 kg.	3,447 kg.	-	-	-
2.7L EcoBoost^®V6	3.55	5,579 kg.	-	-	3,447 kg.	-
2.7L EcoBoost^® V6	3.55	5,670 kg.	-	3,447 kg.	-	-
2.7L EcoBoost^® V6	3.55	5,715 kg.	-	-	-	3,447 kg.
2.7L EcoBoost^® V6	3.73	6,033 kg.	-	3,810 kg.	-	3,765 kg.
2.7L EcoBoost^® V6	3.73	5,942 kg.	3,856 kg.	-	-	-
2.7L EcoBoost^® V6	3.73	5,987 kg.	-	-	3,856 kg.	-
3.3L Ti-VCT V6	3.55	4,309 kg.	2,313 kg.	-	-	-
3.3L Ti-VCT V6	3.55	4,354 kg.	-	-	2,268 kg.	-
3.3L Ti-VCT V6	3.55	4,400 kg.	-	2,268 kg.	-	-
3.3L Ti-VCT V6	3.73	5,488 kg.	3,493 kg.	-	-	-
3.3L Ti-VCT V6	3.73	5,534 kg.	-	3,402 kg.	3,447 kg.	3,357 kg.
3.5L EcoBoost^® V6	3.15	7,031 kg.	-	-	4,853 kg.	-
3.5L EcoBoost^® V6	3.15	7,167 kg.	-	-	-	4,853 kg.
3.5L EcoBoost^® V6	3.55	7,711 kg.	-	-	5,488 kg.	-
3.5L EcoBoost^® V6	3.55	7,756 kg.	-	-	-	5,443 kg.
5.0L Ti-VCT V8	3.15/3.31	5,897 kg.	3,765 kg.	-	-	-
5.0L Ti-VCT V8	3.15/3.31	5,987 kg.	-	3,765 kg.	-	-
5.0L Ti-VCT V8	3.15/3.31	6,305 kg.	-	-	4,128 kg.	-
5.0L Ti-VCT V8	3.15/3.31	6,396 kg.	-	-	-	4,128 kg.
5.0L Ti-VCT V8	3.55	6,260 kg.	4,128 kg.	-	-	-
5.0L Ti-VCT V8	3.55	6,759 kg.	-	-	4,581 kg.	-
5.0L Ti-VCT V8	3.73	6,622 kg.	-	4,400 kg.	-	-
5.0L Ti-VCT V8	3.73	7,348 kg.	-	-	-	5,035 kg.


SuperCab
Wheelbase			3,683 mm.	3,683 mm.	4,158 mm.	4,158 mm.	3,408 mm. (Raptor only)
Drive Type			4x2	4x4	4x2	4x4	4x4
Engine	Axle Ratio	GCWR
2.7L EcoBoost^® V6	3.55	5,715 kg.	3,493 kg.	-	3,402 kg.	-	-
2.7L EcoBoost^® V6	3.55	5,806 kg.	-	3,447 kg.	-	-	-
2.7L EcoBoost^® V6	3.73	6,033 kg.	-	-	3,719 kg.	-	-
2.7L EcoBoost^® V6	3.73	6,033 kg.	3,810 kg.	3,674 kg.	-	-	-
3.3L Ti-VCT V6	3.55	4,445 kg.	2,268 kg.	-	-	-	-
3.3L Ti-VCT V6	3.73	5,670 kg.	-	3,357 kg.	-	-	-
3.3L Ti-VCT V6	3.73	5,534 kg.	3,357 kg.	-	-	-	-
3.5L EcoBoost^® V6	3.15	7,167 kg.	4,853 kg.	-	-	-	-
3.5L EcoBoost^® V6	3.15	7,212 kg.	-	-	4,853 kg.	-	-
3.5L EcoBoost^® V6	3.31	7,257 kg.	-	4,853 kg.	-	-	-
3.5L EcoBoost^® V6	3.31	7,348 kg.	-	-	-	4,853 kg.	-
3.5L EcoBoost^® V6	3.55	7,756 kg.	5,443 kg.	5,352 kg.	5,398 kg.	5,262 kg.	-
5.0L Ti-VCT V8	3.15/3.31	6,441 kg.	4,128 kg.	-	4,128 kg.	-	-
5.0L Ti-VCT V8	3.31	6,486 kg.	-	4,082 kg.	-	-	-
5.0L Ti-VCT V8	3.55	6,532 kg.	-	4,128 kg.	-	-	-
5.0L Ti-VCT V8	3.55	6,577 kg.	-	-	-	4,128 kg.	-
5.0L Ti-VCT V8	3.55	6,895 kg.	4,581 kg.	-	4,581 kg.	-	-
5.0L Ti-VCT V8	3.73	7,666 kg.	-	-	-	5,262 kg.	-
5.0L Ti-VCT V8	3.73	7,348 kg.	-	4,944 kg.	-	-	-
3.0L Power Stroke^® V6	3.31	7,121 kg.	4,581 kg.	-	-	-	-
3.0L Power Stroke^® V6	3.31/3.55	7,212 kg.	-	4,581 kg.	-	-	-
3.0L Power Stroke^® V6	3.55	7,756 kg.	5,171 kg.	5,035 kg.	-	-	-
H.O. 3.5L EcoBoost^® V6 (Raptor)	4.10	5,443 kg.	-	-	-	-	2,722 kg.


SuperCrew
Wheelbase			3,683 mm.	3,683 mm.	3,983 mm.	3,983 mm.	3,708 mm. (Raptor only)
Drive Type			4x2	4x4	4x2	4x4	4x4
Engine	Axle Ratio	GCWR
2.7L EcoBoost^® V6	3.55	5,761 kg.	3,493 kg.	-	3,447 kg.	-	-
2.7L EcoBoost^® V6	3.55	5,851 kg.	-	3,447 kg.	-	-	-
2.7L EcoBoost^® V6	3.73	6,033 kg.	3,719 kg.	3,629 kg.	3,719 kg.	-	-
3.3L Ti-VCT V6	3.55	4,491 kg.	2,268 kg.	-	-	-	-
3.3L Ti-VCT V6	3.73	5,579 kg	3,357 kg.	-	-	-	-
3.3L Ti-VCT V6	3.73	5,715 kg.	-	3,357 kg.	-	-	-
3.5L EcoBoost^® V6	3.15	7,167 kg.	4,808 kg.	-	-	-	-
3.5L EcoBoost^® V6	3.15	7,212 kg.	-	-	4,853 kg.	-	-
3.5L EcoBoost^® V6	3.31	7,303 kg.	-	4,853 kg.	-	4,853 kg.	-
3.5L EcoBoost^® V6	3.55	8,346 kg.	-	-	-	5,897 kg.	-
3.5L EcoBoost^® V6	3.55	8,119 kg.	5,761 kg.	-	-	-	-
3.5L EcoBoost^® V6	3.55	8,210 kg.	-	5,761 kg.	-	-	-
3.5L EcoBoost^® V6	3.55	8,346 kg.	-	-	5,987 kg.	-	-
5.0L Ti-VCT V8	3.15/3.31	6,441 kg.	4,128 kg.	-	4,128 kg.	-	-
5.0L Ti-VCT V8	3.31	6,486 kg.	-	4,082 kg.	-	-	-
5.0L Ti-VCT V8	3.55	6,532 kg.	-	4,128 kg.	-	-	-
5.0L Ti-VCT V8	3.55	6,577 kg.	-	-	-	4,128 kg.	-
5.0L Ti-VCT V8	3.55	6,895 kg.	4,581 kg.	-	4,581 kg.	-	-
5.0L Ti-VCT V8	3.73	7,666 kg.	-	-	-	5,262 kg.	-
5.0L Ti-VCT V8	3.73	7,348 kg.	-	4,944 kg.	-	-	-
3.0L Power Stroke^® V6	3.31	7,167 kg.	4,627 kg.	-	4,581 kg.	-	-
3.0L Power Stroke^® V6	3.31/3.55	7,257 kg.	-	4,581 kg.	-	-	-
3.0L Power Stroke^® V6	3.31/3.55	7,303 kg.	-	-	-	4,581 kg.	-
3.0L Power Stroke^® V6	3.55	7,756 kg.	5,035 kg.	4,853 kg.	5,171 kg.	4,990 kg.	-
H.O. 3.5L EcoBoost^® V6 (Limited)	3.55	7,575 kg.	5,035 kg.	4,218 kg.	-	-	-
H.O. 3.5L EcoBoost^® V6 (Raptor)	4.10	5,443 kg.	-	-	-	-	3,629 kg.

Maximum Conventional Towing Capabilities
Regular Cab
Wheelbase			122.4 in.	122.4 in.	141.1 in.	141.1 in.
Drive Type			4x2	4x4	4x2	4x4
Engine	Axle Ratio	GCWR
2.7L EcoBoost^® V6	3.55	12,200 lbs.	7,600 lbs.	-	-	-
2.7L EcoBoost^® V6	3.55	12,300 lbs.	-	-	7,600 lbs.	-
2.7L EcoBoost^® V6	3.55	12,500 lbs.	-	7,600 lbs.	-	-
2.7L EcoBoost^® V6	3.55	12,600 lbs.	-	-	-	7,600 lbs.
2.7L EcoBoost^® V6	3.73	13,300 lbs.	-	8,400 lbs.	-	8,300 lbs.
2.7L EcoBoost^® V6	3.73	13,100 lbs.	8,500 lbs.	-	-	-
2.7L EcoBoost^® V6	3.73	13,200 lbs.	-	-	8,500 lbs.	-
3.3L Ti-VCT V6	3.55	9,500 lbs.	5,100 lbs.	-	-	-
3.3L Ti-VCT V6	3.55	9,600 lbs.	-	-	5,000 lbs.	-
3.3L Ti-VCT V6	3.55	9,700 lbs.	-	5,000 lbs.	-	-
3.3L Ti-VCT V6	3.73	12,100 lbs.	7,700 lbs.	-	-	-
3.3L Ti-VCT V6	3.73	12,200 lbs.	-	7,500 lbs.	7,600 lbs.	7,400 lbs.
3.5L EcoBoost^® V6	3.15	15,500 lbs.	-	-	10,700 lbs.	-
3.5L EcoBoost^® V6	3.15	15,800 lbs.	-	-	-	10,700 lbs.
3.5L EcoBoost^® V6	3.55	17,000 lbs.	-	-	12,100 lbs.	-
3.5L EcoBoost^® V6	3.55	17,100 lbs.	-	-	-	12,000 lbs.
5.0L Ti-VCT V8	3.15/3.31	13,000 lbs.	8,300 lbs.	-	-	-
5.0L Ti-VCT V8	3.15/3.31	13,200 lbs.	-	8,300 lbs.	-	-
5.0L Ti-VCT V8	3.15/3.31	13,900 lbs.	-	-	9,100 lbs.	-
5.0L Ti-VCT V8	3.15/3.31	14,100 lbs.	-	-	-	9,100 lbs.
5.0L Ti-VCT V8	3.55	13,800 lbs.	9,100 lbs.	-	-	-
5.0L Ti-VCT V8	3.55	14,900 lbs.	-	-	10,100 lbs.	-
5.0L Ti-VCT V8	3.73	14,600 lbs.	-	9,700 lbs.	-	-
5.0L Ti-VCT V8	3.73	16,200 lbs.	-	-	-	11,100 lbs.


SuperCab
Wheelbase			145.0 in.	145.0 in.	163.7 in.	163.7 in.	134.2 in. (Raptor only)
Drive Type			4x2	4x4	4x2	4x4	4x4
Engine	Axle Ratio	GCWR
2.7L EcoBoost^® V6	3.55	12,600 lbs.	7,700 lbs.	-	-	-	-
2.7L EcoBoost^® V6	3.55	12,800 lbs.	-	7,600 lbs.	-	-	-
2.7L EcoBoost^® V6	3.73	13,300 lbs.	-	-	8,200 lbs.	-	-
2.7L EcoBoost^® V6	3.73	13,300 lbs.	8,400 lbs.	8,100 lbs.	-	-	-
3.3L Ti-VCT V6	3.55	9,800 lbs.	5,000 lbs.	-	-	-	-
3.3L Ti-VCT V6	3.73	12,500 lbs.	-	7,400 lbs.	-	-	-
3.3L Ti-VCT V6	3.73	12,200 lbs.	7,400 lbs.	-	-	-	-
3.5L EcoBoost^® V6	3.15	15,800 lbs.	10,700 lbs.	-	-	-	-
3.5L EcoBoost^®V6	3.15	15,900 lbs.	-	-	10,700 lbs.	-	-
3.5L EcoBoost^® V6	3.31	16,000 lbs.	-	10,700 lbs.	-	-	-
3.5L EcoBoost^® V6	3.31	16,200 lbs.	-	-	-	10,700 lbs.	-
3.5L EcoBoost^® V6	3.55	17,100 lbs.	12,000 lbs.	11,800 lbs.	11,900 lbs.	11,600 lbs.	-
5.0L Ti-VCT V8	3.15/3.31	14,200 lbs.	9,200 lbs.	-	-	-	-
5.0L Ti-VCT V8	3.31	14,300 lbs.	-	9,100 lbs.	9,200 lbs.	-	-
5.0L Ti-VCT V8	3.31	14,400 lbs.	-	9,100 lbs.	-	9,000 lbs.	-
5.0L Ti-VCT V8	3.55	14,500 lbs.	-	-	-	9,100 lbs.	-
5.0L Ti-VCT V8	3.55	15,200 lbs.	10,200 lbs.	-	-	-	-
5.0L Ti-VCT V8	3.55	15,300 lbs.	-	-	10,200 lbs.	-	-
5.0L Ti-VCT V8	3.73	16,600 lbs.	-	-	-	11,200 lbs.	-
5.0L Ti-VCT V8	3.73	16,500 lbs.	-	11,300 lbs.	-	-	-
3.0L Power Stroke^® V6	3.31	15,700 lbs.	10,100 lbs.	-	-	-	-
3.0L Power Stroke^® V6	3.31/3.55	15,900 lbs.	-	10,100 lbs.	-	-	-
3.0L Power Stroke^® V6	3.55	17,100 lbs.	11,400 lbs.	11,100 lbs.	-	-	-
H.O. 3.5L EcoBoost^® V6 (Raptor)	4.10	12,000 lbs.	-	-	-	-	6,000 lbs.


SuperCrew
Wheelbase			145.0 in.	145.0 in.	156.8 in.	156.8 in.	146 in. (Raptor only)
Drive Type			4x2	4x4	4x2	4x4	4x4
Engine	Axle Ratio	GCWR
2.7L EcoBoost^® V6	3.55	12,700 lbs.	7,700 lbs.	-	7,600 lbs.	-	-
2.7L EcoBoost^® V6	3.55	12,900 lbs.	-	7,600 lbs.	-	-	-
2.7L EcoBoost^® V6	3.73	13,300 lbs.	8,200 lbs.	8,000 lbs.	8,200 lbs.	-	-
3.3L Ti-VCT V6	3.55	9,900 lbs.	5,000 lbs.	-	-	-	-
3.3L Ti-VCT V6	3.73	12,300 lbs.	7,400 lbs.	-	-	-	-
3.3L Ti-VCT V6	3.73	12,300 lbs.	7,400 lbs.	-	-	-	-
3.3L Ti-VCT V6	3.73	12,600 lbs.	-	7,400 lbs.	-	-	-
3.5L EcoBoost^® V6	3.15	15,800 lbs.	10,600 lbs.	-	-	-	-
3.5L EcoBoost^® V6	3.15	15,900 lbs.	-	-	10,700 lbs.	-	-
3.5L EcoBoost^®V6	3.31	16,100 lbs.	-	10,700 lbs.	-	10,700 lbs.	-
3.5L EcoBoost^® V6	3.55	18,400 lbs.	-	-	-	13,000 lbs.	-
3.5L EcoBoost^® V6	3.55	17,900 lbs.	12,700 lbs.	-	-	-	-
3.5L EcoBoost^® V6	3.55	18,100 lbs.	-	12,700 lbs.	-	-	-
3.5L EcoBoost^® V6	3.55	18,400 lbs.	-	-	13,200 lbs.	-	-
5.0L Ti-VCT V8	3.15/3.31	14,200 lbs.	9,100 lbs.	-	9,100 lbs.	-	-
5.0L Ti-VCT V8	3.31	14,300 lbs.	-	9,000 lbs.	-	-	-
5.0L Ti-VCT V8	3.55	14,400 lbs.	-	9,100 lbs.	-	-	-
5.0L Ti-VCT V8	3.55	14,500 lbs.	10,100 lbs.	-		9,100 lbs.	-
5.0L Ti-VCT V8	3.55	15,200 lbs.	-	-	10,100 lbs.	-	-
5.0L Ti-VCT V8	3.73	16,900 lbs.	-	-	-	11,600 lbs.	-
5.0L Ti-VCT V8	3.73	16,200 lbs.	-	10,900 lbs.	-	-	-
3.0L Power Stroke^® V6	3.31	15,800 lbs.	10,200 lbs.	-	10,100 lbs.	-	-
3.0L Power Stroke^® V6	3.31/3.55	16,000 lbs.	-	10,100 lbs.	-	-	-
3.0L Power Stroke^® V6	3.31/3.55	16,100 lbs.	-	-	-	10,100 lbs.	-
3.0L Power Stroke^® V6	3.55	17,100 lbs.	11,100 lbs.	10,700 lbs.	11,400 lbs.	11,000 lbs.	-
H.O. 3.5L EcoBoost^® V6 (Limited)	3.55	16,700 lbs.	11,100 lbs.	9,300 lbs.	-	-	-
H.O. 3.5L EcoBoost^® V6 (Raptor)	4.10	12,000 lbs.	-	-	-	-	8,000 lbs.

Payload

Switch to Imperial Units Switch to Metric Units

Maximum Payload Capabilities
Regular Cab
Wheelbase		3,109 mm.	3,109 mm.	3,584 mm.	3,584 mm.
Drive Type		4x2	4x4	4x2	4x4
Engine	GVWR
2.7L EcoBoost^® V6	2,753 kg.	844 kg.	-	-	-
2.7L EcoBoost^® V6	2,817 kg.	-	785 kg.	-	-
2.7L EcoBoost^® V6	2,817 kg.	-	-	866 kg.	-
2.7L EcoBoost^® V6	2,948 kg.	-	-	-	866 kg.
2.7L EcoBoost^® V6	3,130 kg.	-	-	1,120 kg.*	-
2.7L EcoBoost^® V6	3,084 kg.	-	-	-	957 kg.*
3.3L Ti-VCT V6	2,767 kg.	903 kg.	-	-	-
3.3L Ti-VCT V6	2,776 kg.	-	789 kg.	-	-
3.3L Ti-VCT V6	2,799 kg.	-	-	885 kg.	-
3.3L Ti-VCT V6	2,898 kg.	-	-	871 kg.	-
3.5L EcoBoost^® V6	3,198 kg.	-	-	1,184 kg.	1,066 kg.
3.5L EcoBoost^® V6	3,447 kg	-	-	1,361 kg.**	1,261 kg.**
3.5L EcoBoost^® V6	3,561 kg.	-	-	1,465 kg.**	1,361 kg.**
5.0L Ti-VCT V8	2,812 kg.	862 kg.	-	-	-
5.0L Ti-VCT V8	2,903 kg.	-	830 kg.	-	-
5.0L Ti-VCT V8	3,062 kg.	-	-	1,061 kg.	-
5.0L Ti-VCT V8	3,152 kg.	-	-	-	1,039 kg.
5.0L Ti-VCT V8	3,447 kg.	-	-	1,379 kg.**	1,275 kg.**
5.0L Ti-VCT V8	3,561 kg.	-	-	1,483 kg.**	1,379 kg.**


SuperCab
Wheelbase		3,683 mm.	3,683 mm.	4,158 mm.	4,158 mm.	3,408 mm. (Raptor only)
Drive Type		4x2	4x4	4x2	4x4	4x4
Engine	GVWR
2.7L EcoBoost^® V6	2,903 kg.	844 kg.	-	-	-	-
2.7L EcoBoost^® V6	2,948 kg.	-	744 kg.	816 kg.	-	-
2.7L EcoBoost^® V6	3,062 kg.	962 kg.*	-	-	-	-
2.7L EcoBoost^® V6	3,130 kg.	-	-	984 kg.*	-	-
2.7L EcoBoost^® V6	3,175 kg.	-	957 kg.*	-	-	-
3.3L Ti-VCT V6	2,858 kg.	835 kg.	-	-	-	-
3.3L Ti-VCT V6	2,948 kg.	-	807 kg.	-	-	-
3.5L EcoBoost^® V6	3,130 kg.	1,025 kg.	-	-	-	-
3.5L EcoBoost^® V6	3,198 kg.	-	975 kg.	1,021 kg.	898 kg.	-
3.5L EcoBoost^® V6	3,447 kg.	-	-	1,229 kg.**	1,120 kg.**	-
3.5L EcoBoost^® V6	3,561 kg.	-	-	1,338 kg.**	1,225 kg.**	-
5.0L Ti-VCT V8	3,130 kg.	1,052 kg.	-	-	-	-
5.0L Ti-VCT V8	3,198 kg.	-	998 kg.	-	-	-
5.0L Ti-VCT V8	3,175 kg.	-	-	1,039 kg.	916 kg.	-
5.0L Ti-VCT V8	3,447 kg.	-	-	1,243 kg.**	1,134 kg.**	-
5.0L Ti-VCT V8	3,561 kg	-	-	1,352 kg.**	1,238 kg.**	-
3.0L Power Stroke^® V6	3,198 kg.	880 kg.	798 kg.	-	-	-
H.O. 3.5L EcoBoost^® V6 (Raptor)	2,994 kg.	-	-	-	-	454 kg.


SuperCrew
Wheelbase		3,683 mm.	3,683 mm.	3,983 mm.	3,983 mm.	3,708 mm. (Raptor only)
Drive Type		4x2	4x4	4x2	4x4	4x4
Engine	GVWR
2.7L EcoBoost^® V6	2,885 kg.	776 kg.	-	-	-	-
2.7L EcoBoost^® V6	2,948 kg.	-	-	826 kg.	-	-
2.7L EcoBoost^® V6	2,994 kg.	-	767 kg.	-	-	-
2.7L EcoBoost^® V6	3,016 kg.	880 kg.*	-	-	-	-
2.7L EcoBoost^® V6	3,084 kg.	-	-	934 kg.*	-	-
2.7L EcoBoost^® V6	3,130 kg.	-	885 kg.*	-	-	-
3.3L Ti-VCT V6	2,849 kg.	771 kg.	-	-	-	-
3.3L Ti-VCT V6	2,948 kg.	-	762 kg.	-	-	-
3.5L EcoBoost^® V6	3,062 kg.	925 kg.	-	-	-	-
3.5L EcoBoost^® V6	3,175 kg.	-	921 kg.	1,016 kg.	-	-
3.5L EcoBoost^® V6	3,198 kg.	-	-	-	921 kg.	-
3.5L EcoBoost^® V6	3,447 kg.	-	-	1,193 kg.**	1,084 kg.**	-
3.5L EcoBoost^® V6	3,561 kg.	-	-	1,302 kg.**	1,188 kg.**	-
5.0L Ti-VCT V8	3,084 kg.	971 kg.	-	-	-	-
5.0L Ti-VCT V8	3,152 kg.	-	-	1,025 kg.	-	-
5.0L Ti-VCT V8	3,175 kg.	-	943 kg.	-	-	-
5.0L Ti-VCT V8	3,198 kg.	-	-	-	943 kg.	-
5.0L Ti-VCT V8	3,447 kg.	-	-	1,207 kg.**	1,093 kg.**	-
5.0L Ti-VCT V8	3,561 kg.	-	-	1,311 kg.**	1,197 kg.**	-
3.0L Power Stroke^® V6	3,198 kg	1,451 kg.	780 kg.	844 kg.	-	-
3.0L Power Stroke^® V6	3,221 kg.	-	-	-	780 kg.	-
H.O. 3.5L EcoBoost^® V6 (Limited)	3,062 kg.	689 kg.	576 kg.	-	-	-
H.O. 3.5L EcoBoost^® V6 (Raptor)	3,198 kg.	-	-	-	-	544 kg.
Requires 2.7L EcoBoost^® V6 Payload Package *Requires Heavy Duty Payload Package

Maximum Payload Capabilities
Regular Cab
Wheelbase		122.4 in.	122.4 in.	141.1 in.	141.1 in.
Drive Type		4x2	4x4	4x2	4x4
Engine	GVWR
2.7L EcoBoost^® V6	6,070 lbs.	1,860 lbs.	-	-	-
2.7L EcoBoost^® V6	6,210 lbs.	-	1,730 lbs.	-	-
2.7L EcoBoost^® V6	6,220 lbs.	-	-	1,910 lbs.	-
2.7L EcoBoost^® V6	6,500 lbs.	-	-	-	1,910 lbs.
2.7L EcoBoost^® V6	6,900 lbs.	-	-	2,470 lbs.*	-
2.7L EcoBoost^® V6	6,800 lbs.	-	-	-	2,110 lbs.*
3.3L Ti-VCT V6	6,100 lbs.	1,990 lbs.	-	-	-
3.3L Ti-VCT V6	6,120 lbs.	-	1,740 lbs.	-	-
3.3L Ti-VCT V6	6,170 lbs.	-	-	1,950 lbs.	-
3.3L Ti-VCT V6	6,390 lbs.	-	-	1,920 lbs.	-
3.5L EcoBoost^® V6	7,050 lbs.	-	-	2,610 lbs.	2,350 lbs.
3.5L EcoBoost^® V6	7,600 lbs.	-	-	3,000 lbs.**	2,780 lbs.**
3.5L EcoBoost^® V6	7,850 lbs.	-	-	3,230 lbs.**	3,000 lbs.**
5.0L Ti-VCT V8	6,200 lbs.	1,900 lbs.	-	-	-
5.0L Ti-VCT V8	6,400 lbs.	-	1,830 lbs.	-	-
5.0L Ti-VCT V8	6,750 lbs.	-	-	2,340 lbs.	-
5.0L Ti-VCT V8	6,950 lbs.	-	-	-	2,290 lbs.
5.0L Ti-VCT V8	7,600 lbs.	-	-	3,040 lbs.**	2,810 lbs.**
5.0L Ti-VCT V8	7,850 lbs.	-	-	3,270 lbs.**	3,040 lbs.**


SuperCab
Wheelbase		145.0 in.	145.0 in.	163.7 in.	163.7 in.	134.2 in. (Raptor only)
Drive Type		4x2	4x4	4x2	4x4	4x4
Engine	GVWR
2.7L EcoBoost^® V6	6,400 lbs.	1,860 lbs.	-	-	-	-
2.7L EcoBoost^® V6	6,500 lbs.	-	1,640 lbs.	1,800 lbs.	-	-
2.7L EcoBoost^® V6	6,750 lbs.	2,120 lbs.*	-	-	-	-
2.7L EcoBoost^® V6	6,900 lbs.	-	-	2,170 lbs.*	-	-
2.7L EcoBoost^® V6	7,000 lbs.	-	2,110 lbs.*	-	-	-
3.3L Ti-VCT V6	6,300 lbs.	1,840 lbs.	-	-	-	-
3.3L Ti-VCT V6	6,500 lbs.	-	1,780 lbs.	-	-	-
3.5L EcoBoost^® V6	6,900 lbs.	2,260 lbs.	-	-	-	-
3.5L EcoBoost^® V6	7,050 lbs.	-	2,150 lbs.	2,250 lbs.	1,980 lbs.	-
3.5L EcoBoost^® V6	7,600 lbs.	-	-	2,710 lbs.**	2,470 lbs.**	-
3.5L EcoBoost^® V6	7,850 lbs.	-	-	2,950 lbs.**	2,700 lbs.**	-
5.0L Ti-VCT V8	6,900 lbs.	2,320 lbs.	-	-	-	-
5.0L Ti-VCT V8	7,050 lbs.	-	2,200 lbs.	-	-	-
5.0L Ti-VCT V8	7,000 lbs.	-	-	2,290 lbs.	2,020 lbs.	-
5.0L Ti-VCT V8	7,600 lbs.	-	-	2,740 lbs.**	2,500 lbs.**	-
5.0L Ti-VCT V8	7,850 lbs.	-	-	2,980 lbs.**	2,730 lbs.**	-
3.0L Power Stroke^® V6	7,050 lbs.	1,940 lbs.	1,760 lbs.	-	-	-
H.O. 3.5L EcoBoost^® V6 (Raptor)	6,600 lbs.	-	-	-	-	1,000 lbs.


SuperCrew
Wheelbase		145.0 in.	145.0 in.	156.8 in.	156.8 in.	146 in. (Raptor only)
Drive Type		4x2	4x4	4x2	4x4	4x4
Engine	GVWR
2.7L EcoBoost^® V6	6,360 lbs.	1,710 lbs.	-	-	-	-
2.7L EcoBoost^® V6	6,500 lbs.	-	-	1,820 lbs.	-	-
2.7L EcoBoost^® V6	6,600 lbs.	-	1,690 lbs.	-	-	-
2.7L EcoBoost^® V6	6,650 lbs.	1,940 lbs.*	-	-	-	-
2.7L EcoBoost^® V6	6,800 lbs.	-	-	2,060 lbs.*	-	-
2.7L EcoBoost^® V6	6,900 lbs.	-	1,950 lbs.*	-	-	-
3.3L Ti-VCT V6	6,280 lbs.	1,700 lbs.	-	-	-	-
3.3L Ti-VCT V6	6,500 lbs.	-	1,680 lbs.	-	-	-
3.5L EcoBoost^® V6	6,750 lbs.	2,040 lbs.	-	-	-	-
3.5L EcoBoost^®V6	7,000 lbs.	-	2,030 lbs.	2,240 lbs.	-	-
3.5L EcoBoost^®V6	7,050 lbs.	-	-	-	2,030 lbs.	-
3.5L EcoBoost^® V6	7,600 lbs.	-	-	2,630 lbs.**	2,390 lbs.**	-
3.5L EcoBoost^® V6	7,850 lbs.	-	-	2,870 lbs.**	2,620 lbs.**	-
5.0L Ti-VCT V8	6,800 lbs.	2,140 lbs.	-	-	-	-
5.0L Ti-VCT V8	6,950 lbs.	-	-	2,260 lbs.	-	-
5.0L Ti-VCT V8	7,000 lbs.	-	2,080 lbs.	-	-	-
5.0L Ti-VCT V8	7,050 lbs.	-	-	-	2,080 lbs.	-
5.0L Ti-VCT V8	7,600 lbs.	-	-	2,660 lbs.**	2,410 lbs.**	-
5.0L Ti-VCT V8	7,850 lbs.	-	-	2,890 lbs.**	2,640 lbs.**	-
3.0L Power Stroke^® V6	7,050 lbs.	1,900 lbs.	1,720 lbs.	1,860 lbs.	-	-
3.0L Power Stroke^® V6	7,100 lbs.	-	-	-	1,720 lbs.	-
H.O. 3.5L EcoBoost^® V6 (Limited)	6,750 lbs.	1,520 lbs.	1,270 lbs.	-	-	-
H.O. 3.5L EcoBoost^®V6 (Raptor)	7,050 lbs.	-	-	-	-	1,200 lbs.
Requires 2.7L EcoBoost^® V6 Payload Package *Requires Heavy Duty Payload Package

Highlights

Switch to Imperial Units Switch to Metric Units

Engine Highlights
Available Engines	3.3L Ti-VCT V6	2.7L EcoBoost^®	5.0L Ti-VCT V8	3.0L Power Stroke® V6	3.5L EcoBoost^®	High-Output 3.5L EcoBoost^® (Limited)	High-Output 3.5L EcoBoost ^® (Raptor)
Horsepower	290 @ 6500 rpm	325 @ 5000 rpm	395 @ 5750	250 @ 3250	375 @ 5000 rpm	450 @ 5000 rpm (93-octane)	450 @ 5000 rpm (93-octane)
Torque	265 @ 4000 rpm	400 @ 2750 rpm	400 @ 4500	440 @ 1750	470 @ 3500 rpm	510 @ 3500 rpm (93-octane)	510 @ 3500 rpm (93-octane)
Auto Start/Stop Technology	Standard	Standard	Standard	Standard	Standard	Standard	Standard
Fuel Consumption - 4x2	12.2 city/9.3 hwy/10.9 combined (L/100km)*	12.0 city/9.0 hwy/10.6 combined (L/100km)*	13.9 city/10.2 hwy/12.2 combined (L/100km)	10.8 city/8.0 hwy/9.5 combined (L/100km)	13.5 city/10.1 hwy/12.0 combined (L/100km)	-	-
Fuel Consumption - 4x2 with LT Tire	12.4 city/9.8 hwy/11.2 combined (L/100km)*	12.4 city/9.4 hwy/11.1 combined (L/100km)*	14.7 city/11.2 hwy/13.1 combined (L/100km)	10.8 city/8.4 hwy/9.7 combined (L/100km)	13.8 city/10.7 hwy/12.4 combined (L/100km)	-	-
Fuel Consumption - 4x2 Payload Package	-	12.4 city/9.4 hwy/11.1 combined (L/100km)*	15.6 city/11.8 hwy/13.9 combined (L/100km)	-	13.9 city/11.2 hwy/12.7 combined (L/100km)	-	-
Fuel Consumption - 4x4	12.8 city/ 10.2 hwy/ 11.6 combined (L/100km)*	12.7 city/9.8 hwy/11.4 combined (L/100km)*	15.1 city/11.0 hwy/13.3 combined (L/100km)	11.8 city/9.3 hwy/10.7 combined (L/100km)	14.3 city/10.5 hwy/12.5 combined (L/100km)	13.8 city/11.2 hwy/12.6 combined (L/100km)	15.3 city/13.1 hwy/14.3 combined (L/100km)
Fuel Consumption - 4x4 with LT Tire	13.8 city/ 10.7 hwy/ 12.4 combined (L/100km)*	13.1 city/10.2 hwy/11.8 combined (L/100km)*	15.7 city/11.8 hwy/13.9 combined (L/100km)	11.8 city/9.3 hwy/10.7 combined (L/100km)	14.7 city/10.7 hwy/12.9 combined (L/100km)	-	-
Fuel Consumption - 4x4 XL XLT	-	-	-	11.2 city/8.3 hwy/9.9 combined (L/100km)	-	-	-
Fuel Consumption - 4x4 Payload Package	-	13.1 city/10.2 hwy/11.8 combined (L/100km)*	16.8 city/12.4 hwy/14.8 combined (L/100km)	-	14.7 city/11.2 hwy/13.1 combined (L/100km)	-	-

Engine Highlights
Available Engines	3.3L Ti-VCT V6	2.7L EcoBoost^®	5.0L Ti-VCT V8	3.0L Power Stroke^® V6	3.5L EcoBoost^®	High-Output 3.5L EcoBoost^® (Limited)	High-Output 3.5L EcoBoost^®
Horsepower	290 @ 6500 rpm	325 @ 5000 rpm	395 @ 5750	250 @ 3250	375 @ 5000 rpm	450 @ 5000 rpm (93-octane)	450 @ 5000 rpm (93-octane)
Torque	265 @ 4000 rpm	400 @ 2750 rpm	400 @ 4500	440 @ 1750	470 @ 3500 rpm	510 @ 3500 rpm (93-octane)	510 @ 3500 rpm (93-octane)
Auto Start/Stop Technology	Standard	Standard	Standard	Standard	Standard	Standard	Standard
Fuel Consumption - 4x2	23 city/30 hwy/26 combined (mpg-lmp)*	24 city/31 hwy/27 combined (mpg-lmp)*	20 city/28 hwy/24 combined mpg-lmp	26 city/35 hwy/30 combined mpg-lmp	21 city/28 hwy/24 combined mpg-lmp	-	-
Fuel Consumption - 4x2 with LT Tire	23 city/29 hwy/26 combined (mpg-lmp)*	23 city/30 hwy/26 combined (mpg-lmp)*	19 city/25 hwy/22 combined mpg-lmp	26 city/34 hwy/30 combined mpg-lmp	20 city/26 hwy/23 combined mpg-lmp	-	-
Fuel Consumption - 4x2 Payload Package	-	23 city/30 hwy/26 combined (mpg-lmp)*	18 city/24 hwy/21 combined mpg-lmp	-	20 city/25 hwy/23 combined mpg-lmp	-	-
Fuel Consumption - 4x4	22 city/28 hwy/25 combined (mpg-lmp)*	22 city/29 hwy/25 combined (mpg-lmp)*	19 city/26 hwy/22 combined mpg-lmp	24 city/30 hwy/27 combined mpg-lmp	20 city/27 hwy/23 combined mpg-lmp	20 city/25 hwy/23 combined mpg-lmp	18 city/22 hwy/20 combined mpg-lmp
Fuel Consumption - 4x4 with LT Tire	20 city/26 hwy/23 combined (mpg-lmp)*	22 city/28 hwy/24 combined (mpg-lmp)*	18 city/24 hwy/21 combined mpg-lmp	24 city/30 hwy/27 combined mpg-lmp	19 city/26 hwy/22 combined mpg-lmp	-	-
Fuel Consumption - 4x4 XL XLT	-	-	-	25 city/34 hwy/29 combined mpg-lmp	-	-	-
Fuel Consumption - 4x4 Payload Package	-	22 city/28 hwy/24 combined (mpg-lmp)*	17 city/23 hwy/19 combined mpg-lmp	-	19 city/25 hwy/22 combined mpg-lmp	-	-

Vehicle Capacity Highlights

Switch to Imperial Units Switch to Metric Units

Vehicle Capacity Highlights
Available Cab Types	Regular Cab	SuperCab	SuperCrew^®
Max Seating Capacity	3	6	6
Wheelbase - 5.5' Box	-	3,408 mm. (Raptor only)	3,683 mm. 3,708 mm. (Raptor only)
Wheelbase - 6.5' Box	3,109 mm.	3,683 mm.	3,983 mm.
Wheelbase - 8' Box	3,584 mm.	4,158 mm.	-
Maximum Conventional Towing (When properly configured)	5,987 kg.
Maximum Payload (When properly configured)	1,483 kg.
Min Vehicle Base Curb Weight - 4x2	1,846 kg.
Min Vehicle Base Curb Weight - 4x4	1,964 kg.

Trim Highlights
Available Trims	XL	XLT	LARIAT	King Ranch^®	Platinum	Limited	Raptor
Transmission - 6-Speed SelectShift^® Automatic	Standard	Standard	-	-	-	-	-
Transmission - 10-Speed SelectShift^® Automatic	Available	Available	Standard	Standard	Standard	Standard	Standard
4x2	Standard	Standard	Standard	-	-	-	-
4x4	Available	Available	Available	Standard	Standard	Standard	Standard

Vehicle Capacity Highlights
Available Cab Types	Regular Cab	SuperCab	SuperCrew^®
Max Seating Capacity	3	6	6
Wheelbase - 5.5' Box	-	134.2 in. (Raptor only)	145 in. 146 in. (Raptor only)
Wheelbase - 6.5' Box	122.4 in.	145 in.	156.8 in.
Wheelbase - 8' Box	141.1 in.	163.7 in.	-
Maximum Conventional Towing (When properly configured)	13,200 lbs.
Maximum Payload (When properly configured)	3,270 lbs.
Min Vehicle Base Curb Weight - 4x2	4,069 lbs.
Min Vehicle Base Curb Weight - 4x4	4,330 lbs.

Trim Highlights
Available Trims	XL	XLT	LARIAT	King Ranch^®	Platinum	Limited	Raptor
Transmission - 6-Speed SelectShift^® Automatic	Standard	Standard	-	-	-	-	-
Transmission - 10-Speed SelectShift^® Automatic	Available	Available	Standard	Standard	Standard	Standard	Standard
4x2	Standard	Standard	Standard	-	-	-	-
4x4	Available	Available	Available	Standard	Standard	Standard	Standard

Warranties

Switch to Imperial Units Switch to Metric Units

	Time	Distance
Warranty - Basic Coverage	3 years	60,000 km
Warranty - Powertrain	5 years	100,000 km
Warranty - Safety Restraint System	5 years	100,000 km
Warranty - Aluminum Body Panels	5 years	Unlimited km
Warranty - Corrosion - Sheet Metal (Perforation Only Excluding Aluminum)	5 years	Unlimited km
Warranty - Roadside Assistance Program	5 years	100,000 km

	Time	Distance
Warranty - Basic Coverage	3 years	36,000 miles
Warranty - Powertrain	5 years	60,000 miles
Warranty - Safety Restraint System	5 years	60,000 miles
Warranty - Aluminum Body Panels	5 years	Unlimited miles
Warranty - Corrosion - Sheet Metal (Perforation Only Excluding Aluminum)	5 years	Unlimited miles
Warranty - Roadside Assistance Program	5 years	60,000 miles

Fuel Tanks

Switch to Imperial Units Switch to Metric Units

Regular Cab
Box Size, Drive Type	87L	98L	136L
6.5', 4x2	S	-	-
6.5', 4x4	S	-	-
8', 4x2	S	-	-
8', 4x4	O	-	S

SuperCab
6.5', 4x2	S	-	-
6.5', 4x4	S*/O	-	S
8', 4x2	S	-	-
8', 4x4	-	-	S
Raptor	-	S	-

SuperCrew
5.5', 4x2	-	S	-
5.5', 4x4	-	S/O*	S
6.5', 4x2	-	S	-
6.5', 4x4	-	S/O*	S
Raptor	-	-	S
3.0L Power Stroke only *N/A with King Ranch, Platinum or Limited

Regular Cab
Box Size, Drive Type	87L	98L	136L
6.5', 4x2	S	-	-
6.5', 4x4	S	-	-
8', 4x2	S	-	-
8', 4x4	O	-	S

SuperCab
6.5', 4x2	S	-	-
6.5', 4x4	S*/O	-	S
8', 4x2	S	-	-
8', 4x4	-	-	S
Raptor	-	S	-

SuperCrew
5.5', 4x2	-	S	-
5.5', 4x4	-	S/O*	S
6.5', 4x2	-	S	-
6.5', 4x4	-	S/O*	S
Raptor	-	-	S
3.0L Power Stroke only *N/A with King Ranch, Platinum or Limited

Get the 2018 Towing Guide

Download

Build & Price

Search Inventory

Locate a Dealer

2019 Ford® F-150 Lariat Truck | Model Highlights | Ford.ca

2019 F-150 LARIAT

1

Est. City/HwyL/100km

Standard

Seating for

Key Features

SYNC® 3

Electronic 10-speed Transmission with Tow/Haul, Snow/Wet, EcoSelect and Sport Modes

Ambient Lighting (Ice Blue® )

Power and Handling

Handling

Standard

Optional

Power

Standard

Optional

Wheels & Tires

Standard

Optional

Interior Features

Climate

Standard

Comfort and Convenience

Standard

Optional

Entertainment Systems

Standard

Optional

Seating

Standard

Optional

Exterior Features

Appearance

Standard

Optional

Windows & Glass

Standard

Optional

Safety

Safety

Standard

Security

Standard

Packages

Packages

Standard

Optional

Specifications

Exterior

Exterior Dimensions - Cargo Box

Interior

Capacities

Base Curb Weight

Engine

Chassis

Towing

Payload

Highlights

Vehicle Capacity Highlights

Warranties

Fuel Tanks

Get the 2018 Towing Guide

¹

SYNC^® 3

Ambient Lighting (Ice Blue^® )
