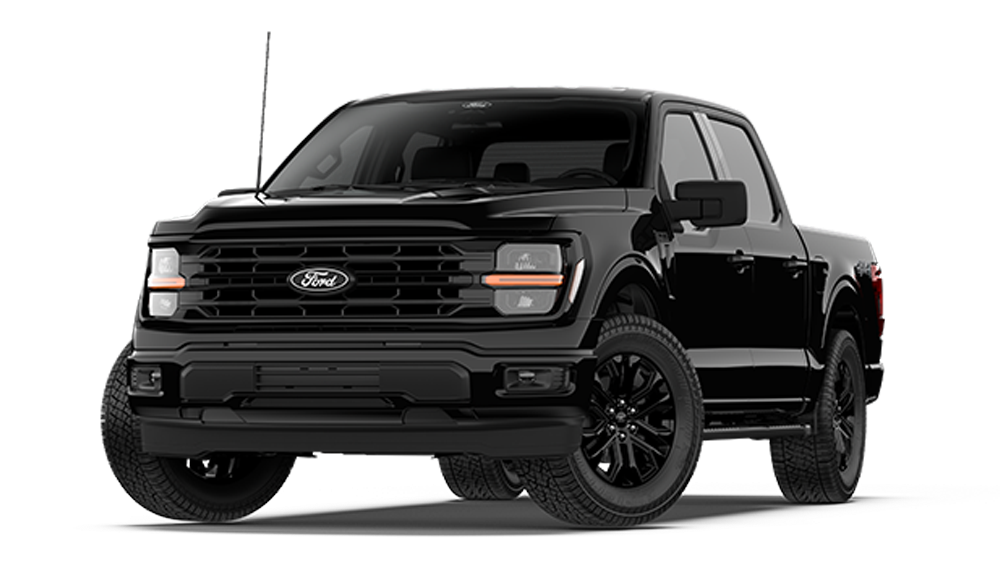

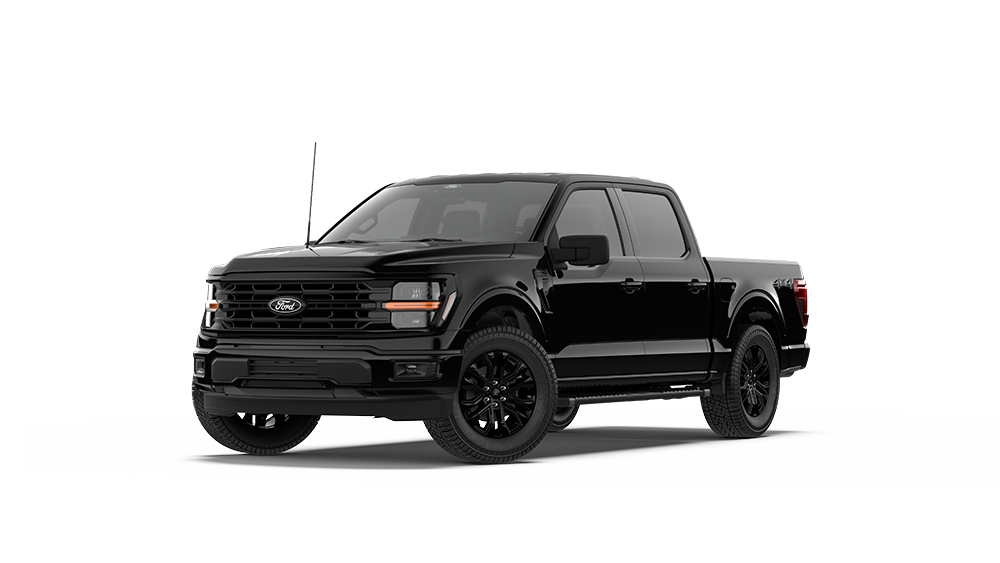

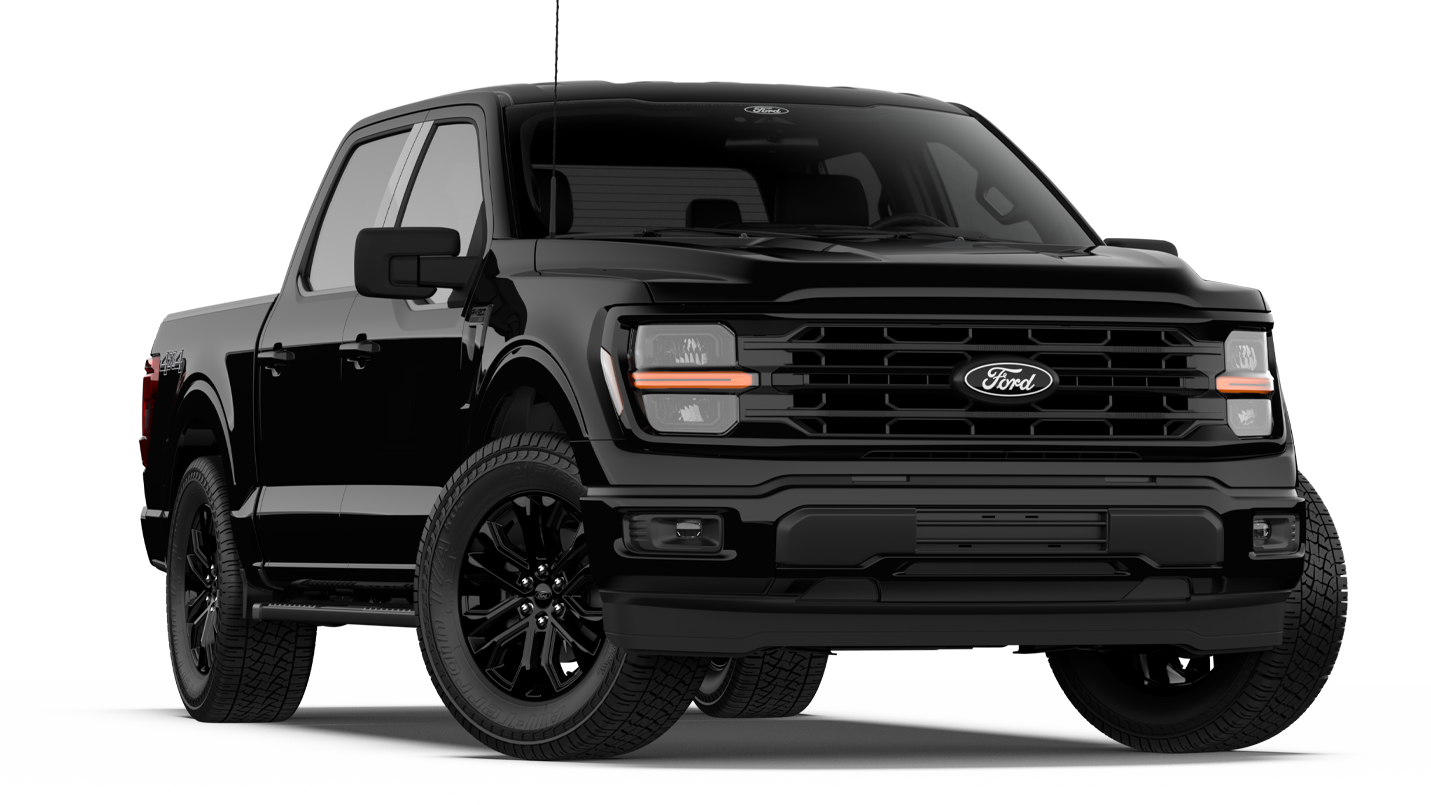

2025 F-150^® XLT

View Local Inventory

Build & Price

View Local Inventory

Build & Price

2025 Ford F-150® XLT Payment Estimator details
View all offers

¹

View all offers
Estimated EPA-Est. Range
Seating for

6

Seating for

Key Features

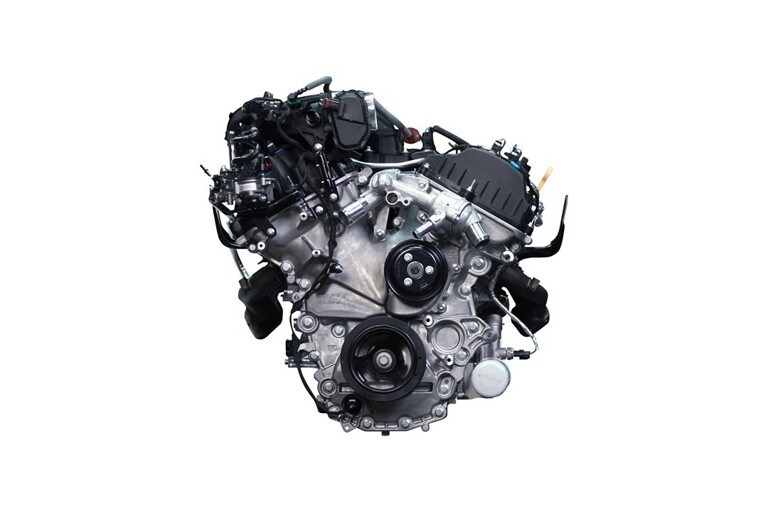

View of the 3.5L PowerBoost® Full Hybrid V6 engine

Available 3.5L PowerBoost^® Full Hybrid V6 Engine with Pro Power Onboard

Delivering the benefits of both gas and electric power, the 3.5L PowerBoost V6 cranks out an impressive 430 horsepower and 570 lb.-ft. of torque. * Plus, the 3.5L PowerBoost hybrid engine can deliver 7.2kW, the highest available power output from the Pro Power Onboard.

*See Owner’s Manual for important operating instructions.

Overhead view of a 2025 Ford F-150® pickup in Atlas Blue backing up a large camper

Available Pro Trailer Backup Assist^™ and Pro Trailer Hitch Assist^™

With a press of a button and twist of a knob these available features aid in lining up and backing up when hitching to a large trailer.¹⁰

A man sitting inside a 2025 Ford F-150® pickup while using the BlueCruise hands-free highway driving feature

Available Ford BlueCruise

Let go of the wheel and help reduce the stress of driving with available BlueCruise.¹⁴⁷ Experience the magic of hands-free highway driving on 97% of controlled-access highways in U.S. and Canada.

Exterior Features

Exterior

Standard

170 Degree Rear Door (SuperCab only)
Bed Storage Boxes
Hooks - Front Tow, Two (4x4 Only)
Side Mirrors - Heated
Side Mirrors - Manual Folding
Spare Tire Carrier - Rear Underframe
Fully-Boxed, High-Strength Steel Frame
Class IV Trailer Hitch

Optional

Four (4) Pickup Box Tie-down Plates
Bedliner - Drop-In
Running Boards - Black Platform
Side Mirrors - Auto-Dimming Feature (Driver's Side)
Side Mirrors - Integrated Turn Signal
Side Mirrors, Trailer Tow - Manual Telescoping
Side Mirrors, Trailer Tow - Power Adjust
Bedliner - Spray-In
Step Bars, Angular - Stone Grey
Step Bars - Unique TREMOR^® Style
Stowable Loading Ramps
Tailgate LED
Tonneau Pickup Box Cover - Hard Folding
Tonneau Pickup Box Cover - Soft Folding
Tonneau Pickup Box Cover - Retractable
400W Outlet
Pro Power Onboard- 2.4kW
Pro Power Onboard - 7.2kW

Comfort and Convenience

Standard

Headlamps with Rainlamp Wiper Activated Headlamps
Easy Fuel^® Capless Fuel Filler
Hooks - Cargo Box Tie-Down (4)
Automatic High-Beam Headlamps
Auto Hold

Optional

LED Mirror-Mounted Spotlights
Tailgate Step with Tailgate Work Surface
Tailgate, Power Lock
Remote Tailgate Release

Appearance

Standard

Bumper, Front - Chrome
Bumper, Rear - Chrome
Cargo Lamp, Integrated with Centre High-Mounted Stop Lamp (CHMSL)
Daytime Running Lamps
Fog Lamps - LED with LED Cornering Lamps
Grille - Black Painted Coast to Coast with Black Mesh and Chrome Centre Bar
Handles, Door and Tailgate - Black with Black Tailgate Bezel
Headlamps - LED Reflector
Taillamps - Halogen
Side Mirrors, Skull Caps - Black

Optional

Bumper, Front - Body-Colour
Bumper, Rear - Body-Colour
Grille - Black Coast to Coast
Grille - Chrome Two-Bar Style with Chrome Surround and Black Accents
Grille - Dark Two-Bar Style with Dark Surround and Black Accents
Handles, Door and Tailgate - Body-Colour with Body-Colour Tailgate Bezel
Handles, Door and Tailgate - Chrome with Body-Colour Tailgate Bezel
Taillamps - LED
Side Mirrors, Skull Caps - Body-Colour
Side Mirrors, Skull Caps - Chrome
Two-Tone Paint Treatment
Unique FORD Tailgate Applique

Protection

Optional

Skid Plates - Heavy Duty, Front and Engine

Wheels & Tires

Standard

18" Chrome-Like PVD Wheels (4x4)
17" Silver-Painted Aluminum Wheels (4x2)
245/70 R17 BSW All-Season Tires (4x2 Only)
275/60 R20 BSW All-Terrain Tires (4x4 Only)
Jack
37x12.5R17 BFGoodrich^® All-Terrain T/A KO2 Tires

Optional

Wheel Well Liners
17-Inch Silver-Painted Aluminum Wheels
20-Inch 6-Spoke Machined Aluminum Wheels with Magnetic-Painted Pockets
18" Black Painted Aluminum
18-Inch Machined Aluminum Wheels with Magnetic-Painted Pockets and King Ranch Wheel Ornaments
20" Chrome-Like PVD Wheels
18" Gloss Black Painted Aluminum
275/65 R18 OWL All-Season/All-Terrain Tires (4x4 Only)
265/70 R17 OWL All-Terrain Tires (4x4 Only)
275/60 R20 BSW All-Season Tires (4x2 Only)
275/60 R20 OWL All-Terrain Tires (4x4 Only)
Heavy-Duty Jack
LT265/70R 18C BSW All-Terrain Tires (Requires FX4 Off-Road Package)
LT315/70 R17 BFGoodrich^® All-Terrain T/A KO2 Tires

Windows & Glass

Standard

Window - Rear - Fixed Glass with Privacy Tint and Defroster
Windows - First-Row - Power (Regular Cab, SuperCab, and SuperCrew^®)
Windows - First-row - Power, One-Touch Up/Down Driver and Passenger
Windows - Second-Row - Power (SuperCrew^®)

Optional

Twin-Panel Moonroof (SuperCrew^®)
Windows - Second-Row - Fixed (SuperCab)

Interior Features

Comfort and Convenience

Standard

Manual Air Conditioning, Single Zone
12" Digital Productivity Screen
Pre-Collision Assist with Automatic Emergency Braking
Post-Collision Braking
Cruise Control
Delayed Accessory Power
Dome Light
Fade-To-Off Interior Lighting
Fully Flat Load Floor (SuperCrew^® Models)
Gauges and Meters – Fuel, Oil Pressure, Transmission Temperature and Engine Coolant Temperature; Speedometer, Odometer and Tachometer
Grab handles (A-Pillar) - Front, Driver- and Passenger-Side
Grab handles (B-Pillar) - Rear, Driver- and Passenger-Side (SuperCrew^® Only)
Horn, Dual-Note
Lane-Keeping System
Outside Temperature Display
Power Door Locks with Flip Key and Integrated Key Transmitter Keyless Entry Including Auto-Lock
Powerpoint, 12V
Rear Parking Sensors
Forward Collision Warning
Visors with Driver- and Passenger-Side Covered Mirrors

Optional

360-Degree Camera
Adaptive Cruise Control
Partitioned Lockable, Fold-Flat Storage
Intelligent Access with Push-Button Start
Console Work Surface
Power-Adjustable Pedals
Pro Trailer Hitch Assist^™
Pro Trailer Backup Assist^™
Rearview Mirror, Auto-Dimming
Wireless Charging Pad

Protection

Optional

Floor Liner - Tray Style

Appearance

Standard

Colour-Coordinated Carpet with Carpeted Floor Mats
Flow-Through Centre Console with Column Shifter
Steering Wheel - Black Urethane

Optional

Flow-Through Centre Console with Stowable Floor Shifter
Steering Wheel - ActiveX-Wrapped

Entertainment Systems

Standard

AM/FM Stereo
SiriusXM^® with 360L
SYNC^® 4 with Enhanced Voice Recognition
12" Capacitive Touchscreen
FordPass^® Connect 5G LTE Wi-Fi Hotspot

Optional

B&O^® Sound System By Bang & Olufsen^®
Connected Navigation (1-year trial)

Seating

Standard

Seats - Front - 40/20/40, Cloth

Optional

Seats - Front - Bucket Seats with Centre Flow-Through Console, Unique Multicontour Leather Seating Surfaces
Seats - Front - RECARO^® Unique Leather and Alcantara Suede Trim with Rhapsody Blue Accents
Seats - Front - Unique TREMOR^® Leather-Trimmed Bucket Seats
Seats - Front, 8-Way Power Driver
Seats - Front, Heated
Seats - Front, Manual Driver and Passenger Lumbar
Seats - Front, Manual Driver Lumber and Manual Passenger Lumbar
Seats - Front - 40/20/40, Vinyl

Packages

Power and Handling

Handling

Standard

4x2
Axle, Front - Independent Front Suspension
Hill Start Assist
Springs - Front, Coil
Springs - Rear, Leaf, Two-Stage Variable Rate
Steering - Power Rack-and-Pinion Steering
Trailer Sway Control
Selectable Drive Modes - Normal, ECO, Sport, Tow/Haul, Slippery, Trail (4x2)

Optional

4x4
Axle Upgrade
Electronic-Locking Rear Differential
Electronic-Shift-On-the-Fly (ESOF) with Neutral Towing Capability (4x4 Only)
Hill Descent Control^™
Integrated Trailer Brake Controller
Selectable Drive Modes - Normal, ECO, Sport, Tow/Haul, Slippery, Deep Snow/Sand, Mud/Rut (4x4 only)

Power

Standard

2.7L EcoBoost^® V6
Auto Start-Stop Technology
Electronic 10-Speed Automatic Transmission
SelectShift^® Automatic Transmission with Progressive Range Select
Active Valve Exhaust System
Fuel Tank - 136 Litres (Supercab, SuperCrew^®)
Exhaust - Single Rear

Optional

3.5L EcoBoost^® V6
5.0L Ti-VCT V8
3.5L PowerBoost^® Full Hybrid V6
Hybrid Electronic 10-Speed Automatic Transmission
Fuel Tank - 30.6-Gallon (PowerBoost^® engine only)

Safety

Comfort and Convenience

Standard

Rear View Camera

Optional

Intersection Assist 2.0
BlueCruise 1.2
BlueCruise Equipped (90-Day Trial)

Safety

Standard

AdvanceTrac^™ With Roll Stability Control^™ (RSC^®)
Airbags - Front, Driver and Passenger
Airbags - Safety Canopy^® Side Curtains
BLIS^® with Cross-Traffic Alert and Trailer Tow Coverage
Curve Control
Four-Wheel Anti-Lock Brakes
Safety Belts - Active Restraint System (ARS), Three-Point Manual Lap/Shoulder Belts with Height Adjusters, Pretensioners and Energy Management Retractors on Outside Front Positions
Tire Pressure Monitoring System (TPMS)

Security

Standard

Perimeter Anti-Theft Alarm
SecuriLock^® Passive Anti-Theft System
SOS Post-Crash Alert System^™

Optional

Remote Start System

Accessories

Specifications

Highlights

Engine Highlights
Available Engines	2.7L EcoBoost^®	5.0L Ti-VCT V8	3.5L EcoBoost^®	3.5L EcoBoost^® TREMOR^®	3.5L PowerBoost^® Full Hybrid V6	High-Output 3.5L EcoBoost^® V6 Raptor	High-Output 3.5L EcoBoost^® V6 Raptor w/ 37-inch tire package	High-Output Supercharged 5.2L V8
Horsepower	325 @ 5,000 rpm	400 @ 6,000 rpm	400 @ 6,000 rpm	400 @ 6,000 rpm	430 @ 6,000 rpm	450 @ 5,850 rpm	450 @ 5,850 rpm	720 @ 6,650 rpm
Torque (lb.-ft.)	400 @ 3,000 rpm	410 @ 4,250 rpm	500 @ 3,100 rpm	500 @ 3,100 rpm	570 @ 3,000 rpm	510 @ 3,000 rpm	510 @ 3,000 rpm	640 @ 4,250 rpm
Auto Start/Stop Technology	Standard	Standard	Standard	Standard	-	Standard	Standard	N/A
Fuel Consumption - 4x2 w/Start/Stop	12 city/ 9.2 hwy/ 10.7 combined (L/100 km)*	14.1 city/ 10.2 hwy/ 12.4 combined (L/100 km)*	13.4 city/ 10.2 hwy/ 12 combined (L/100 km)*	N/A	10.1 city/ 10.1 hwy/ 10.1 combined (L/100 km)*	N/A	N/A	N/A
Fuel Consumption - 4x4 w/Start/Stop	12.8 city/ 10 hwy/ 11.5 combined (L/100 km)*	14.2 city/ 12.9 hwy/ 10.7 combined (L/100 km)*	13.6 city/ 10.3 hwy/ 12.1 combined (L/100 km)*	10.5 city/ 10.4 hwy/ 10.4 combined (L/100 km)*	10.5 city/ 10.4 hwy/ 10.4 combined (L/100 km)*	15.8 city/ 13.2 hwy/ 14.6 combined (L/100 km)*	16 city/ 14.4 hwy/ 15.3 combined (L/100 km)*	N/A
Fuel Consumption - 4x2 W/O Start/Stop	13 city/ 9.6 hwy/ 11.5 combined (L/100 km)*	14.6 city/ 10.4 hwy/ 12.7 combined (L/100 km)*	N/A	N/A	N/A	N/A	N/A	N/A
Fuel Consumption - 4x4 W/O Start/Stop	13.5 city/ 10.2 hwy/ 12 combined (L/100 km)*	15 city/ 10.9 hwy/ 13.2 combined (L/100 km)*	14.6 city/ 11 hwy/ 13 combined (L/100 km)*	14.6 city/ 11.6 hwy/ 13.3 combined (L/100 km)*	N/A	16.8 city/ 13.2 hwy/ 15.2 combined (L/100 km)*	16.6 city/ 14.8 hwy/ 15.8 combined (L/100 km)*	22.8 city/ 15.9 hwy/ 19.7 combined (L/100 km)*
Vehicle Capacity Highlights
Available Cab Types	Regular Cab	SuperCab	SuperCrew^®
Max Seating Capacity	3	6	6
Minimum Seating Capacity	3	5	5
Wheelbase - 5.5' Box	-	-	3,694 mm.
Wheelbase - 6.5' Box	3,210 mm.	3,694 mm.	3,994 mm.
Wheelbase - 8' Box	3,594 mm.	4,168 mm.	-
Maximum Conventional Towing (When properly configured)	3,856 kg.	4,717 kg.	6,123 kg.
Maximum Payload (When properly configured)	1,109 kg.	998 kg.	989 kg.
Min Vehicle Base Curb Weight - 4x2	1,914 kg.	2,105 kg.	2,126 kg.
Min Vehicle Base Curb Weight - 4x4	2,037 kg.	2,220 kg.	2,241 kg.
Trim Highlights
Available Trims	XL	STX	XLT	TREMOR^®	LARIAT	King Ranch^®	Platinum	Limited	Raptor
Transmission - 10-Speed SelectShift^® Automatic	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard
4x2	Standard	Standard	Standard	-	Standard	-	-	-	-
4x4	Available	Available	Available	Standard	Available	Standard	Standard	Standard	Standard

Engine Highlights
Available Engines	2.7L EcoBoost^®	5.0L Ti-VCT V8	3.5L EcoBoost^®	3.5L EcoBoost^® TREMOR^®	3.5L PowerBoost^® Full Hybrid V6	High-Output 3.5L EcoBoost^® V6 Raptor^®	High-Output 3.5L EcoBoost^® V6 Raptor^® w/ 37-inch tire package	High-Output Supercharged 5.2L V8
Horsepower	325 @ 5,000 rpm	400 @ 6,000 rpm	400 @ 6,000 rpm	400 @ 6,000 rpm	430 @ 6,000 rpm	450 @ 5,850 rpm	450 @ 5,850 rpm	720 @ 6,650 rpm
Torque (lb.-ft.)	400 @ 3,000 rpm	410 @ 4,250 rpm	500 @ 3,100 rpm	500 @ 3,100 rpm	570 @ 3,000 rpm	510 @ 3,000 rpm	510 @ 3,000 rpm	640 @ 4,250 rpm
Auto Start/Stop Technology	Standard	Standard	Standard	Standard	-	Standard	Standard	N/A
Fuel Consumption - 4x2 w/Start/Stop	20 city/ 26 hwy/ 22 combined (mpg-lmp)*	17 city/ 25 hwy/ 20 combined (mpg-lmp)*	18 city/ 24 hwy/ 21 combined (mpg-lmp)*	N/A	25 city/ 25 hwy/ 25 combined (mpg-lmp)*	N/A	N/A	N/A
Fuel Consumption - 4x4 w/Start/Stop	18 city/ 24 hwy/ 20 combined (mpg-lmp)*	17 city/ 22 hwy/ 19 combined (mpg-lmp)*	18 city/ 23 hwy/ 20 combined (mpg-lmp)*	16 city/ 20 hwy/ 18 combined (mpg-lmp)*	23 city/ 23 hwy/ 23 combined (mpg-lmp)*	15 city/ 18 hwy/ 16 combined (mpg-lmp)*	15 city/ 16 hwy/ 15 combined (mpg-lmp)*	N/A
Fuel Consumption - 4x2 W/O Start/Stop	18 city/ 25 hwy/ 21 combined (mpg-lmp)*	17 city/ 24 hwy/ 19 combined (mpg-lmp)*	N/A	N/A	N/A	N/A	N/A	N/A
Fuel Consumption - 4x4 W/O Start/Stop	17 city/ 23 hwy/ 20 combined (mpg-lmp)*	16 city/ 22 hwy/ 18 combined (mpg-lmp)*	17 city/ 23 hwy/ 19 combined (mpg-lmp)*	16 city/ 20 hwy/ 18 combined (mpg-lmp)*	N/A	14 city/ 18 hwy/ 15 combined (mpg-lmp)*	14 city/ 16 hwy/ 15 combined (mpg-lmp)*	10 city/ 15 hwy/ 12 combined (mpg-lmp)*
Vehicle Capacity Highlights
Available Cab Types	Regular Cab	SuperCab	SuperCrew^®
Max Seating Capacity	3	6	6
Minimum Seating Capacity	3	5	5
Wheelbase - 5.5' Box	-	-	145.1 in.
Wheelbase - 6.5' Box	122.8 in.	145.4 in.	157.2 in.
Wheelbase - 8' Box	141.5 in.	164.1 in.	-
Maximum Conventional Towing (When properly configured)	8,500 lbs.	10,400 lbs.	13,500 lbs.
Maximum Payload (When properly configured)	2,445 lbs.	2,200 lbs.	2,180 lbs.
Min Vehicle Base Curb Weight - 4x2	4,220 lbs.	4,641 lbs.	4,687 lbs.
Min Vehicle Base Curb Weight - 4x4	4,490 lbs.	4,895 lbs.	4,941 lbs.
Trim Highlights
Available Trims	XL	STX	XLT	TREMOR^®	LARIAT	King Ranch^®	Platinum	Limited	Raptor^®
Transmission - 10-Speed SelectShift^® Automatic	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard
4x2	Standard	Standard	Standard	-	Standard	-	-	-	-
4x4	Available	Available	Available	Standard	Available	Standard	Standard	Standard	Standard

Warranties

	Time	Distance
Warranty - Basic Coverage	3 years	60,000 km
Warranty - Powertrain	5 years	100,000 km
Warranty - Safety Restraint System	5 years	100,000 km
Warranty - Aluminum Body Panels	5 years	Unlimited km
Warranty - Corrosion - Sheet Metal (Perforation Only Excluding Aluminum)	5 years	Unlimited km
Warranty - Roadside Assistance Program	5 years	100,000 km
Warranty - Diesel Engine	5 years	160,000 km

	Time	Distance
Warranty - Basic Coverage	3 years	36,000 miles
Warranty - Powertrain	5 years	60,000 miles
Warranty - Safety Restraint System	5 years	60,000 miles
Warranty - Aluminum Body Panels	5 years	Unlimited miles
Warranty - Corrosion - Sheet Metal (Perforation Only Excluding Aluminum)	5 years	Unlimited miles
Warranty - Roadside Assistance Program	5 years	60,000 miles
Warranty - Diesel Engine	5 years	100,000 miles

Exterior Dimensions - Cab

Cab style	Regular Cab
Pickup box style	6.5-ft. Styleside (mm.)	6.5-ft. Styleside (mm.)	8.0-ft. Styleside (mm.)	8.0-ft. Styleside (mm.)
Drive system	4x2	4x4	4x2	4x4
Wheelbase	3,119.1	3,119.1	3,594.1	3,594.1
Overall length	5,318.8	5,318.8	5,793.7	5,793.7
Cab height	1,915.2	1,953.3	1,905.0	1,948.2
Width - Excluding mirrors	2,029.5	2,029.5	2,029.5	2,029.5
Width - Including standard mirrors	2,430.8	2,430.8	2,430.8	2,430.8
Width - Standard Mirrors folded	2,123.4	2,123.4	2,123.4	2,123.4
Track width - Front	1,724.7	1,724.7	1,724.7	1,724.7
Track width - Rear	1,734.8	1,734.8	1,734.8	1,734.8
Overhang - Front	950.0	950.0	950.0	881.4
Overhang - Rear	1,249.7	1,249.7	1,249.7	1,249.7
Angle of approach	20.7 degrees	23.9 degrees	21.0 degrees	24.6 degrees
Angle of departure	23.9 degrees	26.2 degrees	23.9 degrees	26.1 degrees
Ramp breakover angle	20.1 degrees	23.5 degrees	18.3 degrees	21.0 degrees
Ground clearance	208.3	248.9	208.3	248.9
Front bumper to back of cab	3,078.5	3,078.5	3,078.5	3,078.5
Open tailgate to ground	861.1	906.8	861.1	904.2
Cab style	SuperCab
Pickup box style	6.5-ft. Styleside (mm.)	6.5-ft. Styleside (mm.)
Drive system	4x2	4x4
Wheelbase	3,693.2	3,693.2
Overall length	5,892.8	5,892.8
Cab height	1,912.6	1,958.3
Width - Excluding mirrors	2,029.5	2,029.5
Width - Including standard mirrors	2,430.8	2,430.8
Width - Standard Mirrors folded	2,123.4	2,123.4
Track width - Front	1,724.7	1,724.7
Track width - Rear	1,734.8	1,734.8
Overhang - Front	950.0	950.0
Overhang - Rear	1,249.7	1,249.7
Angle of approach	21.5 degrees	24.6 degrees
Angle of departure	23.2 degrees	25.4 degrees
Ramp breakover angle	17.6 degrees	20.2 degrees
Ground clearance	208.3	248.9
Front bumper to back of cab	3,652.5	3,652.5
Open tailgate to ground	840.7	889.0
Cab style	SuperCrew^®
Pickup box style	5.5-ft. Styleside (mm.)	5.5-ft. Styleside (mm.)	6.5-ft. Styleside (mm.)	6.5-ft. Styleside (mm.)	8.0-ft. Styleside	8.0-ft. Styleside	5.5-ft. Styleside Tremor	5.5-ft. Styleside Raptor	5.5-ft. Styleside Raptor R/ Raptor w/37 Tire package
Drive system	4x2	4x4	4x2	4x4	4x2	4x4	4x4	4x4	4x4
Wheelbase	3,693.2	3,693.2	3,992.9	3,992.9	-	-	3,698 mm.	3,694 mm.	3,694 mm.
Overall length	5,892.8	5,892.8	6,192.5	6,195.1	-	-	5,884 mm.	5,908 mm.	5,908 mm.
Cab height	1,915.2	1,958.3	1,968.5	1,968.5	-	-	2,015 mm.	2,026 mm.	2,047 mm.
Width - Excluding mirrors	2,029.5	2,029.5	2,029.5	2,029.5	-	-	2,030 mm.	2,200 mm.	2,200 mm.
Width - Including standard mirrors	2,430.8	2,430.8	2,430.8	2,430.8	-	-	2,430 mm.	2,438 mm.	2,438 mm.
Width - Standard Mirrors folded	2,123.4	2,123.4	2,123.4	2,123.4	-	-	2,129 mm.	2,200 mm.	2,200 mm.
Track width - Front	1,724.7	1,724.7	1,724.7	1,724.7	-	-	1,739 mm.	1,880 mm.	1,880 mm.
Track width - Rear	1,734.8	1,734.8	1,734.8	1,734.8	-	-	1,756 mm.	1,870 mm.	1,870 mm.
Overhang - Front	950.0	950.0	950.0	950.0	-	-	955 mm.	940 mm.	940 mm.
Overhang - Rear	1,249.7	1,249.7	1,249.7	1,249.7	-	-	1,231 mm.	1,274 mm.	1,274 mm.
Angle of approach	23.3 degrees	24.3 degrees	24.8 degrees	24.8 degrees	-	-	27.6 degrees	31.0 degrees	33.1 degrees
Angle of departure	24.3 degrees	25.3 degrees	27.7 degrees	27.7 degrees	-	-	24.3 degrees	23.9 degrees	24.9 degrees
Ramp breakover angle	17.1 degrees	20.0 degrees	18.8 degrees	18.8 degrees	-	-	21.2 degrees	22.7 degrees	24.4 degrees
Minimum running ground clearance	208.3	238.8	246.4	246.4	-	-	240 mm.	306 mm.	333 mm.
Front bumper to back of cab	3,952.2	3,952.2	3,952.2	3,952.2	-	-	3,957 mm.	3,957 mm.	3,957 mm.
Open tailgate to ground	835.7	886.5	858.5	909.3	-	-	949 mm.	941 mm.	960 mm.

Cab style	Regular Cab
Pickup box style	6.5-ft. Styleside (in.)	6.5-ft. Styleside (in.)	8.0-ft. Styleside (in.)	8.0-ft. Styleside (in.)
Drive system	4x2	4x4	4x2	4x4
Wheelbase	122.8	122.8	141.5	141.5
Overall length	209.4	209.4	228.1	228.1
Cab height	75.4	76.9	75.0	76.7
Width - Excluding mirrors	79.9	79.9	79.9	79.9
Width - Including standard mirrors	95.7	95.7	95.7	95.7
Width - Standard Mirrors folded	83.6	83.6	83.6	83.6
Track width - Front	67.9	67.9	67.9	67.9
Track width - Rear	68.3	68.3	68.3	68.3
Overhang - Front	37.4	37.4	37.4	34.7
Overhang - Rear	49.2	49.2	49.2	49.2
Angle of approach	20.7 degrees	23.7 degrees	21.0 degrees	23.9 degrees
Angle of departure	23.9 degrees	26.0 degrees	23.9 degrees	26.1 degrees
Ramp breakover angle	20.1 degrees	23.3 degrees	18.3 degrees	20.7 degrees
Ground clearance	8.2	9.8	8.2	9.8
Front bumper to back of cab	121.2	121.2	121.2	121.2
Open tailgate to ground	33.9	35.7	33.9	35.6
Cab style	SuperCab
Pickup box style	6.5-ft. Styleside (in.)	6.5-ft. Styleside (in.)
Drive system	4x2	4x4
Wheelbase	145.4	145.4
Overall length	232.0	232.0
Cab height	75.3	77.1
Width - Excluding mirrors	79.9	79.9
Width - Including standard mirrors	95.7	95.7
Width - Standard Mirrors folded	83.6	83.6
Track width - Front	67.9	67.9
Track width - Rear	68.3	68.3
Overhang - Front	37.4	37.4
Overhang - Rear	49.2	49.2
Angle of approach	22.5 degrees	25.2 degrees
Angle of departure	24.4 degrees	26.9 degrees
Ramp breakover angle	17.3 degrees	20.2 degrees
Ground clearance	8.2	9.8
Front bumper to back of cab	143.8	143.8
Open tailgate to ground	33.1	35.0
Cab style	SuperCrew^®
Pickup box style	5.5-ft. Styleside (in.)	5.5-ft. Styleside (in.)	6.5-ft. Styleside (in.)	6.5-ft. Styleside (in.)	8.0-ft. Styleside	8.0-ft. Styleside	5.5-ft. Styleside Tremor	5.5-ft. Styleside Raptor	5.5-ft. Styleside Raptor R/ Raptor w/37 Tire package
Drive system	4x2	4x4	4x2	4x4	4x2	4x4	4x4	4x4	4x4
Wheelbase	145.4	145.4	157.2	157.2	-	-	145.6 in.	145.4 in.	145.4 in.
Overall length	232.0	232.0	243.8	243.9	-	-	231.7 in.	232.6 in.	232.6 in.
Cab height	75.4	77.1	77.5	77.5	-	-	79.3 in.	79.8 in.	80.6 in.
Width - Excluding mirrors	79.9	79.9	79.9	79.9	-	-	79.9 in.	86.6 in.	86.6 in.
Width - Including standard mirrors	95.7	95.7	95.7	95.7	-	-	95.7 in.	96.0 in.	96.0 in.
Width - Standard Mirrors folded	83.6	83.6	83.6	83.6	-	-	83.8 in.	86.6 in.	86.6 in.
Track width - Front	67.9	67.9	67.9	67.9	-	-	68.5 in.	74.0 in.	74.0 in.
Track width - Rear	68.3	68.3	68.3	68.3	-	-	69.1 in.	73.6 in.	73.6 in.
Overhang - Front	37.4	37.4	37.4	37.4	-	-	37.6 in.	37.0 in.	37.0 in.
Overhang - Rear	49.2	49.2	49.2	49.2	-	-	48.5 in.	50.2 in.	50.2 in.
Angle of approach	23.3 degrees	24.3 degrees	24.8 degrees	24.8 degrees	-	-	27.6 degrees	31.0 degrees	33.1 degrees
Angle of departure	24.3 degrees	25.3 degrees	27.7 degrees	27.7 degrees	-	-	24.3 degrees	23.9 degrees	24.9 degrees
Ramp breakover angle	17.1 degrees	20.0 degrees	18.8 degrees	18.8 degrees	-	-	21.2 degrees	22.7 degrees	24.4 degrees
Minimum running ground clearance	8.2	9.4	9.7	9.7	-	-	9.4 in.	12.0 in.	13.1 in.
Front bumper to back of cab	155.6	155.6	155.6	155.6	-	-	155.8 in.	155.8 in.	155.8 in.
Open tailgate to ground	32.9	34.9	33.8	35.8	-	-	37.4 in.	37.0 in.	37.8 in.

Exterior Dimensions - Cargo Box

Cargo box style	5.5-ft. Styleside	6.5-ft. Styleside	8.0-ft. Styleside
Inside Length (at floor)	1,705 mm.	2,005 mm.	2,479 mm.
Width between wheelhouses	1,287 mm.	1,287 mm.	1,287 mm.
Inside Height	543 mm.	543 mm.	543 mm.
Cargo box volume	1,494.8 L	1,764.6 L	2,191 L

Cargo box style	5.5-ft. Styleside	6.5-ft. Styleside	8.0-ft. Styleside
Inside Length (at floor)	67.1 in.	78.9 in.	97.6 in.
Width between wheelhouses	50.6 in.	50.6 in.	50.6 in.
Inside Height	21.4 in.	21.4 in.	21.4 in.
Cargo box volume	52.8 cu. ft.	62.3 cu. ft.	77.4 cu. ft.

Interior Dimensions

Cab style	Regular Cab	SuperCab	SuperCrew^®
Head room - Front	1,037 mm.	1,037 mm.	1,037 mm.
Head room - Rear	-	1,023 mm.	1,026 mm.
Shoulder room - Front	1,695 mm.	1,695 mm.	1,695 mm.
Shoulder room - Rear	-	1,679 mm.	1,677 mm.
Hip room - Front	1,588 mm.	1,588 mm.	1,588 mm.
Hip room - Rear	-	1,590 mm.	1,590 mm.
Max Leg room - Front	1,115 mm.	1,115 mm.	1,115 mm.
Leg room - Rear	-	851 mm.	1,108 mm.

Cab style	Regular Cab	SuperCab	SuperCrew^®
Head room - Front	40.8 in.	40.8 in.	40.8 in.
Head room - Rear	-	40.3 in.	40.4 in.
Shoulder room - Front	66.7 in.	66.7 in.	66.7 in.
Shoulder room - Rear	-	65.8 in.	65.9 in.
Hip room - Front	62.5 in.	62.5 in.	62.5 in.
Hip room - Rear	-	64.7 in.	64.7 in.
Max Leg room - Front	43.9 in.	43.9 in.	43.9 in.
Leg room - Rear	-	33.5 in.	43.6 in.

Base Curb Weights

Cab style	Regular Cab
Pickup box style	5.5-ft. Styleside	5.5-ft. Styleside	6.5-ft. Styleside	6.5-ft. Styleside	8.0-ft. Styleside	8.0-ft. Styleside
Drive system	4x2	4x4	4x2	4x4	4x2	4x4
2.7L EcoBoost^® V6	-	-	1,914 kg.	2,037 kg.	1,994 kg.	2,122 kg.
5.0L Ti-VCT V8	-	-	1,992 kg.	2,111 kg.	2,075 kg.	2,189 kg.
3.5L EcoBoost^® V6	-	-	-	-	2,089 kg.	2,208 kg.
Cab style	SuperCab
Pickup box style	5.5-ft. Styleside	5.5-ft. Styleside	6.5-ft. Styleside	6.5-ft. Styleside
Drive system	4x2	4x4	4x2	4x4
2.7L EcoBoost^® V6	-	-	2,105 kg.	2,220 kg.
5.0L Ti-VCT V8	-	-	2,128 kg.	2,244 kg.
3.5L EcoBoost^® V6			2,170 kg.	2,285 kg.
Cab style	SuperCrew^®
Pickup box style	5.5-ft. Styleside	5.5-ft. Styleside	6.5-ft. Styleside	6.5-ft. Styleside	8.0-ft. Styleside	8.0-ft. Styleside
Drive system	4x2	4x4	4x2	4x4	4x2	4x4
2.7L EcoBoost^® V6	2,126 kg.	2,241 kg.	2,094 kg.	-	-	-
5.0L Ti-VCT V8	2,163 kg.	2,277 kg.	2,137 kg.	2,323 kg.	-	-
3.5L EcoBoost^® V6	2,197 kg.	2,312 kg.	2,155 kg.	2,333 kg.	-	-
3.5L PowerBoost^® Full Hybrid V6	2,386 kg.	2,533 kg.	2,371 kg.	2,544 kg.	-	-
High-Output 3.5L EcoBoost^® V6 (Raptor / Raptor 37 Performance Pkg)	-	2,604 kg. / 2,670 kg.	-	-	-	-

Cab style	Regular Cab
Pickup box style	5.5-ft. Styleside	5.5-ft. Styleside	6.5-ft. Styleside	6.5-ft. Styleside	8.0-ft. Styleside	8.0-ft. Styleside
Drive system	4x2	4x4	4x2	4x4	4x2	4x4
2.7L EcoBoost^® V6	-	-	4,220 lbs.	4,490 lbs.	4,396 lbs.	4,679 lbs.
5.0L Ti-VCT V8	-	-	4,391 lbs.	4,655 lbs.	4,574 lbs.	4,826 lbs.
3.5L EcoBoost^® V6	-	-	-	-	4,606 lbs.	4,868 lbs.
Cab style	SuperCab
Pickup box style	5.5-ft. Styleside	5.5-ft. Styleside	6.5-ft. Styleside	6.5-ft. Styleside
Drive system	4x2	4x4	4x2	4x4
2.7L EcoBoost^® V6	-	-	4,641 lbs.	4,895 lbs.
5.0L Ti-VCT V8	-	-	4,692 lbs.	4,948 lbs.
3.5L EcoBoost^® V6			4,785 lbs.	5,038 lbs.
Cab style	SuperCrew^®
Pickup box style	5.5-ft. Styleside	5.5-ft. Styleside	6.5-ft. Styleside	6.5-ft. Styleside	8.0-ft. Styleside	8.0-ft. Styleside
Drive system	4x2	4x4	4x2	4x4	4x2	4x4
2.7L EcoBoost^® V6	4,687 lbs.	4,941 lbs.	4,616 lbs.	-	-	-
5.0L Ti-VCT V8	4,769 lbs.	5,020 lbs.	4,712 lbs.	5,122 lbs.	-	-
3.5L EcoBoost^® V6	4,844 lbs.	5,096 lbs.	4,752 lbs.	5,143 lbs.	-	-
3.5L PowerBoost^® Full Hybrid V6	5,260 lbs.	5,585 lbs.	5,228 lbs.	5,608 lbs.	-	-
High-Output 3.5L EcoBoost^® V6 (Raptor / Raptor 37 Performance Pkg)	-	5,740 lbs. / 5,886 lbs.	-	-	-	-

Fuel Tanks

Regular Cab
Box Size. Drive Type	87L	98L	115L	136L
6.5', 4x2	S	-	-	-
6.5', 4x4	S	-	-	-
8', 4x2	-	-	-	S
8', 4x4	-	-	-	S
SuperCab
6.5', 4x2	-	-	-	S
6.5', 4x4	-	-	-	S
8', 4x2	-	-	-	S
8', 4x4	-	-	-	S
SuperCrew
5.5', 4x2	-	S	S*	S
5.5', 4x4	-	S*/O^†	S*	S
6.5', 4x2	-	S	S*	S
6.5', 4x4	-	S*/O^†	S*	S
*3.5L PowerBoost^® Full Hybrid V6 only.
^†N/A with King Ranch, Platinum or Limited.

Regular Cab
Box Size. Drive Type	87L	98L	115L	136L
6.5', 4x2	S	-	-	-
6.5', 4x4	S	-	-	-
8', 4x2	-	-	-	S
8', 4x4	-	-	-	S
SuperCab
6.5', 4x2	-	-	-	S
6.5', 4x4	-	-	-	S
8', 4x2	-	-	-	S
8', 4x4	-	-	-	S
SuperCrew
5.5', 4x2	-	S	S*	S
5.5', 4x4	-	S*/O^†	S*	S
6.5', 4x2	-	S	S*	S
6.5', 4x4	-	S*/O^†	S*	S
*3.5L PowerBoost^® Full Hybrid V6 only.
^†N/A with King Ranch, Platinum or Limited.

Engine Specifications

Engine type	2.7L EcoBoost^®	5.0L Ti-VCT V8	3.5L EcoBoost^®	3.5L PowerBoost^® Full Hybrid V6	High-Output 3.5L EcoBoost^® V6	High-Output Supercharged 5.2L V8
Auto Start/Stop Technology	Standard	Standard	Standard	-	Standard	-
Engine Control System	Electronic	Electronic	Electronic	Electronic	Electronic	Electronic
Horsepower (SAE net @ rpm)	325 @ 5,000 rpm	400 @ 6,000 rpm	400 @ 6,000 rpm	430 @ 6,000 rpm	450 @ 5,850 rpm	720 @ 6,650 rpm
Torque (lb.-ft. @ rpm)	400 @ 3,000 rpm	410 @ 4,250 rpm	500 @ 3,100 rpm	570 @ 3,000 rpm	510 @ 3,000 rpm	640 @ 4,250 rpm
Compression ratio	10:1	12:1	10.5:1	10.5:1	10.5:1	9.5:1
Bore (in.)	3.267	3.66	3.64	3.64	3.64	3.66
Stroke (in.)	3.267	3.65	3.41	3.41	3.41	3.66
Displacement (cu. in.)	165	307	213	213	213	315
Main bearings	4	5	4	4	4	-
Valve operation	Roller Finger Follower	Roller Finger Follower	Roller Finger Follower	Roller Finger Follower	Roller Finger Follower	-
Fuel delivery	PFI + DI	PFI + DI	PFI + DI	PFI + DI	PFI + DI	-
Recommended Fuel	Regular Unleaded	Regular Unleaded or E85	Regular Unleaded	Regular Unleaded	Premium Unleaded	Premium Unleaded
Oil Capacity (qt.)	6	7.75	6	6	6	11.5
Coolant Capacity (L)	14.3	12.5	13.5	14.5 high temp loop. 6.8 low temp loop	13	12.0 (Engine) 3.1 Supercharger
Fuel Consumption - 4x2	-	-	-	-	-	-
Fuel Consumption - 4x4	-	-	-	-	Not available at time of publication	Not available at time of publication
Transmission type	Electronic 10-speed automatic	Electronic 10-speed automatic	Electronic 10-speed automatic	Electronic 10-speed automatic modular hybrid	Electronic 10-speed automatic	Electronic 10-speed automatic
Engine block material	Compacted Graphite Iron	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum
Cylinder head material	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum

Engine type	2.7L EcoBoost^®	5.0L Ti-VCT V8	3.5L EcoBoost^®	3.5L PowerBoost^® Full Hybrid V6	High-Output 3.5L EcoBoost^® V6	High-Output Supercharged 5.2L V8
Auto Start/Stop Technology	Standard	Standard	Standard	-	Standard	-
Engine Control System	Electronic	Electronic	Electronic	Electronic	Electronic	Electronic
Horsepower (SAE net @ rpm)	325 @ 5,000 rpm	400 @ 6,000 rpm	400 @ 6,000 rpm	430 @ 6,000 rpm	450 @ 5,850 rpm	720 @ 6,650 rpm
Torque (lb.-ft. @ rpm)	400 @ 3,000 rpm	410 @ 4,250 rpm	500 @ 3,100 rpm	570 @ 3,000 rpm	510 @ 3,000 rpm	640 @ 4,250 rpm
Compression ratio	10:1	12:1	10.5:1	10.5:1	10.5:1	9.5:1
Bore (in.)	3.267	3.66	3.64	3.64	3.64	3.66
Stroke (in.)	3.267	3.65	3.41	3.41	3.41	3.66
Displacement (cu. in.)	165	307	213	213	213	315
Main bearings	4	5	4	4	4	-
Valve operation	Roller Finger Follower	Roller Finger Follower	Roller Finger Follower	Roller Finger Follower	Roller Finger Follower	-
Fuel delivery	PFI + DI	PFI + DI	PFI + DI	PFI + DI	PFI + DI	-
Recommended Fuel	Regular Unleaded	Regular Unleaded or E85	Regular Unleaded	Regular Unleaded	Premium Unleaded	Premium Unleaded
Oil Capacity (qt.)	6	7.75	6	6	6	11.5
Coolant Capacity (L)	14.3	12.5	13.5	14.5 high temp loop. 6.8 low temp loop	13	12.0 (Engine) 3.1 Supercharger
Fuel Consumption - 4x2	-	-	-	-	-	-
Fuel Consumption - 4x4	-	-	-	-	Not available at time of publication	Not available at time of publication
Transmission type	Electronic 10-speed automatic	Electronic 10-speed automatic	Electronic 10-speed automatic	Electronic 10-speed automatic modular hybrid	Electronic 10-speed automatic	Electronic 10-speed automatic
Engine block material	Compacted Graphite Iron	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum
Cylinder head material	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum

Chassis Specifications

Chassis Type	F-150
Front suspension	Independent double-wishbone with coil-over shock and stamped lower control arm
Rear suspension	Leaf spring/solid axle
Front and rear shocks	Heavy-duty gas-pressurized
Brakes	Power 4-wheel anti-lock vented disc
Steering	Electric Power-Assisted

Chassis Type	F-150
Front suspension	Independent double-wishbone with coil-over shock and stamped lower control arm
Rear suspension	Leaf spring/solid axle
Front and rear shocks	Heavy-duty gas-pressurized
Brakes	Power 4-wheel anti-lock vented disc
Steering	Electric Power-Assisted

Towing

Maximum Conventional Towing Capabilities
Regular Cab
Wheelbase			3,120 mm.	3,120 mm.	3,594 mm.	3,594 mm.
Drive Type			4x2	4x4	4x2	4x4
Engine	Axle Ratio	GCWR
2.7L EcoBoost^® V6	3.15/3.55	5,579 kg.	-	-	3,357 kg.	-
2.7L EcoBoost^® V6	3.55	5,715 kg.	-	-	-	3,447 kg.
2.7L EcoBoost^® V6	3.73	6,033 kg.	-	-	3,810 kg.	3,719 kg.
5.0L Ti-VCT V8	3.31	5,987 kg.	-	3,629 kg.	-	-
5.0L Ti-VCT V8	3.31	6,759 kg.	-	-	-	4,354 kg.
5.0L Ti-VCT V8	3.73	6,305 kg.	4,082 kg.	-	-	-
5.0L Ti-VCT V8	3.73	6,940 kg.	-	-	4,627 kg.	-
5.0L Ti-VCT V8	3.73	6,622 kg.	-	4,264 kg.	-	-
5.0L Ti-VCT V8	3.73	7,121 kg.	-	-	-	4,717 kg.
3.5L EcoBoost^® V6	3.31/3.55	7,348 kg.	-	-	4,944 kg.	-
3.5L EcoBoost^® V6	3.31/3.55	7,484 kg.	-	-	-	4,990 kg.
SuperCab
Wheelbase			3,694 mm.	3,694 mm.
Drive Type			4x2	4x4
Engine	Axle Ratio	GCWR
2.7L EcoBoost^® V6	3.15/3.55	5,761 kg.	3,402 kg.	-
2.7L EcoBoost^® V6	3.55	5,806 kg.	-	3,357 kg.
2.7L EcoBoost^® V6	3.73	6,078 kg.	3,719 kg.	3,629 kg.
5.0L Ti-VCT V8	3.15/3.31	6,713 kg.	4,354 kg.	-
5.0L Ti-VCT V8	3.31	6,759 kg.	-	4,264 kg.
5.0L Ti-VCT V8	3.73	7,076 kg.	4,717 kg.	-
5.0L Ti-VCT V8	3.73	7,212 kg.	-	4,717 kg.
5.0L Ti-VCT V8	3.73	7,983 kg.	-	4,944 kg. *
3.5L EcoBoost^® V6	3.31/3.55	7,394 kg.	4,899 kg.	-
3.5L EcoBoost^® V6	3.31/3.55	7,530 kg.	-	4,808 kg.
3.5L EcoBoost^® V6	3.55	7,983 kg.	4,944 kg. *	-
3.5L EcoBoost^® V6	3.55	8,029 kg.	-	4,808 kg. *
SuperCrew
Wheelbase			3,694 mm.	3,694 mm.	3,994 mm.	3,994 mm.
Drive Type			4x2	4x4	4x2	4x4
Engine	Axle Ratio	GCWR
2.7L EcoBoost^® V6	3.15/3.55	5,806 kg.	3,447 kg.	-	-	-
2.7L EcoBoost^® V6	3.15/3.55	5,806 kg.	-	-	-	-
2.7L EcoBoost^® V6	3.55	5,897 kg.	-	3,402 kg.	-	-
2.7L EcoBoost^® V6	3.73	6,078 kg.	3,719 kg.	3,629 kg.	-	-
5.0L Ti-VCT V8	3.15/3.31	6,713 kg.	4,309 kg.	-	-	-
5.0L Ti-VCT V8	3.31	6,713 kg.	-	4,218 kg.	-	4,173 kg.
5.0L Ti-VCT V8	3.73	7,121 kg.	4,717 kg.	-	-	-
5.0L Ti-VCT V8	3.73	7,167 kg.	-	4,672 kg. / 4,536 kg.^†	-	4,627 kg.
5.0L Ti-VCT V8	3.73	8,210 kg.	5,761 kg. *	-	-	-
5.0L Ti-VCT V8	3.73	8,346 kg.	-	5,851 kg. *	-	5,806 kg. *
3.5L EcoBoost^® V6	3.31/3.55	7,484 kg.	4,808 kg.	4,990 kg.	-	-
3.5L EcoBoost^® V6	3.31/3.55	7,530 kg.	-	-	-	-
3.5L EcoBoost^® V6	3.31/3.55	7,620 kg.	-	4,717 kg.	-	4,899 kg.
3.5L EcoBoost^® V6	3.55	8,754 kg.	5,806 kg. *	-	-	-
3.5L EcoBoost^® V6	3.55	8,800 kg.	-	5,942 kg. *	-	6,123 kg. *
3.5L EcoBoost^® V6 (Tremor)	3.73	7,756 kg.	-	4,944 kg.	-	-
3.5L PowerBoost^®Full Hybrid V6	3.73	7,756 kg.	-	4,899 kg.	-	4,899 kg.
3.5L PowerBoost^® Full Hybrid V6	3.73	8,346 kg.	-	5,080 kg. *	-	4,990 kg. *
High-Output 3.5L EcoBoost^® V6 (Raptor / Raptor 37 Performance Pkg)	4.1	6,577 kg. / 6,611 kg.	-	3,719 kg.	-	-
*Requires Tow/Haul Package
**Requires Max trailer Tow Package and Heavy-Duty Payload Package.
^†TREMOR^®.

Maximum Conventional Towing Capabilities
Regular Cab
Wheelbase			122.8 in.	122.8 in.	141.5 in.	141.5 in.
Drive Type			4x2	4x4	4x2	4x4
Engine	Axle Ratio	GCWR
2.7L EcoBoost^® V6	3.15/3.55	12,300 lbs.	-	-	7,400 lbs.	-
2.7L EcoBoost^® V6	3.55	12,600 lbs.	-	-	-	7,600 lbs.
2.7L EcoBoost^® V6	3.73	13,300 lbs.	-	-	8,400 lbs.	8,200 lbs.
5.0L Ti-VCT V8	3.31	13,200 lbs.	-	8,000 lbs.	-	-
5.0L Ti-VCT V8	3.31	14,900 lbs.	-	-	-	9,600 lbs.
5.0L Ti-VCT V8	3.73	13,900 lbs.	9,000 lbs.	-	-	-
5.0L Ti-VCT V8	3.73	15,300 lbs.	-	-	10,200 lbs.	-
5.0L Ti-VCT V8	3.73	14,600 lbs.	-	9,400 lbs.	-	-
5.0L Ti-VCT V8	3.73	15,700 lbs.	-	-	-	10,400 lbs.
3.5L EcoBoost^® V6	3.31/3.55	16,200 lbs.	-	-	10,900 lbs.	-
3.5L EcoBoost^® V6	3.31/3.55	16,500 lbs.	-	-	-	11,000 lbs.
SuperCab
Wheelbase			145.4 in.	145.4 in.
Drive Type			4x2	4x4
Engine	Axle Ratio	GCWR
2.7L EcoBoost^® V6	3.15/3.55	12,700 lbs.	7,500 lbs.	-
2.7L EcoBoost^® V6	3.55	12,800 lbs.	-	7,400 lbs.
2.7L EcoBoost^® V6	3.73	13,400 lbs.	8,200 lbs.	8,000 lbs.
5.0L Ti-VCT V8	3.15/3.31	14,800 lbs.	9,600 lbs.	-
5.0L Ti-VCT V8	3.31	14,900 lbs.	-	9,400 lbs.
5.0L Ti-VCT V8	3.73	15,600 lbs.	10,400 lbs.	-
5.0L Ti-VCT V8	3.73	15,900 lbs.	-	10,400 lbs.
5.0L Ti-VCT V8	3.73	17,600 lbs.	-	10,900 lbs. *
3.5L EcoBoost^® V6	3.31/3.55	16,300 lbs.	10,800 lbs.	-
3.5L EcoBoost^® V6	3.31/3.55	16,600 lbs.	-	10,600 lbs.
3.5L EcoBoost^® V6	3.55	17,600 lbs.	10,900 lbs. *	-
3.5L EcoBoost^® V6	3.55	17,700 lbs.	-	10,600 lbs. *
SuperCrew
Wheelbase			145.4 in.	145.4 in.	157.2 in.	157.2 in.
Drive Type			4x2	4x4	4x2	4x4
Engine	Axle Ratio	GCWR
2.7L EcoBoost^® V6	3.15/3.55	12,800 lbs.	7,600 lbs.	-		-
2.7L EcoBoost^® V6	3.15/3.55	12,800 lbs.	-	-	-	-
2.7L EcoBoost^® V6	3.55	13,000 lbs.	-	7,500 lbs.	-	-
2.7L EcoBoost^® V6	3.73	13,400 lbs.	8,200 lbs.	8,000 lbs.	-	-
5.0L Ti-VCT V8	3.15/3.31	14,800 lbs.	9,500 lbs.	-	-	-
5.0L Ti-VCT V8	3.31	14,800 lbs.	-	9,300 lbs.	-	9,200 lbs.
5.0L Ti-VCT V8	3.73	15,700 lbs.	10,400 lbs.	-	-	-
5.0L Ti-VCT V8	3.73	15,800 lbs.	-	10,300 lbs. / 9,900 lbs. ^†	-	10,200 lbs.
5.0L Ti-VCT V8	3.73	18,100 lbs.	12,700 lbs. *	-	-	-
5.0L Ti-VCT V8	3.73	18,400 lbs.	-	12,900 lbs. *	-	12,800 lbs. *
3.5L EcoBoost^® V6	3.31/3.55	16,500 lbs.	10,600 lbs.	11,000 lbs.	-	-
3.5L EcoBoost^® V6	3.31/3.55	16,600 lbs.	-	-	-	-
3.5L EcoBoost^® V6	3.31/3.55	16,800 lbs.	-	10,400 lbs.	-	10,800 lbs.
3.5L EcoBoost^® V6	3.55	19,300 lbs.	12,800 lbs. *	-	-	-
3.5L EcoBoost^® V6	3.55	19,400 lbs.	-	13,100 lbs. *	-	13,500 lbs. *
3.5L EcoBoost^® V6 (Tremor)	3.73	17,100 lbs.	-	10,900 lbs.	-	-
3.5L PowerBoost^® Full Hybrid V6	3.73	17,100 lbs.	-	10,800 lbs.	-	10,800 lbs.
3.5L PowerBoost^® Full Hybrid V6	3.73	18,400 lbs.	-	11,200 lbs. *	-	11,000 lbs. *
High-Output 3.5L EcoBoost^® V6 (Raptor / Raptor 37 Performance Pkg)	4.1	14,500 lbs. / 14,575 lbs.	-	8,200 lbs.	-	-
*Requires Tow/Haul Package
**Requires Max trailer Tow Package and Heavy-Duty Payload Package.
^†TREMOR^®.

Payload

Maximum Payload Capabilities
Regular Cab
Wheelbase		3,120 mm.	3,120 mm.	3,594 mm.	3,594 mm.
Drive Type		4x2	4x4	4x2	4x4
Engine	GVWR
2.7L EcoBoost^® V6	2,744 kg.	810 kg.	-	-	-
2.7L EcoBoost^® V6	2,790 kg.	-	730 kg.	-	-
2.7L EcoBoost^® V6	2,821 kg.	-	-	805 kg.	-
2.7L EcoBoost^® V6	2,926 kg.	-	-	-	780 kg.
5.0L Ti-VCT V8	2,835 kg.	821 kg.	-	-	-
5.0L Ti-VCT V8	2,926 kg.	-	789 kg.	-	-
5.0L Ti-VCT V8	3,084 kg.	-	-	987 kg.	-
5.0L Ti-VCT V8	3,175 kg.	-	-	-	962 kg.
3.5L EcoBoost^® V6	3,221 kg.	-	-	1,107 kg.	987 kg.
SuperCab
Wheelbase		3,694 mm.	3,694 mm.
Drive Type		4x2	4x4
Engine	GVWR
2.7L EcoBoost^® V6	2,887 kg.	757 kg.	-
2.7L EcoBoost^® V6	2,971 kg.	-	726 kg.
5.0L Ti-VCT V8	3,148 kg.	996 kg.	-
5.0L Ti-VCT V8	3,221 kg.	-	950 kg.
3.5L EcoBoost^® V6	3,130 kg.	934 kg.	-
3.5L EcoBoost^® V6	3,221 kg.	-	909 kg.
SuperCrew
Wheelbase		3,694 mm.	3,694 mm.	3,994 mm.
Drive Type		4x2	4x4	4x4
Engine	GVWR
2.7L EcoBoost^® V6	2,915 kg.	764 kg.	-	-
2.7L EcoBoost^® V6	3,016 kg.	-	748 kg.	-
5.0L Ti-VCT V8	3,107 kg.	919 kg.	-	-
5.0L Ti-VCT V8	3,221 kg.	1,009 kg.^†	919 kg. / 807 kg. ^††	-
5.0L Ti-VCT V8	3,266 kg.	-	-	916 kg. / 918 kg.
3.5L EcoBoost^® V6	3,084 kg.	862 kg.	-	-
3.5L EcoBoost^® V6	3,221 kg.	-	882 kg.	-
3.5L EcoBoost^® V6	3,221 kg.	977 kg. ^†	885 kg. ^†	-
3.5L EcoBoost^® V6	3,266 kg.	-	-	907 kg. / 909 kg. ^†
3.5L EcoBoost^® V6	3,198 kg.	-	787 kg. ^††	-
3.5L PowerBoost^® Full Hybrid V6	3,357 kg.	-	794 kg.	785 kg.
High-Output 3.5L EcoBoost^® V6 (Raptor / Raptor 37 Performance Pkg)	3,243 kg. / 3,311 kg.	-	640 kg.	-
^†Requires Tow/Haul Package
^††Tremor

Maximum Payload Capabilities
Regular Cab
Wheelbase		122.8 in.	122.8 in.	141.5 in.	141.5 in.
Drive Type		4x2	4x4	4x2	4x4
Engine	GVWR
2.7L EcoBoost^® V6	6,050 lbs.	1,785 lbs.	-	-	-
2.7L EcoBoost^® V6	6,150 lbs.	-	1,610 lbs.	-	-
2.7L EcoBoost^® V6	6,220 lbs.	-	-	1,775 lbs.	-
2.7L EcoBoost^® V6	6,450 lbs.	-	-	-	1,720 lbs.
5.0L Ti-VCT V8	6,250 lbs.	1,810 lbs.	-	-	-
5.0L Ti-VCT V8	6,450 lbs.	-	1,740 lbs.	-	-
5.0L Ti-VCT V8	6,800 lbs.	-	-	2,175 lbs.	-
5.0L Ti-VCT V8	7,000 lbs.	-	-	-	2,120 lbs.
3.5L EcoBoost^® V6	7,100 lbs.	-	-	2,440 lbs.	2,175 lbs.
SuperCab
Wheelbase		145.4 in.	145.4 in.
Drive Type		4x2	4x4
Engine	GVWR
2.7L EcoBoost^® V6	6,365 lbs.	1,670 lbs.	-
2.7L EcoBoost^® V6	6,550 lbs.	-	1,600 lbs.
5.0L Ti-VCT V8	6,940 lbs.	2,195 lbs.	-
5.0L Ti-VCT V8	7,100 lbs.	-	2,095 lbs.
3.5L EcoBoost^® V6	6,900 lbs.	2,060 lbs.	-
3.5L EcoBoost^® V6	7,100 lbs.	-	2,005 lbs.
SuperCrew
Wheelbase		145.4 in.	145.4 in.	157.2 in.
Drive Type		4x2	4x4	4x4
Engine	GVWR
2.7L EcoBoost^® V6	6,426 lbs.	1,685 lbs.	-	-
2.7L EcoBoost^® V6	6,650 lbs.	-	1,650 lbs.	-
5.0L Ti-VCT V8	6,850 lbs.	2,025 lbs.	-	-
5.0L Ti-VCT V8	7,100 lbs.	2,225 lbs.^†	2,020 lbs. / 1,725 lbs. ^††	-
5.0L Ti-VCT V8	7,200 lbs.	-	-	2,020 lbs./2,025 lbs. ^†
3.5L EcoBoost^® V6	6,800 lbs.	1,900 lbs.	-	-
3.5L EcoBoost^® V6	7,100 lbs.	-	1,945 lbs.	-
3.5L EcoBoost^® V6	7,100 lbs.	2,150 lbs.^†	1,950 lbs. †	-
3.5L EcoBoost^® V6	7,200 lbs.	-	-	2,000 lbs./2,005 lbs. ^†
3.5L EcoBoost^® V6	7,050 lbs.	-	1,700 lbs. ^††	-
3.5L PowerBoost^® Full Hybrid V6	7,400 lbs.	-	1,750 lbs.	1,730 lbs.

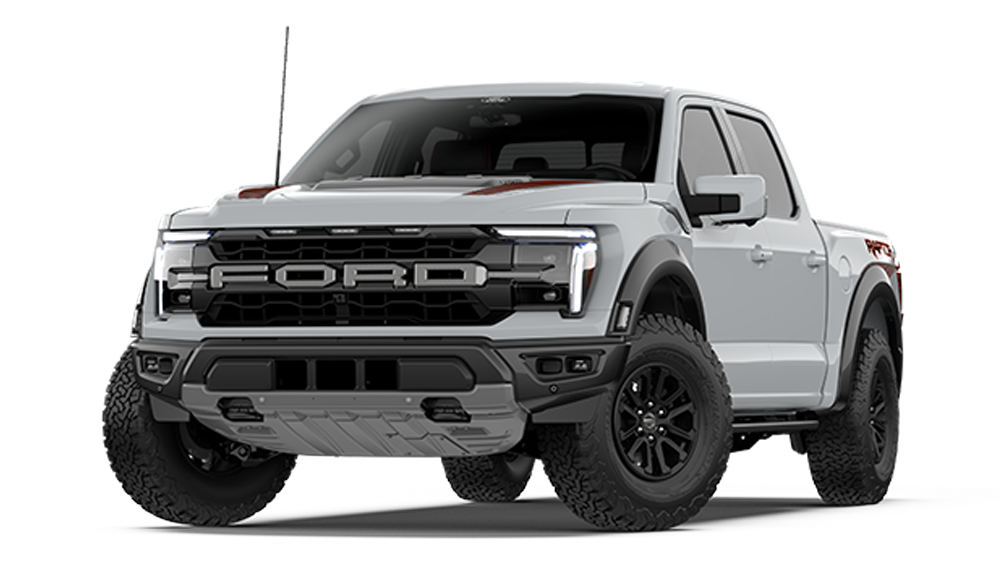

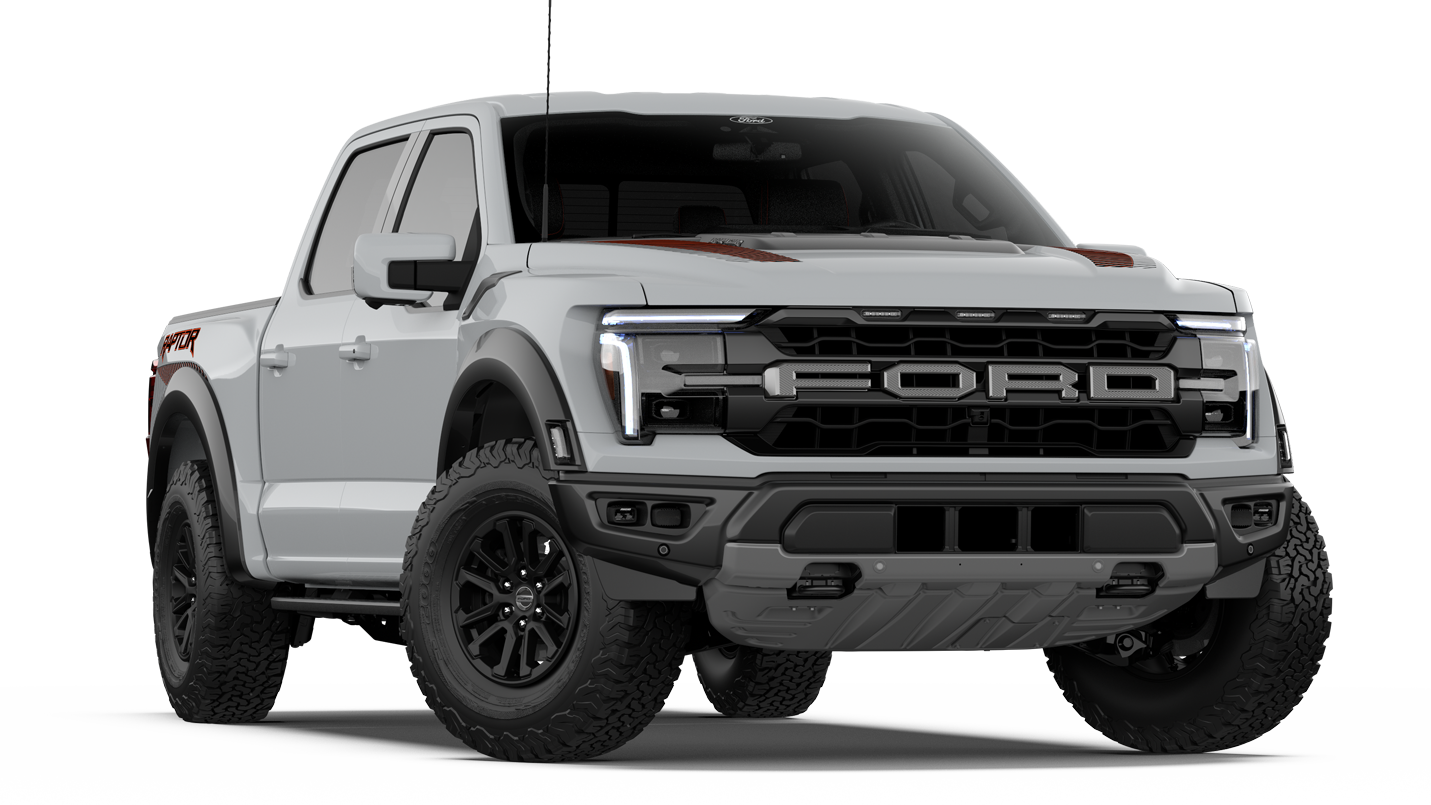

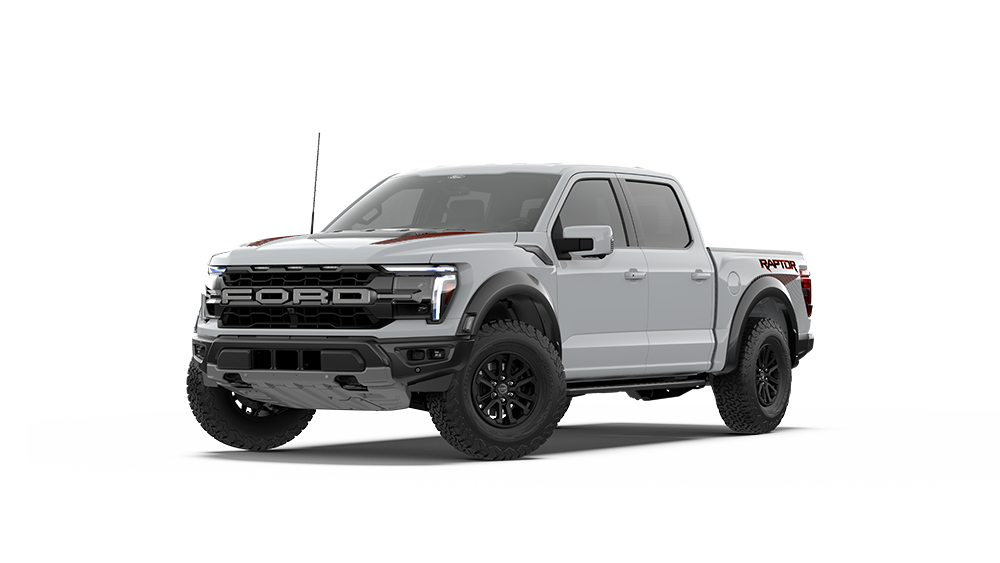

High-Output 3.5L EcoBoost^® V6 (Raptor / Raptor 37 Performance Pkg)	7,150 lbs. / 7,300 lbs.	-	1,410 lbs.	-
^†Requires Tow/Haul Package

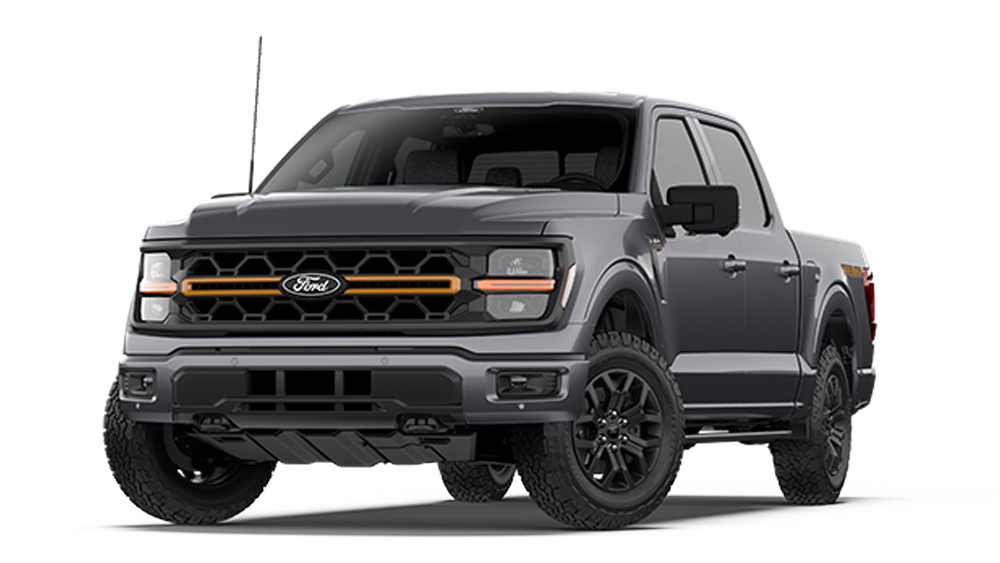

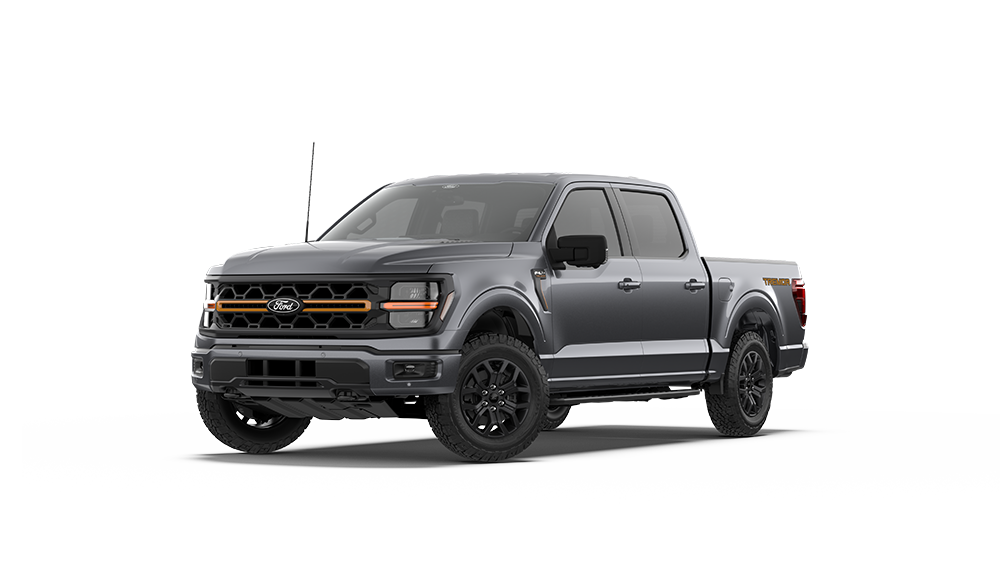

^††Tremor

Ford Iconic Vehicles

SUVs & Cars

Capable, convenient and versatile

Trucks & Vans

Hauling, towing, and off-roading

Electric & Hybrid

What does going electric mean?

Performance Vehicles

Commercial Vehicles

Ford Pro offers the tools, software and services to keep your business on track and crews on the road.

Recent Searches

Clear

Suggested Searches

Search History

Recent Searches

Suggested Searches

Search History

2025 F-150® XLT

Key Features

Available 3.5L PowerBoost® Full Hybrid V6 Engine with Pro Power Onboard

Available Pro Trailer Backup Assist™ and Pro Trailer Hitch Assist™

Available Ford BlueCruise

Exterior Features

Exterior

Standard

Optional

Comfort and Convenience

Standard

Optional

Appearance

Standard

Optional

Protection

Optional

Wheels & Tires

Standard

Optional

Windows & Glass

Standard

Optional

Interior Features

Comfort and Convenience

Standard

Optional

Protection

Optional

Appearance

Standard

Optional

Entertainment Systems

Standard

Optional

Seating

Standard

Optional

Packages

Packages

Standard

Optional

Power and Handling

Handling

Standard

Optional

Power

Standard

Optional

Safety

Comfort and Convenience

Standard

Optional

Safety

Standard

Security

Standard

Optional

Accessories

Dealer Installed Options

Optional

Specifications

Highlights

2025 F-150^® XLT

Available 3.5L PowerBoost^® Full Hybrid V6 Engine with Pro Power Onboard

Available Pro Trailer Backup Assist^™ and Pro Trailer Hitch Assist^™
