2027 Transit®
As Shown Price
As Shown Price
Take A Look Inside And Out
Explore every angle and colour—available across all roof heights. Then head to Build & Price to further customize your ideal van.
Designed for the Drive. Manufactured for the Grind.
See Full Gallery
Designed for the Drive. Manufactured for the Grind.

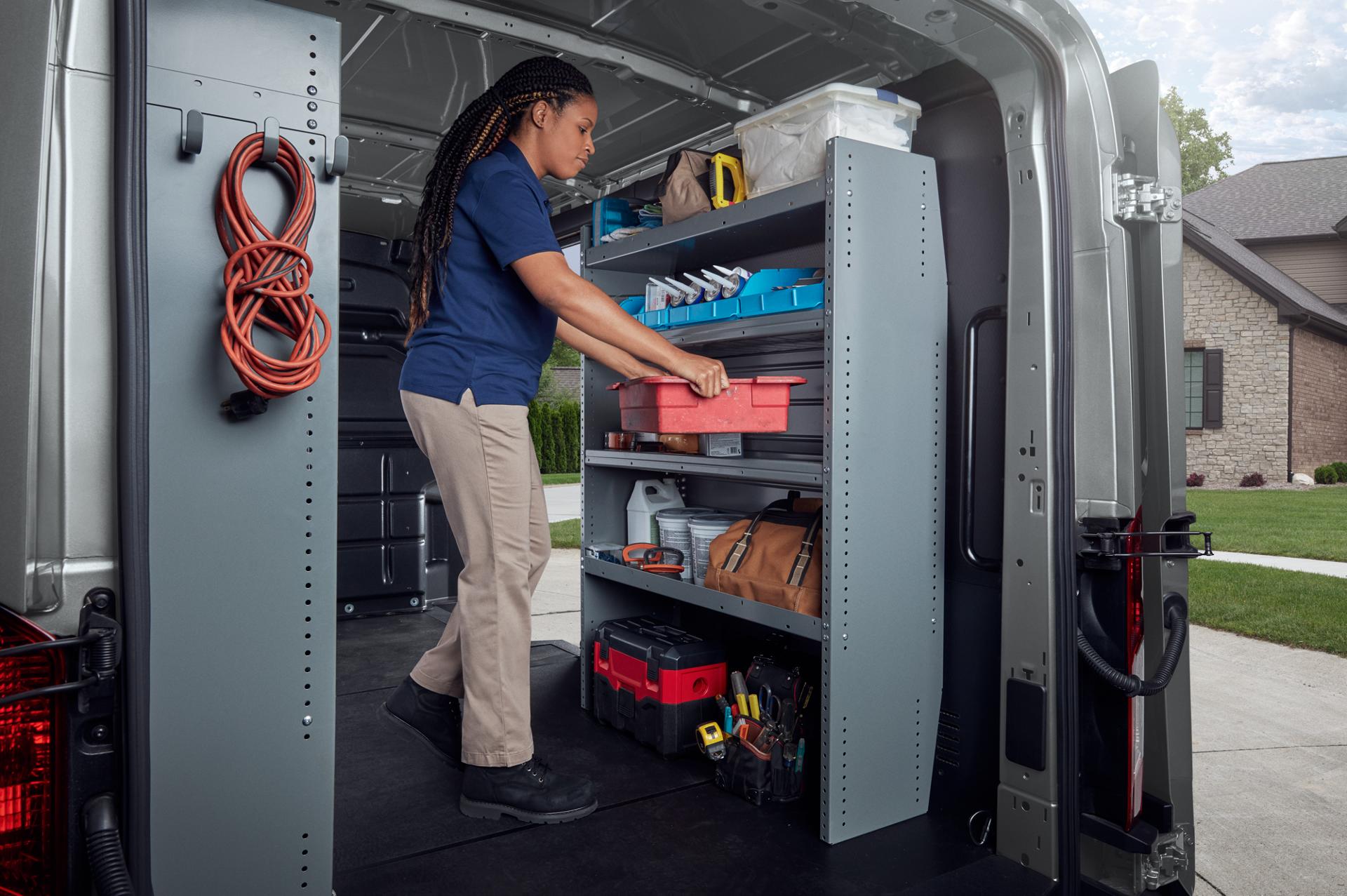

Tailored to Your Trade

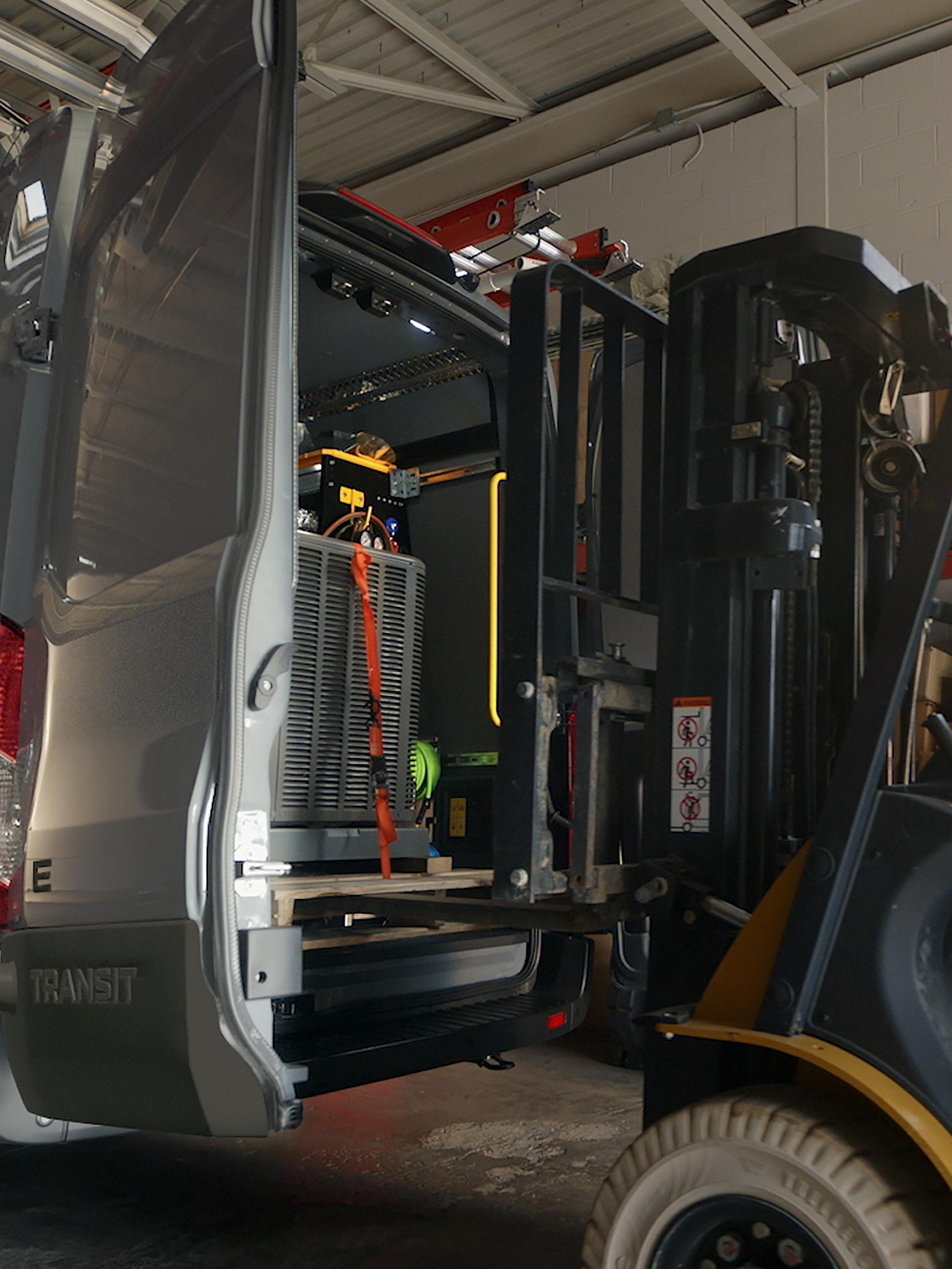

All the comfort, all the flexibility, all the space you need to haul.
Stand, work, and haul tall items with ease.
Imagine the Possibilities. We've Got the Room.

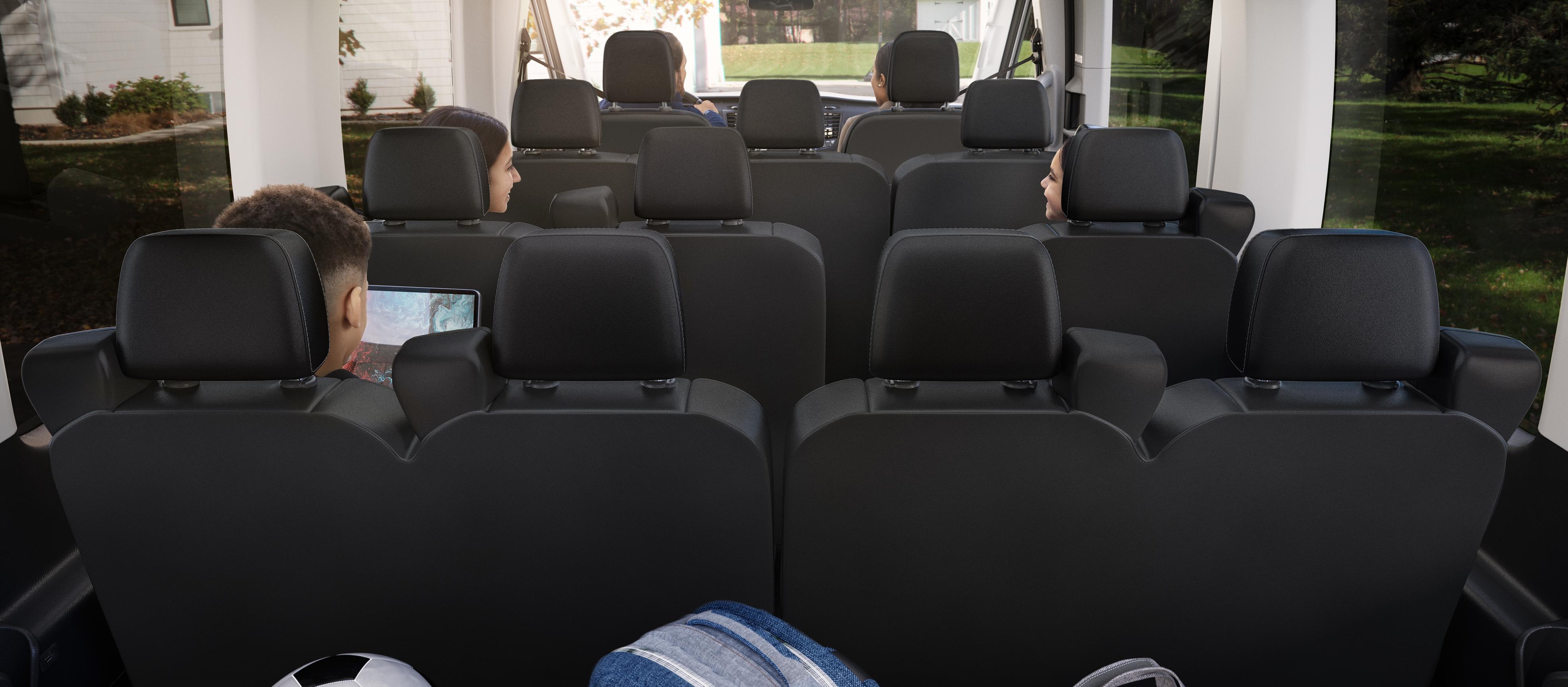

Easily configure the spacious interior to comfortably seat up to 15 people for group travel, or into a cargo-ready powerhouse with abundant storage capacity to help with your largest hauls.
Your Vision. Realized.
There’s No Wrong Way to Configure
Customizable size for your needs. Whether for daily transport or a dedicated mobile business, choose from three roof heights and two lengths.

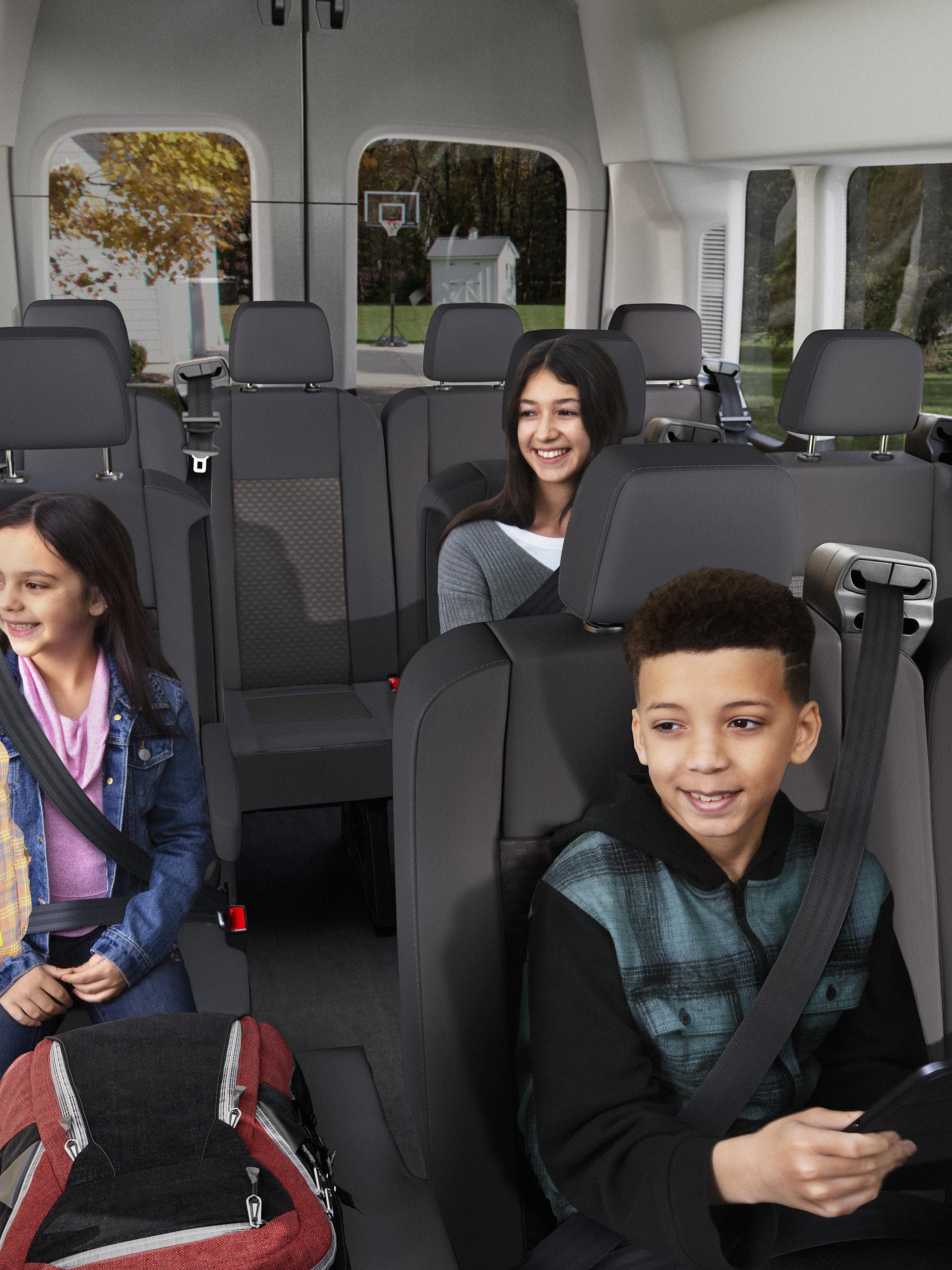

Adjust your vehicle's interior to prioritize maximum seating, optimal cargo space, or anything in between, thanks to Cargo and Passenger Vans seating two, while Passenger Vans also seating 12 or 15 passengers comfortably.
Integrated Insight for Every Mile

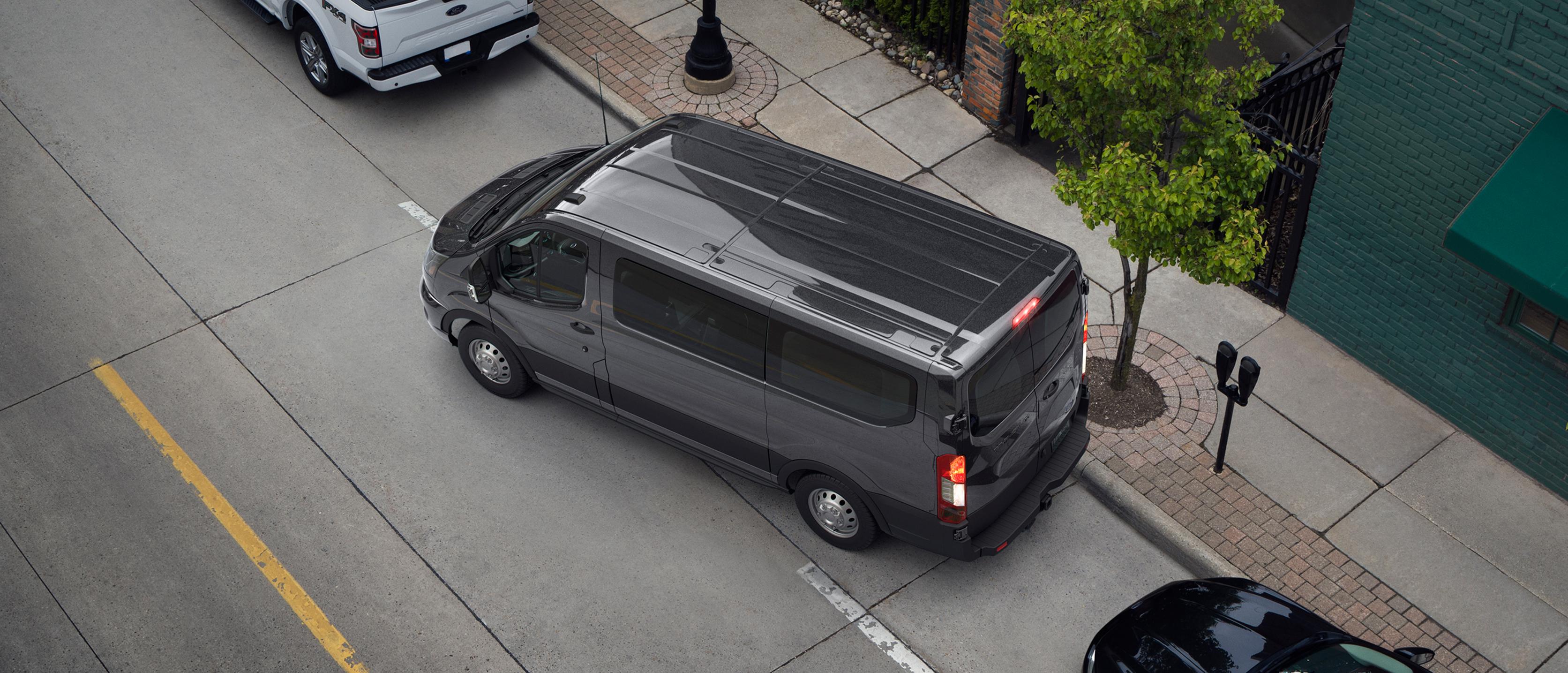

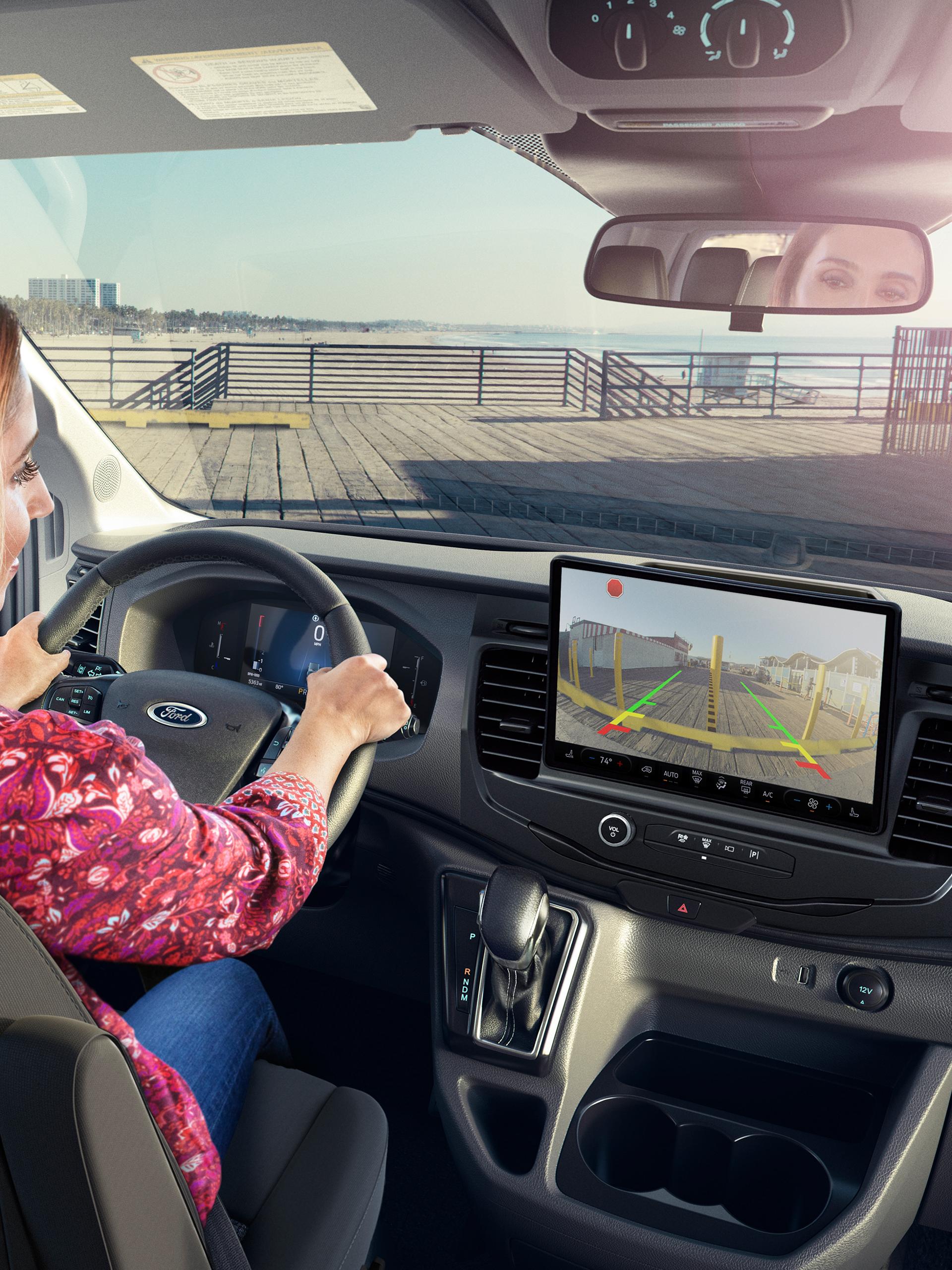

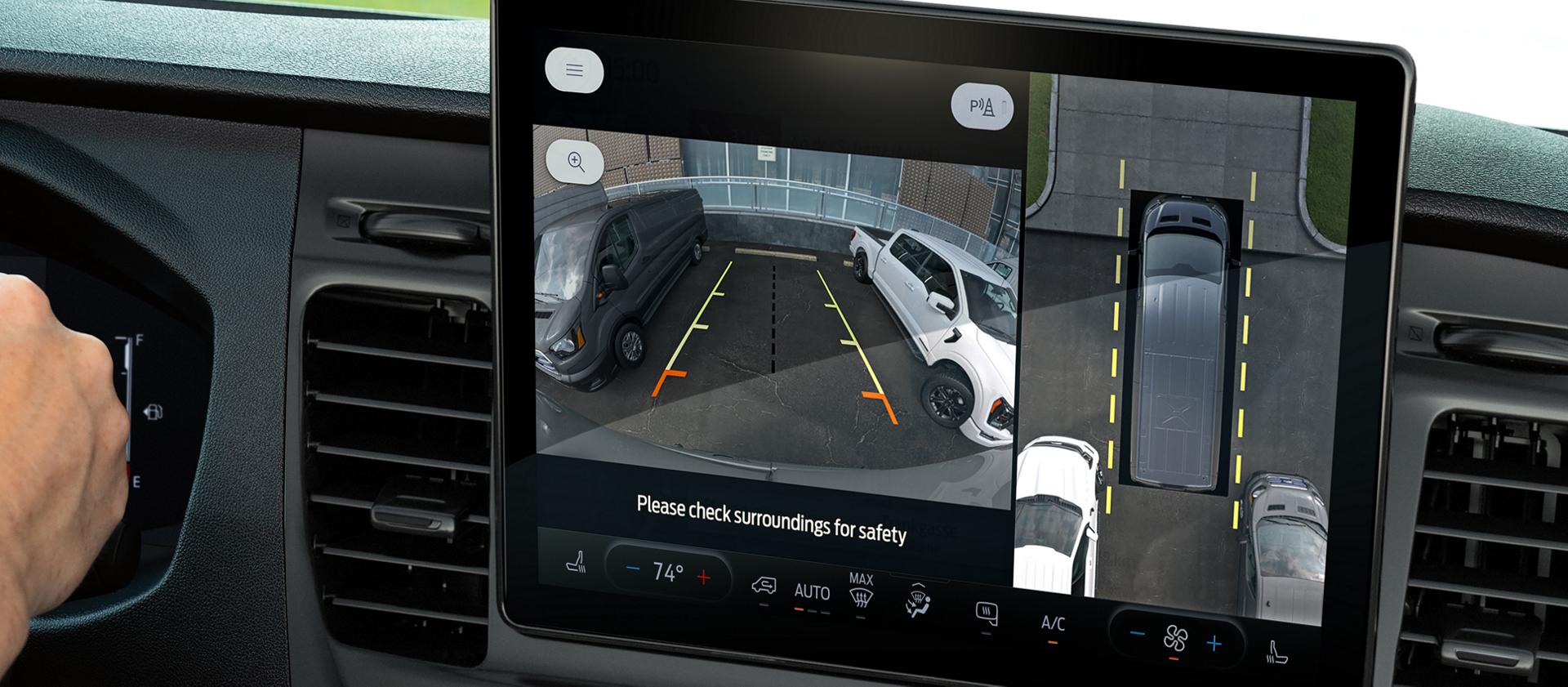

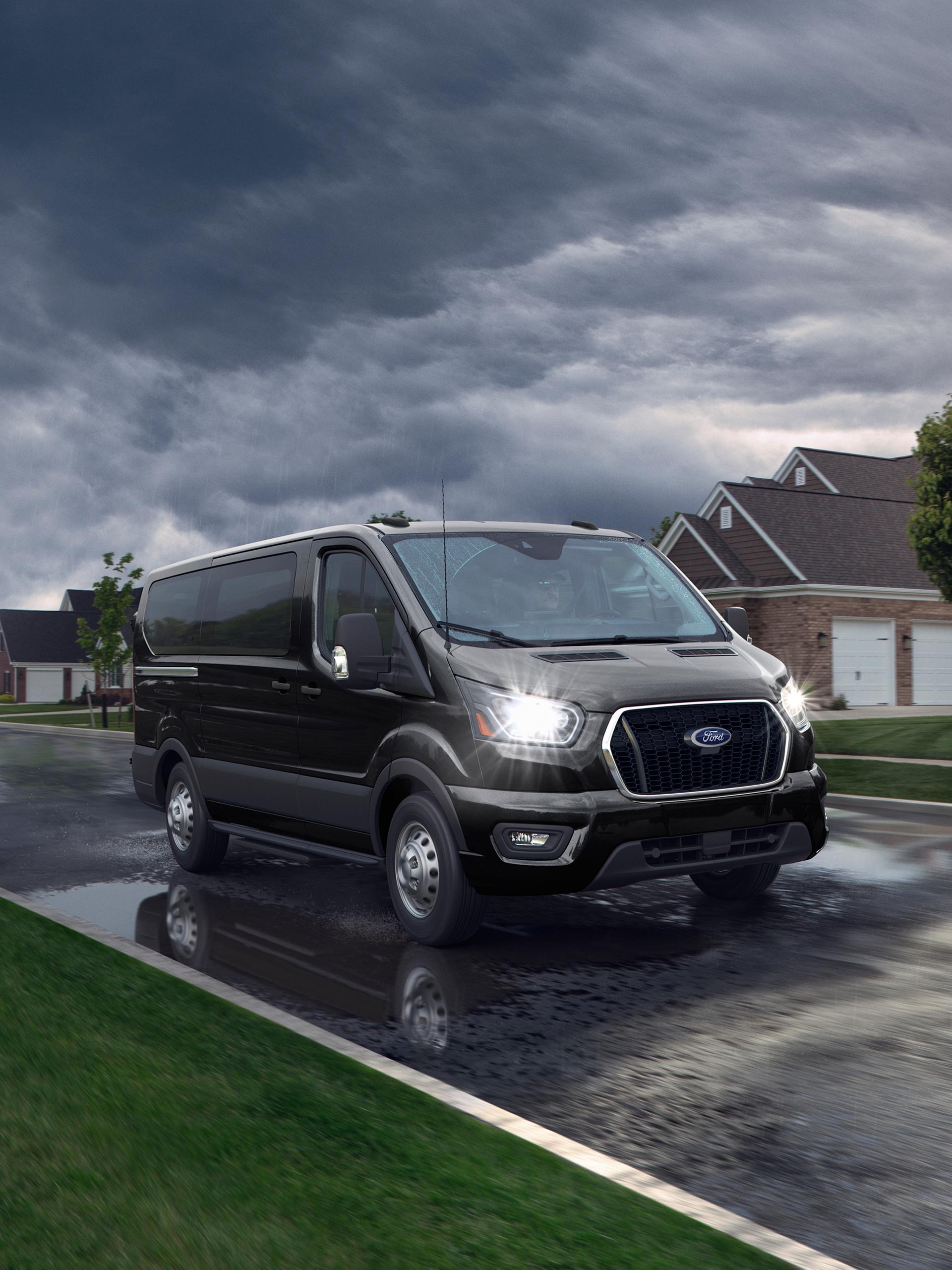

Peace of mind, standard. Ford Co-Pilot360® technology * now includes front and rear parking sensors, Pre-Collision Assist® with Automatic Emergency Braking, ** and Lane-Keeping System. †
Stop Guessing What's Next. It's Right Here.
Driving should be a confident experience. That's why these comprehensive standard and optional features are engineered to support you, helping you feel more secure on every stretch of road.

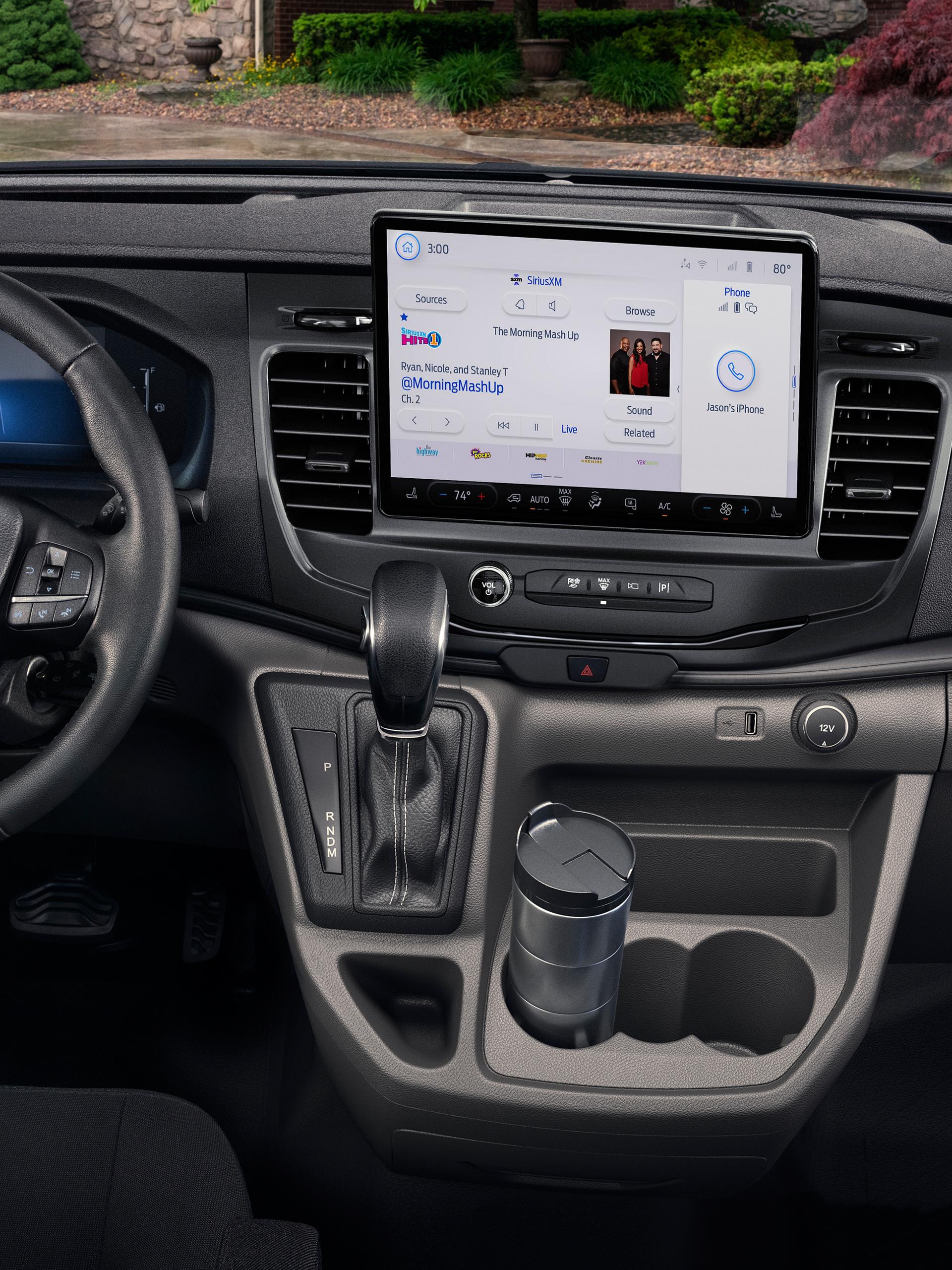

The available Ford Connectivity Package * — included for a year — helps keep you connected with an unlimited Wi-Fi® hotspot powering up to 10 devices, Alexa Built-In, YouTube streaming (while parked), and available Connected Navigation (Requires: Ford Co-Pilot360® Assist 2.0 or Ford Co-Pilot360® and Requires Connected Navigation Hardware Option **). Features vary by model.
Plug-in Potential

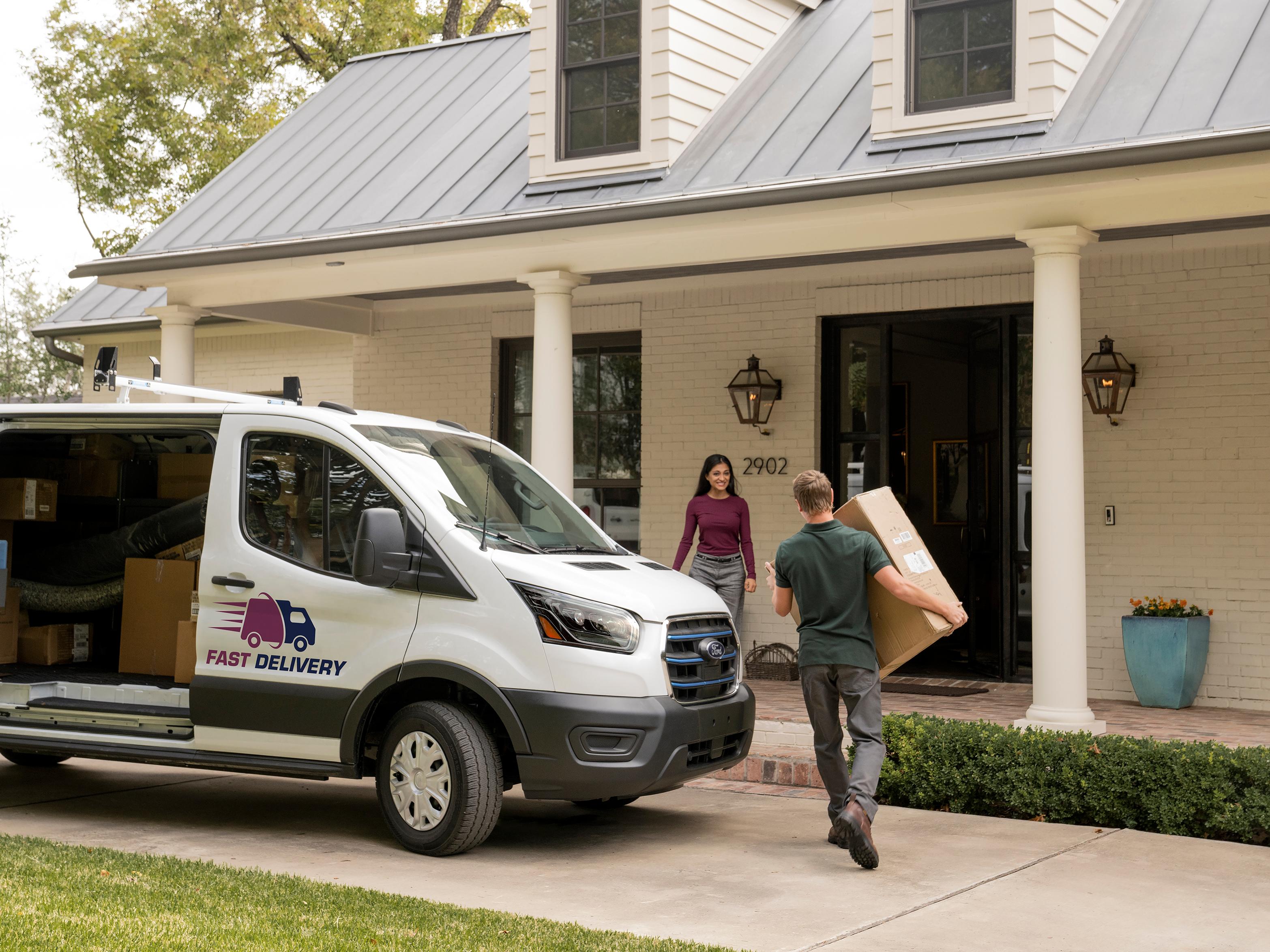

Load up your E-Transit van and get to work. Perfect for tools, equipment, and deliveries, this van offers a maximum payload of 3,322 lbs *, giving your business the muscle it deserves.
Take on Your Workday
Choose from the 3.5L V6 or 3.5L EcoBoost® engine, both with a 95-litre, or the available 117-litre fuel tank.

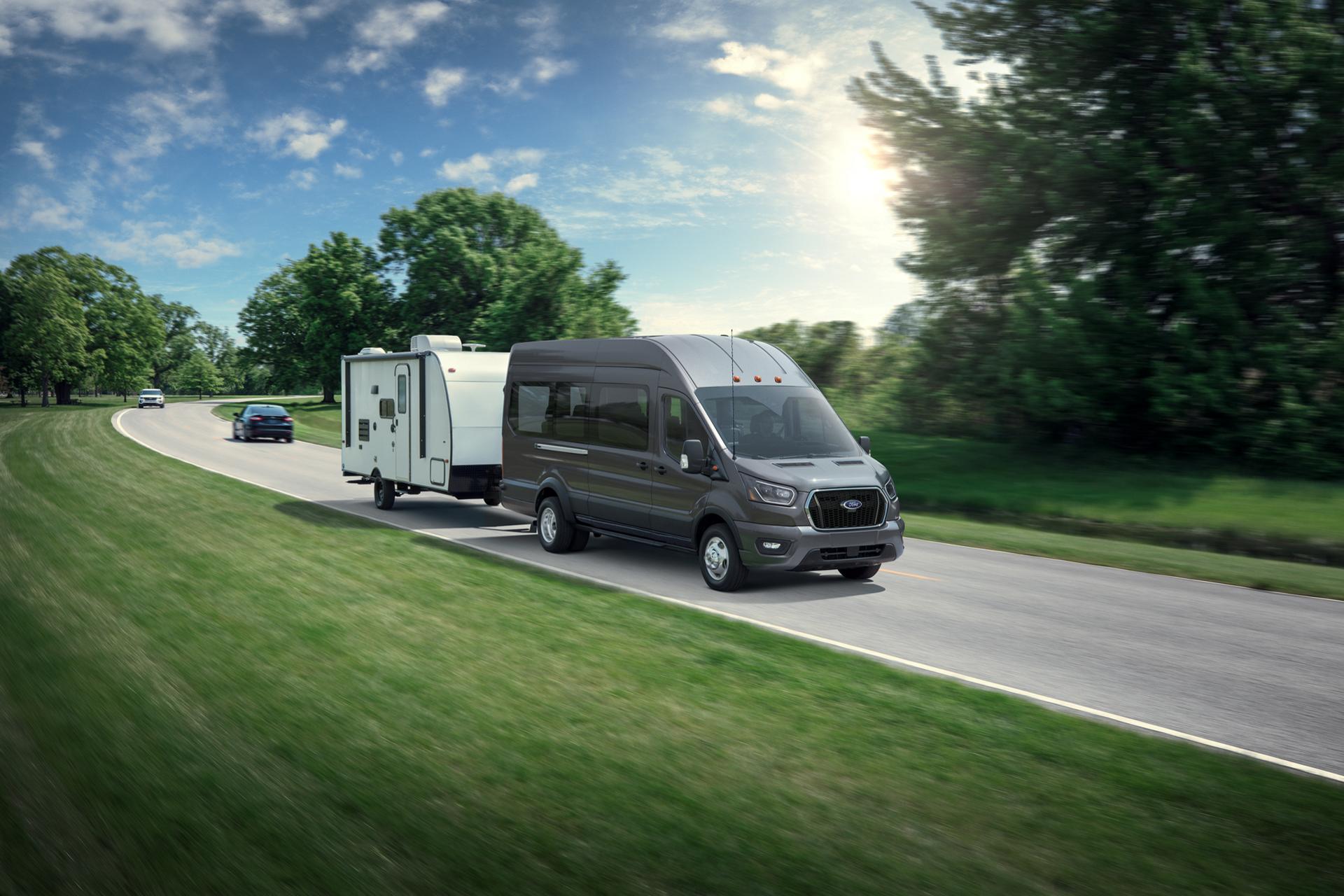

Bring On the Next Challenge
From powerful engine options to massive cargo space and versatile payload ratings, this vehicle provides all the capability to tackle your most demanding jobs.
Adapt It to You
Available Engines
3.5L PFDi V6<
3.5L EcoBoost® V6
Maximum Seating Capacity
2 Passengers
Range
95 Litres
117 Litres with Available Extended Range Fuel Tank
Drive Type
Rear-Wheel Drive
Available Intelligent All-Wheel Drive
Roof Height
Low 2,100 mm (82.7”), Medium 2,535 mm (99.8”), and High 2,794 mm (110”)

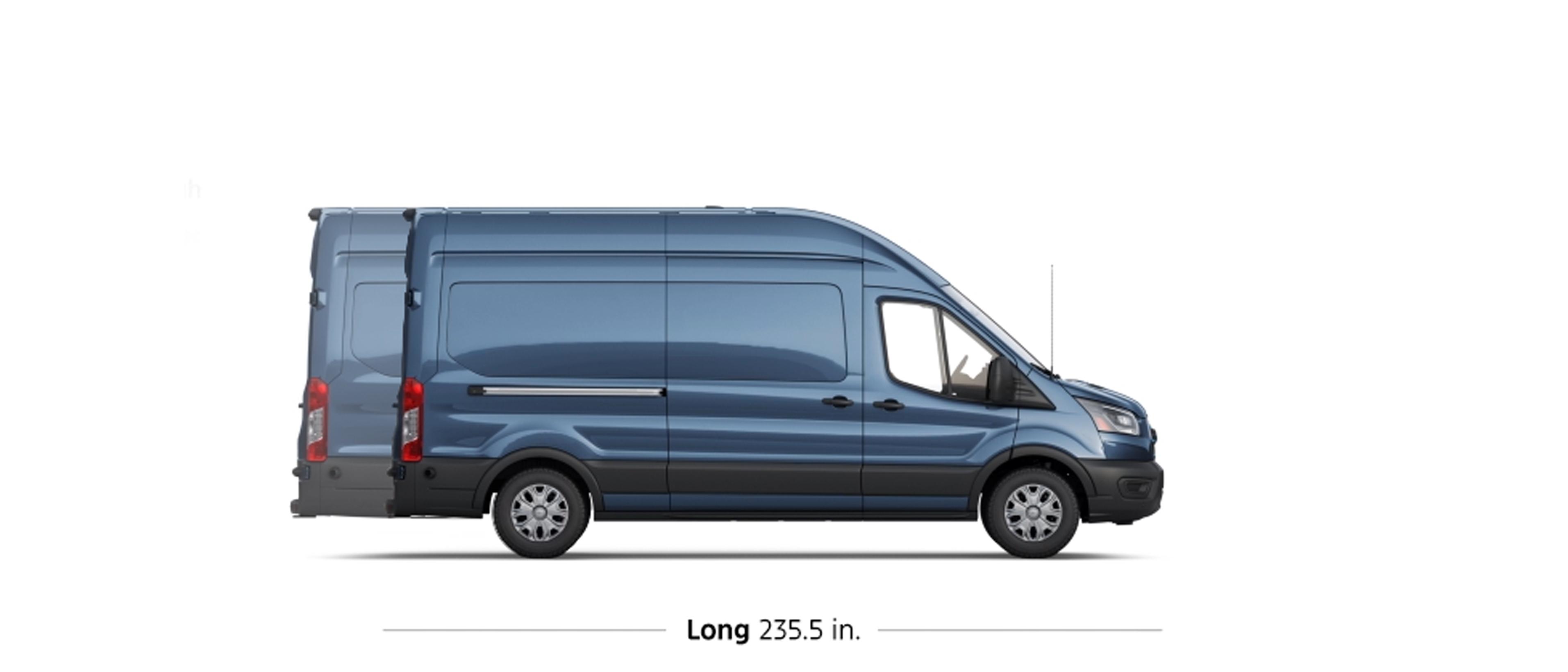

Length
Regular 5,532 mm (217.8”), Long 5,982 mm (235.5”), and Extended 6,703 mm (263.9”)
Max Towing Capacity
6,900 lbs *
Max Payload Weight
5,047 lbs **
Available Engines
3.5L PFDi V6
3.5L EcoBoost® V6
Maximum Seating Capacity
15 Passengers
Range
95 Litres
117 Litres with Available Extended Range Fuel Tank
Drive Type
Rear-Wheel Drive
Available Intelligent All-Wheel Drive
Roof Height
Low 2,100 mm (82.3”), Medium 2,535 mm (97.1”), and High 2,794 mm (108.4”)
Length
Long 5,982 mm (235.5”), and Extended 6,703 (263.9”)
Max Towing Capacity
4,500 lbs *
Max Payload Weight
3,402 lbs *
Available Engines
3.5L PFDi V6
3.5L EcoBoost® V6
Maximum Seating Capacity
15 Passengers
Range
95 Litres
117 Litres with Available Extended Range Fuel Tank
Drive Type
Rear-Wheel Drive
Available Intelligent All-Wheel Drive
Roof Height
Low 2,100 mm (82.3”), Medium 2,535 mm (97.1”), and High 2,794 mm (108.4”)
Length
Long 5,982 mm (235.5”), and Extended 6,703 (263.9”)
Max Towing Capacity
4,500 lbs *
Max Payload Weight
3,402 lbs *
Available Engines
Electric Motor
Maximum Seating Capacity
2 Passengers
Range
Low 267 km (166 miles), Medium 249 km (155 miles), High 240 km (149 miles), and High Extended Length 238 km (148 miles)
Drive Type
Rear-Wheel Drive
Roof Height
Low 2,108 mm (83”), Medium 2,545 mm (100.2”), and High 2,779 mm (109.4”)
Length
Long 5,982 mm (235.5”), and Extended 6,703 (263.9”)
Max Towing Capacity
3,322 lbs *
Max Payload Weight
3,475 lbs *

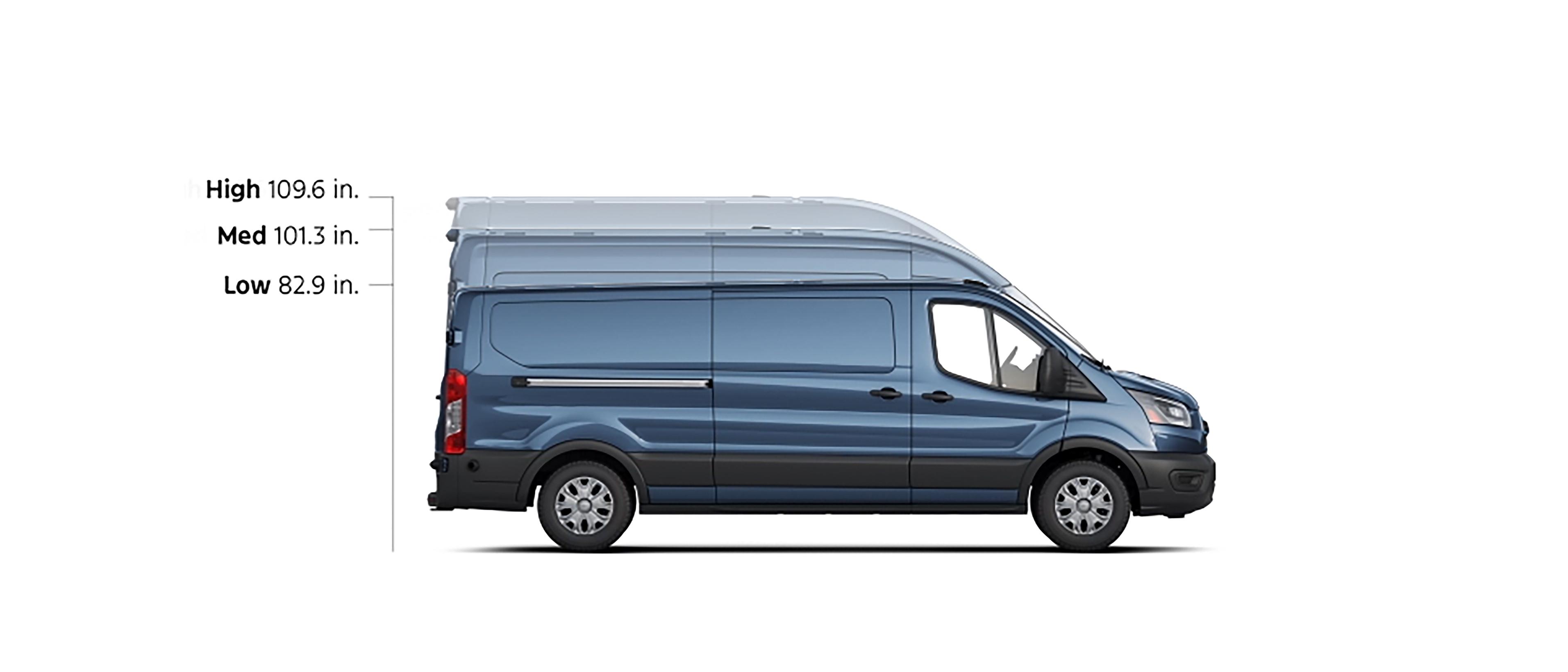

The 2027 Ford Transit Van is available in various combinations of roof heights. Transit Vans are offered in three different roof heights: Low Roof, Medium Roof, and High Roof. The Low Roof Transit van height ranges from 2,101 mm (82.7”) to 2,106 mm (82.9”). The Medium Roof Transit Van has a height range of 2,535 mm (99.8”) to 2,573 mm (101.3”), and the High Roof Transit Van height ranges from 2,771 mm (109.1”) to 2,794 mm (110”).
The 2027 Ford Transit Van comes in three different models with various dimensions.

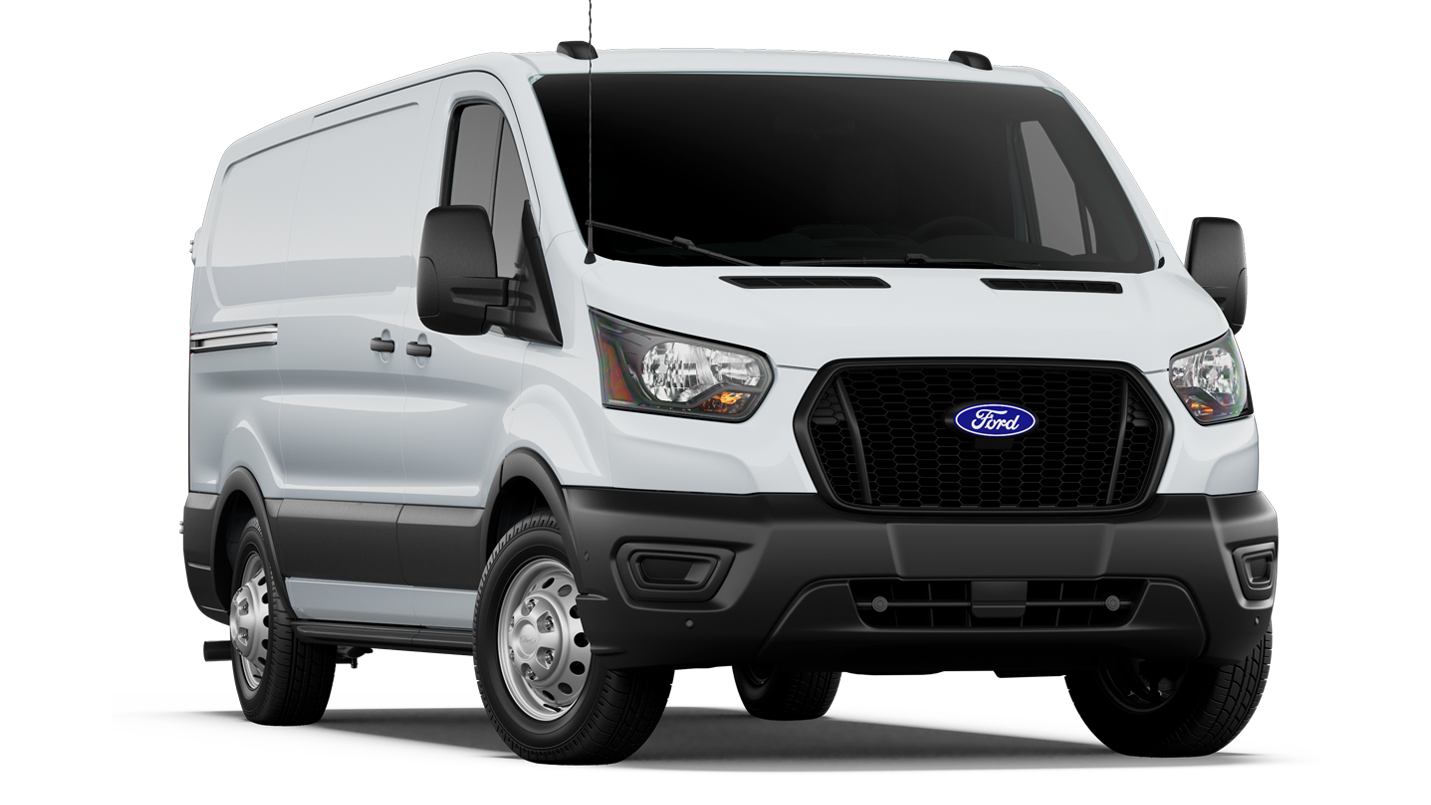

The cargo van has three selections of lengths ranging from 5,527 mm – 6,703 mm (217.6” – 263.9”). The width is 2,474 mm (97.4”), and there are three selections of height ranging from 2,101 mm – 2,794 mm (82.7” – 110”). The wheelbase is offered in 3,302 mm – 3,759 mm (130” – 148”) in length.

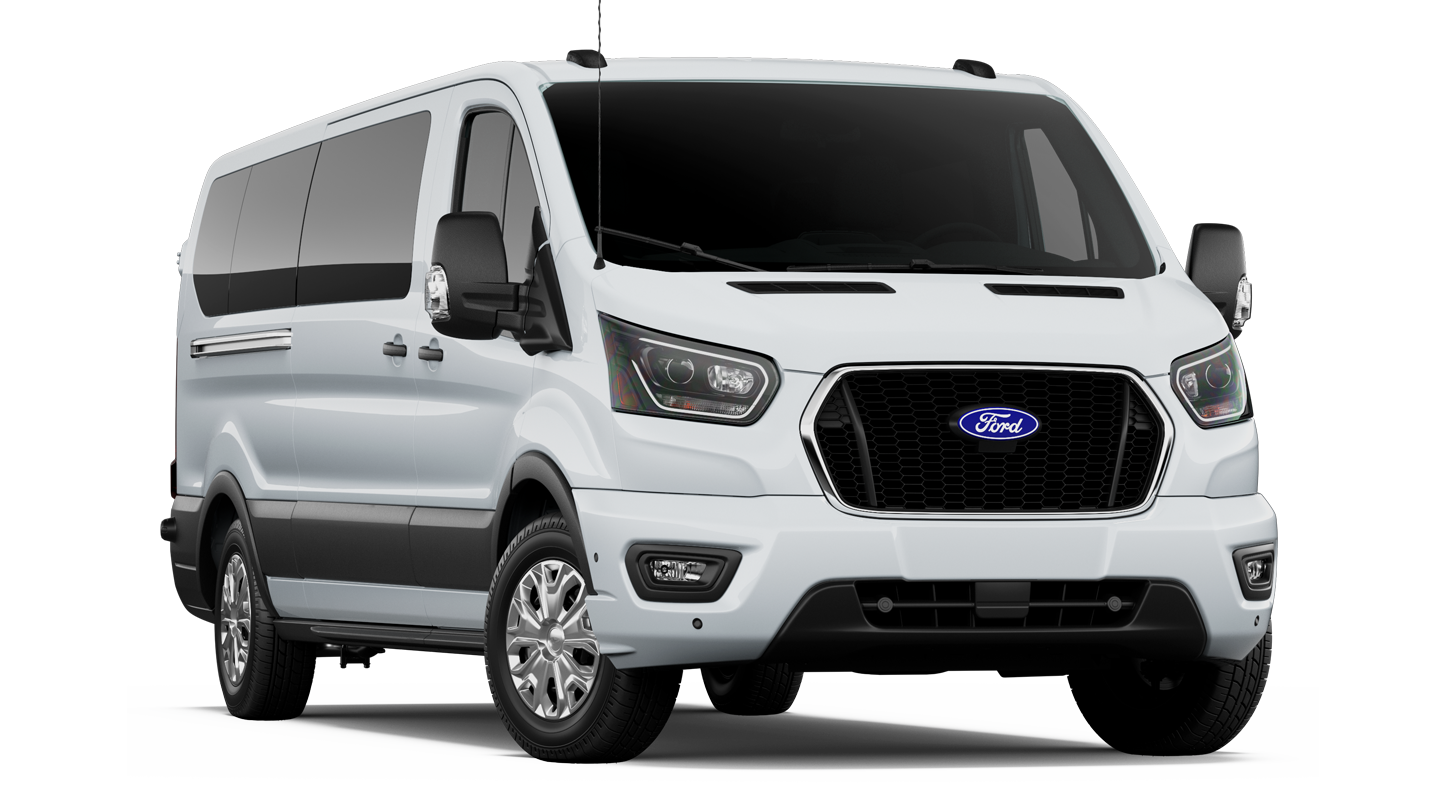

The passenger van has a selection of two lengths ranging from 5,982 mm – 6,703 mm (235.5” – 263.9”) along with three height selections ranging from 2,090 mm – 2,753 mm (82.3” – 108.4”). The width of the passenger van is 2,474 mm (97.4”) along with a wheelbase of 3,759 mm (148”) in length.

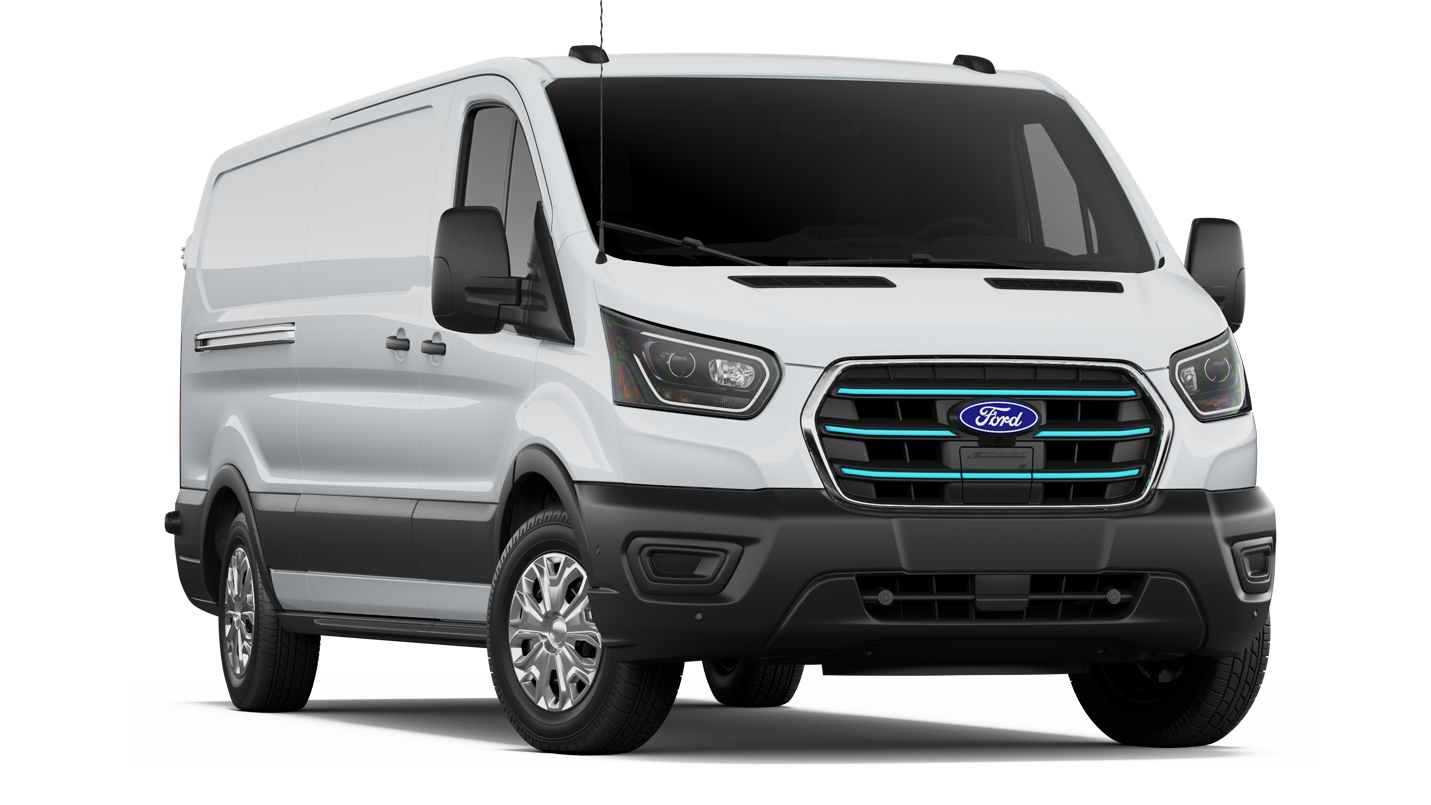

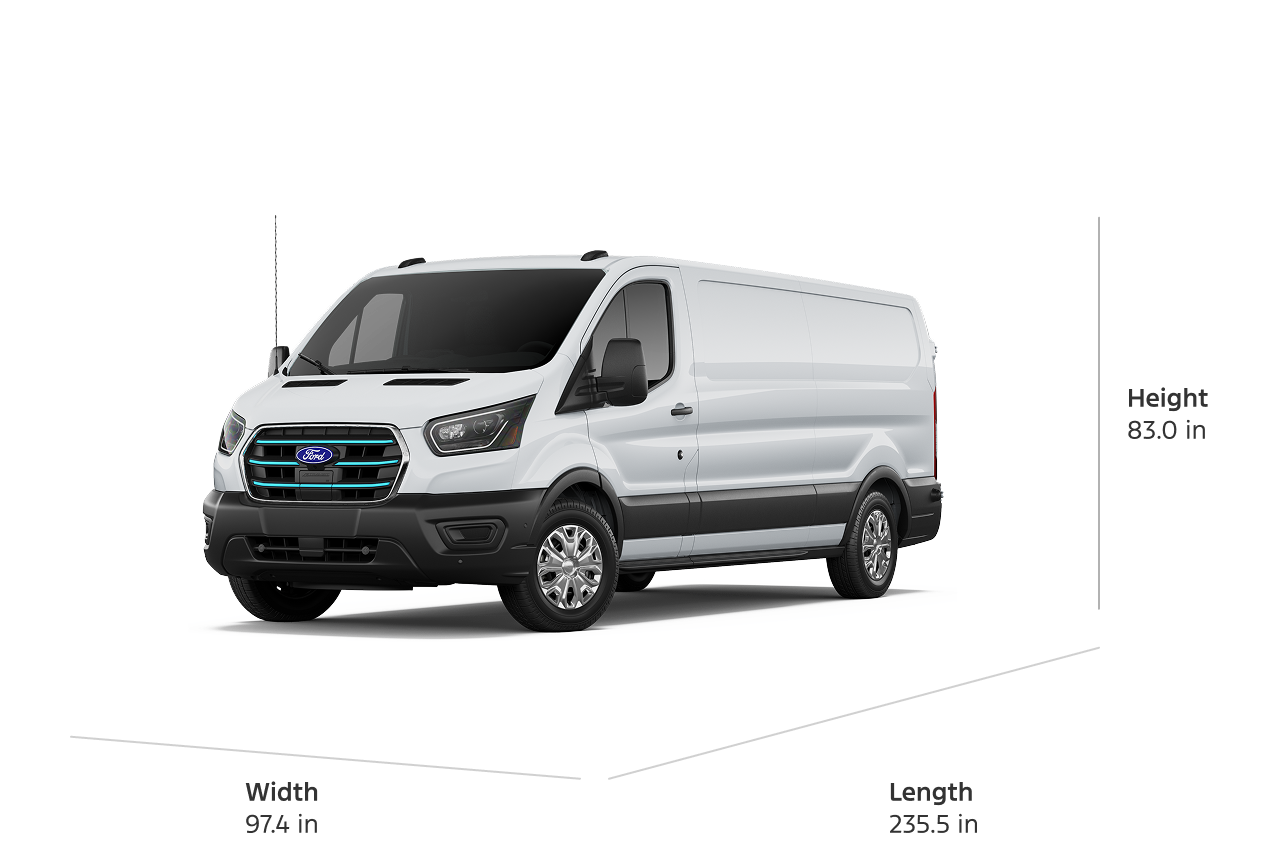

The E-Transit™ Van has a selection of two lengths ranging from 5,982 mm – 6,703 mm (235.5” – 263.9”), three height selections ranging from 2,108 mm – 2,774 mm (83” – 109.2”), a width of 2,474 mm (97.4”), and a wheelbase at 3,759 mm (148”) in length.
| Model | Overall Length | Overall Height | Overall Width |
|---|---|---|---|
| Cargo Van | 5,527 mm – 6,703 mm (217.6” – 263.9”) | 2,101 mm – 2,794 mm (82.7” – 110”) | 2,474 mm (97.4”) |
| Passenger Van | 5,982 mm – 6,703 mm (235.5” – 263.9”) | 2,090 mm – 2,753 mm (82.3” – 108.4”) | 2,474 mm (97.4”) |
| E-Transit | 5,982 mm – 6,703 mm (235.5” – 263.9”) | 2,108 mm – 2,774 mm (83” – 109.2”) | 2,474 mm (97.4”) |
The maximum cargo volume for both cargo and passenger vans are found in the High Roof and Extended Length configurations. The cargo van has a maximum volume of 487.3 cubic feet behind the first row of seats. The passenger van has 461.9 cubic feet of cargo space behind the first row of seats.
The Ford Security Package is now available on 2027 Ford Transit Vans. Help protect your investment with theft alerts, remote vehicle lockdown, and recovery services. Please visit the Ford Security Package page for more details.
Transit payload capacity varies depending on vehicle configuration. The maximum payload on the 2027 Transit Van ranges from 3,342 lbs to 5,103 lbs based on configurations. Please visit the Transit Body Decoder for more details.
Yes. The available Intelligent All-Wheel Drive System on Transit Vans is designed to help maximize traction and enhance handling. It is integrated into the vehicle’s design to help ensure it doesn’t raise the load floor or seat height. Transit Vans are also equipped with Selectable Drive Modes that can be chosen for different driving conditions. Depending on the drive mode that you select, the system adjusts various vehicle settings.
