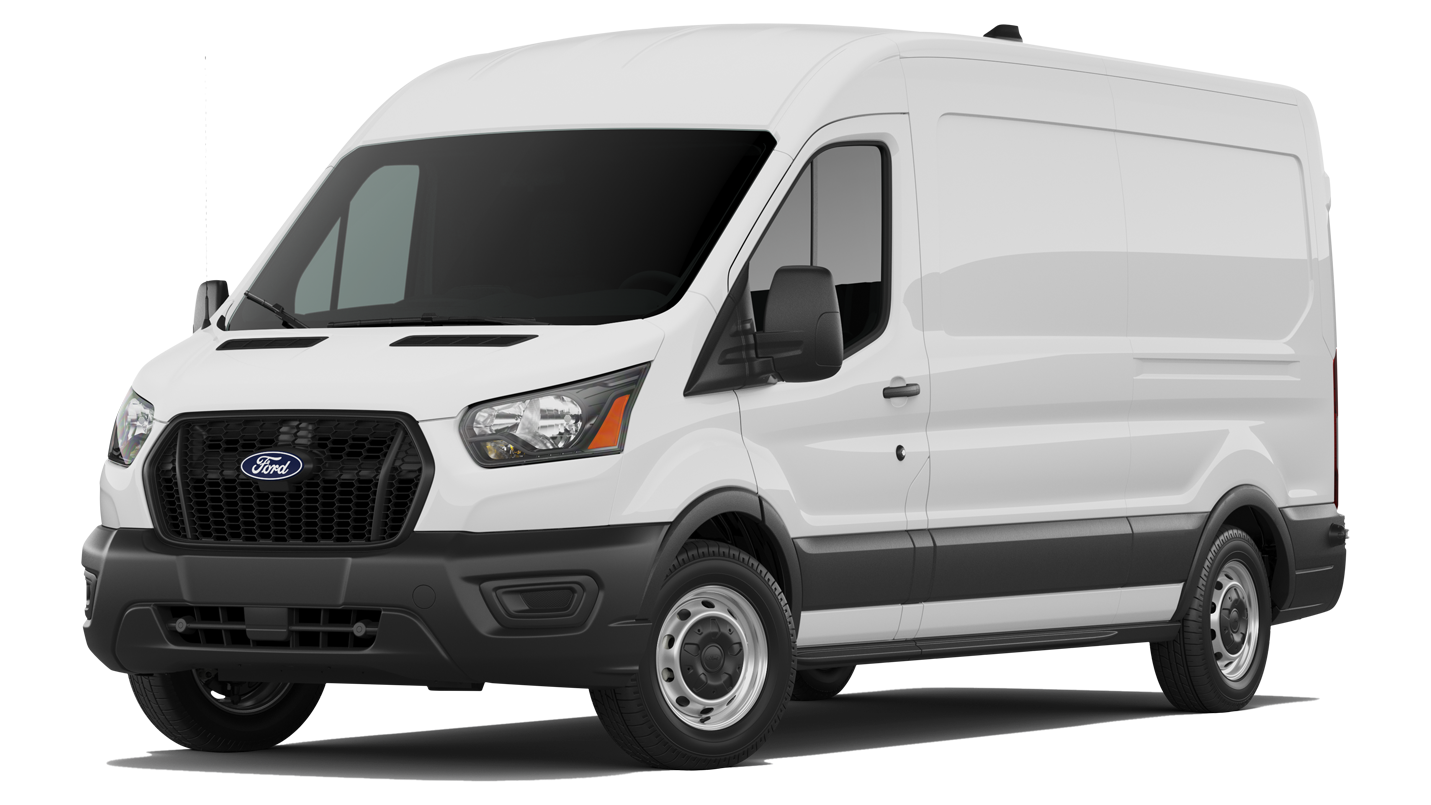

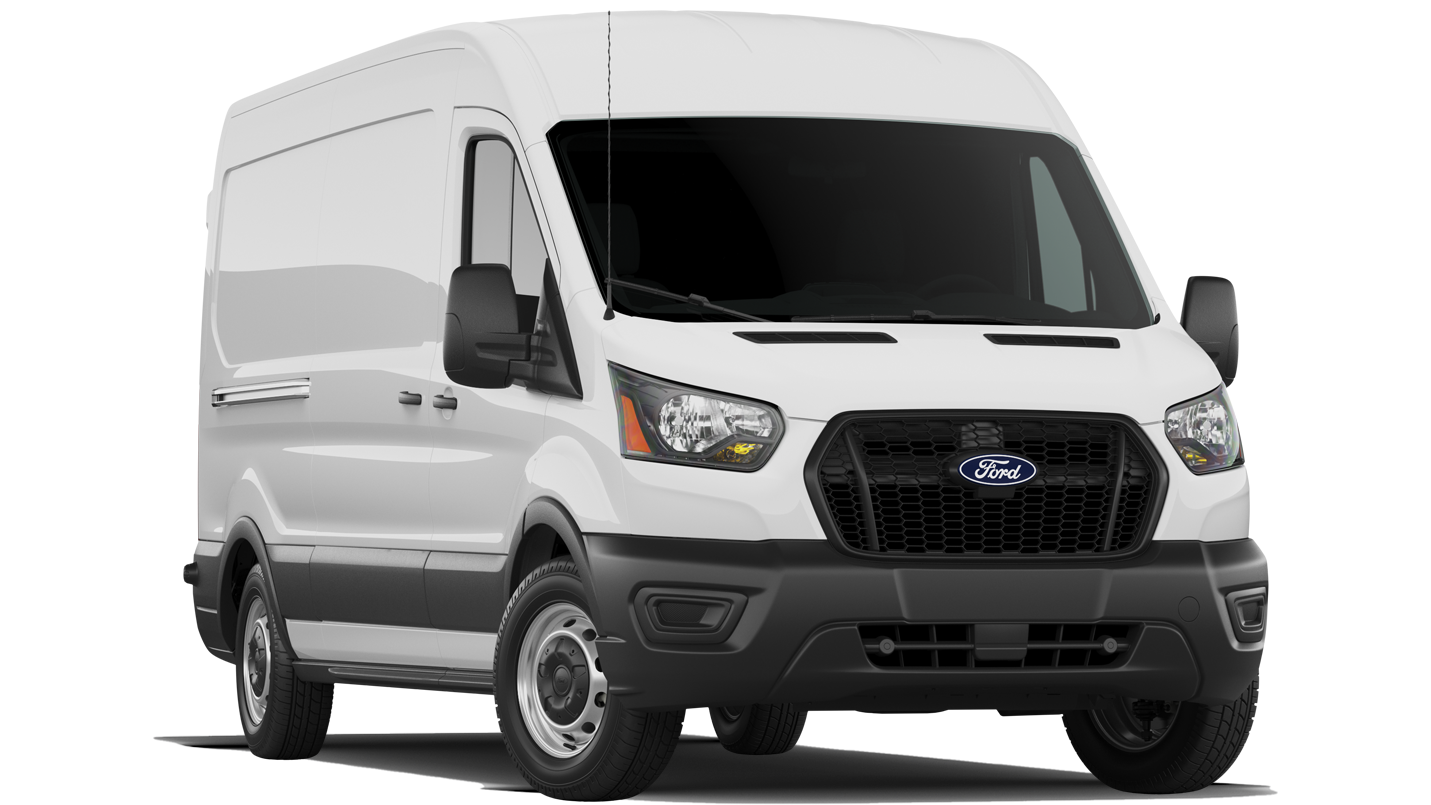

Transit Cargo Van
|
|
|
|
|
|
|
Length (Regular, Long, Long-EL)
|
Regular
|
Regular
|
Long
|
Long |
Long
|
Long-EL
|
Roof (Low, Medium, High)
|
Low
|
Medium
|
Low
|
Medium
|
High
|
High
|
|
(mm)
|
(mm)
|
(mm)
|
(mm)
|
(mm)
|
(mm)
|
Head Room - First Row
|
1,037 |
1,320 |
1,037 |
1,320 |
1,437 |
1,437 |
Maximum Leg Room - First Row
|
1,050 |
1,050 |
1,050 |
1,050 |
1,050 |
1,050 |
Leg Room - First Row (Max.)
|
1,009 |
1,009 |
1,009 |
1,009 |
1,009 |
1,009 |
Leg Room - First Row
|
1,541.8 |
1,541.8 |
1,541.8 |
1,541.8 |
1,541.8 |
1,541.8 |
Shoulder Room - First Row
|
1,724 |
1,724 |
1,724 |
1,724 |
1,724 |
1,724 |
Cargo Length Front (at Floor)
|
3,200 |
3,200 |
3,650 |
3,650 |
3,650 |
4,373 |
Cargo Length Front (at Belt)
|
2,943 |
2,943 |
3,393 |
3,393 |
3,393 |
4,116 |
Cargo Width Between Wheelhouse (SRW/DRW)
|
1,392 |
1,392 |
1,392 |
1,392 |
1,392 |
1,391.92 / 1,153.2 |
Cargo Height Maximum
|
1,446 |
1,830 |
1,446 |
1,830 |
2,069 |
2,069 |
|
|
|
|
|
|
|
Transit Crew Van
|
|
|
|
|
|
|
Length (Regular, Long, Long-EL)
|
Regular |
Regular
|
Long
|
Long
|
Long
|
Long-EL
|
Roof (Low, Medium, High)
|
Low
|
Medium
|
Low
|
Medium
|
High
|
High
|
|
(mm)
|
(mm)
|
(mm)
|
(mm)
|
(mm)
|
(mm)
|
Head Room - First Row
|
1,037
|
1,320
|
1,037 |
1,320 |
1,437 |
1,437 |
Maximum Leg Room - First Row
|
1,050 |
1,050 |
1,050 |
1,050 |
1,050 |
1,050 |
Leg Room - First Row (Max.)
|
1,009 |
1,009 |
1,009 |
1,009 |
1,009 |
1,009 |
Leg Room - First Row
|
1,541.8 |
1,541.8 |
1,541.8 |
1,541.8
|
1,541.8
|
1,541.8 |
Shoulder Room - First Row
|
1,724
|
1,724 |
1,724 |
1,724 |
1,724 |
1,724 |
Cargo Length Front (at Floor)
|
2,201 |
2,201 |
2,649 |
2,649 |
2,649 |
3,373 |
Cargo Length Front (at Belt)
|
2,053 |
2,053 |
2,455 |
2,455 |
2,455 |
3,178 |
Cargo Width Between Wheelhouse (SRW/DRW)
|
1,392 |
1,392 |
1,392 |
1,392 |
1,392 |
1,392 |
Cargo Height Maximum
|
1,376 |
1,796 |
1,376 |
1,796 |
1,965 |
1,965 |
|
|
|
|
|
|
|

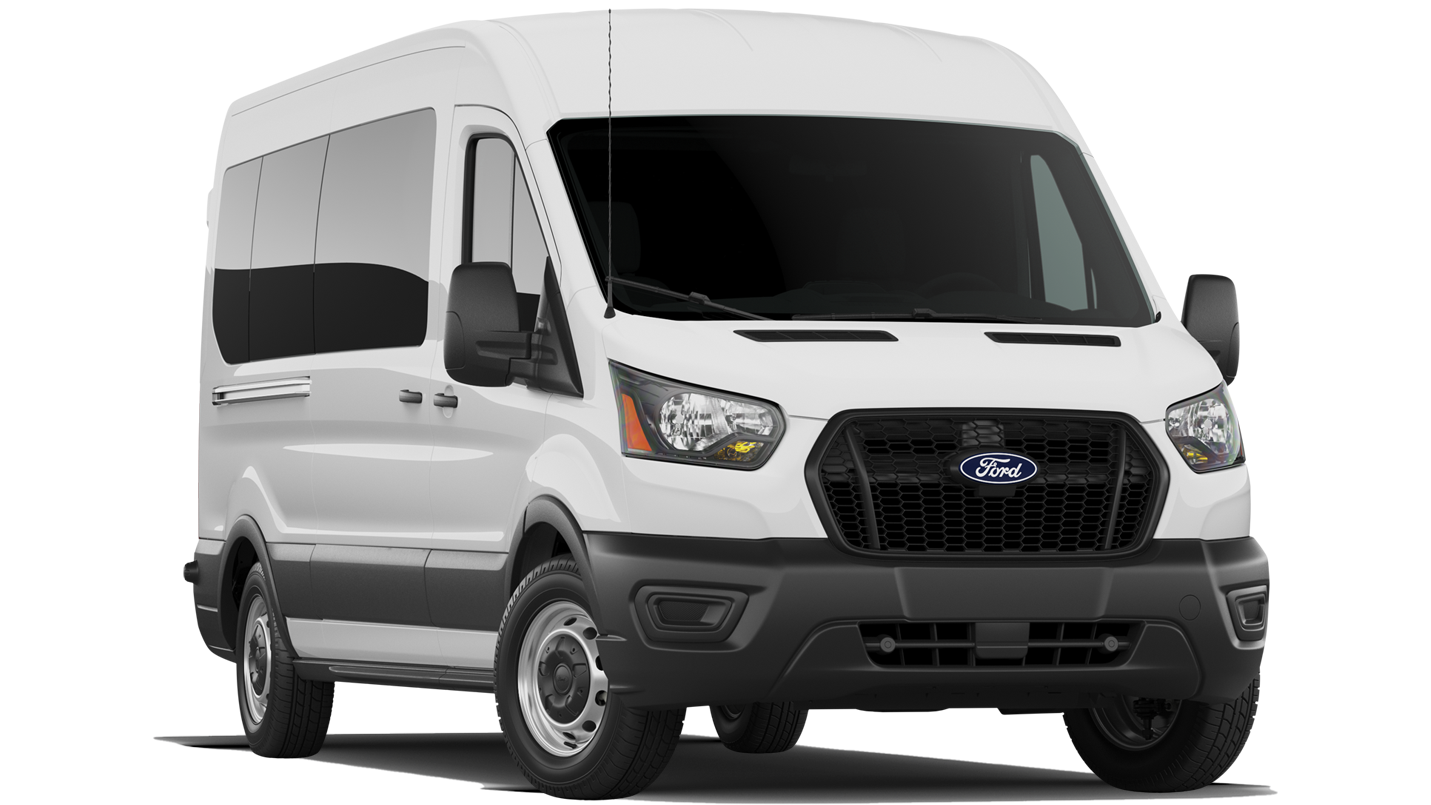

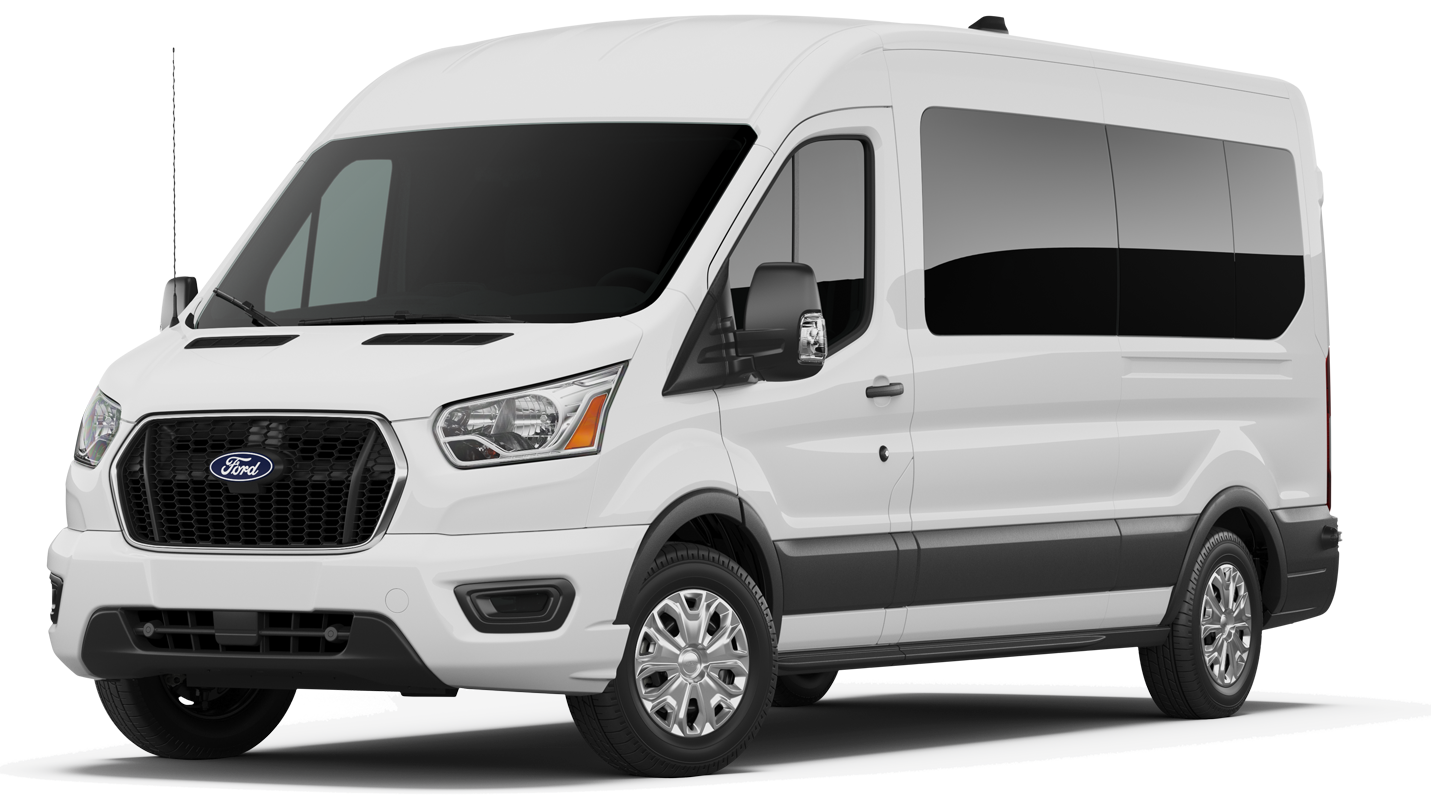

Transit Passenger Van
|
|
|
|
|
|
|
Length (Regular, Long, Long-EL)
|
Regular |
Regular |
Long |
Long |
Long |
Long-EL |
Roof (Low, Medium, High)
|
Low |
Medium |
Low |
Medium |
High |
High |
|
(mm)
|
(mm)
|
(mm)
|
(mm)
|
(mm)
|
(mm)
|
Head Room - First Row
|
1,036.3 |
1,320.8 |
1,036.3 |
1,320.8 |
1,437.6 |
1,437.6 |
Head Room - Second Row (where applicable)
|
1,043.9 |
1,417.3 |
1,043.9 |
1,417.3 |
1,656.1 |
1,656.1 |
Head Room - Third Row (where applicable)
|
1,031.2 |
1,417.3 |
1,031.2 |
1,417.3 |
1,656.1 |
1,656.1 |
Head Room - Fourth Row (where applicable)
|
983 |
1,417.3 |
983 |
1,417.3 |
1,656.1 |
1,656.1 |
Head Room - Fifth Row (where applicable)
|
- |
- |
967.7 |
1,336 |
1,557 |
1,557 |
Leg Room - First Row (Max.)
|
1,049 |
1,049 |
1,049 |
1,049 |
1,049 |
1,049 |
Leg Room - Second Row (where applicable)
|
856 |
856 |
856 |
856 |
856 |
856 |
Leg Room - Third Row (where applicable)
|
904.2 |
904.2 |
904.2 |
904.2 |
904.2 |
904.2 |
Leg Room - Fourth Row (where applicable)
|
904.2 |
904.2 |
904.2 |
904.2
|
904.2
|
904.2 |
Leg Room - Fifth Row (where applicable)
|
- |
- |
904.2 |
904.2 |
904.2 |
904.2 |
Hip Room - First Row
|
1,541.8 |
1,541.8 |
1,541.8 |
1,541.8 |
1,541.8 |
1,541.8 |
Hip Room - Second Row (where applicable)
|
1,767.8 |
1,767.8 |
1,767.8 |
1,767.8 |
1,767.8 |
1,767.8 |
Hip Room - Third Row (where applicable)
|
1,709.4 |
1,709.4 |
1,709.4 |
1,709.4 |
1,709.4 |
1,709.4 |
Hip Room - Fourth Row (where applicable)
|
1,727.2 |
1,727.2 |
1,727.2 |
1,727.2 |
1,727.2 |
1,727.2 |
Hip Room - Fifth Row (where applicable)
|
- |
- |
1,549.4 |
1,549.4 |
1,549.4 |
1,549.4 |
Shoulder Room - First Row
|
1,724.7 |
1,724.7 |
1,724.7 |
1,724.7 |
1,724.7 |
1,724.7 |
Shoulder Room - Second Row (where applicable)
|
1,813.6 |
1,813.6 |
1,813.6 |
1,813.6 |
1,813.6 |
1,813.6 |
Shoulder Room - Third Row (where applicable)
|
1,701.8 |
1,701.8 |
1,701.8 |
1,701.8 |
1,701.8 |
1,701.8 |
Shoulder Room - Fourth Row (where applicable)
|
1,722.1 |
1,722.1
|
1,722.1
|
1,722.1 |
1,722.1 |
1,722.1 |
Shoulder Room - Fifth Row (where applicable)
|
- |
- |
1,544.3 |
1,544.3 |
1,544.3 |
1,544.3 |
Cargo Length Front (at Floor)
|
3,149.6 |
3,149.6 |
3,599.2 |
3,599.2 |
3,599.2 |
4,323.1 |
Cargo Length Front (at Belt)
|
2,923.5 |
2,923.5 |
3,373.1 |
3,373.1
|
3,373.1 |
4,097 |
Cargo Width Between Wheelhouse (SRW/DRW)
|
1,364 |
1,364 |
1,364 |
1,364 |
1,364 |
1,364 |
Cargo Height Maximum
|
1,341 |
1,717 |
1,341.1 |
1,717 |
1,955.8 |
1,955.8 |
