2022 E-350 STRIPPED CHASSIS

Key Features

Standard seven point three litre V 8 engine

7.3L V8 Premium-rated Engine

The 7.3L V8 Premium-rated engine with TorqShift^® 6-speed automatic transmission, standard with the 2022 E-350/E-450 Stripped Chassis is rated at 350 horsepower¹¹ and 468 ft.-lbs of torque.¹¹

16 inch by 6 inch painted white steel wheels

Wheels - 16" x 6" - Steel - painted white

16" x 6" painted white steel wheels are standard on 2022 E-350 and E-450 Stripped Chassis. Dual rear wheel only.

Standard four wheel disc anti lock brakes

Brakes - 4-wheel disc anti-lock braking system (ABS)

The standard 4 wheel disc anti-lock brakes with Traction Control helps deliver smooth and confident stopping action. Offered with the Parcel Delivery Van Package is a brake wear indicator prep option that’s installed by the upfitter. It provides an audible warning when the pads need to be replaced.

Power and Handling

Handling

Standard

Wheelbase - 138"

Optional

Wheelbase - 158"
Wheelbase - 176"

Power

Standard

7.3L V8 Premium-rated Engine Open image overlay for 7.3L V8 Premium-rated Engine
Daytime running lights
Fuel Tank - 40-gallon (151 litres)
6-speed automatic overdrive with tow/haul mode
Battery — Heavy-Duty, 78-Amp Open image overlay for Battery — Heavy-Duty, 78-Amp

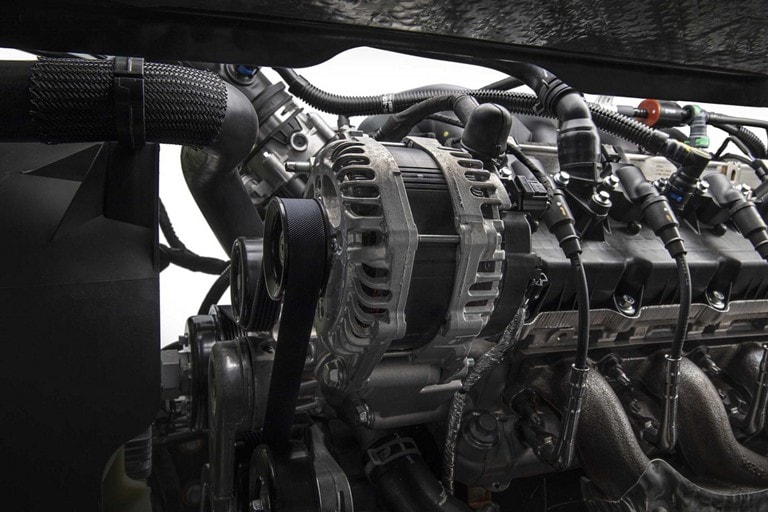

Alternator – 210-Amp Open image overlay for Alternator – 210-Amp

Optional

7.3L V8 Economy-rated Engine Open image overlay for 7.3L V8 Economy-rated Engine
Speed Limiting Option
Engine Block Heater
Fuel Tank - 55-gallon (208 litres)
Alternator – 240-Amp Open image overlay for Alternator – 240-Amp
Alternator – Dual 240/157-Amp
Flex Fuel Capability

Wheels & Tires

Standard

Tires - LT225/75Rx16E All Season
Wheels - 16" x 6" - Steel - painted white Open image overlay for Wheels - 16" x 6" - Steel - painted white

Optional

Tires - Spare tire and wheel (with restrictions)

Interior Features

Safety

Packages

Specifications

Chassis Specifications

Switch to Imperial Units Switch to Metric Units


	E-Series
Alternator	210-Amps, 240-Amps (O), Dual 240/157 Amps (O)
Axle (front)	Twin I-Beam
Axle (rear)	3,855 - 4,354 kg
Battery	78-Amps-hr, 750 CCA
Brakes	Power 4-wheel disc anti-lock, with traction control
Engine	7.3L 2V DEVCT NA PFI V8 Gas (Premium-Rated Engine)
Engine	7.3L 2V DVCT PFI NA V8 Gas (Economy-Rated Engine) (O)
Frame	Ladder-type, single channel, 36,000 psi steel
Fuel Tank	151-Litres / 208-Litres
GVWR	4,558 - 6,577 kg
Spring (front)	Twin I-beam IFS with computer-selected coil springs
Spring (rear)	Multileaf 2-stage leaf springs
Stabilizer Bars	Front & Rear (Optional)
Steering	Power
Transmission	6-speed automatic with overdrive and tow/haul mode
Wheelbases	3,505 mm, 4,013 mm, 4,470 mm
Over-all Lengths	5,911 mm 6,419 mm 6,419 mm
Payloads	2,313 - 4,073 kg
GCWR	5,896 - 9,979 kg


	E-Series
Alternator	210-Amps, 240-Amps (O), Dual 240/157 Amps (O)
Axle (front)	Twin I-Beam
Axle (rear)	8,500 - 9,600 lbs
Battery	78-Amps-hr, 750 CCA
Brakes	Power 4-wheel disc anti-lock, with traction control
Engine	7.3L 2V DEVCT NA PFI V8 Gas (Premium-Rated Engine)
Engine	7.3L 2V DVCT PFI NA V8 Gas (Economy-Rated Engine) (O)
Frame	Ladder-type, single channel, 36,000 psi steel
Fuel Tank	40 / 55 gallon
GVWR	10,500 - 14,500 lbs.
Spring (front)	Twin I-beam IFS with computer-selected coil springs
Spring (rear)	Multileaf 2-stage leaf springs
Stabilizer Bars	Front & Rear (Optional)
Steering	Power
Transmission	6-speed automatic with overdrive and tow/haul mode
Wheelbases	138" / 158" / 176"
Over-all Lengths	232.7" / 252.7" / 252.7"
Payloads	5,100 lbs. to 8,980 lbs
GCWR	13,000 to 22,000 lbs.

Engine Specifications

Switch to Imperial Units Switch to Metric Units


	E-Series	E-Series
Engine Type	7.3L 2V DEVCT NA PFI V8 Gas (Premium-Rated Engine)	7.3L 2V DVCT PFI NA V8 Gas (Economy-Rated Engine)
Engine Electronics	Bosch Multicore MG1CS019	Bosch Multicore MG1CS019
Displacement	445	445
Horsepower (SAE net @ RPM)	350 hp @ 3,900 rpm	300 hp @ 3,750 rpm
Torque (lb.-ft. @ RPM)	468 lb-ft @ 3,900 rpm	425 lb-ft @ 3,250 rpm
Compression Ratio	10.5:1	10.5:1
Bore x Stroke (in.)	4.21 x 3.98	4.21 x 3.98
Main Bearings	5 Main Bearings	5 Main Bearings
Valvetrain	OHV / 2 Valves Per Cylinder	OHV / 2 Valves Per Cylinder
Valve Lifters	Hydraulic Roller Lifters	Hydraulic Roller Lifters
Fuel Delivery	Port Fuel Injection	Port Fuel Injection
Electronic Throttle Control (ETC)	Std.	Std.
Engine Oil Cooler	Std.	Std.
Exhaust	Cast Stainless Steel (LH & RH)	Cast Stainless Steel (LH & RH)
Transmission Type	6-speed automatic overdrive with Tow/Haul Mode	6-speed automatic overdrive with Tow/Haul Mode
Engine Block Material	Cast Iron	Cast Iron
Cylinder Head Material	Aluminum	Aluminum


	E-Series	E-Series
Engine Type	7.3L 2V DEVCT NA PFI V8 Gas (Premium-Rated Engine)	7.3L 2V DVCT PFI NA V8 Gas (Economy-Rated Engine)
Engine Electronics	Bosch Multicore MG1CS019	Bosch Multicore MG1CS019
Displacement	445	445
Horsepower (SAE net @ RPM)	350 hp @ 3,900 rpm	300 hp @ 3,750 rpm
Torque (lb.-ft. @ RPM)	468 lb-ft @ 3,900 rpm	425 lb-ft @ 3,250 rpm
Compression Ratio	10.5:1	10.5:1
Bore x Stroke (in.)	4.21 x 3.98	4.21 x 3.98
Main Bearings	5 Main Bearings	5 Main Bearings
Valvetrain	OHV / 2 Valves Per Cylinder	OHV / 2 Valves Per Cylinder
Valve Lifters	Hydraulic Roller Lifters	Hydraulic Roller Lifters
Fuel Delivery	Port Fuel Injection	Port Fuel Injection
Electronic Throttle Control (ETC)	Std.	Std.
Engine Oil Cooler	Std.	Std.
Exhaust	Cast Stainless Steel (LH & RH)	Cast Stainless Steel (LH & RH)
Transmission Type	6-speed automatic overdrive with Tow/Haul Mode	6-speed automatic overdrive with Tow/Haul Mode
Engine Block Material	Cast Iron	Cast Iron
Cylinder Head Material	Aluminum	Aluminum

Highlights

Switch to Imperial Units Switch to Metric Units


Highlights	E-Series
Fuel Capacity	151 Litres, 208 Litres
Drive Type	4x2
Available Engines	7.3L V8 Premium Engine, 7.3L V8 Economy Engine, 7.3L 2V DEVCT NA PFI V8 GAS
Horsepower	350 (3,900) RPM, 300 (3,750) RPM, 350 (3,900) RPM
Torque	468 (3,900) RPM, 425 (3,250) RPM, 468 (3,900) RPM
Transmission	TorqShift^® 6-speed automatic overdrive with Tow/Haul Mode
Wheelbase	3,505 mm, 4,013 mm, 4,470 mm
Maximum Payload	2,313 - 4,073 kg
Wheels Available	16" x 7" Painted Gray Steel Wheels (SRW only ) 16" x 6" Painted White Steel Wheels (DRW only) 16" Sport Wheel Cover (SRW only)
Warranty	Basic: 3 years/60,000 km
	Corrosion: 5 years/unlimited distance
	Powertrain: 5 years/100,000 km / Safety Restraint: 5 years/100,000 km
	Emissions: Defect/performance: 36 months/60,000 km – for vehicles under 8,500 GVW
	Defect Performance: 5 years/80,000 km – for vehicles over 8,500 GVW
	Certain Emission Parts: 8 years/130,000 km – for vehicles under 8,500 GVW
	Hybrid Unique Components: 8 years/160,000 km
	Roadside Assistance: 5 years/100,000 km
	Diesel Engine Warranty: 5 years/160,000 km + Unique Powertrain Warranty 5 year/160,000 km


Highlights	E-Series
Fuel Capacity	40 Gallons, 55 Gallons
Drive Type	4x2
Available Engines	7.3L V8 Premium Engine, 7.3L V8 Economy Engine, 7.3L 2V DEVCT NA PFI V8 GAS
Horsepower	350 (3,900) RPM, 300 (3,750) RPM, 350 (3,900) RPM
Torque	468 (3,900) RPM, 425 (3,250) RPM, 468 (3,900) RPM
Transmission	TorqShift^® 6-speed automatic overdrive with Tow/Haul Mode
Wheelbase	138", 158", 176"
Maximum Payload	5,100 lbs. to 8,980 lbs
Wheels Available	16" x 7" Painted Gray Steel Wheels (SRW only ) 16" x 6" Painted White Steel Wheels (DRW only) 16" Sport Wheel Cover (SRW only)
Warranty	Basic: 3 years/36,000 miles
	Corrosion: 5 years/unlimited distance
	Powertrain: 5 years/60,000 miles / Safety Restraint: 5 years/60,000 miles
	Emissions: Defect/performance: 36 months/36,000 miles – for vehicles under 8,500 GVW
	Defect Performance: 5 years/50,000 miles– for vehicles over 8,500 GVW
	Certain Emission Parts: 8 years/ 80,000 miles – for vehicles under 8,500 GVW
	Hybrid Unique Components: 8 years/80,000 miles
	Roadside Assistance: 5 years/60,000 miles
	Diesel Engine Warranty: 5 years/100,000 miles + Unique Powertrain Warranty 5 year/100,000 miles
