2024 Escape^® ST-Line Elite

Build & Price

Standard

Seating for

Key Features

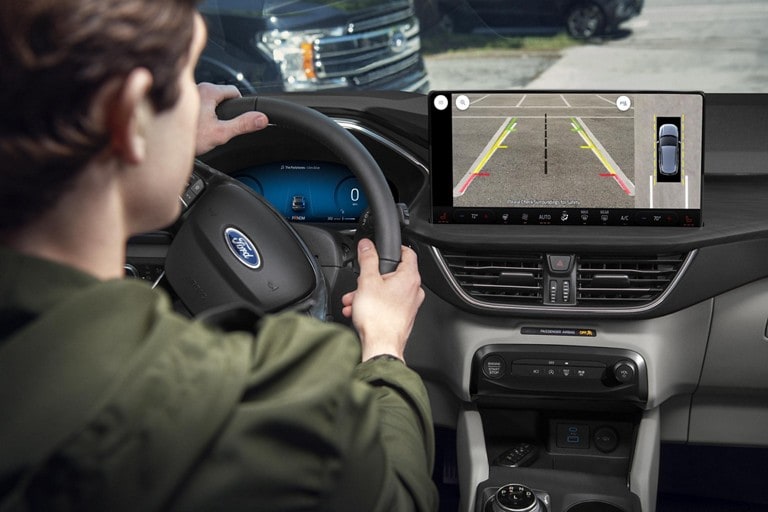

Interior of a 2024 Ford Escape® display screen

360-Degree Camera with Split View

Have a clear view of the environment around your Escape^®, with help from cameras on the front, sides and rear. You can even get a bird's-eye view.¹⁰*

U.S. model shown.

*Camera only operates at speeds under six miles per hour.

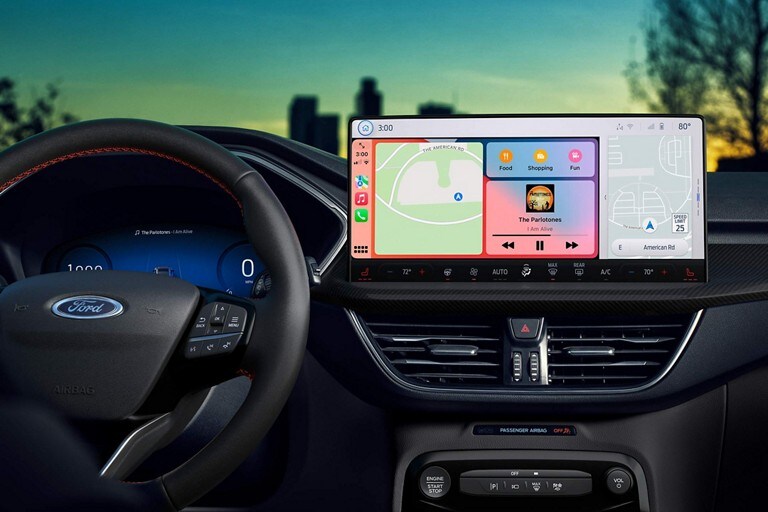

Interior shot of a 2024 Ford Escape® touchscreen with SYNC® 4 system operating

SYNC^® 4⁷⁶ with 13.2" LCD Capacitive Touchscreen

The 2024 Escape^® puts technology to work for you. Including the standard voice-activated SYNC^® 4⁷⁶ system with its Android Auto™¹¹⁰ and Apple CarPlay^®¹¹¹ compatible centre-stack touchscreen.

U.S. model shown.

2024 Ford Escape® Platinum in Atlas Blue towing a boat

2.0L EcoBoost^® Engine with Auto Start-Stop Technology

At any speed, the 2.0L EcoBoost^® engine’s twin-scroll turbocharger delivers consistently smooth power.

U.S. model shown.

Power and Handling

Handling

Standard

Electronic Traction Control
All-Wheel Drive with AWD Disconnect
Sport Handling Suspension/Tuning
Four-Wheel Disc Brakes with Anti-Lock Brake System (ABS)

Power

Standard

Curve Control
Electric Power-Assisted Steering (EPAS)
Post-Collision Braking
8-Speed Automatic Transmission
2.0L EcoBoost^® Engine with Auto Start-Stop Technology
Electric Parking Brake

Optional

eCVT Hybrid/Plug-in Hybrid Transmission
2.5L iVCT Atkinson-Cycle I-4 Hybrid engine
Engine Block Heater

Wheels & Tires

Standard

19" Machined-face Ebony-painted Aluminum Wheels
Mini Steel Spare Wheel

Optional

19” Ebony-painted Aluminum

Interior Features

Climate

Standard

Dual-Zone Electronic Automatic Temperature Control

Comfort and Convenience

Standard

Aluminum Foot Pedal
Intelligent Adaptive Cruise Control with Stop-and-Go, Lane Centering and Speed Sign Recognition
Pre-Collision Assist with Automatic Emergency Braking (AEB), Pedestrian Detection, Forward Collision Warning and Dynamic Brake Support
Lane-Keeping System (includes Lane-Keeping Assist, Lane-Keeping Alert and Driver Alert)
Evasive Steering Assist
Rear Parking Sensors
BLIS^® (Blind Spot Information System) with Rear Cross-Traffic Braking
Intelligent Access with Push-Button Start
Remote Start System
Auto-dimming rearview mirror
Autolamp (Automatic On/Off) with Headlamp Courtesy Delay
Power Windows with One-Touch-Up/Down Front and Rear
Carpeted floor mats, front and rear
Centre floor console with armrest
Rear Centre Fold-Down Armrest
Cup holders, 8 total
Driver's Side Footrest
Selectable Drive Modes
Sliding Sun Visor with Illuminated Vanity Mirrors (Driver and Front Passenger)
Coat hooks (2), Second Row
Grab handles, Front Passenger. Second Row-two
Wireless Charging Pad
Outside temperature display
Centre Console with Convenient Media Bin
Compass
Universal Garage Door Opener
Ice Blue^® Instrument Panel Cluster Lighting
Second Row Dome Light
Front Map Lights
Ambient lighting with Floor Lights
Message centre and trip computer
12.3'' Full Digital Instrument Cluster
Manual tilt and telescoping column steering wheel
Audio Steering Wheel Mounted Controls
Flat Bottom Sport Style Heated Steering Wheel with red stitching
Rotary gear shift dial
Powerpoints – (2) First Row- (1) USB-A and (1) USB-C
Powerpoints – (2) Rear – Smart Charging USB Outlets
Glove Box
Overhead Console with Sunglasses Storage

Optional

Active Park Assist 2.0
Floor Liners with Carpet Mats
Cargo Mat
Easy Access Cargo Shade
Head-Up Display
Panoramic Vista Roof^®

Entertainment Systems

Standard

Connected Navigation (with 1 year of connectivity)
SiriusXM^® with 360L
SYNC^® 4 with 13.2" LCD Capacitive Touchscreen
Wireless Apple CarPlay^® and Android Auto^™ Compatibility
FordPass^® Connect with 4G LTE Wi-Fi Hotspot
AM/FM stereo with 6 speakers

Optional

B&O^® Sound System by Bang & Olufsen^®, 10-Speakers including subwoofer

Seating

Standard

Driver's Seat and Driver/Front Passenger Sideview Mirrors with Memory
Partial Vinyl & Cloth sport contour bucket seats with red stitching
Heated Front Row Seats
6-way Power Passenger
10-way Power Driver Seat
Second-Row Sliding Seats, 60/40 Split-Fold Down

Optional

Leather-Trimmed Seats with Quilting Design and Mini-Perforation

Exterior Features

Appearance

Standard

Black Mesh Grille
LED Headlamps with coast-to-coast lightbar
Body-colour large single wing rear spoiler
Body-colour Sideview Mirror Caps
Mirrors, Sideview - Heated Glass
Black Upper Window Moulding with Black Beltline Moulding
Body-colour Door Handles
Non-Configurable Daytime Running Lamps (DRL)
LED Fog Lamps
LED Signature Lighting
Body-colour Lower Body Side Cladding
Power Liftgate
ST-Line Badging
Dual chrome exhaust tips
Unique Rear Skid Plate
Black Roof Rack Side Rails

Optional

Black Roof Rack Crossbars

Comfort & Convenience

Standard

Front Parking Sensors

Windows & Glass

Standard

Privacy Glass - 2nd Row Side and Liftgate
Rain-Sensing Wipers (front only)
Rear Fixed-intermittent/continuous wiper/washer

Safety

Standard

SOS Post-Crash Alert System^™
Tire Pressure Monitoring System (TPMS)
Head Restraints - two-way manual front and rear
Personal Safety System^™ with dual-stage driver and front-passenger airbags
Driver Knee Airbag
Front seat-mounted side-impact airbags
Safety Canopy^® System
Belt-Minder^® (Front and Second Row)
Front Row Height Adjustable Retractable Safety Belts with Three-Point on all five (5) Seating Positions
Lower Anchors and Tether Anchors for Children (LATCH)

Security

Standard

360-Degree Camera with Split View
Auto High-Beam Headlamps
Rear View Camera
AdvanceTrac^® with RSC^® (Roll Stability Control^™)
Torque Vectoring Control
Keyless-Keysets – Passive Keys, Two (2)
Cargo Tie-Down Hooks– two (2), Grocery – two (2)
Perimeter alarm
SecuriLock^® Passive Anti-Theft System

Packages

Specifications

Exterior

Exterior Dimensions
	mm
Wheelbase	2,710
Length	4,585
Vehicle height - without options	1,679
Vehicle width - including mirrors	2,174
Vehicle width - excluding mirrors	1,882
Vehicle width - mirrors folded	1,999
Front Track	1,585
Rear Track	1,570
Drive system	Front-Wheel Drive/All-Wheel Drive
Base Curb Weight	2.5L iVCT - FWD Hybrid - 1,596 kg
	2.5L i-VCT Plug-in Hybrid - 1,671.9 kg
	2.5L i-VCT Hybrid - 1,770.8 kg
	1.5L EcoBoost^® - FWD - 1,489 kg
	1.5L EcoBoost^® - AWD - 1,550.8 kg
	2.0L Twin-Scroll EcoBoost^® - AWD - 1,607 kg

Exterior Dimensions
	inches
Wheelbase	106.7
Length	180.1
Vehicle height - without options	66.1
Vehicle width - including mirrors	85.6
Vehicle width - excluding mirrors	74.1
Vehicle width - mirrors folded	78.7
Front Track	62.4
Rear Track	61.8
Drive system	Front-Wheel Drive/All-Wheel Drive
Base Curb Weight	2.5L iVCT - FWD Hybrid - ST-Line 3,519 lbs.
	2.5L i-VCT AWD Hybrid - ST-Line Select 3,686 lbs.
	2.5L i-VCT Plug-in Hybrid FWD - 3,904 lbs.
	1.5L EcoBoost^® - FWD - 3,283 lbs.
	1.5L EcoBoost^® - AWD - 3,419 lbs.
	2.0L Twin-Scroll EcoBoost^® - AWD- ST-Line Select - 3,543 lbs.

Interior

Interior Dimensions
	mm
Head room - First row	1,016
Head room - Second row	998
Leg room - First row (maximum)	1,077
Leg room - Second row	1,035
Leg room - Second row (Hybrid/Plug-in Models)	989
Hip room - First row	1,402
Hip room - Second row	1,354
Shoulder room - First row	1,463
Shoulder room - Second row	1,422

Interior Dimensions
	inches
Head room - First row	40
Head room - Second row	39.3
Leg room - First row (maximum)	42.4
Leg room - Second row	40.7
Leg room - Second row (Hybrid/Plug-in Models)	38.9
Hip room - First row	55.2
Hip room - Second row	53.3
Shoulder room - First row	57.6
Shoulder room - Second row	56

Capacities

Capacities: Passengers, Luggage, Fuel

Seating (max) capacity	5 passengers
Passenger volume (1.5L/2.0L)	2,945 L
Passenger volume (Hybrid/Plug-in Hybrid)	2,894 L
Cargo volume behind first row (1.5L/2.0L)	1,851.9 L
Cargo volume behind first row (Hybrid/Plug-in Hybrid)	1,721.6 L
Cargo volume behind second row (maximum) (1.5L/2.0L)	1,061.8 L
Cargo volume behind second row (maximum) (Hybrid/Plug-in Hybrid)	974 L
Fuel Capacity (1.5L EcoBoost^®) (FWD/AWD)	56/59.4 L
Fuel Capacity (2.0L EcoBoost^®)	59.4 L
Fuel Capacity (2.5L FHEV)	54.1 L
Fuel Capacity (2.5L PHEV)	42 L

Capacities: Passengers, Luggage, Fuel

Seating (max) capacity	5 passengers
Passenger volume (1.5L/2.0L)	104 cu. ft.
Passenger volume (Hybrid/Plug-in Hybrid)	102.2 cu. ft.
Cargo volume behind first row (1.5L/2.0L)	65.4 cu. ft.
Cargo volume behind first row (Hybrid/Plug-in Hybrid)	60.8 cu. ft.
Cargo volume behind second row (maximum) (1.5L/2.0L)	37.5 cu. ft.
Cargo volume behind second row (maximum) (Hybrid/Plug-in Hybrid)	34.4 cu.ft.
Fuel Capacity (1.5L EcoBoost^®) (FWD/AWD)	14.8/15.7 gallons
Fuel Capacity (2.0L EcoBoost^®)	15.7 gallons
Fuel Capacity (2.5L FHEV)	14.3 gallons
Fuel Capacity (2.5L PHEV)	11.1 gallons

Engine

Engine Specifications

Engine type	2.5L iVCT I-4 Hybrid	2.5L iVCT I-4 Plug-in Hybrid	1.5L EcoBoost^® I-4	2.0L Twin-Scroll EcoBoost^® I-4
Drive type	Front-Wheel Drive (FWD) or Intelligent AWD with AWD Disconnect	Front-Wheel Drive (FWD)	Front-Wheel Drive (FWD) or optional Intelligent AWD	Intelligent AWD
Exhaust	Dual-Chrome Exhaust Tips	Dual-Chrome Exhaust Tips	Dual-Chrome Exhaust Tips	Dual-Chrome Exhaust Tips
Transmission type	Electronic Continuous Variable Transmission	Electronic Continuous Variable Transmission	8-speed automatic	8-speed Automatic Transmission with SelectShift^® with Paddle shifters
Horsepower (SAE net @ rpm)	163 @ 6,250 *	163 @ 6,250 *	180 @ 6,000 rpm*	250 @ 5,500 (premium fuel)
Torque (lb.-ft.@ rpm)	155 @ 4500 *	155 @ 4500 *	199 @ 3,000 rpm*	280 @ 3,000 rpm*
Total System Horsepower (Hybrid and Plug-in Hybrid)	192*	210*	-	-
Compression ratio	13.0:1	13.0:1	11.0:1	10.8:1
Valve lifters	Direct acting mechanical bucket	Direct acting mechanical bucket	Direct acting mechanical bucket	Roller finger follower
Engine block material	Aluminum	Aluminum	Aluminum	Aluminum
Cylinder head material	Aluminum	Aluminum	Aluminum	Aluminum
Induction system	Naturally aspirated	Naturally aspirated	Turbocharged	Turbocharged
Fuel delivery	Sequential multi-port electronic fuel injection	Sequential multi-port electronic fuel injection	Direct injection	Direct injection and port fuel injection
*Calculated via combined performance of the engine and electric motor(s) with peak battery power. The calculations utilize SAE J1349^® engine results and Ford electric motor dyno testing. Your results may vary.

Engine Specifications

Engine type	2.5L iVCT I-4 Hybrid	2.5L iVCT I-4 Plug-in Hybrid	1.5L EcoBoost^® I-4	2.0L Twin-Scroll EcoBoost^® I-4
Drive type	Front-Wheel Drive (FWD) or Intelligent AWD with AWD Disconnect	Front-Wheel Drive (FWD)	Front-Wheel Drive (FWD) or optional Intelligent AWD	Intelligent AWD
Exhaust	Dual-Chrome Exhaust Tips	Dual-Chrome Exhaust Tips	Dual-Chrome Exhaust Tips	Dual-Chrome Exhaust Tips
Transmission type	Electronic Continuous Variable Transmission	Electronic Continuous Variable Transmission	8-speed automatic	8-speed Automatic Transmission with SelectShift^® with Paddle shifters
Horsepower (SAE net @ rpm)	163 @ 6,250 *	163 @ 6,250 *	180 @ 6,000 rpm*	250 @ 5,500 (premium fuel)
Torque (lb.-ft.@ rpm)	155 @ 4500 *	155 @ 4500 *	199 @ 3,000 rpm*	280 @ 3,000 rpm*
Total System Horsepower (Hybrid and Plug-in Hybrid)	192*	210*	-	-
Compression ratio	13.0:1	13.0:1	11.0:1	10.8:1
Valve lifters	Direct acting mechanical bucket	Direct acting mechanical bucket	Direct acting mechanical bucket	Roller finger follower
Engine block material	Aluminum	Aluminum	Aluminum	Aluminum
Cylinder head material	Aluminum	Aluminum	Aluminum	Aluminum
Induction system	Naturally aspirated	Naturally aspirated	Turbocharged	Turbocharged
Fuel delivery	Sequential multi-port electronic fuel injection	Sequential multi-port electronic fuel injection	Direct injection	Direct injection and port fuel injection
*Calculated via combined performance of the engine and electric motor(s) with peak battery power. The calculations utilize SAE J1349^® engine results and Ford electric motor dyno testing. Your results may vary.

Chassis

Chassis Specifications
Front suspension	Independent MacPherson strut-type with stabilizer bar, twin-tube hydraulic gas-pressurized shocks
Rear suspension	Independent double lateral link semi-trailing arms with stabilizer bar, progressive-rate springs and hydraulic gas-pressurized shocks
Traction assist	AdvanceTrac^® with RSC^® (Roll Stability Control^™)
Brakes	Power 4-wheel disc with Anti-Lock Brake System (ABS)
Steering	Electric power-assisted steering (EPAS)

Chassis Specifications
Front suspension	Independent MacPherson strut-type with stabilizer bar, twin-tube hydraulic gas-pressurized shocks
Rear suspension	Independent double lateral link semi-trailing arms with stabilizer bar, progressive-rate springs and hydraulic gas-pressurized shocks
Traction assist	AdvanceTrac^® with RSC^® (Roll Stability Control^™)
Brakes	Power 4-wheel disc with Anti-Lock Brake System (ABS)
Steering	Electric power-assisted steering (EPAS)

Towing

	kg
2.5L ATK I-4 - FWD	680
2.5L Plug-in Hybrid	680
1.5L EcoBoost^® - FWD	907
1.5L EcoBoost^® - AWD	907
2.0L Twin-Scroll EcoBoost^® I-4 - AWD	1,587

	lbs
2.5L ATK I-4 - FWD	1,500
2.5L Plug-in Hybrid	1,500
1.5L EcoBoost^® - FWD	2,000
1.5L EcoBoost^® - AWD	2,000
2.0L Twin-Scroll EcoBoost^® I-4 - AWD	3,500

Highlights

Fuel Consumption and Engine Highlights

Engine Type	2.5L iVCT I-4 Hybrid
Vehicle Highlights
Maximum Seating Capacity	5 passengers
Drive Type	Front Wheel Drive or available Intelligent All-Wheel-Drive (not available on Plug-in Hybrid)
Transmission	8-Speed Automatic (1.5 and 2.0L only)
Maximum Towing Capacity	1,587 kg with 2.0L Twin-Scroll EcoBoost^® I-4 and Class II Trailer Tow Package
Warranty	Basic: 3 years/60,000 km
	Powertrain: 5 years/100,000 km
	Safety Restraint System: 5 years/100,000 km
	Corrosion (Perforation Only): 5 years/unlimited distance
	Roadside Assistance: 5 years/100,000 km

Fuel Consumption and Engine Highlights

Engine Type	2.5L iVCT I-4 Hybrid
Vehicle Highlights
Maximum Seating Capacity	5 passengers
Drive Type	Front Wheel Drive or available Intelligent All-Wheel-Drive (not available on Plug-in Hybrid)
Transmission	8-Speed Automatic (1.5 and 2.0L only)
Maximum Towing Capacity	3,500 lbs. with 2.0L Twin-Scroll EcoBoost^® - I-4 and Class II Trailer Tow Package
Warranty	Basic: 3 years/36,000 miles
	Powertrain: 5 years/60,000 miles
	Safety Restraint System: 5 years/60,000 miles
	Corrosion (Perforation Only): 5 years/Unlimited miles
	Roadside Assistance Program: 5 years/60,000 miles

Ford Iconic Vehicles

SUVs & Cars

Capable, convenient and versatile

Trucks & Vans

Hauling, towing, and off-roading

Electrified

What does going electric mean?

Performance Vehicles

Commercial Vehicles

Future Vehicles

Catch up with all the latest news

2024 Escape® ST-Line Elite

Key Features

360-Degree Camera with Split View

SYNC® 476 with 13.2" LCD Capacitive Touchscreen

2.0L EcoBoost® Engine with Auto Start-Stop Technology

Power and Handling

Handling

Standard

Power

Standard

Optional

Wheels & Tires

Standard

Optional

Interior Features

Climate

Standard

Comfort and Convenience

Standard

Optional

Entertainment Systems

Standard

Optional

Seating

Standard

Optional

Exterior Features

Appearance

Standard

Optional

Comfort & Convenience

Standard

Windows & Glass

Standard

Safety

Safety

Standard

Security

Standard

Packages

Packages

Standard

Optional

Standard Features

Standard

Optional

Specifications

Exterior

Interior

Capacities

Engine

Chassis

Towing

Highlights

2024 Escape^® ST-Line Elite

SYNC^® 4⁷⁶ with 13.2" LCD Capacitive Touchscreen

2.0L EcoBoost^® Engine with Auto Start-Stop Technology
