Power
Standard
- 3.5L EcoBoost® Engine
- 10-Speed Automatic Transmission with SelectShift® Capability
- Engine Block Heater
- Hill Start Assist™ and Hill Descent Control™10
- Fuel Tank: 105.2 litres (27.8 gallons)
2023 Expedition King Ranch® MAX
U.S. Model Shown.
Standard
14.7/10.6
Est. City/Hwy - L/100km
2
Seating for
7
Seating for
Key Features
Mesa Del Rio Leather-Wrapped Steering Wheel with Kingsville Stitching

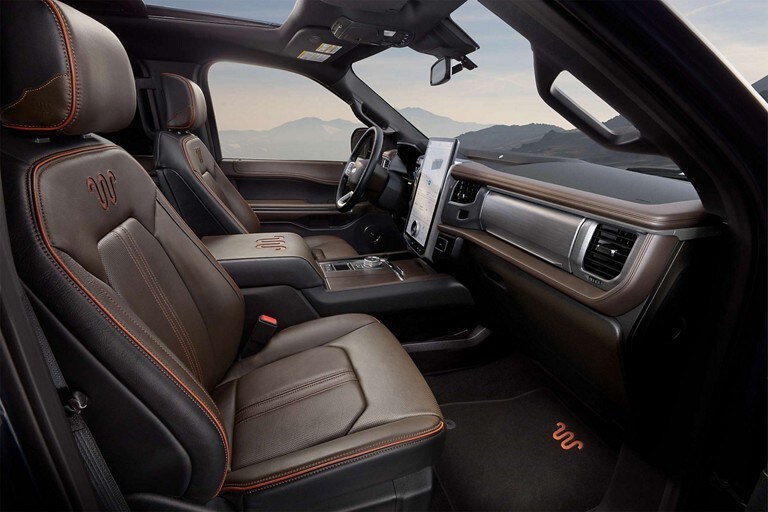

The King Ranch® Edition features full-leather Del Rio seating surfaces on 10-way power front Captain’s Chairs with heat and ventilation.
King Ranch is a registered trademark of King Ranch, Inc.

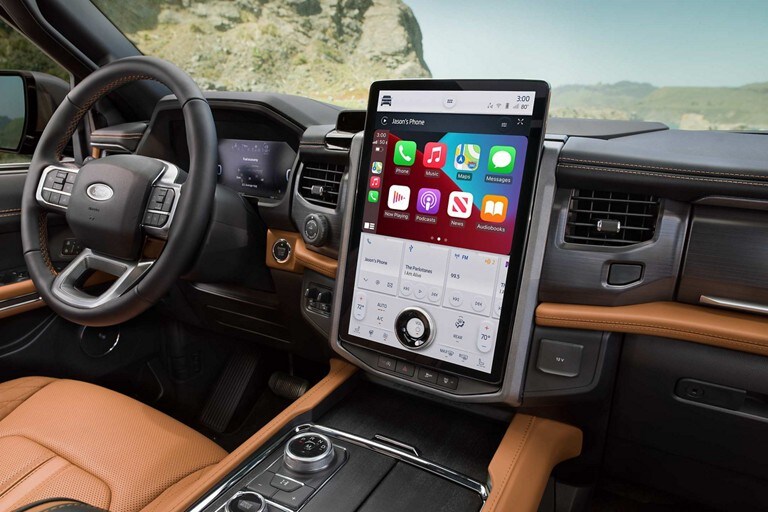

SYNC® 4A - 15.5" LCD Capacitive Touchscreen with Swipe Capability
SYNC® 4A76 with available 15.5" LCD Touchscreen offers swipe capability. SYNC® 4A comes standard on King Ranch® and Platinum models and is available on Timberline and Limited models. SYNC® 4A features wireless phone connection, Cloud Connected, SYNC AppLink™ w/ App Catalog Compatibility, 911 Assist®5, Wireless Apple CarPlay™ & Android Auto® Compatibility110, Digital Owner’s Manual and Conversational Voice Command Recognition.
...less
King Ranch is a registered trademark of King Ranch, Inc.
360-degree Camera with Split View10
The 360-Degree Camera10 with Split View And Front/Rear Washer is available on XLT, Timberline® and Limited. Standard on Platinum and King Ranch® models.
...less
King Ranch is a registered trademark of King Ranch, Inc.
Power and Handling
Handling
Standard
- Intelligent 4WD With Terrain Management System™ Open image overlay for Intelligent 4WD With Terrain Management System™
- Fully boxed frame
- Suspension-Multilink Independent Rear
- Electronic Power-Assisted Steering (EPAS)
- Front and rear stabilizer bars
- Non-limited slip 3.31 rear axle
- Trailer Sway Control
Optional
- Pro Trailer Backup Assist™ 2.09 (Only Available as part of the Heavy Duty Trailer Tow Package) Open image overlay for Pro Trailer Backup Assist™ 2.09 (Only Available as part of the Heavy Duty Trailer Tow Package)
- Integrated Trailer Brake Control (Only Available as part of the Heavy Duty Trailer Tow Package) Open image overlay for Integrated Trailer Brake Control (Only Available as part of the Heavy Duty Trailer Tow Package)
- Two-Speed Automatic 4WD with Neutral Towing Capability (Only available as part of Heavy Duty Trailer Tow Package)
- ControlTrac with eLSD (3.73 Electronic Limited-Slip Differential)
- Continuously Controlled Damping (CCD) System Open image overlay for Continuously Controlled Damping (CCD) System
Wheels & Tires
Standard
- Underbody-mounted full-size spare tire
- P285/45R22 all-season BSW tire
Interior Features
Seating
Standard
- Front Perforated Leather-Trimmed Seats Open image overlay for Front Perforated Leather-Trimmed Seats
- 10-way Power Driver's and 8-way Power Passenger Seats with Power Recline, 2-way Power Lumbar, and Driver Memory feature
- Heated and Ventilated Front Seats Open image overlay for Heated and Ventilated Front Seats
- 2nd Row Tip-and-Slide Captain's Chairs
- 3rd Row 60/40 PowerFold® Seat Open image overlay for 3rd Row 60/40 PowerFold® Seat
- Heated second-row seats
Optional
- 2nd Row Climate Control / 2nd Row Heated Seats Removal - Required option
Climate
Standard
- Tri-zone Electronic Automatic Temperature Control (TEATC)
- Rear auxiliary climate control
Entertainment Systems
Standard
- Voice-Activated Navigation System
- SYNC® 4A - 15.5" LCD Capacitive Touchscreen with Swipe Capability Open image overlay for SYNC® 4A - 15.5" LCD Capacitive Touchscreen with Swipe Capability
- FordPass™112 Connect 4G LTE Wi-Fi Hotspot124 Open image overlay for FordPass™112 Connect 4G LTE Wi-Fi Hotspot124
- Smart-Charging Multimedia USB Ports in Media Hub-Two (2) (type A) Open image overlay for Smart-Charging Multimedia USB Ports in Media Hub-Two (2) (type A)
- Smart-Charging Multimedia USB Ports, Second Row-Two (2) (one type A one type C)
- Smart-Charging USB Ports, Third Row-Two (2) (type A)
- Wireless Charging Pad51 Open image overlay for Wireless Charging Pad51
- B&O™ Sound System by Bang & Olufsen
Optional
- Dual-Headrest Rear Seat Entertainment System Open image overlay for Dual-Headrest Rear Seat Entertainment System
Comfort and Convenience
Standard
- Overhead console with sunglass holder
- Large front floor console
- Beverage Holders – Front Row, Six (6), Second Row, Six (6), Third Row, Three (3)
- Door-Locks-Power w/Autolock
- Power windows with one-touch-up/down front
- Power windows Second-Row with one-touch-up/down
- Rear Window Defroster and Washer
- Carpeted floor
- Carpeted first- and second-row floor mats
- Cargo Management System Open image overlay for Cargo Management System
- Cargo Protector
- Lighting-Illuminated Entry with Courtesy Lamp Delay
- Delayed Accessory Lighting
- B&O®94 Unleashed Sound System by Bang & Olufsen,® 22 Speakers including Subwoofer Open image overlay for B&O®94 Unleashed Sound System by Bang & Olufsen,® 22 Speakers including Subwoofer
- Rear Cargo Area Light
- Second and Third Row Dome Lights
- Reading Lamps-1st Row
- Power-Adjustable Pedals with Memory
- 15.5" LCD Capacitive Touchscreen with Swipe Capability
- Remote Start System
- Rear Parking Sensors
- Front Parking Sensors
- Powerpoints (12V) - Four (4)
- 110V/150W AC Power Outlet Open image overlay for 110V/150W AC Power Outlet
- Rotary Gear Shift Dial Open image overlay for Rotary Gear Shift Dial
- Woodgrain appliqués
- Leather-wrapped power tilt/telescoping steering wheel with audio controls and Memory
- Mesa Del Rio Leather-Wrapped Steering Wheel with Kingsville Stitching Open image overlay for Mesa Del Rio Leather-Wrapped Steering Wheel with Kingsville Stitching
- Heated Steering Wheel
- Cruise control
- Intelligent Adaptive Cruise Control with Stop-and-Go, Lane Centring and Speed Sign Recognition10,174 Open image overlay for Intelligent Adaptive Cruise Control with Stop-and-Go, Lane Centring and Speed Sign Recognition10,174
- Zone Lighting Open image overlay for Zone Lighting
- Universal garage door opener
- Sun Visors with Dual Illuminated Mirrors
- Passenger assist handles
- Coat Hooks-(2) 2nd Row, (2) 3rd Row
- Grab Handles-(2) 1st Row, (2) 2nd Row and Liftgate
- Front and Rear Brushed Aluminum Scuff Plates with King Ranch logo
- Wipers-Intermittent Front and Rear
- Rain-sensing front wipers
- Liftgate with flip-up glass
- Power Liftgate
- MyKey®
- Push-Button Start
- Ambient Lighting
- Centre Console – Armrest and Covered Media Bin Open image overlay for Centre Console – Armrest and Covered Media Bin
Optional
- Floor Liners, First and Second Row (Without Carpet Mats) Open image overlay for Floor Liners, First and Second Row (Without Carpet Mats)
- Advanced Cargo Management System
- Cargo Mat-Reversible
Exterior Features
Appearance
Standard
- 22" 6-Spoke Polished Aluminum with King Ranch® Center Cap Wheels
- Bumpers-Body-Colour
- Bumpers-Body-Colour Painted Upper with Stone Grey Painted Lower with Stone Grey Painted Bumper Skid Plate
- Door Handles-Body-Colour with Chrome Insert
- Fog Lamps-LED
- Headlamps-LED Open image overlay for Headlamps-LED
- Taillamps-LED
- Auto Highbeam Headlamps
- Daytime Running Lamps
- Roof Rack-Bright Side Rails
- Running Boards, Power Deployable – Stone Grey
- Easy Fuel® Capless Fuel Filler
- Grille - Twin Spar, – Stone Grey Mesh with Red Chrome Chicklets
- Stone Grey Caps
- Mirrors, Sideview-Power-Folding with Autofold, Power and Heated Glass, Turn Signal Indicators, Security Approach Lamps, Driver's/Passenger Side Memory, and Driver's side Auto-Dimming
- BLIS® (Blind Spot Information System) with Cross-Traffic Alert10 Open image overlay for BLIS® (Blind Spot Information System) with Cross-Traffic Alert10
- Integrated Class IV Trailer hitch receiver
- Wiring Harness w/4&7 pin connector
Optional
- Front Tow Hooks - Available with Heavy Duty Trailer Tow Package Open image overlay for Front Tow Hooks - Available with Heavy Duty Trailer Tow Package
- Black luggage rack crossbars
Windows & Glass
Standard
- Glass-Solar-Tinted Front/Privacy Tinted Rear
- Panoramic Vista Roof® (Power Open/Close with Power Shade) Open image overlay for Panoramic Vista Roof® (Power Open/Close with Power Shade)
Safety
Safety
Standard
- AdvanceTrac® with Roll Stability Control™ (RSC™)19 Open image overlay for AdvanceTrac® with Roll Stability Control™ (RSC™)19
- Pre-Collision Assist® with Automatic Emergency Braking118, Forward Collision Warning and Dynamic Brake Support Open image overlay for Pre-Collision Assist® with Automatic Emergency Braking118, Forward Collision Warning and Dynamic Brake Support
- Pre-Collision Assist with Autonomous Emergency Braking with Pedestrian Detection, Forward Collision Warning, Dynamic Brake Support and Reverse Brake Assist
- Dual-stage front airbags
- Three-point safety belts at all seating positions
- Seat belt pre-tensioners, Load Limiting retractors, dual-stage front airbags, driver seat position sensing & crash severity sensing
- Safety Canopy® system
- Side-Impact Airbags
- Child Safety Locks-Rear
- LATCH (Lower Anchors & Tethers for Children)
- Brakes-4-Wheel Disc (ABS)
- Tire-Pressure Monitoring System (TPMS)
- SOS Post-Crash Alert System™
Security
Standard
- Security-SecuriLock® Passive Anti-Theft System (PATS)
- Remote keyless entry system
- Perimeter Anti-theft Alarm
- SecuriCode™ keyless entry keypad
- Rear View Camera
- 360-Degree Camera With Split View10 Open image overlay for 360-Degree Camera With Split View10
Packages
Standard Features
Standard
- Equipment Group 400A
Free Standing Packages & Options
Standard
- Advanced Security Package
- Ford Co-Pilot360™ Assist 2.0
Optional
- Heavy-Duty Trailer Tow package
Specifications
Exterior
| Exterior Dimensions | ||
|---|---|---|
| Expedition 4x4 [mm] | Expedition MAX 4x4 [mm] | |
| Wheelbase | 3,112 | 3,342 |
| Length | 5,333 | 5,635 |
| Height / Timberline | 1,941 / 1,972 | 1,936 |
| Width - without Mirrors | 2,030 | 2,030 |
| Width - with Mirrors | 2,373 | 2,373 |
| Width - with Mirrors Folded | 2,124 | 2,124 |
| Front Track / Timberline | 1,716 / 1,726 | 1,716 |
| Rear Track | 1,708 / 1,718 | 1,708 |
| Front Overhang / Timberline | 971 / 991 | 971 |
| Rear Overhang | 1,251 | 1,322 |
| Approach Angle (degrees)/Timberline | 23.3/28.5 | 23.7 |
| Departure Angle (degrees) /Timberline | 21.9/23.7 | 21.3 |
| Ramp Breakover Angle (degrees) /Timberline | 21.4 | 20.1 |
| Minimum Running Ground Clearance /Timberline | 248/269 | 246 |
| Exterior Dimensions | ||
|---|---|---|
| Expedition 4x4 [in.] | Expedition MAX 4x4 [in.] | |
| Wheelbase | 122.5 | 131.6 |
| Length | 210.0 | 221.9 |
| Height / Timberline | 76.4 / 77.6 | 76.2 |
| Width - without Mirrors | 79.9 | 79.9 |
| Width - with Mirrors | 93.4 | 93.4 |
| Width - with Mirrors Folded | 83.6 | 83.6 |
| Front Track / Timberline | 67.6 / 68.0 | 67.6 |
| Rear Track | 67.2 / 67.6 | 67.2 |
| Front Overhang / Timberline | 38.2 / 39.0 | 38.2 |
| Rear Overhang | 49.3 | 52.0 |
| Approach Angle (degrees)/Timberline | 23.3/28.5 | 23.7 |
| Departure Angle (degrees) /Timberline | 21.9/23.7 | 21.3 |
| Ramp Breakover Angle (degrees) /Timberline | 21.4/21.9 | 20.1 |
| Minimum Running Ground Clearance /Timberline | 9.8 / 10.6 | 9.7 |
Interior
| Interior Dimensions | ||
|---|---|---|
| Expedition 4x4 [mm] | Expedition MAX 4x4 [mm] | |
| Head Room - 1st Row (Max.) | 1,068 | 1,068 |
| Head Room - 2nd Row | 1,015 | 1,015 |
| Head Room - 3rd Row | 948 | 950 |
| Leg Room - 1st Row (Max.) | 1,115 | 1,115 |
| Leg Room - 2nd Row | 1,053 | 1,053 |
| Leg Room - Second Row (Seat Full Rearward) [mm] | 1,081 | 1,081 |
| Leg Room - 3rd Row | 917 | 917 |
| Leg Room - Third Row (Second Row Seat Full Forward) [mm] | 1,038 | 1,038 |
| Hip Room - 1st Row | 1,580 | 1,580 |
| Hip Room - 2nd Row | 1,591 | 1,591 |
| Hip Room - 3rd Row | 1,305 | 1,305 |
| Shoulder Room - 1st Row | 1,648 | 1,648 |
| Shoulder Room - 2nd Row | 1,647 | 1,647 |
| Shoulder Room - 3rd Row | 1,630 | 1,630 |
| Interior Dimensions | ||
|---|---|---|
| Expedition 4x4 [in.] | Expedition MAX 4x4 [in.] | |
| Head Room - 1st Row (Max.) | 42.0 | 42.0 |
| Head Room - 2nd Row | 40.0 | 40.0 |
| Head Room - 3rd Row | 37.3 | 37.4 |
| Leg Room - 1st Row (Max.) | 43.9 | 43.9 |
| Leg Room - 2nd Row | 41.5 | 41.5 |
| Leg Room - Second Row (Seat Full Rearward) [mm] | 42.6 | 42.6 |
| Leg Room - 3rd Row | 36.1 | 36.1 |
| Leg Room - Third Row (Second Row Seat Full Forward) [mm] | 40.9 | 40.9 |
| Hip Room - 1st Row | 62.2 | 62.2 |
| Hip Room - 2nd Row | 62.6 | 62.6 |
| Hip Room - 3rd Row | 51.4 | 51.4 |
| Shoulder Room - 1st Row | 64.9 | 64.9 |
| Shoulder Room - 2nd Row | 64.8 | 64.8 |
| Shoulder Room - 3rd Row | 64.2 | 64.3 |
Capacities
| Capacities: Interior Volume | ||
|---|---|---|
| Expedition 4x4 [L] | Expedition MAX 4x4 [L] | |
| Passenger Volume | 4,867.9 | 4,871.7 |
| Cargo Volume Behind 1st Row | 2,961.7 | 3,439.2 |
| Cargo Volume Behind 2nd Row | 1,627.0 | 2,076.8 |
| Cargo Volume Behind Second Row - Second Row Seat Full Forward | 1,800.0 | 2,253.8 |
| Cargo Volume Behind 3rd Row | 546.4 | 972.2 |
| Cargo Volume Behind Third Row - Third Row Seat Full Upright | 592.8 | 1,018.9 |
| Capacities: Fuel | ||
| Expedition 4x4 [L] | Expedition MAX 4x4 [L] | |
| Fuel Capacity | 87.8 litres | 105.2 litres |
| Capacities: Weight | ||
| Expedition 4x4 [kg.] | Expedition MAX 4x4 [kg.] | |
| Estimated Base Curb Weight | 2,550.6 | 2,628.1 |
| Seating: | ||
| Maximum Seating Capacity | 8 | 8 |
| Capacities: Interior Volume | ||
|---|---|---|
| Expedition 4x4 [cu.ft.] | Expedition MAX 4x4 [cu.ft.] | |
| Passenger Volume | 171.9 | 172.0 |
| Cargo Volume Behind 1st Row | 104.6 | 121.5 |
| Cargo Volume Behind 2nd Row | 57.5 | 73.3 |
| Cargo Volume Behind Second Row - Second Row Seat Full Forward | 63.6 | 79.6 |
| Cargo Volume Behind 3rd Row | 19.3 | 34.3 |
| Cargo Volume Behind Third Row - Third Row Seat Full Upright | 20.9 | 36.0 |
| Capacities: Fuel | ||
| Expedition 4x4 [gallons] | Expedition MAX 4x4 [gallons] | |
| Fuel Capacity | 23.2 gallons | 27.8 gallons |
| Capacities: Weight | ||
| Expedition 4x4 [lbs.] | Expedition MAX 4x4 [lbs.] | |
| Estimated Base Curb Weight | 5,623 | 5,794 |
| Seating: | ||
| Maximum Seating Capacity | 8 | 8 |
Engine
| Engine Specifications | ||||||
|---|---|---|---|---|---|---|
| Expedition 4x4 (XLT, Limited) | Expedition 4x4 (Platinum) | Expedition MAX 4x4 (Limited) | Expedition MAX 4x4 (Platinum) | Expedition MAX 4x4 (King Ranch®) | Expedition 4x4 (Timberline, Limited Stealth Performance) | |
| Drive type | Control Trac® 4-wheel drive | Control Trac® 4-wheel drive | Control Trac® 4-wheel drive | Control Trac® 4-wheel drive | Control Trac® 4-wheel drive | Control Trac® 4-wheel drive |
| Engine type | 3.5L EcoBoost® V6 | 3.5L EcoBoost® V6 | 3.5L EcoBoost® V6 | 3.5L EcoBoost® V6 | 3.5L EcoBoost® V6 | 3.5L EcoBoost® V6 |
| Transmission | 10-speed automatic with SelectShift® | 10-speed automatic with SelectShift® | 10-speed automatic with SelectShift® | 10-speed automatic with SelectShift® | 10-speed automatic with SelectShift® | 10-speed automatic with SelectShift® |
| Final drive ratio | 3.31 (non-limited slip standard); 3.73 (limited slip optional) | 3.31 (non-limited slip standard); 3.73 (limited slip optional) | 3.73 (limited slip available) | 3.73 (limited slip available) | 3.73 (limited slip available) | 3.73 (limited slip available) |
| Horsepower (SAE net @rpm) | 380 @ 5,000 | 400 @ 5,000 | 400 @ 5,000 | 400 @ 5,000 | 400 @ 5,000 | 440 @ 5,000 |
| Torque (lb.-ft. @rpm) | 470 @ 2,250 | 480 @ 2,250 | 480 @ 2,250 | 480 @ 2,250 | 480 @ 2,250 | 510 @ 2,250 |
| Compression ratio | 10.5:1 | 10.5:1 | 10.5:1 | 10.5:1 | 10.5:1 | 10.5:1 |
| Valvetrain | Twin independent Variable Camshaft Timing (Ti-VCT) | Twin independent Variable Camshaft Timing (Ti-VCT) | Twin independent Variable Camshaft Timing (Ti-VCT) | Twin independent Variable Camshaft Timing (Ti-VCT) | Twin independent Variable Camshaft Timing (Ti-VCT) | Twin independent Variable Camshaft Timing (Ti-VCT) |
| Fuel delivery | Gasoline Direct-injection | Gasoline Direct-injection | Gasoline Direct-injection | Gasoline Direct-injection | Gasoline Direct-injection | Gasoline Direct-injection |
| Technology | Twin Turbochargers | Twin Turbochargers | Twin Turbochargers | Twin Turbochargers | Twin Turbochargers | Twin Turbochargers |
| Exhaust | Single, stainless steel | Single, stainless steel | Single, stainless steel | Single, stainless steel | Single, stainless steel | Single, stainless steel |
| Engine block type | Die-cast aluminum | Die-cast aluminum | Die-cast aluminum | Die-cast aluminum | Die-cast aluminum | Die-cast aluminum |
| Cylinder head material | Aluminum alloy | Aluminum alloy | Aluminum alloy | Aluminum alloy | Aluminum alloy | Aluminum alloy |
| Fuel Consumption | ||||||
| 4WD (with stop-start) | 14.7 L/100km city, 10.6 L/100km hwy, 12.9 L/100km combined* | 14.7 L/100km city, 10.6 L/100km hwy, 12.9 L/100km combined* | 14.7 L/100km city, 10.6 L/100km hwy, 12.9 L/100km combined* | 14.7 L/100km city, 10.6 L/100km hwy, 12.9 L/100km combined* | 14.7 L/100km city, 10.6 L/100km hwy, 12.9 L/100km combined* | 14.5 L/100km city, 12.3 L/100km hwy, 13.5 L/100km combined* |
| 4WD (without stop-start) | 15.4 L/100km city, 11.2 L/100km hwy, 13.5 L/100km combined* | 15.4 L/100km city, 11.2 L/100km hwy, 13.5 L/100km combined* | 15.4 L/100km city, 11.2 L/100km hwy, 13.5 L/100km combined* | 15.4 L/100km city, 11.2 L/100km hwy, 13.5 L/100km combined* | 15.4 L/100km city, 11.2 L/100km hwy, 13.5 L/100km combined* | 15.2 L/100km city, 12.3 L/100km hwy, 13.9 L/100km combined* |
| *Fuel consumption ratings based on Government of Canada approved test methods. Actual fuel consumption will vary. |
| Engine Specifications | ||||||
|---|---|---|---|---|---|---|
| Expedition 4x4 (XLT, Limited) | Expedition 4x4 (Platinum) | Expedition MAX 4x4 (Limited) | Expedition MAX 4x4 (Platinum) | Expedition MAX 4x4 (King Ranch®) | Expedition 4x4 (Timberline, Limited Stealth Performance) | |
| Drive type | Control Trac® 4-wheel drive | Control Trac® 4-wheel drive | Control Trac® 4-wheel drive | Control Trac® 4-wheel drive | Control Trac® 4-wheel drive | Control Trac® 4-wheel drive |
| Engine type | 3.5L EcoBoost® V6 | 3.5L EcoBoost® V6 | 3.5L EcoBoost® V6 | 3.5L EcoBoost® V6 | 3.5L EcoBoost® V6 | 3.5L EcoBoost® V6 |
| Transmission | 10-speed automatic with SelectShift® | 10-speed automatic with SelectShift® | 10-speed automatic with SelectShift® | 10-speed automatic with SelectShift® | 10-speed automatic with SelectShift® | 10-speed automatic with SelectShift® |
| Final drive ratio | 3.31 (non-limited slip standard); 3.73 (limited slip optional) | 3.31 (non-limited slip standard); 3.73 (limited slip optional) | 3.73 (limited slip available) | 3.73 (limited slip available) | 3.73 (limited slip available) | 3.73 (limited slip available) |
| Horsepower (SAE net @rpm) | 380@ 5,000 | 400 @ 5,000 | 400 @ 5,000 | 400 @ 5,000 | 400 @ 5,000 | 440 @ 5,000 |
| Torque (lb.-ft. @rpm) | 470 @ 2,250 | 480 @ 2,250 | 480 @ 2,250 | 480 @ 2,250 | 480 @ 2,250 | 510 @ 2,250 |
| Compression ratio | 10.5:1 | 10.5:1 | 10.5:1 | 10.5:1 | 10.5:1 | 10.5:1 |
| Valvetrain | Twin independent Variable Camshaft Timing (Ti-VCT) | Twin independent Variable Camshaft Timing (Ti-VCT) | Twin independent Variable Camshaft Timing (Ti-VCT) | Twin independent Variable Camshaft Timing (Ti-VCT) | Twin independent Variable Camshaft Timing (Ti-VCT) | Twin independent Variable Camshaft Timing (Ti-VCT) |
| Fuel delivery | Gasoline Direct-injection | Gasoline Direct-injection | Gasoline Direct-injection | Gasoline Direct-injection | Gasoline Direct-injection | Gasoline Direct-injection |
| Technology | Twin Turbochargers | Twin Turbochargers | Twin Turbochargers | Twin Turbochargers | Twin Turbochargers | Twin Turbochargers |
| Exhaust | Single, stainless steel | Single, stainless steel | Single, stainless steel | Single, stainless steel | Single, stainless steel | Single, stainless steel |
| Engine block type | Die-cast aluminum | Die-cast aluminum | Die-cast aluminum | Die-cast aluminum | Die-cast aluminum | Die-cast aluminum |
| Cylinder head material | Aluminum alloy | Aluminum alloy | Aluminum alloy | Aluminum alloy | Aluminum alloy | Aluminum alloy |
| Fuel Consumption | ||||||
| 4WD (with stop-start) | 16 mpg-lmp city/ 22 mpg-lmp hwy/ 18 mpg-lmp combined* | 16 mpg-lmp city/ 22 mpg-lmp hwy/ 18 mpg-lmp combined* | 16 mpg-lmp city/ 22 mpg-lmp hwy/ 18 mpg-lmp combined* | 16 mpg-lmp city/ 22 mpg-lmp hwy/ 18 mpg-lmp combined* | 16 mpg-lmp city/ 22 mpg-lmp hwy/ 18 mpg-lmp combined* | 16 mpg-lmp city/ 19 mpg-lmp hwy/ 17 mpg-lmp combined* |
| 4WD (without stop-start) | 16 mpg-lmp city/ 21 mpg-lmp hwy/ 18 mpg-lmp combined* | 16 mpg-lmp city/ 21 mpg-lmp hwy/ 18 mpg-lmp combined* | 16 mpg-lmp city/ 21 mpg-lmp hwy/ 18 mpg-lmp combined* | 16 mpg-lmp city/ 21 mpg-lmp hwy/ 18 mpg-lmp combined* | 16 mpg-lmp city/ 21 mpg-lmp hwy/ 18 mpg-lmp combined* | 15 mpg-lmp city/ 19 mpg-lmp hwy/ 17 mpg-lmp combined* |
| *Fuel consumption ratings based on Government of Canada approved test methods. Actual fuel consumption will vary. |
Chassis Specifications
| Front suspension | Independent Short- and Long-Arm (SLA) coil-over-shocks with stabilizer bar |
| Front shocks | Gas charged |
| Rear suspension | Independent multi-link with stabilizer bar (mechanical load-levelling rear suspension available) |
| Rear shocks | Gas charged |
| Brakes | Power 4-wheel disc Anti-Lock Brake System with brake assist and Electronic Brake Force Distribution |
| Steering | Electronic Power-Assist (EPAS) rack-and-pinion steering |
| Front suspension | Independent Short- and Long-Arm (SLA) coil-over-shocks with stabilizer bar |
| Front shocks | Gas charged |
| Rear suspension | Independent multi-link with stabilizer bar (mechanical load-levelling rear suspension available) |
| Rear shocks | Gas charged |
| Brakes | Power 4-wheel disc Anti-Lock Brake System with brake assist and Electronic Brake Force Distribution |
| Steering | Electronic Power-Assist (EPAS) rack-and-pinion steering |
Towing
| Maximum Towing Capabilities – Heavy-Duty Trailer Towing Package | ||||
|---|---|---|---|---|
| Maximum Loaded Trailer Weight | 4,173 kg | 4,173 kg | 4,082.3 kg | 4,082.3 kg |
| Axle Ratio | Axle Ratio | GCWR (kg) | 4x4 (kg) | |
| Model | Non-limited Slip | Limited Slip | ||
| Non-MAX | 3.31 | 3.73 | 6,894 | 4,173 |
| MAX | - | 3.73 | 7,031 | 4,082 |
| Maximum Towing Capabilities – Heavy-Duty Trailer Towing Package | ||||
|---|---|---|---|---|
| Maximum Loaded Trailer Weight | 9,200 lbs. | 9,200 lbs. | 9,000 lbs. | 9,000 lbs. |
| Axle Ratio | Axle Ratio | GCWR (lbs.) | 4x4 (lbs.) | |
| Model | Non-limited Slip | Limited Slip | ||
| Non-MAX | 3.31 | 3.73 | 15,200 | 9,200 |
| MAX | - | 3.73 | 15,500 | 9,000 |
Highlights
| Expedition 4x4 | Expedition MAX 4x4 | |
| Engine Type | 3.5L EcoBoost® V6 with Ti-VCT | 3.5L EcoBoost® V6 with Ti-VCT |
| Fuel Consumption | XLT, Limited, Platinum: 14.7 L/100km city, 10.6 L/100km hwy, 12.9 L/100km combined* Timberline: 14.5 L/100km city, 12.3 L/100km hwy, 13.5 L/100km combined* |
Limited, Platinum: 14.7 L/100km city, 10.6 L/100km hwy, 12.9 L/100km combined* |
| *Fuel consumption ratings based on Government of Canada approved test methods. Actual fuel consumption will vary. | ||
| Vehicle highlights | ||
| Max Seating Capacity | 8 | 8 |
| Drive (System, Type of Train) | Control Trac® 4-wheel drive | Control Trac® 4-wheel drive |
| Transmissions | 10-speed automatic with SelectShift® | 10-speed automatic with SelectShift® |
| Wheelbase | Expedition 4x4 - 3,112 mm. | Expedition MAX 4x4 - 3,342 mm. |
| Maximum Towing Capacity | Expedition 4x4 - 4,173 kg. | MAX 4x4 - 4,082.3 kg. |
| Wheels Available | 18-inch Machined-Face Aluminum with Magnetic-Painted Pockets (XLT) | 18-inch Machined-Face Aluminum with Magnetic-Painted Pockets (XLT) |
| 18-inch Ebony-Painted (Timberline) | 18-inch Ebony-Painted (Timberline) | |
| 20-inch 6-Spoke Gloss Black-Painted (Optional XLT) | 20-inch 6-Spoke Gloss Black-Painted (Optional XLT) | |
| 20-inch Sparkle Silver Aluminum (Optional XLT) | 20-inch Sparkle Silver Aluminum (Optional XLT) | |
| 20-inch Bright Machined Aluminum with Dark Carbonized Grey-Painted Pockets (Standard Limited, Special Edition) | 20-inch Bright Machined Aluminum with Dark Carbonized Grey-Painted Pockets (Standard Limited, Special Edition) | |
| 22-inch 6-Spoke Polished Aluminum (King Ranch) | 22-inch 6-Spoke Polished Aluminum (King Ranch) | |
| 22-inch 6-Spoke Polished Aluminum (Optional on Platinum) | 22-inch 6-Spoke Polished Aluminum (Optional on Platinum) | |
| 22-inch 12-Spoke Polished Aluminum (Platinum, Optional Limited) | 22-inch 12-Spoke Polished Aluminum (Platinum, Optional Limited) | |
| 22-inch Premium Black-Painted Aluminum (Optional on Limited) | 22-inch Premium Black-Painted Aluminum (Optional on Limited) | |
| Warranty | Basic: 3 years/60,000 km | Basic: 3 years/60,000 km |
| Powertrain: 5 years/100,000 km | Powertrain: 5 years/100,000 km | |
| Safety Restraint System: 5 years/100,000 km | Safety Restraint System: 5 years/100,000 km | |
| Corrosion (Perforation Only): 5 years/unlimited distance | Corrosion (Perforation Only): 5 years/unlimited distance | |
| Roadside Assistance: 5 years/100,000 km | Roadside Assistance: 5 years/100,000 km |
| Expedition 4x4 | Expedition MAX 4x4 | |
| Engine Type | 3.5L EcoBoost® V6 with Ti-VCT | 3.5L EcoBoost® V6 with Ti-VCT |
| Fuel Consumption | XLT, Limited, Platinum: 16 mpg-lmp city, 22 mpg-lmp hwy, 18 mpg-lmp combined* Timberline: 16 mpg-lmp city, 19 mpg-lmp hwy, 17 mpg-lmp combined* |
Limited, Platinum: 16 mpg-lmp city, 22 mpg-lmp hwy, 18 mpg-lmp combined* |
| *Fuel consumption ratings based on Government of Canada approved test methods. Actual fuel consumption will vary. | ||
| Vehicle highlights | ||
| Max Seating Capacity | 8 | 8 |
| Drive (System, Type of Train) | Control Trac® 4-wheel drive | Control Trac® 4-wheel drive |
| Transmissions | 10-speed automatic with SelectShift® | 10-speed automatic with SelectShift® |
| Wheelbase | Expedition 4x4 - 122.5 in. | Expedition MAX 4x4 - 131.6 in |
| Maximum Towing Capacity | Expedition 4x4 - 9,200 lbs. | MAX 4x4 - 9,000 lbs. |
| Wheels Available | 18-inch Machined-Face Aluminum with Magnetic-Painted Pockets (XLT) | 18-inch Machined-Face Aluminum with Magnetic-Painted Pockets (XLT) |
| 18-inch Ebony-Painted (Timberline) | 18-inch Ebony-Painted (Timberline) | |
| 20-inch 6-Spoke Gloss Black-Painted (Optional XLT) | 20-inch 6-Spoke Gloss Black-Painted (Optional XLT) | |
| 20-inch Sparkle Silver Aluminum (Optional XLT) | 20-inch Sparkle Silver Aluminum (Optional XLT) | |
| 20-inch Bright Machined Aluminum with Dark Carbonized Grey-Painted Pockets (Standard Limited, Special Edition) | 20-inch Bright Machined Aluminum with Dark Carbonized Grey-Painted Pockets (Standard Limited, Special Edition) | |
| 22-inch 6-Spoke Polished Aluminum (King Ranch) | 22-inch 6-Spoke Polished Aluminum (King Ranch) | |
| 22-inch 6-Spoke Polished Aluminum (Optional on Platinum) | 22-inch 6-Spoke Polished Aluminum (Optional on Platinum) | |
| 22-inch 12-Spoke Polished Aluminum (Platinum, Optional Limited) | 22-inch 12-Spoke Polished Aluminum (Platinum, Optional Limited) | |
| 22-inch Premium Black-Painted Aluminum (Optional on Limited) | 22-inch Premium Black-Painted Aluminum (Optional on Limited) | |
| Warranty | Basic: 3 years/36,000 miles | Basic: 3 years/36,000 miles |
| Powertrain: 5 years/60,000 miles | Powertrain: 5 years/60,000 miles | |
| Safety Restraint System: 5 years/60,000 miles | Safety Restraint System: 5 years/60,000 miles | |
| Corrosion (Perforation Only): 5 years/Unlimited miles | Corrosion (Perforation Only): 5 years/Unlimited miles | |
| Roadside Assistance Program: 5 years/60,000 miles | Roadside Assistance Program: 5 years/60,000 miles |
