Wheels & Tires
Standard
- 22" Polished Aluminum Wheels
- Underbody-mounted full-size spare tire
- P285/45R22 all-season BSW tire
Key Features
Multicontour front seats with Active Motion®
Available Leather-trimmed heated and ventilated multicontour front bucket seats with Active Motion® technology that can help reduce fatigue during long drives.
...less
Running Boards, Power Deployable-Body-Colour Painted with Polished Stainless Accent
Power-deployable running boards are standard on Expedition Platinum and Platinum MAX. Each has a unique colour: polished stainless steel on Platinum and Platinum MAX.
...less
3rd Row 60/40 PowerFold®
Seat
PowerFold third-row seats with power recline offer added convenience and an easily configurable space. Power recline standard, PowerFold third-row standard on Limited and Platinum.
...less
Power and Handling
Handling
Standard
- Drive Train-4x4
- Fully boxed frame
- Suspension-Multilink Independent Rear
- Electronic Power-Assisted Steering (EPAS)
- Front and rear stabilizer bars
- Non-limited slip 3.31 rear axle
- Trailer Sway Control
- Front Tow Hooks
- Chrome Tow Hooks
Optional
- Heavy-Duty Engine Radiator (Only Available as part of the Heavy Duty Trailer Tow Package)
- Pro Trailer Back up Assist (Only Available as part of the Heavy Duty Trailer Tow Package)
- Integrated Trailer Brake Control (Only Available as part of the Heavy Duty Trailer Tow Package)
- Two Speed Transfer Case (Only Available as part of the Heavy Duty Trailer Tow Package)
- Limited slip 3.73 rear axle (Only Available as a part of the FX4 Off-Road Package)
Power
Standard
- 3.5L EcoBoost®
engine
- Transmission-10-Speed Automatic with Selectshift® capability
- Engine Block Heater
- Hill Start Assist™
Hill Descent Control™
- Fuel Tank: 94.6 litres (25 gallons)
Interior Features
Climate
Standard
- Tri-zone Electronic Automatic Temperature Control (TEATC)
- Rear auxiliary climate control
Comfort and Convenience
Standard
- Overhead console with sunglass holder and conversation mirror
- Large front floor console
- Cupholders-(2) 1st Row+(2) Bottle holders in front-doors (3) 3rd Row
- Door-Locks-Power w/Autolock
- Power windows with one-touch-up/down for driver's window
- Rear Window Defroster
- Power rear quarter windows
- Carpeted floor
- Carpeted first- and second-row floor mats
- Cargo Management System
- Cargo Protector
- Lighting-Illuminated Entry w/Approach Lamps
- Delayed Accessory Lighting
- Dome Lamp-1st Row and Cargo
- Reading Lamps-1st Row
- Power-Adjustable Pedals
Analogue RPM and Speed Gauges with digital minor gauges and 8" Center Display
- Rearview Mirror-Electrochromatic w/display screen
- Reverse Sensing System
- Front Park Assist
- Powerpoints-(3) 1st Row, (1) 2nd Row Centre Console, (1) Cargo Area
- AC Outlet: 110V
- Shifter-Rotary Gear Shift Dial, Centre Console Mounted
- Woodgrain appliqués
- Leather-wrapped power tilt/telescoping steering wheel with audio controls and Memory
- Heated Steering Wheel
- Cruise control
- Adaptive Cruise Control w/stop and go
- Lane Keeping Aid
- Enhanced Active Park Assist with Auto Park
- Universal garage door opener
- Sunvisors w/Dual Illuminated Mirrors
- Passenger assist handles
- Coat Hooks-(2) 2nd Row, (2) 3rd Row
- Grab Handles-(2) 1st Row, (2) 2nd Row and Liftgate
- Brushed Aluminum Scuff Plates
- Wipers-Intermittent Front and Rear
- Rain-sensing front wipers
- Windshield Wiper De-Icer
- Liftgate with flip-up glass
- Hands-Free Foot-Activated Power Liftgate
- MyKey®
- Push-Button Start
- PEPS (Passive Entry/Passive Start)
- Ambient Lighting
Optional
- All-Weather Floor Mats (RPO)
- Advanced Cargo Management System
- Cargo Mat-Reversible
Entertainment Systems
Standard
- Voice-Activated Navigation System
- SYNC®
3
- FordPass Connect™
4G WiFi Modem
- Connectivity Package
- Smart-Charging Multimedia USB Ports in Media Hub-Two (2)
- Smart-Charging Multimedia USB Ports, Second Row-Two (2)
- Smart-Charging USB Ports, Third Row-Two (2)
- Wireless Charging in Media Hub

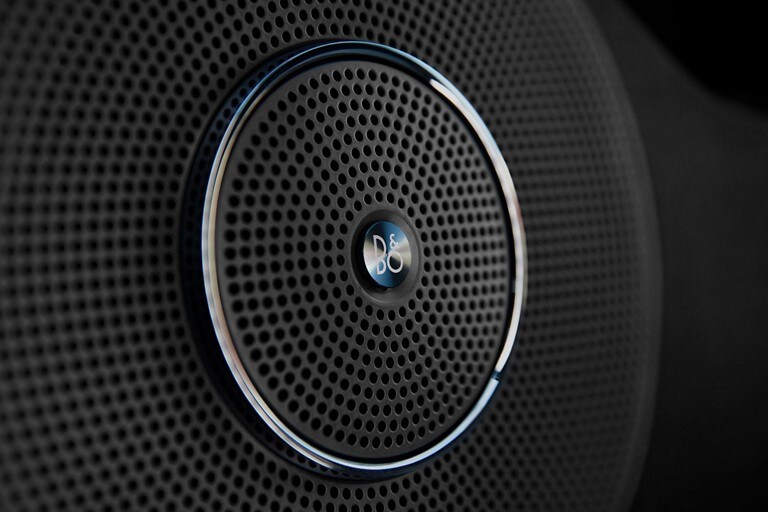

- Audio-B&O™
Sound System by Bang & Olufsen, 12-Speakers
Seating
Standard
- Front perforated leather-trimmed
- Multicontour front seats with Active Motion®
- Heated and Ventilated Front Seats
- 2nd-row 40/20/40 bench
- 2nd Row 40/20/40 PowerFold® Tip-and-Slide seats
- 3rd Row 60/40 PowerFold® Seat
- Heated second-row outboard seats
PowerFold® 3rd-row Seat
Optional
- 2nd Row Tip-and-Slide Bucket Seats
Exterior Features
Appearance
Standard
- Bumpers-Body-Colour
- Exhaust-Single, Hidden
- Door Handles-Satin Chrome
- Fog Lamps-LED
- Headlamps-LED
- Taillamps-LED
- Auto Highbeam Headlamp
- Daytime Running Lamps
- Roof Rack-Bright Stainless Side Rails
- Black luggage rack crossbars
- Running Boards, Power Deployable-Body-Colour Painted with Polished Stainless Accent
- Easy Fuel®
Capless Fuel Filler
- Grille, Five-Bar, Satin Aluminum Outer with Bright Chrome Inserts
- Satin Aluminum Mirror Caps
- Mirrors, Sideview-Power-Folding with Autofold, Memory, Power and Heated Glass, Turn Signal Indicators, Security Approach Lamps, Driver's side Auto-Dimming
- BLIS®
(Blind Spot Information System) with cross-traffic alert with Trailer Tow Monitoring
- Integrated Class IV Trailer hitch receiver
- Wiring Harness w/4&7 pin connector
Optional
- White Platinum Metallic Tri-Coat
- Ruby Red Tinted Clear Metallic
Windows & Glass
Standard
- Glass-Solar-Tinted Front/Privacy Tinted Rear
- Panoramic Vista Roof® (Power Open/Close with Power Shade)
Safety
Safety
Standard
- AdvanceTrac®
with Roll Stability Control™
(RSC®
)
- Dual-stage front airbags
- Three-point safety belts at all seating positions
- Seat belt pre-tensioners, Load Limiting retractors, dual-stage front airbags, driver seat position sensing & crash severity sensing
- Safety Canopy® System
- Side-Impact Airbags
- Child Safety Locks-Rear
- LATCH (Lower Anchors & Tethers for Children)
- Brakes-4-Wheel Disc (ABS)
- Tire-Pressure Monitoring System (TPMS)
- SOS Post-Crash Alert System™
- Traction Control (Brake Assist & Engine Braking)
Security
Standard
- Security-SecuriLock® Passive Anti-Theft System (PATS)
- Remote keyless entry system
- Perimeter Anti-theft Alarm
- SecuriCode™
keyless entry keypad
- Rear View Camera
- 360-degree Camera with Split View
- Second-Row Outboard Seating Inflatable Safety Belts
Packages
Free Standing Packages
Standard
- Advanced Security Package
- Driver Assistance Package
- Cargo Package
Optional
- Heavy-Duty Trailer Tow Package
Standard Features
Standard
- Equipment Group 600A
Accessories
Exterior
Standard
- Remote Start System
Interior
Optional
- Dual Headrest Rear Seat Entertainment System
Specifications
| Exterior Dimensions |
||
|---|---|---|
| Expedition 4x4 [mm] |
Expedition MAX 4x4 [mm] |
|
| Wheelbase |
3112 |
3342 |
| Length |
5333 |
5635 |
| Height | 1941 |
1936 |
| Width - without Mirrors | 2030 |
2030 |
| Width - with Mirrors | 2373 |
2373 |
| Width - with Mirrors Folded | 2124 |
2124 |
| Front Track | 1716 |
1716 |
| Rear Track | 1708 | 1708 |
| Front Overhang | 971 | 971 |
| Rear Overhang | 1251 | 1322 |
| Approach Angle (degrees) | 23,3 | 23,7 |
| Departure Angle (degrees) | 21,9 | 21,3 |
| Ramp Breakover Angle (degrees) | 21,4 | 20,1 |
| Minimum Running Ground Clearance |
248 | 246 |
Exterior Dimensions |
||
|---|---|---|
Expedition 4x4 [in.] |
Expedition MAX 4x4 [in.] |
|
| Wheelbase |
122.5 | 131.6 |
| Length |
210.0 |
221.9 |
| Height |
76.4 |
76.2 |
| Width - without Mirrors | 79.9 | 79.9 |
| Width - with Mirrors |
93.4 |
93.4 |
| Width - with Mirrors Folded |
83.6 |
83.6 |
| Front Track |
67.6 |
67.6 |
| Rear Track |
67.2 | 67.2 |
| Front Overhang |
38.2 | 38.2 |
| Rear Overhang | 49.3 | 52.0 |
| Approach Angle (degrees) |
23.3 | 23.7 |
| Departure Angle (degrees) |
21.9 | 21.3 |
| Ramp Breakover Angle (degrees) |
21.4 | 20.1 |
| Minimum Running Ground Clearance |
9.8 | 9.7 |
| Interior Dimensions |
||
|---|---|---|
| Expedition 4x4 [mm] |
Expedition MAX 4x4 [mm] |
|
| Head Room - 1st Row |
1068 |
1068 |
| Head Room - 2nd Row |
1015 |
1015 |
| Head Room - 3rd Row |
948 | 950 |
| Leg Room - 1st Row (Max.) |
1115 | 1115 |
| Leg Room - 2nd Row |
1053 | 1053 |
| Leg Room - Second Row (Seat Full Rearward) [mm] |
1081 | 1081 |
| Leg Room - 3rd Row |
917 | 917 |
| Leg Room - Third Row (Second Row Seat Full Forward) [mm] | 1038 | 1038 |
| Hip Room - 1st Row | 1580 | 1580 |
| Hip Room - 2nd Row |
1591 | 1591 |
| Hip Room - 3rd Row |
1305 | 1305 |
| Shoulder Room - 1st Row |
1648 | 1648 |
| Shoulder Room - 2nd Row |
1647 | 1647 |
| Shoulder Room - 3rd Row |
1630 | 1630 |
| Interior Dimensions |
||
|---|---|---|
| Expedition 4x4 [in.] |
Expedition MAX 4x4 [in.] |
|
| Head Room - 1st Row | 42.0 |
42.0 |
| Head Room - 2nd Row |
40.0 | 40.0 |
| Head Room - 3rd Row |
37.3 | 37.4 |
| Leg Room - 1st Row (Max.) |
43.9 | 43.9 |
| Leg Room - 2nd Row |
41.5 | 41.5 |
| Leg Room - Second Row (Seat Full Rearward) [mm] |
42.6 |
42.6 |
| Leg Room - 3rd Row |
36.1 | 36.1 |
| Leg Room - Third Row (Second Row Seat Full Forward) [mm] | 40.9 | 40.9 |
| Hip Room - 1st Row | 62.2 | 62.2 |
| Hip Room - 2nd Row |
62.6 | 62.6 |
| Hip Room - 3rd Row | 51.4 | 51.4 |
| Shoulder Room - 1st Row |
64.9 | 64.9 |
| Shoulder Room - 2nd Row | 64.8 | 64.8 |
| Shoulder Room - 3rd Row | 64.2 | 64.3 |
| Capacities: Interior Volume |
||
|---|---|---|
| Expedition 4x4 (L) | Expedition MAX 4x4 [L] |
|
| Passenger Volume |
4867.9 |
4871.7 |
| Cargo Volume Behind 1st Row | 2961.7 | 3439.2 |
| Cargo Volume Behind 2nd Row |
1627.0 | 2076.8 |
| Cargo Volume Behind Second Row - Second Row Seat Full Forward |
1800.0 | 2253.8 |
| Cargo Volume Behind 3rd Row |
546.4 | 972.2 |
| Cargo Volume Behind Third Row - Third Row Seat Full Upright | 592.8 |
1018.9 |
| Capacities: Fuel
|
||
| Expedition 4x4 [L] |
Expedition MAX 4x4 [L] |
|
| Fuel Capacity |
94.6 litres |
113.5 litres |
| Capacities: Weight | ||
| Expedition 4x4 [kg.] |
Expedition MAX 4x4 [kg.] |
|
| Estimated Base Curb Weight | 2550.6 |
2628.1 |
| Seating:
|
||
| Maximum Seating Capacity |
8 |
8 |
| Capacities: Interior Volume |
||
|---|---|---|
| Expedition 4x4 [cu.ft.] |
Expedition MAX 4x4 [cu.ft.] |
|
| Passenger Volume | 171.9 | 172.0 |
| Cargo Volume Behind 1st Row | 104.6 | 121.5 |
| Cargo Volume Behind 2nd Row |
57.5 | 73.3 |
| Cargo Volume Behind Second Row - Second Row Seat Full Forward |
63.6 | 79.6 |
| Cargo Volume Behind 3rd Row |
19.3 | 34.3 |
| Cargo Volume Behind Third Row - Third Row Seat Full Upright |
20.9 | 36.0 |
| Capacities: Fuel
|
||
| Expedition 4x4 [gallons] |
Expedition MAX 4x4 [gallons] |
|
| Fuel Capacity |
25 gallons | 30 gallons |
| Capacities: Weight
|
||
| Expedition 4x4 [lbs.] |
Expedition MAX 4x4 [lbs.] |
|
| Estimated Base Curb Weight |
5623 | 5794 |
| Seating:
|
||
| Maximum Seating Capacity |
8 | 8 |
Engine Specifications |
||||
|---|---|---|---|---|
| Expedition 4x4 (XLT, Limited) |
Expedition 4x4 (Platinum) |
Expedition MAX 4x4 (Limited) |
Expedition MAX 4x4 (Platinum) |
|
| Drive type |
Control Trac® 4-wheel drive | Control Trac® 4-wheel drive |
Control Trac® 4-wheel drive | Control Trac® 4-wheel drive |
| Engine type |
3.5L EcoBoost® V6 | 3.5L EcoBoost®
V6 |
3.5L EcoBoost® V6 | 3.5L EcoBoost® V6 |
| Transmission |
10-speed automatic with SelectShift®
|
10-speed automatic with SelectShift®
|
10-speed automatic with SelectShift® | 10-speed automatic with SelectShift®
|
| Final drive ratio |
3.31 (non-limited slip standard); 3.73 (limited slip optional) | 3.31 (non-limited slip standard); 3.73 (limited slip optional) |
3.73 (limited slip available) |
3.73 (limited slip available) |
Fuel consumption *Fuel consumption ratings based on Transport Canada approved test methods. Actual fuel consumption will vary. |
14.1 L/100km city, 10.6 L/100km hwy, 12.5 L/100km combined* |
14.1 L/100km city, 10.6 L/100km hwy, 12.5 L/100km combined* |
14.7 L/100km city, 11.2 L/100km hwy, 13.1 L/100km combined* |
14.7 L/100km city, 11.2 L/100km hwy, 13.1 L/100km combined* |
| Horsepower (SAE net @rpm) |
375 @ 5,000 |
400 @ 5,000 |
375 @ 5,000 |
400 @ 5,000 |
| Torque (lb.-ft. @rpm) |
470 @ 2,250 |
480 @ 2,250 |
470 @ 2,250 |
480 @ 2,250 |
| Compression ratio | 10.0:1 |
10.0:1 |
10.0:1 |
10.0:1 |
Valvetrain |
Twin independent Variable Camshaft Timing (Ti-VCT) |
Twin independent Variable Camshaft Timing (Ti-VCT) |
Twin independent Variable Camshaft Timing (Ti-VCT) |
Twin independent Variable Camshaft Timing (Ti-VCT) |
| Fuel delivery | Gasoline Direct-injection |
Gasoline Direct-injection |
Gasoline Direct-injection |
Gasoline Direct-injection |
| Technology |
Twin Turbochargers |
Twin Turbochargers |
Twin Turbochargers |
Twin Turbochargers |
| Exhaust | Single, stainless steel |
Single, stainless steel |
Single, stainless steel |
Single, stainless steel |
| Engine block type |
Die-cast aluminum |
Die-cast aluminum |
Die-cast aluminum |
Die-cast aluminum |
| Cylinder head material |
Aluminum alloy |
Aluminum alloy |
Aluminum alloy |
Aluminum alloy |
| Engine Specifications |
||||
|---|---|---|---|---|
| Expedition 4x4 (XLT, Limited) | Expedition 4x4 (Platinum) |
Expedition MAX 4x4 (Limited) |
Expedition MAX 4x4 (Platinum) |
|
| Drive type |
Control Trac® 4-wheel drive | Control Trac®
4-wheel drive |
Control Trac® 4-wheel drive | Control Trac®
4-wheel drive |
| Engine type |
3.5L EcoBoost®
V6 |
3.5L EcoBoost®
V6 |
3.5L EcoBoost®
V6 |
3.5L EcoBoost®
V6 |
| Transmission |
10-speed automatic with SelectShift®
|
10-speed automatic with SelectShift® | 10-speed automatic with SelectShift® | 10-speed automatic with SelectShift® |
| Final drive ratio |
3.31 (non-limited slip standard); 3.73 (limited slip optional) |
3.31 (non-limited slip standard); 3.73 (limited slip optional) |
3.73 (limited slip available) |
3.73 (limited slip available) |
Fuel consumption *Fuel consumption ratings based on Transport Canada approved test methods. Actual fuel consumption will vary. |
20 mpg-lmp city/ 27 mpg-lmp hwy/ 23 mpg-lmp combined* |
20 mpg-lmp city/ 27 mpg-lmp hwy/ 23 mpg-lmp combined* |
19 mpg-lmp city/ 25 mpg-lmp hwy/ 22 mpg-lmp combined* |
19 mpg-lmp city/ 25 mpg-lmp hwy/ 22 mpg-lmp combined* |
| Horsepower (SAE net @rpm) |
375 @ 5,000 |
400 @ 5,000 |
375 @ 5,000 |
400 @ 5,000 |
| Torque (lb.-ft. @rpm) |
470 @ 2,250 |
480 @ 2,250 |
470 @ 2,250 |
480 @ 2,250 |
| Compression ratio |
10.0:1 |
10.0:1 |
10.0:1 |
10.0:1 |
Valvetrain |
Twin independent Variable Camshaft Timing (Ti-VCT) |
Twin independent Variable Camshaft Timing (Ti-VCT) |
Twin independent Variable Camshaft Timing (Ti-VCT) |
Twin independent Variable Camshaft Timing (Ti-VCT) |
| Fuel delivery |
Gasoline Direct-injection |
Gasoline Direct-injection |
Gasoline Direct-injection |
Gasoline Direct-injection |
| Technology |
Twin Turbochargers |
Twin Turbochargers | Twin Turbochargers | Twin Turbochargers |
| Exhaust | Single, stainless steel |
Single, stainless steel |
Single, stainless steel |
Single, stainless steel |
| Engine block type |
Die-cast aluminum | Die-cast aluminum | Die-cast aluminum | Die-cast aluminum |
| Cylinder head material | Aluminum alloy |
Aluminum alloy |
Aluminum alloy | Aluminum alloy |
| Front suspension | Independent Short- and Long-Arm (SLA) coil-over-shocks with stabilizer bar |
| Front shocks | Gas charged |
| Rear suspension | Independent multi-link with stabilizer bar (mechanical load-levelling rear suspension available) |
| Rear shocks | Gas charged |
| Brakes |
Power 4-wheel disc Anti-Lock Brake System with brake assist and Electronic Brake Force Distribution |
| Steering |
Electronic Power-Assist (EPAS) rack-and-pinion steering |
| Front suspension |
Independent Short-and Long-Arm (SLA) coil-over-shocks with stabilizer bar |
| Front shocks |
Gas charged |
| Rear suspension |
Independent multi-link with stabilizer bar (mechanical load-levelling rear suspension available) |
| Rear shocks |
Gas charged |
| Brakes |
Power 4-wheel disc Anti-Lock Brake System with brake assist and Electronic Brake Force Distribution |
| Steering |
Electronic Power-Assist (EPAS) rack-and-pinion steering |
Maximum Towing Capabilities – Heavy-Duty Trailer Towing Package
Switch to Imperial Units Switch to Metric Units| Maximum Loaded Trailer Weight |
||||
|---|---|---|---|---|
| Axle Ratio |
Axle Ratio |
GCWR (kg) | 4x4 (kg) | |
| Model | Non-limited Slip |
Limited Slip |
||
| Non-MAX |
3.31 | 3.73 |
6804 |
4173 |
| MAX | - |
3.73 |
6804 |
4127 |
Maximum Loaded Trailer Weight |
||||
|---|---|---|---|---|
| Axle Ratio |
Axle Ratio |
GCWR (lbs.) |
4x4 (lbs.) |
|
| Model | Non-limited Slip | Limited Slip | ||
| Non-MAX |
3.31 | 3.73 | 15200 |
9200 |
| MAX |
- | 3.73 | 15300 | 9100 |
Fuel Consumption |
||
|---|---|---|
| Expedition 4x4 |
Expedition MAX 4x4 |
|
| Engine Type |
3.5L EcoBoost® V6 with TI-VCT | 3.5L EcoBoost®
V6 with Ti-VCT |
Fuel consumption
*Fuel consumption ratings based on Transport Canada approved test methods. Actual fuel consumption will vary. |
14.1 L/100 km city, 11.2 L/100 km hwy, 13.1 L/100 km combined* |
14.7 L/100 km city, 11.4 L/100 km hwy, 13.4 L/100 km combined* |
| Vehicle highlights |
||
| Max Seating Capacity |
8 | |
| Drive (System, Type of Train) |
Control Trac®
4-wheel drive |
|
| Transmissions |
6-speed automatic with SelectShift®
|
|
| Wheelbase |
Expedition 4x4 - 3,022 mm. | |
| Expedition MAX 4x4 - 3,327 mm. |
||
| Maximum Towing Capacity |
Non-MAX 4x4 - 4,173 kg. |
|
| MAX 4x4 - 4,127 kg. |
||
Wheels Available |
18-inch bright machined-aluminum 20-inch machined aluminum with Magnetic painted windows 20-inch polished aluminum (Limited) 20-inch magnetic painted wheel (Limited) 20-inch polished aluminum (Platinum) 22-inch polished aluminum (Platinum) |
|
Warranty |
Basic: 3 years/60,000 km
Corrosion (Perforation Only): 5 years/unlimited km
Powertrain: 5 years/100,000 km
Safety Restraint System: 5 years/100,000 km
Roadside Assistance Program: 5 years/100,000 km |
Fuel Consumption |
||
|---|---|---|
| Expedition 4x4 |
Expedition MAX 4x4 |
|
| Engine Type |
3.5L EcoBoost®
V6 with Ti-VCT |
3.5L EcoBoost®
V6 with Ti-VCT |
Fuel consumption
*Fuel consumption ratings based on Transport Canada approved test methods. Actual fuel consumption will vary. |
20 mpg-lmp city/ 27 mpg-lmp hwy/ 23 mpg-lmp combined* |
19 mpg-lmp city/ 25 mpg-lmp hwy/ 22 mpg-lmp combined* |
| Vehicle highlights | ||
| Max Seating Capacity | 8 | |
| Drive (System, Type of Train) | Control Trac®
4-wheel drive |
|
| Transmissions |
6-speed automatic with SelectShift®
|
|
| Wheelbase |
Expedition 4x4 - 119.0 in. |
|
| Expedition MAX 4x4 - 131.0 in. |
||
| Maximum Towing Capacity |
Non-MAX 4x4 - 9,200 lbs. |
|
| MAX 4x4 - 9,100 lbs. |
||
| Wheels Available |
18-inch bright machined-aluminum 20-inch machined aluminum with Magnetic painted windows 20-inch polished aluminum (Limited) 20-inch magnetic painted wheel (Limited) 20-inch polished aluminum (Platinum) 22-inch polished aluminum (Platinum) |
|
| Warranty |
Basic: 3 years/36,000 miles
Corrosion (Perforation Only): 5 years/unlimited miles
Powertrain: 5 years/60,000 miles
Safety Restraint System: 5 years/60,000 miles
Roadside Assistance Program: 5 years/60,000 miles |
